MAIN FUNCTION
NAVIGATION - GUIDANCE
previous destinations
DISPLAY FLOW CHARTS
set speech synthesis
activate/deactivate road names
map data base description
delete last destinations
STOP/RESUME GUIDANCE
MAP
SELECT DESTINATION
enter an address
country:
town:
road:
N°/_:
curr. loc
Archive
POI
near
on the route
around current place
search by name
GPS coordinates
directory
CHOICE A choice A1 choice A2 CHOICE B...
GUIDANCE OPTIONS
d e fi n e c a l c u l a t i o n c r i t e r i a
fastest
shortest
distance/time
with tolls
with ferry
t r a f fi c i n f o
JOURNEY LEGS AND ROUTE
add a stage
enter an address
directory
previous destinations
order/delete journey legs
divert route
chosen destination
MAP ORIENTATION
vehicle direction
north direction
3D view
MAP DETAILS
administration and safety
town halls, town centre
universities, colleges
hospitals
hotels, restaurants and shops
hotels
restaurants
vineyards
Page 212 of 255
199
4
4
4
4
4
4
4
4
3
4
4
4
4
3
3
4
4
1
2
3
4
4
4
3
4
4
4
4
4
1
2
3
3
3
3
3
3
3
3
2
3
2
2
3
3
3
3
22
4
4
2
4
4
3
3
4
4
4
3
3
22 business centres
supermarkets, shopping
culture, tourism and shows
tourism
culture and museums
casinos and nightlife
cinemas and theatres
shows and exhibitions
sports and open air centres
sports centres
golf courses
skating rinks, bowling alleys
winter sports resorts
parks, gardens
theme parks
transport and automobile
airports, ports
stations, bus stations
vehicle rental
lay-bys, car parks
service stations, garages

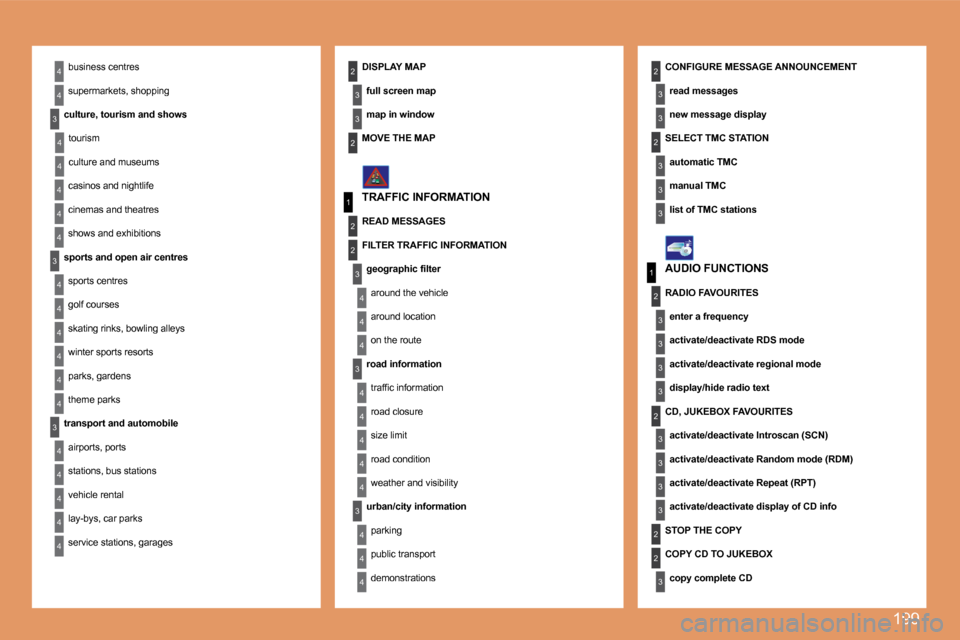

DISPLAY MAP
full screen map
map in window
CONFIGURE MESSAGE ANNOUNCEMENT
read messages
new message display
TRAFFIC INFORMATION
AUDIO FUNCTIONS
MOVE THE MAP
READ MESSAGES
FILTER TRAFFIC INFORMATION
g e o g r a p h i c fi l t e r
around the vehicle
around location
on the route
road information
t r a f fi c i n f o r m a t i o n
road closure
size limit
road condition
weather and visibility
urban/city information
parking
public transport
demonstrations
SELECT TMC STATION
automatic TMC
manual TMC
list of TMC stations
RADIO FAVOURITES
enter a frequency
activate/deactivate RDS mode
activate/deactivate regional mode
display/hide radio text
CD, JUKEBOX FAVOURITES
activate/deactivate Introscan (SCN)
activate/deactivate Random mode (RDM)
activate/deactivate Repeat (RPT)
activate/deactivate display of CD info
STOP THE COPY
COPY CD TO JUKEBOX
copy complete CD
Page 213 of 255
200
4
3
4
5
5
5
5
4
4
4
3
4
3
4
4
3
3
3
3
2
5
5
1
2
3
4
3
3
3
3
3
2
3
3
3
2
4
4
2
4
3
4
4
4
3
4
4
3
3
4
4
4
4
4
4
5
5
5
5
2
3
5
5
5
3

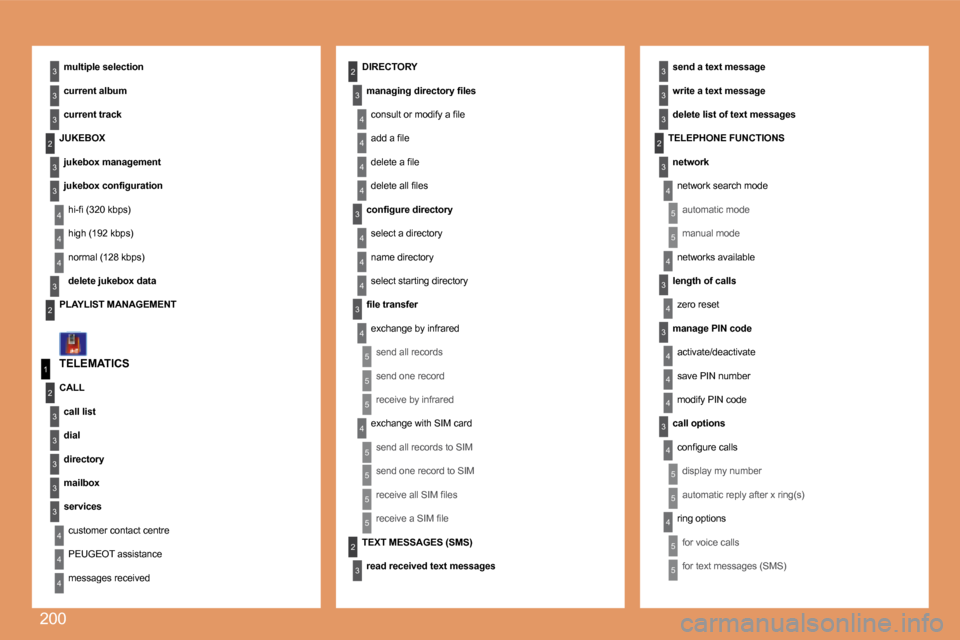

TELEMATICS
multiple selection
current album
current track
send a text message
write a text message
delete list of text messages
DIRECTORY
m a n a g i n g d i r e c t o r y fi l e s
c o n s u l t o r m o d i f y a fi l e
a d d a fi l e
d e l e t e a fi l e
d e l e t e a l l fi l e s
c o n fi g u r e d i r e c t o r y
select a directory
name directory
select starting directory
fi l e t r a n s f e r
exchange by infrared
send all records
send one record
receive by infrared
exchange with SIM card
send all records to SIM
send one record to SIM
r e c e i v e a l l S I M fi l e s
r e c e i v e a S I M fi l e
JUKEBOX
jukebox management
j u k e b o x c o n fi g u r a t i o n
h i - fi ( 3 2 0 k b p s )
high (192 kbps)
normal (128 kbps)
delete jukebox data
PLAYLIST MANAGEMENT
CALL
call list
dial
directory
mailbox
services
customer contact centre
PEUGEOT assistance EOT
messages received
TEXT MESSAGES (SMS)
read received text messages
TELEPHONE FUNCTIONS
network
network search mode
automatic mode
manual mode
networks available
length of calls
zero reset
manage PIN code
activate/deactivate
save PIN number
modify PIN code
call options
c o n fi g u r e c a l l s
display my number
automatic reply after x ring(s)
ring options
for voice calls
for text messages (SMS)
Page 214 of 255
201
1
2
3
3
3
3
2
3
3
4
4
1
3
2
3
1
2
3
3
2
2
2
1
2
2
2
1
1
1

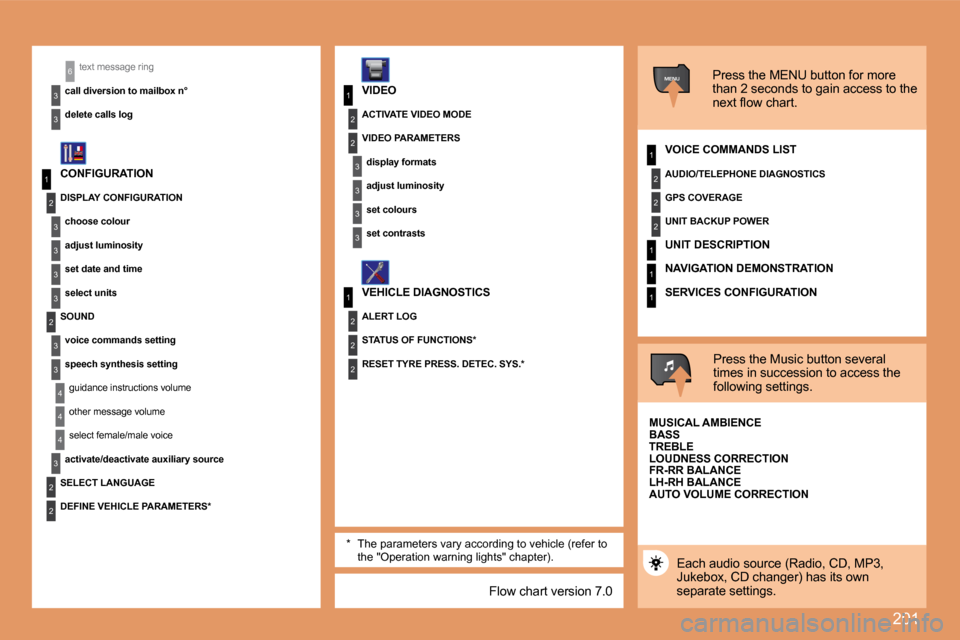

MENU
4
3
2
2
3
3
6text message ring
call diversion to mailbox n°
delete calls log* The parameters vary according to vehicle (refer to the "Operation warning lights" chapter).
CONFIGURATION
VIDEO
VEHICLE DIAGNOSTICS Press the MENU button for more
than 2 seconds to gain access to the
n e x t fl o w c h a r t .
VOICE COMMANDS LIST
Press the Music button several
times in succession to access the
following settings.
AUTO VOLUME CORRECTION
SELECT LANGUAGE
Each audio source (Radio, CD, MP3,
Jukebox, CD changer) has its own
separate settings.
DISPLAY CONFIGURATION
choose colour
adjust luminosity
set date and time
select units
SOUND voice commands setting
speech synthesis settingguidance instructions volume
other message volume
select female/male voice
activate/deactivate auxiliary source
DEFINE VEHICLE PARAMETERS* RESET TYRE PRESS. DETEC. SYS.*
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
display formats
adjust luminosity
set colours
set contrasts
ALERT LOG
STATUS OF FUNCTIONS* AUDIO/TELEPHONE DIAGNOSTICS
GPS COVERAGE
UNIT BACKUP POWER
UNIT DESCRIPTION
NAVIGATION DEMONSTRATION
SERVICES CONFIGURATION
MUSICAL AMBIENCE
BASS
TREBLE
LOUDNESS CORRECTION
FR-RR BALANCE
LH-RH BALANCE
Flow chart version 7.0
Page 215 of 255
213

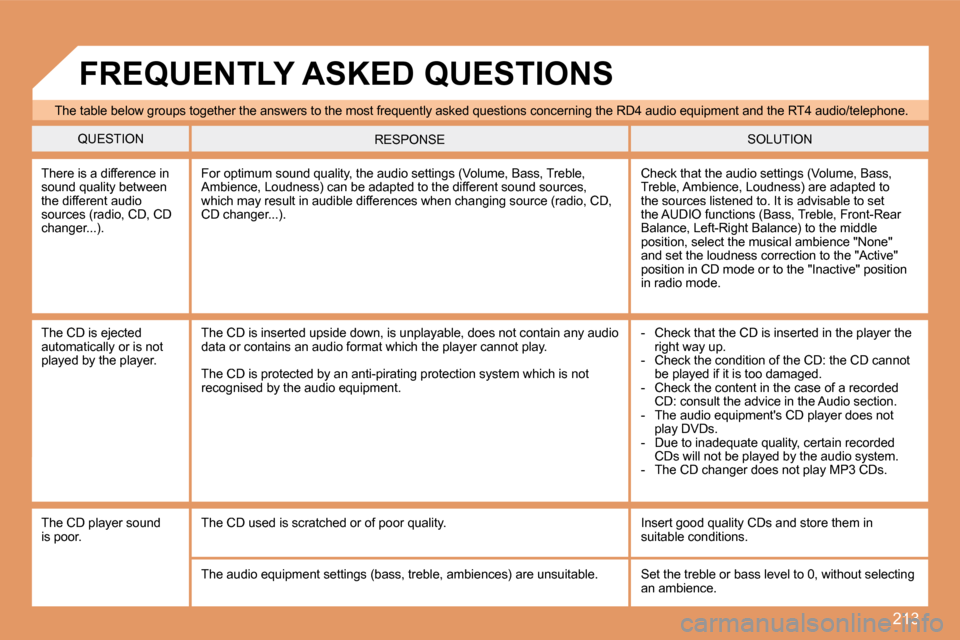

The table below groups together the answers to the most frequently asked questions concerning the RD4 audio equipment and the RT4 audio/telephone.

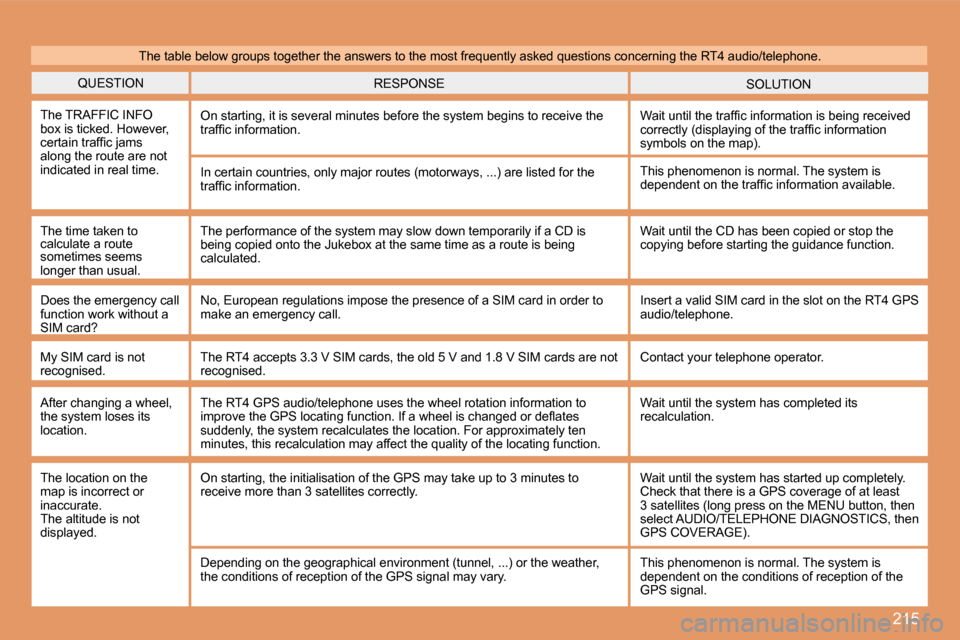

QUESTION SOLUTION RESPONSE
There is a difference in sound quality between the different audio sources (radio, CD, CD changer...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD, CD changer...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the Audio section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system. - The CD changer does not play MP3 CDs.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
Page 216 of 255
214
QUESTION SOLUTION RESPONSE

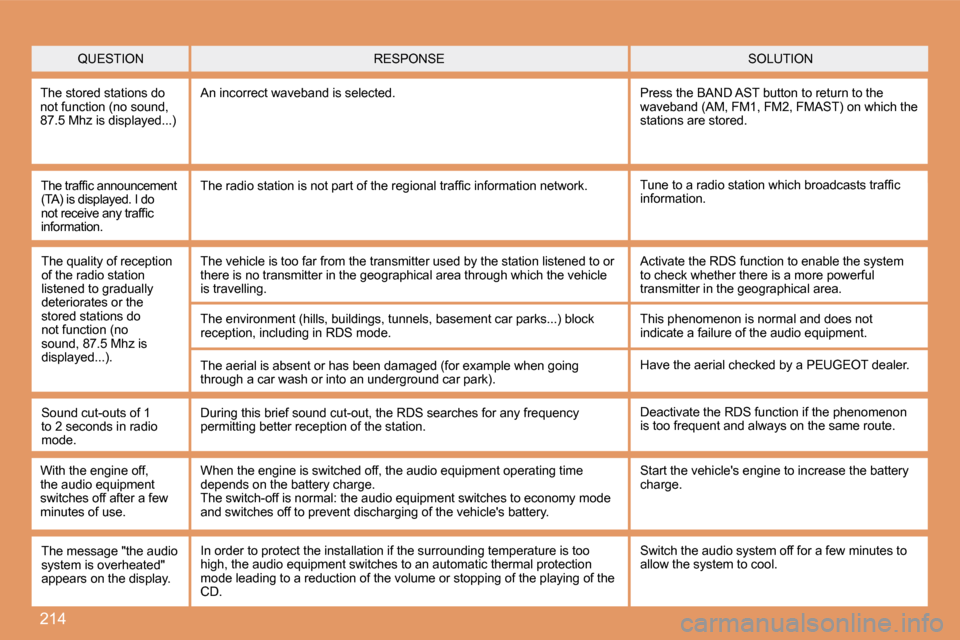

The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
T h e t r a f fi c a n n o u n c e m e n t (TA) is displayed. I do n o t r e c e i v e a n y t r a f fi c information.
T u n e t o a r a d i o s t a t i o n w h i c h b r o a d c a s t s t r a f fi c information. T h e r a d i o s t a t i o n i s n o t p a r t o f t h e r e g i o n a l t r a f fi c i n f o r m a t i o n n e t w o r k .
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.
Page 217 of 255
215
QUESTION SOLUTION RESPONSE
The TRAFFIC INFO box is ticked. However, c e r t a i n t r a f fi c j a m s along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the t r a f fi c i n f o r m a t i o n . W a i t u n t i l t h e t r a f fi c i n f o r m a t i o n i s b e i n g r e c e i v e d c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f fi c i n f o r m a t i o n symbols on the map).
In certain countries, only major routes (motorways , ...) are listed for the t r a f fi c i n f o r m a t i o n .
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is d e p e n d e n t o n t h e t r a f fi c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempor arily if a CD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
Does the emergency call function work without a SIM card?
No, European regulations impose the presence of a SIM card in order to make an emergency call. Insert a valid SIM card in the slot on the RT4 GPS audio/telephone.
My SIM card is not recognised. The RT4 accepts 3.3 V SIM cards, the old 5 V and 1.8 V SIM cards are not recognised. Contact your telephone operator.
After changing a wheel, the system loses its location.
The RT4 GPS audio/telephone uses the wheel rotatio n information to i m p r o v e t h e G P S l o c a t i n g f u n c t i o n . I f a w h e e l i s c h a n g e d o r d e fl a t e s suddenly, the system recalculates the location. For approximately ten minutes, this recalculation may affect the quality of the locating function.
Wait until the system has completed its recalculation.
The table below groups together the answers to the most frequently asked questions concerning the RT4 audio/telephone.
The location on the map is incorrect or inaccurate. The altitude is not displayed.
On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 3 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 3 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
Page 218 of 255
202

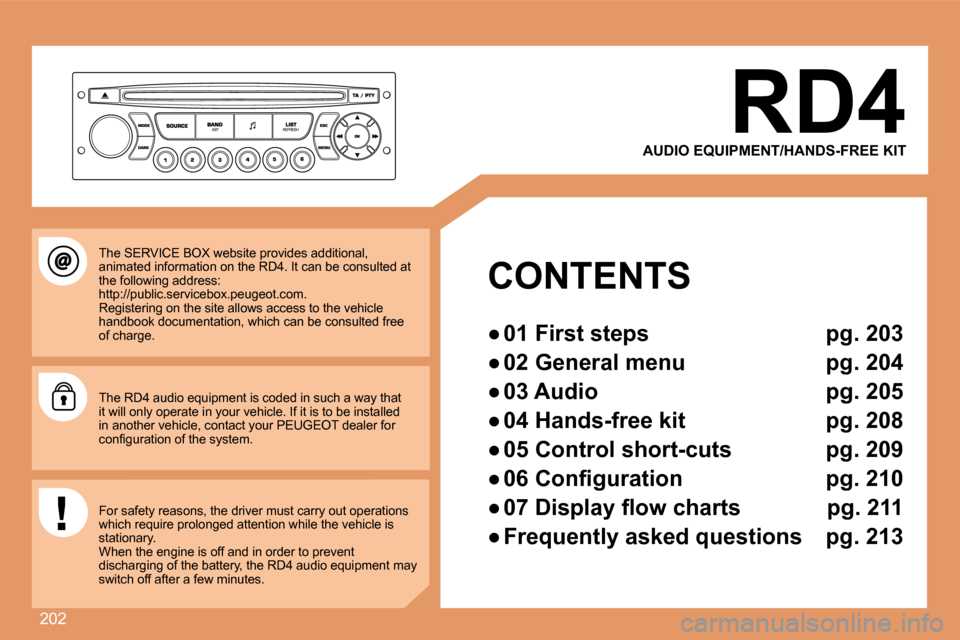

RD4
AUDIO EQUIPMENT/HANDS-FREE KIT
CONTENTS
Page 219 of 255
203
1
22
10101111
131314141515
33445566778899
1212
01 FIRST STEPS

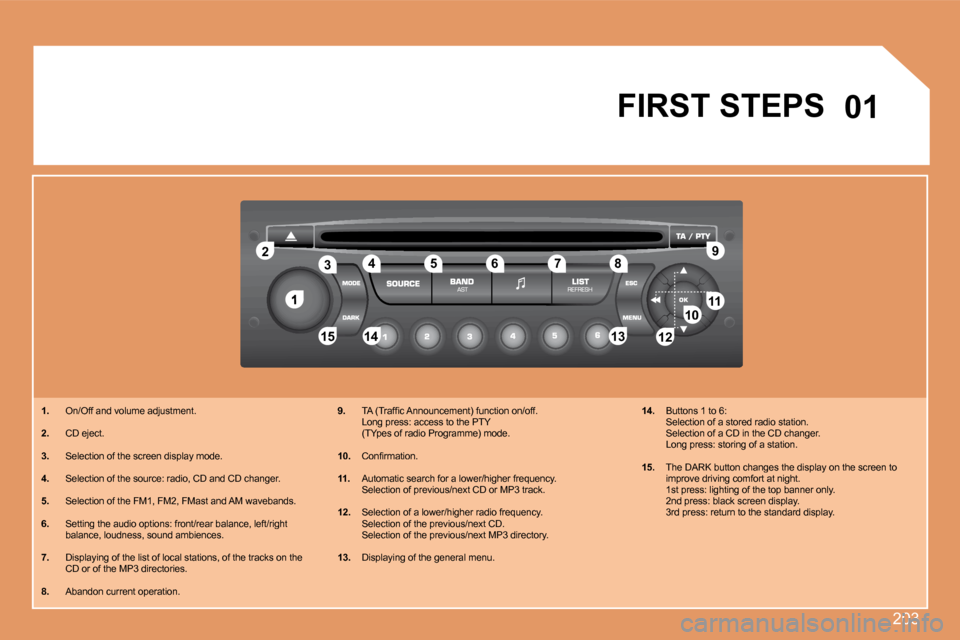

1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the screen display mode.
4. Selection of the source: radio, CD and CD changer.
5. Selection of the FM1, FM2, FMast and AM wavebands .
6. Setting the audio options: front/rear balance, left/right balance, loudness, sound ambiences.
7. Displaying of the list of local stations, of the tracks on the CD or of the MP3 directories.
8. Abandon current operation.
9. T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . Long press: access to the PTY (TYpes of radio Programme) mode.
10. C o n fi r m a t i o n .
11. Automatic search for a lower/higher frequency. Selection of previous/next CD or MP3 track.
12. Selection of a lower/higher radio frequency. Selection of the previous/next CD. Selection of the previous/next MP3 directory.
13. Displaying of the general menu.
14. Buttons 1 to 6: Selection of a stored radio station. Selection of a CD in the CD changer. Long press: storing of a station.
15. The DARK button changes the display on the screen to improve driving comfort at night. 1st press: lighting of the top banner only. 2nd press: black screen display. 3rd press: return to the standard display.
Page 220 of 255
204

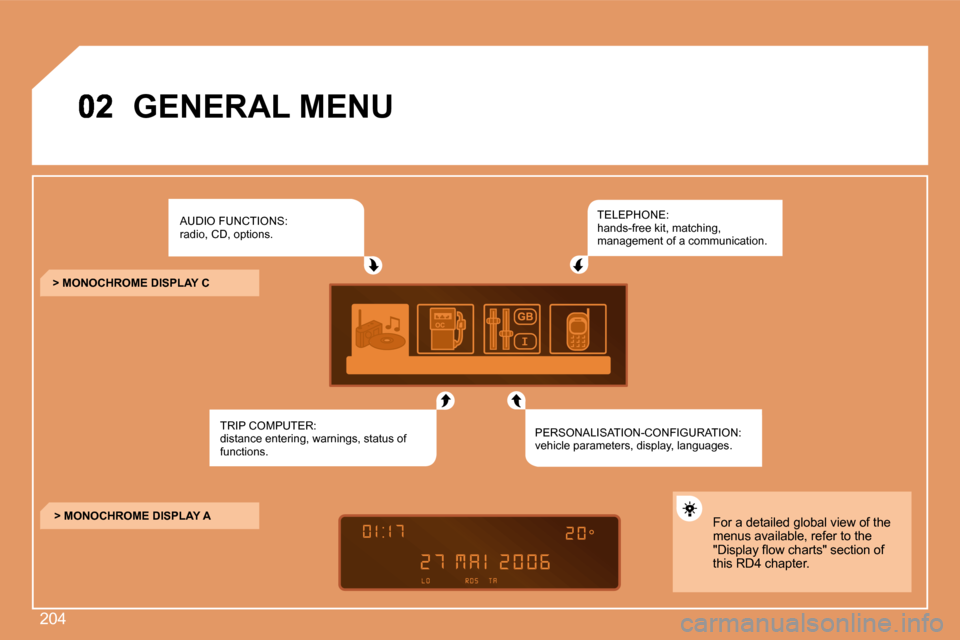

GENERAL MENU
AUDIO FUNCTIONS: radio, CD, options.
TRIP COMPUTER: distance entering, warnings, status of functions.
TELEPHONE: hands-free kit, matching, management of a communication.
PERSONALISATION-CONFIGURATION: vehicle parameters, display, languages.
> MONOCHROME DISPLAY C
> MONOCHROME DISPLAY A For a detailed global view of the menus available, refer to the " D i s p l a y fl o w c h a r t s " s e c t i o n o f this RD4 chapter.
