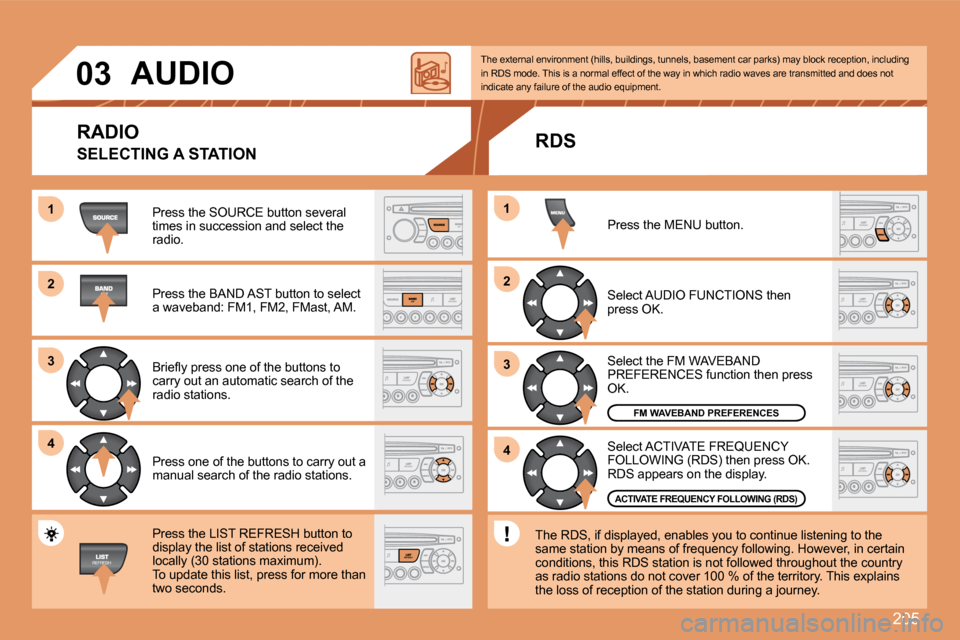

03 AUDIO
Press the SOURCE button several times in succession and select the radio.
Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
Select ACTIVATE FREQUENCY
FOLLOWING (RDS) then press OK.
RDS appears on the display.
Select the FM WAVEBAND
PREFERENCES function then press
OK.
Select AUDIO FUNCTIONS then
press OK.
Press the MENU button.
FM WAVEBAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)
The external environment (hills, buildings, tunnel
s, basement car parks) may block reception, includi ng in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue lis tening to the
same station by means of frequency following. Howev er, in certain
conditions, this RDS station is not followed throug hout the country
as radio stations do not cover 100 % of the territo ry. This explains
the loss of reception of the station during a journ ey.
RADIO
SELECTING A STATION
Page 222 of 255
206
11
22
33
11
22
Insert the CDs in the changer one by one. Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD. Press and hold one of the buttons for fast forwards or backwards play.
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults w h i c h a r e n o r e fl e c t i o n o n t h e q u a l i t y o f t h e o r i g i n a l player. Without pressing the EJECT button, insert a CD in the player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of tracks on the CD.

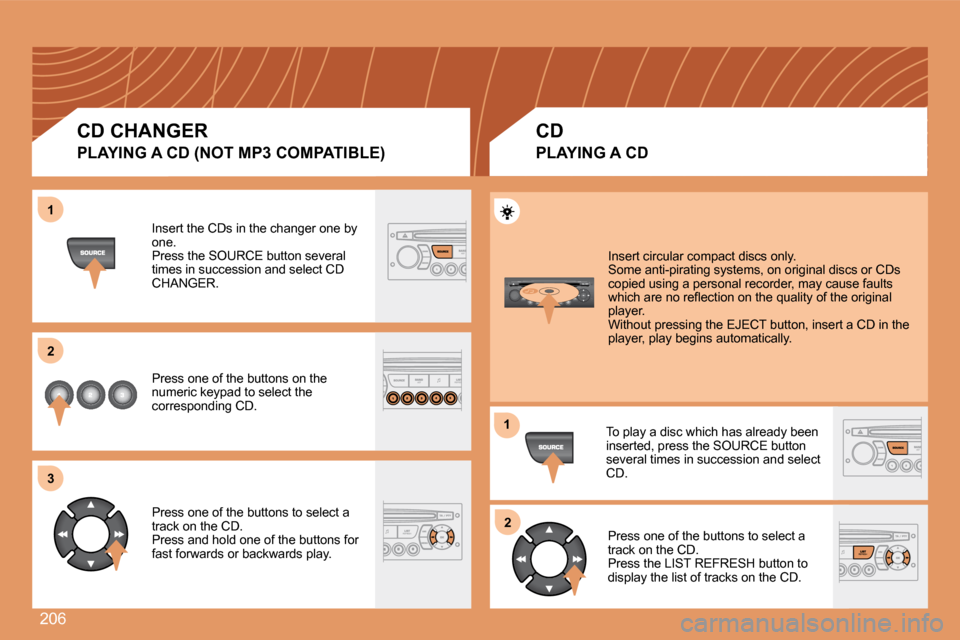

CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
CD
PLAYING A CD
Page 223 of 255
207
11
22
Insert an MP3 compilation in the player. The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds, before play begins.
O n a s i n g l e d i s c , t h e C D p l a y e r c a n r e a d u p t o 2 5 5 M P 3 fi l e s s p r e a d over 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played.
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c . The playing and displaying of an MP3 compilation may depend on the recording programme and/or the parameters used.
In order to be able to play a recorded CDR or CDRW, when recording select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y fi l e s w i t h t h e e x t e n s i o n " . m p 3 " . N o o t h e r t y p e o f fi l e ( . w m a , . m p 4 . . . ) c a n b e p l a y e d .
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g special characters (e.g.: " " ? ; ù) to avoid any p laying or displaying problems.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of directories of the MP3 compilation.

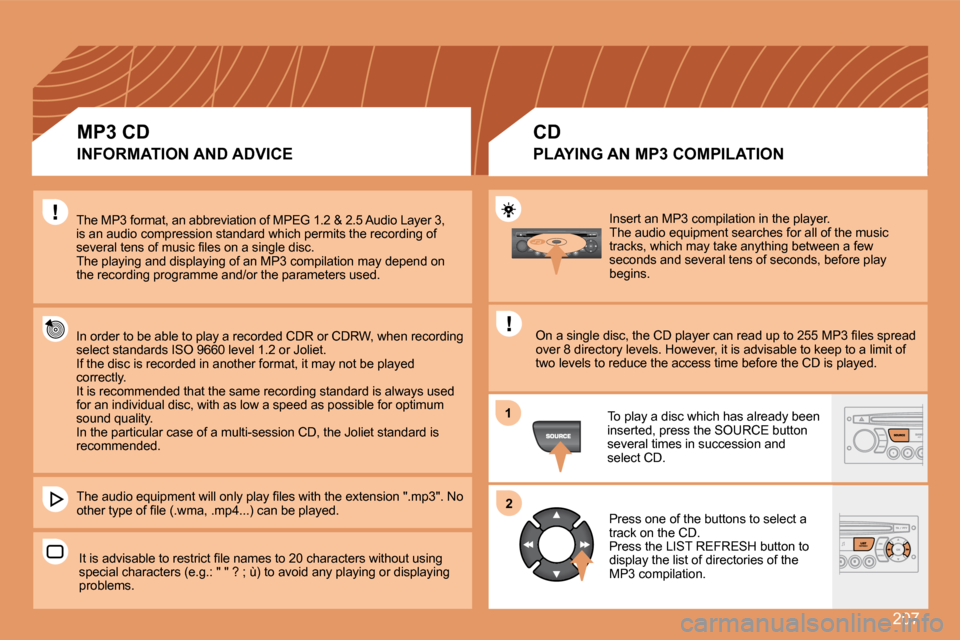

MP3 CD
INFORMATION AND ADVICE
CD
PLAYING AN MP3 COMPILATION
Page 224 of 255
208
11
22
33
11
22
4411

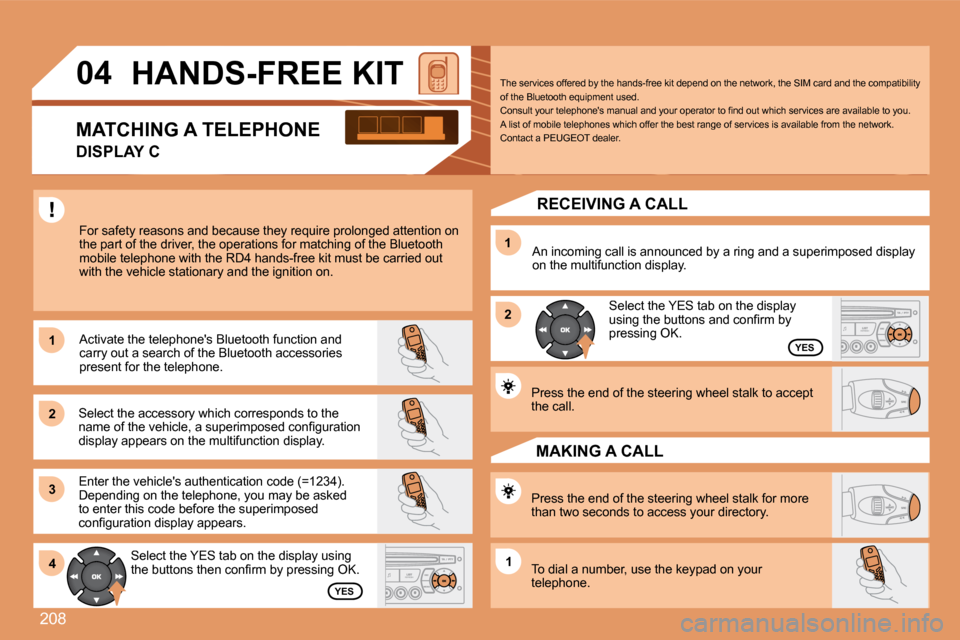

04 HANDS-FREE KIT
For safety reasons and because they require prolonged attention on the part of the driver, the operations for matching of the Bluetooth mobile telephone with the RD4 hands-free kit must b e carried out with the vehicle stationary and the ignition on.
Select the accessory which corresponds to the n a m e o f t h e v e h i c l e , a s u p e r i m p o s e d c o n fi g u r a t i o n display appears on the multifunction display.
Activate the telephone's Bluetooth function and carry out a search of the Bluetooth accessories present for the telephone.
Select the YES tab on the display using t h e b u t t o n s t h e n c o n fi r m b y p r e s s i n g O K .
Enter the vehicle's authentication code (=1234). Depending on the telephone, you may be asked to enter this code before the superimposed c o n fi g u r a t i o n d i s p l a y a p p e a r s .
YES
YES
The services offered by the hands-free kit depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. C o n s u l t y o u r t e l e p h o n e ' s m a n u a l a n d y o u r o p e r a t o r t o fi n d o u t w h i c h s e r v i c e s a r e a v a i l a b l e t o y o u . A list of mobile telephones which offer the best range of services is available from the network. Contact a PEUGEOT dealer.
RECEIVING A CALL
An incoming call is announced by a ring and a supe rimposed display on the multifunction display.
Select the YES tab on the display u s i n g t h e b u t t o n s a n d c o n fi r m b y pressing OK.
Press the end of the steering wheel stalk to accept the call.
Press the end of the steering wheel stalk for more than two seconds to access your directory.
To dial a number, use the keypad on your telephone.
MAKING A CALL
MATCHING A TELEPHONE
DISPLAY C
Page 225 of 255
209
05
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD. Selection of the next item on a menu. MP3: selection of the next directory.
RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. Selection of the previous item on a menu. MP3: selection of the previous directory.
RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3: selection of the next track. CD/CD CHANGER: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/CD CHANGER/MP3: selection of the previous track. CD/CD CHANGER: continuous press: fast backwards play. Selection of the next item.
Volume increase.
Volume decrease.

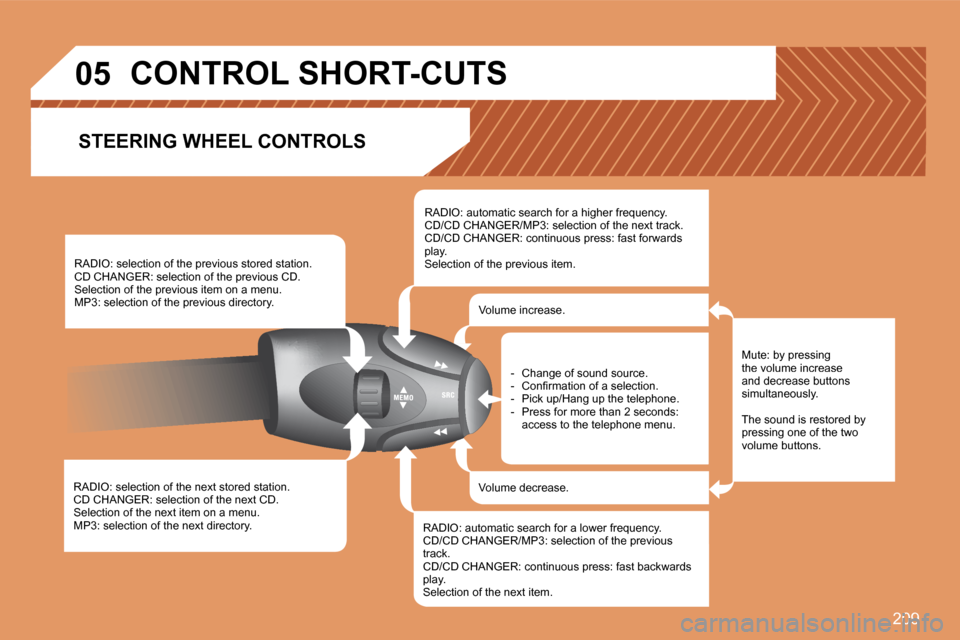

CONTROL SHORT-CUTS
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
STEERING WHEEL CONTROLS
Page 226 of 255
210
55
66
77
88
11
22
33
44

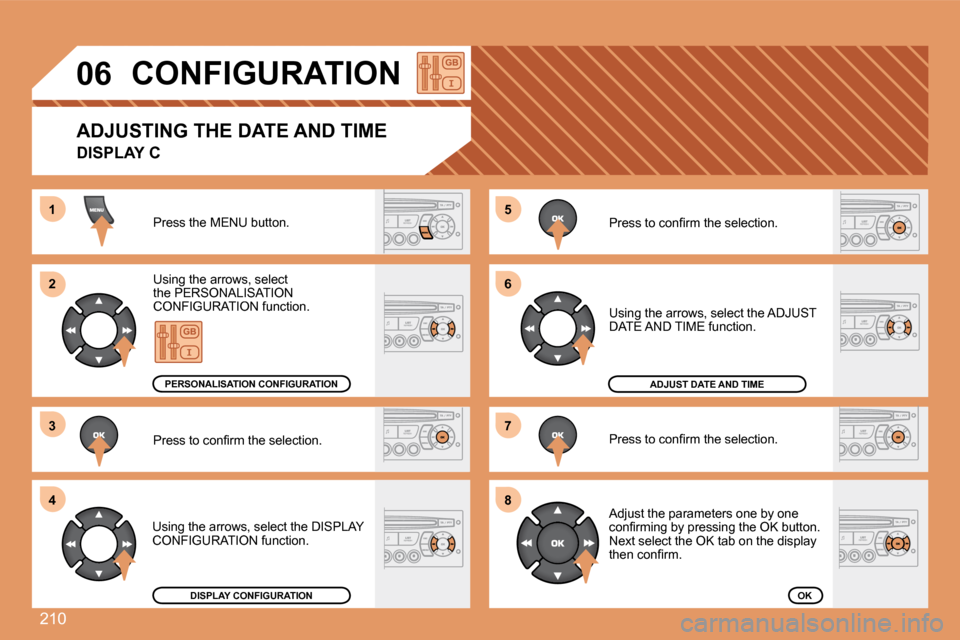

06 CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATION function.
P r e s s t o c o n fi r m t h e s e l e c t i o n .
Using the arrows, select the DISPLAY CONFIGURATION function.
P r e s s t o c o n fi r m t h e s e l e c t i o n .
P r e s s t o c o n fi r m t h e s e l e c t i o n .
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the parameters one by one c o n fi r m i n g b y p r e s s i n g t h e O K b u t t o n . Next select the OK tab on the display t h e n c o n fi r m .
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
ADJUSTING THE DATE AND TIME
DISPLAY C
Page 227 of 255
211
1
1
2
3
4
3
4
3
4
2
3
4
3
4
2
3
4
2
4
4
3
4
4
4
3
4
4
1
2
3
2
3
3
2
2
1
2
3
3
3
4
4
4
2
3
4
3
4
3
4
2
3
3
3
4
07

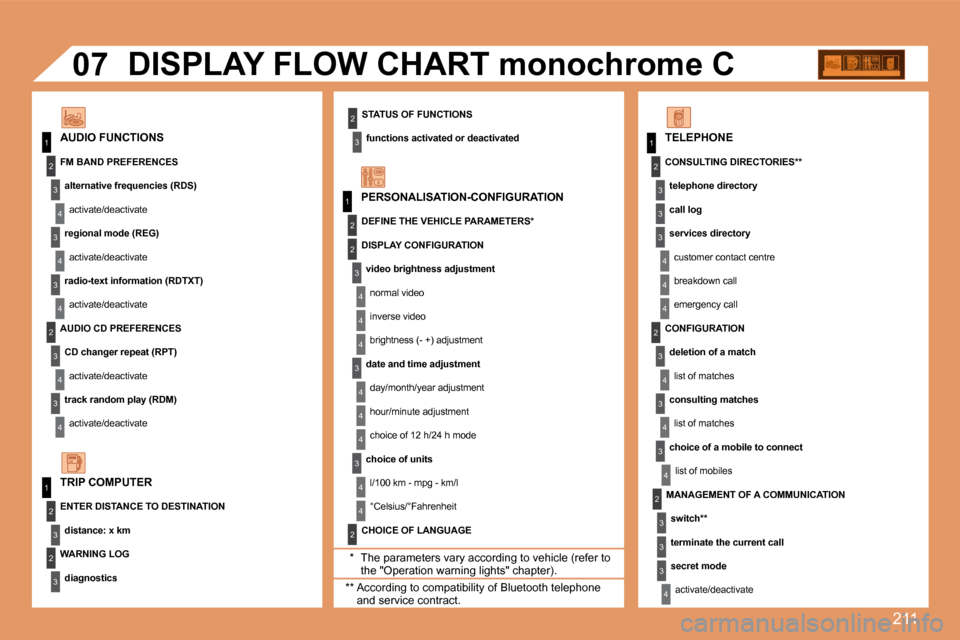

STATUS OF FUNCTIONS
functions activated or deactivated AUDIO FUNCTIONS
DISPLAY FLOW CHART monochrome C
* The parameters vary according to vehicle (refer to the "Operation warning lights" chapter).
WARNING LOG
diagnostics
TRIP COMPUTER
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
CD changer repeat (RPT)
activate/deactivate
track random play (RDM)
activate/deactivate
ENTER DISTANCE TO DESTINATION
distance: x km
PERSONALISATION-CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *
CHOICE OF LANGUAGE
TELEPHONE
CONSULTING DIRECTORIES **
telephone directory
call log
services directory
customer contact centre
breakdown call
emergency call
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
** According to compatibility of Bluetooth telephone and service contract.
MANAGEMENT OF A COMMUNICATION
switch **
terminate the current call
secret mode
activate/deactivate
CONFIGURATION
deletion of a match
list of matches
consulting matches
list of matches
choice of a mobile to connect
list of mobiles
Page 228 of 255
212
1
2
3
3
2
3
3
2
3
3
2
3
3
2
3
3
1
2
3
3
2
3
3
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
07
RADIO-CD
REV WIPE ACT
active
inactive
UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG
ABANDON/CONSULT LIST OF FAULTS
functions activated (or not)
warning messages
LANGUAGES
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPANOL
DISPLAY ADJUST
YEAR
MONTH
DAY
HOUR
MINUTES
12 H/24 H MODE
DISPLAY FLOW CHART monochrome A
MAIN FUNCTION A
* The parameters vary according to vehicle (refer to the "Instruments and Controls" chapter).
REG MODE
active
inactive
RDS SEARCH
active
inactive
CHOICE A Choice A1 Choice A2 CHOICE B...
INTROSCAN
active
inactive
CD REPEAT
active
inactive
GUIDE LAMPS
active
inactive
OPTIONS
VEHICLE CONFIG *
RANDOM PLAY
active
inactive
Page 229 of 255
The WIP Nav is protected in such a way that it will only operate in your vehicle. If it is to be installed in another v e h i c l e , c o n t a c t a P E U G E O T d e a l e r f o r c o n fi g u r a t i o n o f the system.
Certain functions described in this handbook will become a v a i l a b l e d u r i n g t h e c o u r s e o f t h e y e a r .

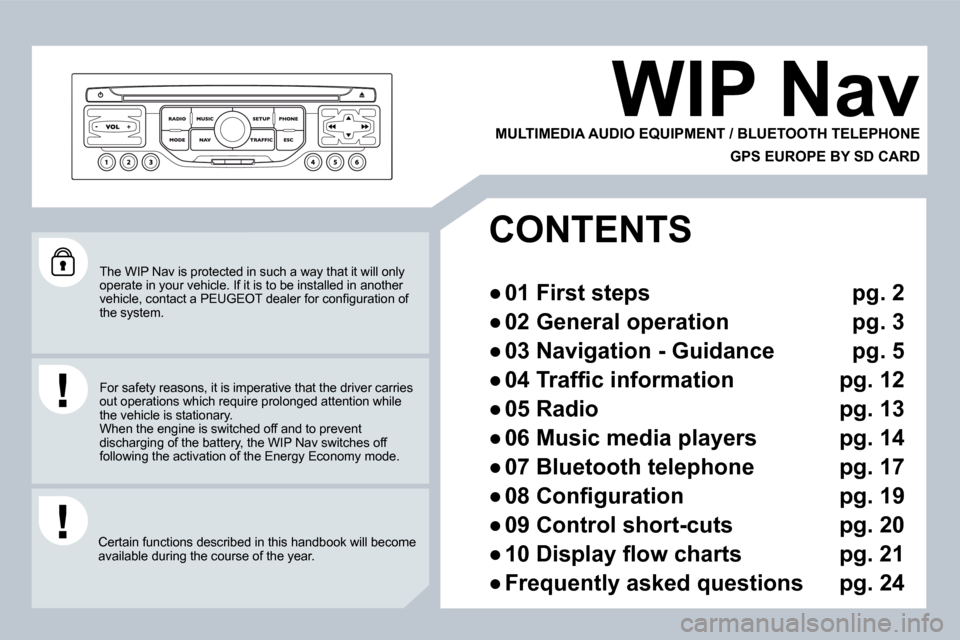

WIP Nav
MULTIMEDIA AUDIO EQUIPMENT / BLUETOOTH TELEPHONE
GPS EUROPE BY SD CARD
CONTENTS
Page 230 of 255
2
1
5
1 0
0 1
2
3 4 6
1 4
1 2
9
1 5 1 6
7 8 1 3 1 1
1. On/Off. CD / SD card pause, mute for the radio. L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m .
2. Volume adjustment.
3 . S e l e c t i o n o f t h e R A D I O s o u r c e . D i s p l a y i n g o f
t h e l i s t o f stations. Access to the RADIO menu.
4 . S e l e c t i o n o f t h e M U S I C s o u r c e . D i s p l a y i n g o f t h e t r a c k s (CD) or of the folders (SD card). Access to the MUS IC menu.
3 - 4 L o n g p r e s s : a c c e s s t o t h e s o u n d o p t i o n s e t t i n g s ( f r o n t / r e a r a n d l e f t / r i g h t b a l a n c e , b a s s / t r e b l e , e q u a l i z e r , l o u d n e s s , a u t o m a t i c v o l u m e a d j u s t m e n t , i n i t i a l i s e t h e s e t t i n g s ) .
5 . O p e n i n g o f t h e S E T U P m e n u . L o n g p r e s s : a c c e s s t o t h e G P S c o v e r a g e a n d t h e demonstration mode.
6 . O p e n i n g o f t h e P H O N E m e n u a n d d i s p l a y i n g o f t h e c a l l l i s t .
7 . S e l e c t i o n o f t h e s u c c e s s i v e d i s p l a y i n g o f : R A D I O , M a p , N A V ( i f n a v i g a t i o n i s i n p r o g r e s s ) , T e l e p h o n e ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) , T r i p C o m p u t e r . L o n g p r e s s : d i s p l a y i n g o f a b l a c k s c r e e n ( D A R K ) .
8 . O p e n i n g o f t h e N A V I G A T I O N m e n u a n d d i s p l a y i n g o f t h e l a s t destinations.
9 . O p e n i n g o f t h e T R A F F I C m e n u a n d d i s p l a y i n g o f t h e c u r r e n t t r a f fi c a l e r t s .
1 0 . A b a n d o n t h e o p e r a t i o n i n p r o g r e s s .
1 1 . N a v i g a t i o n t h r o u g h t h e m e n u s , s e l e c t i o n a n d c o n fi r m a t i o n . Access to the short-cut menus. M a p z o o m o n M a p o r N A V d i s p l a y .
12. CD eject.
13. Selection of the previous/next radio station from the list. Selection of the previous/next CD. Selection of the previous/next MP3 directory. S e l e c t i o n o f t h e p r e v i o u s / n e x t p a g e o f a l i s t .
14. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
1 5 . B u t t o n s 1 t o 6 : Selection of the stored radio station. S e l e c t i o n o f t h e C D i n t h e C D c h a n g e r . L o n g p r e s s : s t o r i n g o f t h e c u r r e n t r a d i o s t a t i o n .
16. SD card reader.
F I R S T S T E P S

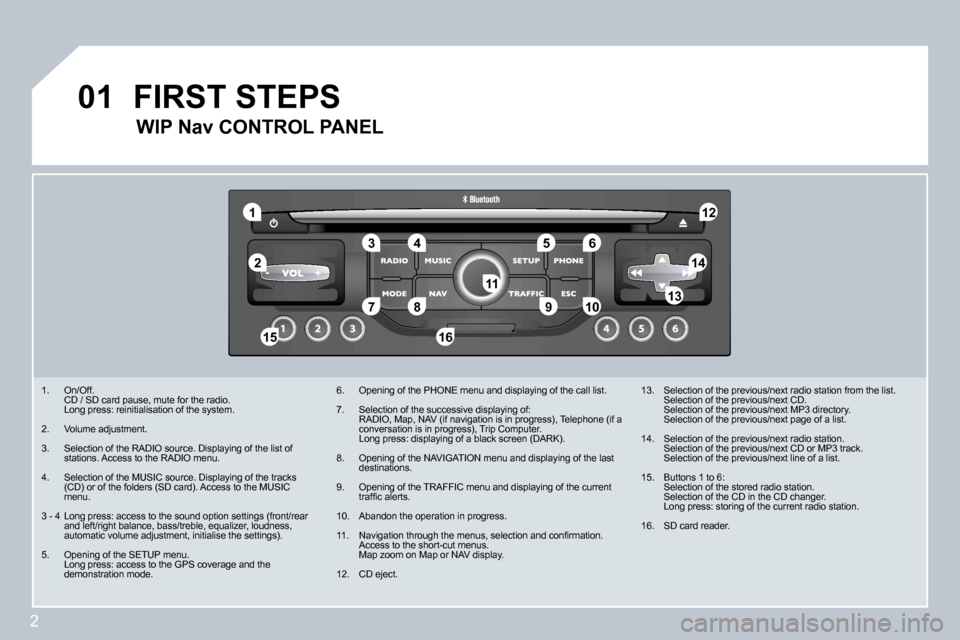

WIP Nav CONTROL PANEL
