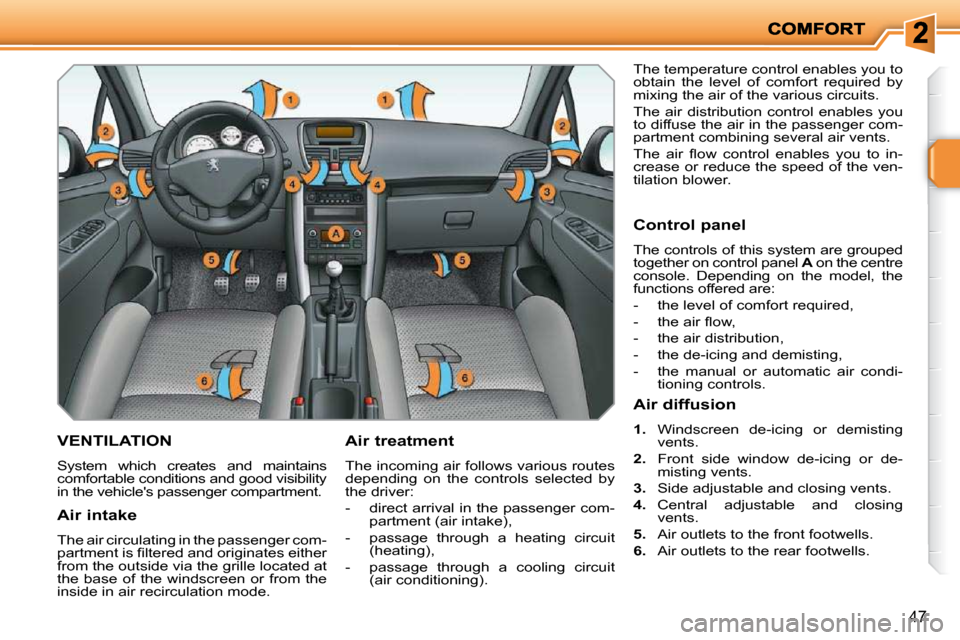

VENTILATION
System which creates and maintains
comfortable conditions and good visibility
in the vehicle's passenger compartment. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o i n -
crease or reduce the speed of the ven-
tilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- t h e a i r fl o w ,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.
Air diffusion
1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or de-
misting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing
vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 32 of 267
i
48
In order for these systems to be fully effective, follow the operation and main-
tenance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e
renewal of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanness of the passenger co mpart-
ment (reduction of allergic symptoms, bad odours and greasy deposits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it a nd contact a
PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 33 of 267
49

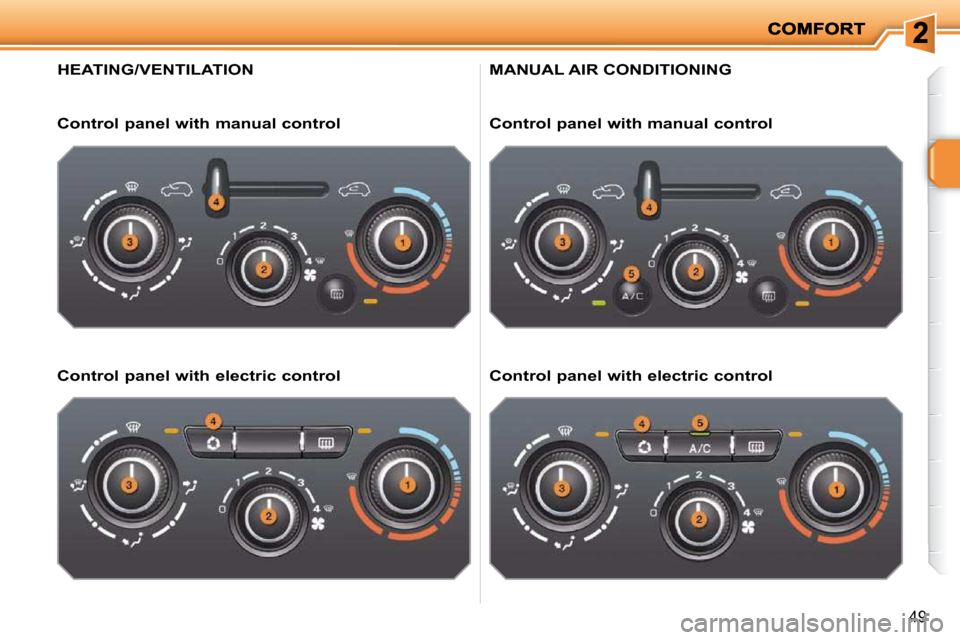

HEATING/VENTILATION
Control panel with manual control
Control panel with electric control MANUAL AIR CONDITIONING
Control panel with manual control
Control panel with electric control
Page 34 of 267
i
50

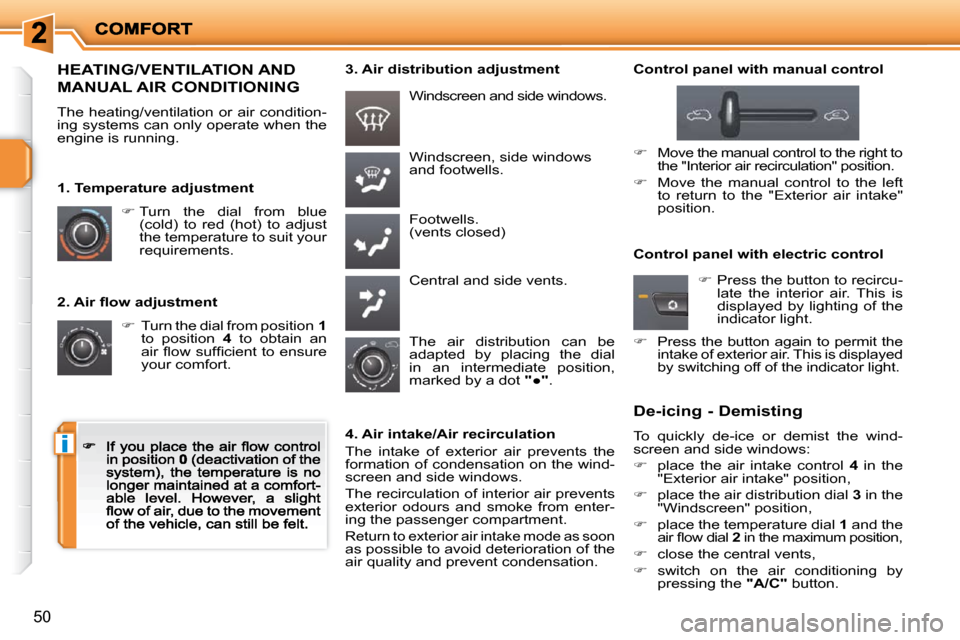

2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1to position 4 to obtain an a i r fl o w s u f fi c i e n t t o e n s u r e your comfort.
Windscreen, side windows and footwells.
Footwells.(vents closed)
Central and side vents.
Turn the dial from blue (cold) to red (hot) to adjust the temperature to suit your requirements.
Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The air distribution can be adapted by placing the dial in an intermediate position, marked by a dot "
Page 35 of 267
49
HEATING/VENTILATION
Control panel with manual control
Control panel with electric control MANUAL AIR CONDITIONING
Control panel with manual control
Control panel with electric control
Page 36 of 267
i
50
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1to position 4 to obtain an a i r fl o w s u f fi c i e n t t o e n s u r e your comfort.
Windscreen, side windows and footwells.
Footwells.(vents closed)
Central and side vents.
Turn the dial from blue (cold) to red (hot) to adjust the temperature to suit your requirements.
Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The air distribution can be adapted by placing the dial in an intermediate position, marked by a dot "
Page 37 of 267
i
51

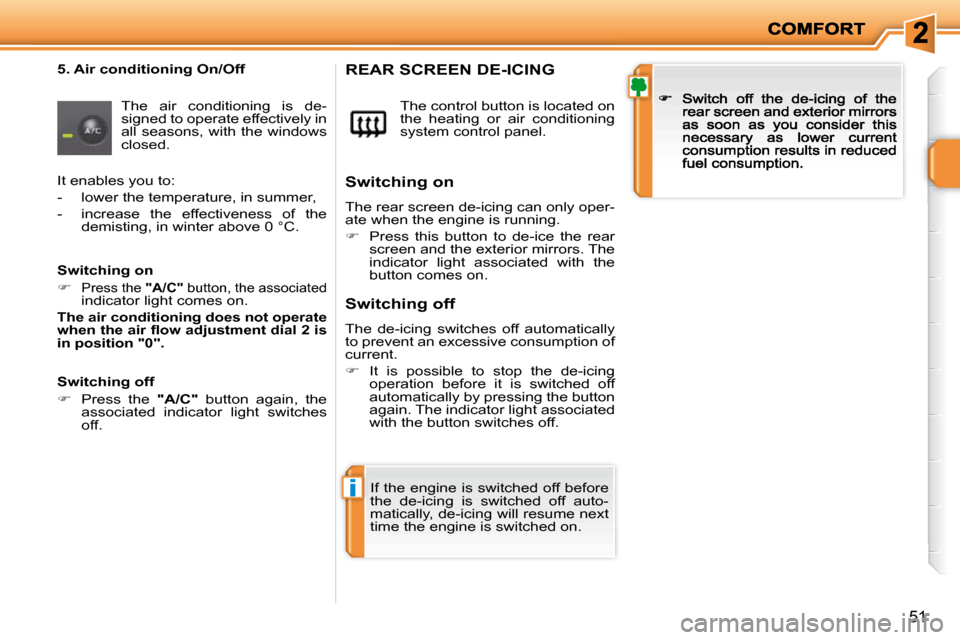

5. Air conditioning On/Off
The air conditioning is de-signed to operate effectively in all seasons, with the windows closed.
The control button is located on the heating or air conditioning system control panel.
REAR SCREEN DE-ICING
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
Switching on
The rear screen de-icing can only oper-ate when the engine is running.
Press this button to de-ice the rear screen and the exterior mirrors. The indicator light associated with the button comes on.
Switching off
The de-icing switches off automatically
to prevent an excessive consumption of
current.
It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting, in winter above 0 °C.
Switching on
Press the "A/C" button, the associated
indicator light comes on.
The air conditioning does not operate w h e n t h e a i r fl o w a d j u s t m e n t d i a l 2 i s in position "0".
Switching off
Press the "A/C" button again, the associated indicator light switches off.
Page 38 of 267
i
51
5. Air conditioning On/Off
The air conditioning is de-signed to operate effectively in all seasons, with the windows closed.
The control button is located on the heating or air conditioning system control panel.
REAR SCREEN DE-ICING
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
Switching on
The rear screen de-icing can only oper-ate when the engine is running.
Press this button to de-ice the rear screen and the exterior mirrors. The indicator light associated with the button comes on.
Switching off
The de-icing switches off automatically
to prevent an excessive consumption of
current.
It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting, in winter above 0 °C.
Switching on
Press the "A/C" button, the associated
indicator light comes on.
The air conditioning does not operate w h e n t h e a i r fl o w a d j u s t m e n t d i a l 2 i s in position "0".
Switching off
Press the "A/C" button again, the associated indicator light switches off.
Page 39 of 267
i
i
52
When the engine is cold, to prevent
too great a distribution of cold
a i r , t h e a i r fl o w w i l l o n l y r e a c h i t s
optimum level gradually. The air conditioning can only operate with the engine running.
The driver and his front
passenger can each set
the temperature to suit their
requirements.
Turn dial 2 or 3 to the left to reduce
the value or to the right to increase it.
A setting around 21 enables you to
obtain an optimum level of comfort.
Depending on your requirements, a
setting between 18 and 24 is usual.
In addition, it is recommended that you avoid a left/right setting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or de-ice the
windscreen and side windows
(humidity, several passengers,
ice...).
In this case, select the automatic vis-
ibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribution
of the ventilation to the windscreen and
side windows.
Automatic operation Press the "AUTO" button. The "AUTO" symbol is dis-played. 2 . D r i v e r ' s s i d e a d j u s t m e n t

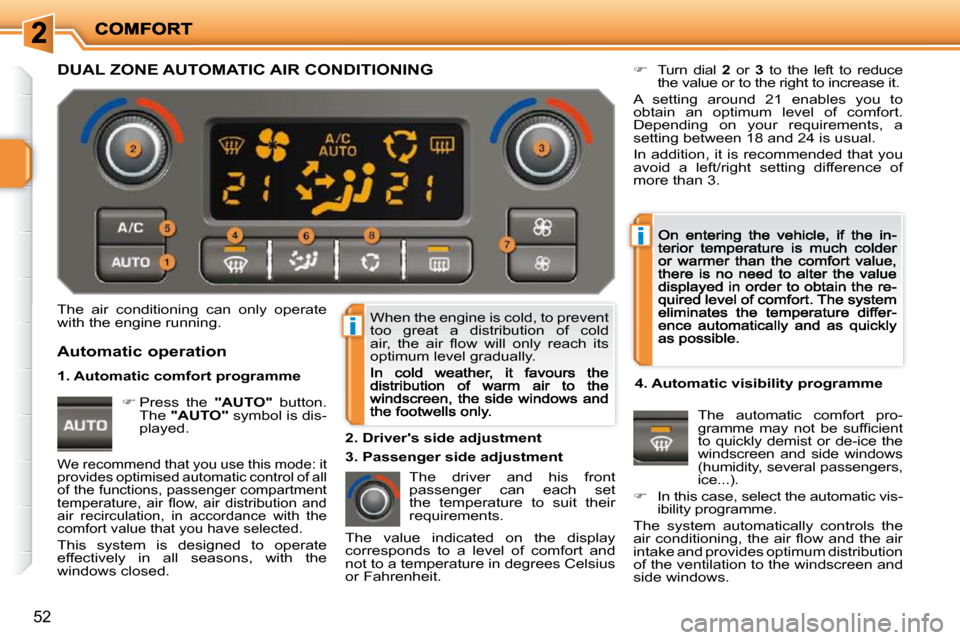

DUAL ZONE AUTOMATIC AIR CONDITIONING
We recommend that you use this mode: it provides optimised automatic control of all of the functions, passenger compartment t e m p e r a t u r e , a i r fl o w , a i r d i s t r i b u t i o n a n d air recirculation, in accordance with the comfort value that you have selected.
This system is designed to operate
effectively in all seasons, with the
windows closed. The value indicated on the display corresponds to a level of comfort and not to a temperature in degrees Celsius or Fahrenheit.
1. Automatic comfort programme
3 . P a s s e n g e r s i d e a d j u s t m e n t
Page 40 of 267
!
!
i
53
To exit this programme, press the "visibility" button again or the "AUTO"button, the indicator light on the button switches off and "AUTO" is displayed.
Press this button to switch the air conditioning off.

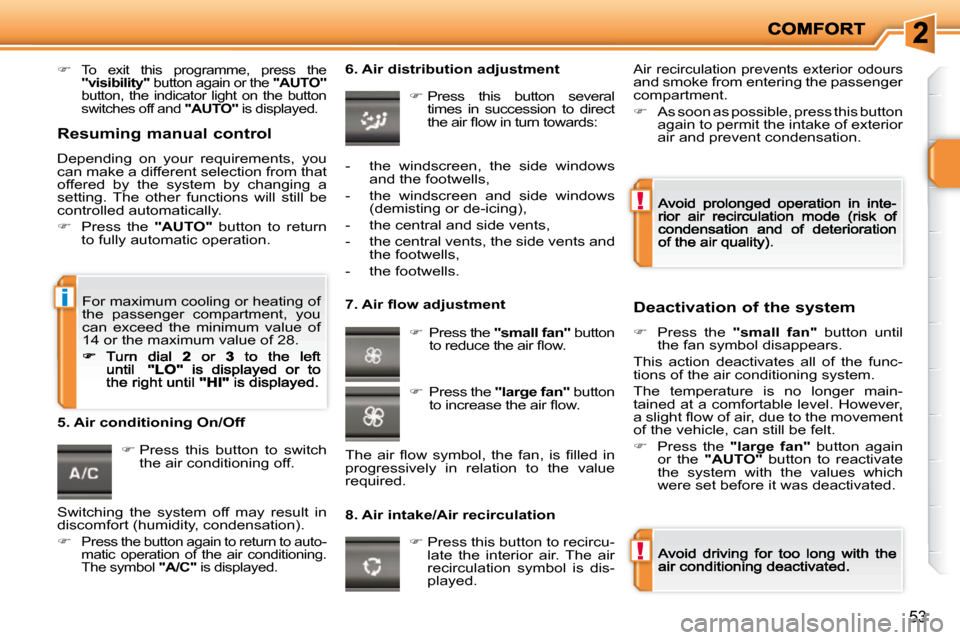

6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press this button several times in succession to direct t h e a i r fl o w i n t u r n t o w a r d s :
7 . A i r fl o w a d j u s t m e n t
Press the "small fan" button t o r e d u c e t h e a i r fl o w.
8. Air intake/Air recirculation Deactivation of the system
Press the "small fan" button until
the fan symbol disappears.
This action deactivates all of the func-
tions of the air conditioning system.
The temperature is no longer main-
tained at a comfortable level. However,
a s l i g h t fl o w o f a i r , d u e t o t h e m o v e m e n t
of the vehicle, can still be felt.
Press the "large fan" button again
or the "AUTO" button to reactivate
the system with the values which
were set before it was deactivated.
Press this button to recircu-late the interior air. The air recirculation symbol is dis-played.
5. Air conditioning On/Off
- the windscreen, the side windows and the footwells,
- the windscreen and side windows (demisting or de-icing),
- the central and side vents,
- the central vents, the side vents and the footwells,
- the footwells.
Press the "large fan" button t o i n c r e a s e t h e a i r fl o w .
T h e a i r fl o w s y m b o l , t h e f a n , i s fi l l e d i n progressively in relation to the value required.
Air recirculation prevents exterior odours and smoke from entering the passenger
compartment.
As soon as possible, press this button
again to permit the intake of exterior
air and prevent condensation.
For maximum cooling or heating of
the passenger compartment, you
can exceed the minimum value of
14 or the maximum value of 28 .
Resuming manual control
Depending on your requirements, you
can make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically.
Press the "AUTO" button to return
to fully automatic operation.
Switching the system off may result in
discomfort (humidity, condensation).
Press the button again to return to auto-matic operation of the air conditioning. The symbol "A/C" is displayed.
