Peugeot 207 Dag 2009 Repair Manual

!i
i
71

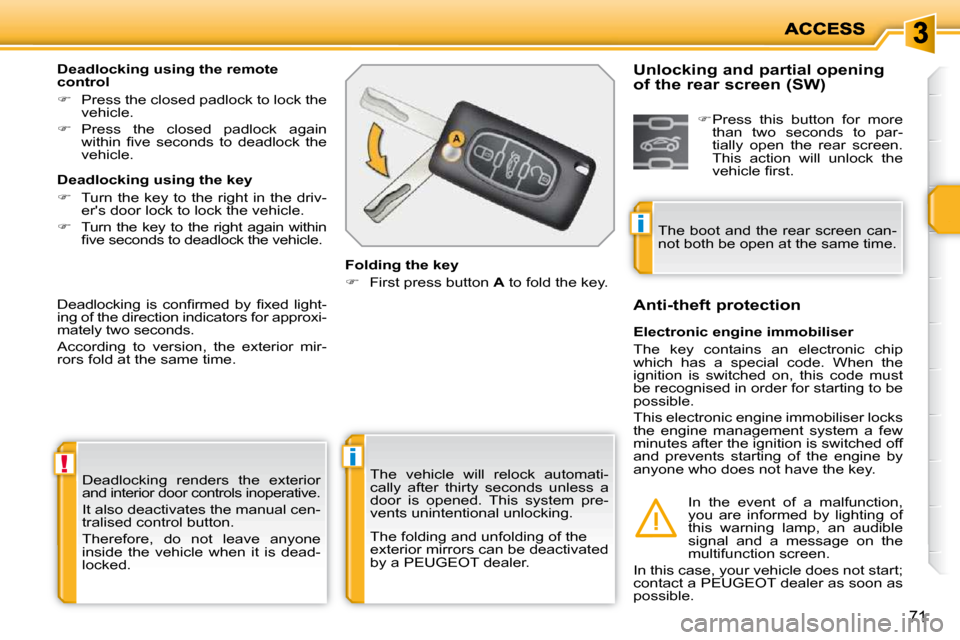

Deadlocking renders the exterior
and interior door controls inoperative.
It also deactivates the manual cen-
tralised control button.
Therefore, do not leave anyone
inside the vehicle when it is dead-
locked.
Deadlocking using the remote
control

 Press the closed padlock to lock the
vehicle.

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
Deadlocking using the key

 Turn the key to the right in the driv-
er's door lock to lock the vehicle.

 Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for approxi-
mately two seconds.
According to version, the exterior mir-
rors fold at the same time.
The vehicle will relock automati-
cally after thirty seconds unless a
door is opened. This system pre-
vents unintentional unlocking.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
Folding the key

 First press button A to fold the key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Unlocking and partial opening
of the rear screen (SW)

 Press this button for more
than two seconds to par-
tially open the rear screen.
This action will unlock the
vehicle fi rst.
The boot and the rear screen can-
not both be open at the same time.

i
ACCESS
72

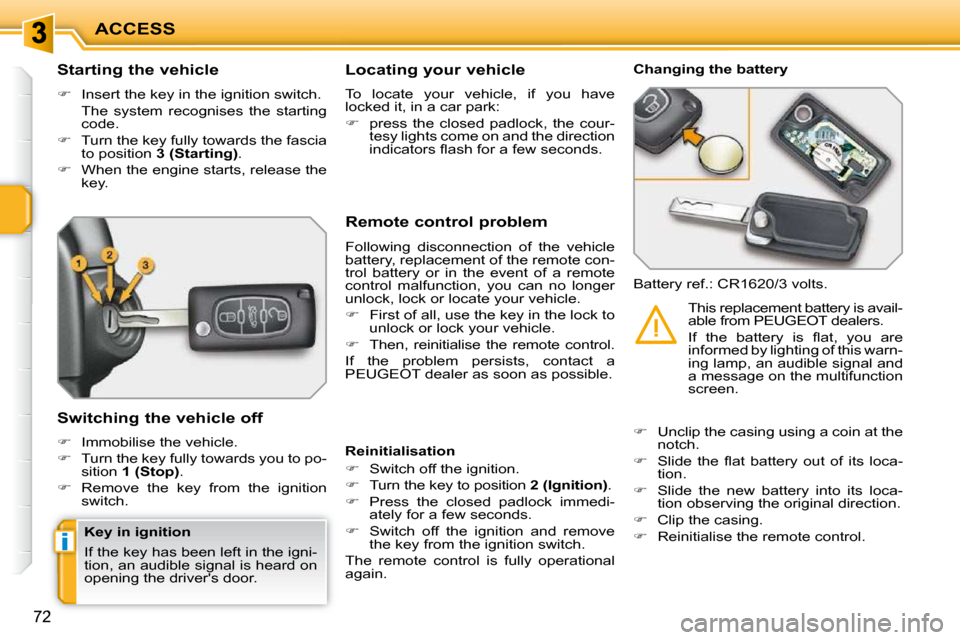

Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the fascia
to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to po-
sition 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its loca-
tion.

 Slide the new battery into its loca-
tion observing the original direction.

 Clip the casing.

 Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.
If the battery is fl at, you are
informed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:

 press the closed padlock, the cour-
tesy lights come on and the direction
indicators fl ash for a few seconds.
Key in ignition
If the key has been left in the igni-
tion, an audible signal is heard on
opening the driver's door.

!
73

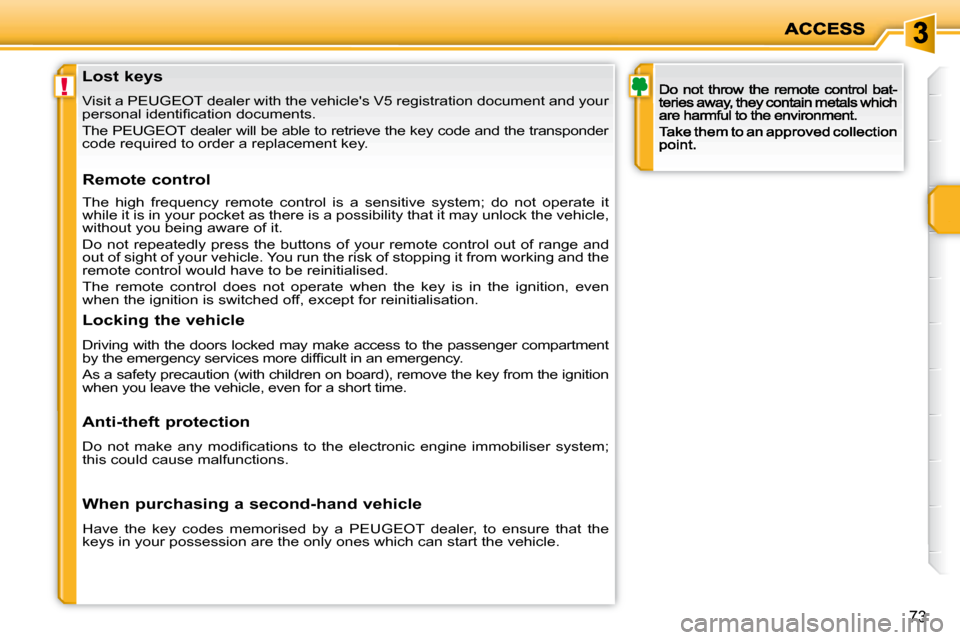

Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the ke y code and the transponder
code required to order a replacement key.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
by the emergency services more diffi cult in an emer gency.
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

!
i
ACCESS
74
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function. Locking the vehicle with full
alarm
Do not make any modifi cations to
the alarm system, this could cause
malfunctions. To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection

 Unlock the vehicle using the unlock-
ing button on the remote control.

 Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp
on button A switches off.
Locking the vehicle with
exterior protection alarm only
Activation

 Switch off the ignition and get out of
the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A fl ashes once per second.
Exterior perimiter protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation

 Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off. Deactivation of the interior
volumetric protection

 Switch off the ignition.

 Within ten seconds, press button A
until the indicator lamp is lit continu-
ously.

 Get out of the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone re-
mains activated; the indicator lamp on
button A fl ashes once per second.

!
75

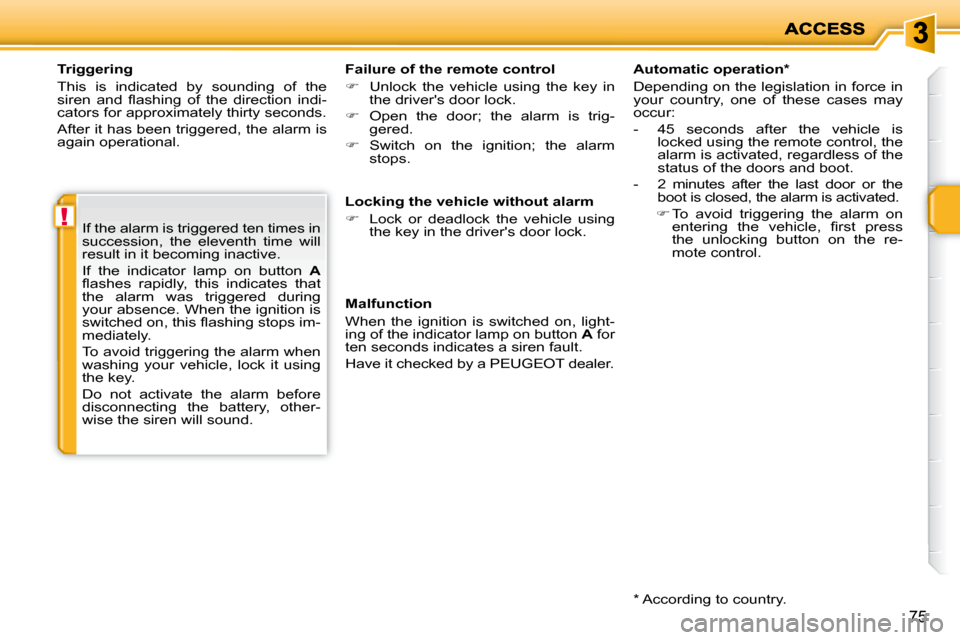

Triggering
This is indicated by sounding of the
siren and fl ashing of the direction indi-
cators for approximately thirty seconds.
After it has been triggered, the alarm is
again operational. If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control

 Unlock the vehicle using the key in
the driver's door lock.

 Open the door; the alarm is trig-
gered.

 Switch on the ignition; the alarm
stops.
* According to country.
Malfunction
When the ignition is switched on, light-
ing of the indicator lamp on button
A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without alarm

 Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is activated.

 To avoid triggering the alarm on
entering the vehicle, fi rst press
the unlocking button on the re-
mote control.

i
i
i
ACCESS
76

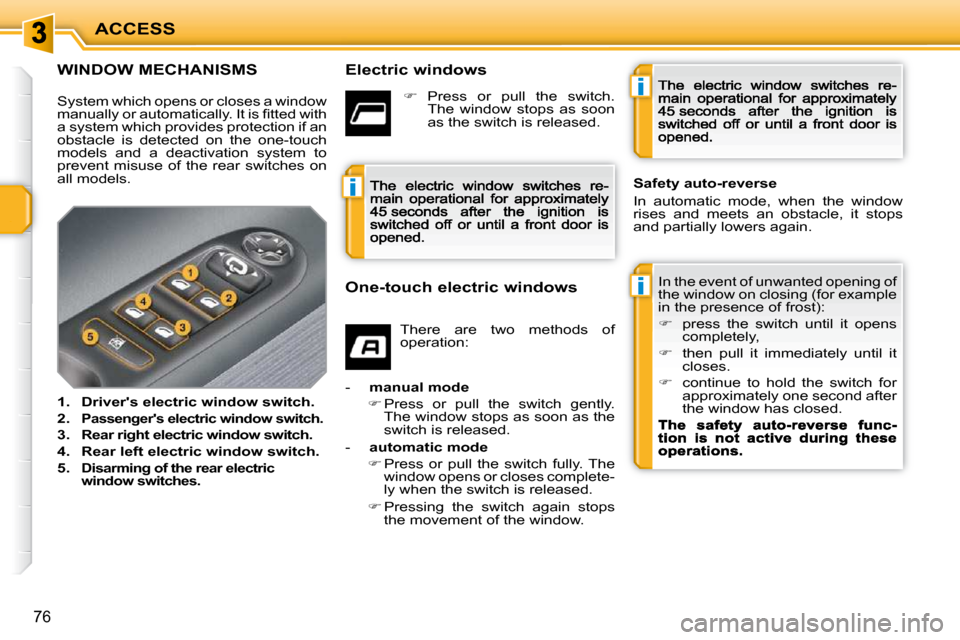

WINDOW MECHANISMS Electric windows In the event of unwanted opening of
the window on closing (for example
in the presence of frost):

 press the switch until it opens
completely,

 then pull it immediately until it
closes.

 continue to hold the switch for
approximately one second after
the window has closed.
One-touch electric windows
There are two methods of
operation:
- manual mode

 Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode

 Press or pull the switch fully. The
window opens or closes complete-
ly when the switch is released.

 Pressing the switch again stops
the movement of the window.
 Press or pull the switch. The window stops as soon as the switch is released.
System which opens or closes a window
manually or automatically. It is fi tted with
a system which provides protection if an
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.

1. Driver's electric window switch.

2.
Passenger's electric window switch.

3. Rear right electric window switch.

4. Rear left electric window switch.
5. Disarming of the rear electric window switches.
Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and partially lowers again.

!
77

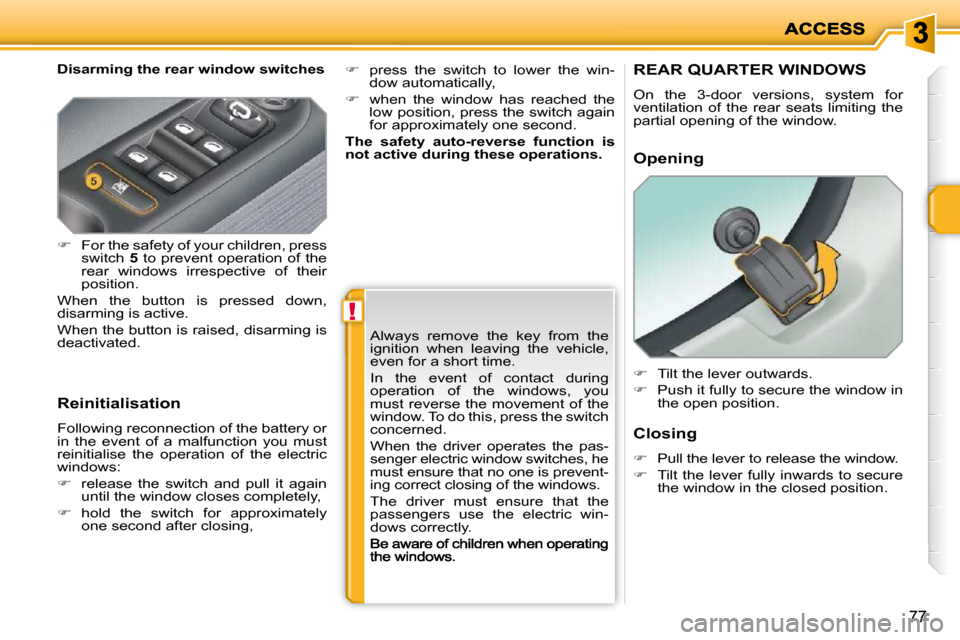

Disarming the rear window switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:

 release the switch and pull it again
until the window closes completely,

 hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of the
window. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly. REAR QUARTER WINDOWS
On the 3-door versions, system for ventilation of the rear seats limiting the partial opening of the window.
Opening

 For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down,
disarming is active.
When the button is raised, disarming is deactivated.
Closing

 Pull the lever to release the window.

 Tilt the lever fully inwards to secure
the window in the closed position.

 Tilt the lever outwards.

 Push it fully to secure the window in
the open position.

 press the switch to lower the win-
dow automatically,

 when the window has reached the
low position, press the switch again
for approximately one second.

The safety auto-reverse function is
not active during these operations.

!
77
Disarming the rear window switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:

 release the switch and pull it again
until the window closes completely,

 hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of the
window. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly. REAR QUARTER WINDOWS
On the 3-door versions, system for ventilation of the rear seats limiting the partial opening of the window.
Opening

 For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down,
disarming is active.
When the button is raised, disarming is deactivated.
Closing

 Pull the lever to release the window.

 Tilt the lever fully inwards to secure
the window in the closed position.

 Tilt the lever outwards.

 Push it fully to secure the window in
the open position.

 press the switch to lower the win-
dow automatically,

 when the window has reached the
low position, press the switch again
for approximately one second.

The safety auto-reverse function is
not active during these operations.

!
ACCESS
78

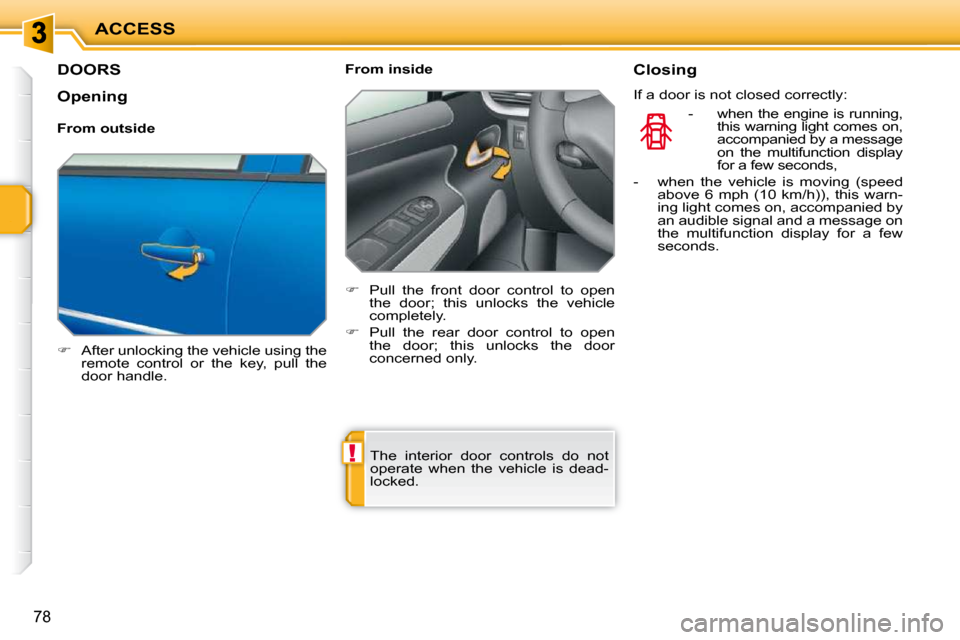

DOORS

 After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside

 Pull the front door control to open
the door; this unlocks the vehicle
completely.

 Pull the rear door control to open
the door; this unlocks the door
concerned only.
The interior door controls do not
operate when the vehicle is dead-
locked. Closing
If a door is not closed correctly:
-when the engine is running , this warning light comes on, accompanied by a message on the multifunction display for a few seconds,
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warn-ing light comes on, accompanied by an audible signal and a message on the multifunction display for a few seconds.
Opening
From outside

i
!i
79
If the vehicle is locked or dead-
locked from the outside, the red
indicator light fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors or the boot or
rear screen is open, the automat-
ic central locking does not take
place.

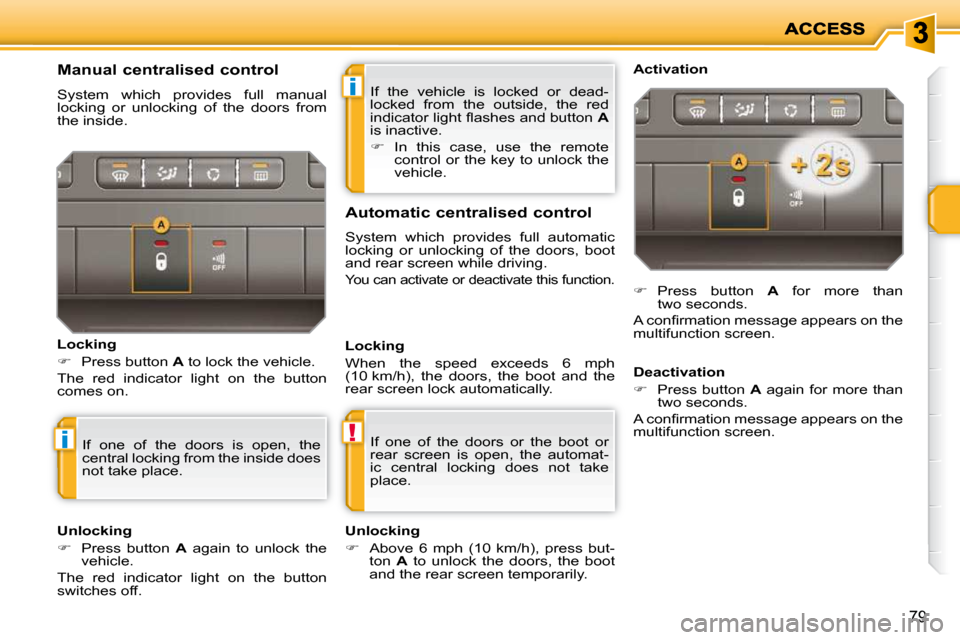

Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking

 Press button A to lock the vehicle.
The red indicator light on the button
comes on. Automatic centralised control
System which provides full automatic
locking or unlocking of the doors, boot
and rear screen while driving.
You can activate or deactivate this function.
Activation

 Press button A for more than
two seconds.
A confi rmation message appears on the
multifunction screen.
Unlocking

 Above 6 mph (10 km/h), press but-
ton A to unlock the doors, the boot
and the rear screen temporarily.
If one of the doors is open, the
central locking from the inside does
not take place.
Unlocking

 Press button A again to unlock the
vehicle.
The red indicator light on the button
switches off. Locking
When the speed exceeds 6 mph
(10 km/h), the doors, the boot and the
rear screen lock automatically.
Deactivation

 Press button A again for more than
two seconds.
A confi rmation message appears on the
multifunction screen.
