Peugeot 207 Dag 2010 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 207 Dag, Model: Peugeot 207 Dag 2010Pages: 218, PDF Size: 10.34 MB
Page 131 of 218
i
135

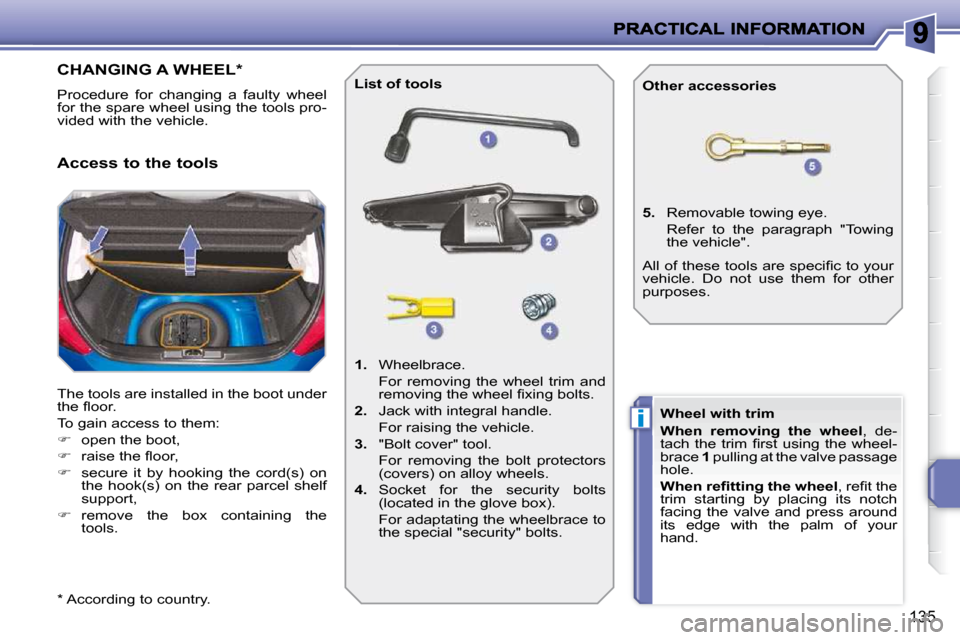

CHANGING A WHEEL *
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
t h e fl o o r .
T o g a i n a c c e s s t o t h e m :
open the boot,
r a i s e t h e fl o o r ,
s e c u r e i t b y h o o k i n g t h e c o r d ( s ) o n
t h e h o o k ( s ) o n t h e r e a r p a r c e l s h e l f
support,
r e m o v e t h e b o x c o n t a i n i n g t h e
tools.
Access to the tools
List of tools
1. Wheelbrace.
For removing the wheel trim and r e m o v i n g t h e w h e e l fi x i n g b o l t s .
2. Jack with integral handle.
For raising the vehicle.
3.
"Bolt cover" tool.
For removing the bolt protectors ( c o v e r s ) o n a l l o y w h e e l s .
4.
Socket for the security bolts
( l o c a t e d i n t h e g l o v e b o x ) .
For adaptating the wheelbrace to the special "security" bolts.
5. Removable towing eye.
Refer to the paragraph "Towing
the vehicle".
Other accessories
Wheel with trim
When removing the wheel , de-
t a c h t h e t r i m fi r s t u s i n g t h e w h e e l -
brace 1 pulling at the valve passage
hole.
W h e n r e fi t t i n g t h e w h e e l , r e fi t t h e
trim starting by placing its notch
facing the valve and press around
its edge with the palm of your
hand.
A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
vehicle. Do not use them for other
purposes.
* According to country.
Page 132 of 218
i
i
136
Access to the spare wheel
(Saloon)
The spare wheel is installed in the boot
u n d e r t h e fl o o r .
To gain access to it, refer to the para-
graph "Access to the tools" on the previ-
ous page. Fitting the steel spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l -
loy wheels, it is normal to notice,
w h e n t i g h t e n i n g t h e b o l t s o n fi t t i n g ,
that the washers do not come into
contact with the steel spare wheel.
The wheel is secured by the coni-
cal contact of each bolt. Taking out the wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
P u t t h e b o x b a c k i n p l a c e i n t h e c e n -
tre of the wheel.
P u t t h e b o o t fl o o r b a c k i n p l a c e .
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor. The punctured wheel must
be repaired by a PEUGEOT dealer.
Page 133 of 218
i
i
137
Access to the spare wheel (SW)
The spare wheel is installed in the boot
u n d e r t h e fl o o r .
To gain access to it, refer to the para-
graph "Access to the tools". Fitting the steel spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l -
loy wheels, it is normal to notice,
w h e n t i g h t e n i n g t h e b o l t s o n fi t t i n g ,
that the washers do not come into
contact with the steel spare wheel.
The wheel is secured by the coni-
cal contact of each bolt. Taking out the wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
P u t t h e b o x b a c k i n p l a c e i n t h e c e n t r e
of the wheel.
P u t t h e b o o t fl o o r b a c k i n p l a c e .
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.
Page 134 of 218
i
138

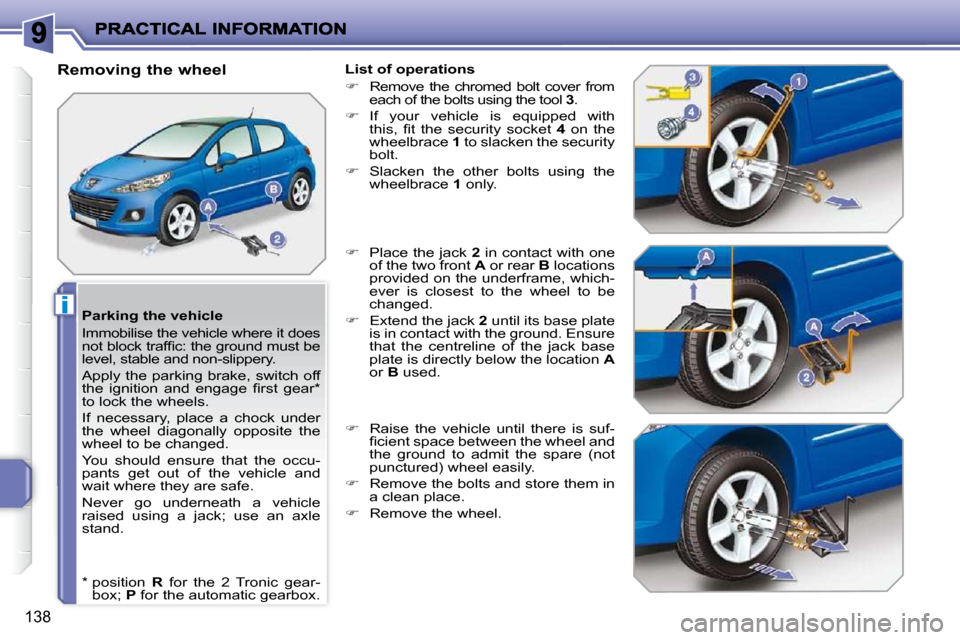

Parking the vehicle
Immobilise the vehicle where it does
n o t b l o c k t r a f fi c : t h e g r o u n d m u s t b e
level, stable and non-slippery.
Apply the parking brake, switch off
t h e i g n i t i o n a n d e n g a g e fi r s t g e a r *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
You should ensure that the occu-
pants get out of the vehicle and
wait where they are safe.
Never go underneath a vehicle
r a i s e d u s i n g a j a c k ; u s e a n a x l e
stand.
Removing the wheel
List of operations
Remove the chromed bolt cover from
each of the bolts using the tool 3 .
If your vehicle is equipped with
t h i s , fi t t h e s e c u r i t y s o c k e t 4 on the
wheelbrace 1 to slacken the security
bolt.
Slacken the other bolts using the
wheelbrace 1 only.
Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.
E x t e n d t h e j a c k 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
Raise the vehicle until there is suf-
fi c i e n t s p a c e b e t w e e n t h e w h e e l a n d
the ground to admit the spare (not
p u n c t u r e d ) w h e e l e a s i l y .
Remove the bolts and store them in
a clean place.
Remove the wheel.
* position R for the 2 Tronic gear-
b o x ; P f o r t h e a u t o m a t i c g e a r b o x .
Page 135 of 218
i
139

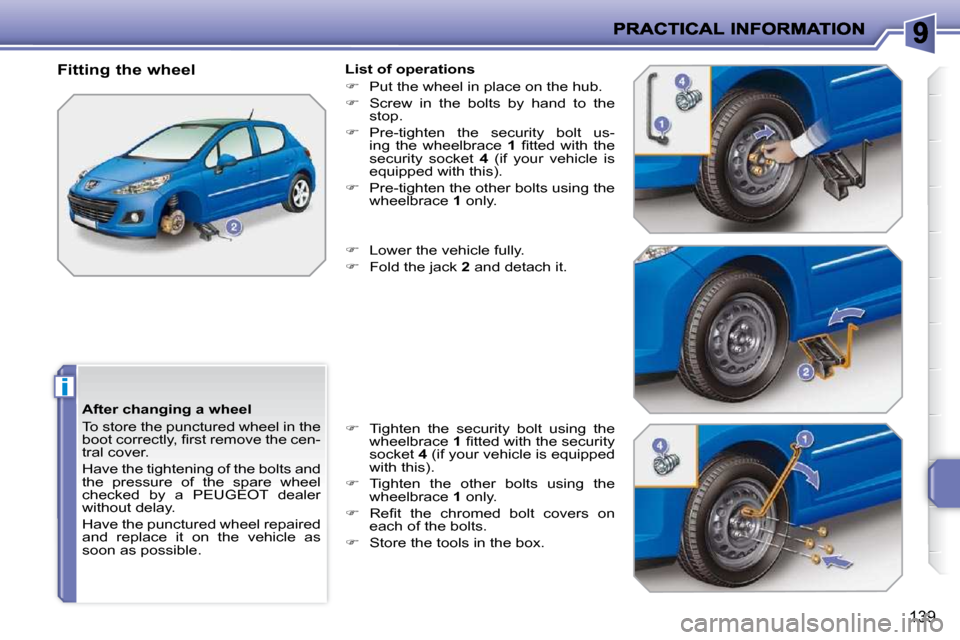

After changing a wheel
To store the punctured wheel in the
b o o t c o r r e c t l y , fi r s t r e m o v e t h e c e n -
tral cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting the wheel
List of operations
Put the wheel in place on the hub.
Screw in the bolts by hand to the
stop.
Pre-tighten the security bolt us-
ing the wheelbrace 1 fi t t e d w i t h t h e
security socket 4 (if your vehicle is
e q u i p p e d w i t h t h i s ) .
Pre-tighten the other bolts using the
wheelbrace 1 only.
Lower the vehicle fully.
Fold the jack 2 and detach it.
Tighten the security bolt using the
wheelbrace 1 fi t t e d w i t h t h e s e c u r i t y
socket 4 (if your vehicle is equipped
w i t h t h i s ) .
Tighten the other bolts using the
wheelbrace 1 only.
R e fi t t h e c h r o m e d b o l t c o v e r s o n
each of the bolts.
S t o r e t h e t o o l s i n t h e b o x .
Page 136 of 218
ii
140

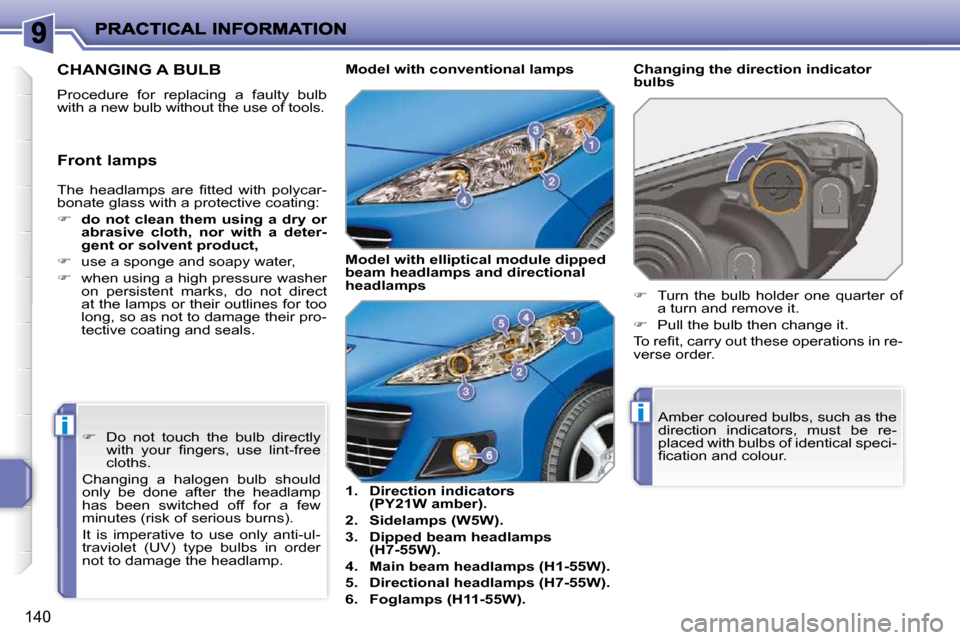

T h e h e a d l a m p s a r e fi t t e d w i t h p o l y c a r -
b o n a t e g l a s s w i t h a p r o t e c t i v e c o a t i n g :
do not clean them using a dry or
abrasive cloth, nor with a deter-
gent or solvent product,
use a sponge and soapy water,
when using a high pressure washer
on persistent marks, do not direct
at the lamps or their outlines for too
long, so as not to damage their pro-
tective coating and seals.
Front lamps
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of tools.
Changing the direction indicator
bulbs
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb then change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Model with conventi
onal lamps
1. Direction indicators
(PY21W amber).
2. Sidelamps (W5W).
3. Dipped beam headlamps
(H7-55W).
4. Main beam headlamps (H1-55W).
5. Directional headlamps (H7-55W).
6. Foglamps (H11-55W).
Do not touch the bulb directly
w i t h y o u r fi n g e r s , u s e l i n t - f r e e
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
It is imperative to use only anti-ul-
t r a v i o l e t ( U V ) t y p e b u l b s i n o r d e r
not to damage the headlamp. Model with elliptical module dipped
beam headlamps and directional
headlamps
Page 137 of 218
141

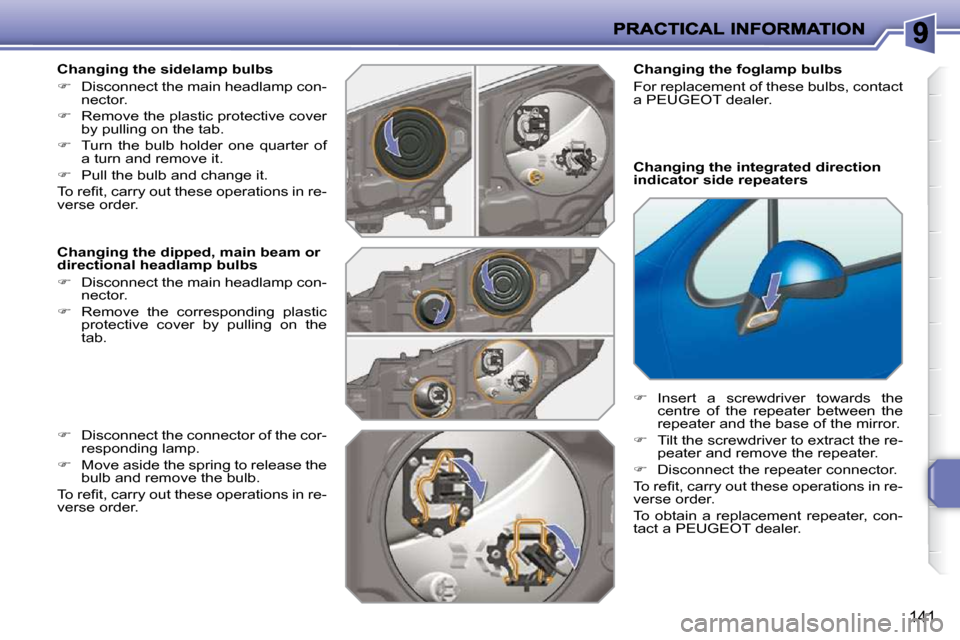

Changing the sidelamp bulbs
Disconnect the main headlamp con-
nector.
Remove the plastic protective cover
by pulling on the tab.
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing the dipped, main beam or
directional headlamp bulbs
Disconnect the main headlamp con-
nector.
Remove the corresponding plastic
protective cover by pulling on the
tab.
Disconnect the connector of the cor-
responding lamp.
Move aside the spring to release the
bulb and remove the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order. Changing the foglamp bulbs
For replacement of these bulbs, contact
a PEUGEOT dealer.
Changing the integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e r e -
peater and remove the repeater.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.
Page 138 of 218
i
i
142
Rear lamps (Saloon)
1. Brake
lamps
(P 21 W).
2. Sidelamps
(diodes).
3. Foglamps
(P 21 W).
4. Direction indicators
(PY 21 W amber).
5. Reversing
lamps
(R 10 W). Changing bulbs
T h e s e b u l b s ( w i t h t h e e x c e p t i o n o f t h e
d i o d e l a m p s ) a r e c h a n g e d f r o m o u t s i d e
t h e b o o t :
r e m o v e t h e l a m p fi x i n g b o l t ,
remove the lamp from the outside,
disconnect the lamp connector,
remove the lamp seal,
press the four tabs and remove the
bulb holder,
turn the bulb one quarter of a turn
and change it.
I f t h e v e h i c l e i s fi t t e d w i t h t h e J B L
audio system, on the right-hand
s i d e , o p e n t h e fl a p fi r s t t o g a i n
a c c e s s t o t h e fi x i n g b o l t .
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
For the replacement of diode lamps,
consult a PEUGEOT dealer. T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Page 139 of 218
!
143

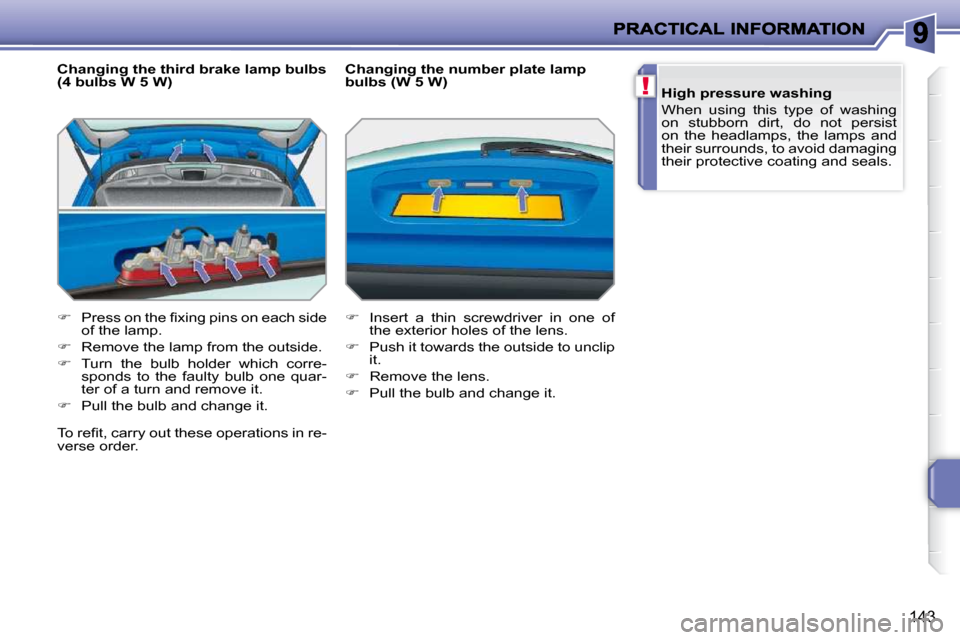

Changing the third brake lamp bulbs
(4 bulbs W 5 W)
P r e s s o n t h e fi x i n g p i n s o n e a c h s i d e
of the lamp.
Remove the lamp from the outside.
Turn the bulb holder which corre-
sponds to the faulty bulb one quar-
ter of a turn and remove it.
Pull the bulb and change it. Changing the number plate lamp
bulbs (W 5 W)
Insert a thin screwdriver in one of
t h e e x t e r i o r h o l e s o f t h e l e n s .
Push it towards the outside to unclip
it.
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damaging
their protective coating and seals.
Page 140 of 218
i
144
Rear lamps (SW)
1. Brake
lamps
(P 21 W).
2. Sidelamps
(R 5 W).
3. Direction indicators
(PY 21 W amber).
4. Foglamps
(P 21 W).
5. Reversing
lamps
(R 10 W). Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
s i d e t h e b o o t :
r e m o v e t h e a c c e s s fl a p ,
disconnect the lamp connector,
r e m o v e t h e l a m p fi x i n g b o l t ,
take out the lamp from the outside,
press on the four tabs and remove
the bulb holder,
turn the bulb a quarter of a turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the lamp in its
guides keeping it in the centreline of the
vehicle.
T i g h t e n t h e fi x i n g b o l t s u f fi c i e n t l y b y
hand to guarantee the sealing of the
lamp.
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
