SAFETY
1 0 5
1. Front left seat belt warning lamp.
2. Front right seat belt warning lamp.
3. Rear left seat belt warning lamp.
4. Rear centre seat belt warning lamp .
5. Rear right seat belt warning lamp.
On the central panel, the corresponding
warning lamp 1 or 2 comes on in red if
the seat belt is not fastened or is unfas-
tened.
When the engine is running, the corre-
sponding warning lamp 1 or 2 comes on
in red, accompanied by an audible sig-
nal and a message on the multifunction
screen, if a front occupant has unfas-
tened their seat belt.
Seat belt not fastened/unfastened
warning lamp panel
Rear seat belts
T h e r e a r s e a t s a r e fi t t e d w i t h t h r e e ,
three point, inertia reel seat belts. Seat belt unfastened warning lamp
panel
When the ignition is switched on, the
corresponding warning lamps
3, 4 and 5
c o m e o n f o r a p p r o x i m a t e l y 3 0 s e c o n d s
in red if the seat belt is not fastened.
When the engine is running, the corre-
sponding warning lamp 3, 4 or 5 comes
on in red, accompanied by an audible
signal and a message on the multifunc-
tion screen, if a rear passenger has
unfastened their seat belt.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Page 102 of 218
i

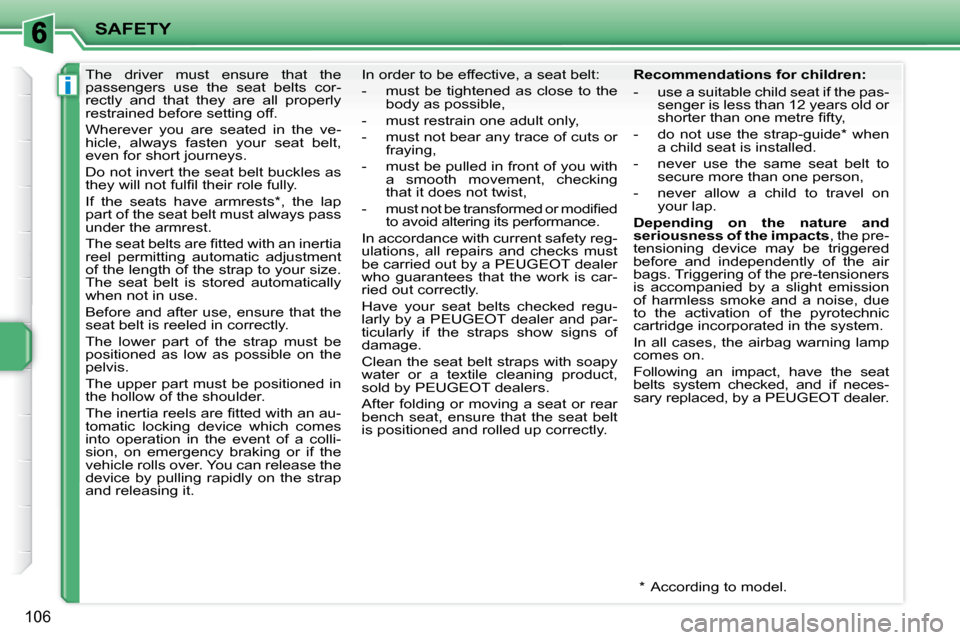

SAFETY
106
The driver must ensure that the
passengers use the seat belts cor-
rectly and that they are all properly
restrained before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
If the seats have armrests * , the lap
part of the seat belt must always pass
under the armrest.
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. * According to model.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e t r a n s f o r m e d o r m o d i fi e d to avoid altering its performance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children:
- use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e fi f t y ,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.
Depending on the nature and
seriousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight emission
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 103 of 218
!
i

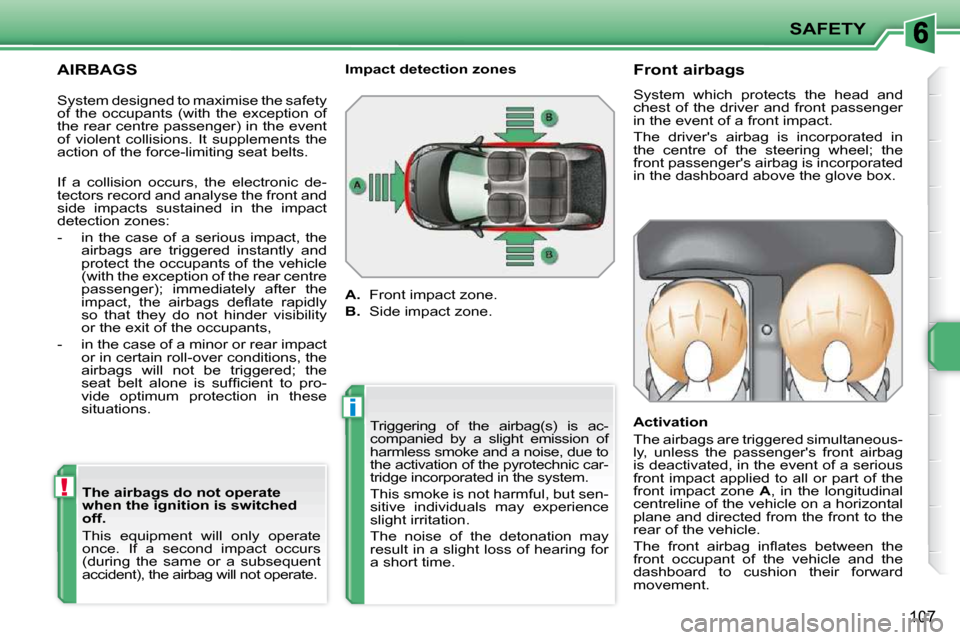

SAFETY
107
AIRBAGS The airbags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the airbag will not operate. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorporated
in the dashboard above the glove box.
Activation
The airbags are triggered simultaneous-
ly, unless the passenger's front airbag
is deactivated, in the event of a serious
front impact applied to all or part of the
front impact zone
A , in the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the front to the
rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the
airbags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be triggered; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations.
Page 104 of 218
!
!

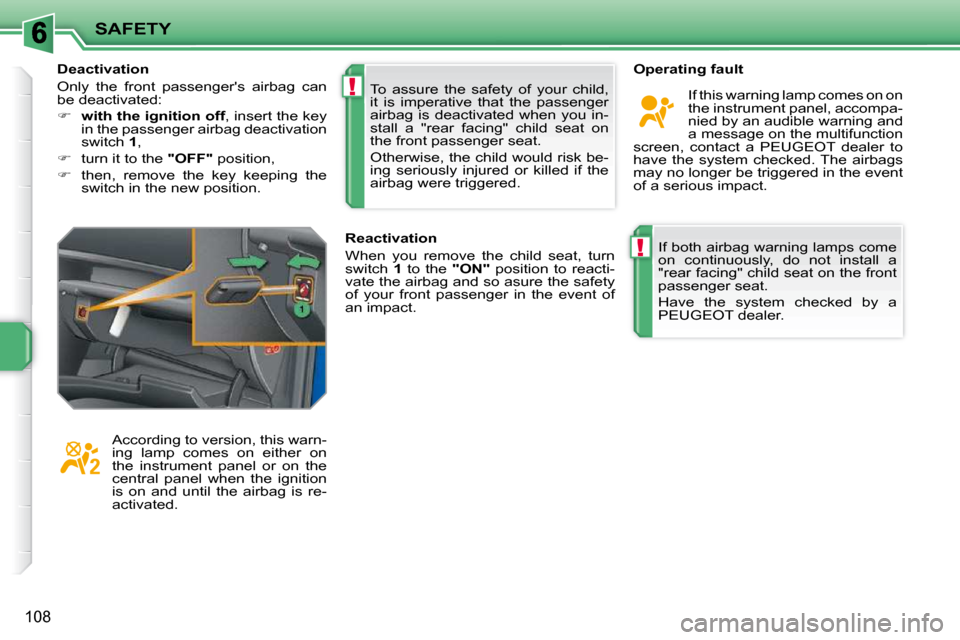

SAFETY
108
If both airbag warning lamps come
on continuously, do not install a
"rear facing" child seat on the front
passenger seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault
If this warning lamp comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
screen, contact a PEUGEOT dealer to
have the system checked. The airbags
may no longer be triggered in the event
of a serious impact.
To assure the safety of your child,
it is imperative that the passenger
airbag is deactivated when you in-
stall a "rear facing" child seat on
the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were triggered.
According to version, this warn-
ing lamp comes on either on
the instrument panel or on the
central panel when the ignition
is on and until the airbag is re-
activated. Reactivation
When you remove the child seat, turn
switch
1 to the "ON" position to reacti-
vate the airbag and so asure the safety
of your front passenger in the event of
an impact.
Deactivation
Only the front passenger's airbag can
be deactivated:
with the ignition off , insert the key
in the passenger airbag deactivation
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in the new position.
Page 105 of 218
!

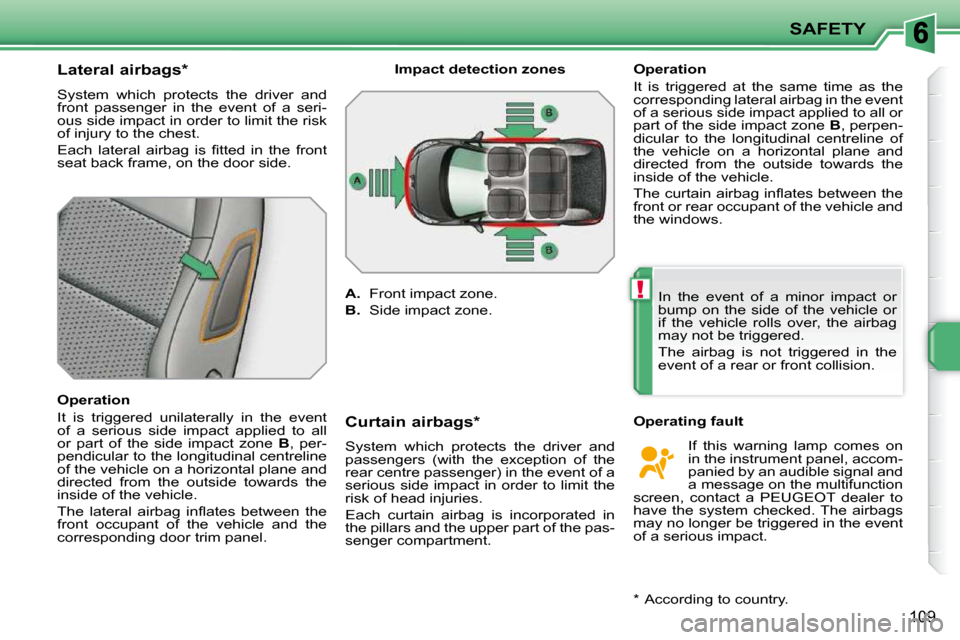

SAFETY
109
Lateral airbags *
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the chest.
E a c h l a t e r a l a i r b a g i s fi t t e d i n t h e f r o n t
seat back frame, on the door side.
Operation
It is triggered unilaterally in the event
of a serious side impact applied to all
or part of the side impact zone B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e l a t e r a l a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim panel. Curtain airbags *
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of head injuries.
Each curtain airbag is incorporated in
the pillars and the upper part of the pas-
senger compartment.
If this warning lamp comes on
in the instrument panel, accom-
panied by an audible signal and
a message on the multifunction
screen, contact a PEUGEOT dealer to
have the system checked. The airbags
may no longer be triggered in the event
of a serious impact.
* According to country.
Operating fault
Operation
It is triggered at the same time as the
corresponding lateral airbag in the event
of a serious side impact applied to all or
part of the side impact zone
B , perpen-
dicular to the longitudinal centreline of
the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Page 106 of 218
!

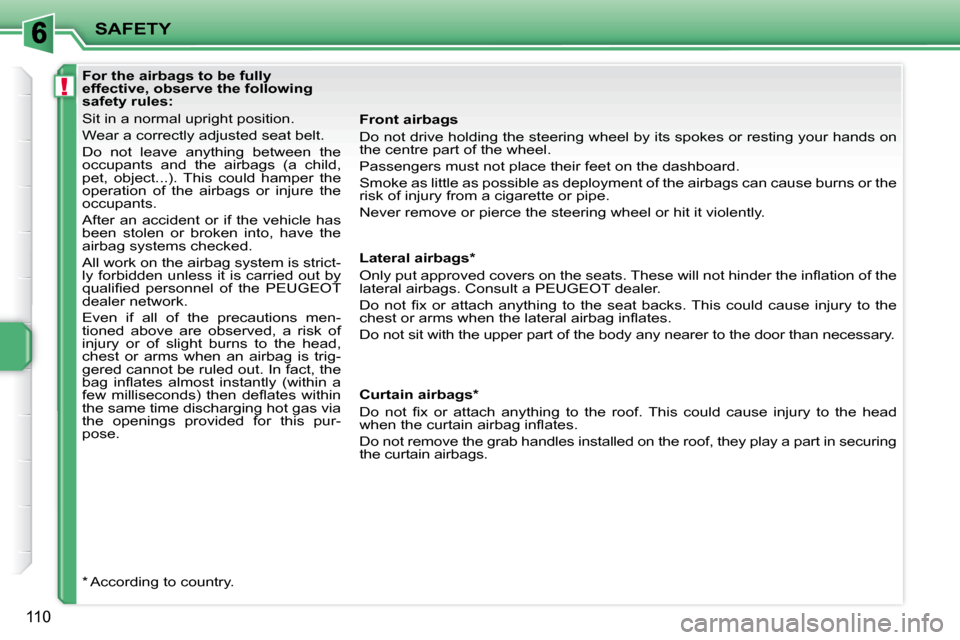

SAFETY
110
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions men-
tioned above are observed, a risk of
injury or of slight burns to the head,
chest or arms when an airbag is trig-
gered cannot be ruled out. In fact, the
b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a
f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging hot gas via
the openings provided for this pur-
pose. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
Smoke as little as possible as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Lateral airbags *
O n l y p u t a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r t h e i n fl a t i o n o f t h e
lateral airbags. Consult a PEUGEOT dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
c h e s t o r a r m s w h e n t h e l a t e r a l a i r b a g i n fl a t e s .
Do not sit with the upper part of the body any nea rer to the door than necessary.
Curtain airbags *
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d
w h e n t h e c u r t a i n a i r b a g i n fl a t e s .
Do not remove the grab handles installed on the ro of, they play a part in securing
the curtain airbags.
* According to country.
Page 107 of 218
!
!
i

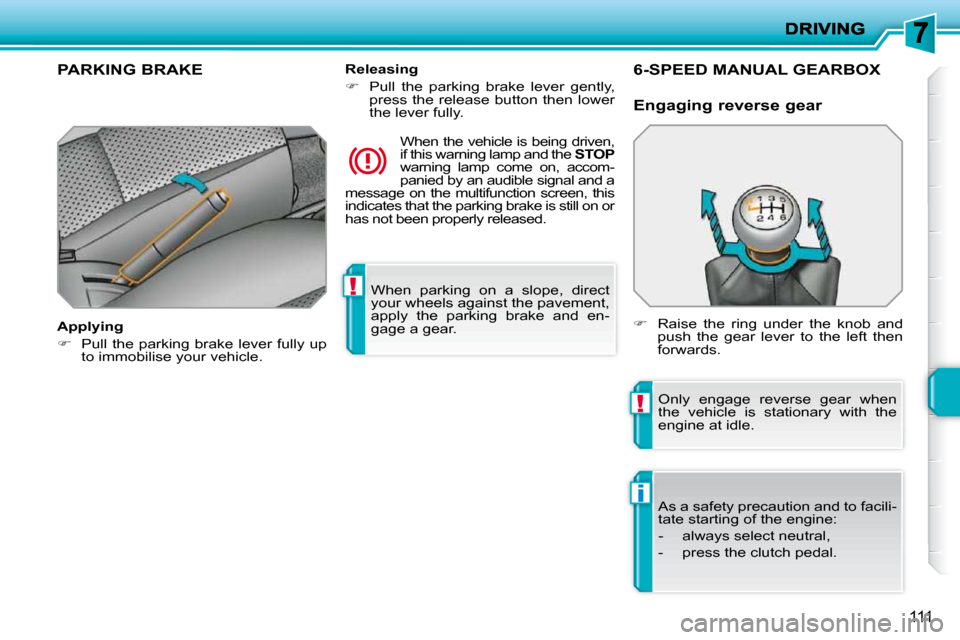

111
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and en-
gage a gear.
PARKING BRAKE
Applying
Pull the parking brake lever fully up
to immobilise your vehicle. When the vehicle is being driven,
if this warning lamp and the
STOP
warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on or
has not been properly released.
Releasing
Pull the parking brake lever gently,
press the release button then lower
the lever fully.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 108 of 218
i

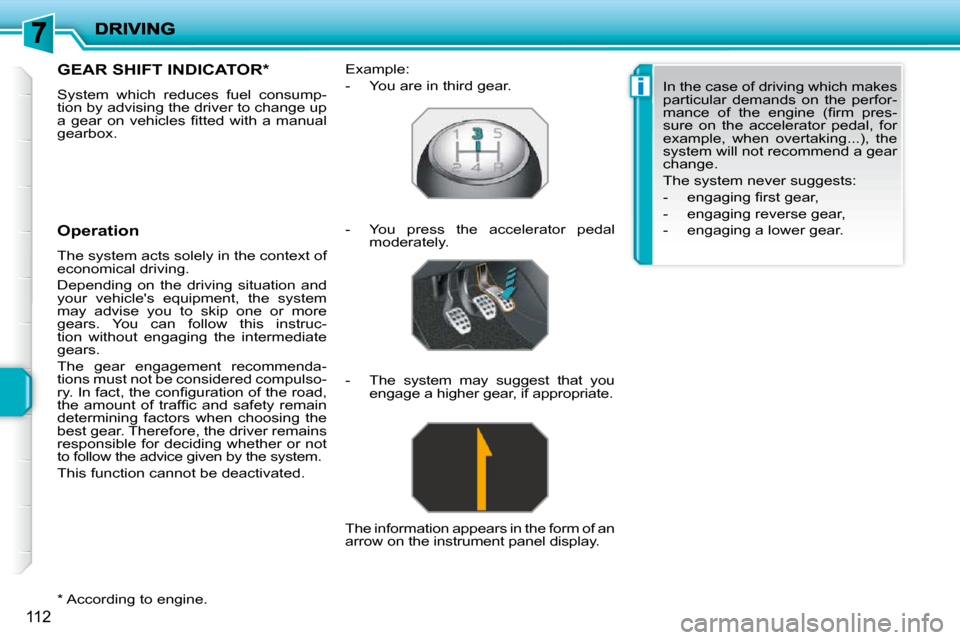

112
* According to engine.
GEAR SHIFT INDICATOR *
System which reduces fuel consump-
tion by advising the driver to change up
a g e a r o n v e h i c l e s fi t t e d w i t h a m a n u a l
gearbox.
Operation
The system acts solely in the context of
economical driving.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulso-
r y . I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d ,
t h e a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n
determining factors when choosing the
best gear. Therefore, the driver remains
responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated. Example:
- You are in third gear.
The information appears in the form of an
arrow on the instrument panel display. In the case of driving which makes
particular demands on the perfor-
m a n c e o f t h e e n g i n e ( fi r m p r e s -
sure on the accelerator pedal, for
example, when overtaking...), the
system will not recommend a gear
change.
The system never suggests:
- e n g a g i n g fi r s t g e a r ,
- engaging reverse gear,
- engaging a lower gear.
- You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
Page 109 of 218
i
113

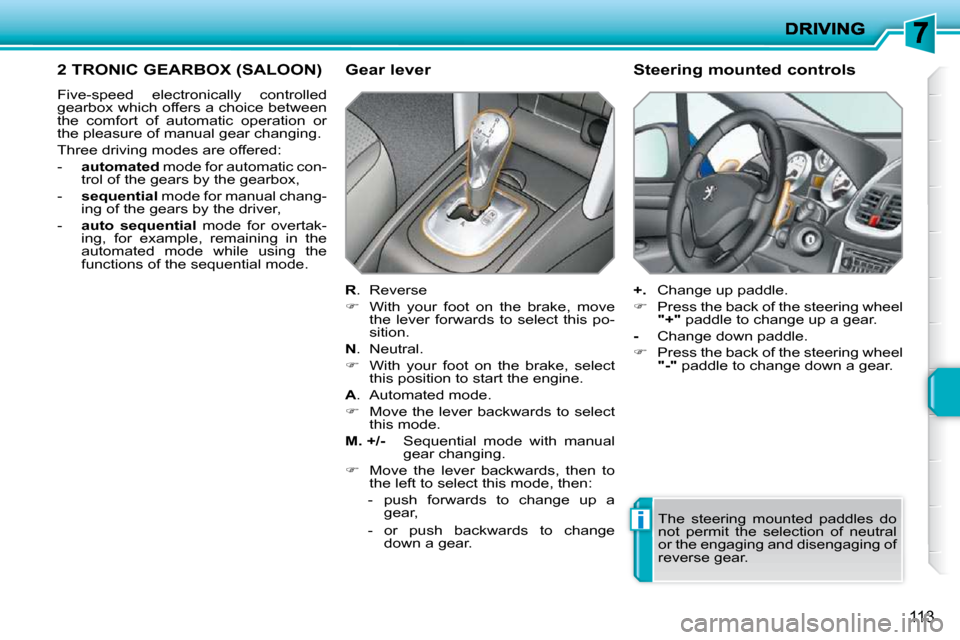

2 TRONIC GEARBOX (SALOON)
Five-speed electronically controlled
gearbox which offers a choice between
the comfort of automatic operation or
the pleasure of manual gear changing.
Three driving modes are offered:
- automated mode for automatic con-
trol of the gears by the gearbox,
- sequential mode for manual chang-
ing of the gears by the driver,
- auto sequential mode for overtak-
ing, for example, remaining in the
automated mode while using the
functions of the sequential mode.
R . Reverse
With your foot on the brake, move
the lever forwards to select this po-
sition.
N . Neutral.
With your foot on the brake, select
this position to start the engine.
A . Automated mode.
Move the lever backwards to select
this mode.
M. +/- Sequential mode with manual
gear changing.
Move the lever backwards, then to
the left to select this mode, then:
- push forwards to change up a gear,
- or push backwards to change down a gear.
Gear lever
+. Change up paddle.
Press the back of the steering wheel
"+" paddle to change up a gear.
- Change down paddle.
Press the back of the steering wheel
"-" paddle to change down a gear.
Steering mounted controls
The steering mounted paddles do
not permit the selection of neutral
or the engaging and disengaging of
reverse gear.
Page 110 of 218
i
i
i

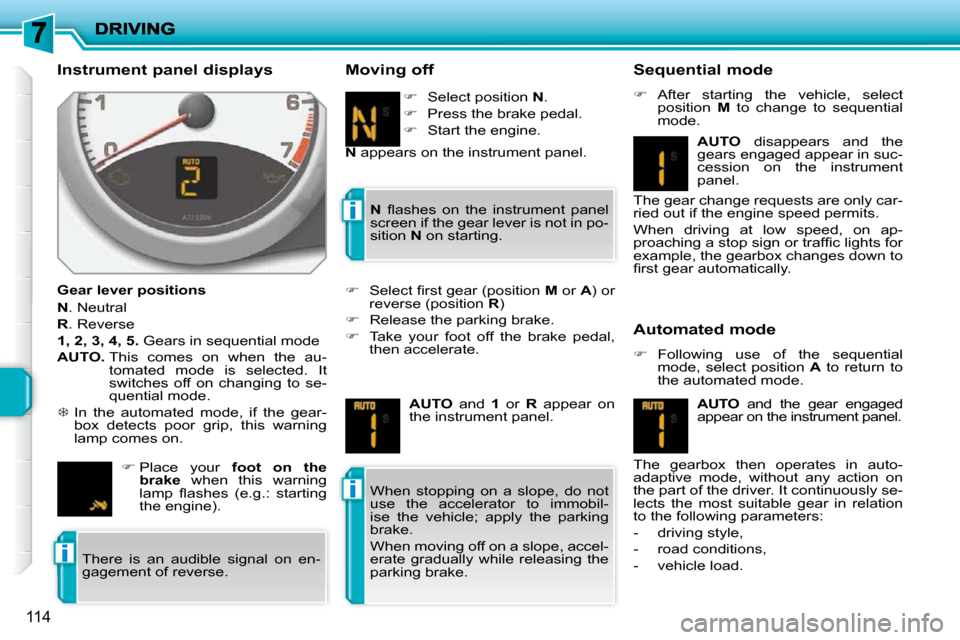

114
Instrument panel displays
Gear lever positions
N . Neutral
R . Reverse
1, 2, 3, 4, 5. Gears in sequential mode
AUTO. This comes on when the au-
tomated mode is selected. It
switches off on changing to se-
quential mode.
In the automated mode, if the gear-
box detects poor grip, this warning
lamp comes on. Moving off Sequential mode
After starting the vehicle, select
position M to change to sequential
mode.
Automated mode
Following use of the sequential
mode, select position A to return to
the automated mode.
When stopping on a slope, do not
use the accelerator to immobil-
ise the vehicle; apply the parking
brake.
When moving off on a slope, accel-
erate gradually while releasing the
parking brake.
Place your foot on the
brake when this warning
l a m p fl a s h e s ( e . g . : s t a r t i n g
the engine).
Select position N .
Press the brake pedal.
Start the engine.
N appears on the instrument panel.
N fl a s h e s o n t h e i n s t r u m e n t p a n e l
screen if the gear lever is not in po-
sition N on starting.
S e l e c t fi r s t g e a r ( p o s i t i o n M or A ) or
reverse (position R )
Release the parking brake.
Take your foot off the brake pedal,
then accelerate.
AUTO and 1 or R appear on
the instrument panel.
AUTO disappears and the
gears engaged appear in suc-
cession on the instrument
panel.
The gear change requests are only car-
ried out if the engine speed permits.
When driving at low speed, on ap-
p r o a c h i n g a s t o p s i g n o r t r a f fi c l i g h t s f o r
example, the gearbox changes down to
fi r s t g e a r a u t o m a t i c a l l y .
AUTO and the gear engaged
appear on the instrument panel.
The gearbox then operates in auto-
adaptive mode, without any action on
the part of the driver. It continuously se-
lects the most suitable gear in relation
to the following parameters:
- driving style,
- road conditions,
- vehicle load.
There is an audible signal on en-
gagement of reverse.
