Peugeot 207 Dag 2010 Repair Manual

!
i
ACCESS
70
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function. Locking the vehicle with full
alarm
Do not make any modifi cations to
the alarm system, this could cause
malfunctions. To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection

 Unlock the vehicle using the unlock-
ing button on the remote control.

 Relock the vehicle using the remote
control.
The alarm is active again with both
types of protection; the indicator lamp
on button A fl ashes once per second.
Locking the vehicle with
exterior protection only
Activation

 Switch off the ignition and get out of
the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
on button A fl ashes once per second.
Exterior perimiter protection

The system detects opening of the vehicle.

The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation

 Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp on button A switches off. Deactivation of the interior
volumetric protection

 Switch off the ignition.

 Within ten seconds, press button A
until the indicator lamp is lit continu-
ously.

 Get out of the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The perimeter protection alone remains
activated; the indicator lamp on button A
fl ashes once per second.

!
71

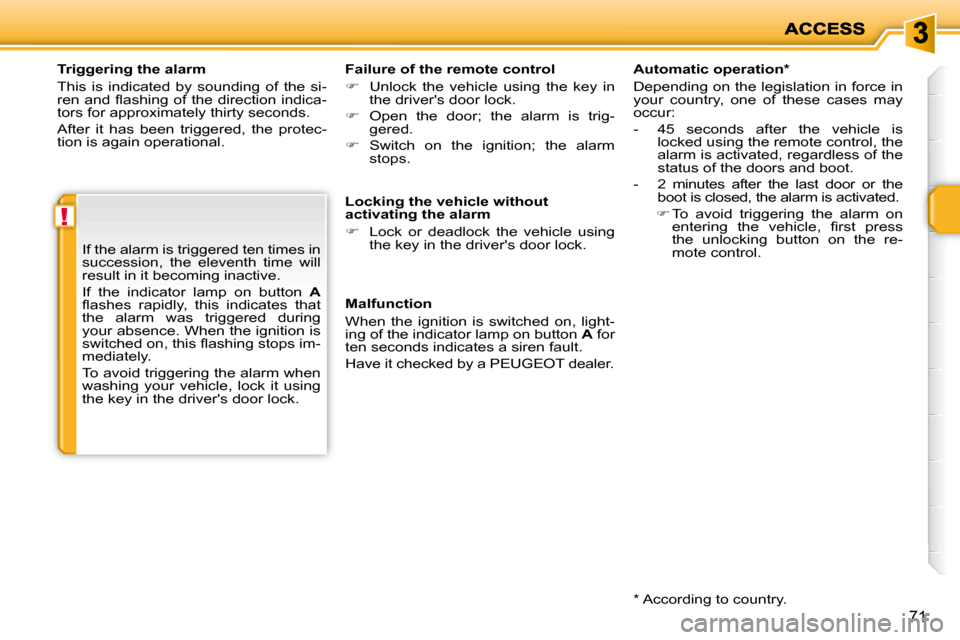

Triggering the alarm
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, the protec-
tion is again operational. If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock. Failure of the remote control

 Unlock the vehicle using the key in
the driver's door lock.

 Open the door; the alarm is trig-
gered.

 Switch on the ignition; the alarm
stops.
* According to country.
Malfunction
When the ignition is switched on, light-
ing of the indicator lamp on button
A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without
activating the alarm

 Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is activated.

 To avoid triggering the alarm on
entering the vehicle, fi rst press
the unlocking button on the re-
mote control.

i
i
i
ACCESS
72

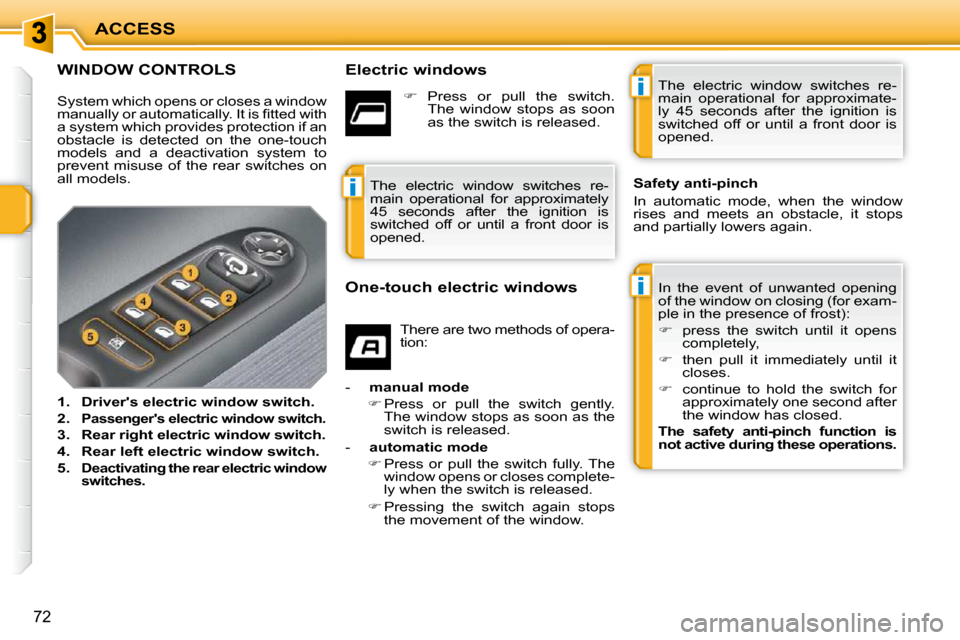

WINDOW CONTROLS Electric windows In the event of unwanted opening
of the window on closing (for exam-
ple in the presence of frost):

 press the switch until it opens
completely,

 then pull it immediately until it
closes.

 continue to hold the switch for
approximately one second after
the window has closed.

The safety anti-pinch function is
not active during these operations.
One-touch electric windows
There are two methods of opera-
tion:
- manual mode

 Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode

 Press or pull the switch fully. The
window opens or closes complete-
ly when the switch is released.

 Pressing the switch again stops
the movement of the window.
 Press or pull the switch.
The window stops as soon
as the switch is released.
The electric window switches re-
main operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.
System which opens or closes a window
manually or automatically. It is fi tted with
a system which provides protection if an
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.

1. Driver's electric window switch.

2.
Passenger's electric window switch.

3. Rear right electric window switch.

4. Rear left electric window switch.

5.
Deactivating the rear electric window
switches.
The electric window switches re-
main operational for approximate-
ly 45 seconds after the ignition is
switched off or until a front door is
opened.
Safety anti-pinch
In automatic mode, when the window
rises and meets an obstacle, it stops
and partially lowers again.

!
73

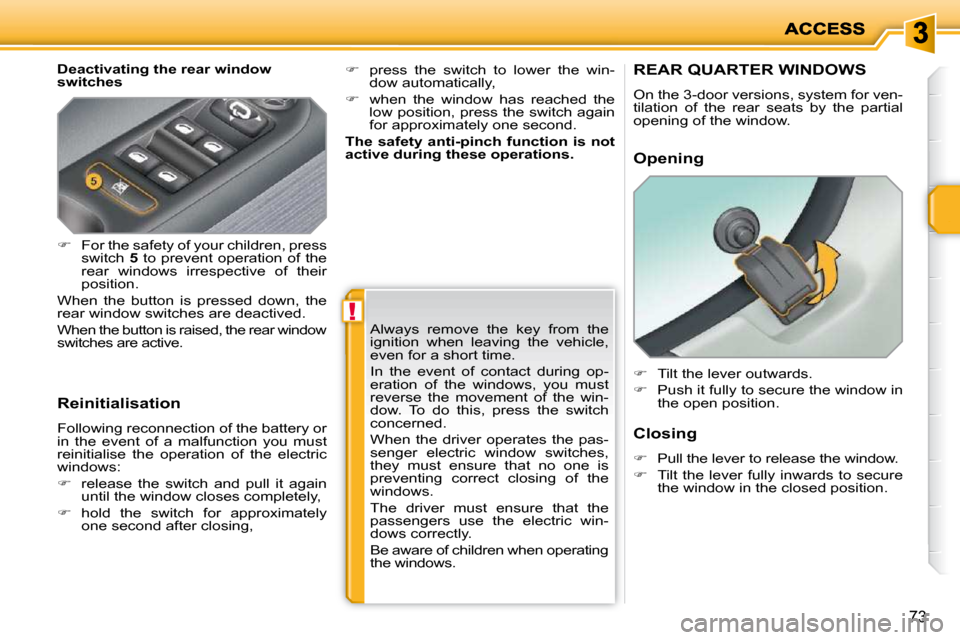

Deactivating the rear window
switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:

 release the switch and pull it again
until the window closes completely,

 hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows. REAR QUARTER WINDOWS
On the 3-door versions, system for ven-
tilation of the rear seats by the partial
opening of the window.
Opening

 For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, the
rear window switches are deactived.
When the button is raised, the rear window
switches are active.
Closing

 Pull the lever to release the window.

 Tilt the lever fully inwards to secure
the window in the closed position.

 Tilt the lever outwards.

 Push it fully to secure the window in
the open position.

 press the switch to lower the win-
dow automatically,

 when the window has reached the
low position, press the switch again
for approximately one second.

The safety anti-pinch function is not
active during these operations.

!
73
Deactivating the rear window
switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:

 release the switch and pull it again
until the window closes completely,

 hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows. REAR QUARTER WINDOWS
On the 3-door versions, system for ven-
tilation of the rear seats by the partial
opening of the window.
Opening

 For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, the
rear window switches are deactived.
When the button is raised, the rear window
switches are active.
Closing

 Pull the lever to release the window.

 Tilt the lever fully inwards to secure
the window in the closed position.

 Tilt the lever outwards.

 Push it fully to secure the window in
the open position.

 press the switch to lower the win-
dow automatically,

 when the window has reached the
low position, press the switch again
for approximately one second.

The safety anti-pinch function is not
active during these operations.

!
ACCESS
74

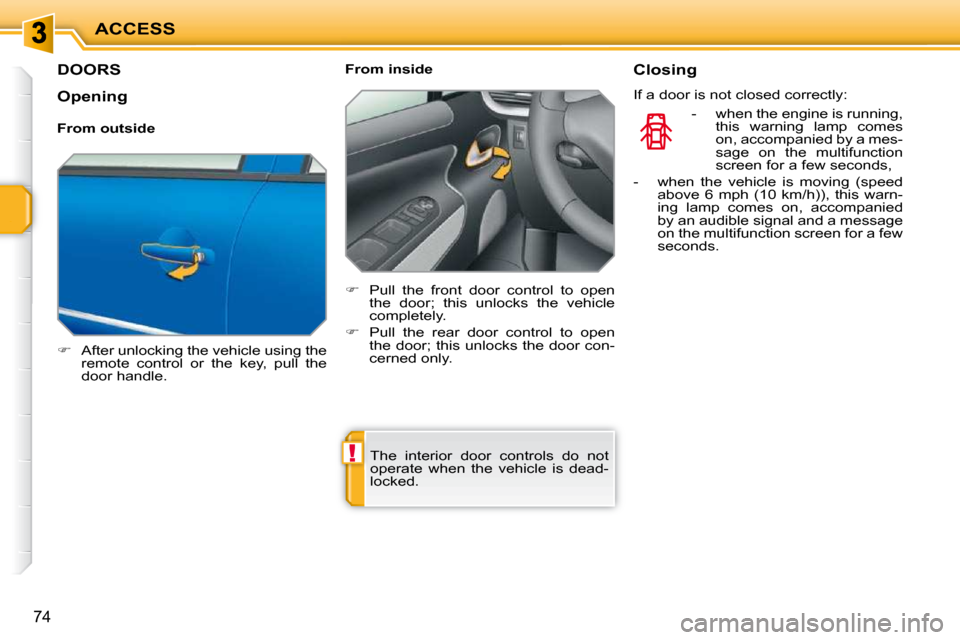

DOORS

 After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside

 Pull the front door control to open
the door; this unlocks the vehicle
completely.

 Pull the rear door control to open
the door; this unlocks the door con-
cerned only.
The interior door controls do not
operate when the vehicle is dead-
locked. Closing
If a door is not closed correctly:
- when the engine is running, this warning lamp comes
on, accompanied by a mes-
sage on the multifunction
screen for a few seconds,
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Opening
From outside

i
!i
75
If the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors or the boot or
rear screen is open, the automat-
ic central locking does not take
place.

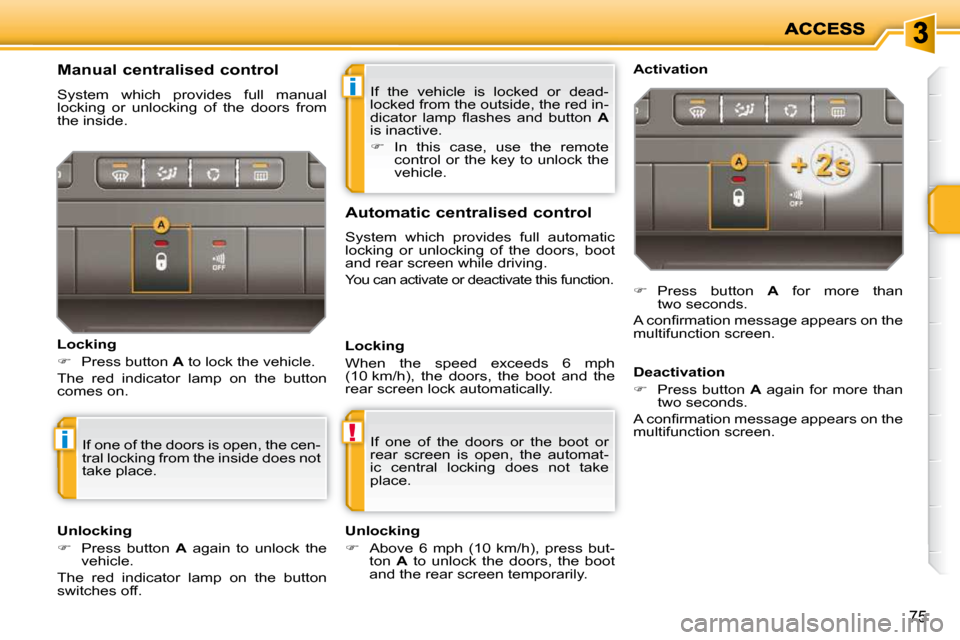

Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on. Automatic centralised control
System which provides full automatic
locking or unlocking of the doors, boot
and rear screen while driving.
You can activate or deactivate this function.
Activation

 Press button A for more than
two seconds.
A confi rmation message appears on the
multifunction screen.
Unlocking

 Above 6 mph (10 km/h), press but-
ton A to unlock the doors, the boot
and the rear screen temporarily.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking

 Press button A again to unlock the
vehicle.
The red indicator lamp on the button
switches off. Locking
When the speed exceeds 6 mph
(10 km/h), the doors, the boot and the
rear screen lock automatically.
Deactivation

 Press button A again for more than
two seconds.
A confi rmation message appears on the
multifunction screen.

ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn.
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors

 Pull the interior door opening control. -
when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the mul-
tifunction screen for a few
seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside the
boot.

 Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Opening

 After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate. BOOT (SALOON)
Closing
If the tailgate is not closed correctly:

ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn.
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors

 Pull the interior door opening control. -
when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the mul-
tifunction screen for a few
seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside the
boot.

 Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Opening

 After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate. BOOT (SALOON)
Closing
If the tailgate is not closed correctly:

i
i

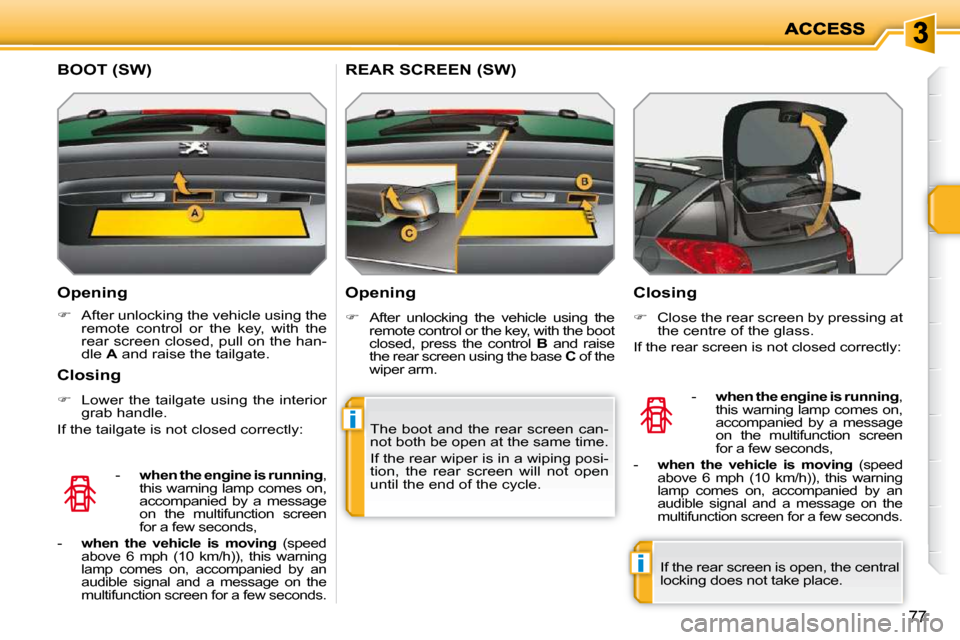

77
Opening

 After unlocking the vehicle using the
remote control or the key, with the
rear screen closed, pull on the han-
dle A and raise the tailgate.
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
Closing

 Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
REAR SCREEN (SW)
Opening

 After unlocking the vehicle using the
remote control or the key, with the boot
closed, press the control B and raise
the rear screen using the base C of the
wiper arm.
The boot and the rear screen can-
not both be open at the same time.
If the rear wiper is in a wiping posi-
tion, the rear screen will not open
until the end of the cycle. Closing

 Close the rear screen by pressing at
the centre of the glass.
If the rear screen is not closed correctly:
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
BOOT (SW)
If the rear screen is open, the central
locking does not take place.
