Peugeot 208 2015 Owner's Manual - RHD (UK, Australia)

309
208_en_Chap9d_RDE1_ed01-2015

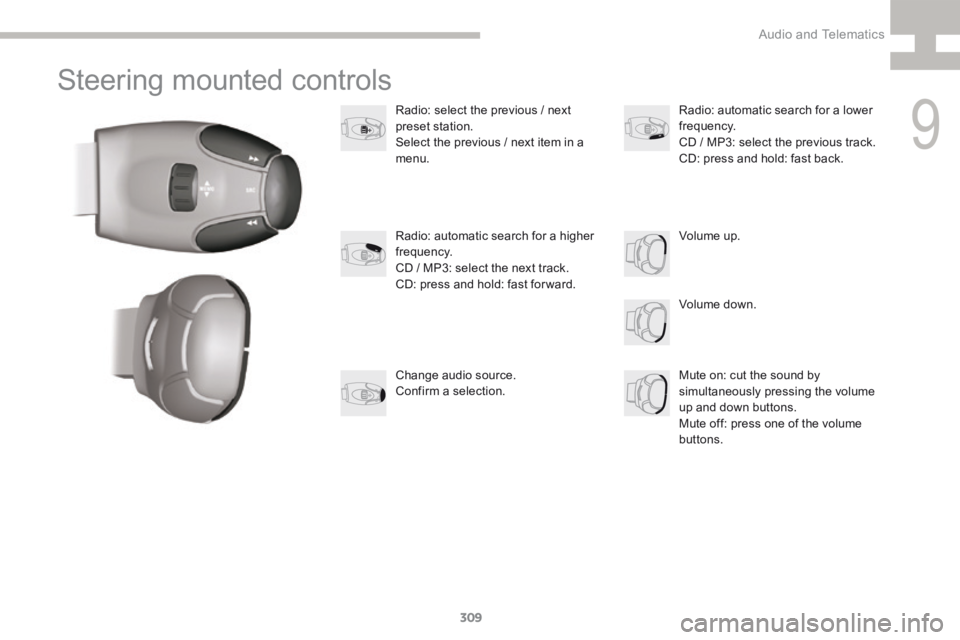

Steering mounted controls
Radio: select the previous / next
preset station.
Select the previous / next item in a
menu.Volume down.
Radio: automatic search for a higher
frequency.
CD / MP3: select the next track.
CD: press and hold: fast for ward.
Mute on: cut the sound by
simultaneously pressing the volume
up and down buttons.
Mute off: press one of the volume
buttons. Radio: automatic search for a lower
frequency.
CD / MP3: select the previous track.
CD: press and hold: fast back.
Change audio source.
Confirm a selection. Volume up.
9
Audio and Telematics

310
208_en_Chap9d_RDE1_ed01-2015
Radio
Presetting a station
Selecting a stationManaging the list
Press the SRC/BAND
button
repeatedly to select the FM1, FM2 or
AM waveband.
Press and hold a button to preset the
station being listened to. The name
of the station is displayed and an
audible signal confirms that it has
been preset.
Press a button to listen to the
corresponding preset station. Select "Radio"
.
Select "RDS" .
RDS
RDS, if displayed, enables you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
by an RDS station may not be assured
throughout the country as radio stations
do not cover 100 % of the territory. This
explains the loss of reception of the
station during a journey.
The external environment (hills,
buildings, tunnels, basement car
parks) may block reception, including
in RDS mode. This is a normal effect
of the way in which radio waves are
transmitted and does not indicate any
failure of the audio equipment. Press MENU
.
Briefly press one of the buttons to
change to the next or previous letter.
Press and hold on LIST to construct
or update the list of stations; the
sound is interrupted temporarily. Press LIST to display the list of
stations received, in alphabetical
o r d e r.
Select the desired radio station by
pressing one of the buttons.
Confirm with OK.
Confirm with OK.
Confirm with OK.
Audio and Telematics

311
208_en_Chap9d_RDE1_ed01-2015
Select "Radio".
Select "On"
or "Off" to switch RDS
on or off. Select "On"
or "Off" to switch
on or off the reception of traffic
announcements.
Select " Tr a f f i c TA" .
Receiving TA messages
The TA (Traffic Announcement)
function gives priority to TA alert
messages. To operate, this function
needs good reception of a radio station
transmitting this type of message.
When a traffic report is transmitted, the
current audio source (Radio, CD, ...)
is interrupted automatically to play the
TA message. Normal playback of the
audio source resumes at the end of the
transmission of the message.
Press MENU .
Confirm with OK.
Confirm with OK.
Confirm with OK.
Confirm with OK.
9
Audio and Telematics

312
208_en_Chap9d_RDE1_ed01-2015

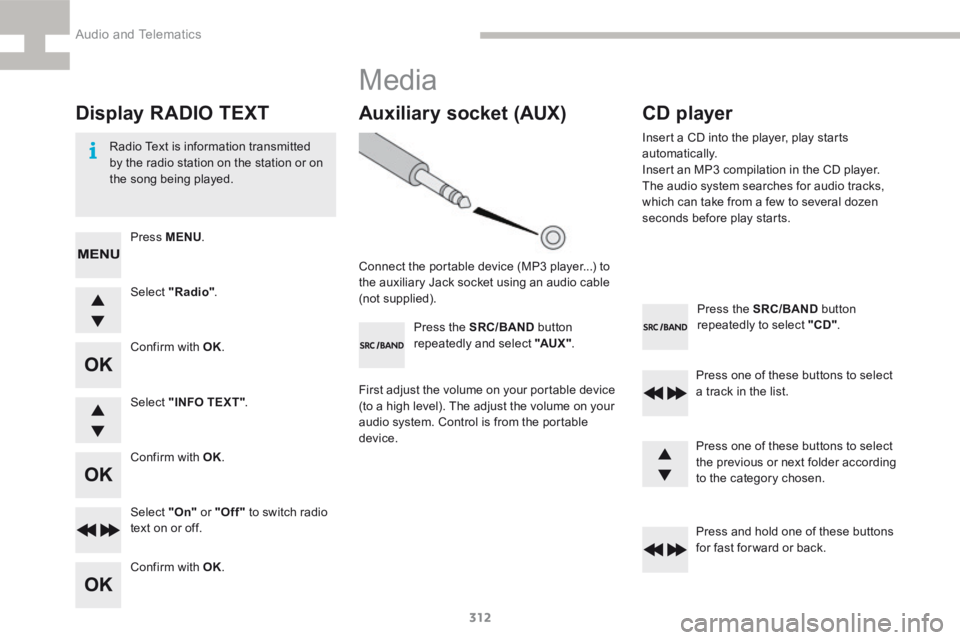

Press the SRC/BAND button
repeatedly to select "CD" .
Press one of these buttons to select
a track in the list.
Press and hold one of these buttons
for fast for ward or back.
Auxiliary socket (AUX)
Connect the portable device (MP3 player...) to
the auxiliary Jack socket using an audio cable
(not supplied). Press the SRC/BAND button
repeatedly and select "AUX " .
First adjust the volume on your portable device
(to a high level). The adjust the volume on your
audio system. Control is from the portable
device.
CD player
Insert a CD into the player, play starts
automatically.
Insert an MP3 compilation in the CD player.
The audio system searches for audio tracks,
which can take from a few to several dozen
seconds before play starts.
Press one of these buttons to select
the previous or next folder according
to the category chosen.
Display RADIO TEXT
Radio Text is information transmitted
by the radio station on the station or on
the song being played.Select "Radio" .
Select "On" or "Off" to switch radio
text on or off.
Select "INFO TEXT"
.
Press MENU
.
Confirm with OK.
Confirm with OK.
Confirm with OK.
Media
Audio and Telematics

313
208_en_Chap9d_RDE1_ed01-2015

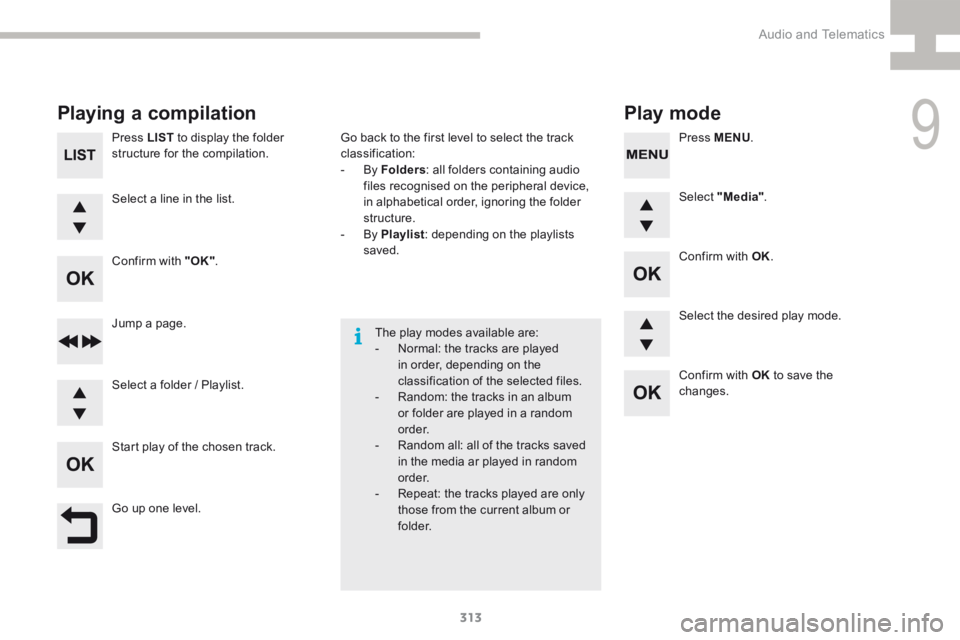

The play modes available are:
- Normal: the tracks are played
in order, depending on the
classification of the selected files.
- Random: the tracks in an album
or folder are played in a random
o r d e r.
- Random all: all of the tracks saved
in the media ar played in random
o r d e r.
- Repeat: the tracks played are only
those from the current album or
f o l d e r. Select "Media"
.
Select the desired play mode. Press MENU .
Confirm with OK.
Confirm with OK to save the
changes.
Select a line in the list.
Jump a page.
Select a folder / Playlist. Press LIST
to display the folder
structure for the compilation.
Playing a compilation
Confirm with "OK" .
Start play of the chosen track.
Go up one level. Go back to the first level to select the track
classification:
- By
Folders : all folders containing audio
files recognised on the peripheral device,
in alphabetical order, ignoring the folder
structure.
- By Playlist : depending on the playlists
saved.
Play mode
9
Audio and Telematics

314
208_en_Chap9d_RDE1_ed01-2015

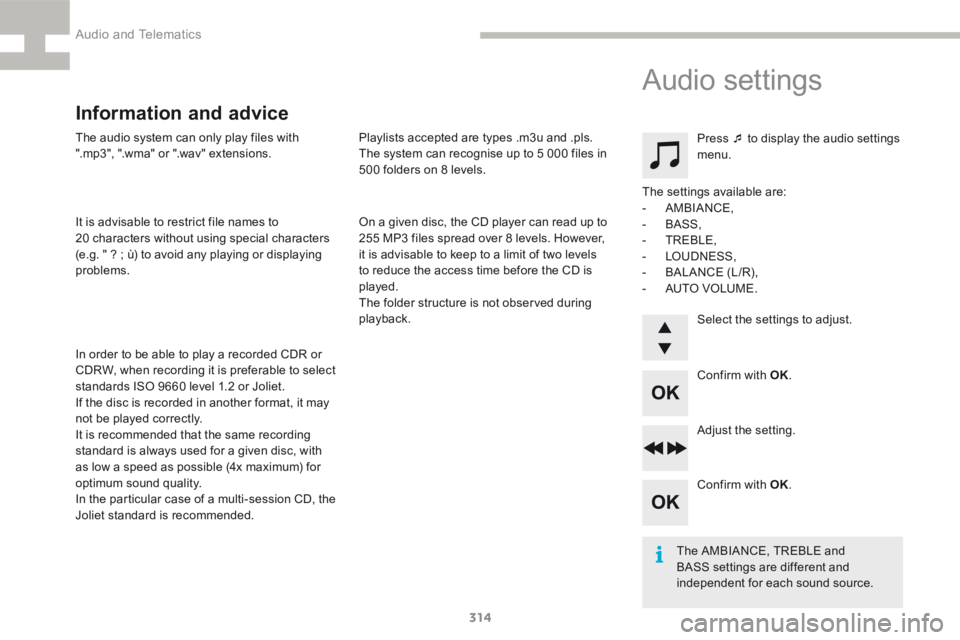

The audio system can only play files with
".mp3", ".wma" or ".wav" extensions.
It is advisable to restrict file names to
20 characters without using special characters
(e.g. " ? ; ù) to avoid any playing or displaying
problems.
In order to be able to play a recorded CDR or
CDRW, when recording it is preferable to select
standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may
not be played correctly.
It is recommended that the same recording
standard is always used for a given disc, with
as low a speed as possible (4x maximum) for
optimum sound quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.
Information and advice
On a given disc, the CD player can read up to
255 MP3 files spread over 8 levels. However,
it is advisable to keep to a limit of two levels
to reduce the access time before the CD is
played.
The folder structure is not observed during
playback. Playlists accepted are types .m3u and .pls.
The system can recognise up to 5 000 files in
500 folders on 8 levels. Press ¯ to display the audio settings
menu.
Select the settings to adjust.
The settings available are:
-
AMBIANCE,
- BASS,
- TREBLE,
- LOUDNESS,
- BALANCE (L/R),
- AUTO VOLUME.
The AMBIANCE, TREBLE and
BASS settings are different and
independent for each sound source.
Audio settings
Confirm with OK.
Adjust the setting.
Confirm with OK.
Audio and Telematics

315
208_en_Chap9d_RDE1_ed01-2015

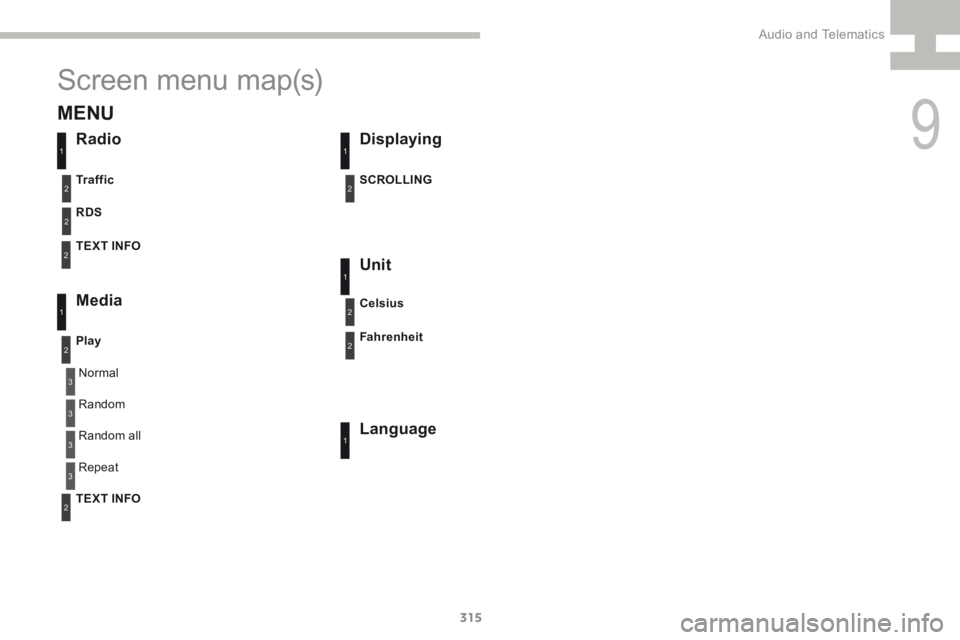

Screen menu map(s)
3
3
3
3
Normal
Random all Random
Repeat
RadioDisplaying
Unit
Language
RDS
Media
Play TEXT INFO Tr a f f i c SCROLLING
Celsius
Fahrenheit
11
1
1
22
2
2
2
1
2
2
MENU
TEXT INFO2
9
Audio and Telematics

316
208_en_Chap9d_RDE1_ed01-2015
Frequently asked questions
The following tables contain answers to the most frequently asked questions.QUESTION ANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources
(radio, CD...). For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambiance, Loudness) can be adapted to the different sound
sources, which may result in audible differences when changing
source (radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambiance, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Fader, Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambiance setting
is deselected.
When changing the
ambiance setting, treble
and bass are reset to zero. Choosing an ambiance imposes settings for treble and bass.
Modifying one without the other is not possible.
Modify the treble and bass settings or the
ambiance setting to obtain the desired sound
quality.
Audio and Telematics

317
208_en_Chap9d_RDE1_ed01-2015

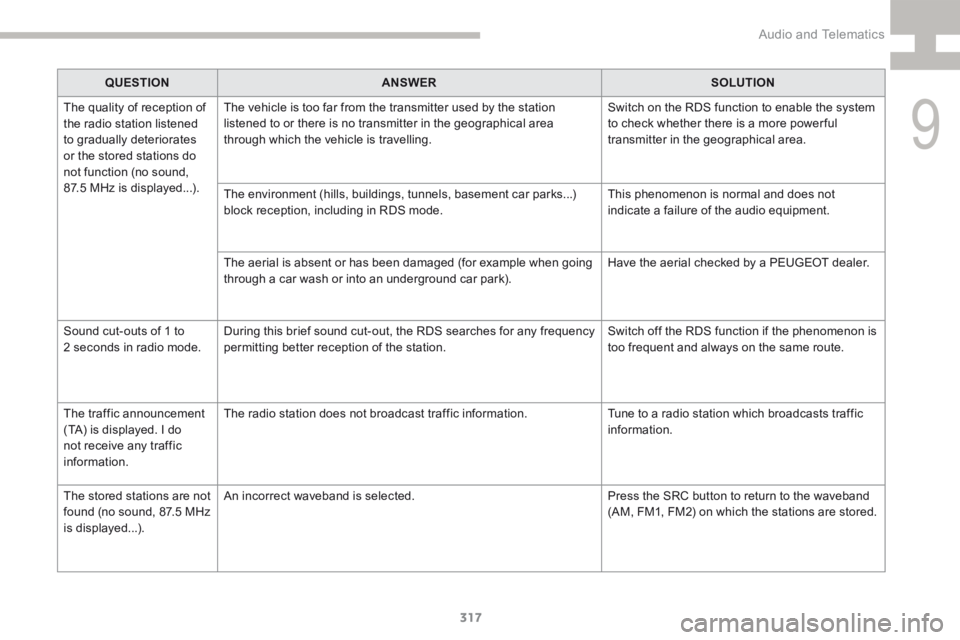

QUESTIONANSWER SOLUTION
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 MHz is displayed...). The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Switch on the RDS function to enable the system
to check whether there is a more power ful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode. This phenomenon is normal and does not
indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Switch off the RDS function if the phenomenon is
too frequent and always on the same route.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information. The radio station does not broadcast traffic information.
Tune to a radio station which broadcasts traffic
information.
The stored stations are not
found (no sound, 87.5 MHz
is displayed...). An incorrect waveband is selected.
Press the SRC button to return to the waveband
(AM, FM1, FM2) on which the stations are stored.
9
Audio and Telematics

318
208_en_Chap9d_RDE1_ed01-2015

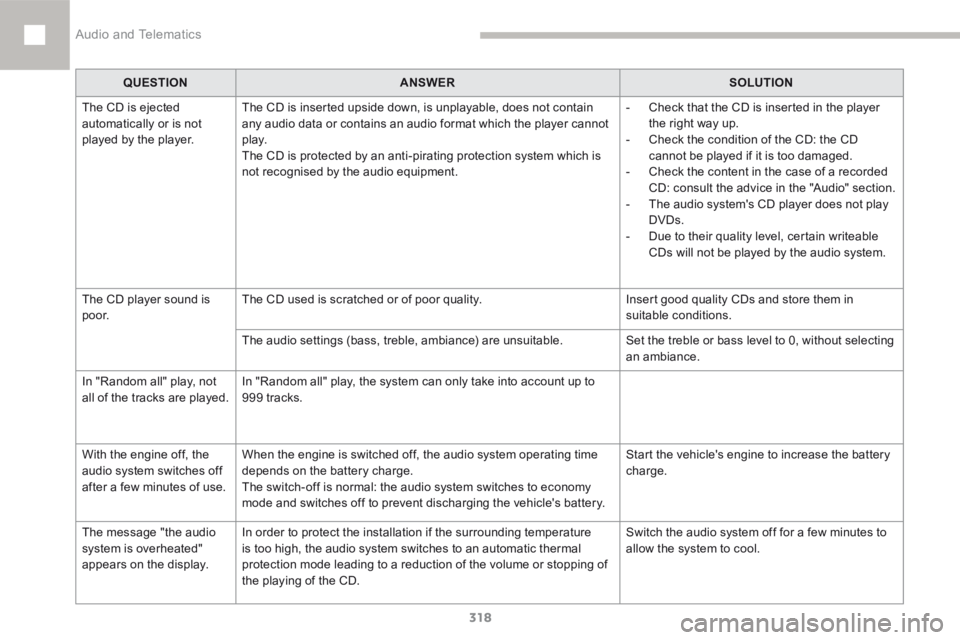

QUESTIONANSWER SOLUTION
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain
any audio data or contains an audio format which the player cannot
p l ay.
The CD is protected by an anti-pirating protection system which is
not recognised by the audio equipment. -
Check that the CD is inserted in the player
the right way up.
- Check the condition of the CD: the CD
cannot be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
- The audio system's CD player does not play
DVDs.
- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
p o o r. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in
suitable conditions.
The audio settings (bass, treble, ambiance) are unsuitable. Set the treble or bass level to 0, without selecting
an ambiance.
In "Random all" play, not
all of the tracks are played. In "Random all" play, the system can only take into account up to
999 tracks.
With the engine off, the
audio system switches off
after a few minutes of use. When the engine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio system switches to economy
mode and switches off to prevent discharging the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction of the volume or stopping of
the playing of the CD. Switch the audio system off for a few minutes to
allow the system to cool.
Audio and Telematics
