TECHNICAL DATA
196

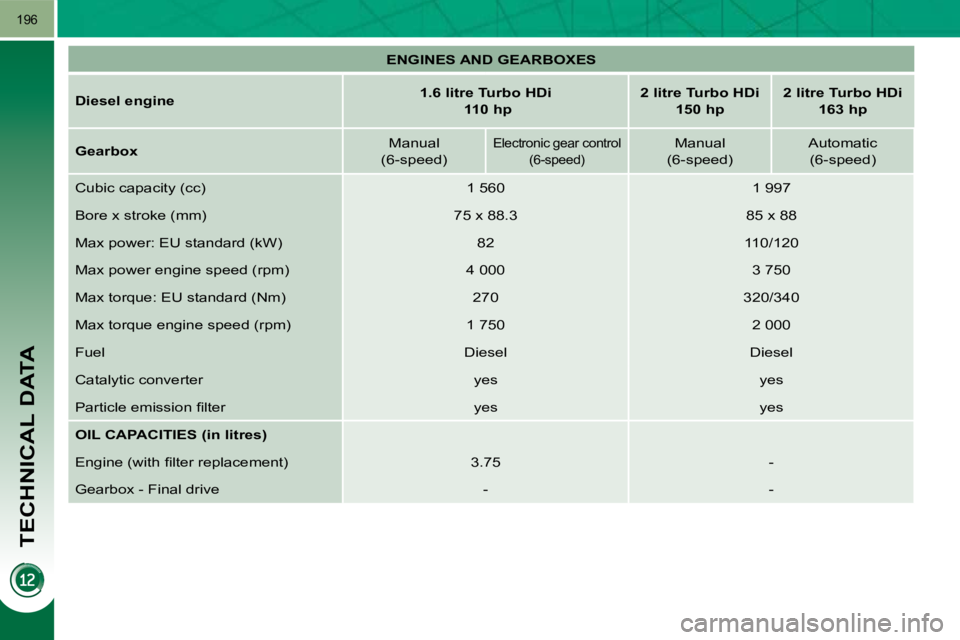

ENGINES AND GEARBOXES
Diesel engine
1.6 litre Turbo HDi
110
hp
2 litre Turbo HDi
150
hp
2 litre Turbo HDi
163
hp
Gearbox Manual
(6-speed)
Electronic gear control (6-speed) Manual
(6-speed) Automatic
(6-speed)
Cubic capacity (cc) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) 82 110/120
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 270 320/340
Max torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter yes yes
P a r t i c l e e m i s s i o n fi l t e r yes yes
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 -
Gearbox - Final drive - -
Page 222 of 315
TECHNICAL DATA

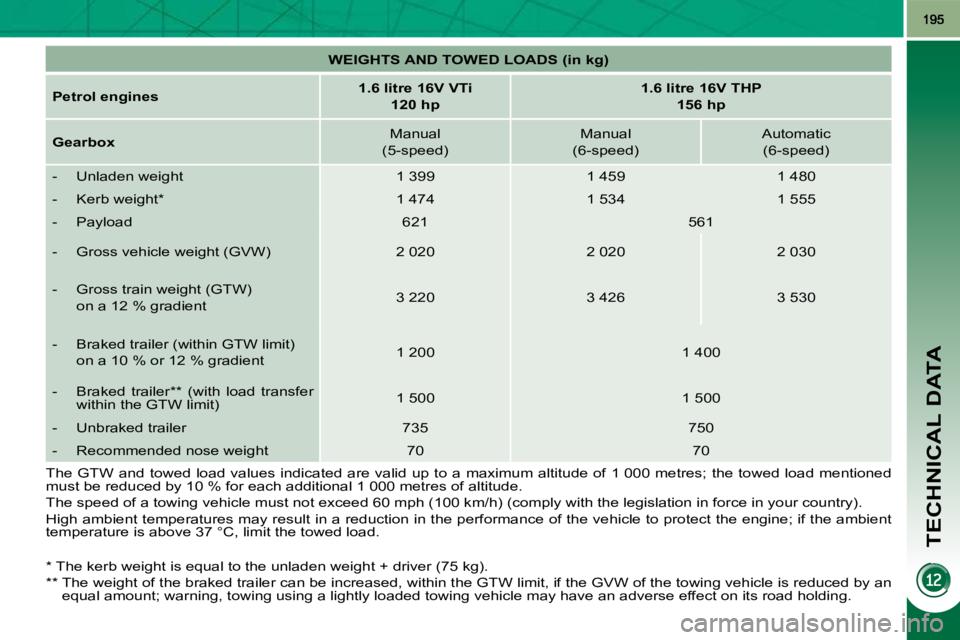

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre 16V VTi
120
hp
1.6 litre 16V THP
156
hp
Gearbox Manual
(5-speed) Manual
(6-speed) Automatic
(6-speed)
- Unladen weight 1 399 1 459 1 480
- Kerb weight * 1 474 1 534 1 555
- Payload 621 561
- Gross vehicle weight (GVW) 2 020 2 020 2 030
- Gross train weight (GTW)
on a 12 % gradient 3 220 3 426 3 530
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 400
- Braked trailer ** (with load transfer within the GTW limit) 1 500 1 500
- Unbraked trailer 735 750
- Recommended nose weight 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
Page 223 of 315
TECHNICAL DATA
197

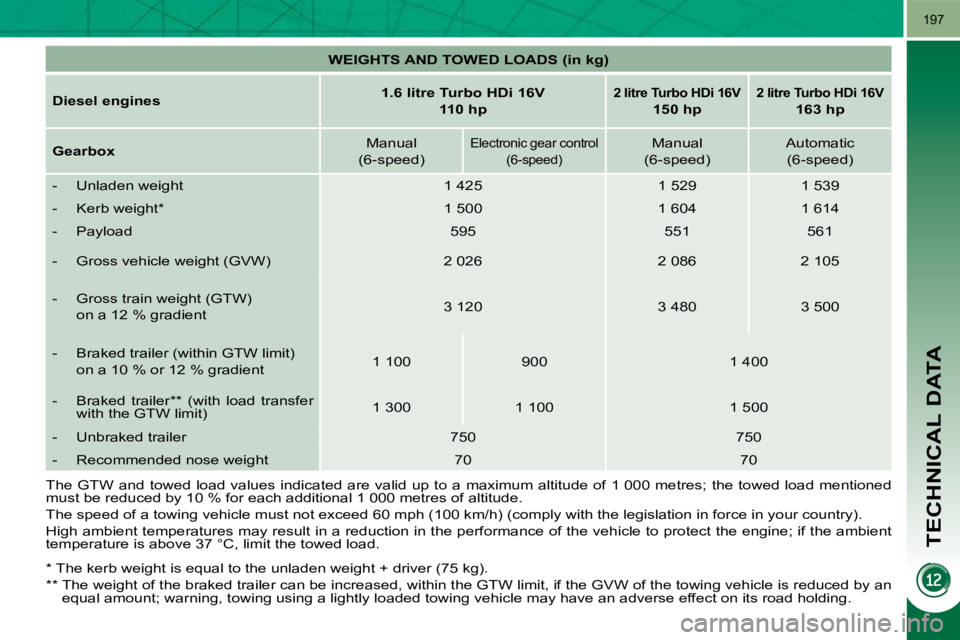

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDi 16V
110
hp
2 litre Turbo HDi 16V
150
hp
2 litre Turbo HDi 16V
163
hp
Gearbox Manual
(6-speed)
Electronic gear control (6-speed) Manual
(6-speed) Automatic
(6-speed)
- Unladen weight 1 425 1 529 1 539
- Kerb weight * 1 500 1 604 1 614
- Payload 595 551 561
- Gross vehicle weight (GVW) 2 026 2 086 2 105
- Gross train weight (GTW)
on a 12 % gradient 3 120 3 480 3 500
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 900 1 400
- Braked trailer ** (with load transfer with the GTW limit) 1 300 1 100 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
Page 224 of 315
TECHNICAL DATA
198

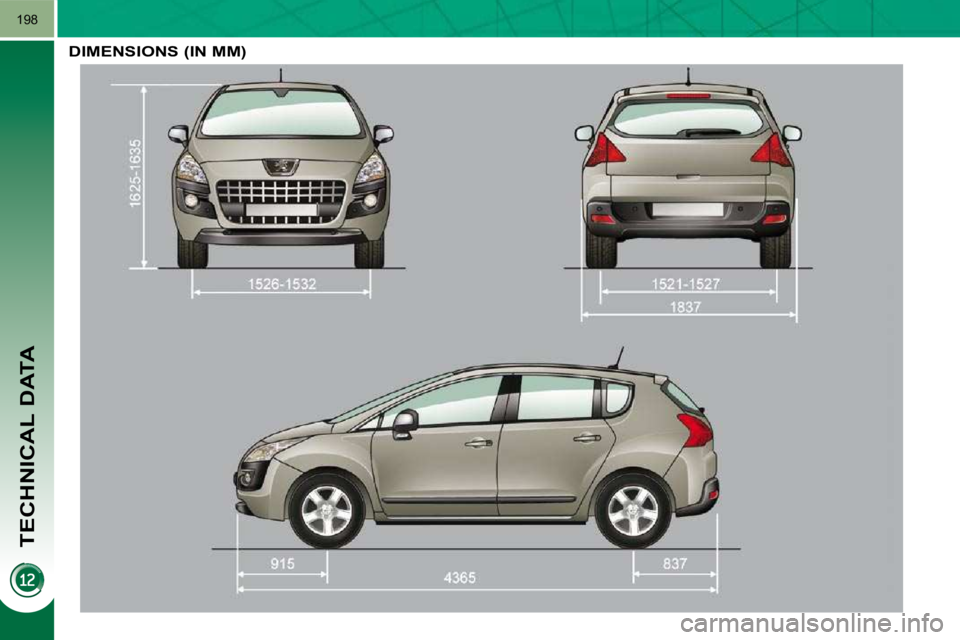

DIMENSIONS (IN MM)
Page 225 of 315
TECHNICAL DATA
199
IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r t h e i d e n t i fi -
cation and tracking of your vehicle. I f t h e i n fl a t i o n p r e s s u r e s a r e
too low, this increases fuel
consumption.
T h e i n fl a t i o n p r e s s u r e s m u s t
be checked when the tyres are
cold, at least once a month.
A. V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN) under the bonnet.
This number is engraved on the bodywork near the damper support.
B. V e h i c l e i d e n t i fi c a t i o n N u m b e r
(VIN) on the windscreen lower
c r o s s m e m b e r .
This number is indicated on a self- adhesive label which is visible
through the windscreen.
C. Manufacturer’s label.
The VIN is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e d o o r
aperture, on the right-hand side.
D. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e d o o r aperture, on the driver’s side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s w i t h a n d without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour code.
Page 226 of 315
201

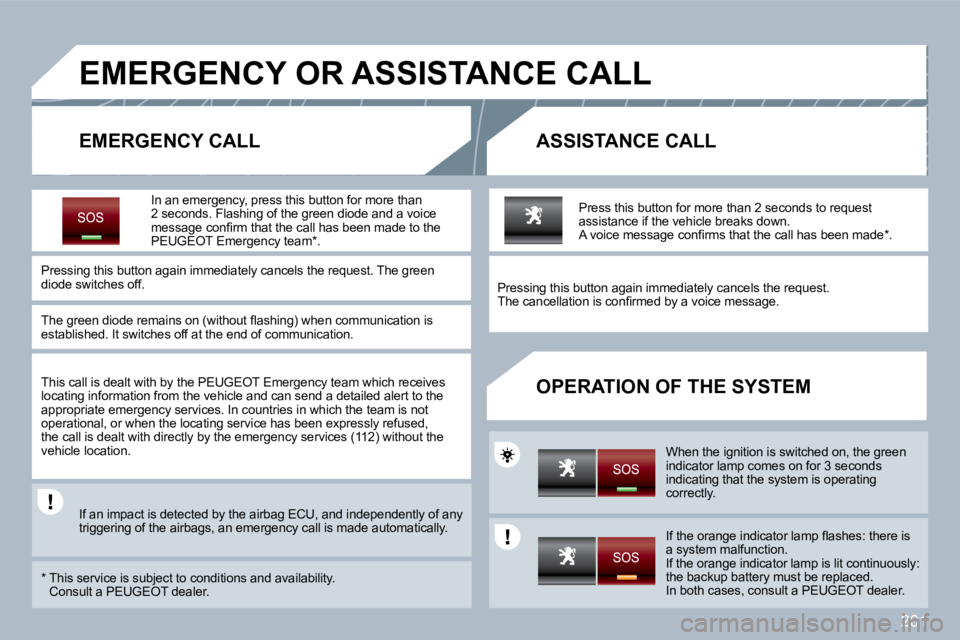

EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL ASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green diode and a voice m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green diode switches off.
T h e g r e e n d i o d e r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n c o m m u n i c a t i o n i s established. It switches off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in whi ch the team is not operational, or when the locating service has been expressly refused, t h e c a l l i s d e a l t w i t h d i r e c t l y b y t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) w i t h o u t t h e vehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is mad e automatically.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
Press this button for more than 2 seconds to requ est assistance if the vehicle breaks down. A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e * .
Pressing this button again immediately cancels the request. T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
I f t h e o r a n g e i n d i c a t o r l a m p fl a s h e s : t h e r e i s a system malfunction. I f t h e o r a n g e i n d i c a t o r l a m p i s l i t c o n t i n u o u s l y : the backup battery must be replaced. In both cases, consult a PEUGEOT dealer.
Page 227 of 315
202
PEUGEOT ASSISTANCE
CUSTOMER CALL
Press this button for access to PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
EMERGENCY CALL
EMERGENCY OR ASSISTANCE CALL using PEUGEOT Connect Media
ASSISTANCE CALL
In an emergency, press the SOS button until an audible s i g n a l i s h e a r d a n d a " C o n fi r m a t i o n / C a n c e l l a t i o n " s c r e e n i s d i s p l a y e d ( i f v a l i d S I M c a r d i n s e r t e d ) . A call is made * to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services. In countries in which the team is not operational, or when the locating service has been expressly reject ed, t h e c a l l i s s e n t t o t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) .
* This service is subject to conditions and availability. Consult a PEUGEOTdealer.
If an impact is detected by the airbag control uni t, and inand independently of the triggering of any airbags, an emergency call is mal is made automatically. T h e m e s s a g e " D e t e r i o r a t e d e m e r g e n c y c a l l " a s s o c i a t e d w i t h fl a s h i n g T h e m e s s a g e " D e t e r i o r a t e d e m e r g e n c y c a l l " a s s o c i a t e d w i t h fl a s h i n g of the orange indicator lamp indicates a malfunction. Con. Consult a PEUGEOT dealer.
Warning - the emergency call and the services are only a only active if the internal telephone is used with a valid SIM card. Wrd. With a Bluetooth telephone and without a SIM card, these s ervi services are not operational.
Page 228 of 315
203
The Peugeot Connect Media is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dea ler f o r c o n fi g u r a t i o n o f t h e s y s t e m .
Certain functions described in this handbook will become available during the course of the year.

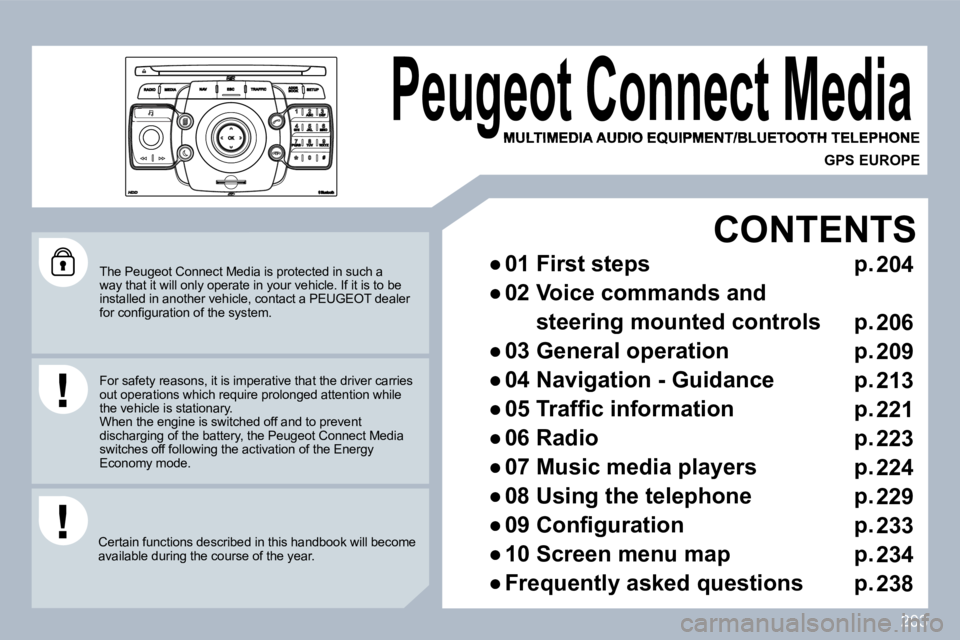

Peugeot Connect Media
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
Peugeot Connect Media Peugeot Connect Media
GPS EUROPE
CONTENTS
Page 229 of 315
204
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
1 0
2
3
4
6 1 2
9
7
8
1 1 5
TU
PQRS
0
*
1 . CD eject.
2 . R A D I O : a c c e s s t o t h e " R a d i o " M e n u . Display the list of stations in alphabetical order ( F M w a v e b a n d ) o r f r e q u e n c y o r d e r ( A M w a v e b a n d ) .
M E D I A : a c c e s s t o t h e " M e d i a " M e n u ( A u d i o C D , J u k e b o x , E x t e r n a l D e v i c e ) . Display the list of tracks. Change of source.
N A V : a c c e s s t o t h e " N a v i g a t i o n " M e n u a n d d i s p l a y o f t h e last destinations.
E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s . L o n g p r e s s : r e t u r n t o t h e m a i n d i s p l a y .
T R A F F I C : a c c e s s t o t h e " T r a f fi c " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) .
A D D R B O O K : a c c e s s t o t h e " A d d r e s s b o o k " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n 1 0 ) .
S E T U P : a c c e s s t o t h e " S E T U P " M e n u ( c o n fi g u r a t i o n ) ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) . L o n g p r e s s : G P S c o v e r a g e .
3 . A u d i o s e t t i n g s ( B a l a n c e / F a d e r , B a s s / T r e b l e , M u s i c a l A m b i e n c e . . . ) .
4 . Volume adjustment (each source is independent, in cluding m e s s a g e a n d n a v i g a t i o n a l e r t ) L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m . S h o r t p r e s s : m u t e .
5 . Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
FIRST STEPS
Peugeot Connect Media CONTROL PANEL
6 . Automatic search for a radio station on a higher frequency. Selection of the next CD or MP3 track.
7 . Normal display or black screen.
8 . S e l e c t i o n o f t h e s u c c e s s i v e d i s p l a y o n t h e s c r e e n o f " M A P " / " N A V " ( i f n a v i g a t i o n i s i n p r o g r e s s ) / " T E L " ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) / " R A D I O " o r " M E D I A " c u r r e n t l y b e i n g p l a y e d .
9 . P I C K U P : a c c e s s t o t h e " P h o n e " m e n u . With Bluetooth connection, accept an incoming call .
1 0 . H A N G U P : a c c e s s t o t h e " P h o n e " m e n u . Hang up the current call or refuse an incoming call, with Bluetooth connection.
1 1 . Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies.
1 2 . SD card reader.
S h o r t p r e s s : c l e a r s t h e l a s t character.
L o n g p r e s s : a c t i v a t e s v o i c e recognition.
Page 230 of 315
205
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
1 3
1 4
1 3 . O K : c o n fi r m a t i o n o f t h e h i g h l i g h t e d i t e m o n t h e s
c r e e n .
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s t o t h e l e f t / r i g h t .
W h e n t h e " R A D I O " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t f r e q u e n c y .
W h e n " M E D I A " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t track.
W h e n " M A P " o r " N A V " i s d i s p l a y e d : h o r i z o n t a l m o v e m e n t o f the map.
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s u p / d o w n .
W h e n " R A D I O " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t radio station on the list.
W h e n t h e " M E D I A " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e M P 3 directory.
W h e n " M A P " o r " N A V " i s d i s p l a y e d : v e r t i c a l m o v e m e n t o f the map.
Switch to the next or previous page of a menu. Movement on the virtual keypad displayed.
FIRST STEPS

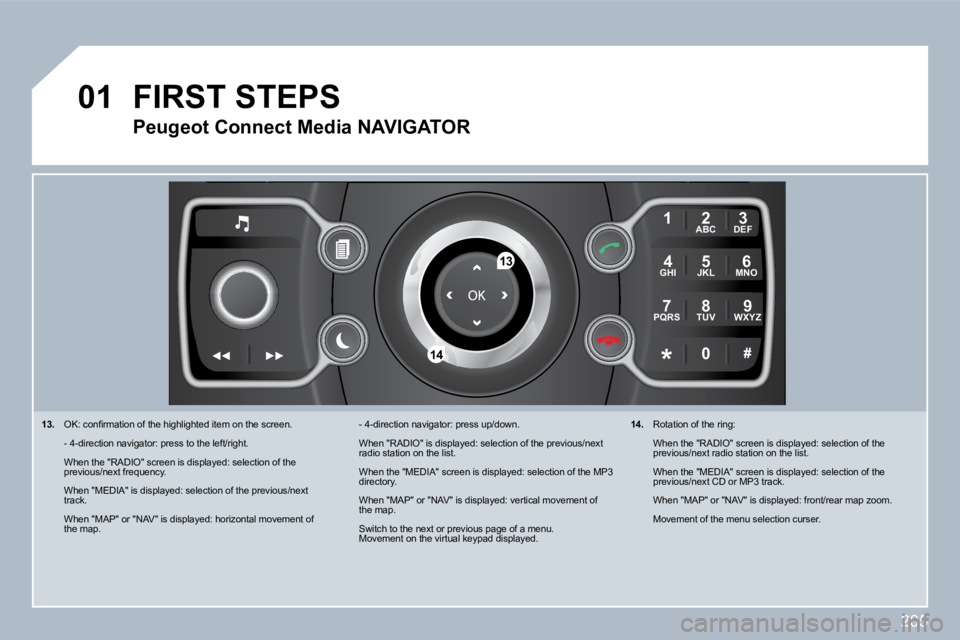

P e u g e o t C o n n e c t M e d i a N A V I G A T O R
1 4 . R o t a t i o n o f t h e r i n g :
W h e n t h e " R A D I O " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t r a d i o s t a t i o n o n t h e l i s t .
W h e n t h e " M E D I A " s c r e e n i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t C D o r M P 3 t r a c k .
W h e n " M A P " o r " N A V " i s d i s p l a y e d : f r o n t / r e a r m a p z o o m .
Movement of the menu selection curser.
