Page 201 of 315
PRACTICAL INFORMATION
176
Changing sidelamp bulbs
(xenon model)
Remove the protective plastic cover
b y p u l l i n g o n t h e t a b .
D i s c o n n e c t t h e b u l b c o n n e c t o r .
Remove the bulb by pulling and
c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r . Changing foglamp bulbs
You can also contact a
PEUGEOT dealer to have
t h e s e b u l b s c h a n g e d . C o n s u l t a P E U G E O T d e a l e r .
I n s e r t a s c r e w d r i v e r t o w a r d s t h e
centre of the repeater between the
r e p e a t e r a n d t h e b a s e o f t h e m i r r o r .
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e
r e p e a t e r a n d r e m o v e i t .
D i s c o n n e c t t h e r e p e a t e r c o n n e c t o r .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
r e v e r s e o r d e r .
Contact a PEUGEOT dealer to obtain
r e p l a c e m e n t r e p e a t e r s .
Changing integrated direction
indicator side repeaters
Changing daytime running
lamp bulbs
C o n s u l t a P E U G E O T d e a l e r . Changing dipped beam and
main beam headlamp bulbs
(xenon model)
D 1 S x e n o n b u l b s m u s t b e c h a n g e d
by a PEUGEOT dealer as there is a
r i s k o f e l e c t r o c u t i o n .
I t i s r e c o m m e n d e d t h a t t h e D 1 S b u l b s
are changed at the same time when
o n e o f t h e m f a i l s .
Page 202 of 315
PRACTICAL INFORMATION
177
Rear lamps
1. Brake
lamps/
sidelamps
(P21-5W).
2. Reversing
lamps
(P21W).
3. Direction indicators
(PY21W-21W).
4. Sidelamps
(P5-5W).
5. Foglamps
(P21W). Changing brake lamp/sidelamp,
reversing lamp and direction
indicator bulbs
P r e s s t h e s i x t a b s a n d r e m o v e t h e
b u l b h o l d e r .
R e m o v e t h e p l a s t i c c o v e r .
R e m o v e t h e t w o l a m p u n i t fi x i n g
n u t s .
E x t r a c t t h e l a m p u n i t c a r e f u l l y f r o m
t h e o u t s i d e .
D i s c o n n e c t t h e e l e c t r i c a l c o n n e c t o r .
Turn the bulb a quarter of a turn and
c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
r e v e r s e o r d e r .
Page 203 of 315
PRACTICAL INFORMATION
178
Changing the third brake lamp bulb Changing the number plate lamp
bulbs (W5-5W)
I n s e r t a t h i n s c r e w d r i v e r i n t o o n e o f
t h e o u t e r h o l e s o f t h e l e n s .
P u s h i t o u t w a r d s t o u n c l i p .
R e m o v e t h e l e n s .
P u l l t h e b u l b a n d c h a n g e i t .
Changing sidelamp bulbs (boot)
Changing foglamp bulbs
O p e n t h e b o o t .
R e m o v e t h e p l a s t i c fl a p u s i n g a
s c r e w d r i v e r .
R e m o v e t h e l a m p fi x i n g n u t .
Turn the bulb a quarter of a turn and
c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
r e v e r s e o r d e r .
R e a c h u n d e r t h e b u m p e r .
Turn the bulb a quarter of a turn and
c h a n g e i t .
O p e n t h e b o o t a n d r e m o v e t h e u p -
p e r s e a l .
U n s c r e w t h e t w o n u t s .
P r e s s t h e t h r e a d e d p i n s w h i l e s u p -
p o r t i n g t h e l a m p f r o m t h e o u t s i d e .
D i s c o n n e c t t h e c o n n e c t o r a n d
r e m o v e t h e s c r e e n w a s h p i p e .
Press the pairs of clips A then B
then C to detach and gain access to
t h e b u l b h o l d e r .
Page 204 of 315
PRACTICAL INFORMATION
179
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
c o r r e s p o n d i n g f u n c t i o n .
Access to the tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e f u s -
e s a r e i n s t a l l e d o n t h e b a c k o f t h e d a s h -
b o a r d f u s e b o x c o v e r .
T o g a i n a c c e s s t o t h e m :
r e m o v e t h e c o v e r c o m p l e t e l y ,
r e m o v e t h e p l i e r s . Changing a fuse
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
I d e n t i f y t h e f a u l t y f u s e b y c h e c k i n g
t h e c o n d i t i o n o f i t s fi l a m e n t .
Correct Incorrect
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
f u s e f r o m i t s h o u s i n g .
Always replace the faulty fuse with a
f u s e o f t h e s a m e r a t i n g .
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the fuse and the
t a b l e s b e l o w . Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with standard
o r o p t i o n a l e q u i p m e n t .
Before installing other electrical
equipment or accessories on your
v e h i c l e , c o n t a c t a P E U G E O T d e a l e r .
P E U G E O T w i l l n o t a c c e p t r e -
sponsibility for the cost incurred
in repairing your vehicle or for
r e c t i f y i n g m a l f u n c t i o n s r e s u l t -
ing from the installation of accessories
not supplied and not recommended by
P E U G E O T a n d n o t i n s t a l l e d i n a c c o r -
d a n c e w i t h i t s i n s t r u c t i o n s , i n p a r t i c u l a r
when the combined consumption of all
of the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 205 of 315
PRACTICAL INFORMATION
180
Dashboard fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r d a s h -
b o a r d ( l e f t - h a n d s i d e ) . Fuse tables
Fuse N° Rating
(A) Functions
F1 15 R e a r w i p e r .
F2 - N o t u s e d .
F3 5 A i r b a g c o n t r o l u n i t .
F4 10 E l e c t r o c h r o m a t i c r e a r v i e w m i r r o r , a i r c o n d i t i o n i n g ,
s w i t c h i n g a n d p r o t e c t i o n u n i t , r e a r m u l t i m e d i a .
F5 30 F r o n t o n e - t o u c h e l e c t r i c w i n d o w s .
F6 30 R e a r o n e - t o u c h e l e c t r i c w i n d o w s .
F7 5 F r o n t a n d r e a r c o u r t e s y l a m p s , m a p r e a d i n g l a m p s ,
r e a r r e a d i n g l a m p s , s u n v i s o r l i g h t i n g , g l o v e b o x
l i g h t i n g , c e n t r e a r m r e s t l i g h t i n g , b o o t 1 2 V r e l a y
c o n t r o l .
Page 206 of 315
PRACTICAL INFORMATION
181
Access to the fuses
refer to the paragraph "Access to
t h e t o o l s " . Fuse
N° Rating
(A)
Functions
F8 20 A u d i o e q u i p m e n t , a u d i o / t e l e p h o n e , C D c h a n g e r ,
m u l t i f u n c t i o n s c r e n , t y r e u n d e r - i n fl a t i o n d e t e c t i o n ,
a l a r m s i r e n , a l a r m c o n t r o l u n i t , t e l e m a t i c u n i t ,
s e r v i c e m o d u l e ( w i t h P e u g e o t C o n n e c t M e d i a ) .
F9 30 F r o n t 1 2 V s o c k e t , c i g a r l i g h t e r , r e a r 1 2 V s o c k e t .
F10 15 S t e e r i n g m o u n t e d c o n t r o l s .
F11 15 L o w c u r r e n t i g n i t i o n s w i t c h .
F12 15 T r a i l e r p r e s e n c e , r a i n / b r i g h t n e s s s e n s o r , s u p p l y f o r
f u s e s F 3 2 , F 3 4 , F 3 5 .
F13 5 E n g i n e f u s e b o x , a i r b a g c o n t r o l u n i t .
F14 15 I n s t r u m e n t p a n e l , i n s t r u m e n t p a n e l s c r e e n , s u p p l y
f o r f u s e F 3 3 .
F15 30 L o c k i n g a n d d e a d l o c k i n g .
F17 40 H e a t e d r e a r s c r e e n , s u p p l y f o r f u s e F 3 0 .
SH - P A R C s h u n t .
Page 207 of 315
PRACTICAL INFORMATION
182
Fuse N° Rating
(A) Functions
F29 30 B o o t 1 2 V s o c k e t .
F30 5 H e a t e d d o o r m i r r o r s .
F31 15 R e f r i g e r a t o r s o c k e t .
F32 5 E l e c t r o n i c g a r c o n t r o l g e a r b o x g e a r l e v e r .
F33 10 H e a d - u p d i s p l a y , B l u e t o o t h s y s t e m , a i r
c o n d i t i o n i n g .
F34 5 S e a t b e l t w a r n i n g l a m p s d i s p l a y .
F35 10 P a r k i n g s e n s o r s , H i - F i a m p l i fi e r a u t h o r i s a t i o n .
F36 10 T r a i l e r f u s e b o x c o n t r o l u n i t , d r i v e r ’ s d o o r c o n t r o l
p a d .
F37 20 H i - F i a m p l i fi e r .
F38 30 D r i v e r ' s e l e c t r i c s e a t .
F39 20 P a n o r a m i c s u n r o o f b l i n d .
F40 - N o t u s e d .
Page 208 of 315
PRACTICAL INFORMATION
183
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
c o m p a r t m e n t n e a r t h e b a t t e r y ( l e f t - h a n d
s i d e ) .
Access to the fuses
U n c l i p t h e c o v e r .
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure correct
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse
N° Rating
(A)
Functions
F1 20 E n g i n e c o n t r o l u n i t s u p p l y , i n j e c t i o n p u m p a n d E G R
e l e c t r o v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I 1 6 V ) .
F2 15 H o r n .
F3 10 F r o n t / r e a r w a s h - w i p e .
F4 10 D a y t i m e r u n n i n g l a m p s .
F5 15 P u r g e c a n i s t e r , t u r b i n e d i s c h a r g e a n d T u r b o
p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e s ( 1 . 6 l T H P 1 6 V ) ,
o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r
( 1 . 6 l H D I 1 6 V ) .
F6 10 D i a g n o s t i c s o c k e t , d i r e c t i o n a l h e a d l a m p s , p a r t i c l e
e m i s s i o n fi l t e r p u m p ( D i e s e l ) , D i s t a n c e a l e r t ,
e n g i n e c o o l a n t l e v e l d e t e c t o r , m i r r o r a d j u s t m e n t
c o n t r o l .
F7 10 P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
d i r e c t i o n a l h e a d l a m p s h e i g h t a d j u s t m e n t m o t o r .
F8 20 S t a r t e r m o t o r c o n t r o l .
F9 10 C l u t c h a n d b r a k e p e d a l s w i t c h e s .
F10 30 E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
f u e l p u m p , e l e c t r o n i c t h e r m o s t a t )
( D i e s e l : e l e c t r o v a l v e s , h e a t e r s ) .
F11 40 A i r c o n d i t i o n i n g b l o w e r .
Page 209 of 315
PRACTICAL INFORMATION
184
Fuse
N° Rating
(A)
Functions
F12 30 W i n d s c r e e n w i p e r s s l o w / f a s t s p e e d .
F13 40 B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A i r p u m p .
F15 10 R i g h t - h a n d m a i n b e a m h e a d l a m p .
F16 10 L e f t - h a n d m a i n b e a m h e a d l a m p .
F17 15 L e f t - h a n d d i p p e d h e a d l a m p .
F18 15 R i g h t - h a n d d i p p e d h e a d l a m p .
F19 15 O i l v a p o u r h e a t e r ( 1 . 6 l V T i 1 6 V ) , T u r b o p r e s s u r e
r e g u l a t i o n e l e c t r o v a l v e ( D i e s e l ) , e n g i n e c o o l a n t
l e v e l d e t e c t o r ( D i e s e l ) .
F20 10 E l e c t r o n i c t h e r m o s t a t , v a r i a b l e t i m i n g e l e c t r o v a l v e s ,
T u r b o p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e ( D i e s e l ) ,
e n g i n e c o o l a n t l e v e l d e t e c t o r ( D i e s e l ) .
F21 5 F a n a s s e m b l y r e l a y s u p p l y , V a l v e t r o n i c r e l a y c o n t r
o l
( 1 . 6 l V T i 1 6 V ) , T u r b o c o o l i n g ( 1 . 6 l T H P 1 6 V ) , a i r
fl o w s e n s o r ( 1 . 6 l H D I 1 6 V ) .
Page 210 of 315
PRACTICAL INFORMATION
185

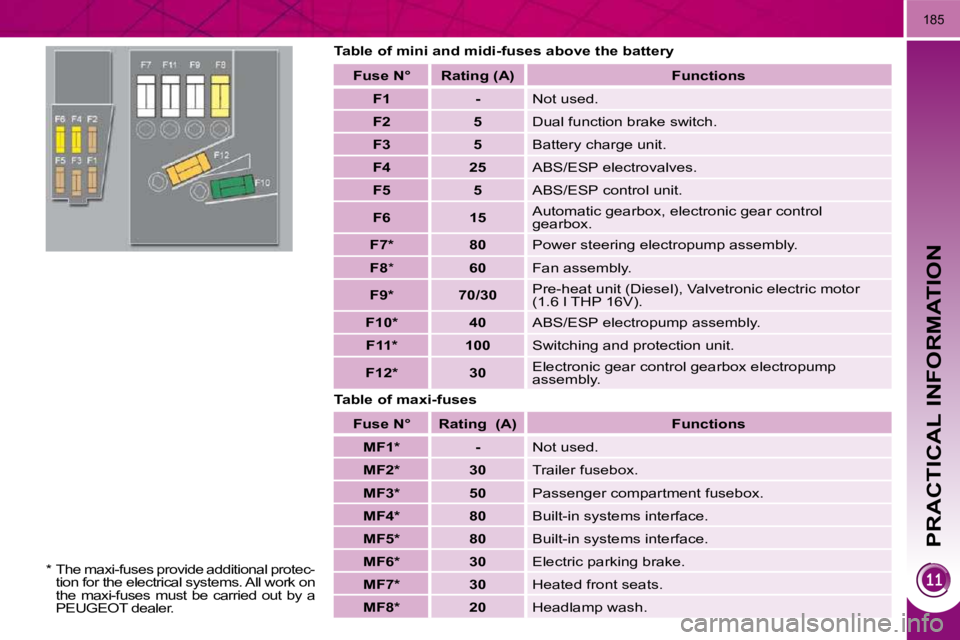

Table of mini and midi-fuses above the battery
Table of maxi-fuses Fuse
N° Rating (A)
Functions
F1 - N o t u s e d .
F2 5 D u a l f u n c t i o n b r a k e s w i t c h .
F3 5 B a t t e r y c h a r g e u n i t .
F4 25 A B S / E S P e l e c t r o v a l v e s .
F5 5 A B S / E S P c o n t r o l u n i t .
F6 15 A u t o m a t i c g e a r b o x , e l e c t r o n i c g e a r c o n t r o l
g e a r b o x .
F7 * 80 P o w e r s t e e r i n g e l e c t r o p u m p a s s e m b l y .
F8 *
60 F a n a s s e m b l y .
F9 * 70/30 P r e - h e a t u n i t ( D i e s e l ) , V a l v e t r o n i c e l e c t r i c m o t o r
( 1 . 6 l T H P 1 6 V ) .
F10 * 40 A B S / E S P e l e c t r o p u m p a s s e m b l y .
F11 * 100 S w i t c h i n g a n d p r o t e c t i o n u n i t .
F12 * 30 E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p
a s s e m b l y .
Fuse N° Rating (A)
Functions
MF1 * - N o t u s e d .
MF2 * 30 T r a i l e r f u s e b o x .
MF3 * 50 P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF4 * 80 B u i l t - i n s y s t e m s i n t e r f a c e .
MF5 * 80 B u i l t - i n s y s t e m s i n t e r f a c e .
MF6 * 30 E l e c t r i c p a r k i n g b r a k e .
MF7 * 30 H e a t e d f r o n t s e a t s .
MF8 * 20 H e a d l a m p w a s h .
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c -
t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n
t h e m a x i - f u s e s m u s t b e c a r r i e d o u t b y a
P E U G E O T d e a l e r .
