99
FITTINGS

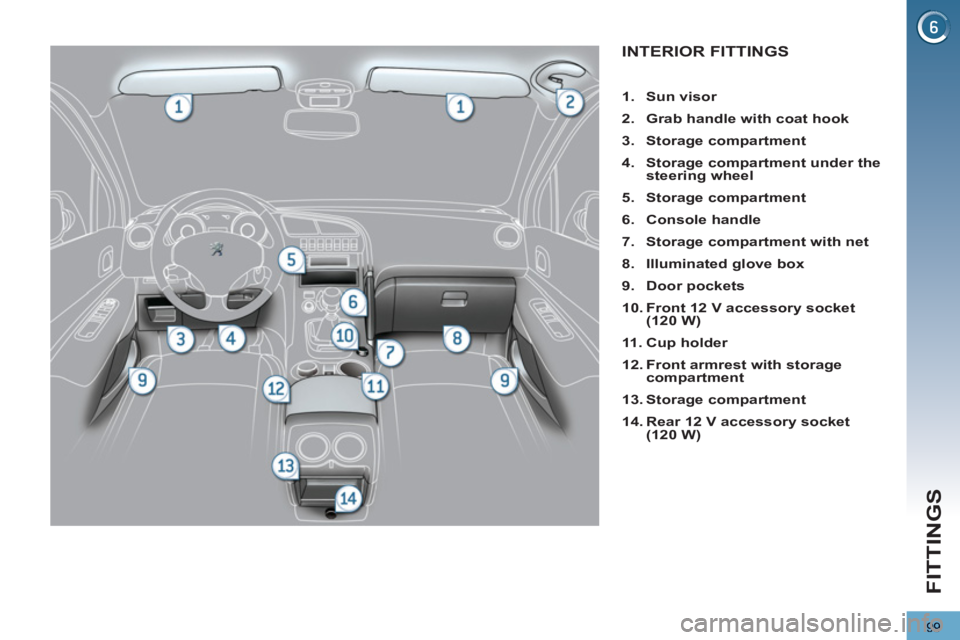

INTERIOR FITTINGS
1.
Sun visor
2.
Grab handle with coat hook
3.
Storage compartment
4.
Storage compartment under the
steering wheel
5.
Storage compartment
6.
Console handle
7.
Storage compartment with net
8.
Illuminated glove box
9.
Door pockets
10.
Front 12 V accessory socket
(120 W)
11 .
Cup holder
12.
Front armrest with storage
compartment
13.
Storage compartment
14.
Rear 12 V accessory socket
(120 W)
Page 102 of 352
100
FITTINGS
DRIVER'S STORAGE
COMPARTMENTS
Storage box
This has storage areas for the hand-
book pack, ...
)
To open, pull the handle then tilt the
box.
ILLUMINATED GLOVE BOX
This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Con-
nect Media Navigation (NG4 3D)), ...
)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.

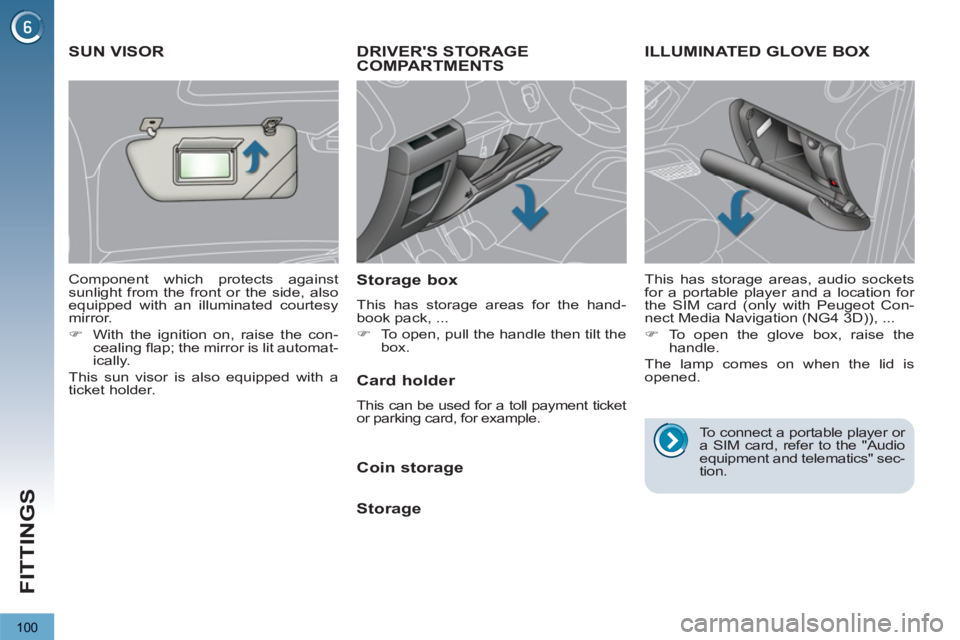

SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit automat-
ically.
This sun visor is also equipped with a
ticket holder.
Card holder
This can be used for a toll payment ticket
or parking card, for example.
Coin storage
Storage
To connect a portable player or
a SIM card, refer to the "Audio
equipment and telematics" sec-
tion.
Page 103 of 352
101
FITTINGS
12 V ACCESSORY SOCKETS
)
To connect a 12 V accessory (max
power: 120 Watts), remove the cov-
er and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.

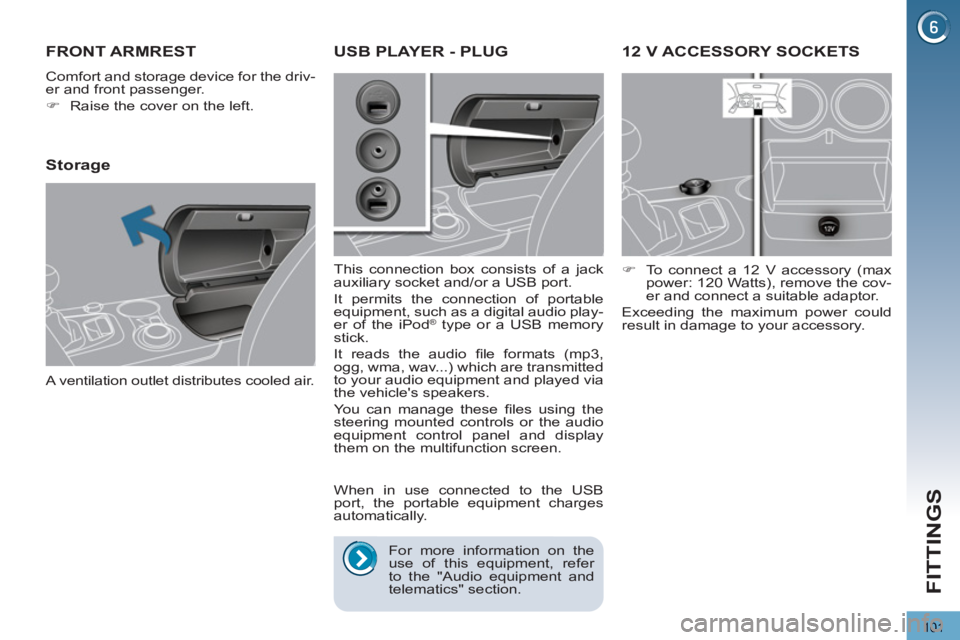

FRONT ARMREST
Comfort and storage device for the driv-
er and front passenger.
)
Raise the cover on the left.
Storage
A ventilation outlet distributes cooled air.
USB PLAYER - PLUG
This connection box consists of a jack
auxiliary socket and/or a USB port.
It permits the connection of portable
equipment, such as a digital audio play-
er of the iPod
® type or a USB memory
stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When in use connected to the USB
port, the portable equipment charges
automatically.
For more information on the
use of this equipment, refer
to the "Audio equipment and
telematics" section.
Page 104 of 352
102
FITTINGS
To avoid any risk of jamming
of the pedals:

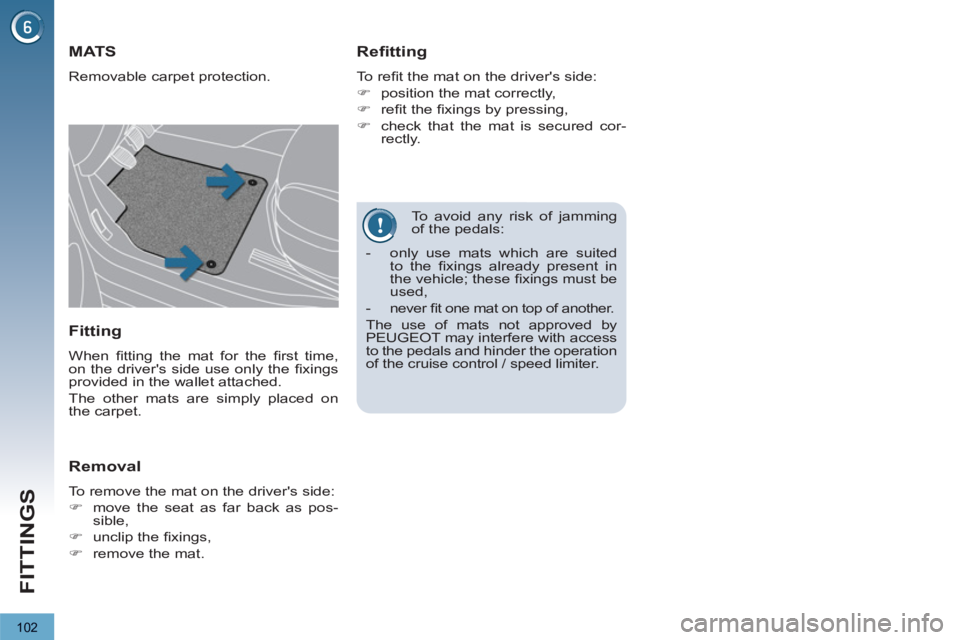

MATS
Removable carpet protection.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured cor-
rectly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as pos-
sible,
)
unclip the fi xings,
)
remove the mat.
- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must be
used,
- never fi t one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control / speed limiter.
Page 105 of 352
103
FITTINGS

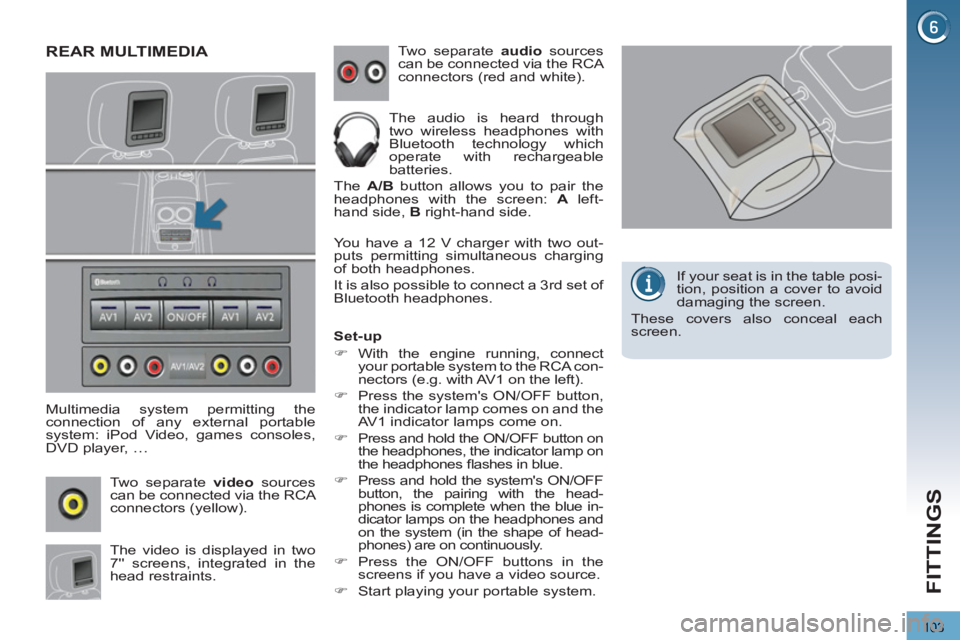

REAR MULTIMEDIA
Multimedia system permitting the
connection of any external portable
system: iPod Video, games consoles,
DVD player, …
Two separate video
sources
can be connected via the RCA
connectors (yellow).
The video is displayed in two
7'' screens, integrated in the
head restraints. Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which
operate with rechargeable
batteries.
The A/B
button allows you to pair the
headphones with the screen: A
left-
hand side, B
right-hand side.
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.
Set-up
)
With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).
)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.
)
Press and hold the ON/OFF button on
the headphones, the indicator lamp on
the headphones fl ashes in blue.
)
Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue in-
dicator lamps on the headphones and
on the system (in the shape of head-
phones) are on continuously.
)
Press the ON/OFF buttons in the
screens if you have a video source.
)
Start playing your portable system.
If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.
Page 106 of 352
104
FITTINGS
REAR ARMREST SKI FLAP
Opening
)
Lower the rear armrest.
)
Pull the fl ap handle downwards.
)
Lower the fl ap.
)
Load the objects from inside the boot.
)
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.
Comfort and storage device for the rear
passengers. Arrangement for storing and transport-
ing long objects.
STORAGE COMPARTMENTSUNDER THE REAR FOOTWELLS
Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.
Page 107 of 352
105
FITTINGS

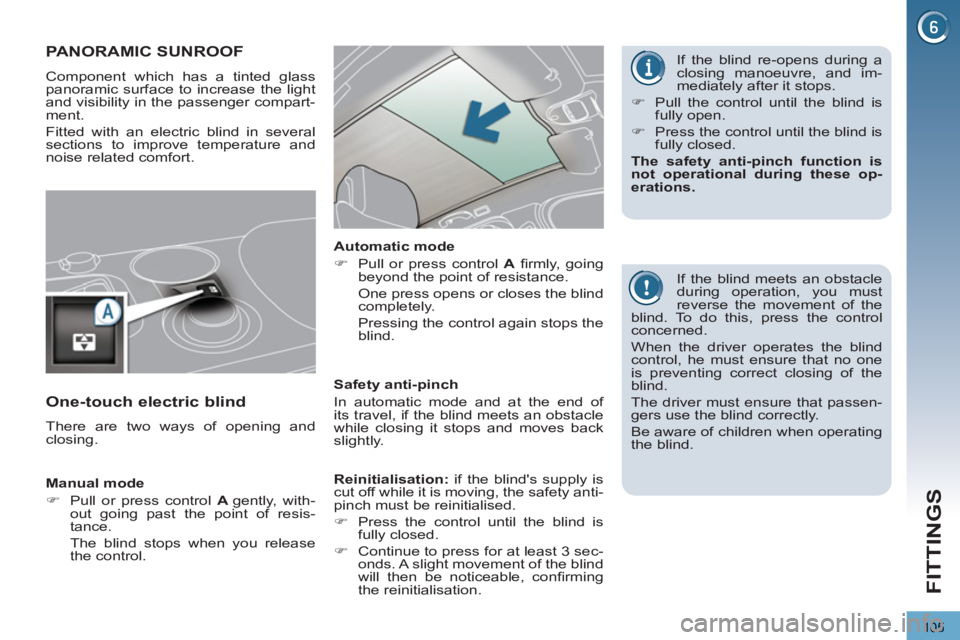

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.
Manual mode
)
Pull or press control A
gently, with-
out going past the point of resis-
tance.
The blind stops when you release
the control.
Automatic mode
)
Pull or press control A
fi rmly, going
beyond the point of resistance.
One press opens or closes the blind
completely.
Pressing the control again stops the
blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two ways of opening and
closing.
If the blind re-opens during a
closing manoeuvre, and im-
mediately after it stops.
)
Pull the control until the blind is
fully open.
)
Press the control until the blind is
fully closed.
The safety anti-pinch function is
not operational during these op-
erations.
Reinitialisation:
if the blind's supply is
cut off while it is moving, the safety anti-
pinch must be reinitialised.
)
Press the control until the blind is
fully closed.
)
Continue to press for at least 3 sec-
onds. A slight movement of the blind
will then be noticeable, confi rming
the reinitialisation.
Page 108 of 352
106
FITTINGS

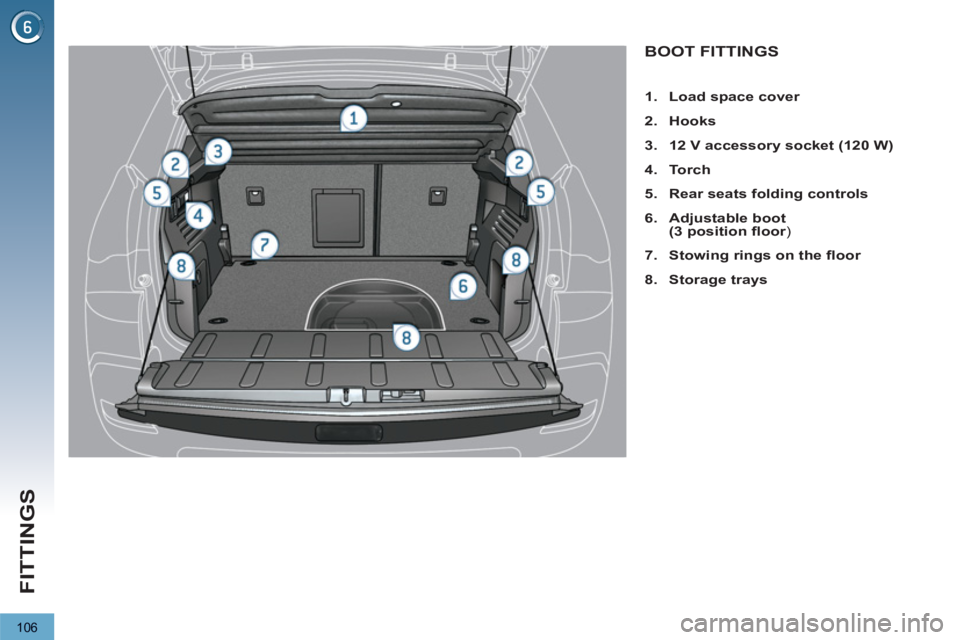

BOOT FITTINGS
1.
Load space cover
2.
Hooks
3.
12 V accessory socket (120 W)
4.
Torch
5.
Rear seats folding controls
6.
Adjustable boot
(3 position fl oor
)
7.
Stowing rings on the fl oor
8.
Storage trays
Page 109 of 352
107
FITTINGS

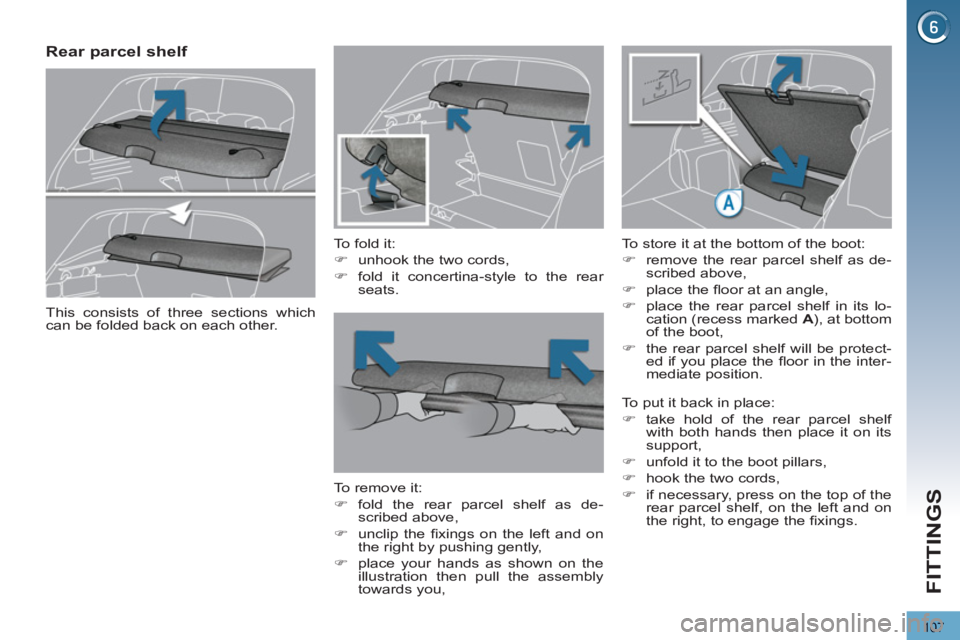

Rear parcel shelf
To fold it:
)
unhook the two cords,
)
fold it concertina-style to the rear
seats.
To remove it:
)
fold the rear parcel shelf as de-
scribed above,
)
unclip the fi xings on the left and on
the right by pushing gently,
)
place your hands as shown on the
illustration then pull the assembly
towards you,
To store it at the bottom of the boot:
)
remove the rear parcel shelf as de-
scribed above,
)
place the fl oor at an angle,
)
place the rear parcel shelf in its lo-
cation (recess marked A
), at bottom
of the boot,
)
the rear parcel shelf will be protect-
ed if you place the fl oor in the inter-
mediate position.
This consists of three sections which
can be folded back on each other.
To put it back in place:
)
take hold of the rear parcel shelf
with both hands then place it on its
support,
)
unfold it to the boot pillars,
)
hook the two cords,
)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.
Page 110 of 352
108
FITTINGS
When changing a wheel
The hooks facilitate access
to the spare wheel, retain-
ing the boot carpet by means of the
two cords.

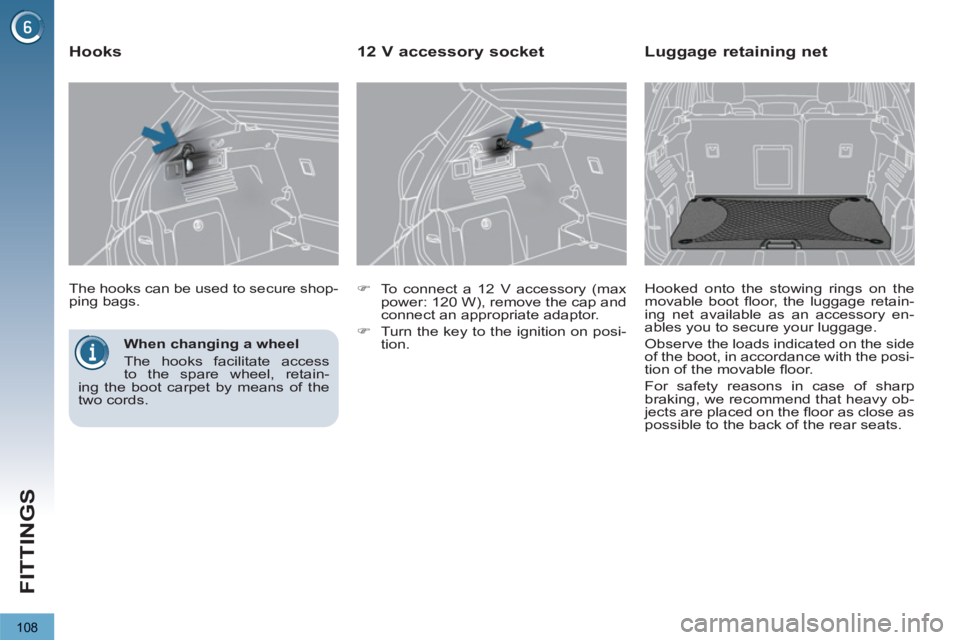

The hooks can be used to secure shop-
ping bags.
Hooks
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition on posi-
tion.
12 V accessory socket
Luggage retaining net
Hooked onto the stowing rings on the
movable boot fl oor, the luggage retain-
ing net available as an accessory en-
ables you to secure your luggage.
Observe the loads indicated on the side
of the boot, in accordance with the posi-
tion of the movable fl oor.
For safety reasons in case of sharp
braking, we recommend that heavy ob-
jects are placed on the fl oor as close as
possible to the back of the rear seats.
