PEUGEOT 3008 2014 Manual PDF

3
Comfort69
Folding the seat backrest
 Check that no object, either on or underneath the seat, could hinder its movement.  To make the operation easier, place the head restraint in the low position (if the seat is in the fully for ward position).  If your vehicle is fitted with the video pack, place the protective cover on the head restraint.  Lift the control, located behind the seat, then guide the seat backrest for wards.
When the seat backrest is in this position, the seat behind it and the centre rear seat must not be occupied. This position, associated with that of the rear seats, allows you to transport long objects inside the vehicle. The maximum weight on the seat is 30 kg.

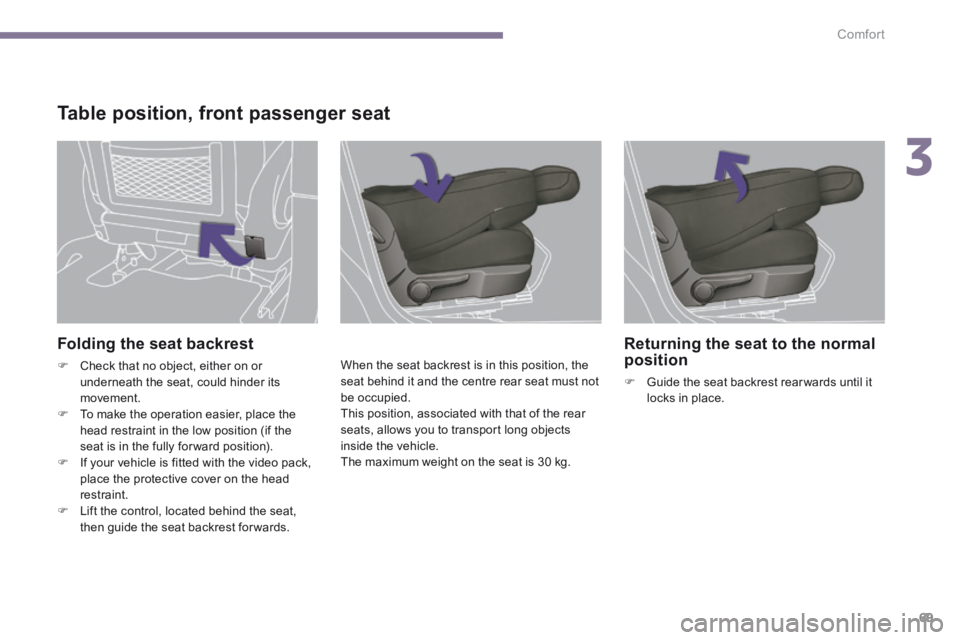

Table position, front passenger seat
Returning the seat to the normal position
 Guide the seat backrest rear wards until it locks in place.

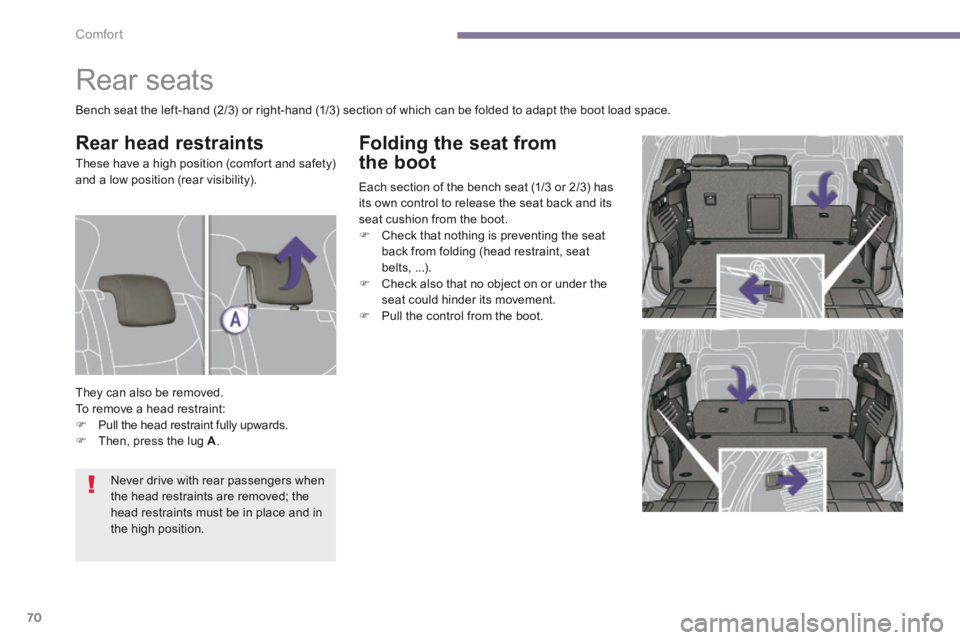

Comfort
70
Folding the seat from
the boot
Each section of the bench seat (1/3 or 2/3) has its own control to release the seat back and its seat cushion from the boot.
 Check that nothing is preventing the seat back from folding (head restraint, seat belts, ...).  Check also that no object on or under the seat could hinder its movement.  Pull the control from the boot.
Rear seats
Rear head restraints
They can also be removed. To remove a head restraint:  Pull the head restraint fully upwards.  Then, press the lug A .
Bench seat the left-hand (2/3) or right-hand (1/3) section of which can be folded to adapt the boot load space.
These have a high position (comfort and safety) and a low position (rear visibility).
Never drive with rear passengers when the head restraints are removed; the head restraints must be in place and in the high position.

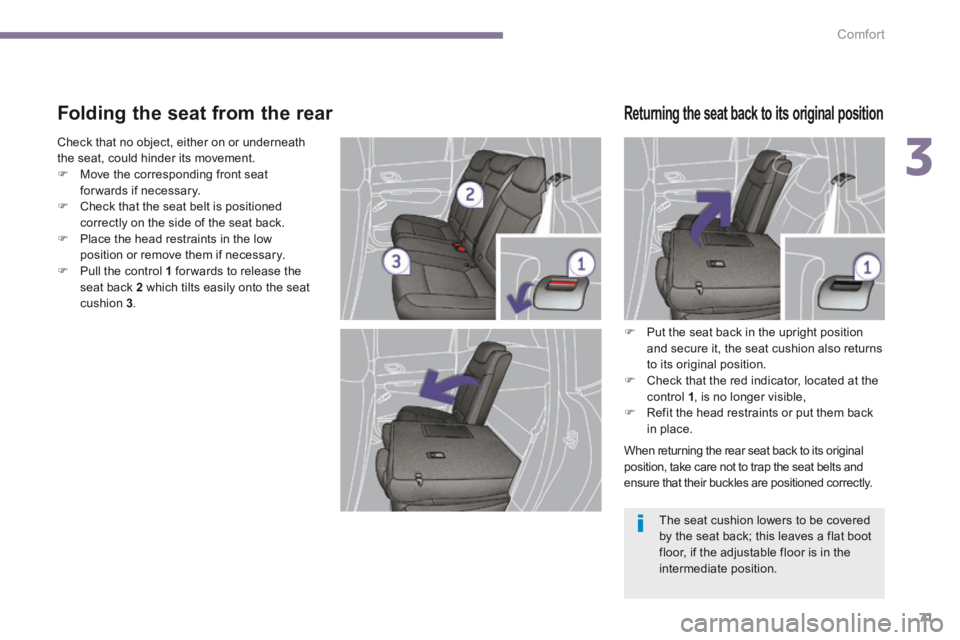

3
Comfort71
Folding the seat from the rear
 Put the seat back in the upright position and secure it, the seat cushion also returns to its original position.  Check that the red indicator, located at the control 1 , is no longer visible,
 Refit the head restraints or put them back in place.
When returning the rear seat back to its original position, take care not to trap the seat belts and ensure that their buckles are positioned correctly.
The seat cushion lowers to be covered by the seat back; this leaves a flat boot floor, if the adjustable floor is in the intermediate position.
Returning the seat back to its original position
Check that no object, either on or underneath the seat, could hinder its movement.  Move the corresponding front seat for wards if necessary.  Check that the seat belt is positioned correctly on the side of the seat back.  Place the head restraints in the low position or remove them if necessary.  Pull the control 1 for wards to release the seat back 2 which tilts easily onto the seat cushion 3 .

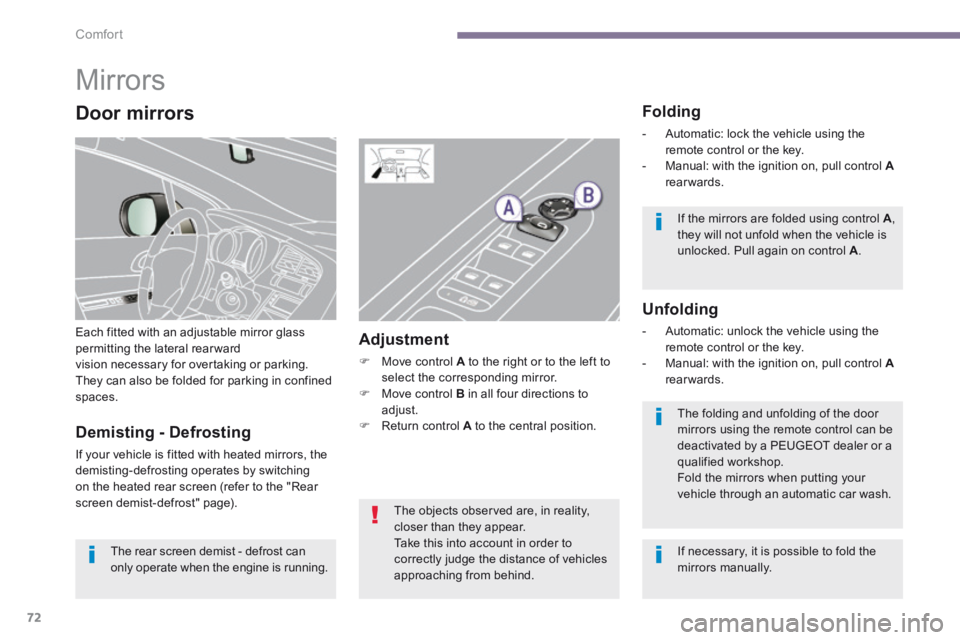

Comfort
72

Mirrors
Each fitted with an adjustable mirror glass permitting the lateral rearwardvision necessary for overtaking or parking. They can also be folded for parking in confined spaces.
Folding
- Automatic: lock the vehicle using the remote control or the key. - Manual: with the ignition on, pull control A - Manual: with the ignition on, pull control A - Manual: with the ignition on, pull control rearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key. - Manual: with the ignition on, pull control A - Manual: with the ignition on, pull control A - Manual: with the ignition on, pull control rearwards.
Adjustment
 Move control A to the right or to the left to select the corresponding mirror.  Move control B in all four directions to adjust.  Return control A to the central position. Demisting - Defrosting
If your vehicle is fitted with heated mirrors, the demisting-defrosting operates by switching on the heated rear screen (refer to the "Rear screen demist-defrost" page).
If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop. Fold the mirrors when putting your vehicle through an automatic car wash.
The rear screen demist - defrost can only operate when the engine is running.
The objects observed are, in reality, closer than they appear.
Take this into account in order to correctly judge the distance of vehicles approaching from behind.
Door mirrors
If necessary, it is possible to fold the mirrors manually.

3
Comfort73
Adjustment
 Adjust the mirror so that the glass is directed correctly in the "day" position.
Manual day/night model
Day / night position
 Pull the lever to change to the "night" anti-dazzle position.  Push the lever to change to the normal "day" position.
Rear view mirror
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.

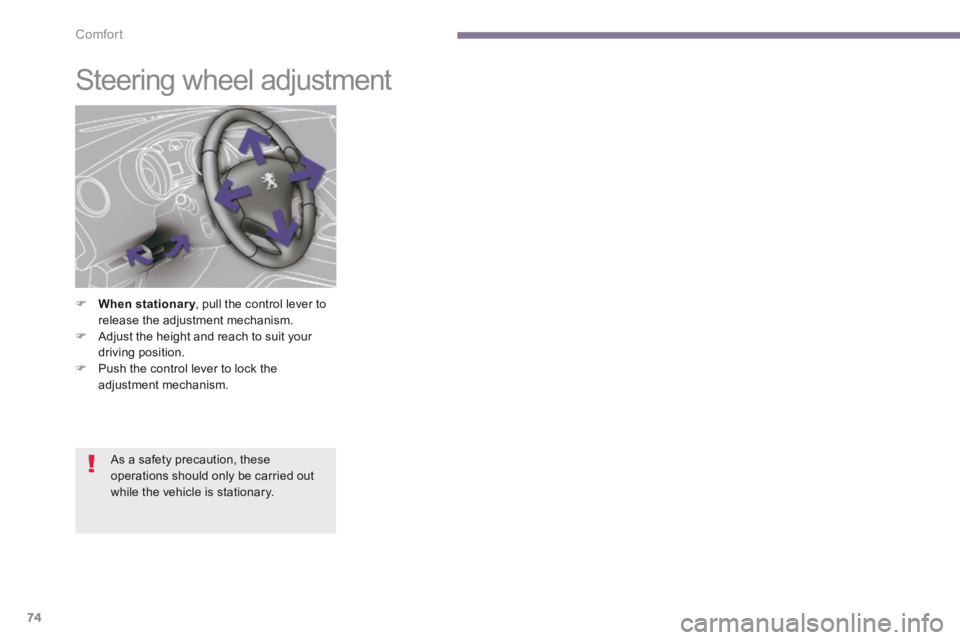

Comfort
74
Steering wheel adjustment
 When stationary , pull the control lever to When stationary , pull the control lever to When stationaryrelease the adjustment mechanism.  Adjust the height and reach to suit your driving position.  Push the control lever to lock the adjustment mechanism.
As a safety precaution, these operations should only be carried out while the vehicle is stationary.

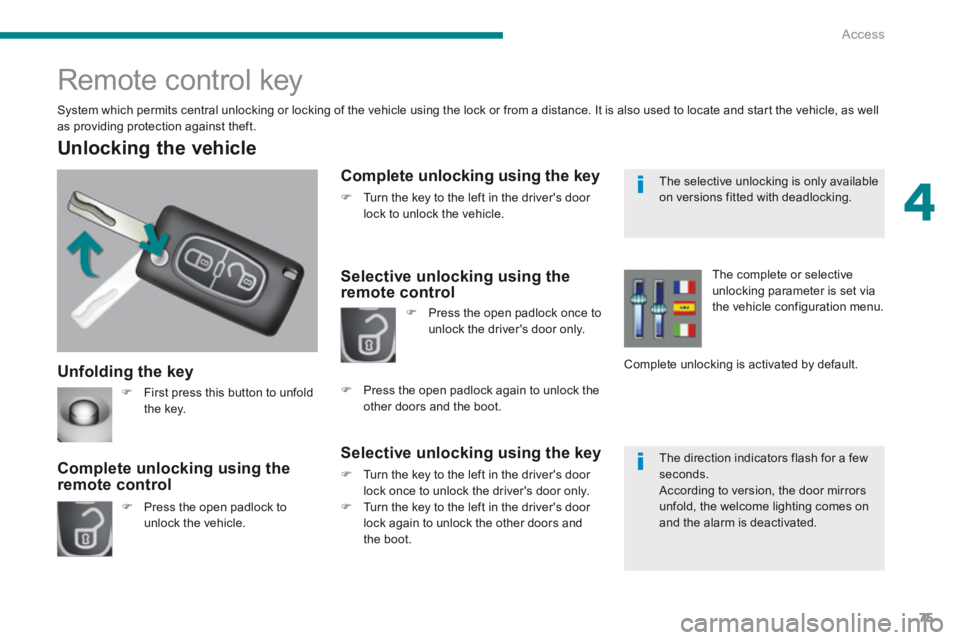

4
Access75
Unfolding the key
Unlocking the vehicle
 Press the open padlock to unlock the vehicle.
Complete unlocking using the remote control
Remote control key
System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft.
Complete unlocking using the key
 Turn the key to the left in the driver's door lock to unlock the vehicle.
Selective unlocking using the remote control
Selective unlocking using the key
 Turn the key to the left in the driver's door lock once to unlock the driver's door only.  Turn the key to the left in the driver's door lock again to unlock the other doors and
the boot.
 Press the open padlock once to unlock the driver's door only.
 Press the open padlock again to unlock the other doors and the boot.
The complete or selective unlocking parameter is set via the vehicle configuration menu.
Complete unlocking is activated by default.
 First press this button to unfold the key.
The selective unlocking is only available on versions fitted with deadlocking.
The direction indicators flash for a few seconds. According to version, the door mirrors unfold, the welcome lighting comes on and the alarm is deactivated.

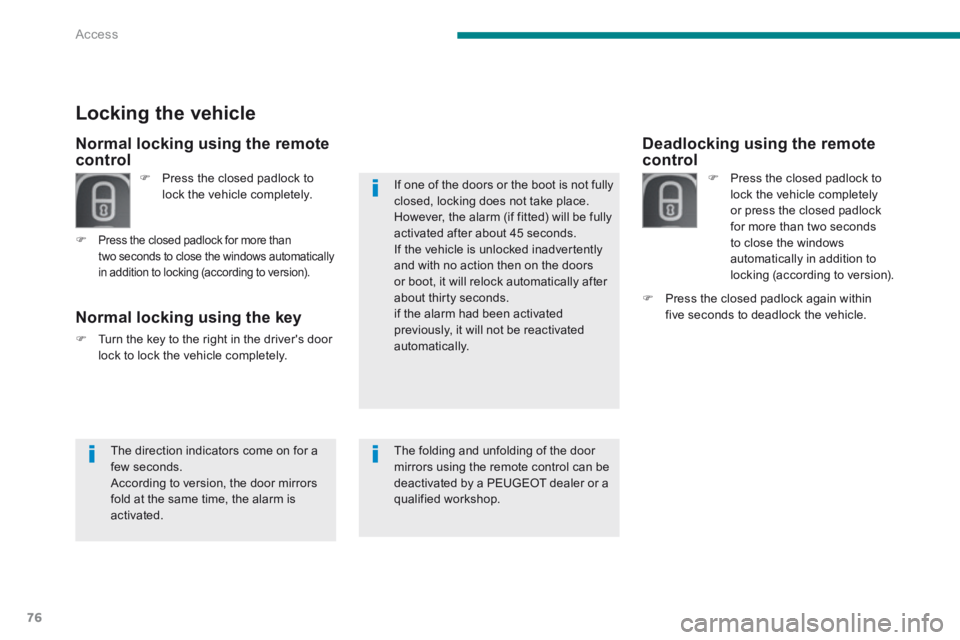

Access
76
Deadlocking using the remote control
 Press the closed padlock to lock the vehicle completely or press the closed padlock for more than two seconds to close the windows automatically in addition to locking (according to version).
Normal locking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle completely.
Locking the vehicle
 Press the closed padlock to lock the vehicle completely.
Press the closed padlock for more than two seconds to close the windows automatically in addition to locking (according to version).
Normal locking using the remote control
 Press the closed padlock again within five seconds to deadlock the vehicle.
If one of the doors or the boot is not fully closed, locking does not take place. However, the alarm (if fitted) will be fully activated after about 45 seconds. If the vehicle is unlocked inadvertently and with no action then on the doors or boot, it will relock automatically after about thirty seconds. if the alarm had been activated previously, it will not be reactivated automatically.
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
The direction indicators come on for a few seconds. According to version, the door mirrors fold at the same time, the alarm is activated.

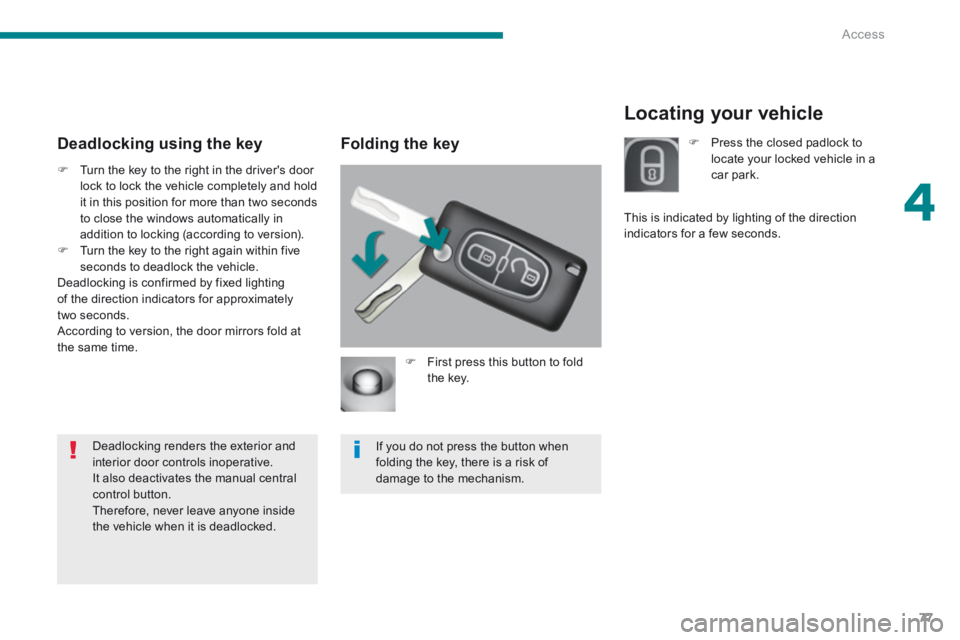

4
Access77
Locating your vehicle
Folding the key
 First press this button to fold the key.
If you do not press the button when folding the key, there is a risk of damage to the mechanism.
Deadlocking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle completely and hold it in this position for more than two seconds to close the windows automatically in addition to locking (according to version).  Turn the key to the right again within five seconds to deadlock the vehicle. Deadlocking is confirmed by fixed lighting of the direction indicators for approximately two seconds. According to version, the door mirrors fold at the same time.
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
 Press the closed padlock to locate your locked vehicle in a car park.
This is indicated by lighting of the direction indicators for a few seconds.

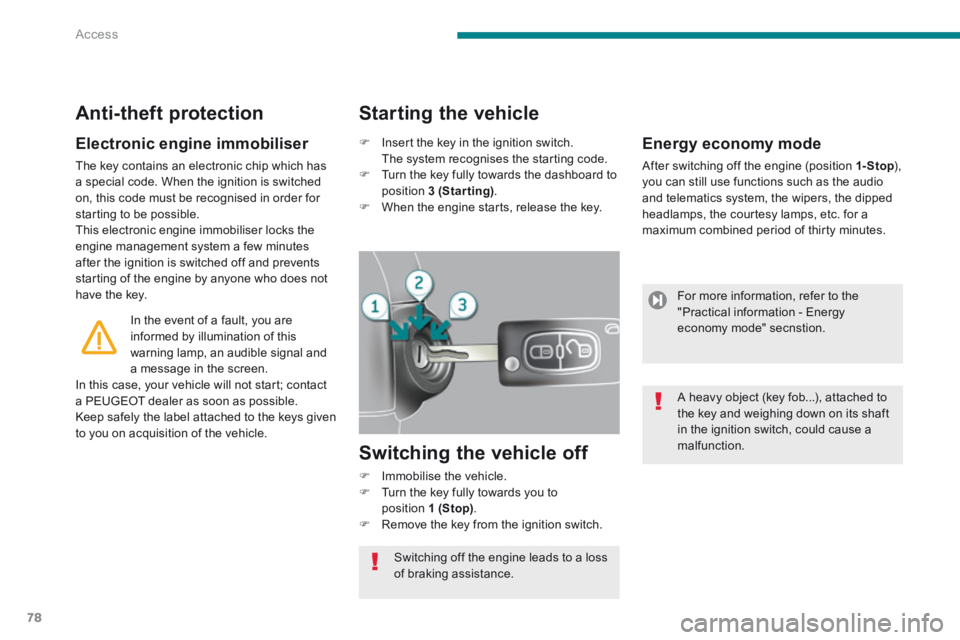

Access
78
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are informed by illumination of this warning lamp, an audible signal and a message in the screen. In this case, your vehicle will not start; contact a PEUGEOT dealer as soon as possible. Keep safely the label attached to the keys given to you on acquisition of the vehicle.
Starting the vehicle
 Insert the key in the ignition switch. The system recognises the starting code.  Turn the key fully towards the dashboard to position 3 (Starting) .  When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.  Turn the key fully towards you to position 1 (Stop) .  Remove the key from the ignition switch.
Switching off the engine leads to a loss of braking assistance.
Energy economy mode
After switching off the engine (position 1- Stop ), 1- Stop ), 1- Stopyou can still use functions such as the audio and telematics system, the wipers, the dipped headlamps, the courtesy lamps, etc. for a maximum combined period of thirty minutes.
For more information, refer to the "Practical information - Energy economy mode" secnstion.
A heavy object (key fob...), attached to the key and weighing down on its shaft in the ignition switch, could cause a malfunction.
