PEUGEOT 3008 2017 Manual PDF

69
3008-2_en_Chap02_ouvertures_ed01-2016

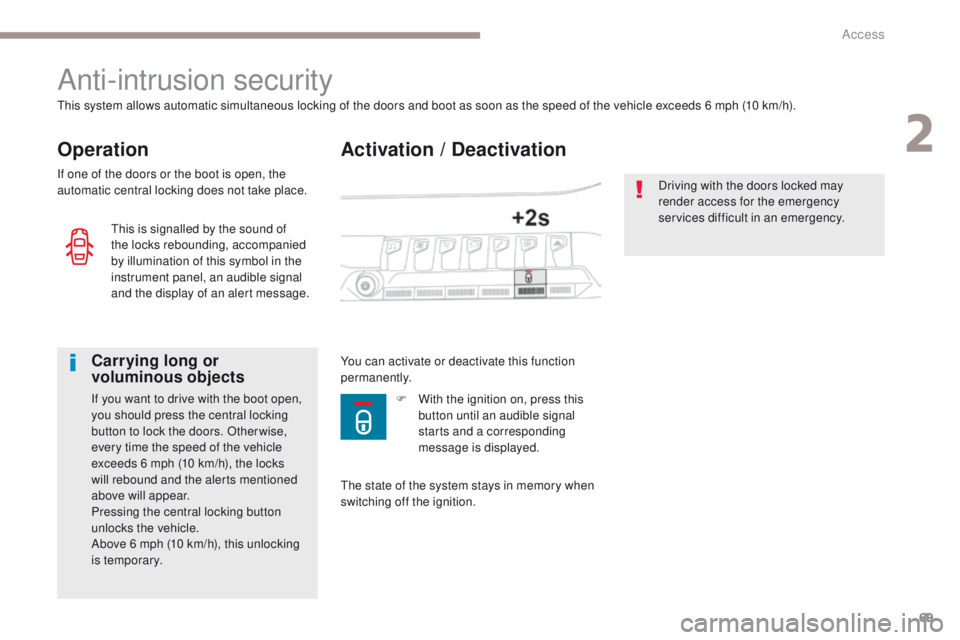

Activation / Deactivation
Anti-intrusion security
Operation
This system allows automatic simultaneous locking of the doors and boot as soon as the speed of the vehicle exceeds 6 mph (10 km/h).
If one of the doors or the boot is open, the
automatic central locking does not take place.
Carrying long or
voluminous objects
If you want to drive with the boot open,
you should press the central locking
button to lock the doors. Other wise,
every time the speed of the vehicle
exceeds 6 mph (10 km/h), the locks
will rebound and the alerts mentioned
above will appear.
Pressing the central locking button
unlocks the vehicle.
Above 6 mph (10 km/h), this unlocking
is temporary.You can activate or deactivate this function
permanently.
Driving with the doors locked may
render access for the emergency
services difficult in an emergency.
This is signalled by the sound of
the locks rebounding, accompanied
by illumination of this symbol in the
instrument panel, an audible signal
and the display of an alert message.
The state of the system stays in memory when
switching off the ignition.F
W ith the ignition on, press this
button until an audible signal
starts and a corresponding
message is displayed.
2
Access

70
3008-2_en_Chap02_ouvertures_ed01-2016
* Depending on version.

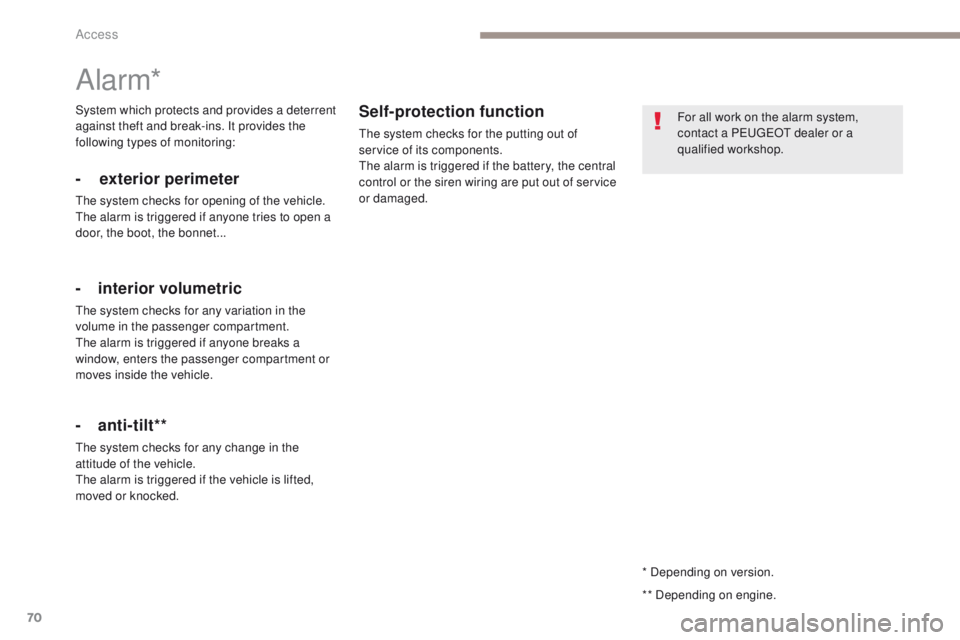

Alarm*
- exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...
- interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- anti-tilt**
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged. For all work on the alarm system,
contact a PEUGEOT dealer or a
qualified workshop.
** Depending on engine.
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:
Access

71
3008-2_en_Chap02_ouvertures_ed01-2016

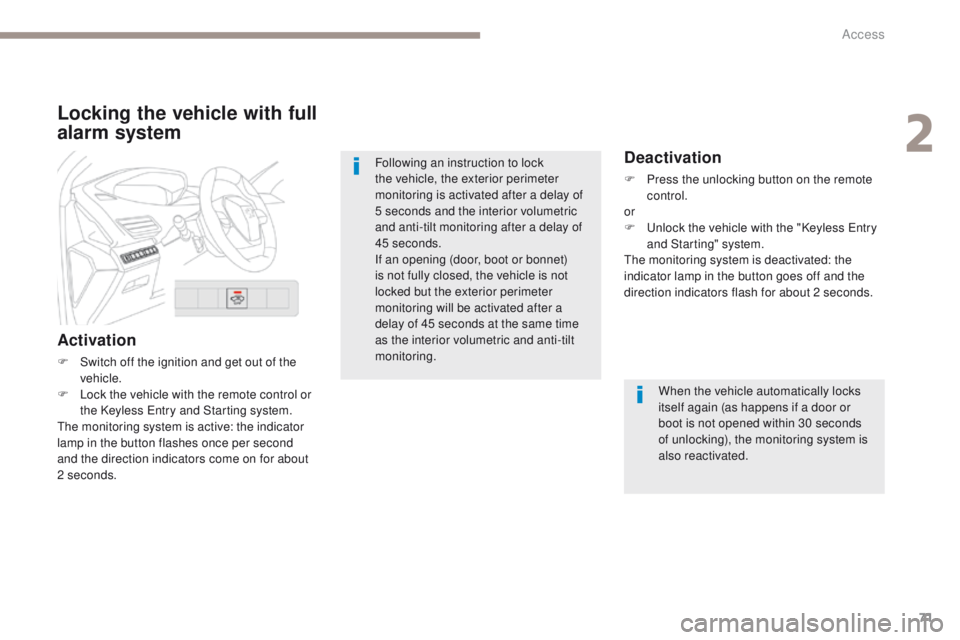

Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F

L
ock the vehicle with the remote control or
the Keyless Entry and Starting system.
The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
Deactivation
F Press the unlocking button on the remote control.
or
F

U
nlock the vehicle with the "Keyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the button goes off and the
direction indicators flash for about 2 seconds.
Following an instruction to lock
the vehicle, the exterior perimeter
monitoring is activated after a delay of
5 seconds and the interior volumetric
and anti-tilt monitoring after a delay of
45 seconds.
If an opening (door, boot or bonnet)
is not fully closed, the vehicle is not
locked but the exterior perimeter
monitoring will be activated after a
delay of 45

seconds at the same time
as the interior volumetric and anti-tilt
monitoring.
When the vehicle automatically locks
itself again (as happens if a door or
boot is not opened within 30 seconds
of unlocking), the monitoring system is
also reactivated.
2
Access

72
3008-2_en_Chap02_ouvertures_ed01-2016

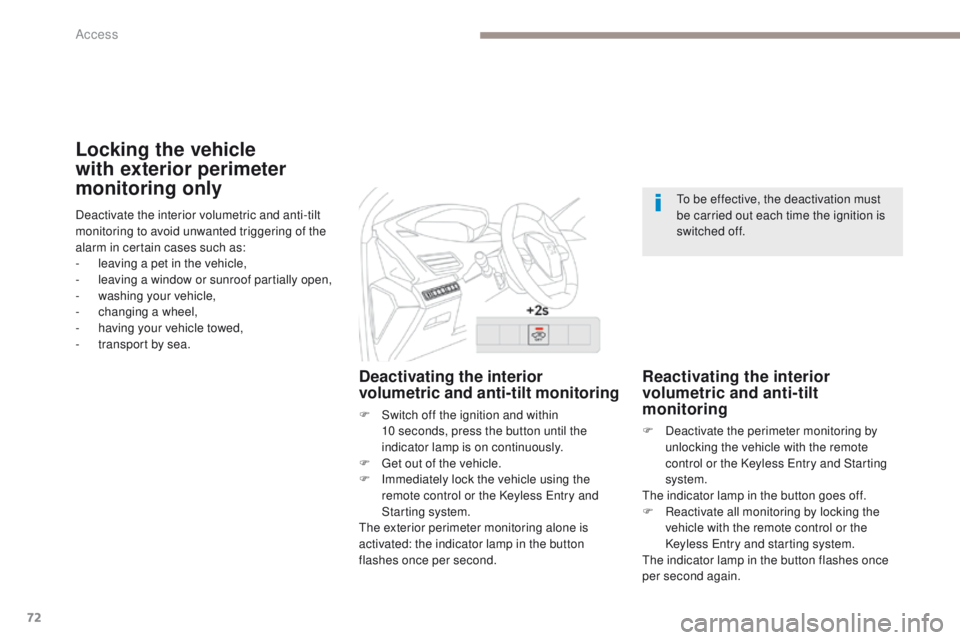

Locking the vehicle
with exterior perimeter
monitoring only
Deactivating the interior
volumetric and anti-tilt monitoring
F Switch off the ignition and within 10 seconds, press the button until the
indicator lamp is on continuously.
F

G
et out of the vehicle.
F

I
mmediately lock the vehicle using the
remote control or the Keyless Entry and
Starting system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Reactivating the interior
volumetric and anti-tilt
monitoring
F Deactivate the perimeter monitoring by unlocking the vehicle with the remote
control or the Keyless Entry and Starting
system.
The indicator lamp in the button goes off.
F

R
eactivate all monitoring by locking the
vehicle with the remote control or the
Keyless Entry and starting system.
The indicator lamp in the button flashes once
per second again.
Deactivate the interior volumetric and anti-tilt
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-

l

eaving a pet in the vehicle,
-

l

eaving a window or sunroof partially open,
-
w

ashing your vehicle,
-
c

hanging a wheel,
-

h

aving your vehicle towed,
-

t

ransport by sea. To be effective, the deactivation must
be carried out each time the ignition is
switched off.
Access

73
3008-2_en_Chap02_ouvertures_ed01-2016

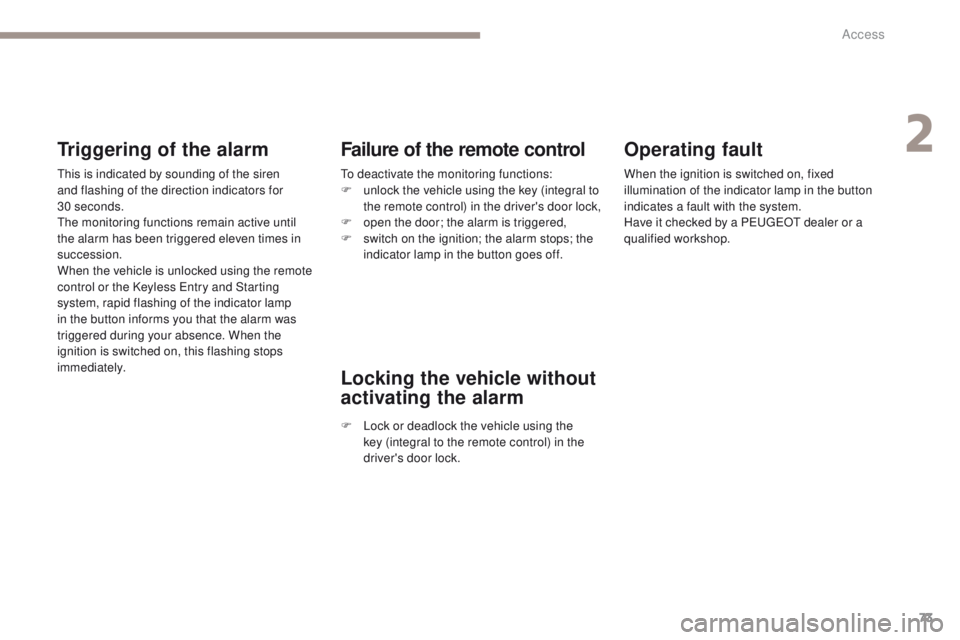

Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault with the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Failure of the remote control
To deactivate the monitoring functions:
F u nlock the vehicle using the key (integral to
the remote control) in the driver's door lock,
F

o
pen the door; the alarm is triggered,
F

s
witch on the ignition; the alarm stops; the
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
30


seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the Keyless Entry and Starting
system, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
F

L
ock or deadlock the vehicle using the
key (integral to the remote control) in the
driver's door lock.
2
Access

74
3008-2_en_Chap02_ouvertures_ed01-2016

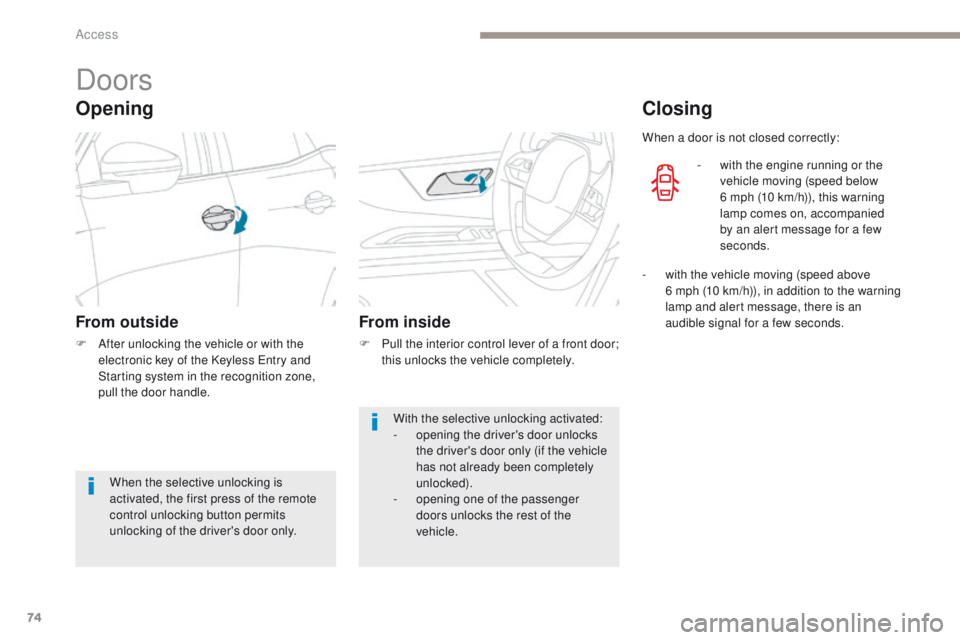

Doors
Opening
From outside
F After unlocking the vehicle or with the electronic key of the Keyless Entry and
Starting system in the recognition zone,
pull the door handle.
From inside
F Pull the interior control lever of a front door; this unlocks the vehicle completely.
Closing
- with the engine running or the vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an alert message for a few
seconds.
With the selective unlocking activated:
-

o

pening the driver's door unlocks
the driver's door only (if the vehicle
has not already been completely
unlocked).
-
o

pening one of the passenger
doors unlocks the rest of the
vehicle.
When the selective unlocking is
activated, the first press of the remote
control unlocking button permits
unlocking of the driver's door only. When a door is not closed correctly:
-

w

ith the vehicle moving (speed above
6

mph (10 km/h)), in addition to the warning
lamp and alert message, there is an
audible signal for a few seconds.
Access

75
3008-2_en_Chap02_ouvertures_ed01-2016

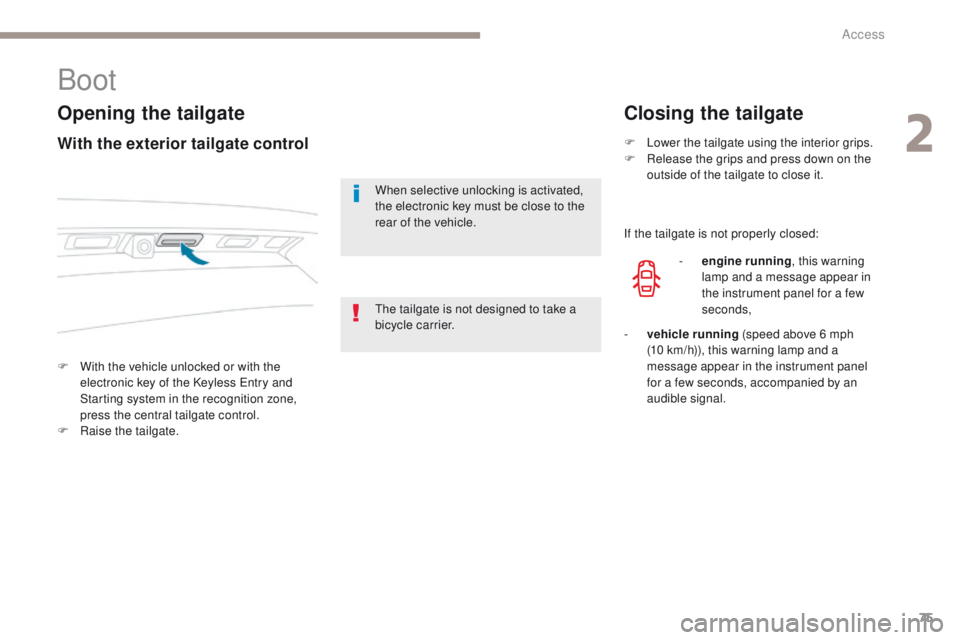

Boot
Opening the tailgate
F With the vehicle unlocked or with the electronic key of the Keyless Entry and
Starting system in the recognition zone,
press the central tailgate control.
F

Ra
ise the tailgate.
Closing the tailgate
When selective unlocking is activated,
the electronic key must be close to the
rear of the vehicle. F

L
ower the tailgate using the interior grips.
F
R
elease the grips and press down on the
outside of the tailgate to close it.
With the exterior tailgate control
The tailgate is not designed to take a
bicycle carrier. If the tailgate is not properly closed:
-
e
ngine running
, this warning
lamp and a message appear in
the instrument panel for a few
seconds,
-

v
ehicle running (speed above 6 mph
(10
km/h)), this warning lamp and a
message appear in the instrument panel
for a few seconds, accompanied by an
audible signal.
2
Access

76
3008-2_en_Chap02_ouvertures_ed01-2016

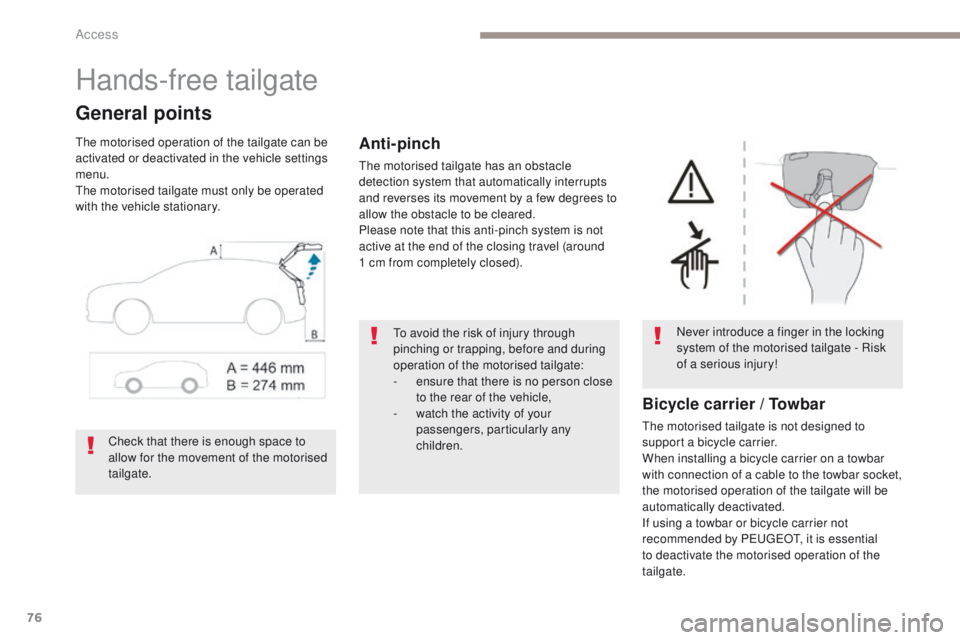

Hands-free tailgate
General points
The motorised operation of the tailgate can be
activated or deactivated in the vehicle settings
menu.
The motorised tailgate must only be operated
with the vehicle stationary.Never introduce a finger in the locking
system of the motorised tailgate - Risk
of a serious injury!Anti-pinch
The motorised tailgate has an obstacle
detection system that automatically interrupts
and reverses its movement by a few degrees to
allow the obstacle to be cleared.
Please note that this anti-pinch system is not
active at the end of the closing travel (around
1 cm from completely closed).
Bicycle carrier / Towbar
The motorised tailgate is not designed to
support a bicycle carrier.
When installing a bicycle carrier on a towbar
with connection of a cable to the towbar socket,
the motorised operation of the tailgate will be
automatically deactivated.
If using a towbar or bicycle carrier not
recommended by PEUGEOT, it is essential
to deactivate the motorised operation of the
tailgate.
Check that there is enough space to
allow for the movement of the motorised
tailgate. To avoid the risk of injury through
pinching or trapping, before and during
operation of the motorised tailgate:
-

e

nsure that there is no person close
to the rear of the vehicle,
-
w
atch the activity of your
passengers, particularly any
children.
Access

77
3008-2_en_Chap02_ouvertures_ed01-2016

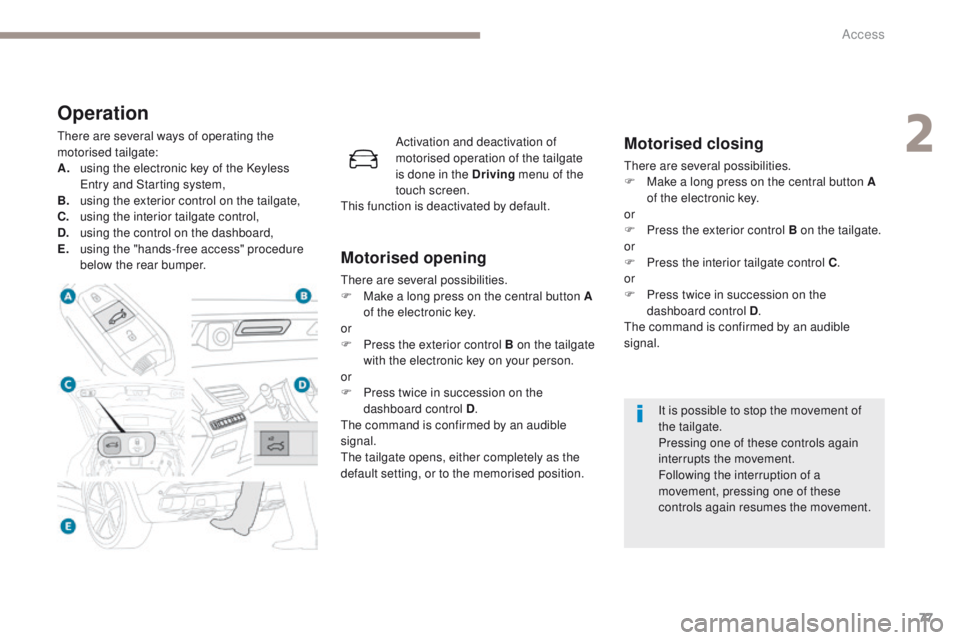

Operation
There are several ways of operating the
motorised tailgate:
A.
u
sing the electronic key of the Keyless
Entry and Starting system,
B.
u

sing the exterior control on the tailgate,
C.
u

sing the interior tailgate control,
D.
u

sing the control on the dashboard,
E.
u

sing the "hands-free access" procedure
below the rear bumper.
Motorised opening
There are several possibilities.
F M ake a long press on the central button A
of the electronic key.
or
F

P
ress the exterior control B on the tailgate
with the electronic key on your person.
or
F

P
ress twice in succession on the
dashboard control D .
The command is confirmed by an audible
signal.
The tailgate opens, either completely as the
default setting, or to the memorised position.
Motorised closing
There are several possibilities.
F M ake a long press on the central button A
of the electronic key.
or
F

P
ress the exterior control B on the tailgate.
or
F

P
ress the interior tailgate control C .
or
F

P
ress twice in succession on the
dashboard control D .
The command is confirmed by an audible
signal.
Activation and deactivation of
motorised operation of the tailgate
is done in the Driving
menu of the
touch screen.
This function is deactivated by default.
It is possible to stop the movement of
the tailgate.
Pressing one of these controls again
interrupts the movement.
Following the interruption of a
movement, pressing one of these
controls again resumes the movement.
2
Access

78
3008-2_en_Chap02_ouvertures_ed01-2016
"Hands-free" motorised
opening
This movement first unlocks just the
boot, or the vehicle if the latter was
locked.
F

W
ith the electronic key of the Keyless Entry
and Starting system on your person,
F

U

se the "hands-free" access E by passing
a foot rapidly below the rear bumper.
The command is confirmed by an audible
signal.
The tailgate opens, either completely by
default, or to the memorised position. Ensure that you are steady on your feet
before passing a foot rapidly below the
rear bumper.
Take care not to touch the exhaust
system, which may be hot - Risk of
burns! Passing your foot rapidly below the
bumper again while the tailgate is
opening interrupts the movement.
A third pass of your foot reverses the
direction of movement.
"Hands-free" motorised closing
F With the electronic key of the Keyless Entry
and Starting system on your person,
F

U
se the "hands-free" access E by passing
a foot rapidly below the rear bumper.
The command is confirmed by an audible
signal.
Passing your foot rapidly below the
bumper again while the tailgate is
closing interrupts the movement.
A third pass of your foot reverses the
direction of movement.Activation / deactivation of the
Hands-Free Tailgate Access function
is done in the Driving menu of the
touch screen.
This function is deactivated by default.
Access
