PRACTICAL INFORMATION
186
BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
u s i n g a n o t h e r b a t t e r y .
Access to the battery Starting using another battery
C o n n e c t t h e r e d c a b l e t o t h e p o s i -
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
o n y o u r v e h i c l e ( e n g i n e m o u n t i n g ) .
O p e r a t e t h e s t a r t e r , l e t t h e e n g i n e
r u n .
Wait until the engine returns to idle
a n d d i s c o n n e c t t h e c a b l e s .
T h e b a t t e r y i s l o c a t e d u n d e r t h e b o n n e t .
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
r e l e a s e l e v e r , t h e n t h e e x t e r i o r s a f e -
t y c a t c h ,
s e c u r e t h e b o n n e t s t a y ,
r e m o v e t h e p l a s t i c c o v e r t o g a i n a c -
c e s s t o t h e t w o t e r m i n a l s ,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
b a t t e r y , i f n e c e s s a r y .
Page 212 of 315
PRACTICAL INFORMATION
187
Disconnecting the cables
R a i s e t h e l o c k i n g t a b f u l l y .
Reconnecting the cables
Position the open clip 1 of the cable
on the positive terminal (+) of the
b a t t e r y .
Press vertically on the clip 1 t o p o s i -
t i o n i t c o r r e c t l y a g a i n s t t h e b a t t e r y .
Lock the clip by lowering the tab 2 .
D o n o t f o r c e t h e t a b a s l o c k i n g w i l l n o t
be possible if the clip is not positioned
c o r r e c t l y ; s t a r t t h e p r o c e d u r e a g a i n . D o n o t d i s c o n n e c t t h e t e r m i -
n a l s w h i l e t h e e n g i n e i s r u n -
n i n g .
D o n o t c h a r g e t h e b a t t e r i e s
w i t h o u t d i s c o n n e c t i n g t h e t e r -
m i n a l s fi r s t .
D o n o t p u s h t h e v e h i c l e t o s t a r t t h e
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x o r a n
a u t o m a t i c g e a r b o x .
T h e b a t t e r i e s c o n t a i n h a r m -
f u l s u b s t a n c e s s u c h a s s u l -
p h u r i c a c i d a n d l e a d . T h e y
must be disposed of in accordance
w i t h r e g u l a t i o n s a n d m u s t n o t , i n a n y
c i r c u m s t a n c e s , b e d i s c a r d e d w i t h
h o u s e h o l d w a s t e .
Take used remote control batteries
a n d v e h i c l e b a t t e r i e s t o a s p e c i a l c o l -
l e c t i o n p o i n t .
Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e v e -
h i c l e .
F o l l o w t h e i n s t r u c t i o n s f o r u s e p r o -
vided by the manufacturer of the
c h a r g e r .
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
t i v e t e r m i n a l ( - ) .
C h e c k t h a t t h e t e r m i n a l s a n d c o n -
n e c t o r s a r e c l e a n . I f t h e y a r e c o v -
ered with sulphate (whitish or
g r e e n i s h d e p o s i t ) , r e m o v e t h e m a n d
c l e a n t h e m .
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
o n e m o n t h . Before disconnecting the battery
W a i t 2 m i n u t e s a f t e r s w i t c h i n g o f f t h e i g -
n i t i o n b e f o r e d i s c o n n e c t i n g t h e b a t t e r y .
C l o s e t h e w i n d o w s a n d t h e d o o r s b e -
f o r e d i s c o n n e c t i n g t h e b a t t e r y .
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
s w i t c h o n t h e i g n i t i o n a n d w a i t 1 m i n -
ute before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
p r o b l e m s r e m a i n f o l l o w i n g t h i s o p e r a -
t i o n , c o n t a c t a P E U G E O T d e a l e r .
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e p a n o r a m i c s u n r o o f b l i n d ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
Page 213 of 315
PRACTICAL INFORMATION
188
Let the engine run for the
d u r a t i o n s p e c i fi e d t o e n s u r e
t h a t t h e b a t t e r y c h a r g e i s s u f -
fi c i e n t .
D o n o t r e p e a t e d l y a n d c o n t i n u o u s l y
restart the engine in order to charge
t h e b a t t e r y .
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the "Battery"
p a r a g r a p h ) .
I f t h e t e l e p h o n e i s b e i n g u s e d
a t t h i s t i m e :
- i t w i l l b e m a i n t a i n e d f o r 5 m i n u t e s w i t h t h e h a n d s - f r e e k i t o f y o u r
P C S o u n d o r P C N a v ,
- i t w i l l s t i l l b e p o s s i b l e t o fi n i s h t h e c a l l w i t h t h e P C C o m 3 D . Exiting economy mode
T h e s e f u n c t i o n s a r e r e a c t i v a t e d a u t o -
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
I n o r d e r t o r e s u m e t h e u s e o f t h e s e
f u n c t i o n s i m m e d i a t e l y , s t a r t t h e e n -
g i n e a n d l e t i t r u n :
- f o r l e s s t h a n t e n m i n u t e s , t o u s e t h e e q u i p m e n t f o r a p p r o x i m a t e l y
fi v e m i n u t e s ,
- f o r m o r e t h a n t e n m i n u t e s , t o u s e t h e e q u i p m e n t f o r u p t o a p p r o x i -
m a t e l y t h i r t y m i n u t e s .
LOAD REDUCTION MODE
S y s t e m w h i c h m a n a g e s t h e u s e o f c e r -
tain functions according to the level of
c h a r g e r e m a i n i n g i n t h e b a t t e r y .
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e l o a d
reduction function temporarily deactivates
c e r t a i n f u n c t i o n s , s u c h a s t h e a i r c o n d i t i o n -
i n g , t h e h e a t e d r e a r s c r e e n . . .
T h e d e a c t i v a t e d f u n c t i o n s a r e r e a c t i v a t -
ed automatically as soon as conditions
p e r m i t .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p -
e r s , d i p p e d b e a m h e a d l a m p s , c o u r t e s y
l a m p s , e t c . f o r a m a x i m u m c o m b i n e d
d u r a t i o n o f t h i r t y m i n u t e s .
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
m e s s a g e a p p e a r s o n t h e m u l t i - f u n c t i o n
screen indicating that the vehicle has
s w i t c h e d t o e c o n o m y m o d e a n d t h e a c -
t i v e f u n c t i o n s a r e p u t o n s t a n d b y .
Page 214 of 315
PRACTICAL INFORMATION
189
CHANGING A WIPER BLADE
Removing
R a i s e t h e c o r r e s p o n d i n g w i p e r a r m .
U n c l i p t h e w i p e r b l a d e a n d r e m o v e i t . Fitting
Put the corresponding new wiper
b l a d e i n p l a c e a n d c l i p i t .
F o l d d o w n t h e w i p e r a r m c a r e f u l l y .
Before removing a front wiper
blade
Within one minute after switching off
t h e i g n i t i o n , o p e r a t e t h e w i p e r s t a l k
t o p o s i t i o n t h e w i p e r b l a d e s v e r t i -
c a l l y o n t h e w i n d s c r e e n . After fitting a front wiper blade
S w i t c h o n t h e i g n i t i o n .
Operate the wiper stalk again to
p a r k t h e w i p e r b l a d e s .
Page 215 of 315
PRACTICAL INFORMATION
190
TOWING THE VEHICLE
Access to the tools Towing your vehicle
O n t h e f r o n t b u m p e r , u n c l i p t h e c o v -
e r b y p r e s s i n g a t t h e b o t t o m .
S c r e w t h e t o w i n g e y e i n f u l l y .
I n s t a l l t h e t o w i n g b a r .
Switch on the hazard warning lamps
o n t h e t o w e d v e h i c l e .
O n t h e r e a r b u m p e r , u n c l i p t h e c o v -
e r b y p r e s s i n g a t t h e b o t t o m .
S c r e w t h e t o w i n g e y e i n f u l l y .
I n s t a l l t h e t o w i n g b a r .
Switch on the hazard warning lamps
o n t h e t o w e d v e h i c l e .
Towing another vehicle
The towing eye is installed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
o p e n t h e b o o t ,
r a i s e t h e fl o o r ,
secure it by hooking the cords on
the hooks on the rear parcel shelf
s u p p o r t ,
r e m o v e t h e p o l y s t y r e n e b o x ,
remove the towing eye from the
h o l d e r . When towing with all four
w h e e l s o n t h e g r o u n d , a l w a y s
u s e a t o w i n g b a r .
When towing with only two wheels on
t h e g r o u n d , a l w a y s u s e p r o f e s s i o n a l
l i f t i n g e q u i p m e n t .
W h e n t o w i n g w i t h t h e e n g i n e o f f ,
there is no longer any braking or
s t e e r i n g a s s i s t a n c e .
P l a c e t h e g e a r l e v e r i n n e u -
tral (position N o n t h e e l e c -
t r o n i c g e a r c o n t r o l g e a r b o x
o r a u t o m a t i c g e a r b o x ) .
F a i l u r e t o o b s e r v e t h i s s p e c i a l c o n d i t i o n c o u l d r e -
sult in damage to certain
braking components and
t h e a b s e n c e o f b r a k i n g a s -
s i s t a n c e t h e n e x t t i m e t h e
e n g i n e i s s t a r t e d .
Procedure for having your vehicle towed
or for towing another vehicle using a
r e m o v a b l e t o w i n g e y e .
Page 216 of 315
PRACTICAL INFORMATION
191
TOWING A TRAILER,A CARAVAN, ETC.
Your vehicle is primarily designed for
t r a n s p o r t i n g p e o p l e a n d l u g g a g e , b u t i t
m a y a l s o b e u s e d f o r t o w i n g a t r a i l e r . Driving advice
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
a m b i e n t t e m p e r a t u r e .
I n a l l c a s e s , p a y a t t e n t i o n t o t h e c o o l a n t
t e m p e r a t u r e .
Side wind
Take into account the increased
s e n s i t i v i t y t o s i d e w i n d .
Cooling
Towing a trailer on a slope increases
t h e t e m p e r a t u r e o f t h e c o o l a n t .
A s t h e f a n i s e l e c t r i c a l l y c o n t r o l l e d , i t s
cooling capacity is not dependent on
t h e e n g i n e s p e e d .
T o l o w e r t h e e n g i n e s p e e d , r e d u c e
y o u r s p e e d . Braking
Towing a trailer increases the braking
d i s t a n c e .
Tyres
C h e c k t h e t y r e p r e s s u r e s o f t h e t o w -
i n g v e h i c l e a n d o f t h e t r a i l e r , o b s e r v -
i n g t h e r e c o m m e n d e d p r e s s u r e s .
Lighting
C h e c k t h e e l e c t r i c a l l i g h t i n g a n d s i g -
n a l l i n g o n t h e t r a i l e r .
The rear parking sensors will
be deactivated automatically if
a genuine PEUGEOT towbar
i s u s e d .
I f t h e w a r n i n g l a m p a n d t h e
STOP warning lamp come
o n , s t o p t h e v e h i c l e a n d
switch off the engine as
s o o n a s p o s s i b l e .
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
a n d s i g n a l l i n g .
Distribution of loads
D i s t r i b u t e t h e l o a d i n t h e t r a i l e r s o
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
A i r d e n s i t y d e c r e a s e s w i t h a l t i t u d e , t h u s
r e d u c i n g e n g i n e p e r f o r m a n c e . A b o v e
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
e v e r y 1 0 0 0 m e t r e s o f a l t i t u d e .
R e f e r t o t h e " T e c h n i c a l D a t a " s e c t i o n f o r
details of the weights and towing loads
w h i c h a p p l y t o y o u r v e h i c l e .
D r i v i n g w i t h a t r a i l e r s u b j e c t s t h e t o w i n g
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
d r i v e r m u s t b e p a r t i c u l a r l y c a r e f u l .
We recommend the use of
genuine PEUGEOT towbars
and their harnesses that have
been tested and approved from the
d e s i g n s t a g e o f y o u r v e h i c l e , a n d t h a t
t h e fi t t i n g o f t h e t o w b a r i s e n t r u s t e d
t o a P E U G E O T d e a l e r .
I f t h e t r a i l e r i s n o t fi t t e d b y a P E U G E O T
d e a l e r , i t i s i m p e r a t i v e t h a t i t i s fi t t e d
u s i n g t h e e l e c t r i c a l p r e - e q u i p m e n t i n -
s t a l l e d a t t h e r e a r o f t h e v e h i c l e , i n
accordance with the manufacturer's
i n s t r u c t i o n s .
Page 217 of 315
PRACTICAL INFORMATION
ACCESSORIES
"Protection": a n t i - t h e f t a l a r m , w i n d o w e t c h -
i n g , w h e e l l o c k s , fi r s t a i d k i t ,
w a r n i n g t r i a n g l e , h i g h v i s i b i l i t y
j a c k e t , s t o l e n v e h i c l e t r a c k -
i n g s y s t e m , d o g g u a r d , s n o w
c h a i n s .
FITTING ROOF BARS M a x i m u m a u t h o r i s e d w e i g h t
o n t h e r o o f r a c k , f o r a l o a d i n g
h e i g h t n o t e x c e e d i n g 4 0 c m
( w i t h t h e e x c e p t i o n o f b i c y c l e
c a r r i e r s ) : 65 k g .
I f t h e h e i g h t e x c e e d s 4 0 c m , a d a p t
t h e s p e e d o f t h e v e h i c l e t o t h e p r o -
fi l e o f t h e r o a d t o a v o i d d a m a g i n g t h e
r o o f b a r s a n d t h e fi x i n g s o n t h e r o o f .
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
t h a n t h e v e h i c l e .
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
p u r p o s e :
l i f t t h e c o n c e a l i n g fl a p s ,
o p e n t h e fi x i n g c o v e r s o n e a c h b a r
u s i n g t h e s p a n n e r ,
p u t e a c h fi x i n g i n p l a c e a n d l o c k
t h e m o n t h e r o o f o n e b y o n e ,
c l o s e t h e fi x i n g c o v e r s o n e a c h b a r
u s i n g t h e k e y . Y o u c a n o b t a i n a w i d e r a n g e o f a c -
cessories and original parts from the
P E U G E O T n e t w o r k .
These accessories and parts have been
tested and approved for reliability and
s a f e t y .
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
t i o n a n d w a r r a n t y .
The product range offered by PEUGEOT
A c c e s s o r i e s i s s t r u c t u r e d a r o u n d 5 c a t e -
g o r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
T E C H N O L O G Y - S T Y L I N G - U N I V E R S A L :
Page 218 of 315
PRACTICAL INFORMATION
ACCESSORIES
"Protection": a n t i - t h e f t a l a r m , w i n d o w e t c h -
i n g , w h e e l l o c k s , fi r s t a i d k i t ,
w a r n i n g t r i a n g l e , h i g h v i s i b i l i t y
j a c k e t , s t o l e n v e h i c l e t r a c k -
i n g s y s t e m , d o g g u a r d , s n o w
c h a i n s .
FITTING ROOF BARS M a x i m u m a u t h o r i s e d w e i g h t
o n t h e r o o f r a c k , f o r a l o a d i n g
h e i g h t n o t e x c e e d i n g 4 0 c m
( w i t h t h e e x c e p t i o n o f b i c y c l e
c a r r i e r s ) : 65 k g .
I f t h e h e i g h t e x c e e d s 4 0 c m , a d a p t
t h e s p e e d o f t h e v e h i c l e t o t h e p r o -
fi l e o f t h e r o a d t o a v o i d d a m a g i n g t h e
r o o f b a r s a n d t h e fi x i n g s o n t h e r o o f .
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
t h a n t h e v e h i c l e .
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
p u r p o s e :
l i f t t h e c o n c e a l i n g fl a p s ,
o p e n t h e fi x i n g c o v e r s o n e a c h b a r
u s i n g t h e s p a n n e r ,
p u t e a c h fi x i n g i n p l a c e a n d l o c k
t h e m o n t h e r o o f o n e b y o n e ,
c l o s e t h e fi x i n g c o v e r s o n e a c h b a r
u s i n g t h e k e y . Y o u c a n o b t a i n a w i d e r a n g e o f a c -
cessories and original parts from the
P E U G E O T n e t w o r k .
These accessories and parts have been
tested and approved for reliability and
s a f e t y .
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
t i o n a n d w a r r a n t y .
The product range offered by PEUGEOT
A c c e s s o r i e s i s s t r u c t u r e d a r o u n d 5 c a t e -
g o r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
T E C H N O L O G Y - S T Y L I N G - U N I V E R S A L :
Page 219 of 315
PRACTICAL INFORMATION
193
"Touring": m a t s * , b o o t t r a y , l u g g a g e n e t ,
fi x e d c o a t h o o k o n h e a d r e -
s t r a i n t , s t a i n l e s s s t e e l o r c a r -
b o n d o o r s i l l s .
F o r l e i s u r e p u r s u i t s : r o o f b a r s , b i c y c l e
c a r r i e r o n t o w b a r , b i c y c l e c a r r i e r o n r o o f
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
a n d c h i l d s e a t s , s i d e b l i n d s , u n d e r s h e l f
s t o r a g e .
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
t h e P E U G E O T n e t w o r k .
"In-car technology": a u d i o s y s t e m s , a m p l i fi e r s ,
s a t e l l i t e n a v i g a t i o n s y s t e m s ,
B l u e t o o t h s y s t e m , C D c h a n g -
e r , s p e a k e r s , D V D p l a y e r ,
U S B B o x , f r o n t a n d r e a r p a r k -
i n g s e n s o r s , a d d i t i o n a l b l u e -
t o o t h w i r e l e s s h e a d p h o n e s ,
bluetooth audio headphones
m a i n s c h a r g e r . Installation of
radiocommunication
transmitters
I t i s a d v i s a b l e t o c o n t a c t a r e p r e -
sentative of the PEUGEOT marque
b e f o r e i n s t a l l i n g a c c e s s o r y r a d i o -
communication transmitters with an
e x t e r n a l a e r i a l o n y o u r v e h i c l e .
The PEUGEOT network will provide
y o u w i t h t h e s p e c i fi c a t i o n s ( f r e q u e n -
c y b a n d , m a x i m u m o u t p u t p o w e r ,
a e r i a l p o s i t i o n , s p e c i a l i n s t a l l a t i o n
conditions) of the transmitters which
c a n b e fi t t e d , i n a c c o r d a n c e w i t h t h e
Vehicle Electromagnetic Compatibility
D i r e c t i v e ( 2 0 0 4 / 1 0 4 / C E ) .
* T o a v o i d a n y r i s k o f j a m m i n g o f t h e p e d a l s :
- e n s u r e t h a t t h e m a t i s p o s i t i o n e d a n d s e c u r e d c o r r e c t l y ,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
y o u r v e h i c l e ' s e l e c t r o n i c s y s t e m .
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
Y o u a r e a d v i s e d t o c o n t a c t a r e p r e -
sentative of the Marque to be shown
t h e r a n g e o f r e c o m m e n d e d e q u i p -
m e n t a n d a c c e s s o r i e s . D e p e n d i n g o n t h e c o u n t r y i n
w h i c h t h e v e h i c l e i s s o l d , i t
is compulsory to have a high
v i s i b i l i t y j a c k e t , w a r n i n g t r i a n g l e a n d
s p a r e b u l b s a v a i l a b l e i n t h e v e h i c l e .
"Styling": "Universal":
You can obtain "Van" conversion kits to
c o n v e r t a p r i v a t e v e h i c l e i n t o a v a n .
seat covers compatible with
l a t e r a l a i r b a g s , l e a t h e r g e a r
l e v e r k n o b , f o g l a m p s , d o o r d e -
fl e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
a l l o y w h e e l s , t r i m s , c h r o m e -
p l a t e d d o o r h a n d l e s h e l l s . s c r e e n w a s h , i n t e r i o r a n d e x t e -
rior maintenance and cleaning
p r o d u c t s .
Page 220 of 315

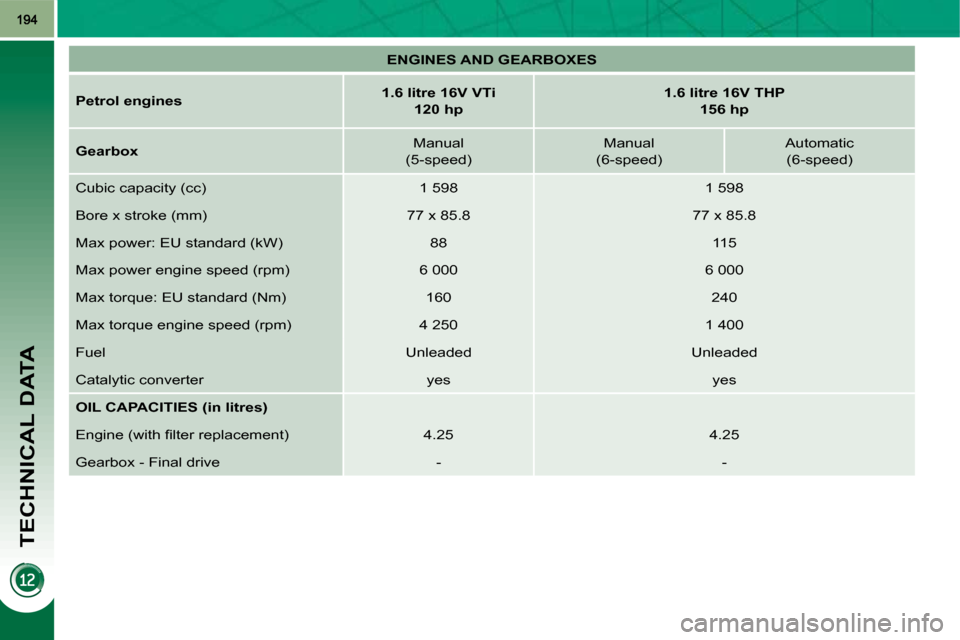

TECHNICAL DATA
ENGINES AND GEARBOXES
Petrol engines
1.6 litre 16V VTi
120
hp
1.6 litre 16V THP
156
hp
Gearbox Manual
(5-speed) Manual
(6-speed) Automatic
(6-speed)
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 88 115
Max power engine speed (rpm) 6 000 6 000
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic converter yes yes
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25 4.25
Gearbox - Final drive - -
