lock Peugeot 3008 Hybrid 4 2011 Owner's Manual

FAMILIARISATION4-25
INSTRUMENTS and CONTROLS 43-57
CHILD SAFETY 117-125
MULTIFUNCTION SCREENS58-66
SAFETY 126-135
COMFORT 67-80
ACCESS 81-95
VISIBILITY 96-105
FITTINGS 106-116
Instrument panels .............43Indicator and warning lamps....45Indicators..........................53Adjustment buttons...........57
Child seats.......................117ISOFIX child seats..........122Child lock........................125
Screen C (Peugeot Connect Sound)...5816/9 high definition retractablecolour screen (PeugeotConnect Media) ................61
Direction indicators.........126Hazard warning lamps....126Horn................................126
ESP system....................127Front seat belts...............129Airbags ...........................132
Ventilation .........................67Rear screen demist/defrost.................68Dual-zone digital air conditioning....................69
Front seats.......................72Rear seats........................76Steering wheel adjustment...........78Mirrors ..............................79
Remote control key..........81Alarm................................86Electric windows...............88Doors ................................90
Boot..................................92Lower tailgate ...................93Fuel tank ...........................94Misfuel prevention ............95
Lighting controls...............96Automatic illumination of headlamps ..................99Headlamp adjustment......99Wiper controls................100
Automatic rainsensitive wipers ............102Courtesy lamps ..............103Interior mood lighting......104Boot lamp.......................105
Interior fittings.................106Front armrest..................108Rear multimedia..............110
Panoramic sunroof..........f112Boot fittings......................113
HYBRID SYSTEM 26-42

10
OPENING

Remote control ke
y



A.
Unfolding/Folding the key.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Deadlocking the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators). or
81 When the light is poor, detected by
a sensor, the remote switching on of
the dipped headlamps and sidelamps
makes your approach to the vehicle
easier.
This function can be programmed via
the confi guration menu.
98
94


Fuel tank

Before refuelling, you
must
switch of the
ignition and ensure
that the Ready
lamp
is off.


1.
Open the fuel fi ller fl ap.

2.
Open and hook the fuel fi ller cap.
The type of fuel to be used is indicated
on the inner face of the fuel fi ller fl ap.
Capacity of the tank: approximately
56.5 litres.

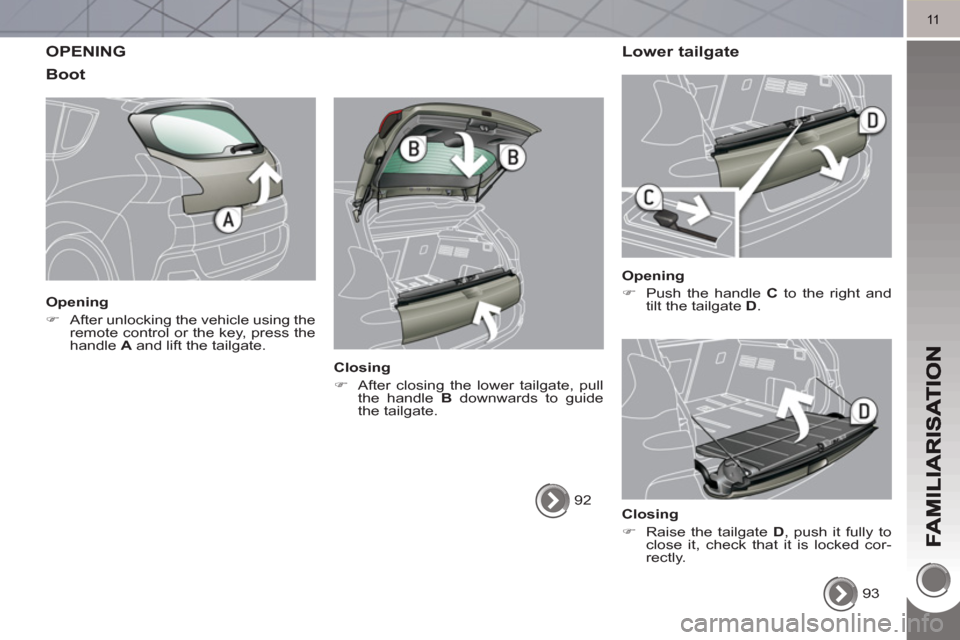

11
OPENING
Boot

Opening


)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.


Closing


)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.

Lower tailgate

92
Opening


)
Push the handle C
to the right and
tilt the tailgate D
.


Closing


)
Raise the tailgate D
, push it fully to
close it, check that it is locked cor-
rectly.

93

13
INSTRUMENTS AND CONTROLS


1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB.

9.
Bonnet release.

10.
Driver's storage compartment
(Handbook).

11 .
ECO OFF button
Alarm button.
Parking sensors button.
Dynamic stability control button
(ESP/ASR).

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media.

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

14
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger's airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger's airbag deactivation.

10.
Storage compartment with net.

11 .
HYbrid4 mode selector.

12.
12 V accessory socket.

13.
Grab handle.

14.
Heating/air conditioning controls.

15.
Audio and telematics system.

16.
Buttons:
- head-up display,
- hazard warning lamps,
- central locking.

16
SITTING COMFORTABLY

Front seats


Head restraint height and angle

Lumbar
74

Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.
As a safety precaution, these opera-
tions must only be carried out when sta-
tionary.
78


Table position (front passenger
seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier.
75


Front armrest

It contains the Peugeot Connect USB port.

108

19
MONITORING
Instrument
panel


A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.

B.
With the engine running, its associ-
ated low level warning lamp should
go off.

C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
levels which are low.
43


Warning lamps



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
45
Switch panels

Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
ECO OFF.
36
154
128
86
144
126
91

B.
Visual and audible
parking sensors.

C.
ESP OFF.

D.
Interior volumetric
protection alarm.

E.
Head-up display.

F.
Hazard warning lamps.

G.
Central locking.
Lower


Central

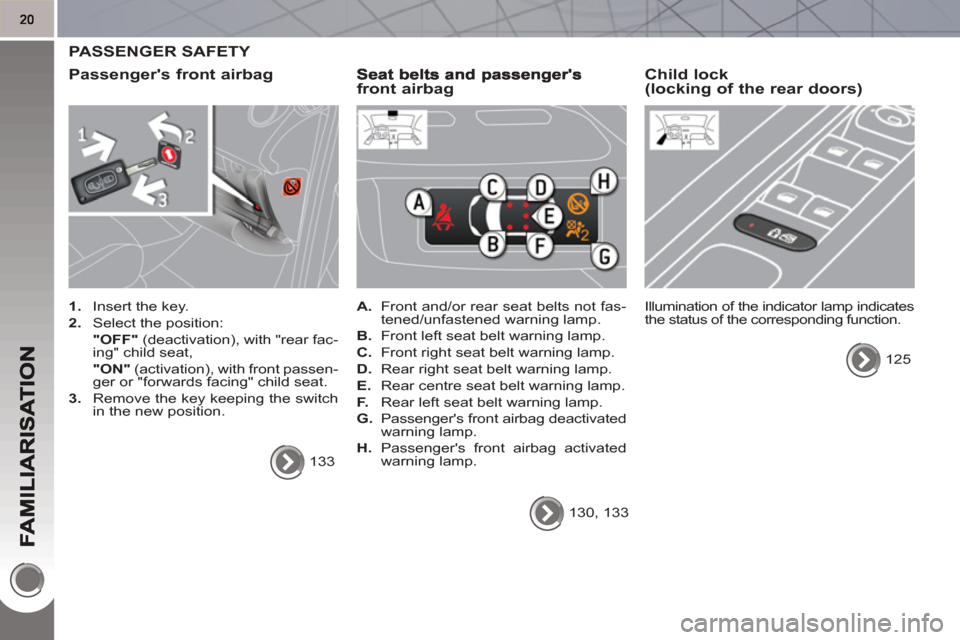

PASSENGER SAFETY

Passen
ger's front airbag



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.
133
front airbag



A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear centre seat belt warning lamp.

F.
Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivated
warning lamp.

H.
Passenger's front airbag activated
warning lamp.
130, 133


Child lock (locking of the rear doors)

Illumination of the indicator lamp indicates
the status of the corresponding function.
125

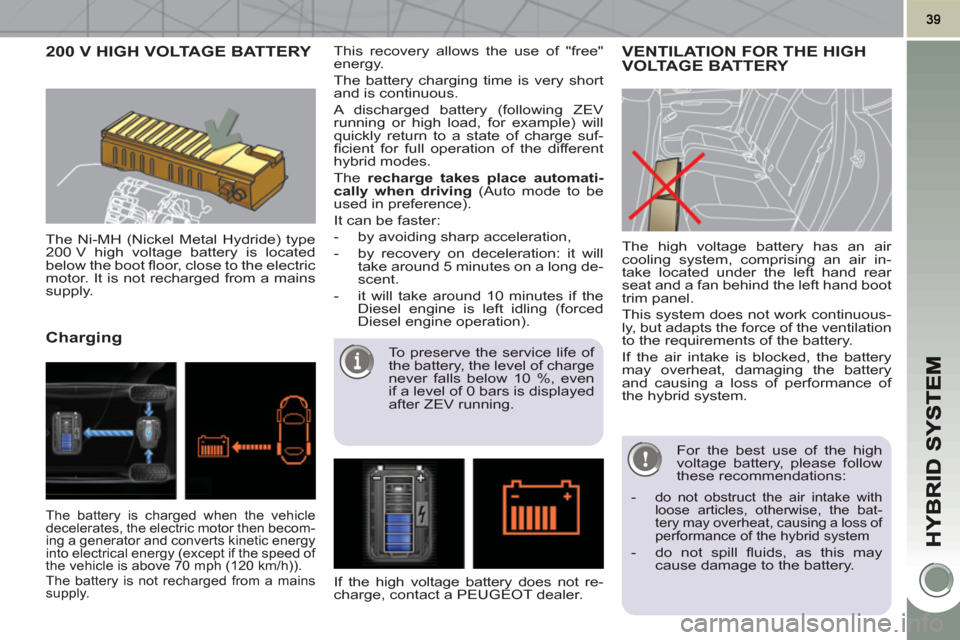

200 V HIGH VOLTAGE BATTERY

The Ni-MH (Nickel Metal Hydride) type
200 V high voltage battery is located
below the boot fl oor, close to the electric
motor. It is not recharged from a mains
supply.
Charging


This recovery allows the use of "free"
energy.
The battery charging time is very short
and is continuous.
A discharged battery (following ZEV
running or high load, for example) will
quickly return to a state of charge suf-
fi cient for full operation of the different
hybrid modes.
The recharge takes place automati-
cally when driving
(Auto mode to be
used in preference).
It can be faster:


- by avoiding sharp acceleration,

- by recovery on deceleration: it will
take around 5 minutes on a long de-
scent.

- it will take around 10 minutes if the
Diesel engine is left idling (forced
Diesel engine operation).

The high voltage battery has an air
cooling system, comprising an air in-
take located under the left hand rear
seat and a fan behind the left hand boot
trim panel.
This system does not work continuous-
ly, but adapts the force of the ventilation
to the requirements of the battery.
If the air intake is blocked, the battery
may overheat, damaging the battery
and causing a loss of performance of
the hybrid system. VENTILATION FOR THE HIGH VOLTAGE BATTERY

For the best use of the high
voltage battery, please follow
these recommendations:


-
do not obstruct the air intake with
loose articles, otherwise, the bat-
tery may overheat, causing a loss of
performance of the hybrid system

- do not spill fl uids, as this may
cause damage to the battery.




The battery is charged when the vehicle
decelerates, the electric motor then becom-
ing a generator and converts kinetic energy
into electrical energy (except if the speed of
the vehicle is above 70 mph (120 km/h)).
The battery is not recharged from a mains
supply.


If the high voltage battery does not re-
charge, contact a PEUGEOT dealer.


To preserve the service life of
the battery, the level of charge
never falls below 10 %, even
if a level of 0 bars is displayed
after ZEV running.

40

The high voltage battery must not in any
circumstances be charged from an ex-
ternal source and must only be handled
by a workshop technician.
There is the risk of serious burns, as
well as electric arcs that could cause
serious injury or even death.
A used Ni-MH (Nickel Metal Hydride)
type high voltage battery must be re-
moved in an appropriate manner by a
repair workshop, so that its recycling
presents no risk to the environment.

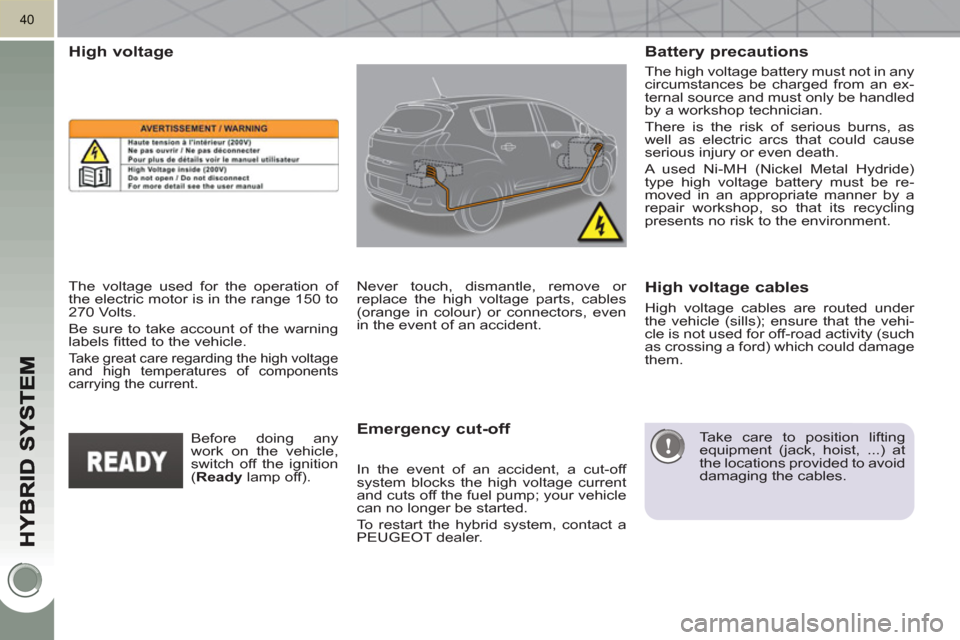

High voltage


The voltage used for the operation of
the electric motor is in the range 150 to
270 Volts.
Be sure to take account of the warning
labels fi tted to the vehicle.

Take great care regarding the high voltage
and high temperatures of components
carrying the current.
Emergency cut-off
Never touch, dismantle, remove or
replace the high voltage parts, cables
(orange in colour) or connectors, even
in the event of an accident.

In the event of an accident, a cut-off
system blocks the high voltage current
and cuts off the fuel pump; your vehicle
can no longer be started.
To restart the hybrid system, contact a
PEUGEOT dealer.
High voltage cables are routed under
the vehicle (sills); ensure that the vehi-
cle is not used for off-road activity (such
as crossing a ford) which could damage
them.
Before doing any
work on the vehicle,
switch off the ignition
( Ready
lamp off).

Battery precautions

High voltage cables


Take care to position lifting
equipment (jack, hoist, ...) at
the locations provided to avoid
damaging the cables.
