Peugeot 3008 Hybrid 4 2011 Owner's Manual

Handbook

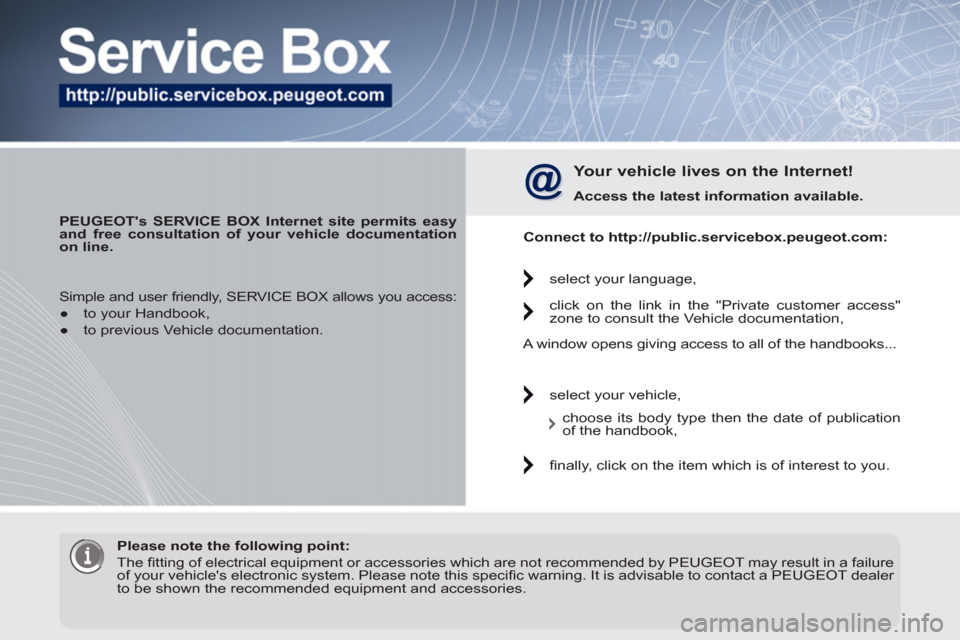

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.



Your vehicle lives on the Internet!


Access the latest information available.


Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you access:


●
to your Handbook,

●
to previous Vehicle documentation.


Please note the following point:


The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure
of your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer
to be shown the recommended equipment and accessories. select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,
select your vehicle,
fi nally, click on the item which is of interest to you. choose its body type then the date of publication
of the handbook, A window opens giving access to all of the handbooks...

Page reference:

this symbol invites you to re-
fer to the pages which pro-
vide details of the function.


Key

Protection of the
environment:
this symbol accompanies
advice relating to protection of the
environment.


Information:


this symbol draws your at-
tention to additional infor-
mation for better use of your
vehicle.


Warning:

this symbol marks warnings
which it is essential to observe
for your own safety, for the safety of
others or to avoid any risk of damaging
your vehicle.

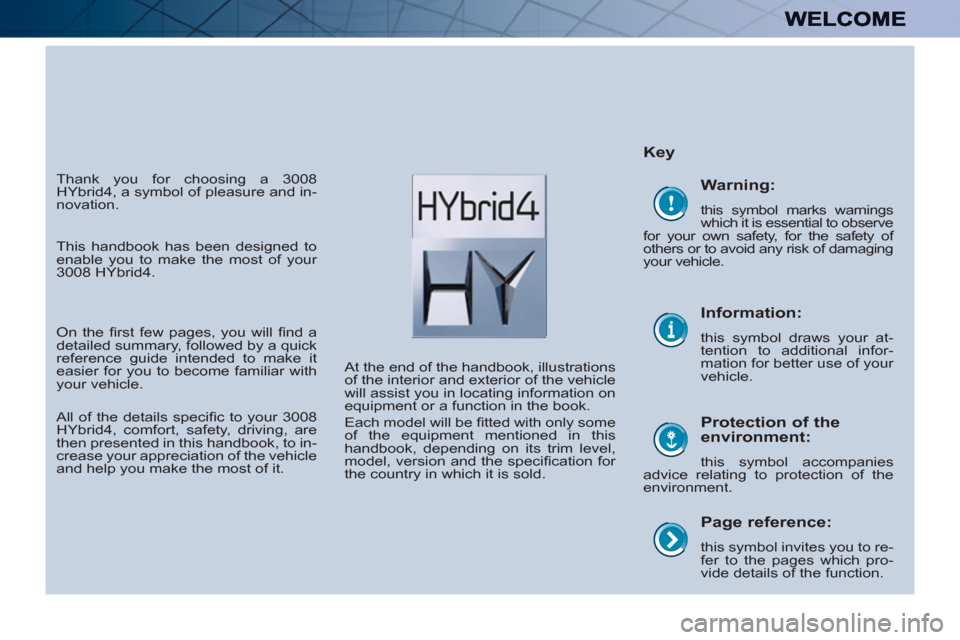

Thank you for choosing a 3008
HYbrid4, a symbol of pleasure and in-
novation.
This handbook has been designed to
enable you to make the most of your
3008 HYbrid4.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specifi c to your 3008
HYbrid4, comfort, safety, driving, are
then presented in this handbook, to in-
crease your appreciation of the vehicle
and help you make the most of it.
At the end of the handbook, illustrations
of the interior and exterior of the vehicle
will assist you in locating information on
equipment or a function in the book.
Each model will be fi tted with only some
of the equipment mentioned in this
handbook, depending on its trim level,
model, version and the specifi cation for
the country in which it is sold.

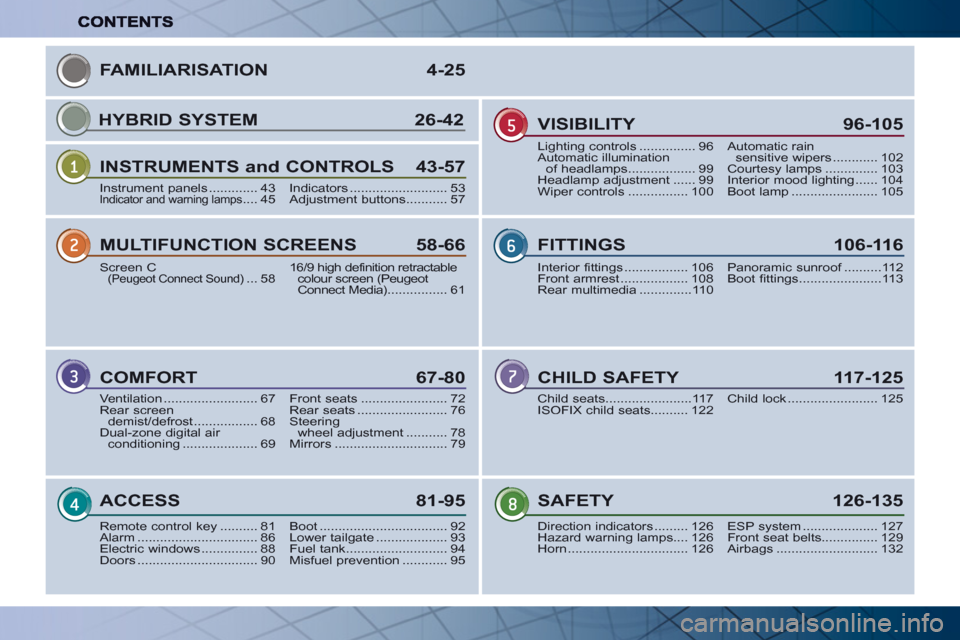

FAMILIARISATION4-25
INSTRUMENTS and CONTROLS 43-57
CHILD SAFETY 117-125
MULTIFUNCTION SCREENS58-66
SAFETY 126-135
COMFORT 67-80
ACCESS 81-95
VISIBILITY 96-105
FITTINGS 106-116
Instrument panels .............43Indicator and warning lamps....45Indicators..........................53Adjustment buttons...........57
Child seats.......................117ISOFIX child seats..........122Child lock........................125
Screen C (Peugeot Connect Sound)...5816/9 high definition retractablecolour screen (PeugeotConnect Media) ................61
Direction indicators.........126Hazard warning lamps....126Horn................................126
ESP system....................127Front seat belts...............129Airbags ...........................132
Ventilation .........................67Rear screen demist/defrost.................68Dual-zone digital air conditioning....................69
Front seats.......................72Rear seats........................76Steering wheel adjustment...........78Mirrors ..............................79
Remote control key..........81Alarm................................86Electric windows...............88Doors ................................90
Boot..................................92Lower tailgate ...................93Fuel tank ...........................94Misfuel prevention ............95
Lighting controls...............96Automatic illumination of headlamps ..................99Headlamp adjustment......99Wiper controls................100
Automatic rainsensitive wipers ............102Courtesy lamps ..............103Interior mood lighting......104Boot lamp.......................105
Interior fittings.................106Front armrest..................108Rear multimedia..............110
Panoramic sunroof..........f112Boot fittings......................113
HYBRID SYSTEM 26-42

ALPHABETICAL INDEX 266-269
DRIVING 136-155
CHECKS 156-162
PRACTICAL INFORMATION 163-192
TECHNICAL DATA 193-198
AUDIO EQUIPMENT and TELEMATICS 199-265
Electric parking brake.....136Hill start assist................141Head-up display.............144Speed limiter..................r146
Cruise control .................1486-speed electronicgear control gearbox....150Parking sensors ..............154
Bonnet............................157Running out of fuel (Diesel).........................158Diesel engine..................159
Checking levels ..............160Checks............................161
Temporary puncture repair kit .......................163Changing a wheel...........169Changing a bulb.............172Changing a fuse .............17612 V Battery....................183Energy economy mode.............186
Changinga wiper blade ................187Recoveringthe vehicle....................188Towing a trailer...............r189Fitting roof bars ..............190Very cold climate screen..............190Accessories....................191
Electric drive ...................193Diesel engines................194Diesel weights................195
Dimensions .....................196Identification markings....197
VISUAL SEARCH 270-276
Emergency or assistance....199Peugeot Connect Media....203Peugeot Connect Sound ...........................247

4
PRESENTATION OF THE HYbrid4 SYSTEM
26

Thank you for choosing a 3008 HYbrid4;
this vehicle has characteristics that are
different from conventional vehicles.
Study this handbook to learn about the
specifi c hybrid functions and for more
information, refer to the "Hybrid System"
section.


The HYbrid4 technology allows two
sources of energy to be associated in an
effective manner: that of the Diesel HDi
engine which drives the front wheels and
that of the electric motor which drives the
rear wheels.
These two motors can operate alter-
nately or simultaneously, according to
the hybrid mode selected and the driv-
ing conditions.
The electric motor alone provides power
for the vehicle in "ZEV" (Zero Emissions
Vehicle) mode, and in "Auto" mode for
running at slow speed and low load. It
also assists the Diesel engine when
moving off, accelerating and changing
gear.
The battery that powers the electric mo-
tor recharges itself during phases of
deceleration and stores the energy for
subsequent use.


1.
Diesel HDi engine (front wheel drive).

2.
Electric motor (rear wheel drive).

3.
High voltage battery.

4.
Electronic power supervisor.
5.
Stop & Start system.

6.
Electronic gear control gearbox.

7.
Electric fl ow.

5

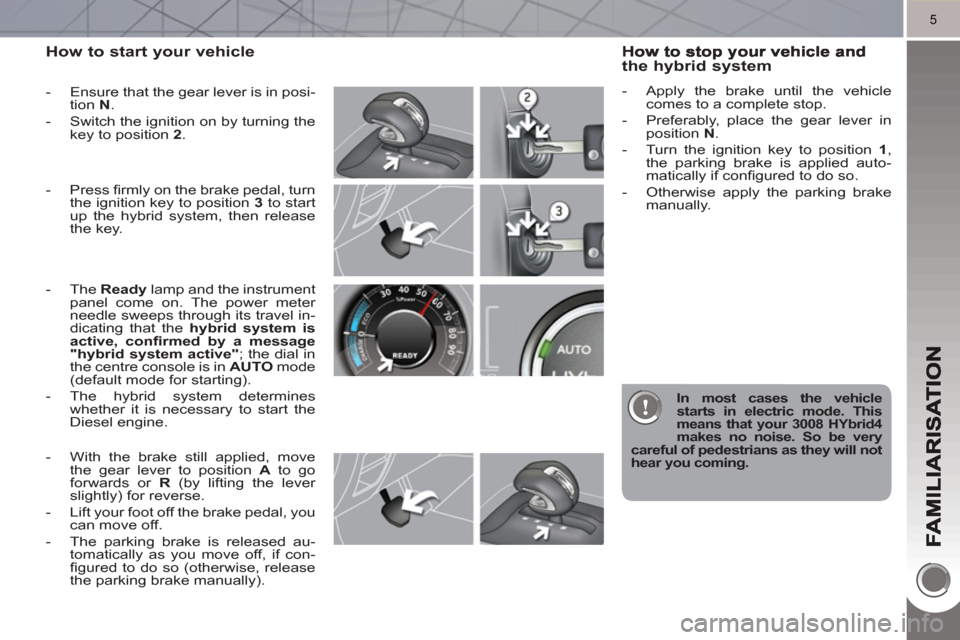

How to start your vehicle


- Ensure that the gear lever is in posi-
tion N
.

- Switch the ignition on by turning the
key to position 2
.


- The Ready
lamp and the instrument
panel come on. The power meter
needle sweeps through its travel in-
dicating that the hybrid system is
active, confi rmed by a message
"hybrid system active"
; the dial in
the centre console is in AUTO
mode
(default mode for starting).

- The hybrid system determines
whether it is necessary to start the
Diesel engine.


- With the brake still applied, move
the gear lever to position A
to go
forwards or R
(by lifting the lever
slightly) for reverse.

- Lift your foot off the brake pedal, you
can move off.

- The parking brake is released au-
tomatically as you move off, if con-
fi gured to do so (otherwise, release
the parking brake manually).

the hybrid system



- Apply the brake until the vehicle
comes to a complete stop.

- Preferably, place the gear lever in
position N
.

- Turn the ignition key to position 1
,
the parking brake is applied auto-
matically if confi gured to do so.

- Otherwise apply the parking brake
manually.
- Press fi rmly on the brake pedal, turn
the ignition key to position 3
to start
up the hybrid system, then release
the key.



In most cases the vehicle
starts in electric mode. This
means that your 3008 HYbrid4 makes no noise. So be very
careful of pedestrians as they will not
hear you coming.

6

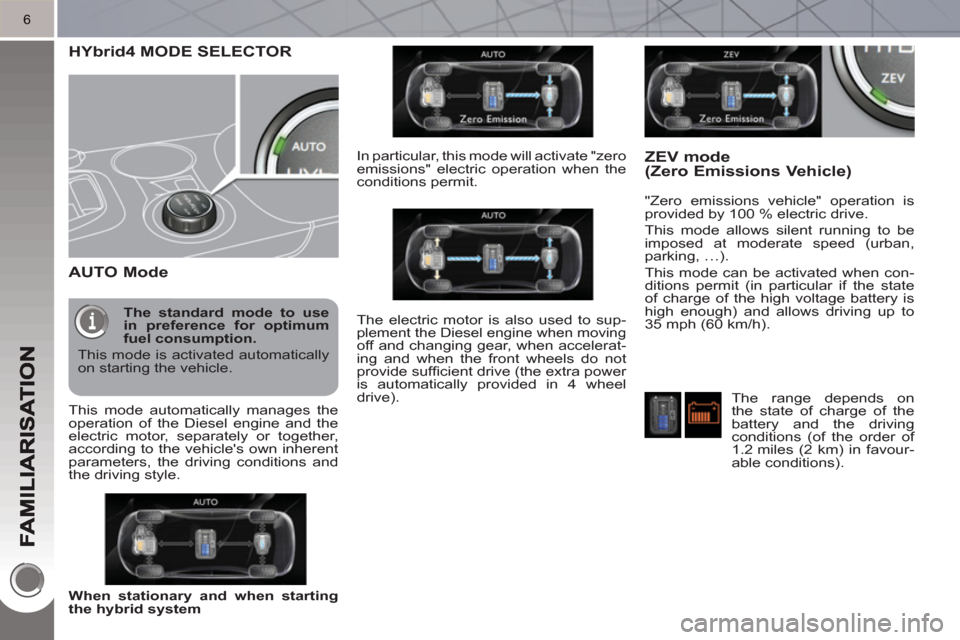

HYbrid4 MODE SELECTOR

AUTO Mode


"Zero emissions vehicle" operation is
provided by 100 % electric drive.
This mode allows silent running to be
imposed at moderate speed (urban,
parking, …).
This mode can be activated when con-
ditions permit (in particular if the state
of charge of the high voltage battery is
high enough) and allows driving up to
35 mph (60 km/h).
ZEV mode(Zero Emissions Vehicle)


When stationary and when starting
the hybrid system
This mode automatically manages the
operation of the Diesel engine and the
electric motor, separately or together,
according to the vehicle's own inherent
parameters, the driving conditions and
the driving style.

The standard mode to use
in preference for optimum
fuel consumption.

This mode is activated automatically
on starting the vehicle. In particular, this mode will activate "zero
emissions" electric operation when the
conditions permit.
The electric motor is also used to sup-
plement the Diesel engine when moving off and changing gear, when accelerat-
ing and when the front wheels do not
provide suffi cient drive (the extra power
is automatically provided in 4 wheel
drive).

The range depends on
the state of charge of the
battery and the driving
conditions (of the order of
1.2 miles (2 km) in favour-
able conditions).

7

Displays according to version in the in-
strument panel screen or the Peugeot
Connect Media screen.

This mode allows a more dynamic driv-
ing style providing increased perform-
ance.
Acceleration and pickup are maximised
using the full capacity of the electric mo-
tor to supplement the Diesel engine.
The Stop & Start system operates in
this mode.



This mode provides improved traction.
The Diesel engine drives the front
wheels continuously and the electric
motor drives the rear wheels.
Their coupling is managed automatically
to optimise traction on slippery surfaces
and uneven ground (mode reserved for
severe conditions: deep snow, mud,
sand, …).

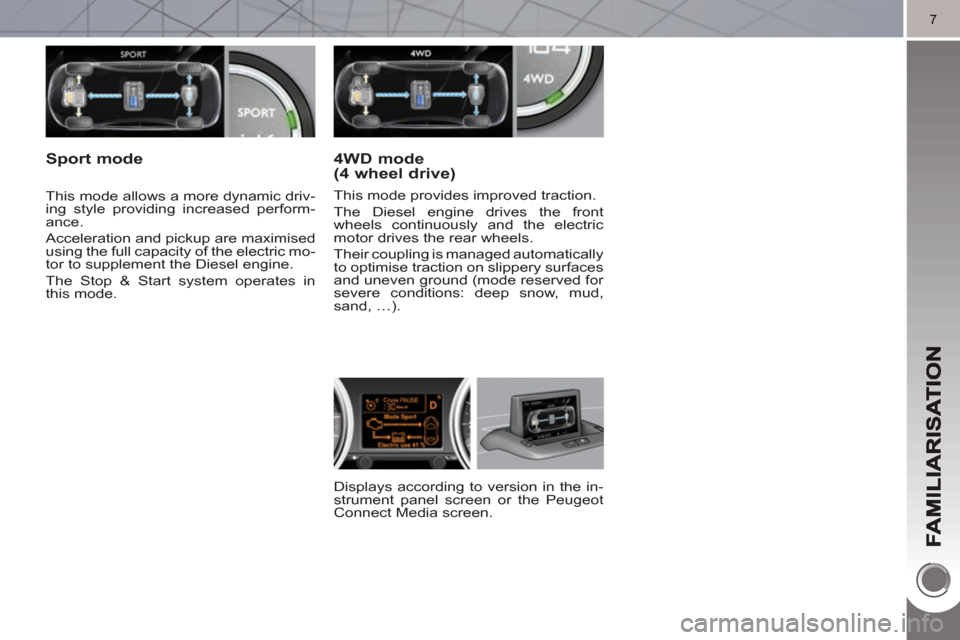

Sport mode
4WD mode (4 wheel drive)

8

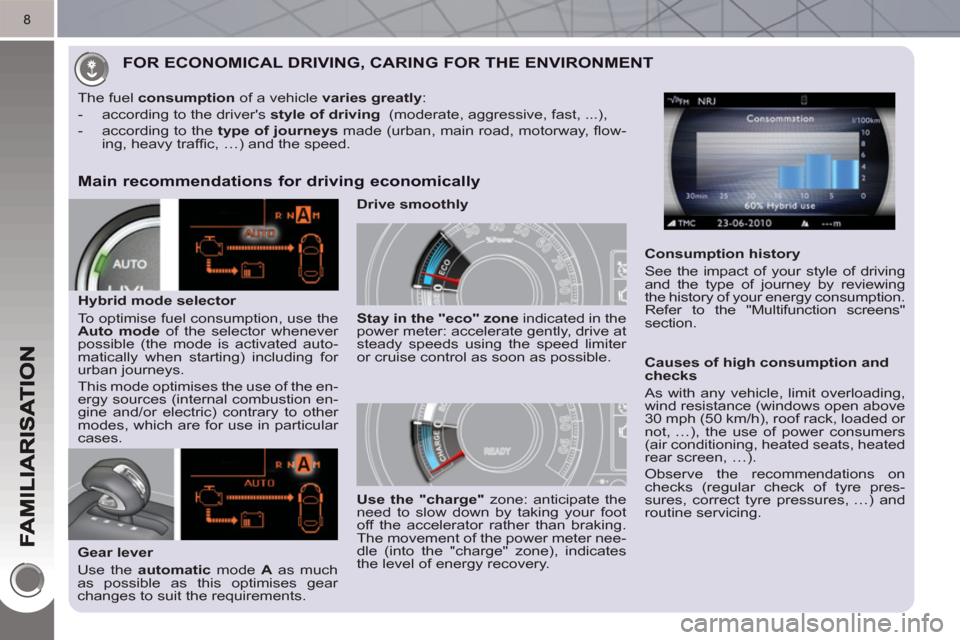

FOR ECONOMICAL DRIVING, CARING FOR THE ENVIRONMENT

Main recommendations for driving economically


Gear lever
Use the automatic
mode A
as much
as possible as this optimises gear
changes to suit the requirements.
The fuel consumption
of a vehicle varies greatly
:


- according to the driver's style of driving
(moderate, aggressive, fast, ...),

- according to the type of journeys
made (urban, main road, motorway, fl ow-
ing, heavy traffi c, …) and the speed.


Hybrid mode selector
To optimise fuel consumption, use the
Auto
mode
of the selector whenever
possible (the mode is activated auto-
matically when starting) including for
urban journeys.
This mode optimises the use of the en-
ergy sources (internal combustion en-
gine and/or electric) contrary to other
modes, which are for use in particular
cases.
Stay in the "eco" zone
indicated in the
power meter: accelerate gently, drive at
steady speeds using the speed limiter
or cruise control as soon as possible.

Causes of high consumption and
checks
As with any vehicle, limit overloading,
wind resistance (windows open above
30 mph (50 km/h), roof rack, loaded or
not, …), the use of power consumers
(air conditioning, heated seats, heated
rear screen, …).
Observe the recommendations on
checks (regular check of tyre pres-
sures, correct tyre pressures, …) and
routine servicing.

Consumption history
See the impact of your style of driving
and the type of journey by reviewing
the history of your energy consumption.
Refer to the "Multifunction screens"
section.

Use the "charge"
zone: anticipate the
need to slow down by taking your foot
off the accelerator rather than braking.
The movement of the power meter nee-
dle (into the "charge" zone), indicates
the level of energy recovery.
Drive smoothly
