PEUGEOT 3008 HYBRID 4 2011 Owners Manual

Handbook

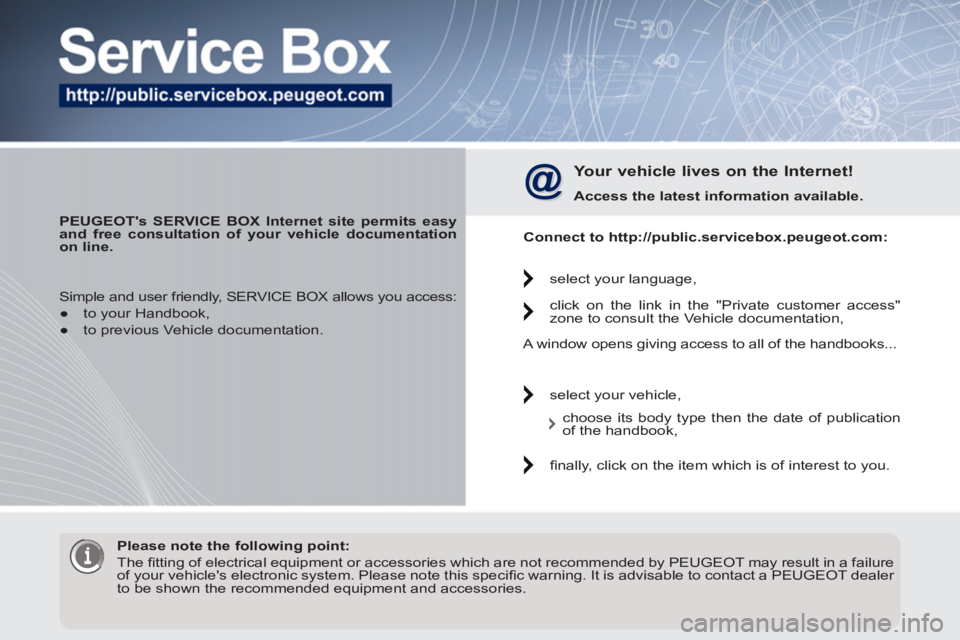

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.



Your vehicle lives on the Internet!


Access the latest information available.


Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you access:


●
to your Handbook,

●
to previous Vehicle documentation.


Please note the following point:


The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure
of your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer
to be shown the recommended equipment and accessories. select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,
select your vehicle,
fi nally, click on the item which is of interest to you. choose its body type then the date of publication
of the handbook, A window opens giving access to all of the handbooks...

Page reference:

this symbol invites you to re-
fer to the pages which pro-
vide details of the function.


Key

Protection of the
environment:
this symbol accompanies
advice relating to protection of the
environment.


Information:


this symbol draws your at-
tention to additional infor-
mation for better use of your
vehicle.


Warning:

this symbol marks warnings
which it is essential to observe
for your own safety, for the safety of
others or to avoid any risk of damaging
your vehicle.


Thank you for choosing a 3008
HYbrid4, a symbol of pleasure and in-
novation.
This handbook has been designed to
enable you to make the most of your
3008 HYbrid4.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specifi c to your 3008
HYbrid4, comfort, safety, driving, are
then presented in this handbook, to in-
crease your appreciation of the vehicle
and help you make the most of it.
At the end of the handbook, illustrations
of the interior and exterior of the vehicle
will assist you in locating information on
equipment or a function in the book.
Each model will be fi tted with only some
of the equipment mentioned in this
handbook, depending on its trim level,
model, version and the specifi cation for
the country in which it is sold.

FAMILIARISATION4-25
INSTRUMENTS and CONTROLS 43-57
CHILD SAFETY 117-125
MULTIFUNCTION SCREENS58-66
SAFETY 126-135
COMFORT 67-80
ACCESS 81-95
VISIBILITY 96-105
FITTINGS 106-116
Instrument panels .............43Indicator and warning lamps....45Indicators..........................53Adjustment buttons...........57
Child seats.......................117ISOFIX child seats..........122Child lock........................125
Screen C (Peugeot Connect Sound)...5816/9 high definition retractablecolour screen (PeugeotConnect Media) ................61
Direction indicators.........126Hazard warning lamps....126Horn................................126
ESP system....................127Front seat belts...............129Airbags ...........................132
Ventilation .........................67Rear screen demist/defrost.................68Dual-zone digital air conditioning....................69
Front seats.......................72Rear seats........................76Steering wheel adjustment...........78Mirrors ..............................79
Remote control key..........81Alarm................................86Electric windows...............88Doors ................................90
Boot..................................92Lower tailgate ...................93Fuel tank ...........................94Misfuel prevention ............95
Lighting controls...............96Automatic illumination of headlamps ..................99Headlamp adjustment......99Wiper controls................100
Automatic rainsensitive wipers ............102Courtesy lamps ..............103Interior mood lighting......104Boot lamp.......................105
Interior fittings.................106Front armrest..................108Rear multimedia..............110
Panoramic sunroof..........f112Boot fittings......................113
HYBRID SYSTEM 26-42

ALPHABETICAL INDEX 266-269
DRIVING 136-155
CHECKS 156-162
PRACTICAL INFORMATION 163-192
TECHNICAL DATA 193-198
AUDIO EQUIPMENT and TELEMATICS 199-265
Electric parking brake.....136Hill start assist................141Head-up display.............144Speed limiter..................r146
Cruise control .................1486-speed electronicgear control gearbox....150Parking sensors ..............154
Bonnet............................157Running out of fuel (Diesel).........................158Diesel engine..................159
Checking levels ..............160Checks............................161
Temporary puncture repair kit .......................163Changing a wheel...........169Changing a bulb.............172Changing a fuse .............17612 V Battery....................183Energy economy mode.............186
Changinga wiper blade ................187Recoveringthe vehicle....................188Towing a trailer...............r189Fitting roof bars ..............190Very cold climate screen..............190Accessories....................191
Electric drive ...................193Diesel engines................194Diesel weights................195
Dimensions .....................196Identification markings....197
VISUAL SEARCH 270-276
Emergency or assistance....199Peugeot Connect Media....203Peugeot Connect Sound ...........................247
