249

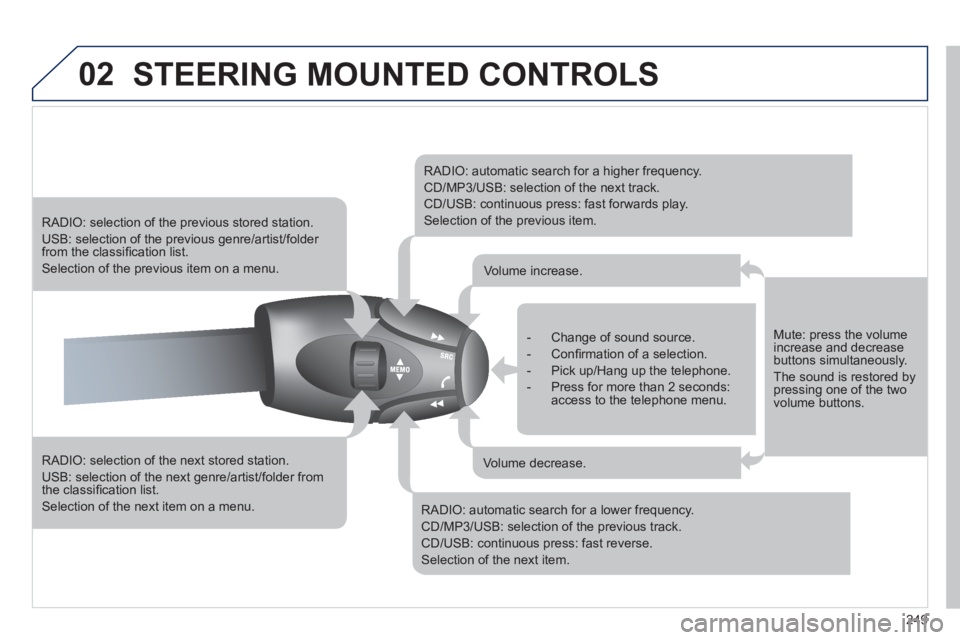

02STEERING MOUNTED CONTROLS

RADIO: selection of the next stored station.

USB: selection of the next genre/artist/folder from the classifi cation list.
Selection of the next item on a menu.
RADIO: selection of the previous stored station.

USB: selection of the previous genre/artist/folder from the classifi cation list.
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/MP3/USB: selection of the next track.
CD/USB: continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/MP3/USB: selection of the previous track.
CD/USB: continuous press: fast reverse.
Selection of the next item.

- Change of sound source.

- Confi rmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:access to the telephone menu.


Volume increase.
Volume decrease.
Mute: press the volumeincrease and decreasebuttons simultaneously.
The sound is restored by pressing one of the two volume buttons.

250

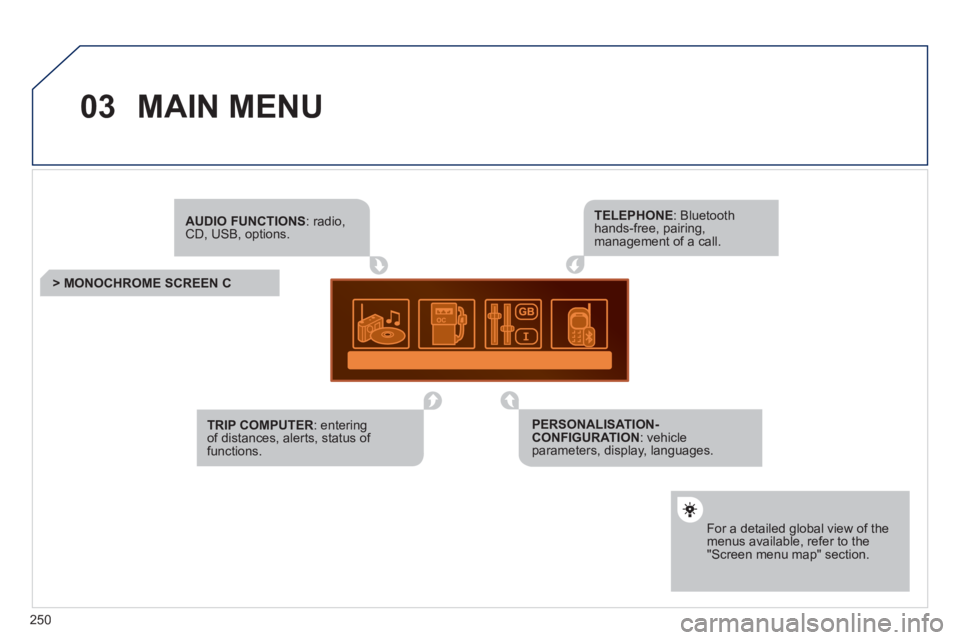

03MAIN MENU
AUDIO FUNCTIONS: radio,CD, USB, options.
> MONOCHROME SCREEN C
For a detailed global view of the menus available, refer to the"Screen menu map" section.
TELEPHONE: Bluetooth hands-free, pairing, management of a call.
PERSONALISATION-CONFIGURATION: vehicleparameters, display, languages.
TRIP COMPUTER: entering of distances, alerts, status of functions.

251
04
1
2
3
4
1
2
3
4

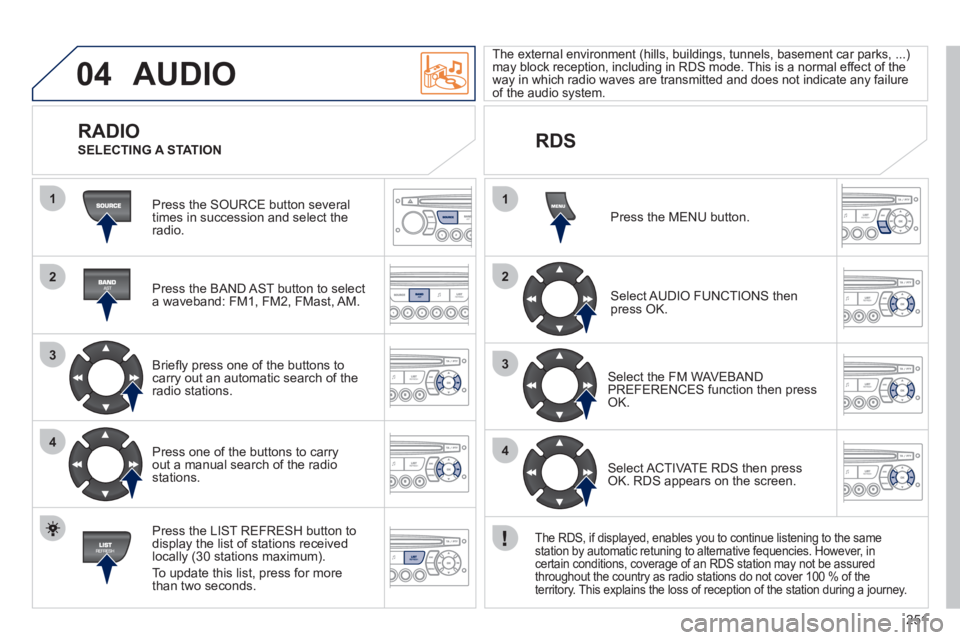

AUDIO
Press the SOURCE button several
times in succession and select theradio.

Press the BAND A
ST button to select
a waveband: FM1, FM2, FMast, AM.

Briefl
y press one of the buttons tocarry out an automatic search of theradio stations.

Press one o
f the buttons to carry out a manual search of the radio stations.

Press the LI
ST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
t
han two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...)may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failure
of the audio system.

RDS





RADIO

SELECTING A STATION
Pr
ess the MENU button.

Select AUDIO FUNCTIONS thenpress OK.

Select the FM WAVEBANDPREFERENCES function then pressOK.

Select ACTIVATE RDS then pressOK. RDS appears on the screen.
The RDS, if displayed, enables you to continue listening to the same station by automatic retuning to alternative fequencies. However, in certain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.

252
04
1
2
3
AUDIO

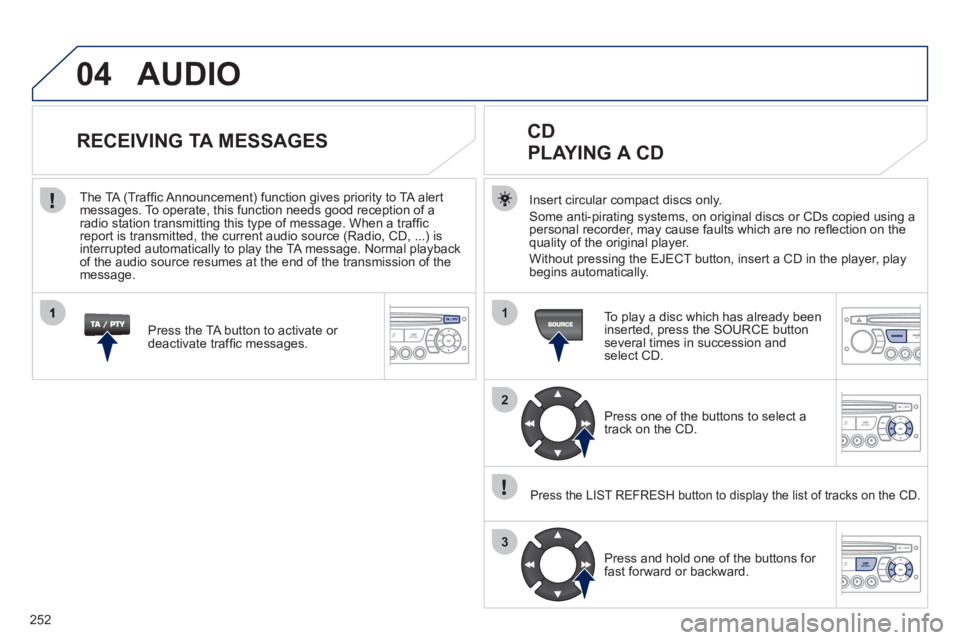

Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the quality of the original player.
Without pressin
g the EJECT button, insert a CD in the player, playbegins automatically.

CD
PLAYING A CD


To play a disc which has already been
inserted, press the SOURCE buttonseveral times in succession andselect CD.

Pr
ess one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to display the list of tracks on the CD.


Press and hold one of the buttons for
fast forward or backward.








RECEIVING TA MESSAGES
Press the TA button to activate or
deactivate traffi c messages.
The TA
(Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.

253
04
1
2
3

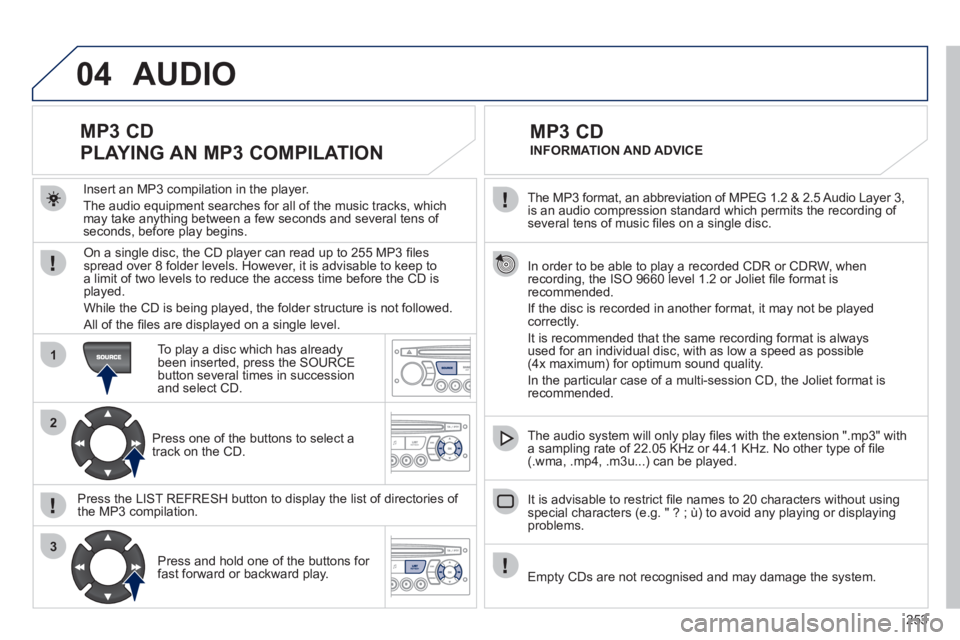

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of several tens of music fi les on a single disc.
In order to be able to play a recorded
CDR or CDRW, when recording, the ISO 9660 level 1.2 or Joliet fi le format isrecommended.
If the disc is recorded in another format, it ma
y not be playedcorrectly.
It is recommended that the same recordin
g format is alwaysused for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet format is recommended.
The audio s
ystem will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le(.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without usin
gspecial characters (e.g. " ? ; ù) to avoid any playing or displaying problems.














MP3 CD
INFORMATION AND ADVICE
AUDIO

Empty CDs are not recognised and may damage the system.
Insert an MP3 compilation in the pla
yer.
The audio equipment searches
for all of the music tracks, which
may take anything between a few seconds and several tens of seconds, before play begins.









MP3 CD
PLAYING AN MP3 COMPILATION

On a single disc, the CD player can read up to 255 MP3 fi lesspread over 8 folder levels. However, it is advisable to keep to
a limit of two levels to reduce the access time before the CD isplayed.
While the CD is bein
g played, the folder structure is not followed.
All of the fi les are displayed on a single level.

To play a disc which has already
been inserted, press the SOURCE button several times in successionand select CD.
Pr
ess one of the buttons to select atrack on the CD.

Press the LI
ST REFRESH button to display the list of directories of
the MP3 compilation.

Pr
ess and hold one of the buttons for fast forward or backward play.

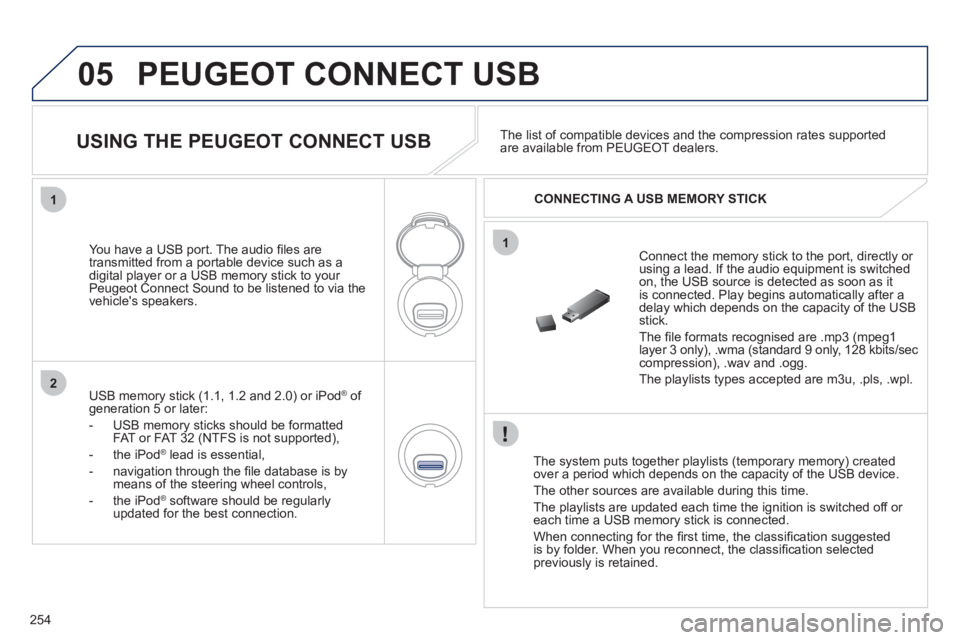

254
05
1
1
2
PEUGEOT CONNECT USB

The system puts together playlists (temporary memory) createdover a period which depends on the capacity of the USB device.
The other sources are available durin
g this time.
The pla
ylists are updated each time the ignition is switched off or each time a USB memory stick is connected.
When connectin
g for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB stick.
The fi le formats reco
gnised are .mp3 (mpeg1 layer 3 only), .wma (standard 9 only, 128 kbits/seccompression), .wav and .ogg.
The playlists types accepted are m
3u, .pls, .wpl.
You have a U
SB port. The audio fi les are
transmitted from a portable device such as a
digital player or a USB memory stick to your
Peugeot Connect Sound to be listened to via the
vehicle's speakers.

USB memor
y stick (1.1, 1.2 and 2.0) or iPod Æof generation 5 or later:


- USB memor
y sticks should be formattedFAT or FAT 32 (NTFS is not supported),

- th
e iPodÆ
lead is essential, Æ


- navigation through the fi le database is bymeans of the steering wheel controls,

- th
e iPodÆ
software should be regularlyÆ
updated for the best connection.The list o
f compatible devices and the compression rates supported are available from PEUGEOT dealers.











USING THE PEUGEOT CONNECT USB

CONNECTING A USB MEMORY STICK

255
05
42
3
1
5

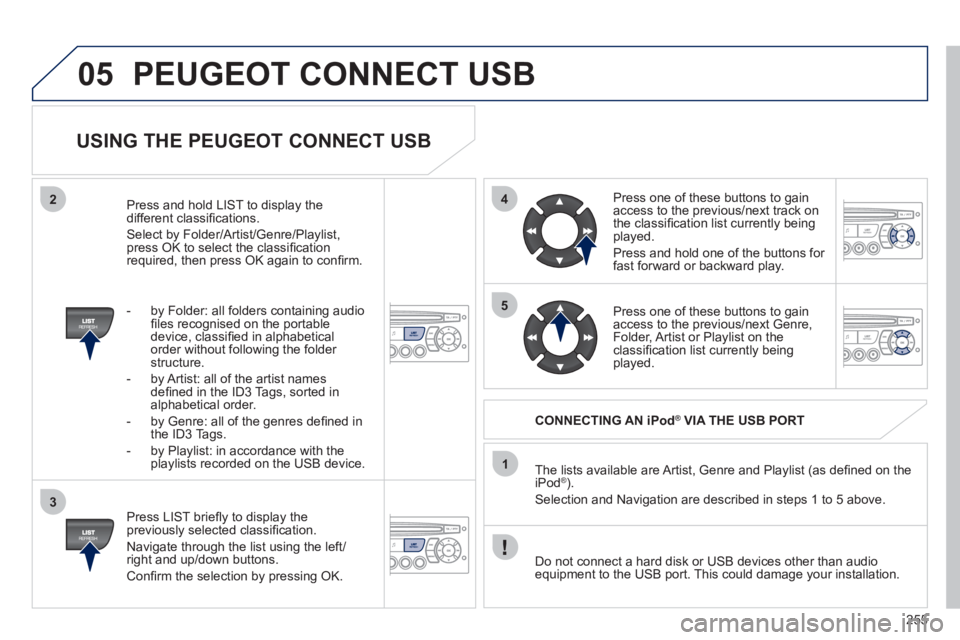

PEUGEOT CONNECT USB

USING THE PEUGEOT CONNECT USB


Press LIST briefl y to display thepreviously selected classifi cation.
Navi
gate through the list using the left/right and up/down buttons.

Confi rm the selection by pressing OK. The lists available are Artist, Genre and Pla
ylist (as defi ned on the
iPod® ).®
Selection and Navigation are described in steps 1 to 5 above.

CONNECTING AN iPod® VIA THE USB PORT®

Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently beingplayed.
Pr
ess and hold one of the buttons for fast forward or backward play.

Press one of these buttons to
gain
access to the previous/next Genre,
Folder, Artist or Playlist on theclassifi cation list currently being played.
Press and hold LI
ST to display the different classifi cations.
Select b
y Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.


- b
y Folder: all folders containing audio fi les recognised on the portable
device, classifi ed in alphabetical
order without
following the folder structure.

- b
y Artist: all of the artist names
defi ned in the ID3 Tags, sorted inalphabetical order.

- b
y Genre: all of the genres defi ned in
the ID3 Tags.

-
by Playlist: in accordance with the
playlists recorded on the USB device.


Do not connect a hard disk or
USB devices other than audioequipment to the USB port. This could damage your installation.

256
05
1
2
1
2
The display and control is via the portable device. First ad
just the volume of your portable device.
Then ad
just the volume of your audio system.

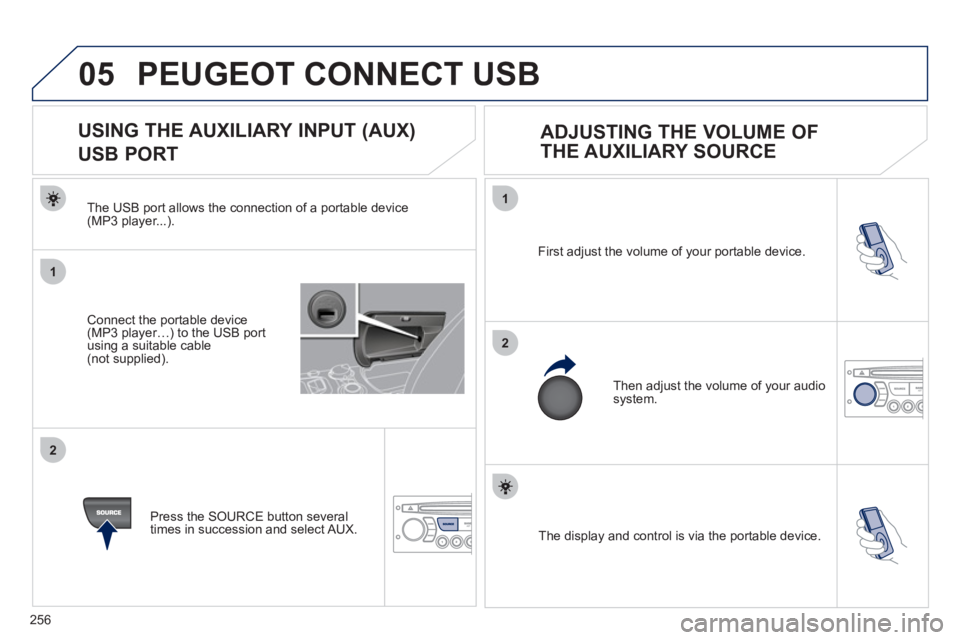

USING THE AUXILIARY INPUT (AUX)
USB PORT
ADJUSTING THE VOLUME OF
THE AUXILIARY SOURCE
PEUGEOT CONNECT USB

The USB port allows the connection of a portable device(MP3 player...).
Press the
SOURCE button several
times in succession and select AUX.

Connect the portable device(MP3 player…) to the USB port using a suitable cable(not supplied).

257
06
1
2
3
4
5
6
7
8
9
10

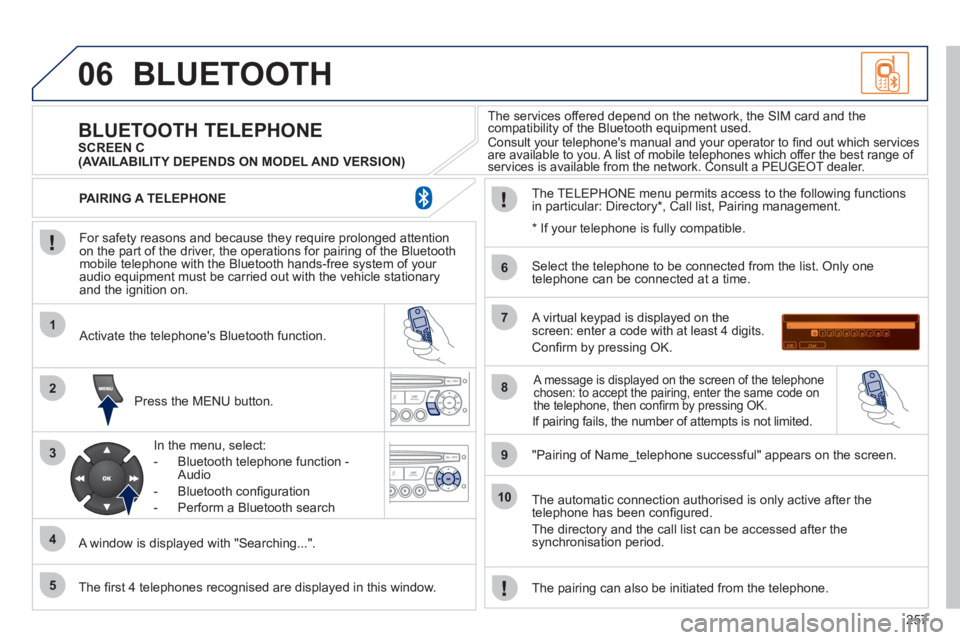

BLUETOOTH

For safety reasons and because they require prolonged attentionon the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.
Press the MENU button.

A window is displa
yed with "Searching...".
Activate the telephone's Bluetooth
function.
In the menu, select:
- Bluetooth telephone
function -
Audio
- Bluetooth con
fi guration
- P
erform a Bluetooth search
The services o
ffered depend on the network, the SIM card and thecompatibility of the Bluetooth equipment used. Consult your telephone's manual and your operator to fi nd out which servicesare available to you. A list of mobile telephones which offer the best range of yyy
services is available from the network. Consult a PEUGEOT dealer.










BLUETOOTH TELEPHONE SCREEN C

The TELEPH
ONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones reco
gnised are displayed in this window.

A virtual keypad is displayed on the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.

"Pairin
g of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list.
Only one
telephone can be connected at a time.


A message is displayed on the screen of the telephonechosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.

The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed a
fter thesynchronisation period.
PAIRING A TELEPHONE

The pairin
g can also be initiated from the telephone.

(AVAILABILITY DEPENDS ON MODEL AND VERSION)


*
If
your telephone is fully compatible.

If pairin
g fails, the number of attempts is not limited.

258
06
2
1
2
2
3

RECEIVING A CALL
display on the multifunction screen.Initiate the pairing between the telephone andthe vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone functionmenu.
The audio system connects to a newly paired telephone
automatically.
Select the YES tab on the display
using the buttons and confi rm bypressing OK.

Press the steerin
g mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).
*

In certain cases, playing of the Audio fi les must be initiated from the keypad.
**
If the tele
phone supports the function.
Activate the streamin
g source by
pressing the SOURCE button * . The
tracks to be played can be controlled as usual via the buttons on theRadio control panel and the steering
mounted controls ** . The contextual
information can be displayed on the screen.

BLUETOOTH


MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end o
f the steering mounted control for more than two seconds to gain access to your
directory.

Or
To dial a number, use
your telephone's keypad,with the vehicle stationary.
