Page reference:
this symbol invites you to re-
fer to the pages which pro-
vide details of the function.
Key
Protection of the
environment:
this symbol accompanies
advice relating to protection of the
environment.
Information:
this symbol draws your at-
tention to additional infor-
mation for better use of your
vehicle.
Warning:
this symbol marks warnings
which it is essential to observe
for your own safety, for the safety of
others or to avoid any risk of damaging
your vehicle.
Thank you for choosing a 3008
HYbrid4, a symbol of pleasure and in-
novation.
This handbook has been designed to
enable you to make the most of your
3008 HYbrid4.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specifi c to your 3008
HYbrid4, comfort, safety, driving, are
then presented in this handbook, to in-
crease your appreciation of the vehicle
and help you make the most of it.
At the end of the handbook, illustrations
of the interior and exterior of the vehicle
will assist you in locating information on
equipment or a function in the book.
Each model will be fi tted with only some
of the equipment mentioned in this
handbook, depending on its trim level,
model, version and the specifi cation for
the country in which it is sold.
Page 4 of 280
FAMILIARISATION4-25
INSTRUMENTS and CONTROLS 43-57
CHILD SAFETY 117-125
MULTIFUNCTION SCREENS58-66
SAFETY 126-135
COMFORT 67-80
ACCESS 81-95
VISIBILITY 96-105
FITTINGS 106-116
Instrument panels .............43Indicator and warning lamps....45Indicators..........................53Adjustment buttons...........57
Child seats.......................117ISOFIX child seats..........122Child lock........................125
Screen C (Peugeot Connect Sound)...5816/9 high definition retractablecolour screen (PeugeotConnect Media) ................61
Direction indicators.........126Hazard warning lamps....126Horn................................126
ESP system....................127Front seat belts...............129Airbags ...........................132
Ventilation .........................67Rear screen demist/defrost.................68Dual-zone digital air conditioning....................69
Front seats.......................72Rear seats........................76Steering wheel adjustment...........78Mirrors ..............................79
Remote control key..........81Alarm................................86Electric windows...............88Doors ................................90
Boot..................................92Lower tailgate ...................93Fuel tank ...........................94Misfuel prevention ............95
Lighting controls...............96Automatic illumination of headlamps ..................99Headlamp adjustment......99Wiper controls................100
Automatic rainsensitive wipers ............102Courtesy lamps ..............103Interior mood lighting......104Boot lamp.......................105
Interior fittings.................106Front armrest..................108Rear multimedia..............110
Panoramic sunroof..........f112Boot fittings......................113
HYBRID SYSTEM 26-42
Page 7 of 280
5
How to start your vehicle
- Ensure that the gear lever is in posi-
tion N
.
- Switch the ignition on by turning the
key to position 2
.
- The Ready
lamp and the instrument
panel come on. The power meter
needle sweeps through its travel in-
dicating that the hybrid system is
active, confi rmed by a message
"hybrid system active"
; the dial in
the centre console is in AUTO
mode
(default mode for starting).
- The hybrid system determines
whether it is necessary to start the
Diesel engine.
- With the brake still applied, move
the gear lever to position A
to go
forwards or R
(by lifting the lever
slightly) for reverse.
- Lift your foot off the brake pedal, you
can move off.
- The parking brake is released au-
tomatically as you move off, if con-
fi gured to do so (otherwise, release
the parking brake manually).
the hybrid system
- Apply the brake until the vehicle
comes to a complete stop.
- Preferably, place the gear lever in
position N
.
- Turn the ignition key to position 1
,
the parking brake is applied auto-
matically if confi gured to do so.
- Otherwise apply the parking brake
manually.
- Press fi rmly on the brake pedal, turn
the ignition key to position 3
to start
up the hybrid system, then release
the key.
In most cases the vehicle
starts in electric mode. This
means that your 3008 HYbrid4 makes no noise. So be very
careful of pedestrians as they will not
hear you coming.
Page 12 of 280
10
OPENING
Remote control ke
y
A.
Unfolding/Folding the key.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Deadlocking the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators). or
81 When the light is poor, detected by
a sensor, the remote switching on of
the dipped headlamps and sidelamps
makes your approach to the vehicle
easier.
This function can be programmed via
the confi guration menu.
98
94
Fuel tank
Before refuelling, you
must
switch of the
ignition and ensure
that the Ready
lamp
is off.
1.
Open the fuel fi ller fl ap.
2.
Open and hook the fuel fi ller cap.
The type of fuel to be used is indicated
on the inner face of the fuel fi ller fl ap.
Capacity of the tank: approximately
56.5 litres.
Page 13 of 280
11
OPENING

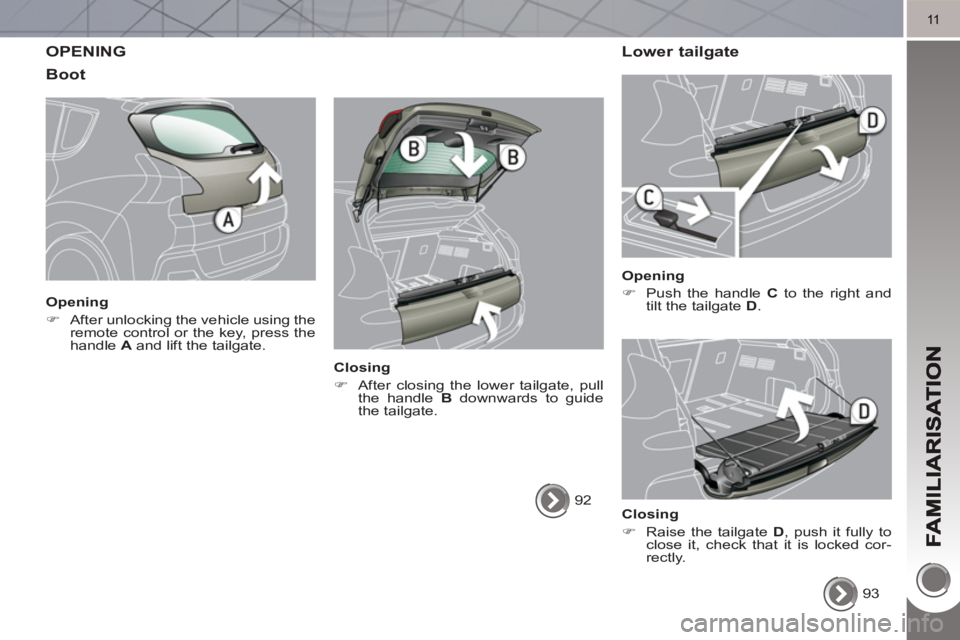

Boot
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.
Closing
)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.
Lower tailgate
92
Opening
)
Push the handle C
to the right and
tilt the tailgate D
.
Closing
)
Raise the tailgate D
, push it fully to
close it, check that it is locked cor-
rectly.
93
Page 22 of 280
PASSENGER SAFETY
Passen
ger's front airbag
1.
Insert the key.
2.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.
3.
Remove the key keeping the switch
in the new position.
133
front airbag
A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.
B.
Front left seat belt warning lamp.
C.
Front right seat belt warning lamp.
D.
Rear right seat belt warning lamp.
E.
Rear centre seat belt warning lamp.
F.
Rear left seat belt warning lamp.
G.
Passenger's front airbag deactivated
warning lamp.
H.
Passenger's front airbag activated
warning lamp.
130, 133
Child lock (locking of the rear doors)
Illumination of the indicator lamp indicates
the status of the corresponding function.
125
Page 31 of 280
How to start your vehicle
- Ensure that the gear lever is in posi-
tion N
.
- Switch the ignition on by turning the
key to position 2
.
- Press fi rmly on the brake pedal, turn
the ignition key to position 3
to start
up the hybrid system, then release
the key.
- The Ready
lamp and the instrument
panel come on. The power meter
needle sweeps through its travel in-
dicating that the hybrid system is
active, confi rmed by a message
"hybrid system active"
; the dial in
the centre console is in AUTO
mode
(default mode for starting).
- The hybrid system determines
whether it is necessary to start the
Diesel engine.
- With the brake still applied, move
the gear lever to position A
to go
forwards or R
(by lifting the lever
slightly) for reverse.
- Lift your foot off the brake pedal, you
can move off.
- The parking brake is released
automatically as you move off, if
confi gured to do so (otherwise, re-
lease the parking brake manually).
How to stop your vehicle andthe hybrid system
- Apply the brake until the vehicle
comes to a complete stop.
- Preferably, place the gear lever in
position N
.
- Turn the ignition key to position 1
,
the parking brake is applied auto-
matically if confi gured to do so.
- Otherwise apply the parking brake
manually.
In most cases the vehicle
starts in electric mode. This
means that your 3008 HYbrid4 makes no noise. So be very
careful of pedestrians as they will
not hear you coming.
Page 32 of 280
30
On starting the vehicle: with the gear le-
ver in position N
, press the brake pedal
and turn the ignition key to activate the
hybrid system.
This lamp comes on when the vehicle is
ready to move off ("Auto" mode is on by
default) and so the driver can press the
accelerator.
This lamp comes on more or less in-
stantly but may take a few seconds in
some case (in particular, the time need-
ed for pre-heating the Diesel engine in
cold weather).
READY LAMP
When stationary, ensure that
you switch off the ignition and
the Ready
lamp is off when
leaving the vehicle. Otherwise
the hybrid system will remain active.
See paragraph "Under bonnet pre-
cautions/warnings".
Page 81 of 280
79
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order
to correctly judge the distance of vehi-
cles approaching from behind.
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward
vision necessary for overtaking or par-
king. They can also be folded for par-
king in confi ned spaces.
Folding
- Automatic: lock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
Fold the mirrors when putting your
vehicle through an automatic car
wash.
Adjustment
Unfolding
- Automatic: unlock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
)
Move control A
to the right or to
the left to select the corresponding
mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central position.
Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
with the engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).
Page 83 of 280
81
Unfolding the key
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Complete unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Selective unlocking using the
remote control
Selective unlocking using the key
)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.
)
Press the open padlock
once to unlock the driver's
door only.
)
Press the open padlock again to un-
lock the other doors and the boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst un-
locking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
Complete unlocking is activated by
default.
)
First press this button to
unfold the key.
