59
IN
S
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.

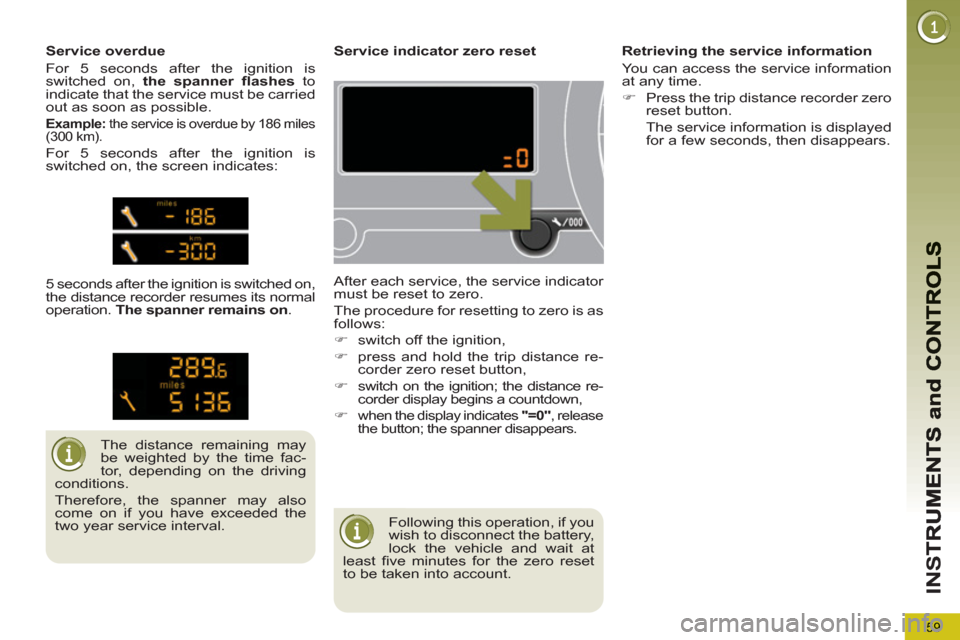

Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance re-
corder display begins a countdown,

)
when the display indicates "=0"
, release
the button; the spanner disappears.


The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by 186 miles
(300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

IN
S

The level shown will only be
correct if the vehicle is on level
ground and the engine has been
off for more than 30 minutes.

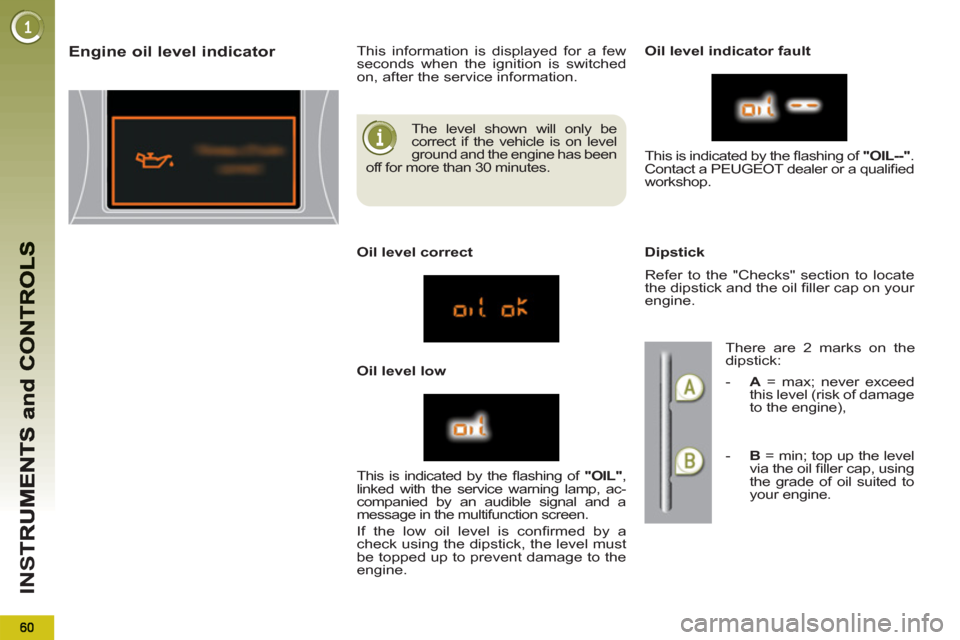

Engine oil level indicator

This information is displayed for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of "OIL"
,
linked with the service warning lamp, ac-
companied by an audible signal and a
message in the multifunction screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of "OIL--"
.
Contact a PEUGEOT dealer or a qualifi ed
workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.

There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of damage
to the engine),

- B
= min; top up the level
via the oil fi ller cap, using
the grade of oil suited to
your engine.

61
IN
S

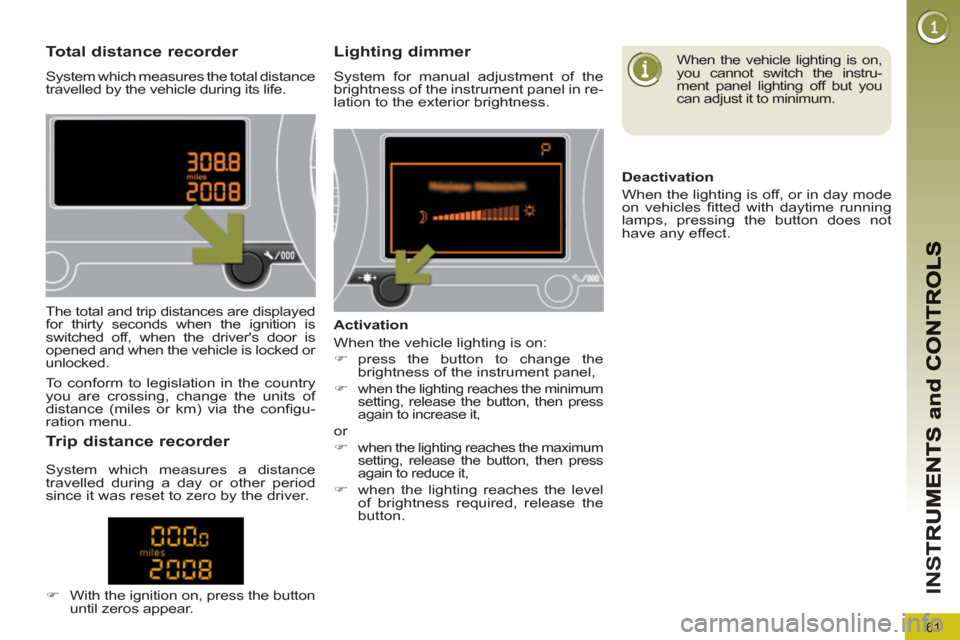

Total distance recorder
System which measures the total distance
travelled by the vehicle during its life.
Lighting dimmer
System for manual adjustment of the
brightness of the instrument panel in re-
lation to the exterior brightness.
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver's door is
opened and when the vehicle is locked or
unlocked.
Tr ip distance recorder


)
With the ignition on, press the button
until zeros appear.

Activation
When the vehicle lighting is on:


)
press the button to change the
brightness of the instrument panel,

)

when the lighting reaches the minimum
setting, release the button, then press
again to increase it,

or


)

when the lighting reaches the maximum
setting, release the button, then press
again to reduce it,

)
when the lighting reaches the level
of brightness required, release the
button.



When the vehicle lighting is on,
you cannot switch the instru-
ment panel lighting off but you
can adjust it to minimum.


Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.


To conform to legislation in the country
you are crossing, change the units of
distance (miles or km) via the confi gu-
ration menu.

System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.

M
U
62

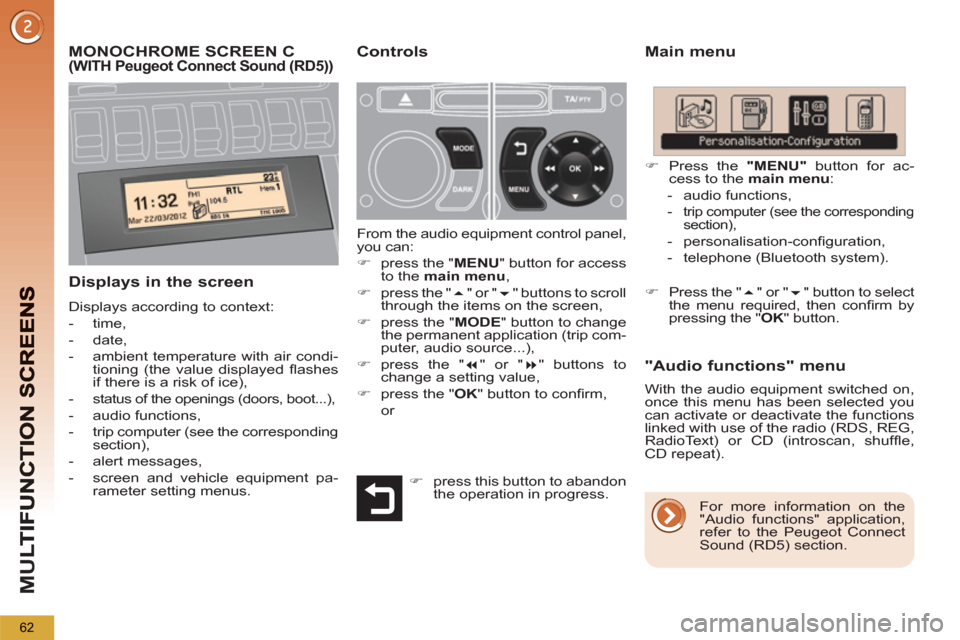

MONOCHROME SCREEN C (WITHPeugeot Connect Sound (RD5))
Main menu

Displays in the screen

Displays according to context:


- time,

- date,

- ambient temperature with air condi-
tioning (the value displayed fl ashes
if there is a risk of ice),

- status of the openings (doors, boot...),

- audio functions,

- trip computer (see the corresponding
section),

- alert messages,

- screen and vehicle equipment pa-
rameter setting menus.



"Audio functions" menu Controls

From the audio equipment control panel,
you can:


)
press the " MENU
" button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the " MODE
" button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the " OK
" button to confi rm,
or


)
Press the "MENU"
button for ac-
cess to the main menu
:


- audio functions,

-
trip computer (see the corresponding
section),

- personalisation-confi guration,

- telephone (Bluetooth system).



For more information on the
"Audio functions" application,
refer to the Peugeot Connect
Sound (RD5) section.





)
Press the "
" or "
" button to select
the menu required, then confi rm by
pressing the " OK
" button.



With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or CD (introscan, shuffl e,
CD repeat).

)
press this button to abandon
the operation in progress.

M
U
63

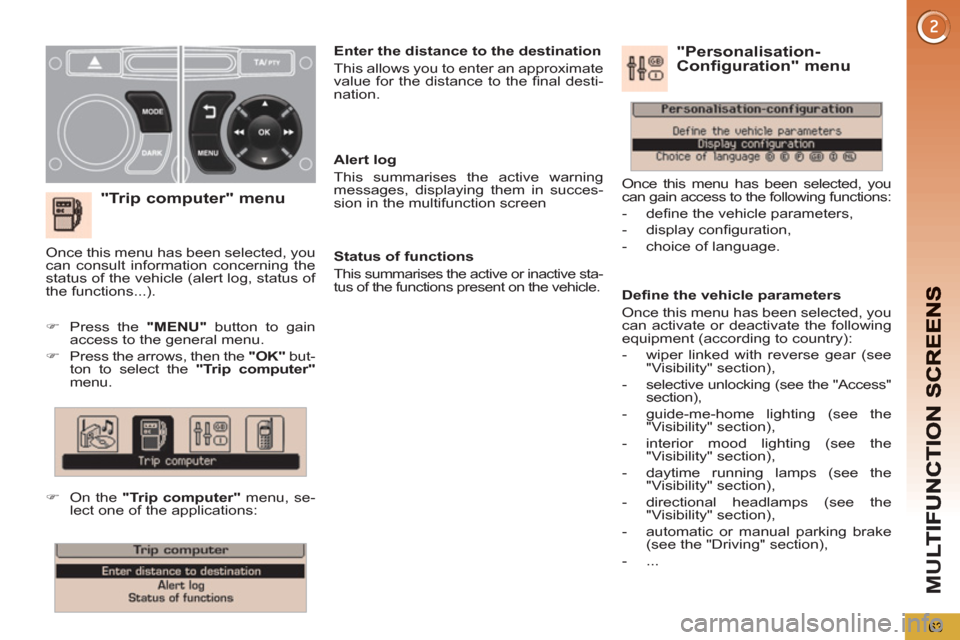

"Trip computer" menu




)
Press the "MENU"
button to gain
access to the general menu.

)
Press the arrows, then the "OK"
but-
ton to select the "Trip computer"

menu.




)
On the "Trip computer"
menu, se-
lect one of the applications:

Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal desti-
nation.

Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):


- wiper linked with reverse gear (see
"Visibility" section),

- selective unlocking (see the "Access"
section),

- guide-me-home lighting (see the
"Visibility" section),

- interior mood lighting (see the
"Visibility" section),

- daytime running lamps (see the
"Visibility" section),

- directional headlamps (see the
"Visibility" section),

- automatic or manual parking brake
(see the "Driving" section),

- ...


"Personalisation-
Configuration" menu

Once this menu has been selected, you
can gain access to the following functions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.



Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen

Status of functions
This summarises the active or inactive sta-
tus of the functions present on the vehicle.

M
U
64

Display confi guration
Once this menu has been selected, you
have access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units.


Choice of language
Once this menu has been selected,
you can change the screen display lan-
guage.

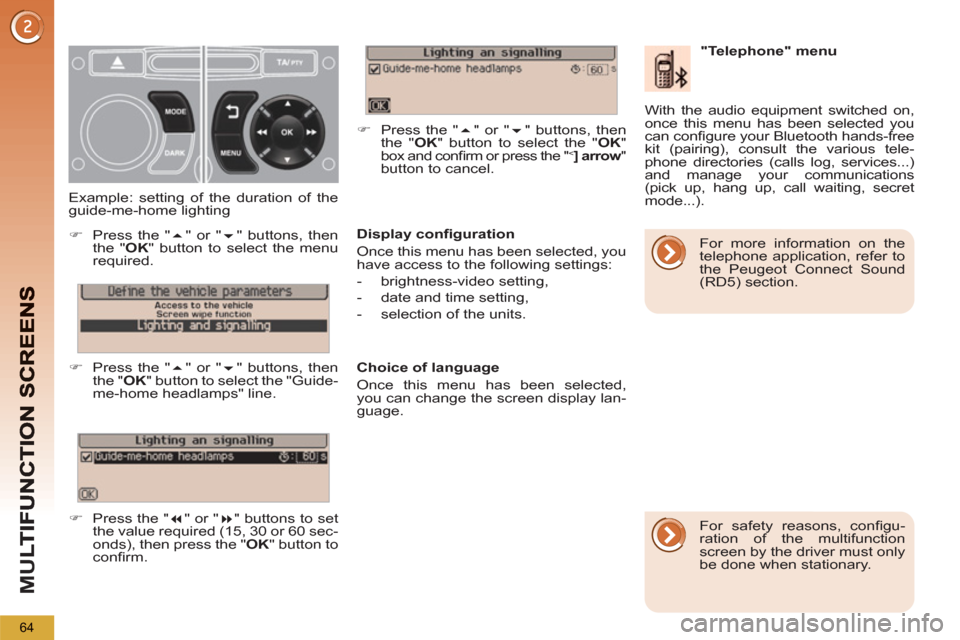

Example: setting of the duration of the
guide-me-home lighting


)
Press the "
" or "
" buttons, then
the " OK
" button to select the menu
required.




)
Press the "
" or "
" buttons, then
the " OK
" button to select the "Guide-
me-home headlamps" line.




)
Press the "
" or "
" buttons to set
the value required (15, 30 or 60 sec-
onds), then press the " OK
" button to
confi rm.



)
Press the "
" or "
" buttons, then
the " OK
" button to select the " OK
"
box and confi rm or press the "
<
] arrow
"
button to cancel.



"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
can confi gure your Bluetooth hands-free
kit (pairing), consult the various tele-
phone directories (calls log, services...)
and manage your communications
(pick up, hang up, call waiting, secret
mode...).

For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

For more information on the
telephone application, refer to
the Peugeot Connect Sound
(RD5) section.

M
U
65

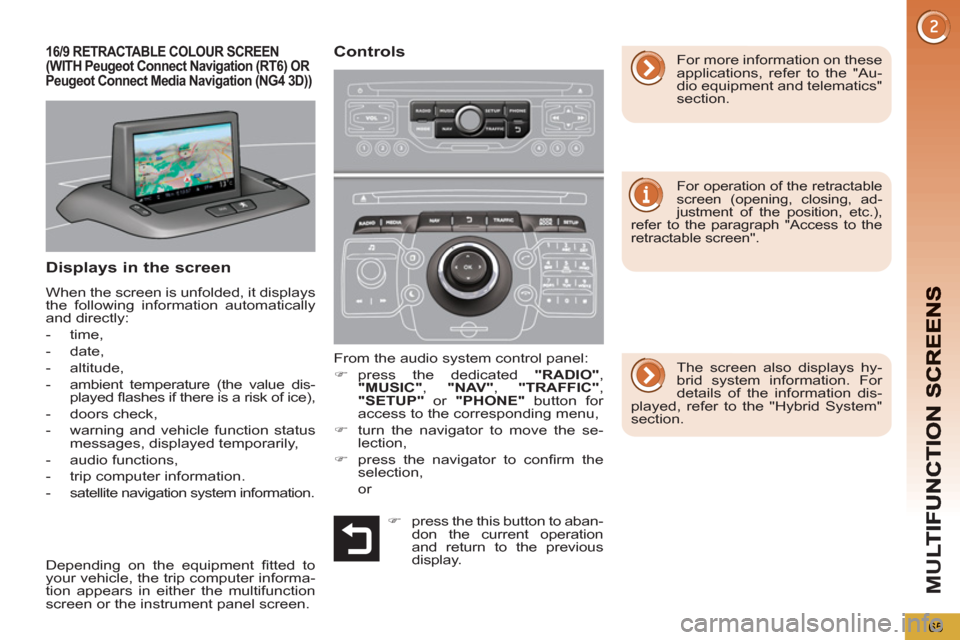

16/9 RETRACTABLE COLOUR SCREEN(WITHPeugeot Connect Navigation (RT6) ORPeugeot Connect Media Navigation (NG4 3D))
Displays in the screen
When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),

- doors check,

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer information.

- satellite navigation system information.


Controls

From the audio system control panel:


)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,

)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or

For more information on these
applications, refer to the "Au-
dio equipment and telematics"
section.


For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),

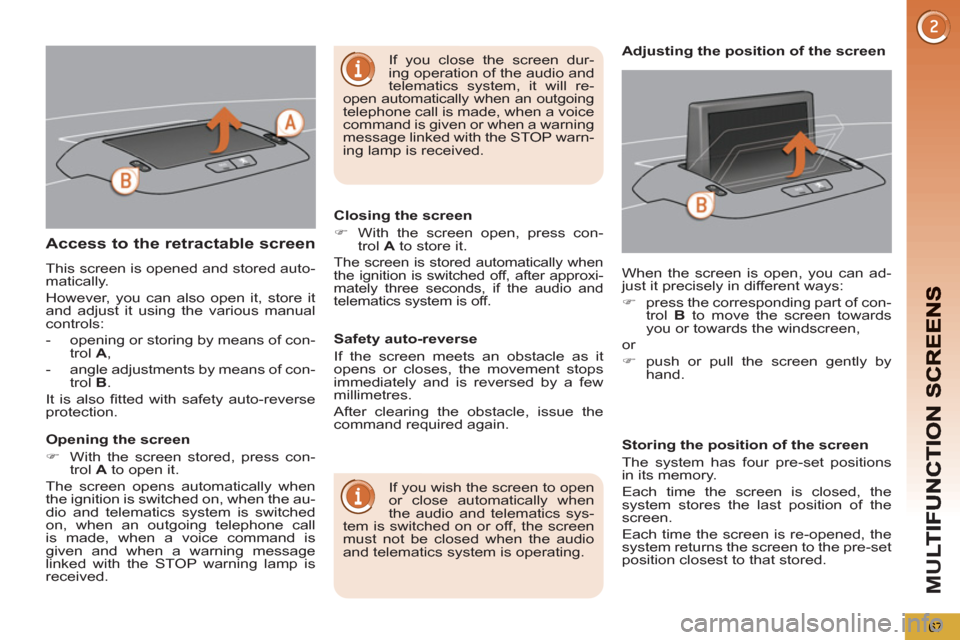

refer to the paragraph "Access to the
retractable screen".



The screen also displays hy-
brid system information. For
details of the information dis-
played, refer to the "Hybrid System"
section.

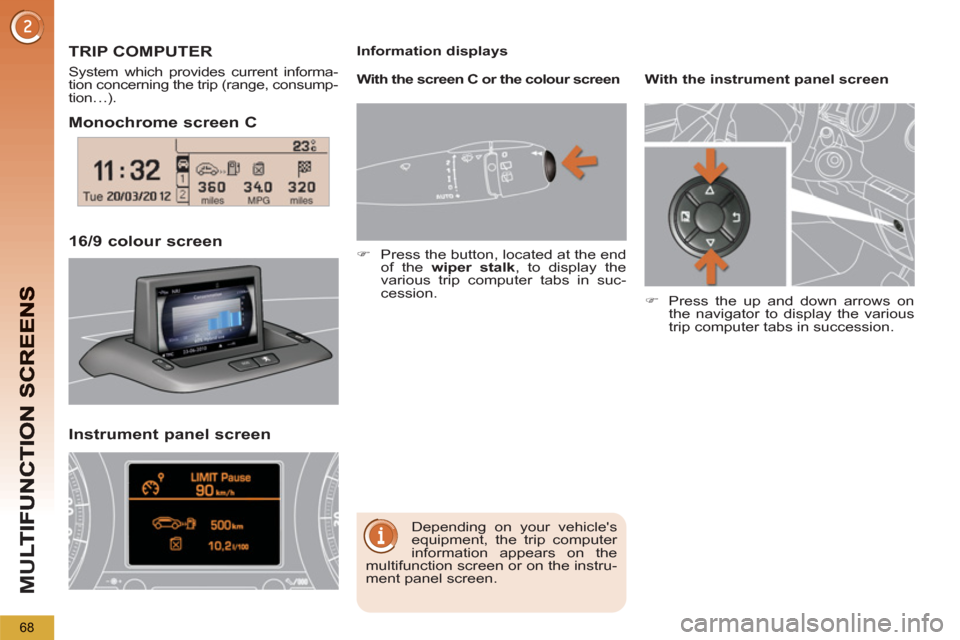

Depending on the equipment fi tted to
your vehicle, the trip computer informa-
tion appears in either the multifunction
screen or the instrument panel screen.

)
press the this button to aban-
don the current operation
and return to the previous
display.

M
U
66

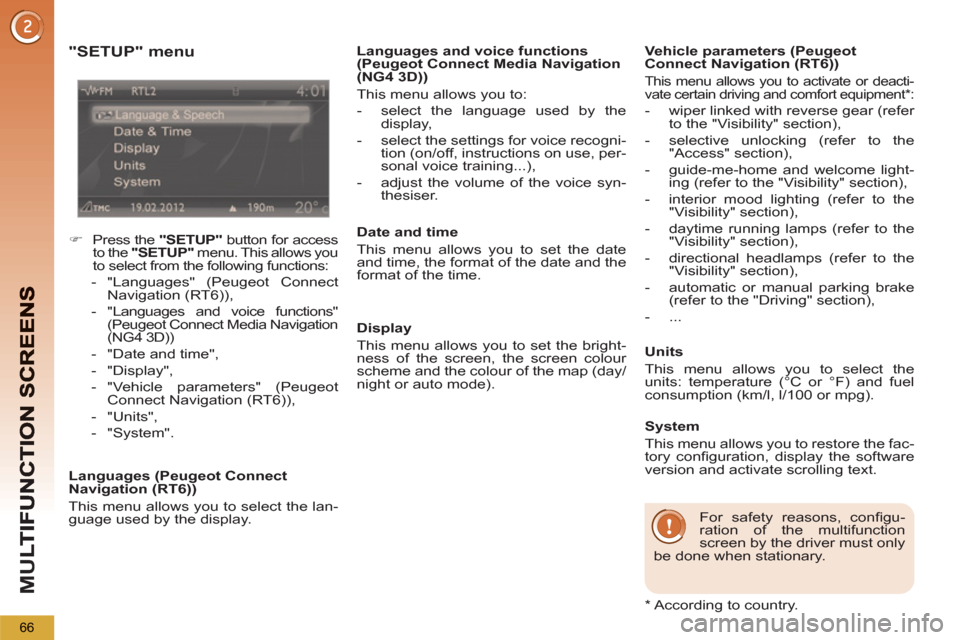

"SETUP" menu




)
Press the "SETUP"
button for access
to the "SETUP"
menu. This allows you
to select from the following functions:


- "Languages" (Peugeot Connect
Navigation (RT6)),

- "Languages and voice functions"
(Peugeot Connect Media Navigation
(NG4 3D))

- "Date and time",

- "Display",

- "Vehicle parameters" (Peugeot
Connect Navigation (RT6)),

- "Units",

- "System".



Languages (Peugeot Connect
Navigation (RT6))
This menu allows you to select the lan-
guage used by the display.
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle parameters (Peugeot
Connect Navigation (RT6))

This menu allows you to activate or deacti-
vate certain driving and comfort equipment * :



- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...


Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).

For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.





System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
Languages and voice functions
(Peugeot Connect Media Navigation
(NG4 3D))
This menu allows you to:


- select the language used by the
display,

- select the settings for voice recogni-
tion (on/off, instructions on use, per-
sonal voice training...),

- adjust the volume of the voice syn-
thesiser.


*
According to country.

M
U
67
Access to the retractable screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:


- opening or storing by means of con-
trol A
,

- angle adjustments by means of con-
trol B
.
It is also fi tted with safety auto-reverse
protection.

Opening the screen


)
With the screen stored, press con-
trol A
to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call
is made, when a voice command is
given and when a warning message
linked with the STOP warning lamp is
received.
Closing the screen


)
With the screen open, press con-
trol A
to store it.
The screen is stored automatically when
the ignition is switched off, after approxi-
mately three seconds, if the audio and
telematics system is off.

If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can ad-
just it precisely in different ways:


)
press the corresponding part of con-
trol B
to move the screen towards
you or towards the windscreen,
or


)
push or pull the screen gently by
hand.

Adjusting the position of the screen

Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.

Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen dur-
ing operation of the audio and
telematics system, it will re-
open automatically when an outgoing telephone call is made, when a voice
command is given or when a warning
message linked with the STOP warn-
ing lamp is received.

M
U
68

Monochrome screen C

16
/9 colour screen
TRIP COMPUTER

System which provides current informa-
tion concerning the trip (range, consump-
tion…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Information displays


)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.
With the instrument panel screen



)
Press the up and down arrows on
the navigator to display the various
trip computer tabs in succession.


Instrument panel screen


With the screen C or the colour screen
