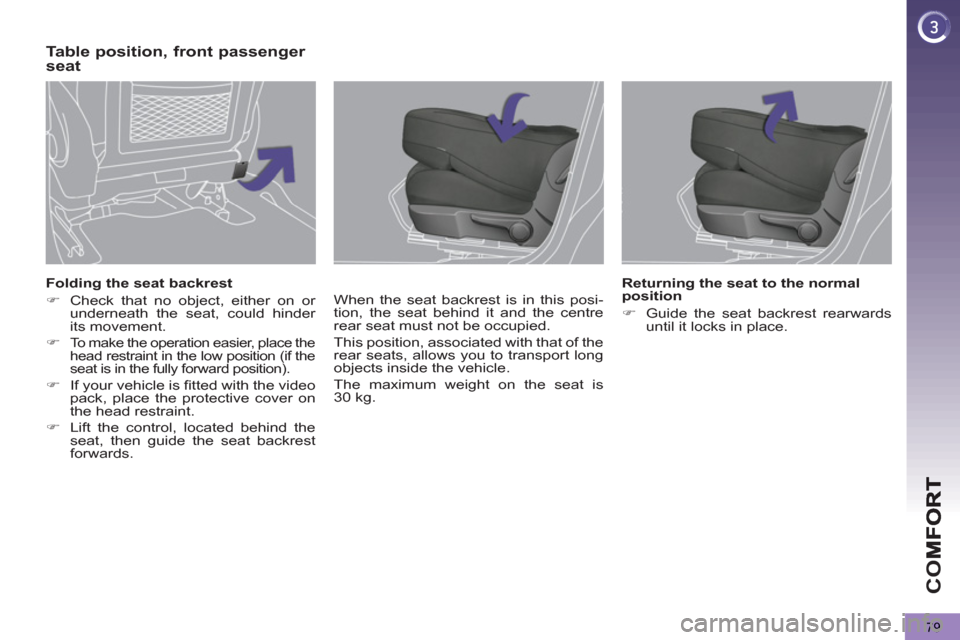

Folding the seat backrest
)
Check that no object, either on or
underneath the seat, could hinder
its movement.
)
To make the operation easier, place the
head restraint in the low position (if the
seat is in the fully forward position).
)
If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.
)
Lift the control, located behind the
seat, then guide the seat backrest
forwards. When the seat backrest is in this posi-
tion, the seat behind it and the centre
rear seat must not be occupied.
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Table position, front passenger
seat
Returning the seat to the normal
position
)
Guide the seat backrest rearwards
until it locks in place.
Page 82 of 340
CO
80

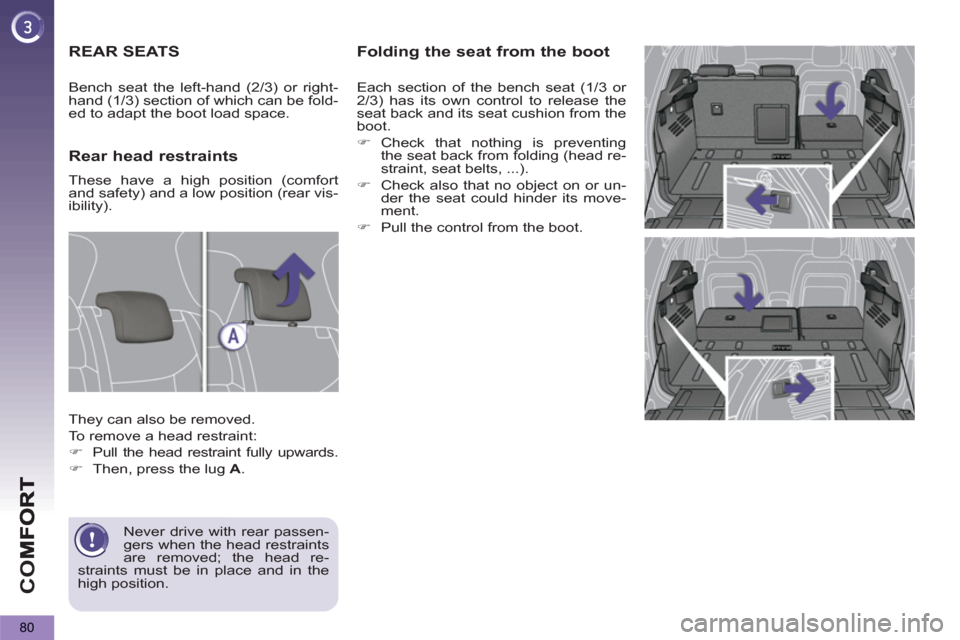

Folding the seat from the boot
Each section of the bench seat (1/3 or
2/3) has its own control to release the
seat back and its seat cushion from the
boot.
)
Check that nothing is preventing
the seat back from folding (head re-
straint, seat belts, ...).
)
Check also that no object on or un-
der the seat could hinder its move-
ment.
)
Pull the control from the boot.
REAR SEATS
Never drive with rear passen-
gers when the head restraints
are removed; the head re-
straints must be in place and in the
high position.
Rear head restraints
They can also be removed.
To remove a head restraint:
)
Pull the head restraint fully upwards.
)
Then, press the lug A
.
Bench seat the left-hand (2/3) or right-
hand (1/3) section of which can be fold-
ed to adapt the boot load space.
These have a high position (comfort
and safety) and a low position (rear vis-
ibility).
Page 83 of 340
CO
81

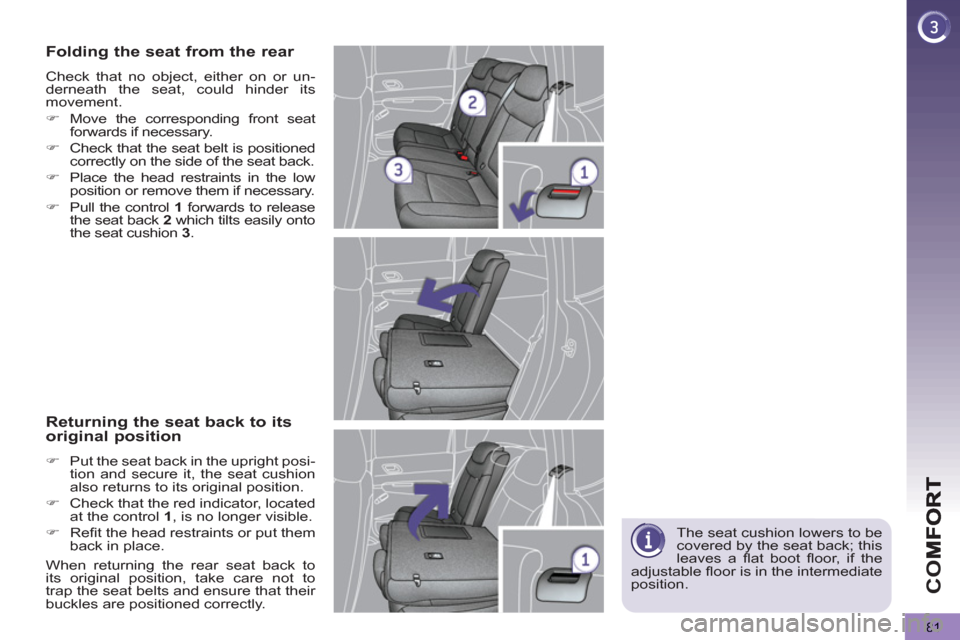

The seat cushion lowers to be
covered by the seat back; this
leaves a fl at boot fl oor, if the
adjustable fl oor is in the intermediate
position.
Folding the seat from the rear
Check that no object, either on or un-
derneath the seat, could hinder its
movement.
)
Move the corresponding front seat
forwards if necessary.
)
Check that the seat belt is positioned
correctly on the side of the seat back.
)
Place the head restraints in the low
position or remove them if necessary.
)
Pull the control 1
forwards to release
the seat back 2
which tilts easily onto
the seat cushion 3
.
Returning the seat back to itsoriginal position
)
Put the seat back in the upright posi-
tion and secure it, the seat cushion
also returns to its original position.
)
Check that the red indicator, located
at the control 1
, is no longer visible.
)
Refi t the head restraints or put them
back in place.
When returning the rear seat back to
its original position, take care not to
trap the seat belts and ensure that their
buckles are positioned correctly.
Page 84 of 340
CO
82

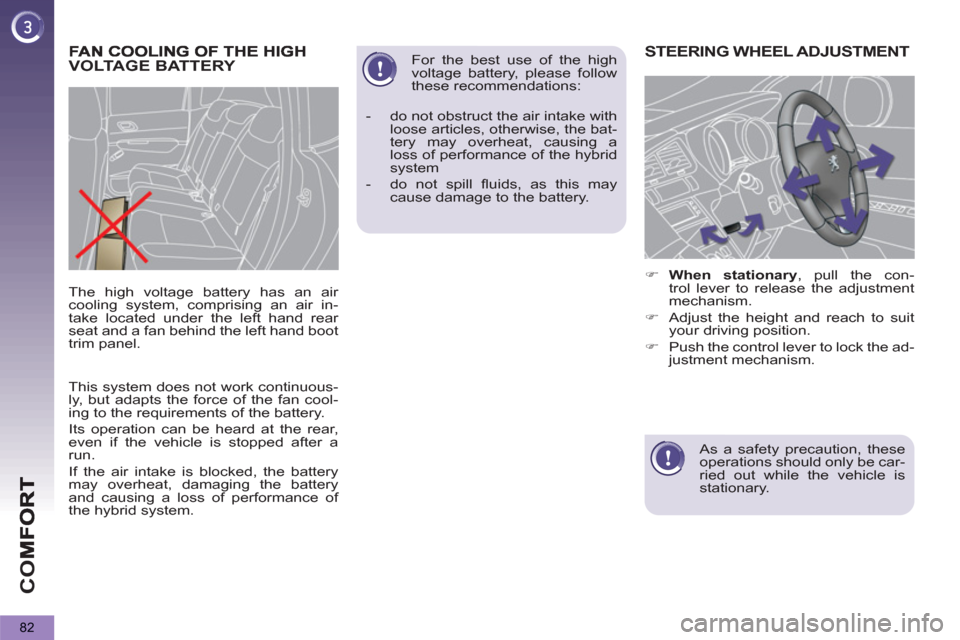

This system does not work continuous-
ly, but adapts the force of the fan cool-
ing to the requirements of the battery.
Its operation can be heard at the rear,
even if the vehicle is stopped after a
run.
If the air intake is blocked, the battery
may overheat, damaging the battery
and causing a loss of performance of
the hybrid system.
STEERING WHEEL ADJUSTMENT
)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.
VOLTAGE BATTERY
For the best use of the high
voltage battery, please follow
these recommendations:
- do not obstruct the air intake with
loose articles, otherwise, the bat-
tery may overheat, causing a
loss of performance of the hybrid
system
- do not spill fl uids, as this may
cause damage to the battery.
The high voltage battery has an air
cooling system, comprising an air in-
take located under the left hand rear
seat and a fan behind the left hand boot
trim panel.
Page 85 of 340
CO
83

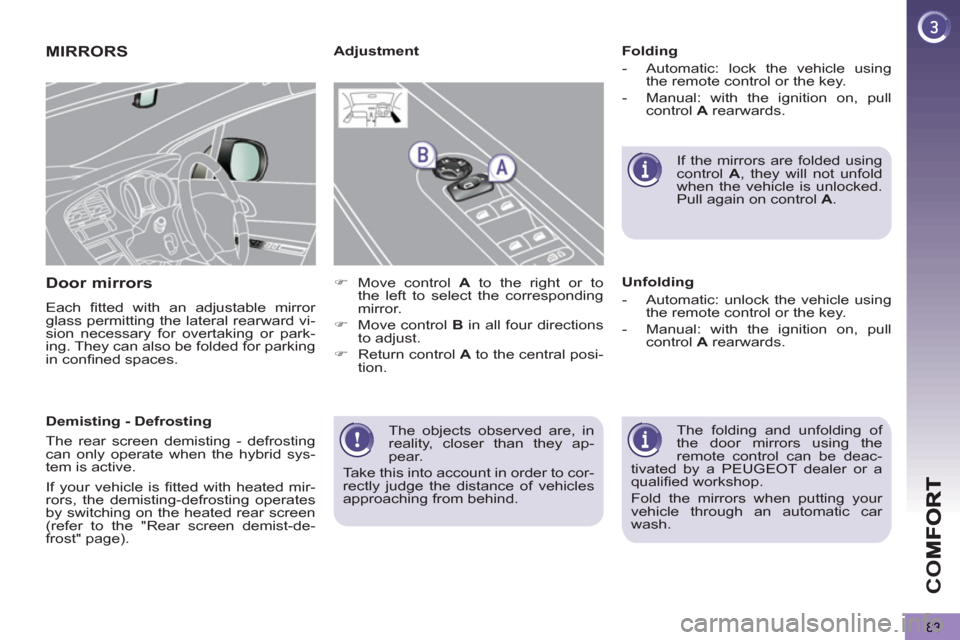

The objects observed are, in
reality, closer than they ap-
pear.
Take this into account in order to cor-
rectly judge the distance of vehicles
approaching from behind.
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.
Folding
- Automatic: lock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.
Fold the mirrors when putting your
vehicle through an automatic car
wash.
Adjustment
Unfolding
- Automatic: unlock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
)
Move control A
to the right or to
the left to select the corresponding
mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central posi-
tion.
Demisting - Defrosting
The rear screen demisting - defrosting
can only operate when the hybrid sys-
tem is active.
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
by switching on the heated rear screen
(refer to the "Rear screen demist-de-
frost" page).
Page 86 of 340
CO
84

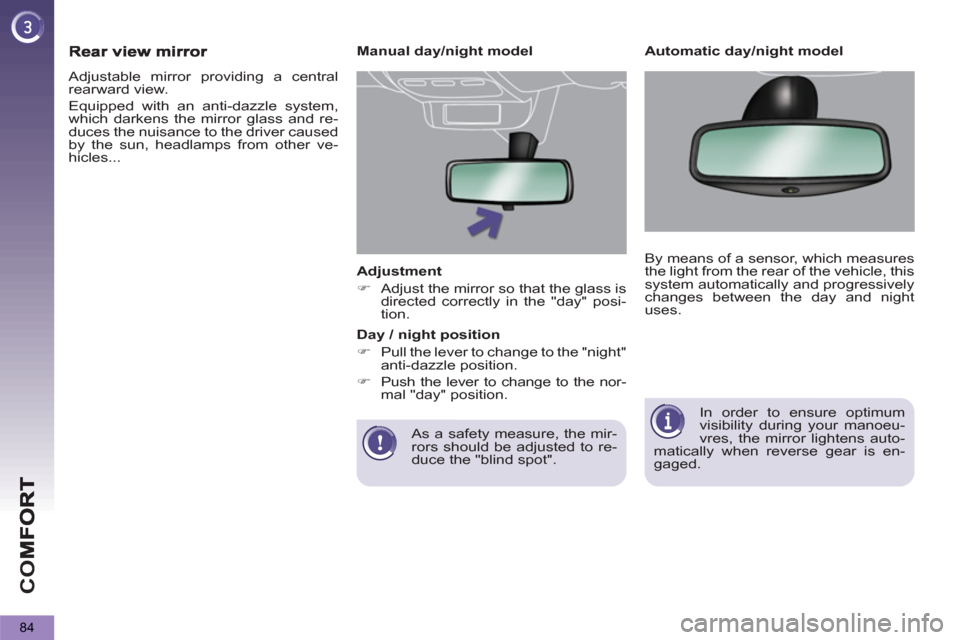

Adjustment
)
Adjust the mirror so that the glass is
directed correctly in the "day" posi-
tion.
As a safety measure, the mir-
rors should be adjusted to re-
duce the "blind spot".
Manual day/night model
Day / night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the nor-
mal "day" position.
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass and re-
duces the nuisance to the driver caused
by the sun, headlamps from other ve-
hicles...
In order to ensure optimum
visibility during your manoeu-
vres, the mirror lightens auto-
matically when reverse gear is en-
gaged.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
Page 87 of 340
85

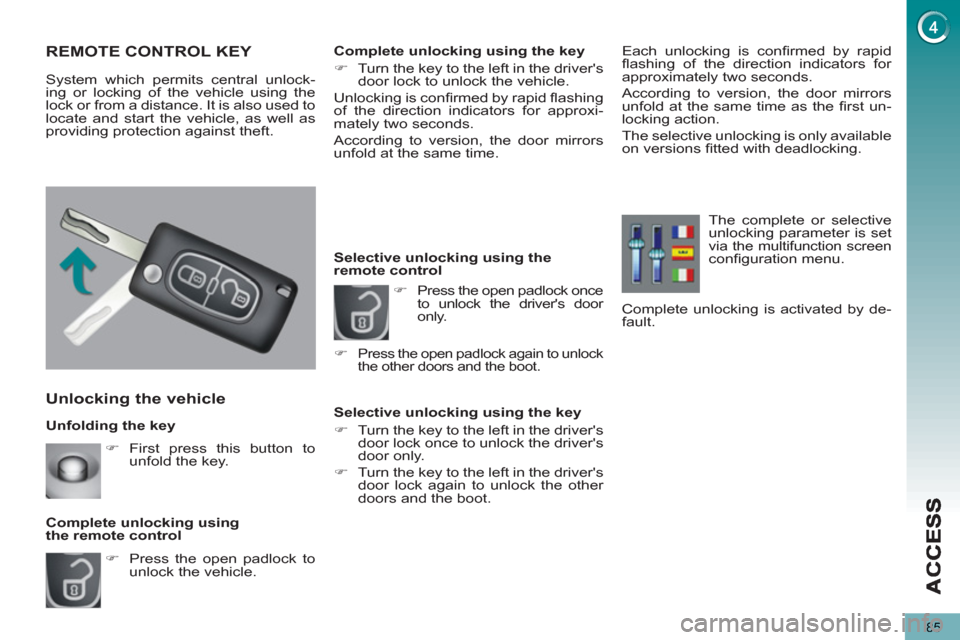

Unfolding the key
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Complete unlocking using
the remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Selective unlocking using the
remote control
Selective unlocking using the key
)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.
)
Press the open padlock once
to unlock the driver's door
only.
)
Press the open padlock again to unlock
the other doors and the boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst un-
locking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen confi guration menu.
Complete unlocking is activated by de-
fault.
)
First press this button to
unfold the key.
Page 88 of 340
AC
C
86

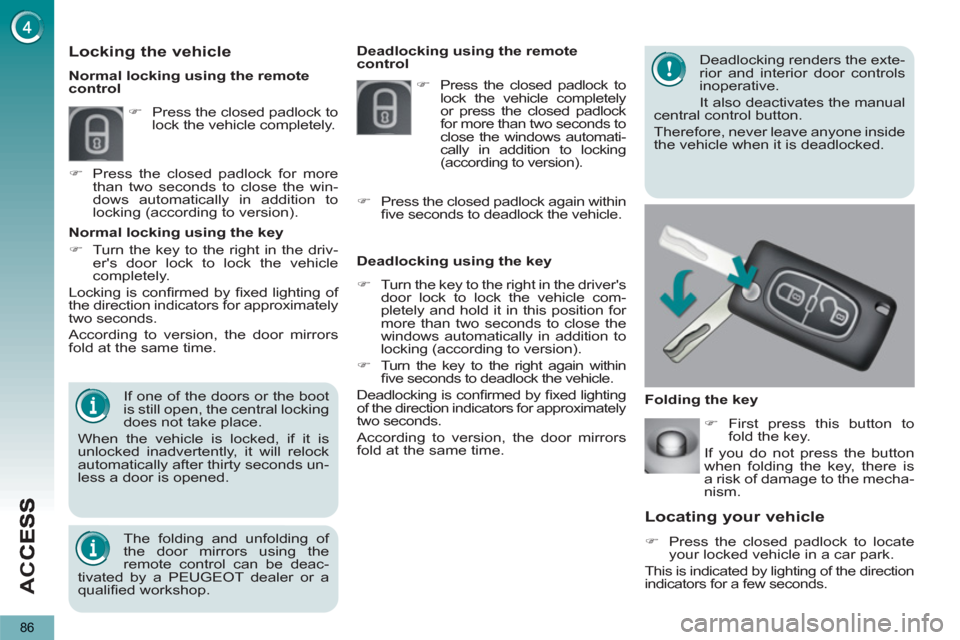

Locating your vehicle
)
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the direction
indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking using the remote
control
Deadlocking using the key
Folding the key
)
Press the closed padlock to
lock the vehicle completely
or press the closed padlock
for more than two seconds to
close the windows automati-
cally in addition to locking
(according to version).
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds un-
less a door is opened.
Normal locking using the key
)
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.
Locking the vehicle
)
Press the closed padlock to
lock the vehicle completely.
)
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).
Normal locking using the remote
control
)
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely and hold it in this position for
more than two seconds to close the
windows automatically in addition to
locking (according to version).
)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed lighting
of the direction indicators for approximately two seconds.
According to version, the door mirrors
fold at the same time.
)
First press this button to
fold the key.
If you do not press the button
when folding the key, there is
a risk of damage to the mecha-
nism.
)
Press the closed padlock again within
fi ve seconds to deadlock the vehicle.
Page 89 of 340
AC
C
87
A heavy object (key fob...), at-
tached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
Electronic engine immobiliser
The key contains an electronic chip which
has a special code. When the ignition is
switched on, this code must be recog-
nised in order for starting to be possible.
This electronic engine immobiliser locks the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.
For more information, refer to
the "Practical information - En-
ergy economy mode" section.
Energy economy mode
After switching off the engine (posi-
tion 1-Stop
), you can still use functions
such as the audio and telematics sys-
tem, wipers, dipped beam headlamps,
courtesy lamps, etc. for a maximum
combined period of thirty minutes.
Page 90 of 340
AC
C
88
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620 / 3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock immediately
for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its location
observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
