Peugeot 3008 Hybrid 4 2017 Owner's Manual - RHD (UK. Australia)

149
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016

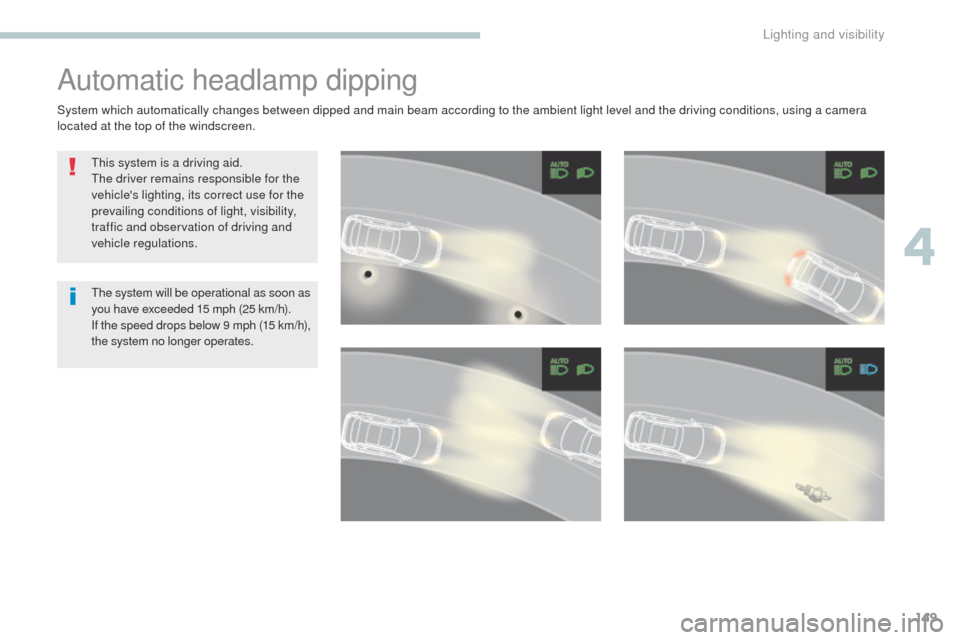

Automatic headlamp dipping
This system is a driving aid.
The driver remains responsible for the
vehicle's lighting, its correct use for the
prevailing conditions of light, visibility,
traffic and observation of driving and
vehicle regulations.
The system will be operational as soon as
you have exceeded 15 mph (25 km/h).
If the speed drops below 9 mph (15
km/h),
the system no longer operates.
System which automatically changes between dipped and main beam according to the ambient light level and the driving conditions, using a camera
located at the top of the windscreen.
4
Lighting and visibility

150
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016

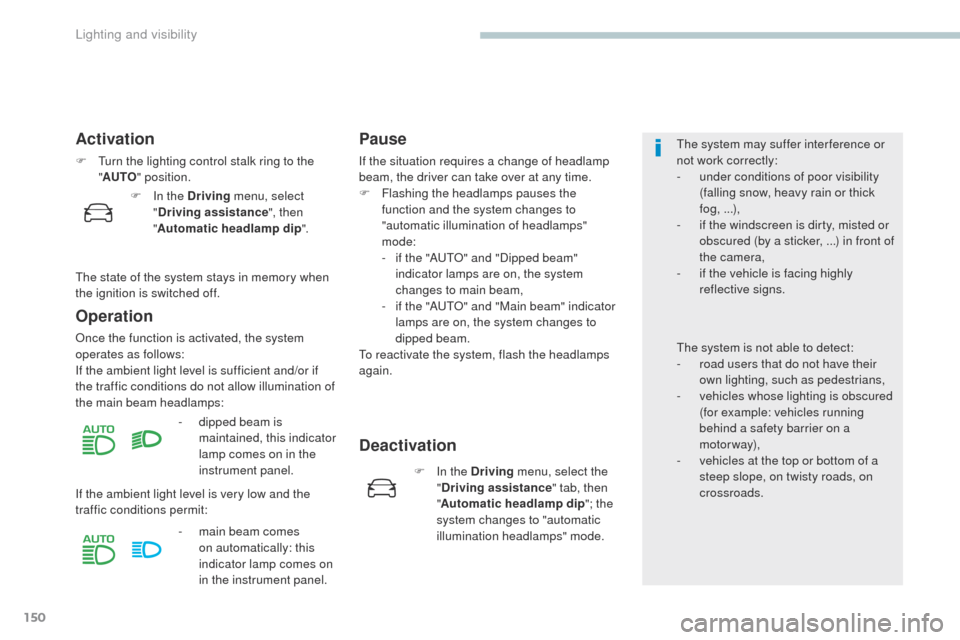

Activation
F Turn the lighting control stalk ring to the "AUTO " position.
Operation
Once the function is activated, the system
operates as follows:
If the ambient light level is sufficient and/or if
the traffic conditions do not allow illumination of
the main beam headlamps:
Pause
If the situation requires a change of headlamp
beam, the driver can take over at any time.
F

F
lashing the headlamps pauses the
function and the system changes to
"automatic illumination of headlamps"
mode:
-

i
f the "AUTO" and "Dipped beam"
indicator lamps are on, the system
changes to main beam,
-

i
f the "AUTO" and "Main beam" indicator
lamps are on, the system changes to
dipped beam.
To reactivate the system, flash the headlamps
again.
-

d

ipped beam is
maintained, this indicator
lamp comes on in the
instrument panel.
If the ambient light level is very low and the
traffic conditions permit: -

m

ain beam comes
on automatically: this
indicator lamp comes on
in the instrument panel.
Deactivation
The system may suffer interference or
not work correctly:
-

u
nder conditions of poor visibility
(falling snow, heavy rain or thick
fog, ...),
-

i
f the windscreen is dirty, misted or
obscured (by a sticker, ...) in front of
the camera,
-

i
f the vehicle is facing highly
reflective signs.
The system is not able to detect:
-

r
oad users that do not have their
own lighting, such as pedestrians,
-

v
ehicles whose lighting is obscured
(for example: vehicles running
behind a safety barrier on a
motorway),
-

v
ehicles at the top or bottom of a
steep slope, on twisty roads, on
crossroads.
F

I

n the Driving menu, select
" Driving assistance ", then
" Automatic headlamp dip ".
F

I

n the Driving menu, select the
" Driving assistance " tab, then
" Automatic headlamp dip "; the
system changes to "automatic
illumination headlamps" mode.
The state of the system stays in memory when
the ignition is switched off.
Lighting and visibility

151
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016

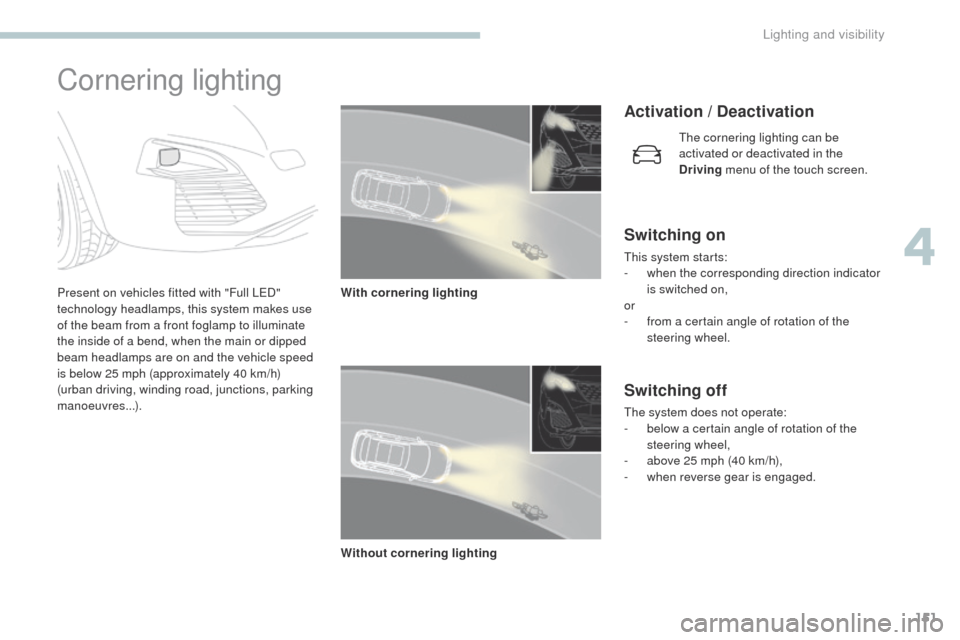

Cornering lighting
Present on vehicles fitted with "Full LED"
technology headlamps, this system makes use
of the beam from a front foglamp to illuminate
the inside of a bend, when the main or dipped
beam headlamps are on and the vehicle speed
is below 25 mph (approximately 40 km/h)
(urban driving, winding road, junctions, parking
manoeuvres...).With cornering lighting
Activation / Deactivation
Switching on
This system starts:
-
w hen the corresponding direction indicator
is switched on,
or
-

f
rom a certain angle of rotation of the
steering wheel.
Switching off
The system does not operate:
- b elow a certain angle of rotation of the
steering wheel,
-

a
bove 25 mph (40 km/h),
-
w

hen reverse gear is engaged.
Without cornering lighting The cornering lighting can be
activated or deactivated in the
Driving
menu of the touch screen.
4
Lighting and visibility

152
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Programming
Your vehicle may also include some functions
that can be configured:
-
a
utomatic rain sensitive windscreen wipers,
-
r

ear wiping on engaging reverse gear.
In wintry conditions, remove snow, ice
or frost present on the windscreen,
around the wiper arms and blades and
the windscreen seal, before operating
the wipers.Without AUTO wiping
With AUTO wiping
Windscreen wiper
A. Wiping speed control stalk: raise or lower the stalk to the desired position.
Fast wiping (heavy rain).
Normal wiping (moderate rain).
Intermittent wiping (proportional to
the speed of the vehicle).
Park.
Single wipe (press downwards or pull
the stalk briefly towards you, then
release).
Automatic wiping (press
down, then release).
or
Wiper control stalk
Single wipe (pull the stalk briefly towards you).
Do not operate the wipers on a dry
windscreen. Under extremely hot or
cold conditions, ensure that the wiper
blades are not stuck to the windscreen
before operating the wipers.
Lighting and visibility

153
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016

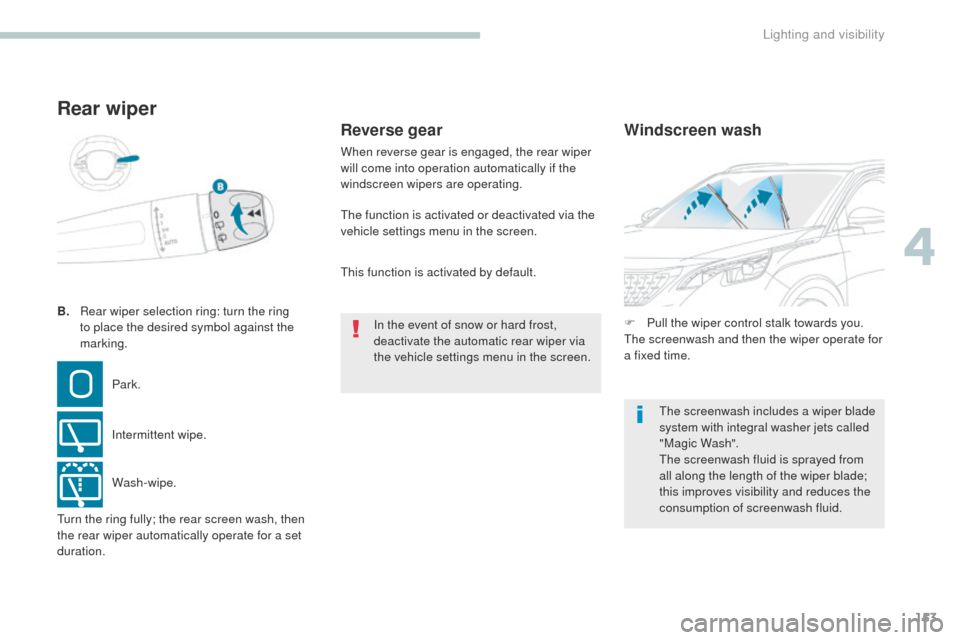

B. Rear wiper selection ring: turn the ring
to place the desired symbol against the
marking.
Rear wiper
Park.
Intermittent wipe.
Wash-wipe. F

P
ull the wiper control stalk towards you.
The screenwash and then the wiper operate for
a fixed time.
The screenwash includes a wiper blade
system with integral washer jets called
"Magic Wash".
The screenwash fluid is sprayed from
all along the length of the wiper blade;
this improves visibility and reduces the
consumption of screenwash fluid.
Windscreen wash
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are operating.
The function is activated or deactivated via the
vehicle settings menu in the screen.
In the event of snow or hard frost,
deactivate the automatic rear wiper via
the vehicle settings menu in the screen.
Turn the ring fully; the rear screen wash, then
the rear wiper automatically operate for a set
duration. This function is activated by default.
4
Lighting and visibility

154
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016

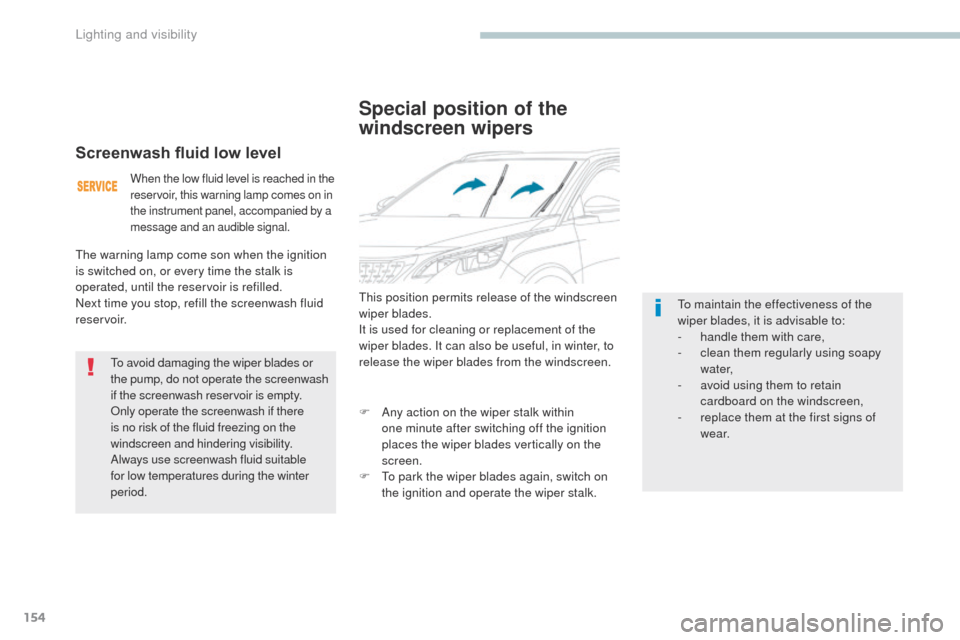

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
wiper blades. It can also be useful, in winter, to
release the wiper blades from the windscreen.
F
A
ny action on the wiper stalk within
one
minute after switching off the ignition
places the wiper blades vertically on the
screen.
F

T
o park the wiper blades again, switch on
the ignition and operate the wiper stalk. To maintain the effectiveness of the
wiper blades, it is advisable to:
-

h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
Screenwash fluid low level
When the low fluid level is reached in the
reservoir, this warning lamp comes on in
the instrument panel, accompanied by a
message and an audible signal.
The warning lamp come son when the ignition
is switched on, or every time the stalk is
operated, until the reservoir is refilled.
Next time you stop, refill the screenwash fluid
reservoir.
To avoid damaging the wiper blades or
the pump, do not operate the screenwash
if the screenwash reservoir is empty.
Only operate the screenwash if there
is no risk of the fluid freezing on the
windscreen and hindering visibility.
Always use screenwash fluid suitable
for low temperatures during the winter
period.
Lighting and visibility

155
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016

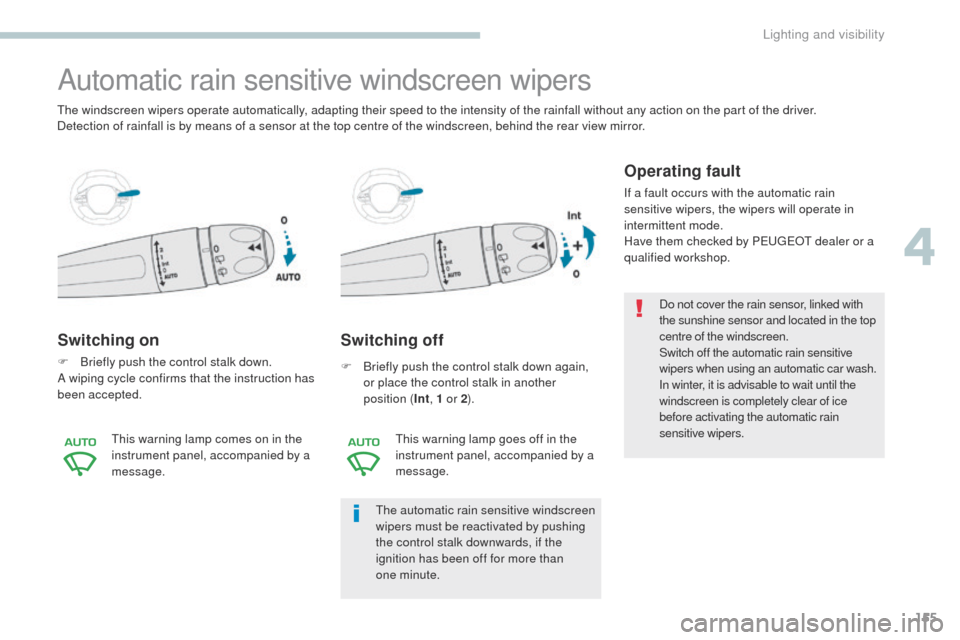

Automatic rain sensitive windscreen wipers
Switching on
F Briefly push the control stalk down.
A wiping cycle confirms that the instruction has
been accepted.
Switching off
F Briefly push the control stalk down again, or place the control stalk in another
position ( Int, 1 or 2 ).
The automatic rain sensitive windscreen
wipers must be reactivated by pushing
the control stalk downwards, if the
ignition has been off for more than
one


minute.
This warning lamp comes on in the
instrument panel, accompanied by a
message.
This warning lamp goes off in the
instrument panel, accompanied by a
message.
The windscreen wipers operate automatically, adapting their speed to the intensity of the rainfall without any action on the part of the driver.
Detection of rainfall is by means of a sensor at the top centre of the windscreen, behind the rear view mirror.
Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have them checked by PEUGEOT dealer or a
qualified workshop.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the top
centre of the windscreen.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
4
Lighting and visibility

156
3008-2_en_Chap05_securite_ed01-2016

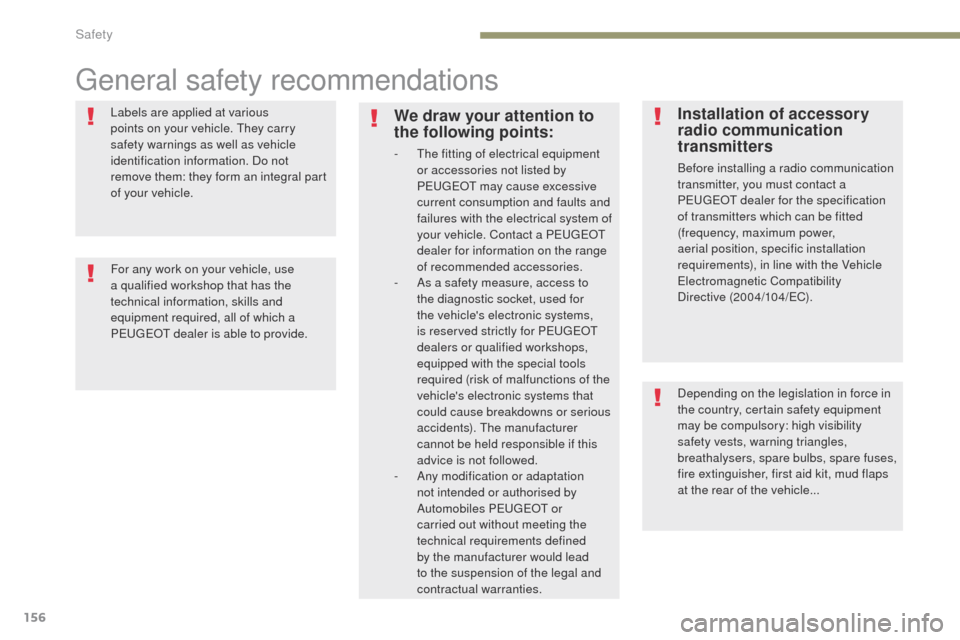

General safety recommendations
Labels are applied at various
points on your vehicle. They carry
safety warnings as well as vehicle
identification information. Do not
remove them: they form an integral part
of your vehicle.
For any work on your vehicle, use
a qualified workshop that has the
technical information, skills and
equipment required, all of which a
PEUGEOT dealer is able to provide.We draw your attention to
the following points:
- The fitting of electrical equipment or accessories not listed by
PEUGEOT
may cause excessive
current consumption and faults and
failures with the electrical system of
your vehicle. Contact a PEUGEOT
dealer for information on the range
of recommended accessories.
-

A
s a safety measure, access to
the diagnostic socket, used for
the vehicle's electronic systems,
is reserved strictly for PEUGEOT
dealers or qualified workshops,
equipped with the special tools
required (risk of malfunctions of the
vehicle's electronic systems that
could cause breakdowns or serious
accidents). The manufacturer
cannot be held responsible if this
advice is not followed.
-
A

ny modification or adaptation
not intended or authorised by
Automobiles PEUGEOT or
carried out without meeting the
technical requirements defined
by the manufacturer would lead
to the suspension of the legal and
contractual warranties.
Installation of accessory
radio communication
transmitters
Before installing a radio communication
transmitter, you must contact a
PEUGEOT dealer for the specification
of transmitters which can be fitted
(frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive


(2004/104/EC).
Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalysers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle...
Safety

157
3008-2_en_Chap05_securite_ed01-2016

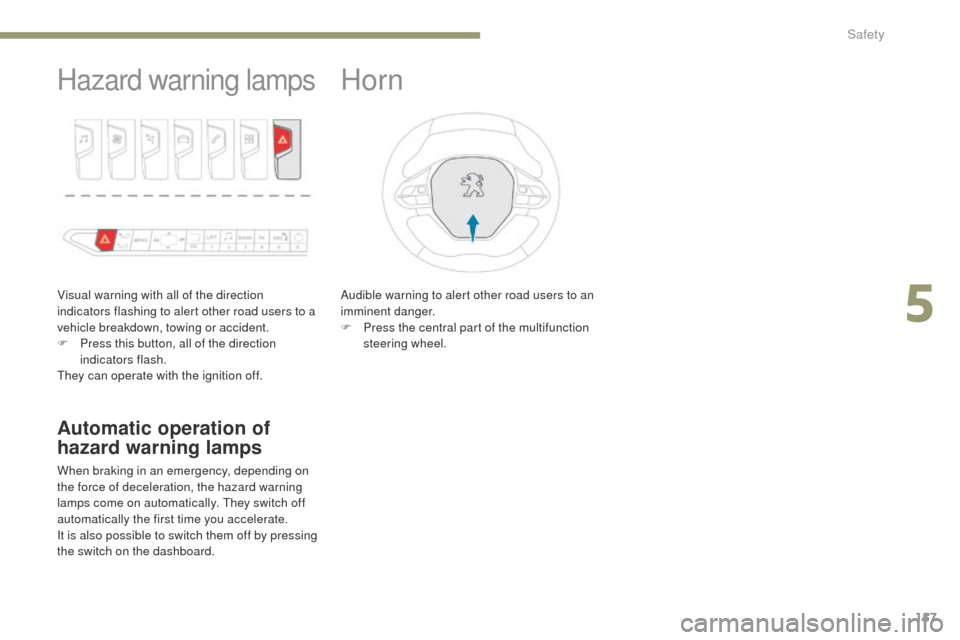

Hazard warning lamps
Visual warning with all of the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
F
P
ress this button, all of the direction
indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the force of deceleration, the hazard warning
lamps come on automatically. They switch off
automatically the first time you accelerate.
It is also possible to switch them off by pressing
the switch on the dashboard.
Horn
Audible warning to alert other road users to an
imminent danger.
F

P
ress the central part of the multifunction
steering wheel.
5
Safety

158
3008-2_en_Chap05_securite_ed01-2016

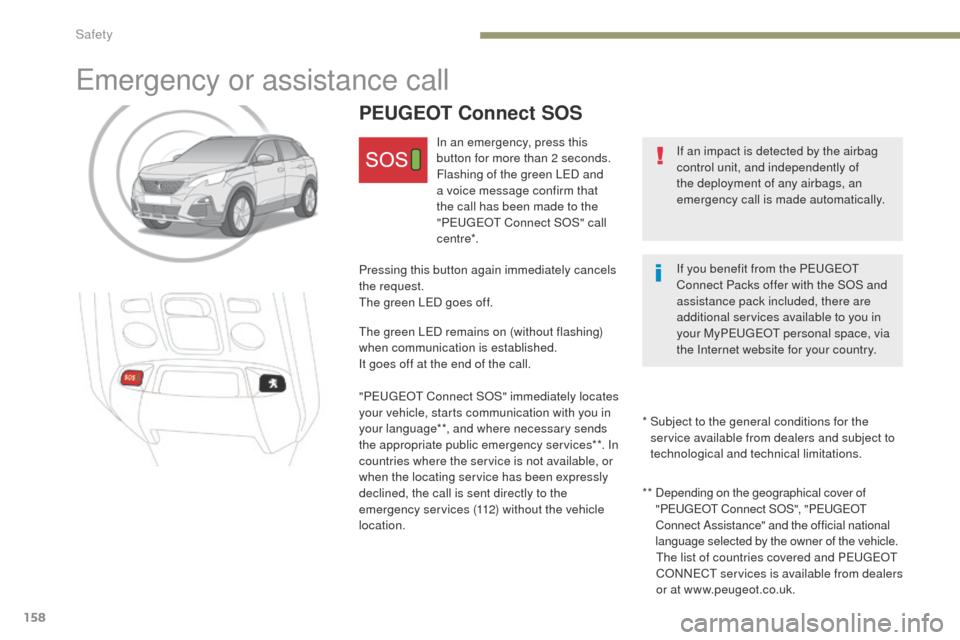

Emergency or assistance call
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
PEUGEOT Connect SOS
In an emergency, press this
button for more than 2 seconds.
Flashing of the green LED and
a voice message confirm that
the call has been made to the
"P
E

UGEOT
C
onnect SOS" call
c e nt re*.
Pressing this button again immediately cancels
the request.
The green LED goes off.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call.
" P
E

UGEOT
C

onnect SOS" immediately locates
your vehicle, starts communication with you in
your language**, and where necessary sends
the appropriate public emergency services**. In
countries where the service is not available, or
when the locating service has been expressly
declined, the call is sent directly to the
emergency services (112) without the vehicle
location. * *
D

epending on the geographical cover of
" P
E

UGEOT
C
onnect SOS", "P
E

UGEOT

C

onnect Assistance" and the official national
language selected by the owner of the vehicle. The list of countries covered and PEUGEOT
CONNECT services is available from dealers
or at www.peugeot.co.uk.
*

S
ubject to the general conditions for the
service available from dealers and subject to
technological and technical limitations. If you benefit from the P
E

UGEOT

C

onnect Packs offer with the SOS and
assistance pack included, there are
additional services available to you in
your My P
E

UGEOT
p
ersonal space, via
the Internet website for your country.
Safety
