Peugeot 3008 Hybrid 4 2017 Owner's Manual - RHD (UK. Australia)

129
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

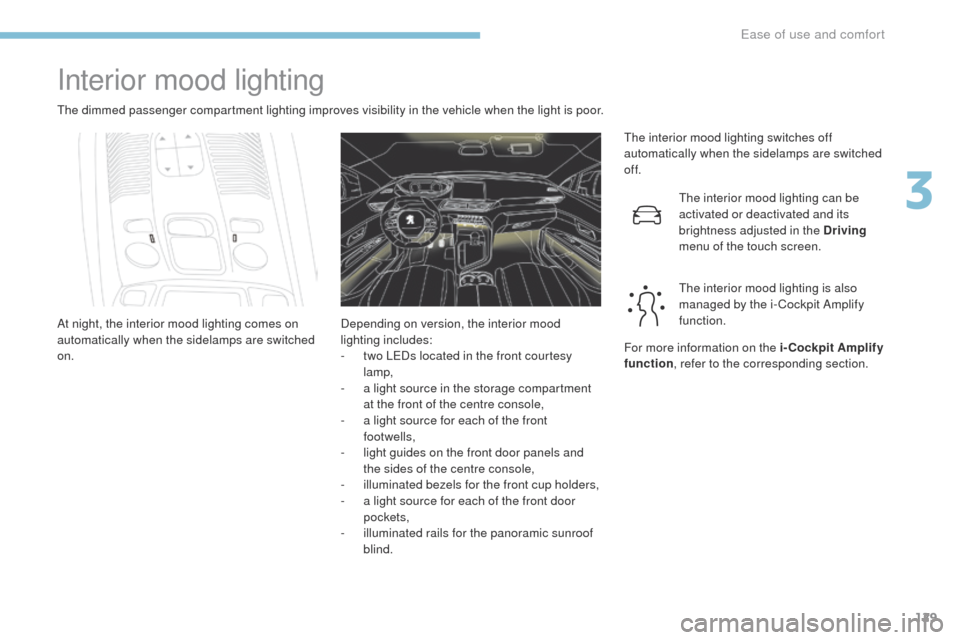

Interior mood lighting
The dimmed passenger compartment lighting improves visibility in the vehicle when the light is poor.The interior mood lighting switches off
automatically when the sidelamps are switched
of f.
At night, the interior mood lighting comes on
automatically when the sidelamps are switched
on. The interior mood lighting can be
activated or deactivated and its
brightness adjusted in the Driving

menu of the touch screen.
The interior mood lighting is also
managed by the i- Cockpit Amplify
function.
Depending on version, the interior mood
lighting includes:
-

t
wo LEDs located in the front courtesy
lamp,
-

a l
ight source in the storage compartment
at the front of the centre console,
-

a l
ight source for each of the front
footwells,
-

l
ight guides on the front door panels and
the sides of the centre console,
-

i
lluminated bezels for the front cup holders,
-

a l
ight source for each of the front door
pockets,
-

i
lluminated rails for the panoramic sunroof
blind. For more information on the i-Cockpit Amplify
function
, refer to the corresponding section.
3
Ease of use and comfort

130
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

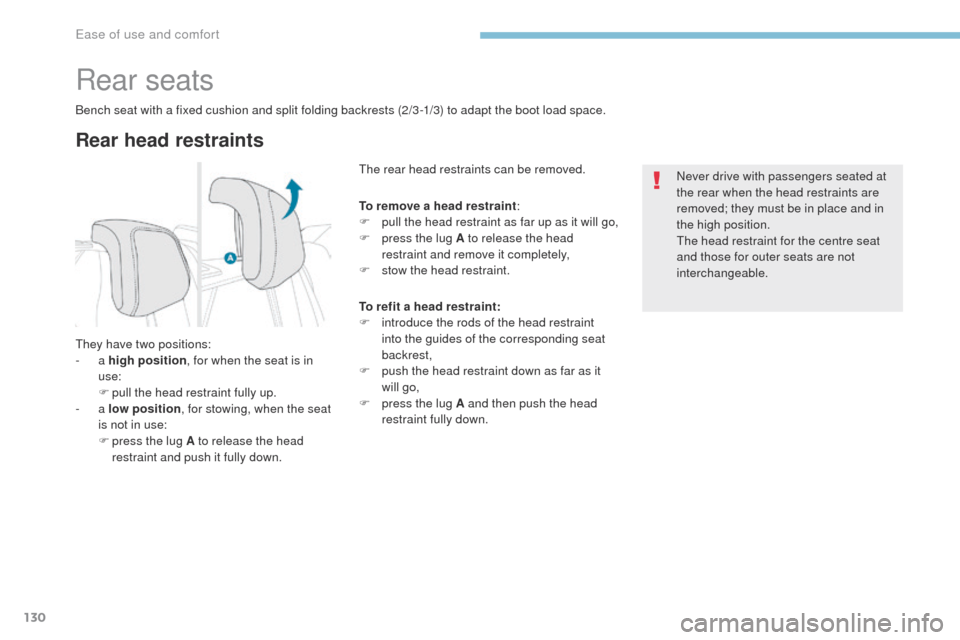

Rear seats
Rear head restraints
Bench seat with a fixed cushion and split folding backrests (2/3 -1/3) to adapt the boot load space.
They have two positions:
- a high position , for when the seat is in
use:
F

p
ull the head restraint fully up.
-
a low position , for stowing, when the seat
is not in use:
F

p
ress the lug A to release the head
restraint and push it fully down. The rear head restraints can be removed.
Never drive with passengers seated at
the rear when the head restraints are
removed; they must be in place and in
the high position.
The head restraint for the centre seat
and those for outer seats are not
interchangeable.
To remove a head restraint
:
F

p
ull the head restraint as far up as it will go,
F

p
ress the lug A to release the head
restraint and remove it completely,
F

s
tow the head restraint.
To refit a head restraint:
F

i
ntroduce the rods of the head restraint
into the guides of the corresponding seat
backrest,
F

p
ush the head restraint down as far as it
will go,
F

p
ress the lug A and then push the head
restraint fully down.
Ease of use and comfort

131
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
The folding of the backrest is
accompanied by a slight lowering of the
corresponding cushion.
To obtain a flat sur face, it is necessary
to place the adjustable boot floor in the
high position.
When the backrest is released, the red
indicator is visible in the release grip.
Folding from the passenger compartment
F Press the backrest release grip 1.
F
G
uide the backrest 3 down to the horizontal
position.

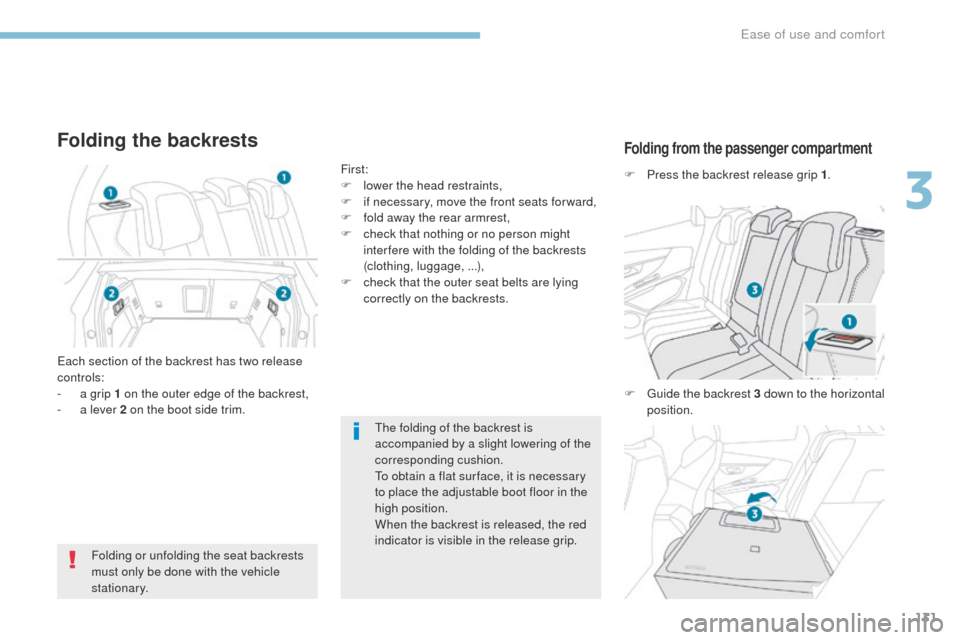

Folding the backrests
Each section of the backrest has two release
controls:
-

a g
rip 1 on the outer edge of the backrest,
-

a l
ever 2 on the boot side trim. First:
F

l
ower the head restraints,
F
i
f necessary, move the front seats for ward,
F
f
old away the rear armrest,
F
c
heck that nothing or no person might
inter fere with the folding of the backrests
(clothing, luggage, ...),
F
c
heck that the outer seat belts are lying
correctly on the backrests.
Folding or unfolding the seat backrests
must only be done with the vehicle
stationary.
3
Ease of use and comfort

132
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

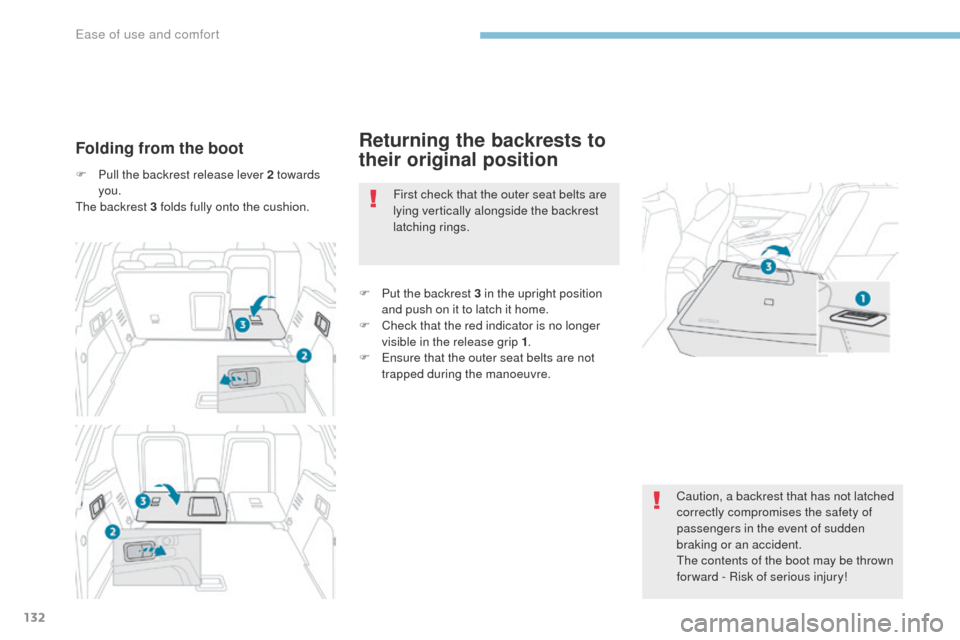

Returning the backrests to
their original positionFolding from the boot
F Pull the backrest release lever 2 towards you.
The backrest 3 folds fully onto the cushion. First check that the outer seat belts are
lying vertically alongside the backrest
latching rings.
F

P
ut the backrest 3 in the upright position
and push on it to latch it home.
F

C
heck that the red indicator is no longer
visible in the release grip 1 .
F

E
nsure that the outer seat belts are not
trapped during the manoeuvre.
Caution, a backrest that has not latched
correctly compromises the safety of
passengers in the event of sudden
braking or an accident.
The contents of the boot may be thrown
forward - Risk of serious injury!
Ease of use and comfort

133
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

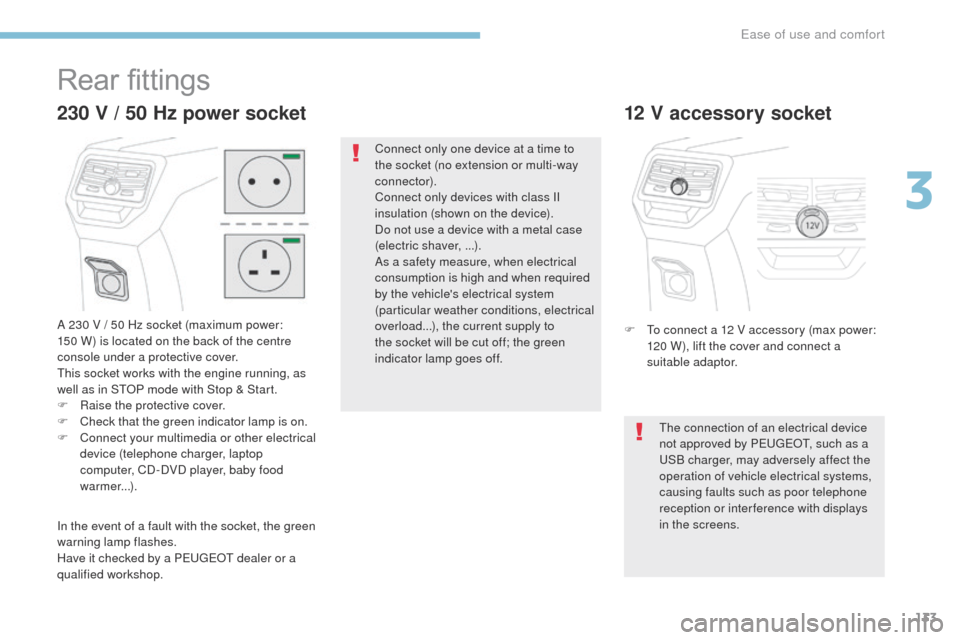

Rear fittings
A 230 V / 50 Hz socket (maximum power:
150 W) is located on the back of the centre
console under a protective cover.
This socket works with the engine running, as
well as in STOP mode with Stop & Start.
F
Ra
ise the protective cover.
F

C
heck that the green indicator lamp is on.
F

C
onnect your multimedia or other electrical
device (telephone charger, laptop
computer, CD-DVD player, baby food
warmer...).
230 V / 50 Hz power socket
In the event of a fault with the socket, the green
warning lamp flashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop. Connect only one device at a time to
the socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a device with a metal case
(electric shaver, ...).
As a safety measure, when electrical
consumption is high and when required
by the vehicle's electrical system
(particular weather conditions, electrical
overload...), the current supply to
the socket will be cut off; the green
indicator lamp goes off.
F
T
o connect a 12 V accessory (max power:
120 W), lift the cover and connect a
suitable adaptor.
12 V accessory socket
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
3
Ease of use and comfort

134
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

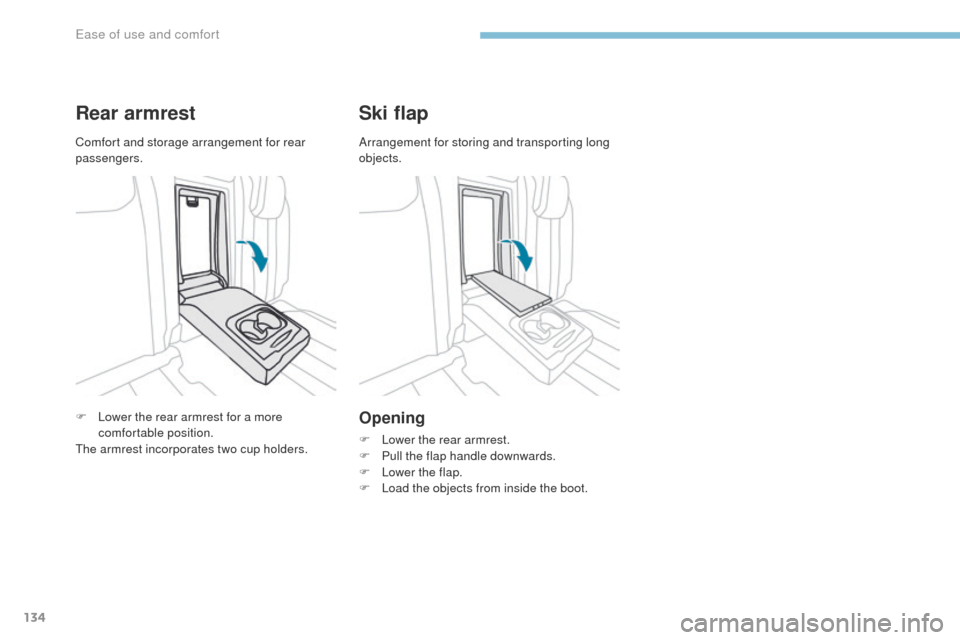

Rear armrest
F Lower the rear armrest for a more comfortable position.
The armrest incorporates two cup holders.
Ski flap
Opening
F Lower the rear armrest.
F P ull the flap handle downwards.
F

L
ower the flap.
F

L
oad the objects from inside the boot.
Comfort and storage arrangement for rear
passengers.
Arrangement for storing and transporting long
objects.
Ease of use and comfort

135
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

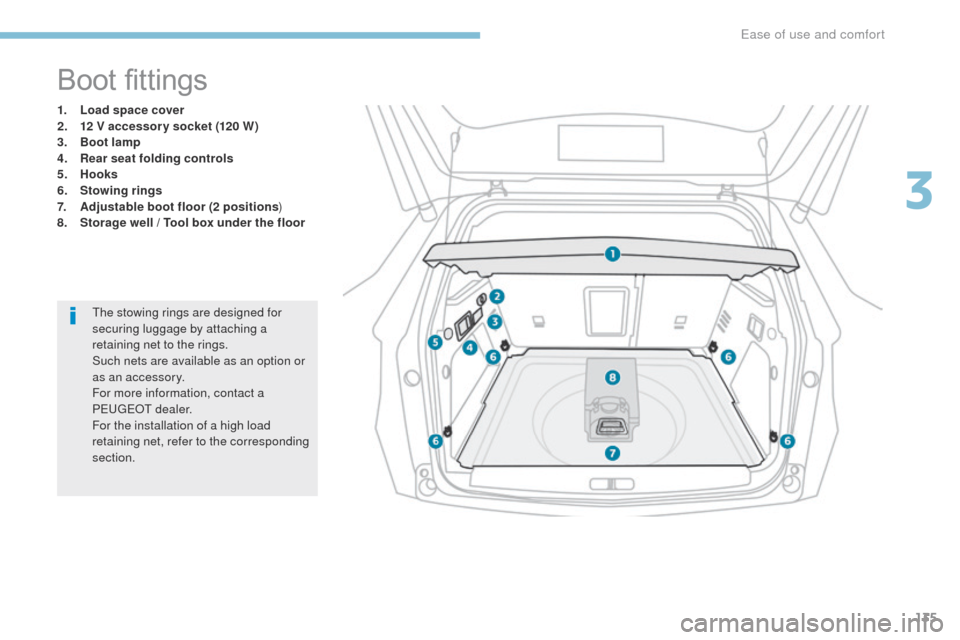

Boot fittings
1. Load space cover
2. 12 V accessor y socket (120 W)
3.
B

oot lamp
4.
R

ear seat folding controls
5.
Hoo

ks
6.
S

towing rings
7.
A

djustable boot floor (2 positions )
8.
S

torage well / Tool box under the floorThe stowing rings are designed for
securing luggage by attaching a
retaining net to the rings.
Such nets are available as an option or
as an accessory.
For more information, contact a
PEUGEOT dealer.
For the installation of a high load
retaining net, refer to the corresponding
section.
3
Ease of use and comfort

136
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

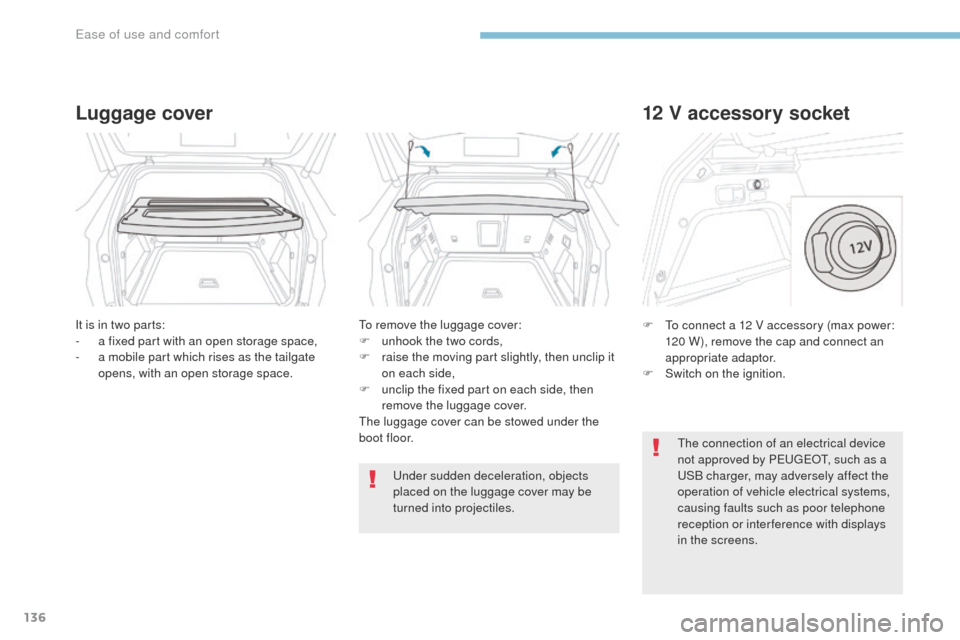

Luggage cover
It is in two parts:
- a f ixed part with an open storage space,
-

a m
obile part which rises as the tailgate
opens, with an open storage space. To remove the luggage cover:
F
u nhook the two cords,
F

r
aise the moving part slightly, then unclip it
on each side,
F

u
nclip the fixed part on each side, then
remove the luggage cover.
The luggage cover can be stowed under the
boot floor.
Under sudden deceleration, objects
placed on the luggage cover may be
turned into projectiles.
12 V accessory socket
F To connect a 12 V accessory (max power: 120 W), remove the cap and connect an
appropriate adaptor.
F

S
witch on the ignition.
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
Ease of use and comfort

137
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

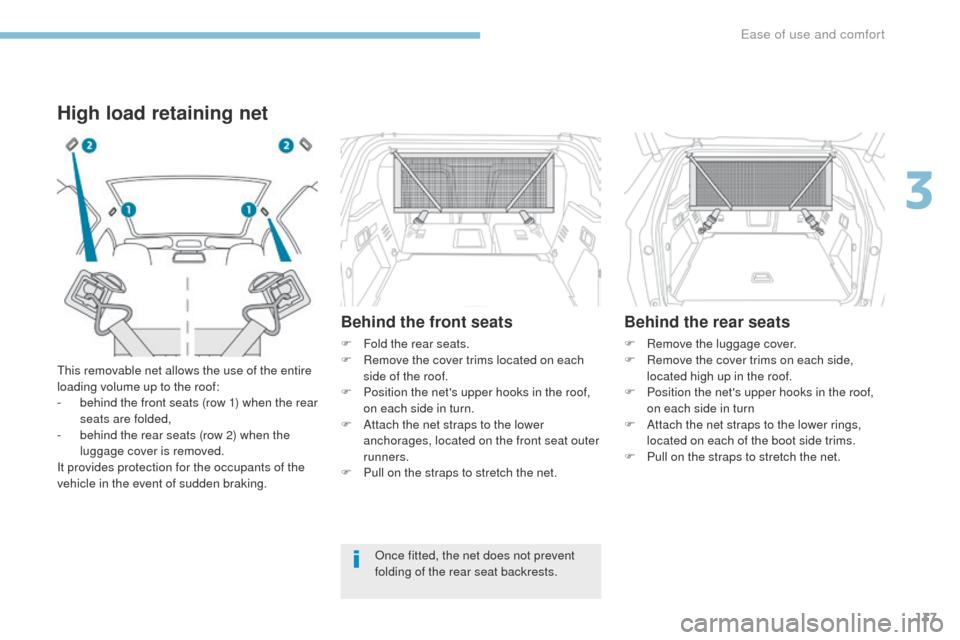

High load retaining net
This removable net allows the use of the entire
loading volume up to the roof:
-
b
ehind the front seats (row 1) when the rear
seats are folded,
-

b
ehind the rear seats (row 2) when the
luggage cover is removed.
It provides protection for the occupants of the
vehicle in the event of sudden braking.
Behind the front seats
F Fold the rear seats.
F R emove the cover trims located on each
side of the roof.
F

P
osition the net's upper hooks in the roof,
on each side in turn.
F

A
ttach the net straps to the lower
anchorages, located on the front seat outer
runners.
F

P
ull on the straps to stretch the net.
Behind the rear seats
F Remove the luggage cover.
F R emove the cover trims on each side,
located high up in the roof.
F

P
osition the net's upper hooks in the roof,
on each side in turn
F

A
ttach the net straps to the lower rings,
located on each of the boot side trims.
F

P
ull on the straps to stretch the net.
Once fitted, the net does not prevent
folding of the rear seat backrests.
3
Ease of use and comfort

138
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

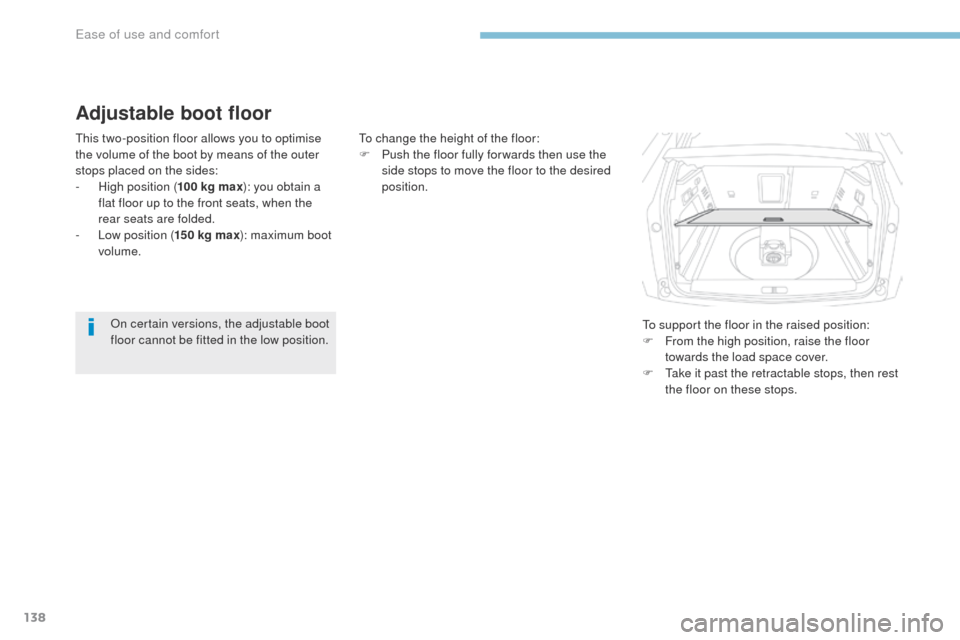

Adjustable boot floor
This two-position floor allows you to optimise
the volume of the boot by means of the outer
stops placed on the sides:
-
Hig
h position ( 100 kg max ): you obtain a
flat floor up to the front seats, when the
rear seats are folded.
-

L
ow position ( 150 kg max): maximum boot
volume. To change the height of the floor:
F
P ush the floor fully for wards then use the
side stops to move the floor to the desired
position.
To support the floor in the raised position:
F

F
rom the high position, raise the floor
towards the load space cover.
F

T
ake it past the retractable stops, then rest
the floor on these stops.
On certain versions, the adjustable boot
floor cannot be fitted in the low position.
Ease of use and comfort
