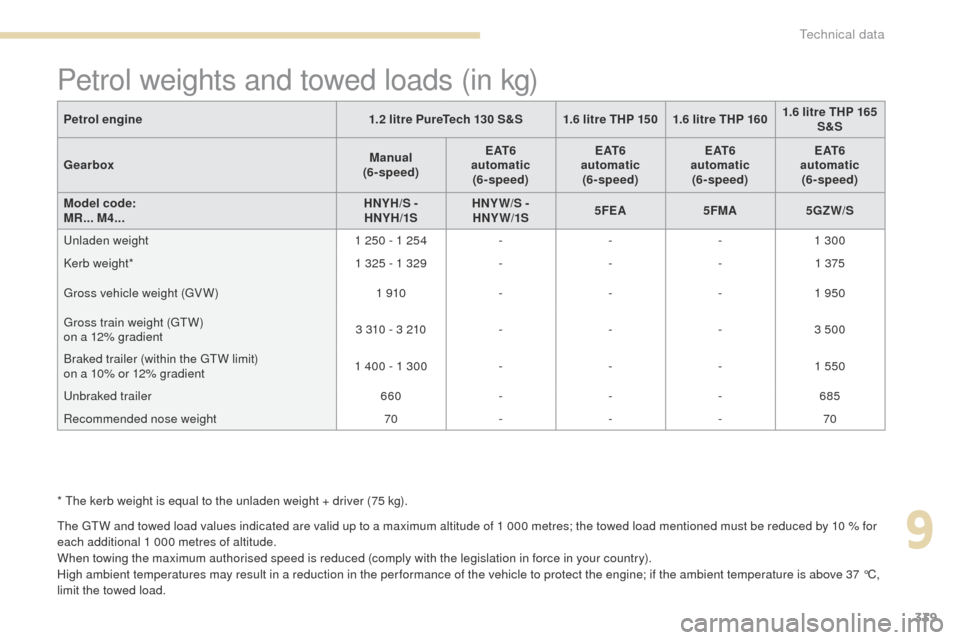

Petrol weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.Petrol engine
1.2 litre PureTech 130 S&S 1.6 litre THP 150 1.6 litre THP 160 1.6 litre THP 165
S&S
Gearbox Manual
(6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed)
Model code:
MR... M4... HNYH/S -
HNYH/1S HNY W/S -
HNY W/1S 5FEA
5FMA5GZW/S
Unladen weight 1 250 - 1 254---1 300
Kerb weight* 1 325 - 1 329---1 375
Gross vehicle weight (GV W) 1 910---1 950
Gross train weight (GTW)
on a 12% gradient 3 310 - 3 210
---3 500
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 1 400 - 1 300
---1 550
Unbraked trailer 660---685
Recommended nose weight 70---70
* The kerb weight is equal to the unladen weight + driver (75 kg).
9
Technical data

340
3008-2_en_Chap09_caracteristiques_ed01-2016
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).Diesel engine
1.6 litre BlueHDi
100 S&S 1.6 litre BlueHDi 115 S&S
1.6 litre BlueHDi 120 S&S
Gearbox Manual
(5 - speed) Manual
(6- speed) E AT 6
automatic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
MC... BHY6/SBHXH/S
BHXH/1S BHXW/S
BHX W/1S BHZH/S
BHZH/1S BHZW/S
BHZ W/1S
Cubic capacity (cc) 1 5601 560 1 560
Bore x stroke (mm) 75 x 88.375 x 88.3 75 x 88,3
Max power*: EU standard (kW) 7385 88
Max power speed (rpm) 3 7503 750 3 750
Max torque: UE standard (Nm) 254300 300
Max torque speed (rpm) 1 7501 750 1 750
Fuel DieselDiesel Diesel
Catalytic converter Ye sYe s Ye s
Particle filter Ye sYe s Ye s
Engine oil capacity (in litres) (with filter
replacement) 3.75
3.75 3.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
Technical data

341
3008-2_en_Chap09_caracteristiques_ed01-2016
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
Diesel engine
2.0 litre BlueHDi 1502.0 litre BlueHDi 150
S&S 2.0 litre BlueHDi 180
S&S
Gearbox Manual
(6- speed) E AT 6
automatic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
MJ... -
-AHRH/S
AHSH/S
AHXH/S AHWW/S
Cubic capacity (cc) --1 997 1 997
Bore x stroke (mm) --85 x 88 85 x 88
Max power*: EU standard (kW) --11 0 132
Max power speed (rpm) --4 000 3 750
Max torque: EU standard (Nm) --370 400
Max torque speed (rpm) --2 000 2 000
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sYe sYe sYe s
Engine oil capacity (in litres) (with filter
replacement) -
-6 .1 5 .1
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Diesel engines and gearboxes
9
Technical data

342
3008-2_en_Chap09_caracteristiques_ed01-2016
Diesel weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.Diesel engine
1.6 litre BlueHDi
100 S&S 1.6 litre BlueHDi 115 S&S
1.6 litre BlueHDi 120 S&S
Gearbox Manual
(5 -speed ) Manual
(6- speed) E AT 6
automatic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
MC... BHY6/SBHXH/S -
BHXH/1S BHXW/SBHZH/S -
BHZH/1S BHZW/S
Unladen weight -1 300 - 1 304 1 3151 300 - 1 304 1 315
Kerb weight* -1 375 - 1 379 1 390 1 375 - 1 379 1 390
Gross vehicle weight (GV W) -1 970 - 1 980 1 990 1 970 - 1 980 1 990
Gross train weight (GTW)
on a 12% gradient -
3 470 - 3 380 3 290 3 470 - 3 380 3 290
Braked trailer (within the GTW limit)
on a 10% or 12% gradient -
1 500 - 1 400 1 300 1 500 - 1 400 1 300
Unbraked trailer -685 695685695
Recommended nose weight -70 707070
* The kerb weight is equal to the unladen weight + driver (75 kg).
Technical data

343
3008-2_en_Chap09_caracteristiques_ed01-2016
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.Diesel engine
2.0 litre BlueHDi 150
2.0 litre BlueHDi 150 S&S 2.0 litre BlueHDi 180 S&S
GearboxManual
(6- speed) EAT6 automatic
(6- speed) Manual
(6- speed) EAT6 automatic
(6- speed)
Model code:
MJ... -
-AHRH/S
AHSH/S
AHXH/S AHWW/S
Unladen weight --1 425 1 465
Kerb weight* --1 500 1 540
Gross vehicle weight (GV W) --2 050 2 090
Gross train weight (GTW)
on a 12% gradient -
-3 700 3 730
Braked trailer (within the GTW limit)
on a 10% or 12% gradient -
-1 650 1 640
Unbraked trailer --74 5 750
Recommended nose weight --70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
Diesel weights and towed loads (in kg)
9
Technical data

344
3008-2_en_Chap09_caracteristiques_ed01-2016

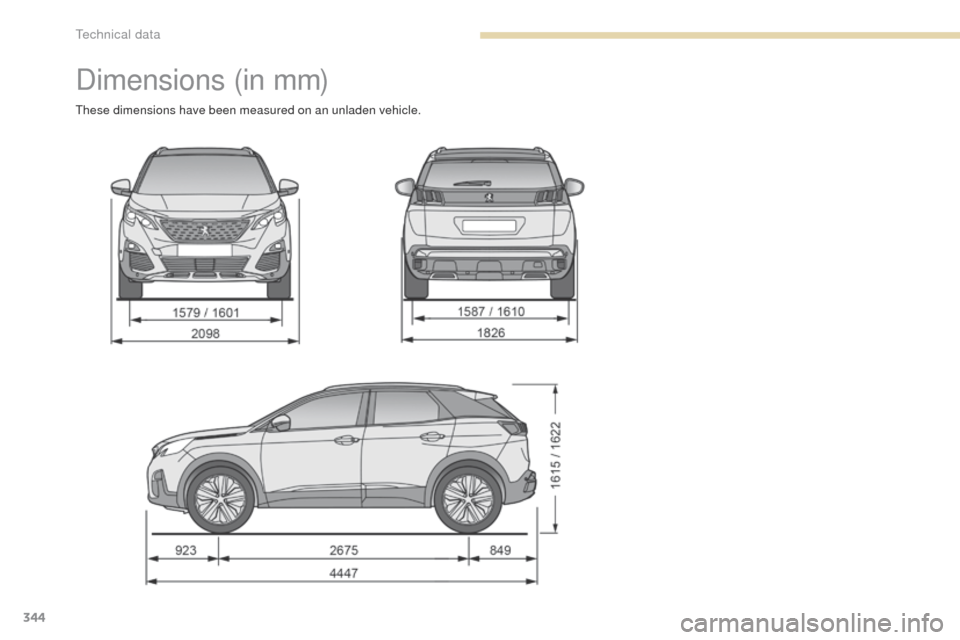

Dimensions (in mm)
These dimensions have been measured on an unladen vehicle.
Technical data

345
3008-2_en_Chap09_caracteristiques_ed01-2016

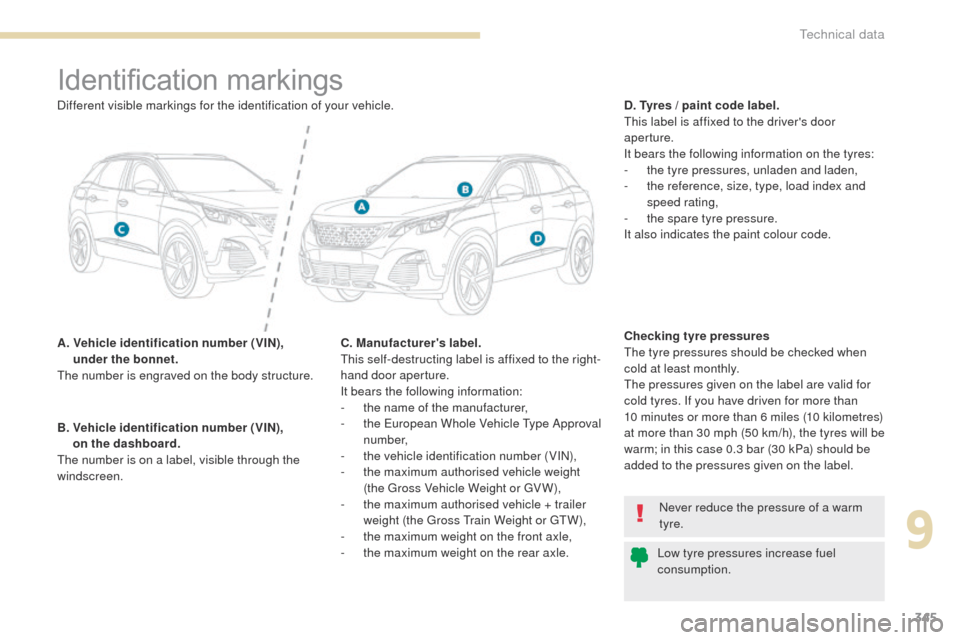

Identification markings
A. Vehicle identification number (VIN), under the bonnet.
The number is engraved on the body structure. D. Tyres / paint code label.
This label is affixed to the driver's door
aperture.
It bears the following information on the tyres:
-

t
he tyre pressures, unladen and laden,
-
t
he reference, size, type, load index and
speed rating,
-
t
he spare tyre pressure.
It also indicates the paint colour code.
B.
V
ehicle identification number (VIN),
on the dashboard.
The number is on a label, visible through the
windscreen.
Never reduce the pressure of a warm
tyre.
Low tyre pressures increase fuel
consumption.
Different visible markings for the identification of your vehicle.
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm; in this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.
C. Manufacturer's label.
This self-destructing label is affixed to the right-
hand door aperture.
It bears the following information:
-

t
he name of the manufacturer,
-

t
he European Whole Vehicle Type Approval
number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised vehicle weight
(the Gross Vehicle Weight or GV W),
-

t
he maximum authorised vehicle + trailer
weight (the Gross Train Weight or GTW),
-

t
he maximum weight on the front axle,
-

t
he maximum weight on the rear axle.
9
Technical data

346
