MAINTENANCE OF YOUR 306 35
Side lights W5W
Turn the plastic protector and remove it.
Turn the pin a quarter turn and remove it. Change the bulb.
Dipped/main beam headlights Double Headlamps: two H7 55W bulbs. Changing the bulbs
Turn the plastic protector and remove it. Disconnect the connectors.Press the spring to unclip the bulb and then change it. When fitting, ensure that the direction notches are positioned correctly andthat the plastic protector is secured
correctly. Only handle the bulb using a dry cloth. Warning There is a risk of damage to the dipped/main beam Headlamps. Only use bulbs supplied by the following manufacturers:
- GE/TUNGSRAM
- PHILIPS
- OSRAM
These bulbs meet the UV-free speci- fications necessary for the correctoperation and reliability of the Head-lamps. The Headlamps are fitted with poly- carbon glass with a protective coating.
We strongly advise against cleaningthem using a dry or abrasive cloth orusing products which contain deter-gents or solvents.
CHANGING A BULB

MAINTENANCE OF YOUR 306
36
Amber direction indicator lights PY21W
Pull out the connector. Turn the holder a quarter of a turn. Replace the light. Amber side repeater lights W5WPull the rear part of the transparent
cover and release the assembly. Support the connector and turn the transparent cover a quarter turn. Change the bulb.Number plate lights W5WRemove the translucent plastic protectors.

MAINTENANCE OF YOUR 306
36
Amber direction indicator lights PY21W
Pull out the connector. Turn the holder a quarter of a turn. Replace the light. Amber side repeater lights W5WPull the rear part of the transparent
cover and release the assembly. Support the connector and turn the transparent cover a quarter turn. Change the bulb.Number plate lights W5WRemove the translucent plastic protectors.

MAINTENANCE OF YOUR 30637
REAR LIGHTS 3 AND 5 DOOR
1 Brake lights/side lights P21/5W.
2 Side lights P21/5W.
3 Rear fog lamp P21W.
4 Reversing lights P21W.
5 Amber direction indicator lights PY21W.
REAR LIGHTS 3, 4 AND 5 DOOR
- Unscrew the two wing nuts inside
the boot.
- Remove the plastic cover.
- Disconnect the connector Aby
pressing the metal bar.
- Disconnect the connector Bby
releasing the tab.
- Release the light unit.
- Pinch the tabs and remove the bulb holder C.
- Change the faulty bulb.
REAR LIGHTS 4 DOOR
1 Amber direction indicator lights PY21W.
2 Rear fog lamp P21W.
3 Reversing lights P21W.
4 Brake lights/side lights P21/5W.
5 Side lights P21/5W.
When refitting, ensure that the seal is clean, inorder to prevent water
entry.
1
452
3
3
CC
12
54
B
A

1
2
3
MAINTENANCE OF YOUR 306
38
REAR LIGHTS (ESTATE)
- Open the storage compartment
inside the boot.
- Open the access flap.
- Unscrew the wing bolt on the inside.
- Unscrew the second wing bolt outside the vehicle.
Use the wheelbrace to make it easier to unscrew the bolts. Warning:never
use it for refitting.
- Release the light unit.
- Disconnect the connector by pres- sing the metal bar.
- Pinch the tabs and remove the bulb holder.
- Change the faulty bulb.
Fog lamp P21W
This is located in the bumper.Additional brake light 5 bulbs W5WRemove the plastic protector by pres- sing the notches
A.
Squeeze the tabs Bto release the
lamp holder. Change the faulty bulb.
1 Amber direction indicator lights
PY21W.
2 Reversing lights P21W.
3 Brake lights/side lights P21/5W.
The bulbs must be repla- ced by bulbs of identical
specification and colour.
B
AA
B

MAINTENANCE OF YOUR 30639
CHANGING A FUSE The fuse boxes are located under the fascia and in the engine compartment. Fascia fuse box Unscrew the catch a quarter turn using a coin then remove the cover togain access to the fuses.Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
CORRECT INCORRECT PLIERS A

MAINTENANCE OF YOUR 306
42
The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. Some electrical accessories or the way in which they are fitted canhave damaging effects on the ope-ration of your vehicle; the electroniccontrol circuits, the audio circuitand the battery charging circuit. PEUGEOT will not accept respon- sibility for the cost incurred in repai-ring your vehicle or for rectifyingthe malfunctions resulting from theinstallation of accessories not sup-plied and not recommended byPEUGEOT and not installed inaccordance with its instructions, inparticular where the equipment inquestion consumes more than 10milliamperes. ** The maxi-fuses provide addi- tional protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
* According to specification.
ENGINE COMPARTMENT FUSES*
To access the fuse box in the enginecompartment (beside the battery),
unclip the cover. Carefully close the cover when you have finished.
Fuse No. Rating* Functions* 1** 40A Anti-theft supply
2** 60A Supply to Locks - lighting switch Ð air conditioning blower unit Ð front fog relay Ð diagnostic connector
3** 60A ABS ECU supply
4** 60A + positive fuse box supply

Fuse No. Rating*Functions*
29 10A Left-hand dipped beam
30 10A Right-hand dipped beam
31 10A Left-hand main beam
32 10A Right-hand main beam
33 15A Diesel control unit
34 10A Oxygen sensor
35 15A Petrol pump
36 20A Headlamp wash timer
37 40A Cooling fan unit
38 - Not used
39 40A Fan unit spare fuse
40 40A Fan unit 43
* According to specification.
MAINTENANCE OF YOUR 306

MAINTENANCE OF YOUR 30639

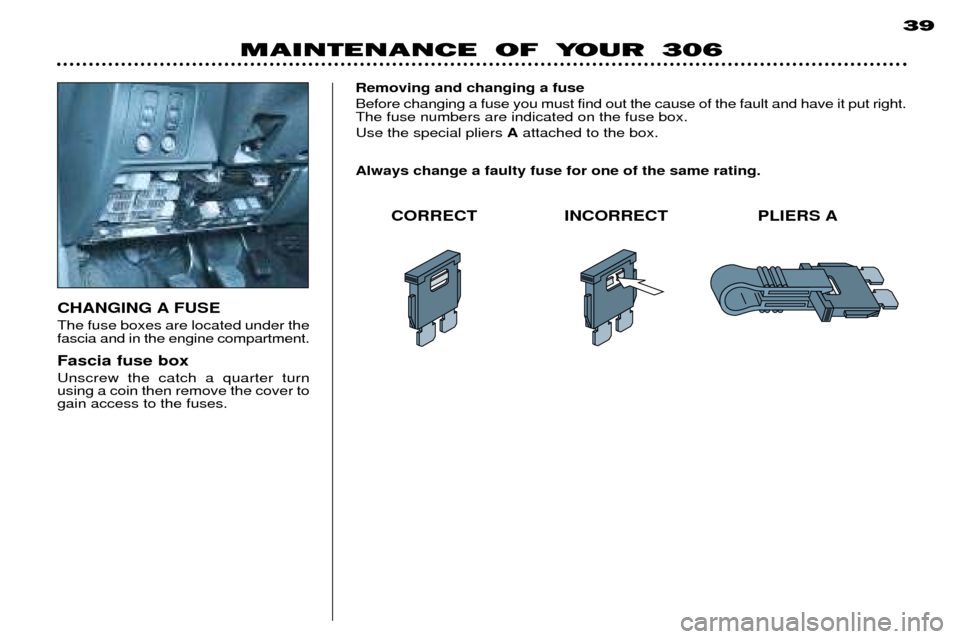

CHANGING A FUSE The fuse boxes are located under the fascia and in the engine compartment. Fascia fuse box Unscrew the catch a quarter turn using a coin then remove the cover togain access to the fuses.Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
CORRECT INCORRECT PLIERS A

FASCIA FUSE BOX 28-fuse boxFuse No. Rating* Functions*
1 Ñ Not used
2 7.5A Automatic gearbox or excess speed buzzer control unit
3 5A ABS control unit
4 5A Instrument panel Ð Passenger compartment protection unit Ð Coolant temperature unit Ð Automatic gearbox lever lighting Ð Automatic gearbox relay Ð Passenger airbag disarming switch
5 25A Reversing lights switch Ð Automatic gearbox relay Ð Stop lights switch Ð Daylight running lights relay Ð Fan assembly relay Ð Pressostat control Ð Compressor relay
6 5A Instrument panel - Passenger compartment protection unit Ð Alarm warning light Ð Clock Ð Boot light Ð Radio aerial
7 30A Rear screen and mirrors demisting
8 20A Passenger compartment protection unit Ð Radio
9 20A Injection control unit Ð Fan assembly relay Ð Coolant temperature unit
10 20A Hazard warning lights Ð Front and rear courtesy lights 11 10A Instrument panel lighting Ð Side lights buzzer - Clock Ð Lighting rheostat Ð Side lights
12 10A Rear fog lamp
13 Ñ Not used
14 30A Rear screen and heated seats relay
MAINTENANCE OF YOUR 306
40
* According to specification.
