YOUR 306 CABRIOLET AT A GLANCE3
1
- Side window demisting vents.
2 - Adjustable side vent.
3 - Passenger airbag.
4 - Windscreen demisting vents.
5 - Controls:
Lighter Hazard warning lightsRear screen and mirrors demisting.
6 - Heating/Ventilation,
Air conditioning controls*.
7 - Audio equipment*.
8 - Adjustable central vents. 9
- Lights stalk, fog lamps* and
horn.
10 - Steering wheel with airbag.
11 - Audio remote control*.
12 - Windscreen wash-wipe control.
13 - Headlamp height
adjustment.
- Instrument dials lighting rheostat.
14 - Controls for:
- Electric mirrors.
- Electric windows.
15 - Control for rear window lock.
16 - Bonnet opening control. 17
- Passenger airbag
disarming switch*.
18 - Fuse box.
19 - Steering lock and ignition.
20 - Handbrake.
21 - Gear lever.
22 - Storage compartment.
23 - Ashtray.
24 - Glove box.
* According to specification.

YOUR 306 CABRIOLET IN DETAIL
58
1- Upwards : Increases volume.
2 - Downwards : Decreases volume.
3 - Forwards : Automatic search of lower frequencies (radio).
Selection of previous track (CD)*.
4 - Backwards : Automatic search of higher frequencies (radio).
Selection of next track (CD)*.
ABC
G
H
IJLKM
DEF
AUDIO RB1
4
1
3
2
* Available as an accessory

YOUR 306 CABRIOLET IN DETAIL 59
Button Function
AT ATraffic information priority on/off.
B RDS RDS on/off.
Press for more than 2 seconds: regional following mode on/off.
C BND/AST Waveband selection FMI, FM2, FM3, AM.Press for more than 2 seconds: automatic storing of stations (autostore).
D SRC Source selection: radio, cassette or CD changer*.
Press for more than 2 seconds: CD* shuffle.
E Press fully: cassette rewind.
F Press fully: cassette fast forwards.
E + F Press half-way: reverses the direction of play of the cassette. Press fully: ejects the cassette.
G Increase the audio setting.
H Decrease the audio setting
I AUDIO Selects bass, treble, loudness, fader and balance.
J Higher frequency automatic search. Selection of next CD* track.
K Lower frequency automatic search.Selection of previous CD* track.
L MAN Manual/automatic operation of button Jand K.
M Audio system on/off. Volume adjustment.
1 to 6 Selects a stored station. Press for more than 2 seconds: stores a station.Selects a CD* disk.
jjj
kkk
jjjkkk


k
j

YOUR 306 CABRIOLET IN DETAIL 61
AUDIO SETTINGS Press the Ò
AUDIOÓ button several times to select bass (BASS), treble (TREB) , loudness (LOUD), fader (FAD)and
balance (BAL).
Exit from audio mode is automatic after a few seconds, without pressing any button or by pressing the Ò AUDIOÓ
button after adjusting the balance. Note : bass and treble settings are specific to each source. It is possible to set them differently for radio,
cassette and CD.
Bass setting When Ò BASSÓ is displayed, press the Ò GÓ or Ò HÓ buttons to vary the setting.
-Ò BASS -9 Ó for a minimum bass setting,
-Ò BASS 0 Ó for a normal position,
-Ò BASS +9 Ó for a maximum bass setting.
Treble settingWhen Ò TREBÓ is displayed, press the Ò GÓ or Ò HÓ buttons to vary the setting.
-Ò TREB -9 Ó for a minimum treble setting,
-Ò TREB 0 Ó for a normal position,
-Ò TREB +9 Ó for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Press the ÒGÓor ÒHÓ buttons to switch this function on or off.
Setting the front/rear sound distribution (Fader) When Ò FA DÓ is displayed, press the Ò GÓ or Ò HÓ buttons to vary the setting.
The Ò GÓ button increases the volume at the front.
The Ò HÓ button increases the volume at the rear.
Note : For vehicles fitted with speakers at the front only, it is possible to cancel or add this function. This
operation is carried out as follows:
- Ignition key in Accessories position,
- With the radio switched off,
- Simultaneously pressing buttons ÒIÓet ÒMÓ .

65
YOUR 306 CABRIOLET IN DETAIL
CASSETTE Selecting cassette mode
When a cassette is inserted, the cassette player will start automaticaily. If a cassette is already inserted, press the ÒSRCÓ button until the cassette is selected. Ejecting the cassette Fully press both buttons Ò EÓ and Ò FÓ to eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a side.
To manually reverse the direction of play, press both buttons Ò EÓ and Ò FÓ part way.
Fast forward/rewind Fully press one of the buttons Ò EÓ or Ò FÓ to fast forward or fast rewind the cassette. At the end of the fast
forward rewind, the set plays the current side.
Note: - During fast forwards or rewind of a cassette, the audio system will automatically play the last radio station.
- Never insert a damaged cassette.

68

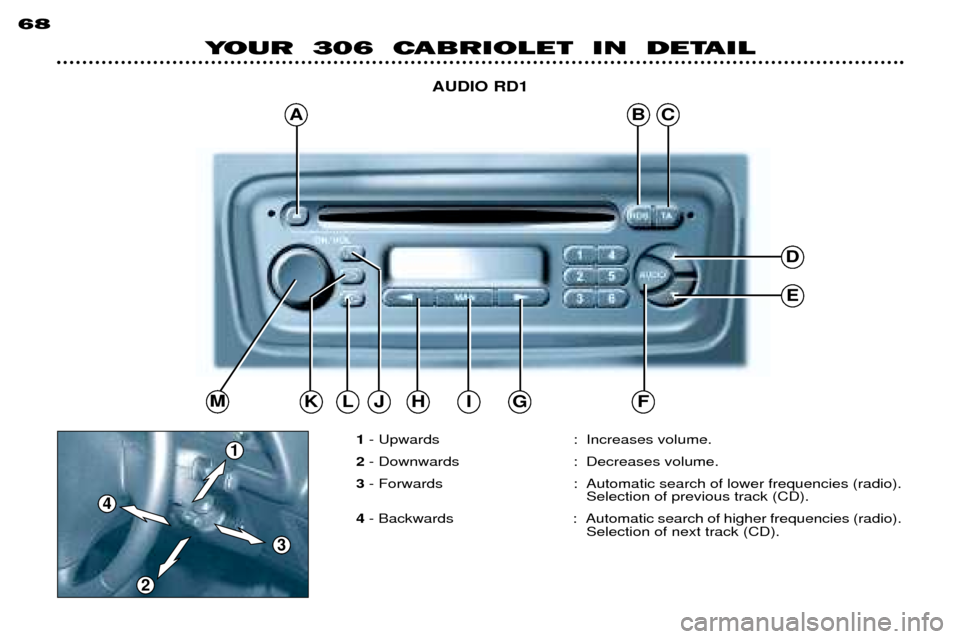

YOUR 306 CABRIOLET IN DETAILAUDIO RD1
1- Upwards : Increases volume.
2 - Downwards : Decreases volume.
3 - Forwards : Automatic search of lower frequencies (radio).
Selection of previous track (CD).
4 - Backwards : Automatic search of higher frequencies (radio).
Selection of next track (CD).
ABC
D
E
MJKFGIHL
4
1
3
2

69
YOUR 306 CABRIOLET IN DETAIL
Button Function
A i
Ejection of the CD.
B RDS RDS function on/off.
Press for more than 2 seconds: regional station following on/off.
CT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
D Increase the audio setting.
E Decrease the audio setting.
F AUDIO Selects bass, treble, loudness and fader.
G Automatic search of higher frequency.Selection of next CD track.
H Automatic search of lower frequency.Selection of previous CD track.
I MAN Manual/automatic operation of buttons Gand H.
J Source selection, radio. Selection of wavebands FM1, FM2, FM3, AM. Press for more than 2 seconds: automatic storing of stations (autostore).
K Source selection, CD.
Press for more than 2 seconds: shuffle.
L Source selection: CD changer.
Press for more than 2 seconds: shuffle.
M ON/VOL Radio on/off. Volume adjustment.
1 to 6 Selection of the stored station. Press for more than 2 seconds: storing a station.Selection of a CD disc.


k
j

71
YOUR 306 CABRIOLET IN DETAIL
AUDIO SETTINGS Press the Ò AUDIOÓ button several times to select bass (BASS), treble(TREB) , loudness (LOUD), fader (FAD)and
balance (BAL).
Exit from audio mode is automatic after a few seconds, without pressing any button or by pressing the Ò AUDIOÓ
button after adjusting the balance. Note: the bass and treble settings are specific to each source. It is possible to set the radio, CD, or CD multi-changer
differently.
Bass setting When ÒBASSÓ is displayed, press the Ò DÓ or Ò EÓ buttons to vary the setting.
-Ò BASS -9 Ó for a minimum bass setting,
-Ò BASS 0 Ó for a normal position,
-Ò BASS +9 Ó for a maximum bass setting.
Treble settingWhen Ò TREBÓ is displayed, press the Ò DÓ or Ò EÓ buttons to vary the setting.
-Ò TREB -9 Ó for a minimum treble setting,
-Ò TREB 0 Ó for a normal position,
-Ò TREB +9 Ó for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Press the ÒDÓor ÒEÓ buttons to switch this function on or off.
Setting the front/rear sound distribution (Fader) When Ò FA DÓ is displayed, press the Ò DÓ or Ò EÓ buttons to vary the setting.
The Ò DÓ button increases the volume at the front.
The Ò EÓ button increases the volume at the rear.
This function may be switched off by simultaneously pressing buttons Ò MÓ and Ò FÓ.
Setting the right/left sound distribution (Balance)When Ò BALÓ is displayed, press the Ò DÓ or Ò EÓ buttons to vary the setting.
The ÒDÓbutton increases the volume on the right-hand side.
The ÒEÓbutton increases the volume on the left-hand side.

YOUR 306 CABRIOLET AT A GLANCE
14
IDENTITY CARD FOR YOUR 306 Cabriolet
CustomerÕs name: .................................................................................................
Model : ....................................................................................................................
Colour : ...................................................................................................................
Audio equipment : .................................................................................................
Engine model : .......................................................................................................
Fuel to be used : Petrol ..........................................................................................
Tyre inflation pressure : .........................................................................................
Dimensions of tyres : .............................................................................................
First service due : ..................................................................................................
Servicing schedule : Services every : ...................................................................
Date of first M.O.T.*: ..............................................................................................
Date of second M.O.T.*: .........................................................................................
*According to current legislation.

PARTS AND ACCESSORIES 15
For your PEUGEOT, use only accessories and original parts approved by the manufacturer.
These accessories and parts are all suitable for your PEUGEOT, after being tested and approved for reliability and
safety.
A wide choice of original accessories, approved by PEUGEOT, is available through the network.
They all carry the PEUGEOT guarantee. Safety: Anti-theft alarm, engraving of window, wheel anti-theft devices, first aid kitÉ
Comfort : Telephone console, armrests, seat covers compatible with side airbags, mats, boot tray, sunroof, luggage net, door deflectors, storage under rear parcel shelfÉ
Communication : Audio equipment, telephone, CD changer, audio accessories, CB, speakers, naviga-tion...
Personalisation : Alloy wheels, wheel trims, long range lights, fog lamps, sports exhaust, mud flaps,...
Leisure: Towbar, roof box,É
Children: Booster seats and child seats, side blinds and rear blind...
Maintenance products: Windscreen wiper fluid, internal and external cleaning and maintenance products...
