Peugeot 306 C Dag 2001 User Guide

100
1
B
A

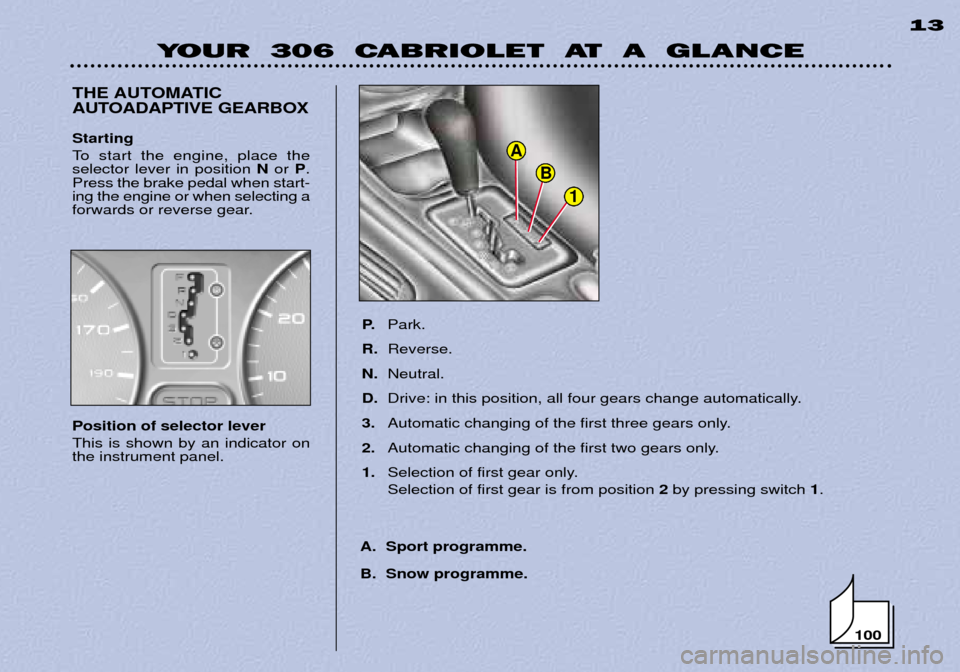

YOUR 306 CABRIOLET AT A GLANCE13
THE AUTOMATIC
AUTOADAPTIVE GEARBOX
P.Park.
R. Reverse.
N. Neutral.
D. Drive: in this position, all four gears change automatically.
3. Automatic changing of the first three gears only.
2. Automatic changing of the first two gears only.
1. Selection of first gear only. Selection of first gear is from position 2by pressing switch 1.
Position of selector leverThis is shown by an indicator on the instrument panel.
Starting
To start the engine, place the selector lever in position
Nor P.
Press the brake pedal when start-ing the engine or when selecting a
forwards or reverse gear.
A. Sport programme.
B. Snow programme.

56
123
123
45
YOUR 306 CABRIOLET AT A GLANCE
12
5 Recirculation of interior air.
VENTILATION/HEATING/AIR CONDITIONING
1 Air flow adjustment.
2 Temperature adjustment.
3 Air distribution.
Windscreen and side windows. Windscreen, side windows and footwells. Footwells. Central and side vents.
4 Air conditioning on/off.

MAINTENANCE OF YOUR 306 CABRIOLET
18
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30,000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. That is why the PEUGEOT network is offering you an intermediate service between each regular service.
The date of this service is not shown by the service indicator. It is to be carried out every 9 000 miles (15 000 km) for petrol engines.
A Peugeot dealer will carry out a rapid check and top up fluids as necessary (oil, coolant, windscreen wash fluid to the 2 litre limit). If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000 to 3,000 miles (3,000 to 5,000 km), depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.

MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services). NB: the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.

92
YOUR 306 CABRIOLET IN DETAIL
5 seconds after switching on the ignition the display resumes normaloperation and shows the total and tripdistances.
SERVICE INDICATOR This is a reminder of when the next service is due in accordance with the
manufacturerÕs maintenance sched-ule. Operation The spanner symbolising the service operations comes on for five seconds
when the ignition is switched on. Thetotal distance recorder displays the dis-tance remaining (rounded down) beforethe next service. When the distance remaining beforethe next service is less than 1000 km.
When a service is overdue. For five seconds after the ignition is switched on, the service symbol andthe excess distance flash.
Example: 4800 km remain before the
next service is due. For five secondsafter the ignition is switched on, thedisplay shows:
5 seconds after switching on the igni-tion, the display resumes normal oper-ation and the service symbol remains
lit. The display shows the total and tripdistances.
5 seconds after switching on the igni-tion, the display resumes normal oper-ation and the symbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total and trip distances. Example:
the service is overdue by
300 km. The vehicle should be serviced very soon. For five seconds after the ignition is switched on, the display shows:
Example:
900 km remain before the
next service is due. For five seconds after the ignition is switched on, the display shows:

193
YOUR 306 CABRIOLET IN DETAIL
- Switch on the ignition.
- The display begins a 10 second
countdown.
- Release the button before the countdown finishes.
- The service interval is displayed.
- Each brief press of button 1alter-
nates the service intervals.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. Example:
- When the chosen service interval
is displayed, press button 1for
10 seconds (countdown) to confirm. Reset
Your PEUGEOT dealer carries out this operation after each service.
However, if you service the vehicleyourself, reset as follows:
- Switch off the ignition.
- Press and hold button
1.
- Switch on the ignition.
- The display begins a 10 second countdown.
- Keep button 1pressed for
10 seconds.
- The display shows [= 0]and the
service symbol disappears.
Service intervals If your vehicle is used in certain
particularly difficult conditions it is necessary to follow the "Arduous conditions" servicing schedule, whichinvolves shorter intervals between
services (see your Warranty andMaintenance Record booklet). Comment:
If the time limit between
two services is reached before the relevant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.

193
YOUR 306 CABRIOLET IN DETAIL
- Switch on the ignition.
- The display begins a 10 second
countdown.
- Release the button before the countdown finishes.
- The service interval is displayed.
- Each brief press of button 1alter-
nates the service intervals.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. Example:
- When the chosen service interval
is displayed, press button 1for
10 seconds (countdown) to confirm. Reset
Your PEUGEOT dealer carries out this operation after each service.
However, if you service the vehicleyourself, reset as follows:
- Switch off the ignition.
- Press and hold button
1.
- Switch on the ignition.
- The display begins a 10 second countdown.
- Keep button 1pressed for
10 seconds.
- The display shows [= 0]and the
service symbol disappears.
Service intervals If your vehicle is used in certain
particularly difficult conditions it is necessary to follow the "Arduous conditions" servicing schedule, whichinvolves shorter intervals between
services (see your Warranty andMaintenance Record booklet). Comment:
If the time limit between
two services is reached before the relevant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.

MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services). NB: the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.

AA
A
CC
AACC
20TYPES OF SERVICE
Each vehicle has its own servicing cycle, defined by the manufacturer in accordance with each vehicleÕs specific technical features.
This cycle consists of alternating 2 types of service A and C, intermediate visits, and a few additional operations depending on your vehicle ; these correspond to key stages in the life of your 306. Services of type B are designed for less recent vehicles.
Your dealer will indicate the type and content of the next service when the first service is carried out, and at each sub- sequent service.
MAINTENANCE OF YOUR 306 CABRIOLET
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000) 80,000 (120 000)
1st service at
6,000 miles (10 000 km)* or 6 months*
The validity of the
Warranty depends
on this service.
100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000) 180,000 (270 000)
Intermediate visit
* Whichever comes first Automatic gearbox oil level every 40,000 miles (60,000km) Brake fluid
replacement every 2 years or every 40,000 miles (60,000km).
These operations are carried out with synthetic based oil;Fuel Economy oil or
synthetic oil can also be used. THE MAINTENANCE CYCLE FOR YOUR PETROL 306 CABRIOLET
Service every 20,000 miles (30 000 km) or 2 years
+ timing belt replacement
+ timing belt replacement

MAINTENANCE OF YOUR 306 CABRIOLET21
PEUGEOT SERVICING LEVELS A AND C
: All driving conditions : Specific conditions Level
Operations Description of operations for 1st service
ServicesACIntermediate visitDRAIN AND REFILL- Engine drain and refill.- Oil filter.- Fuel filter (Petrol).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if plug is removable.LEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Clearances, hubs, rods, ball joints, flxible mountings.- Sealing of dampers.- Wear of rear linings.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
SERVICE- Courtesy vehicle
ROAD TEST
REPLACEMENT
