YOUR 306 CABRIOLET IN DETAIL
56
To quickly de-ice or demist the windscreen and the side windows, set the heating and air flow controls to maximum.
To obtain even air distribution, ensure that the external air intake vent and the ven- tilation vents are not blocked and that the air can move freely under the front seats. 2 Adjusting the temperature
Turn the knob
2to the blue zone
(outside temperature) or to the red zone (hot).
3 Adjusting the air flow
Turn the knob 3to the required flow
position.
This position prevents the
entry of outside air. It mustonly be used for a short timeto prevent the entry ofunpleasant odours or dust.
1 Adjusting the air distribution
To direct hot or cold air, turn knob 1to the desired position.
Windscreen and side windows. Windscreen, side windows and footwells. Footwells only. Side and central vents.
HEATING

43
2157
1 Switching on Press the switch
1, the operating light will come on.
2 Adjusting the temperature
Turn the knob 2to the blue zone (cold) or to the red zone (hot).
3 Adjusting the air distribution
To direct the hot or cold air, turn the knob 3to the desired position. 4 Adjusting the air flow
Turn the knob
4to obtain the desired
flow.
Entry of outside airThis is the normal operating position. Recirculation of interior air This position prevents the
entry of outside air. Used at the same time as the
air conditioning, this will improve air conditioning performance. Used on its own, it prevents the entry of outside air (dust, unpleasantodours) but there is a risk of misting ofthe windows.
Avoid continuous operation in interior air recirculation mode. Important precautions: Operate the air conditioning system for 5 to 10 minutes once or twice amonth to keep it in good working
order. It is advisable to change the air con- ditioning system fluid every two years.
If the system is not producing cold air, stop using it and contact a
PEUGEOT dealer.
Windscreen and side windows. Windscreen, side windows and footwells. Footwells only. Side and central vents.
YOUR 306 CABRIOLET IN DETAIL
AIR CONDITIONING

6
5
2
1
3
4
YOUR 306 CABRIOLET IN DETAIL
82

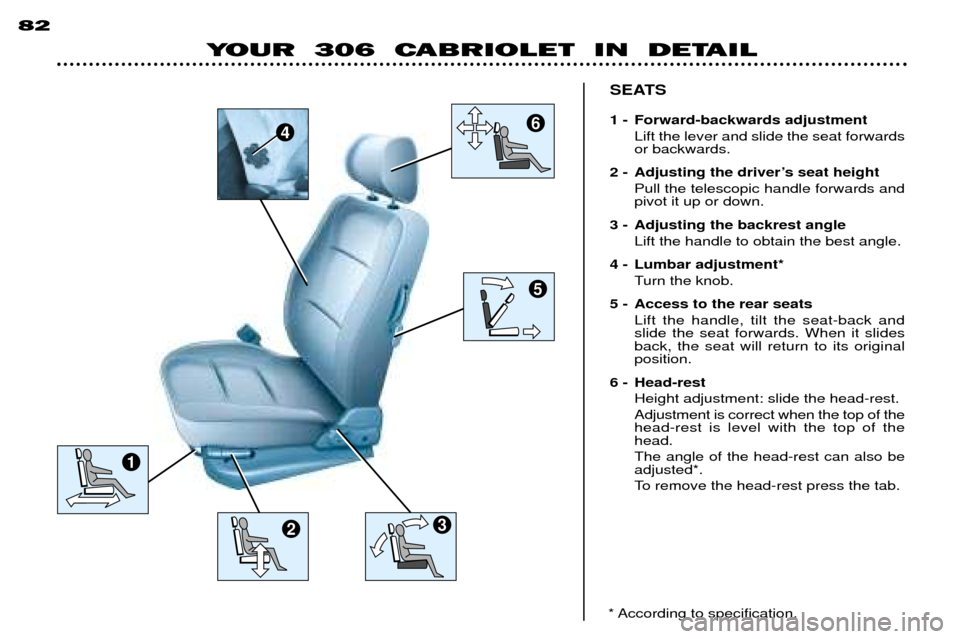

SEATS
1 - Forward-backwards adjustmentLift the lever and slide the seat forwards or backwards.
2 - Adjusting the driver Õs seat height
Pull the telescopic handle forwards andpivot it up or down.
3 - Adjusting the backrest angle Lift the handle to obtain the best angle.
4 - Lumbar adjustment* Turn the knob.
5 - Access to the rear seats Lift the handle, tilt the seat-back andslide the seat forwards. When it slidesback, the seat will return to its originalposition.
6 - Head-rest Height adjustment: slide the head-rest. Adjustment is correct when the top of the head-rest is level with the top of thehead. The angle of the head-rest can also be adjusted*.
To remove the head-rest press the tab.
* According to specification.

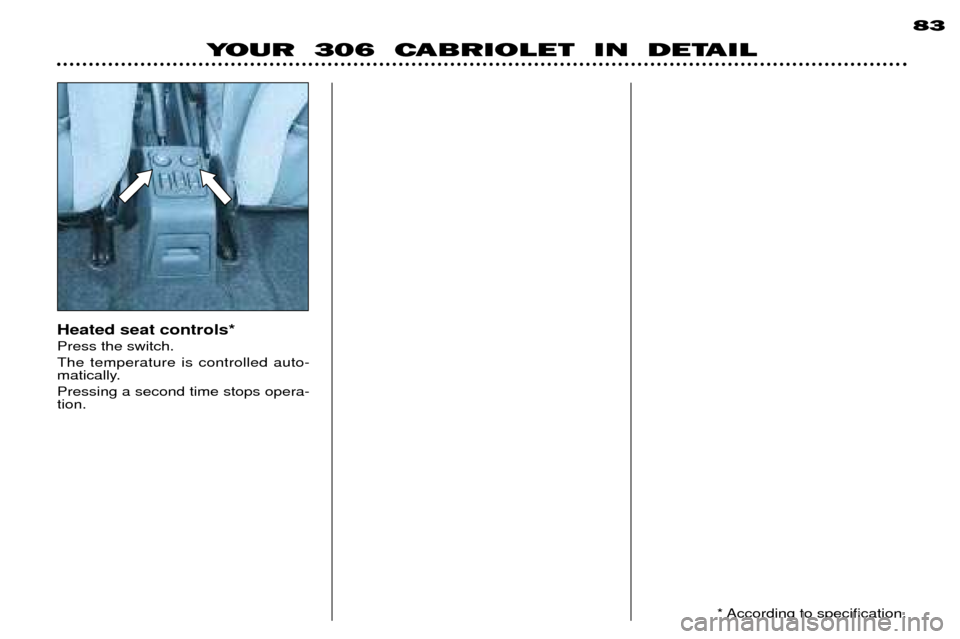

Heated seat controls* Press the switch.The temperature is controlled auto-
matically. Pressing a second time stops opera- tion.
83
YOUR 306 CABRIOLET IN DETAIL
* According to specification.

123Never leave a child in a vehicle which is exposedto the sun and has thewindows closed.
To protect young children
from the sun, fit sunblinds to the rear windows. Never leave the keys in the reach
of children inside the car. Strap children into their child seats even on short journeys.
84
YOUR 306 CABRIOLET IN DETAIL
Observe the precautions concern- ing the passenger airbag.
CHILD SEATS All children under the age of 10 are required to travel in approved child safety seats*, fitted with seat belts.
After carrying out numerous tests, PEUGEOT recommend the following systems :Up to 9 months (up to 22 lbs. or 10 kg)
ÇBaby SafeÈ, a seat secured with its back to the engine and secured with a three-point seat belt, on either the front or rear seat.
From 9 months to 3 or 4 years (20 to 40 lbs. or 9 to 18 kg)
ÇRšmer PeggyÈ is fitted to the rear seat with a three-point belt.
For your childÕs safety, the seat cushion and the tray must never be separated.
Over 3 or 10 years old (33 to 80 lbs or 15 to 36 kg) ÒKlippan OptimaÓ : is fitted in the rear with a three point belt (removable seatback). from 33 to 55 lbs. [15 to 25 kg] : booster + seatback.from 55 to 80 lbs. [25 to 36 kg] : use the booster on its own.
For maximum safety, fasten the three-point seat belts or the child seat straps keeping
the slack in relation to the childÕs body to a minimum, even for short journeys. Also, do not open the rear windows more than a third.
This was one of PEUGEOTÕs main criteria when designing your vehicle, however the safety of your children also depends on you. For maximum peace of mind,please follow these simple precautions:
* According to current legal requirements.
1
2
3

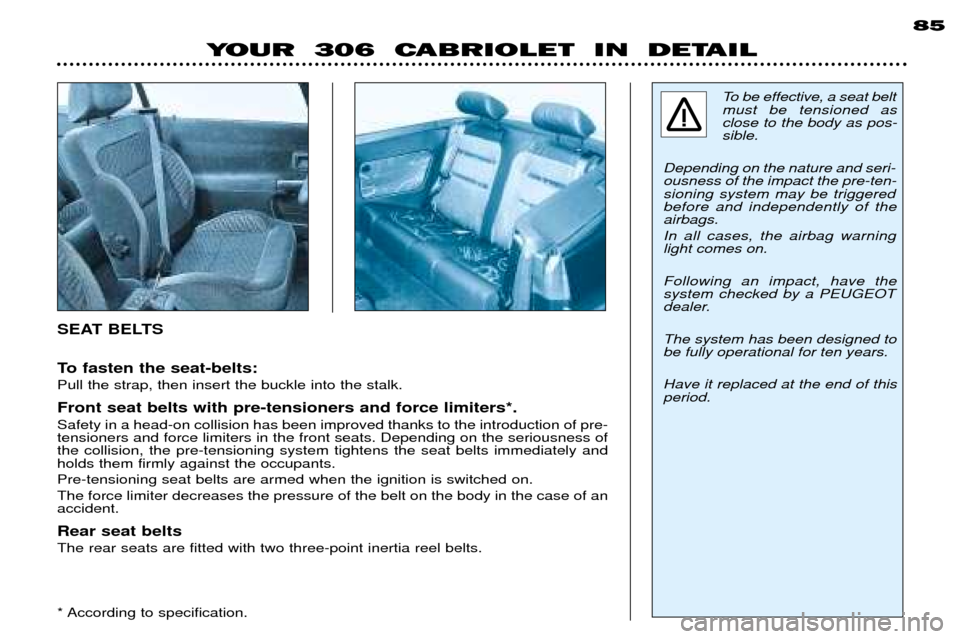

To fasten the seat-belts: Pull the strap, then insert the buckle into the stalk. Front seat belts with pre-tensioners and force limiters*. Safety in a head-on collision has been improved thanks to the introduction of pre- tensioners and force limiters in the front seats. Depending on the seriousness ofthe collision, the pre-tensioning system tightens the seat belts immediately andholds them firmly against the occupants. Pre-tensioning seat belts are armed when the ignition is switched on.The force limiter decreases the pressure of the belt on the body in the case of an accident. Rear seat belts The rear seats are fitted with two three-point inertia reel belts.
* According to specification.To be effective, a seat belt must be tensioned asclose to the body as pos-sible.
Depending on the nature and seri-ousness of the impact the pre-ten-sioning system may be triggeredbefore and independently of theairbags. In all cases, the airbag warning light comes on. Following an impact, have the system checked by a PEUGEOT
dealer. The system has been designed to be fully operational for ten years. Have it replaced at the end of this period. 85
YOUR 306 CABRIOLET IN DETAIL
SEAT BELTS

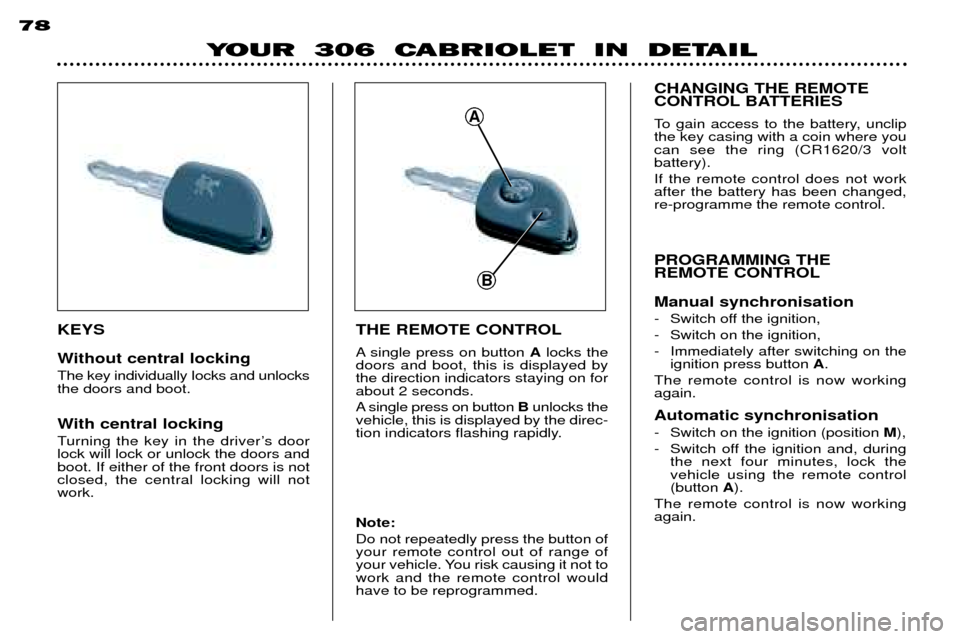

THE REMOTE CONTROL
A single press on button Alocks the
doors and boot, this is displayed by the direction indicators staying on forabout 2 seconds.
A single press on button Bunlocks the
vehicle, this is displayed by the direc-
tion indicators flashing rapidly.
KEYS
Without central locking The key individually Iocks and unlocks the doors and boot.
With central locking
Turning the key in the driverÕs door lock will lock or unlock the doors andboot. If either of the front doors is notclosed, the central locking will notwork.
A
B
YOUR
306 CABRIOLET IN DETAIL
78
CHANGING THE REMOTE
CONTROL BATTERIES
To gain access to the battery, unclip the key casing with a coin where youcan see the ring (CR
1620/3 volt
battery). If the remote control does not work after the battery has been changed,re-programme the remote control.
PROGRAMMING THEREMOTE CONTROL Manual synchronisation
- Switch off the ignition,
- Switch on the ignition,
- Immediately after switching on the ignition press button A.
The remote control is now working again. Automatic synchronisation
- Switch on the ignition (position M),
- Switch off the ignition and, during the next four minutes, lock the vehicle using the remote control(button A).
The remote control is now workingagain.
Note: Do not repeatedly press the button of your remote control out of range of
your vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed.

1
2
79
YOUR 306 CABRIOLET IN DETAIL

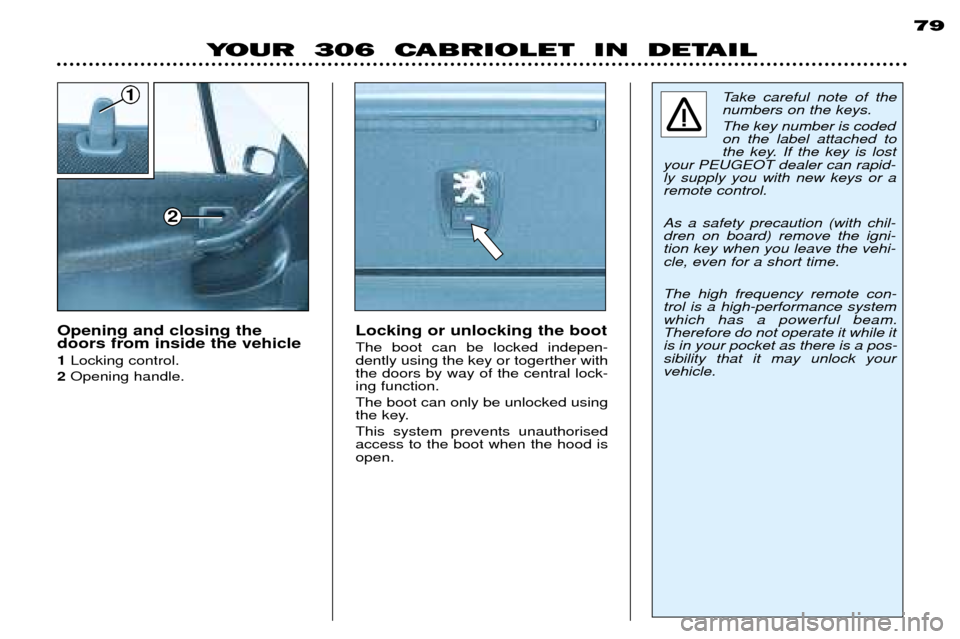

Locking or unlocking the boot The boot can be locked indepen- dently using the key or togerther withthe doors by way of the central lock-ing function. The boot can only be unlocked using
the key. This system prevents unauthorised access to the boot when the hood isopen.
Opening and closing thedoors from inside the vehicle 1
Locking control.
2 Opening handle. Take careful note of the numbers on the keys. The key number is coded on the label attached to
the key. If the key is lost
your PEUGEOT dealer can rapid-ly supply you with new keys or aremote control. As a safety precaution (with chil- dren on board) remove the igni-tion key when you leave the vehi-cle, even for a short time. The high frequency remote con- trol is a high-performance systemwhich has a powerful beam.Therefore do not operate it while itis in your pocket as there is a pos-sibility that it may unlock yourvehicle.

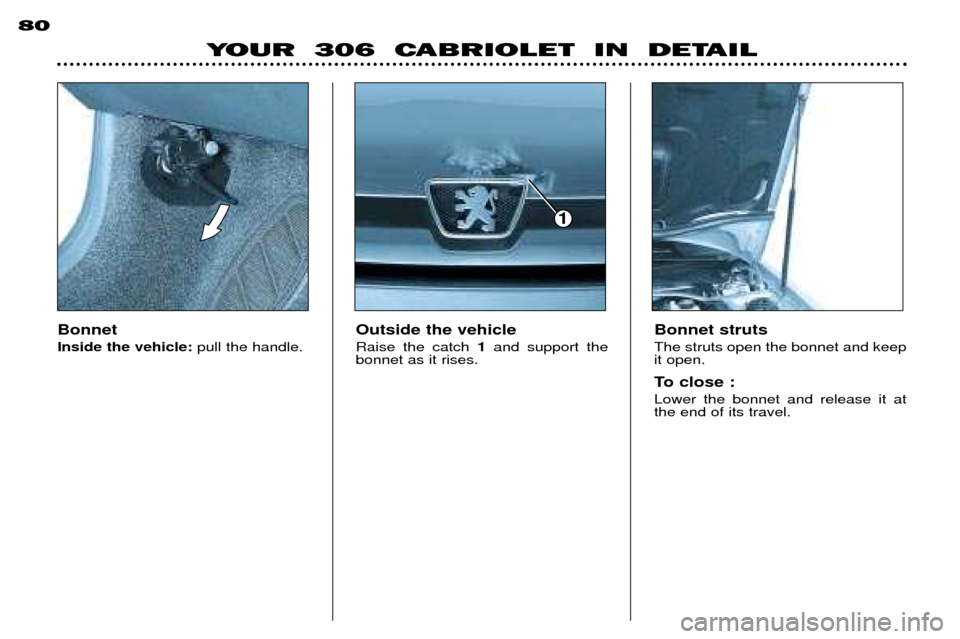

Bonnet Inside the vehicle:pull the handle. Outside the vehicleRaise the catch
1and support the
bonnet as it rises. Bonnet strutsThe struts open the bonnet and keep it open.
To close : Lower the bonnet and release it at the end of its travel.
1
80
YOUR
306 CABRIOLET IN DETAIL

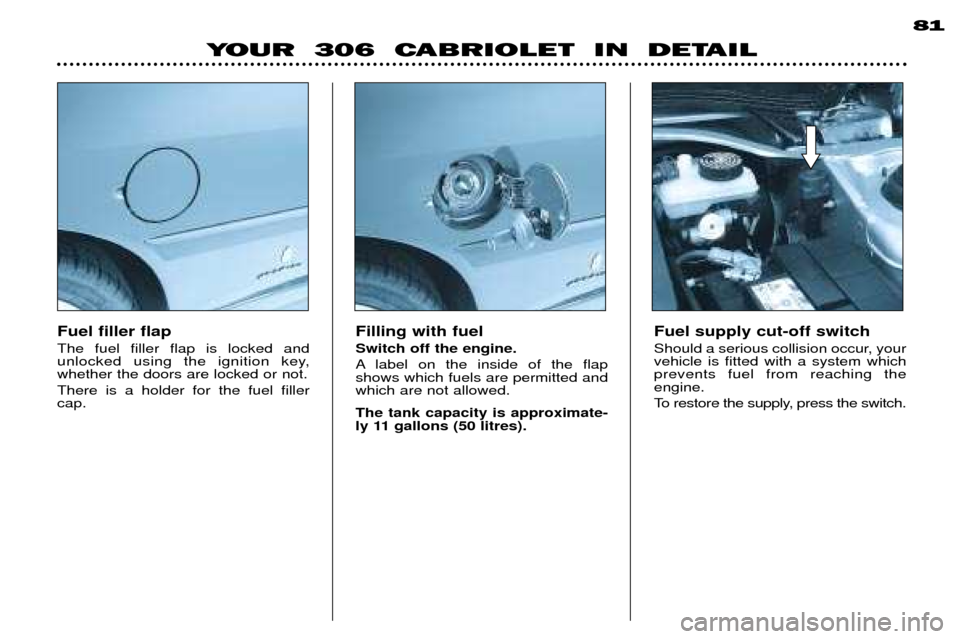

Fuel filler flap The fuel filler flap is locked and
unlocked using the ignition key,whether the doors are locked or not. There is a holder for the fuel filler cap.Filling with fuel Switch off the engine.
A label on the inside of the flap shows which fuels are permitted andwhich are not allowed. The tank capacity is approximate-
ly 11 gallons (50 litres).Fuel supply cut-off switch
Should a serious collision occur, your vehicle is fitted with a system whichprevents fuel from reaching theengine.
To restore the supply, press the switch.
YOUR
306 CABRIOLET IN DETAIL 81
