Peugeot 306 C Dag 2001 Owners Manual

MAINTENANCE OF YOUR 306 CABRIOLET27
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4,4 litres or 6 litres withheadlight wash). Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer. Air filter Regular replacement of the filter element is essential. If you drive invery dusty conditions, change it twiceas often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town or for shortjourneys or which are driven in a
sporty manner. It may be necessaryto check the thickness of the padseven between services. Manual gearbox This does not need an oil change. Check the level according to the man-
ufacturerÕs service schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to the
manufacturerÕs service schedule.
Only use products
approved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as impor- tant as the power steering and thebraking system, PEUGEOT selectsand offers quite specific products. Fuel supply cut-off* In a serious collision, a system pre- vents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the angle of the front
left-hand suspension assembly, underthe bonnet.
* According to specification.

96
12
34
A
94

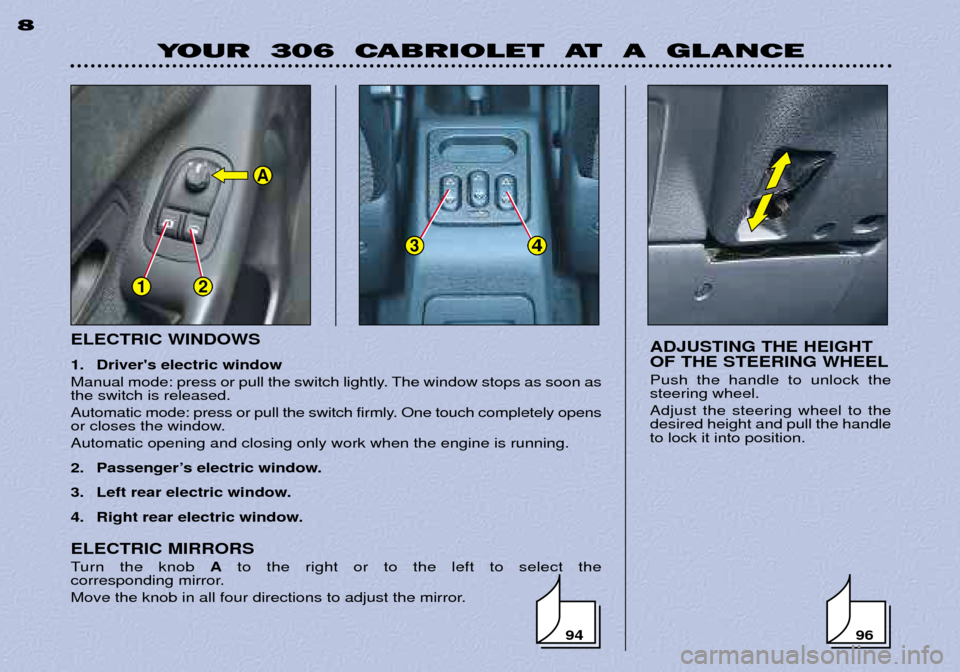

ELECTRIC WINDOWS
1. Driver's electric window
Manual mode: press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode: press or pull the switch firmly. One touch completely opens
or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window.
4. Right rear electric window.
YOUR 306 CABRIOLET AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the
corresponding mirror.
Move the knob in all four directions to adjust the mirror.

88
1
YOUR 306 CABRIOLET AT A GLANCE9
9
FUEL FILLER FLAP
To open: firmly pull the handle on the floor to the outside of the driverÕs seat.
To close: from outside, push the flap back and check that it is secured
correctly. Filling with fuel Switch off the engine. There is a holder for the fuel filler cap.
A label on the inside of the flap shows which fuels are permitted and which are not allowed.
The capacity of the tank is approximately 11 gallons (50 litres).
Fuel low warning light The fuel low warning light indicates that the quantity of fuel remaining in the tank is approximately 1.3 gallons (6 litres).
Outside the vehicle Raise the catch 1and support the
bonnet as it rises.
OPENING THE BONNET Inside the vehicle:
Pull the
handle.
81

82
5
3
21
4
82
YOUR 306 CABRIOLET AT A GLANCE
10
FRONT - REAR HEAD RESTRAINT - Height adjustment: slide them.
- Adjusting the angle: tilt them.
To remove the head restraint, posi- tion it at maximum height andpress the tab.
ADJUSTING THE FRONT SEATS
1 Forwards-backwards adjustment.
2 Seat back angle adjustment.
3 DriverÕs seat height adjustment: pull the telescopic handle and
pivot it.
4 Lumbar adjustment.
5 Access to rear seats.

46
1
12
YOUR 306 CABRIOLET AT A GLANCE11

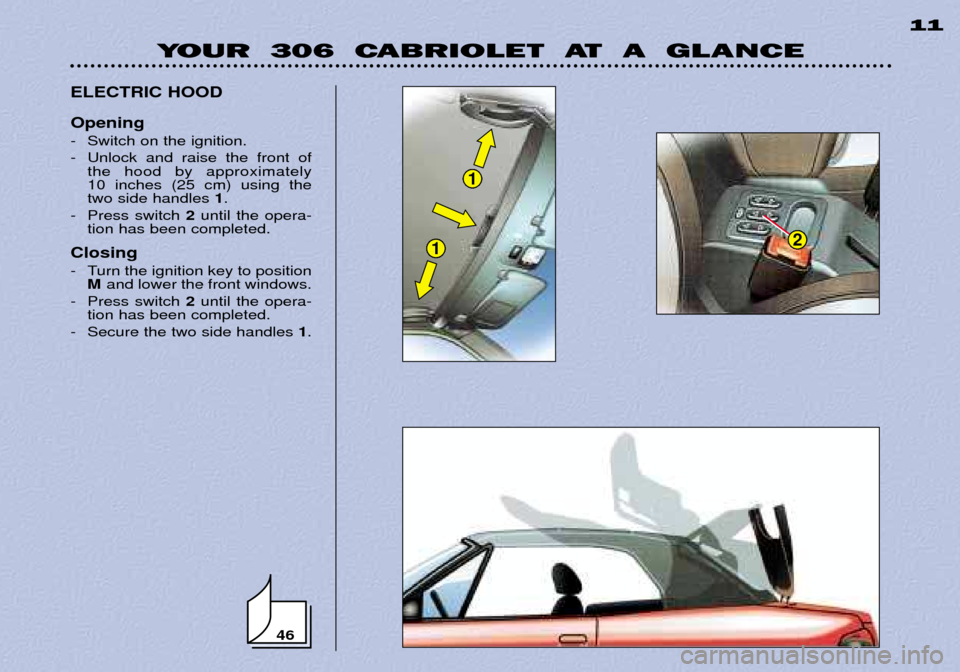

ELECTRIC HOOD Opening
- Switch on the ignition.
- Unlock and raise the front of the hood by approximately 10 inches (25 cm) using thetwo side handles 1.
- Press switch 2until the opera-
tion has been completed.
Closing
- Turn the ignition key to position M and lower the front windows.
- Press switch 2until the opera-
tion has been completed.
- Secure the two side handles 1.

56
123
123
45
YOUR 306 CABRIOLET AT A GLANCE
12
5 Recirculation of interior air.

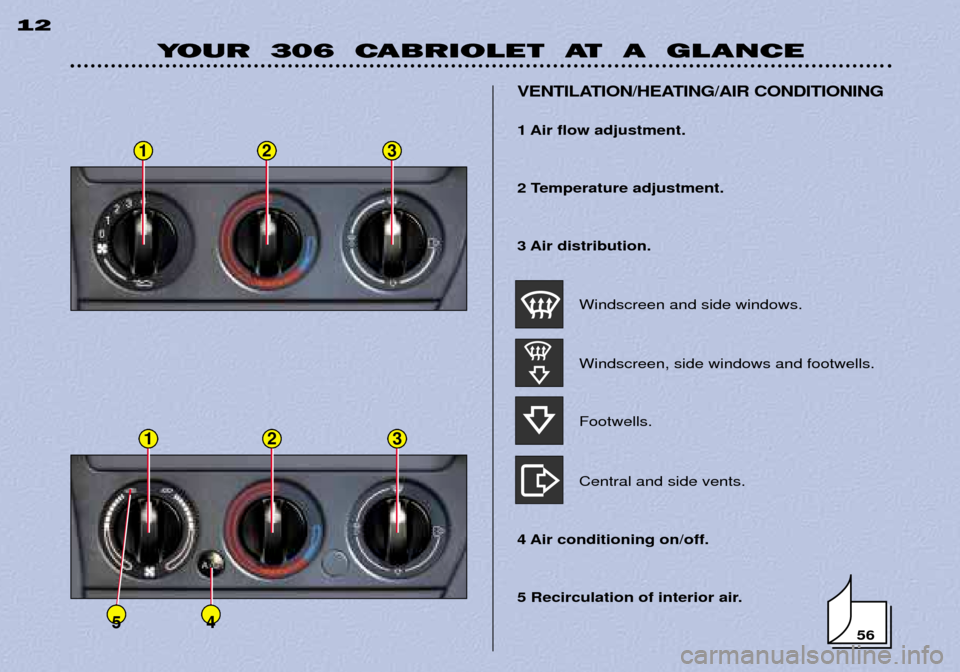

VENTILATION/HEATING/AIR CONDITIONING
1 Air flow adjustment.
2 Temperature adjustment.
3 Air distribution.
Windscreen and side windows. Windscreen, side windows and footwells. Footwells. Central and side vents.
4 Air conditioning on/off.

100
1
B
A
YOUR 306 CABRIOLET AT A GLANCE13

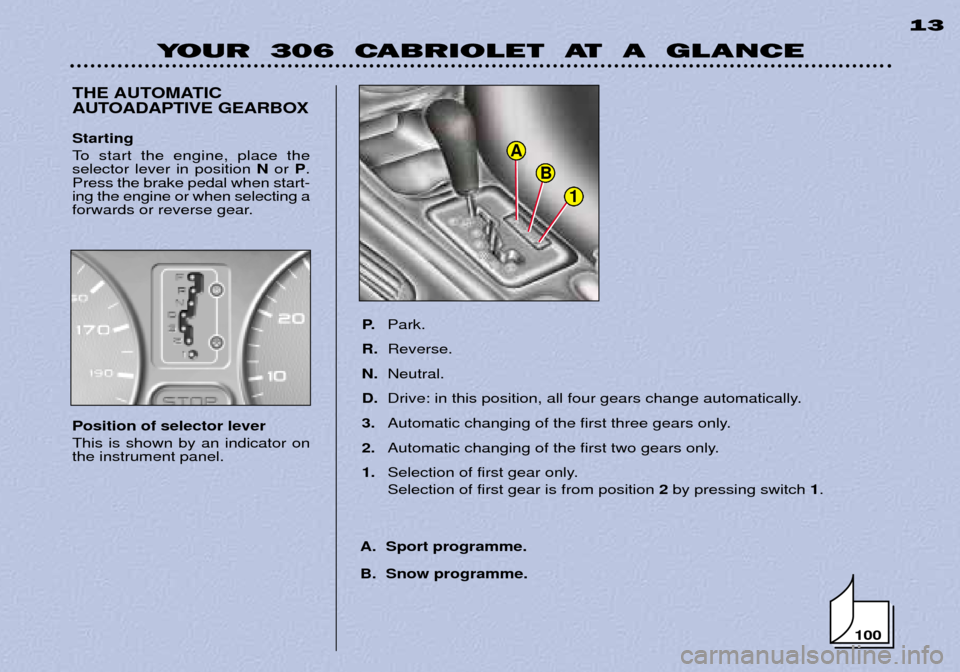

THE AUTOMATIC
AUTOADAPTIVE GEARBOX
P.Park.
R. Reverse.
N. Neutral.
D. Drive: in this position, all four gears change automatically.
3. Automatic changing of the first three gears only.
2. Automatic changing of the first two gears only.
1. Selection of first gear only. Selection of first gear is from position 2by pressing switch 1.
Position of selector leverThis is shown by an indicator on the instrument panel.
Starting
To start the engine, place the selector lever in position
Nor P.
Press the brake pedal when start-ing the engine or when selecting a
forwards or reverse gear.
A. Sport programme.
B. Snow programme.

YOUR 306 CABRIOLET AT A GLANCE
14

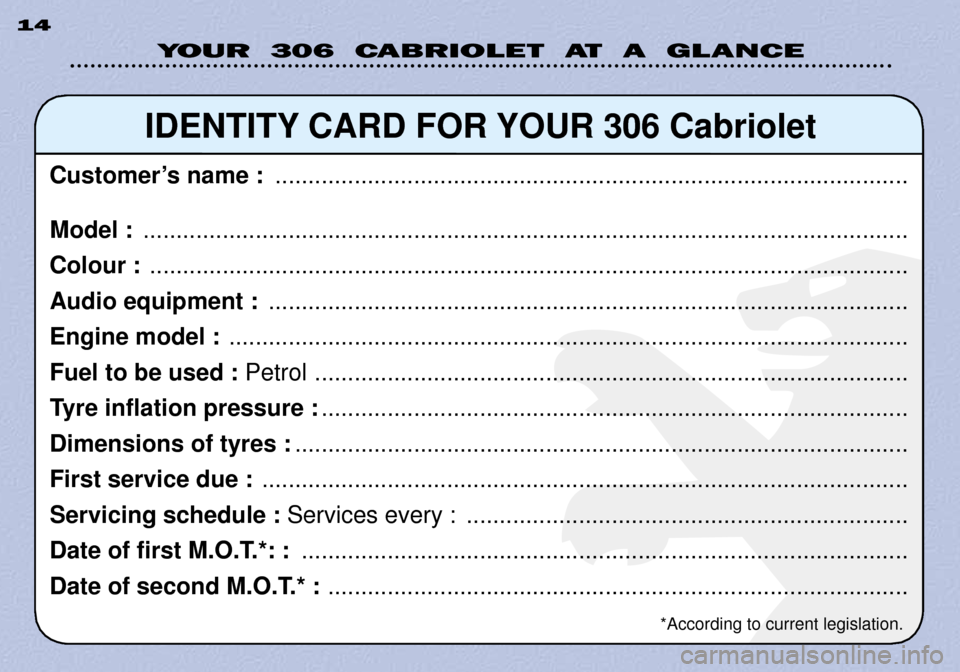

IDENTITY CARD FOR YOUR 306 Cabriolet
CustomerÕs name : ................................................................................................
Model : ....................................................................................................................
Colour : ...................................................................................................................
Audio equipment : .................................................................................................
Engine model : .......................................................................................................
Fuel to be used : Petrol ..........................................................................................
Tyre inflation pressure : .........................................................................................
Dimensions of tyres : .............................................................................................
First service due : ..................................................................................................
Servicing schedule : Services every : ...................................................................
Date of first M.O.T.*: : ............................................................................................
Date of second M.O.T.* : ........................................................................................
*According to current legislation.

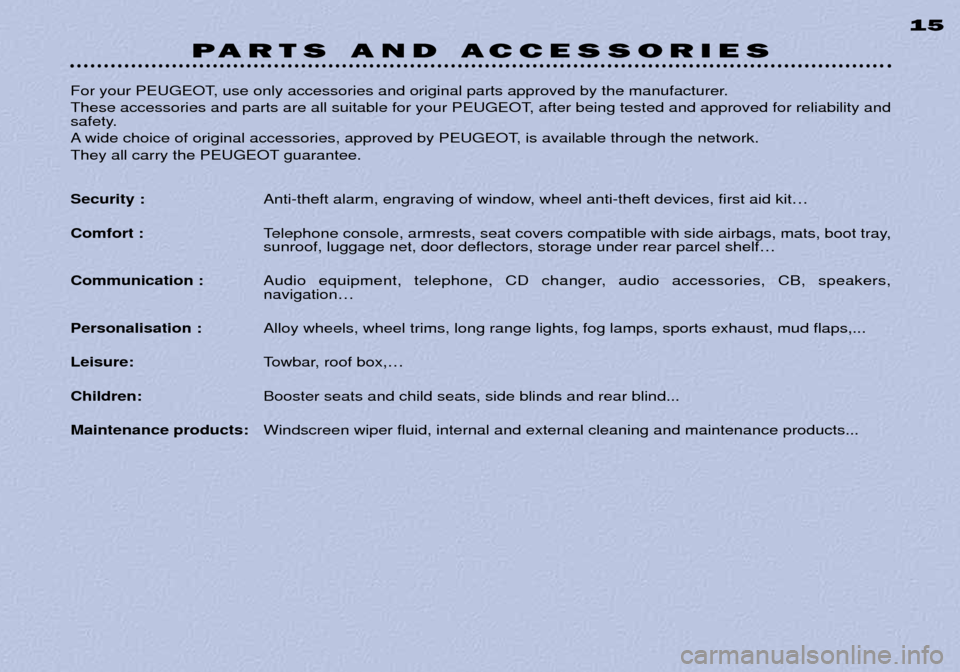

PARTS AND ACCESSORIES 15
For your PEUGEOT, use only accessories and original parts approved by the manufacturer.
These accessories and parts are all suitable for your PEUGEOT, after being tested and approved for reliability and
safety.
A wide choice of original accessories, approved by PEUGEOT, is available through the network.
They all carry the PEUGEOT guarantee. Security : Anti-theft alarm, engraving of window, wheel anti-theft devices, first aid kitÉ
Comfort : Telephone console, armrests, seat covers compatible with side airbags, mats, boot tray, sunroof, luggage net, door deflectors, storage under rear parcel shelfÉ
Communication : Audio equipment, telephone, CD changer, audio accessories, CB, speakers, navigationÉ
Personalisation : Alloy wheels, wheel trims, long range lights, fog lamps, sports exhaust, mud flaps,...
Leisure: Towbar, roof box,É
Children: Booster seats and child seats, side blinds and rear blind...
Maintenance products: Windscreen wiper fluid, internal and external cleaning and maintenance products...

16
1 YOUR 306 CABRIOLET AT A GLANCE1 15
PEUGEOT Servicing
PEUGEOT Servicing ...............................................18Special features.......................................................19
Types of service ......................................................20
The maintenance cycle of your 306 cabriolet ..........20
PEUGEOT servicing levels A and C ........................21
Tables of lubricants..................................................22 Routine maintenance
Checking levels .......................................................26Changing a wheel....................................................28
Changing a bulb ......................................................32
Changing a fuse ......................................................35
Charging a battery ...................................................40
Fitting audio equipment ...........................................41
Towing your vehicle .................................................42
Using a tow bar .......................................................43
Bodywork maintenance ...........................................44
2 CONTENTS
16 17
3 MAINTENANCE OF YOUR 306 CABRIOLET18 45
