Page 80 of 195
29-09-2003
YOUR 307 IN DETAIL79
The menu ''Guidance options''
provides access to the following functions:
– changing of the route calculation criteria,
– voice synthesis adjustment of guidance messages,
– description of the information relating to the navigation CD-Rom,
– management of the addresses stored in the directory.
Guidance options
The last criterion used is displayed. Select a criterion from the list, then validate by pressing the dial. When the criterion of your choice has been selected, select the
"OK"
function then confirm by pressing thedial. Adjusting the voice synthesiser Select the type of voice "male"or
"female" , after inserting the configu-
ration CD-Rom.
Adjust the volume of the voice synthesis by turning the dial, then validate bypressing the dial. Note: the volume can also be adjusted
during a message, using the audio/ telephone button or the steeringwheel control. Management of the directory This function enables you to rename
an address stored in the directory. Select the description corresponding to the stored address to be changed. Select the
"Rename" function, then
confirm by pressing the dial.Select the "OK"function, then confirm
by pressing the dial to record the changes made. Stopping/Resuming guidance
"Stop guidance" During guidance, select this function then validate.
"Resume guidance" In the absence of guidance, select this function then validate to activateguidance to the last destination programmed. Note: after re-starting the engine, a
screen appears enabling you to resume guidance activated before
the ignition was switched off.
Calculation criteria
Page 139 of 195
29-09-2003
Releasing Pull on the handle and press the button to release the handbrake.Illumination of this warninglight and of the STOPwarning
light, accompanied by anaudible signal (while thevehicle is being driven) and
the message "handbrake on" on
the multi-function display, indicatesthat the handbrake is still on or hasnot been properly released.
Operating abnormality Any operating abnormality is indicat- ed by an audible signal, accompa-nied by the message "Automatic
gear fault" on the multi-function dis-
play, "Ð"and flashing of the Sport
and Snow warning lights on theinstrument panel. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h), keeping within the limit of localspeed restrictions.
Contact a PEUGEOT dealer as soon as possible. HANDBRAKE Applying Pull the handbrake to immobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pave- ment and pull the handbrake.
YOUR 307 IN DETAIL
132
If the battery is flat and the lever is in position
P, it will
be impossible to change toanother position.
Page 140 of 195
29-09-2003
Releasing Pull on the handle and press the button to release the handbrake.Illumination of this warninglight and of the STOPwarning
light, accompanied by anaudible signal (while thevehicle is being driven) and
the message "handbrake on" on
the multi-function display, indicatesthat the handbrake is still on or hasnot been properly released.
Operating abnormality Any operating abnormality is indicat- ed by an audible signal, accompa-nied by the message "Automatic
gear fault" on the multi-function dis-
play, "Ð"and flashing of the Sport
and Snow warning lights on theinstrument panel. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h), keeping within the limit of localspeed restrictions.
Contact a PEUGEOT dealer as soon as possible. HANDBRAKE Applying Pull the handbrake to immobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pave- ment and pull the handbrake.
YOUR 307 IN DETAIL
132
If the battery is flat and the lever is in position
P, it will
be impossible to change toanother position.
Page 163 of 195
29-09-2003
? 4
!
A
!$
/ ,
$
.
(%
? 4!
$
! ( !
$
?
$
A
7
:
$
Fitting a wheel
!
"!
)
$
$"
"
$
!
$
1
#
? 4
#!"
$
!
$
1
7
/
$"
/
!
!
$
$
Note:
)
!
"!
"
PRACTICAL INFORMATION 153
For your safety, always change the wheel:
Ð on level, stable, non-slippery ground,
Ð with the handbrake on and the ignition switched off,
Ð with first or reverse gear engaged (position Pfor the
automatic gearbox),
Ð with the vehicle chocked. Never go underneath a vehicle that is supported only by a jack(use a ramp) After changing the wheel:
Ð have the tightening of the bolts and the tyre pressure checked by a PEUGEOT dealer as soonas possible.
Ð have the punctured tyre repaired and refit it to the vehi-cle as soon as possible.
Page 167 of 195
29-09-2003
PRACTICAL INFORMATION
156
Fitting a wheel
!
5
"!
)
$
$"
5
"
$
!
$
1
#
? 4
#!"
$
!
$
1
7
/
$"
/
!
!
!
!
7
!
!
!
$
1
#!"
check that the
wheel is horizontally flushagainst the rear floor
!
!
=
$

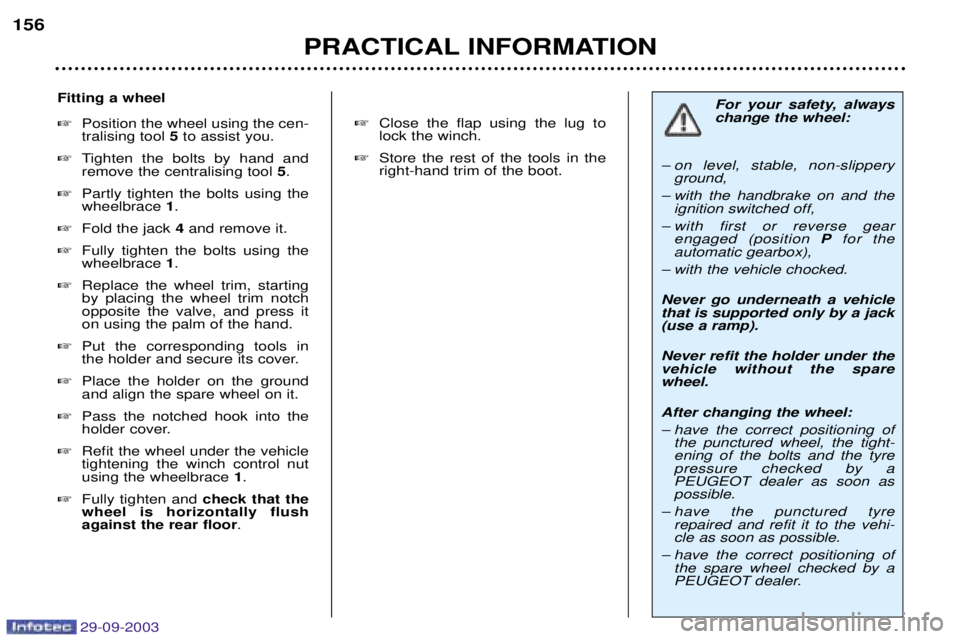

For your safety, always change the wheel:
Ð on level, stable, non-slippery ground,
Ð with the handbrake on and the ignition switched off,
Ð with first or reverse gear engaged (position Pfor the
automatic gearbox),
Ð with the vehicle chocked. Never go underneath a vehicle that is supported only by a jack(use a ramp). Never refit the holder under the vehicle without the sparewheel. After changing the wheel:
Ð have the correct positioning of the punctured wheel, the tight- ening of the bolts and the tyrepressure checked by a PEUGEOT dealer as soon aspossible.
Ð have the punctured tyre repaired and refit it to the vehi-cle as soon as possible.
Ð have the correct positioning of the spare wheel checked by a
PEUGEOT dealer.
