ECO mode Peugeot 307 Break 2002 Owner's Manual

5YOUR 307 AT A GLANCE
STEERING WHEEL STALKS LIGHTS
Front and rear lights (ring A)Lights off. Side lights.
Dipped / main beam headlamps. Automatic switching on of lights.
Front fog lamps * and rear foglamp
Turn the ring forwards to switch
on and rearwards to switch off.
The on/off status is shown by theindicator light on the instrumentpanel.Vehicles fitted with a rear fog lamp (ring B) Rear fog lamp.
Vehicles fitted with front foglamps and a rear fog lamp(ring C) Front fog lamps (first rota-tion of the ring forwards).
Front fog lampsand rear fog lamp(second rotation ofthe ring forwards).
* According to specification
72
WINDSCREEN WIPERS Front 2 Rapid wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe*.
0 Off.
Single wipe
Windscreen wash: pull the stalktowards you. Rear
Stop Intermittent wipe
Automatic wipe*In the AUTO position,
the wiper operates auto- matically and adjusts itsspeed to the intensity ofthe rainfall.
74
Windscreen

YOUR 307 IN DETAIL35
THE MULTIFUNCTION DISPLAY Monochrome screen B This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (the ¡C
symbol flashes when there is a risk of ice),
- the radio displays,
- the status of the doors (door, tail- gate* or bonnet* open),
- the temporarily diplayed warning messages, (e.g.''battery low''), or information messages, (e.g. "pas-senger air bag disarmed''), can becleared by pressing button 1or 2,
- the trip computer*.
* According to specification. Setting the parameters Keep button
1pressed for two seconds to access the settings.
Then, individual presses on button 1allow you to scroll through the various para-
meters:
- language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (degrees Celsius or Fahrenheit),
- time format (12 then 24 hour mode),
- hour,
- minutes,
- year,
- month,
- day. Pressing button 2allows you to change the parameter selected. Maintain the
pressure for rapid scrolling.
After ten seconds without operation, the screen returns to the current display, the modified data are recorded.

YOUR 307 IN DETAIL37
Button
Function
A RDS RDS function on / off.
Press for more than 2 seconds : regional following mode on/off.
BT ATraffic information priority on/off.
C Press fully: cassette rewind.
D Press fully: fast forward.
C+D j
kPress half way: reversal of direction of play of the cassette.
j
jkkPress fully: ejection of the cassette.
E Increase audio setting.
F Decrease audio setting.
G Adjustment of bass, treble, loudness, sound distribution and automatic volume correction.
H SRC Selection of source: radio, cassette or CD changer.
Press for more than 2 seconds: CD shuffle.
I kk Automatic search of higher frequency.
Selection of next CD track and PTY (radio).
J jj Automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
K MAN Manual/automatic operation of buttons Iand Jin radio mode.
L BND Selection of FM1, FM2, FMast and AM wavebands.
AST Press for more than 2 seconds : automatic storing of stations in memory (autostore).
M Radio on/off. N Ð
Decrease volume.
O +Increase volume.
1 to 6 1 2 3 4 5 6 Selection of station stored in memory.
Press for more than 2 seconds: storing of a station in memory.
1 to 5 1 2 3 4 5 Selection of a CD changer disc.

GENERAL FUNCTIONSOn/off With the ignition key in the accessories or ignition position, press button Mto switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press button Oto increase the volume or button Nto decrease it.
Continuous pressure on buttons Oand Nallows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Gseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader ( FAD), balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button G
after configuration of the automatic volume correction. Note : bass and treble settings are specific to each source. It is possible to set them differently for radio,
cassette (RB3), CD (RD3) and CD changer.
YOUR 307 IN DETAIL
40

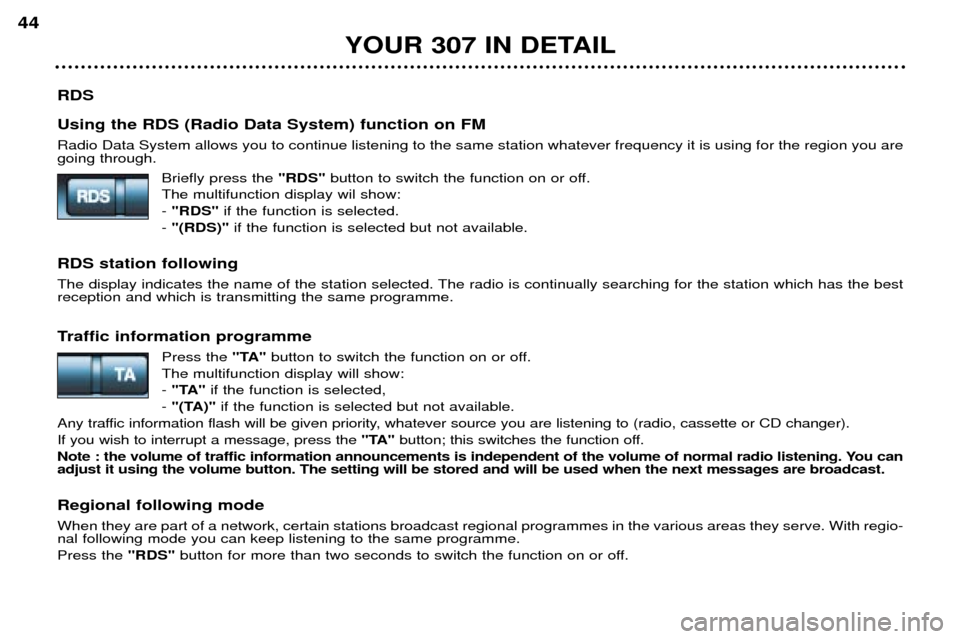

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station whatever frequency it is using for the region you are going through.Briefly press the "RDS"button to switch the function on or off.
The multifunction display wil show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the"TA"button to switch the function on or off.
The multifunction display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broadcast.
Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
YOUR 307 IN DETAIL
44

CASSETTE: AUDIO RB3 Selecting cassette modeWhen a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, press button "SRC"several times to select cassette mode.
Note: before inserting the cassette, ensure that the tape is taut.
Ejecting the cassette Fully press buttons Cand Dto eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a
side. To manually reverse the direction of play, press the 2 buttons Cand Dhalf way.
Fast forward/rewindFully press one of the buttons Cor Dto fast forward or rewind the cassette. At the end of the fast forward/rewind, the set
plays the current side. Recommendations for using casssettes
- Use good quality cassettes.
- Avoid use of cassettes which play for longer than 90 minutes.
- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before introducing the cassette in the player.
- Clean the playing head regularly with a damp type cleaning cassette.
YOUR 307 IN DETAIL
46

CD CHANGER* Selecting CD changer modeAudio RB3 : press button " SRC" several times in succession.
Audio RD3 : press button R.
Selecting a disc Press buttons "1"to "5" of the changer or the radio to select the corresponding disc.
Selecting a track Press button Ito select the next track.
Press button Jto return to the start of the current track or to select the previous track.
Accelerated playKeep button Ior Jpressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
ShuffleWhen the CD changer is selected: - audio RB3 : keep button "SRC" pressed for two seconds;
- audio RD3 : keep button R pressed for two seconds.
The tracks will be played in random sequence. Pressing the button again for two seconds returns you to normal play.
* According to specification
YOUR 307 IN DETAIL
48

YOUR 307 IN DETAIL39
Button
Function
A RDS RDS function on / off.
Press for more than 2 seconds : regional following mode on/off.
BT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
E Increase audio setting.
F Decrease audio setting.
G Adjustment of bass, treble, loudness, sound distribution and automatic volume correction.
I kk Automatic search of higher frequency.
Selection of next CD track and PTY (radio).
J jj Automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
K MAN Manual/automatic operation of buttons Iand J.
M Radio on/off.
N Ð
Decrease volume.
O +Increase volume.
P Radio Selection of FM1, FM2, FMast and AM wavebands.Press for more than 2 seconds : automatic storing of stations in memory (autostore).
QC DSelection of CD.
Press for more than 2 seconds: shuffle.
R CH.CD Selection of CD changer.
Press for more than 2 seconds: shuffle.
S i
Ejection of CD.
1 to 6 1 2 3 4 5 6 Selection of station stored in memory.
Press for more than 2 seconds: storing of a station in memory.
1 to 5 1 2 3 4 5 Selection of a CD changer disc.

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station whatever frequency it is using for the region you are going through.Briefly press the "RDS"button to switch the function on or off.
The multifunction display wil show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the"TA"button to switch the function on or off.
The multifunction display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broadcast.
Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
YOUR 307 IN DETAIL
44

PTY function: Audio RD3 This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.).With FMselected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Ior Jto scroll down the list of the various types of programmes offered.
- when the programme of your choice is displayed, keep button I or Jpressed for two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the memory. To do this, press the preselection buttons "1"
to "6" for two seconds.
Briefly press the corresponding button to recall the type of programme stored in the memory.
EON system: Audio RD3
This connects stations which are part of the same network. It enables the broadcast of traffic information by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
YOUR 307 IN DETAIL 45
