2YOUR 307 AT A GLANCE
Page 2 of 128
3YOUR 307 AT A GLANCE
1. Speaker (tweeter) location.
2. Side window demisting vent.
3. Windscreen demisting vents.
4. Passenger air bag.
5. Brightness sensor.
6. Multifunction display.
7. Alarm button.
8. Central locking button.
9. Hazard warning lights switch.
10. ESP/ASR switch*.
11. Lights and direction indicators stalk.
12. Instrument dials.
13. Steering wheel adjustment control. 14. Windscreen wash/wipe
stalk.
Trip computer stalk.
15. Driver's air bag. Horn.
16. Radio remote control stalk.
17. Headlamp height adjustment.
18. Electric mirror controls. Window controls. Rear window lockingcontrol.
19. Steering lock and ignition.
20. Cruise control switch.
21. 12 V accessories socket
22. Passenger air bag disarming switch.
23. Rubbish container.
24. Cup / can holder.
25. Handbrake. 26. Rear footwell heating vent.
27. Gear lever.
28. Front ash tray.
29. Heating / air conditioning
controls.
30. CD changer.
31. RB3 / RD3 audio equipment.
32. Central adjustable heating / ventilation vent and air flow regulation.
33. Side adjustable heating / ventilation vent and airflow regulation.
34. Fuse box.
35. Glove box.
36. Opening the bonnet.
37. Heated seat controls.
* During the year.
Page 3 of 128
4YOUR 307 AT A GLANCE
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the locks on the front doors,the fuel filler cap and the glove box,as well as operate the passenger airbag disarming switch. Central locking
From the driver's door, the keys allow you to lock, deadlock* orunlock the doors and the bootand to fold back the exterior mir-rors*. If one of the doors or the boot is open, it is impossible to operatethe central locking; a bleep indi-cates locking by remote control. The remote control performs the same functions at a distance.
* According to specificationThe remote control key Locking ➜
Press button Ato lock the
vehicle. This is confirmed by fixed lighting of the direction indi-cators for approximately twoseconds. Note: in addition to deadloc-
king, a long press on button A
automatically closes the win- dows* and the sunroof*.
Vehicles fitted withdeadlocking*
Deadlocking* renders the internal and external doorlocking controls inoperative.
➜ Press button Ato deadlock
the vehicle.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking tonormal locking. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds,accompanied by a brief sound ofthe horn.
Unlocking Press button Bto unlock the
vehicle. This is confirmed by rapid flashing of thedirection indicators. Note : If the vehicle is
locked and unlocking
is then activated inadvertently,the vehicle will re-lock automati-cally unless a door is openedwithin 30 seconds of unlocking.
STARTING
STOP position:
The ignition is off.
1st notch, Accessories position:
The ignition is off but the acces-sories can be used. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter.
65
Page 4 of 128
5YOUR 307 AT A GLANCE
STEERING WHEEL STALKS LIGHTS
Front and rear lights (ring A)Lights off. Side lights.
Dipped / main beam headlamps. Automatic switching on of lights.
Front fog lamps * and rear foglamp
Turn the ring forwards to switch
on and rearwards to switch off.
The on/off status is shown by theindicator light on the instrumentpanel.Vehicles fitted with a rear fog lamp (ring B) Rear fog lamp.
Vehicles fitted with front foglamps and a rear fog lamp(ring C) Front fog lamps (first rota-tion of the ring forwards).
Front fog lampsand rear fog lamp(second rotation ofthe ring forwards).
* According to specification
72
WINDSCREEN WIPERS Front 2 Rapid wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe*.
0 Off.
Single wipe
Windscreen wash: pull the stalktowards you. Rear
Stop Intermittent wipe
Automatic wipe*In the AUTO position,
the wiper operates auto- matically and adjusts itsspeed to the intensity ofthe rainfall.
74
Windscreen
Page 5 of 128
6YOUR 307 AT A GLANCE
FRONT SEATS 1. Forwards / backwards
adjustment.
2 . Access to rear seats
(3 door).
3 . Seat back angle adjustment.
4 . Driver or passenger seat
height adjustment*.
5 . Front heated seats switch*.
6 . Front removable armrest*
(5 door).
7 . Head restraint height and
angle adjustment.
To raise or lower the head restraint, pull it forwards, sli-ding it at the same time.
Never drive with the head restraints removed.
8. Storage drawer*
* According to specification
58
Page 6 of 128
7YOUR 307 AT A GLANCE

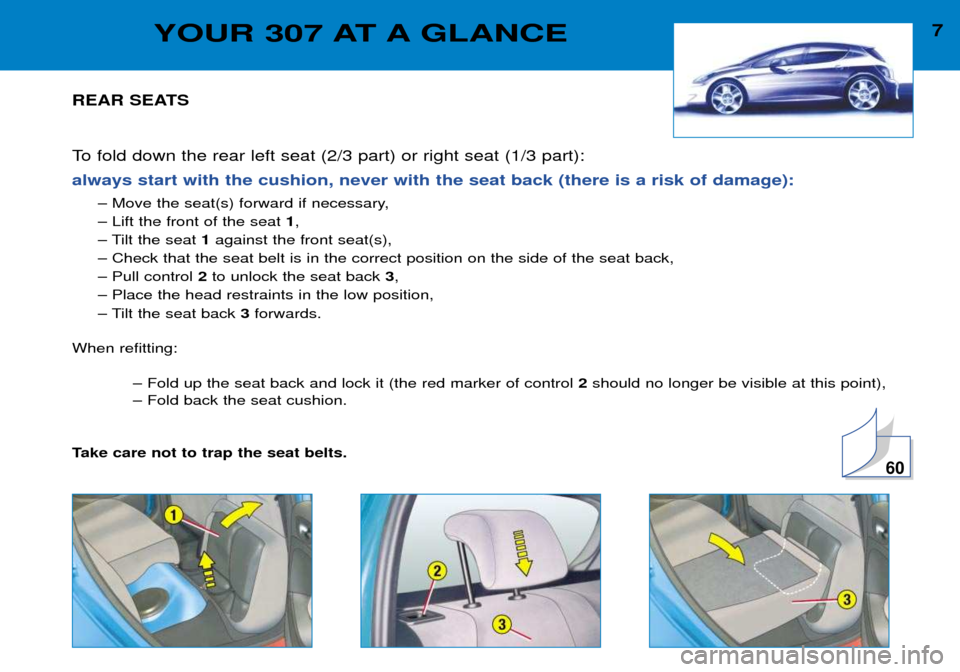

REAR SEATS
To fold down the rear left seat (2/3 part) or right seat (1/3 part):
always start with the cushion, never with the seat back (there is a risk of damage):
Ð Move the seat(s) forward if necessary, Ð Lift the front of the seat 1,
Ð Tilt the seat 1against the front seat(s),
Ð Check that the seat belt is in the correct position on the side of the seat back,Ð Pull control 2to unlock the seat back 3,
Ð Place the head restraints in the low position,
Ð Tilt the seat back 3forwards.
When refitting: Ð Fold up the seat back and lock it (the red marker of control 2should no longer be visible at this point),
Ð Fold back the seat cushion.
Take care not to trap the seat belts.
60
Page 7 of 128
AIRBAGS The air bags have been designed to maximise the safety of the occu-pants in the event of serious colli-
sions. They work in conjunctionwith the force limiting seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag ➜disarm the air bag if you ins- tall a rear-facing child seat,
➜ arm the air bag for an adult
passenger. Disarming the passenger air bag* ➜
with the ignition off, insert the key into slot 1and turn the
passenger air bag switch tothe "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the''ON'' position, to activate the air
bag again.Operating check
With the ignition switched on (2nd notch of the igni-tion), illumination of thiswarning light, accompa-
nied by an audible signal and themessage ''Passenger air bag
disarmed'' on the multi-function
display, indicates that thepassenger air bag is disarmed(switch in the "OFF"position).
The warning light remains onthroughout the disarming process. Side air bags* and curtain air bags** The side air bags are incorpora- ted into the seat backs of thefront seats, on the door side. The curtain air bags are incorpo- rated into the door pillars and thetop of the passenger compart-ment.
They are deployed unilaterally, on whichever side the collisionoccurs.
* According to country.
** According to specifi- cation.
8YOUR 307 AT A GLANCE
9192
Page 8 of 128
9YOUR 307 AT A GLANCE
ELECTRIC WINDOWS
1. Driver's electric window.
2. Passenger's electric window.3. Rear left electric window*.4. Rear right electric window*.5. Disarming the rear window switches*. Safety auto-reverse*: When the window is rising and meets an obstacle, it stops and lowers again.
ELECTRIC MIRRORS*STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT ➜ Pull handle Ato unlock the
steering wheel.
➜ Adjust the height and depth of the steering wheel.
➜ Lock it by pushing handle Ain
fully.
Manual mode: ➜ Press or pull the switch lightly. The window stops as soon asthe switch is released. Automatic mode*: ➜
Press or pull the switch firmly. One touch completely opens
or closes the window.
78
➜Move switch 6to the right or
left to select the correspon-
ding mirror.
➜ Then move button 7in all four
directions to adjust.
➜ Move switch 6back to the
centre position. When the vehicle is parked, themirrors can be folded back
manually, electrically* by pullingswitch
6rearwards or
automatically* when loc-king the vehicle.
* According to specification
7980
Page 9 of 128
10OPENING THE BONNET Inside the vehicle: Push the
handle on the left-hand side, under the fascia. Outside the vehicle: Lift the catch, raise thebonnet and secure thestrut to keep the bonnetopen.
FILLING WITH FUEL This operation must be carried out with
the engine switched off.
➜ Open the fuel filler flap.
➜ Insert the key then turn it to the left.
➜ Remove the cap and hook it onto the clip on the inside of the flap.
A label on the inside of the flap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump. This could cause your vehicle to malfunction. The capacity of the tank is approximately 13 gallons (60 litres). ➜ After filling the tank, lock the cap and close the flap.
Low fuel level warning light From the time this light comes on, the range remaining is approximately 30 miles(50 km).
7171
YOUR 307 AT A GLANCE
Page 10 of 128
11YOUR 307 AT A GLANCE
AUTOMATIC GEARBOX "PORSCHE TIPTRONIC SYSTEM" The four speed automatic gearbox offers a choice between the comfort of
automatic integral regulation enhanced by a sport andsnow programme,
or the pleasure of manual gear changing .
Gear selection gate ➜ Move the lever in the gate to select one of the functions. Once the function is selected, the indicator light for that function illumi-
nates on the instrument panel display.
S: sport programme.
: snow programme.
P ark: for parking or for starting the engine ,
with the handbrake on or off.
R everse: to reverse; select this function with the
vehicle stationary and the engine at idle. N eutral: for starting the engine or forparking ,
with the handbrake on.Note: if function Nis engaged by mistake while the
car is moving, allow the engine to return to idling speed before engaging function Dto accelerate.
D rive: for automatic gear changing.
M anual: for manualgear changing.
To change the four gearsmanually:
➜ Push the lever to the +symbol to change up to the next gear and pull
the lever towards the - symbol to change down to the next gear.
Note: the Ssport and
snow programmes do not operate in manual
mode. Moving Off With the engine running, to move
off from position
P:
➜ It is essential to press the
brake pedal to exit position P,
➜ Select the required function(R ,D or M) then gradually
release the pressure on thebrake pedal; the vehicle will
move off immediately.
You can also move off from posi-tion N:
➜ Release the handbrake, withyour foot on the brake.
➜ Select the required function(R , D or M) then gradually
release the pressure on thebrake pedal; the vehicle will
move off immediately.
When the engine is idling with the brakes notapplied, if function R, D
or Mis selected, the
vehicle moves without the acce-lerator being pressed.
For this reason, do not
leave children unsuper- vised inside the vehi-cle, with the engine run-ning.
86
