Peugeot 307 Peugeot 307 Break 2002 Owner's Manual

PEUGEOT SERVICING The maintenance cycle of your 307 is based on level A(including the replacement of the engine oil, the oil filter and a set
of checks) and level Cservices [ level Aservice + workshop operations carried out every 40,000 miles (60 000 km)] in
accordance with the tables on the following pages. So that driving conditions and your style of driving may be taken into account, your 307 is fitted with a service
indicator which modulates the intervals for level A service:
¥ every 20,000 miles (30 000 km) maximum or 2 years for petrol engines,
¥ every 12,000 miles (20 000 km) maximum or 2 years for direct injection diesel engines.
The frequency of level Aservices specific to your vehicle will be determined by three parameters :
¥ the number of engine revolutions,
¥ the engine oil temperature,
¥ prolonged periods when the vehicle is not in use. Depending on these three elements, the service indicatorwill suggest a service interval which is more or less the same as
the initial programme. Depending on the conditions of use, one or more level Aservices may be carried out between two
level C services.
Depending on the mileage recorded, your dealer may offer to carry out the level Cservice to avoid the visits being too close
together.
PEUGEOT SERVICING
18

MILES (KM)40,000 (60 000)80,000 (120 000) 120,000 (180 000)
THE SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating 2 types of service, A and C, intermediate visits and a few additional operations specific to your vehicle; these correspond to key stages in the life of your 307. At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
1st service at 6 000 miles
(10 000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
Replacement of automatic gearbox oil every 40,000 miles (60 000 km). Replacement of brake fluidevery 2 years or 40,000 miles (60 000km).
These fixed operations are carried out with synthetically based oil. Synthetic oil or Fuel economy oil may also be used.
Arduous conditions of use (see corresponding section)
- Replacement of air filterevery 24,000 miles (40 000km).
- Replacement of timing beltevery 48,000 miles (80 000km).
* Whichever comes first.
+ replacement of timing belt
Intermediate visit included in the fixed interval services.
MAINTENANCE CYCLE FOR YOUR 307 PETROL ENGINE
Service every 2 years or 20,000 miles (30 000 km) maximum

72,000 (120 000)108,000 (180 000)
MILES (KM)36,000 (60 000)
PEUGEOT SERVICING 23
MAINTENANCE CYCLE FOR YOUR 307 TURBO DIESEL
Service every 2 years or 12,000 miles (20 000km) maximum
1st service at 6,000 miles
(10 000km) or 6 months*.
This is necessary in order to benefit
from the warranty.
+ maintenance of particulate
emission filter
2.0 l HDI 110 ch (96,000 km)
Replacement of timing beltevery 96,000 miles (160 000 km) (2.0 l HDI 90 bhp/110 bhp) and every 144,000 miles
(240 000 km) (1.4 l HDI 70 bhp). Replacement of brake fluid every 2 years or 36 000 miles (60 000km).
These fixed operations are carried out with synthetically based oil.
Synthetic oil or Fuel Economy oil may also be used.
Arduous conditions of use (see corresponding section).
- Replacement of air filterevery 27,000 miles (45 000km).
- Replacement of timing belt every 72,000 miles (120 000km).
* Whichever comes first.
Intermediate visit included in the fixed interval services.
+ maintenance of particulate
emission filter
2.0 l HDI 110 ch (48,000 miles)

4. Air flow adjustmentTurn the control from posi- tion 1to position 4to obtain
an air flow sufficient toensure your comfort.
5. Air intake Pressing button 5permits
recirculation of the interior
air. Recirculation, indicatedby illumination of the indica-
tor light, prevents exterior odoursand smoke from entering the pas-senger compartment. Used simultaneously with the air conditioning, recirculation enablesheating and cooling performance tobe improved. Used in a humid climate, recircula- tion may result in misting of the win-dows. As soon as possible, place button 5
in the outside air position, to prevent
deterioration of the air quality. The
indicator light switches off.3. Air distribution adjustment
Windscreen and side win- dows (demisting-de-icing).
To quickly demist or de-ice the wind-screen and side windows:
Ð Place the temperature and air flow controls to maximum,
Ð Close the centre and side vents.
Ð Place air intake control 5in the
"Outside Air" position (button 5
released, indicator light off),
Ð Start the air conditioning by pres- sing the AC button.
Windscreen, side windows and footwells.
Footwells.
Centre and side vents. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not activate it and contact a
PEUGEOT dealer.
6. Rear screen demisting
With the engine running, pressing the button oncedemists the rear screen andthe mirrors*.
This switches off automati-
cally after approximately twelve minutes. Pressing again activatesdemisting for a further twelveminutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes. Note: it is quite normal that the
condensation created by the air conditioning results in a flow of water
under the vehicle when it is stationary.
* According to specification.
YOUR 307 IN DETAIL 55

''Isofix''mountings
Available on the two side rear seats, and as an accessory on the frontpassenger seat*, the Isofix moun-tings allow for fitting of aspecial
child seat , approved by UTAC for
PEUGEOT vehicles and sold by
PEUGEOT dealers. The locks incorporated in the child seat fit onto the Isofix mountings andensure safe, reliable and fast assem-
bly. In the front
, the child seat must be
fitted:
- either in the "rear facing" position for children weighing between 3
and 11 kg front seat as far for-
ward as possible so that the body
of the child seat is in contact withor as close as possible to the ins-
trument panel. This position thuslimits movement of the child seat inthe event of an accident.
- or exceptionally the child seat may be fitted in the "forwards facing"position if the rear seats are alrea-dy occupied by other children or ifthe rear seats cannot be used (notpresent, folded). In this case, usethe Isofix mountings, the restrai-ning cushion and the seat belt andadjust the front passenger seat tothe "mid-travel" position.
In both cases it is imperative todisarm the passenger air bag. In the rear , the child seat may be fit-
ted in the "rear facing" or "forwards facing" position. In this case thefront seat is in the intermediatelongitudinal position, seat backupright. The combined use of the Isofix mountings, the restraining cushionand the seat belt is compulsory for aseat fitted "facing forward".
YOUR 307 IN DETAIL 61
The special child seat, approved by
PEUGEOT, is the Isofix KIDDY seat.It can be used "rear facing" from 3 to
11 kg and "forwards facing" from 9 to18 kg. This seat can also be used on seats not fitted with Isofix mountings:buckling of the three-point seat belt
is then compulsory. Follow the instructions for fitting the child seat given in the instruc-tion booklet. * During 2001.

YOUR 307 IN DETAIL
62
CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safety of your children also depends on you.
For optimum safety, please follow the following precautions:
- All children under the age of 10 are required to travel in approved restraining equipment*, suited to their weight in a seatfitted with a seat belt.
- front passenger seat*: children under the age of 10 must not travel in the "forwards facing" position, unless the rear seats are already occupied by other children or the rear seats cannot be used (not present, folded). In this case, adjust the front
passenger seat to the "mid-travel" position. The "rear facing" position is authorised.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (up to 29 lbs. or 13 kg) "Ršmer Babysure", is installed with its back to the engine and secured with a three-point seat belt, on either the front or rear seat. In the front, the passenger seat must be adjusted to the "mid-travel" position.
From 9 months to 3 or 4 years (20 to 40 lbs. or 9 to 18 kg) "Ršmer Prince" is fitted in the rear with a three-point seat belt.For the safety of your children, the seat and the restraining cushion must never be separated.
From 3 to 6 years (33 to 56 lbs or 15 to 25 kg) "Ršmer Vario": is fitted in the rear with a two or three point seat belt.
1
2
3

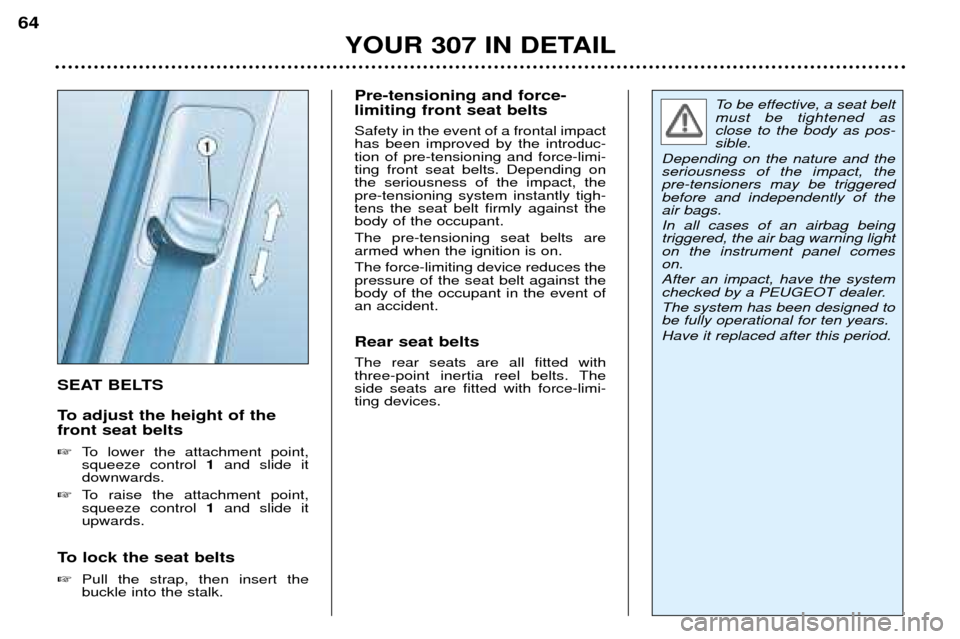

SEAT BELTS
To adjust the height of the front seat belts To lower the attachment point, squeeze control 1and slide it
downwards.
To raise the attachment point,squeeze control 1and slide it
upwards.
To lock the seat belts Pull the strap, then insert the buckle into the stalk. Pre-tensioning and force- limiting front seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning and force-limi-ting front seat belts. Depending onthe seriousness of the impact, thepre-tensioning system instantly tigh-tens the seat belt firmly against thebody of the occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against thebody of the occupant in the event ofan accident. Rear seat belts The rear seats are all fitted with
three-point inertia reel belts. Theside seats are fitted with force-limi-ting devices.
YOUR 307 IN DETAIL
64
To be effective, a seat belt must be tightened asclose to the body as pos-sible.
Depending on the nature and theseriousness of the impact, thepre-tensioners may be triggeredbefore and independently of theair bags. In all cases of an airbag being triggered, the air bag warning lighton the instrument panel comeson. After an impact, have the system
checked by a PEUGEOT dealer. The system has been designed to be fully operational for ten years. Have it replaced after this period.

Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.Changing the battery of the remote control The information
"battery flat"is given
by an audible signal accompanied by the message ''Remote control batte-
ry low'' on the multifunction display.
To replace the battery, remove the boltthen unclip the casing using a coin atthe ring (CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
YOUR 307 IN DETAIL
66
Electronic engine immobiliser This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone who
does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode is recognised and starting ispossible. If the system does not function correctly
, the central locking button
indicator light, situated in the centreof the instrument panel, flashesrapidly when the ignition is switchedon (2nd notch on the ignition key),accompanied by an audible signaland the message "Anti-theft device
faulty" on the multifunction display.
WARNING: your vehicle is no longer
protected in this event. Contact a
PEUGEOT dealer as soon as pos-sible.
* According to specification.

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a high-performance system.Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your
knowledge.The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram- ming. Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car:
- Ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 307 IN DETAIL 67

Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.Changing the battery of the remote control The information
"battery flat"is given
by an audible signal accompanied by the message ''Remote control batte-
ry low'' on the multifunction display.
To replace the battery, remove the boltthen unclip the casing using a coin atthe ring (CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
YOUR 307 IN DETAIL
66
Electronic engine immobiliser This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone who
does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode is recognised and starting ispossible. If the system does not function correctly
, the central locking button
indicator light, situated in the centreof the instrument panel, flashesrapidly when the ignition is switchedon (2nd notch on the ignition key),accompanied by an audible signaland the message "Anti-theft device
faulty" on the multifunction display.
WARNING: your vehicle is no longer
protected in this event. Contact a
PEUGEOT dealer as soon as pos-sible.
* According to specification.
