display Peugeot 307 Break Dag 2002 User Guide

Instrument panel display After switching on the ignition, three functions are shown in succession :
- service indicator (see corresponding section),
- engine oil level indicator,
- total distance recorder/total and trip distances.Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approxi- mately 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whether the messa- ge is correct; a surplus of oil can cause damage to the engine.
Contact a PEUGEOT dealer without delay. Minimum Check the level using the dipstick to confirm whether the messa- ge is correct; a surplus of oil can cause damage to the engine.
Contact a PEUGEOT dealer without delay. Oil level gauge fault The symbol (square) flashes; it indicates a fault in the oil level gauge. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer. Lighting rheostat With the lights on, press the button tovary the intensity ofthe lighting on theinstrumentpanel andthe multifunction dis-
play. When the ligh-
ting reaches the minimum (or maxi-mum) setting, release it then pressagain to increase (or reduce) thebrightness. As soon as the lighting is of the required brightness, release the but-ton.
Trip recorder zero reset With the ignition swit- ched on, press thebutton.
INSTRUMENTS AND CONTROLS
34

YOUR 307 IN DETAIL35
THE MULTIFUNCTION DISPLAY Monochrome screen B This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (the ¡C
symbol flashes when there is a risk of ice),
- the radio displays,
- the status of the doors (door, tail- gate* or bonnet* open),
- the temporarily displayed warning messages (e.g.''battery low'') or information messages (e.g. "pas-senger air bag disarmed'') can becleared by pressing button 1or 2,
- the trip computer*.
* According to specification. Setting the parameters Keep button
1pressed for two seconds to access the settings.
Then, individual presses on button 1allow you to scroll through the various para-
meters:
- language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (degrees Celsius or Fahrenheit),
- time format (12 then 24 hour mode),
- hour,
- minutes,
- year,
- month,
- day. Pressing button 2allows you to change the parameter selected. Maintain the
pressure for rapid scrolling.
After ten seconds without operation, the screen returns to the current display, the modified data are recorded.

Adjusting the bassWhen "BASS" is displayed, press button Eor Fto vary the setting.
- "BASS -9" for a minimum bass setting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass setting.
Adjusting the treble When "TREB" is displayed, press button Eor Fto vary the setting.
- "TREB -9" for a minimum treble setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble setting.
Adjusting the loudnessThis function automatically emphasises bass and treble tones. Press button Eor Fto switch the function on or off.
Adjusting the front/rear sound distribution (Fader) When "FAD" is displayed, press button Eor F.
Button Eincreases the volume at the front.
Button Fincreases the volume at the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Eor F.
Button Eincreases the volume on the right-hand side.
Button Fincreases the volume on the left-hand side.
Automatic volume correction "CAV"This function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the vehicle. Press buttons Eor Fto switch the function on or off.
YOUR 307 IN DETAIL 41

Manual station search Press the"MAN" button.
Briefly press button Ior Jto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)
Audio RB3 : press and hold button "BND/AST"for more than two seconds.
Audio RD3 : press and hold button "P" for more than two seconds.
Your radio automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1" to "6" to recall the corresponding station.
YOUR 307 IN DETAIL 43

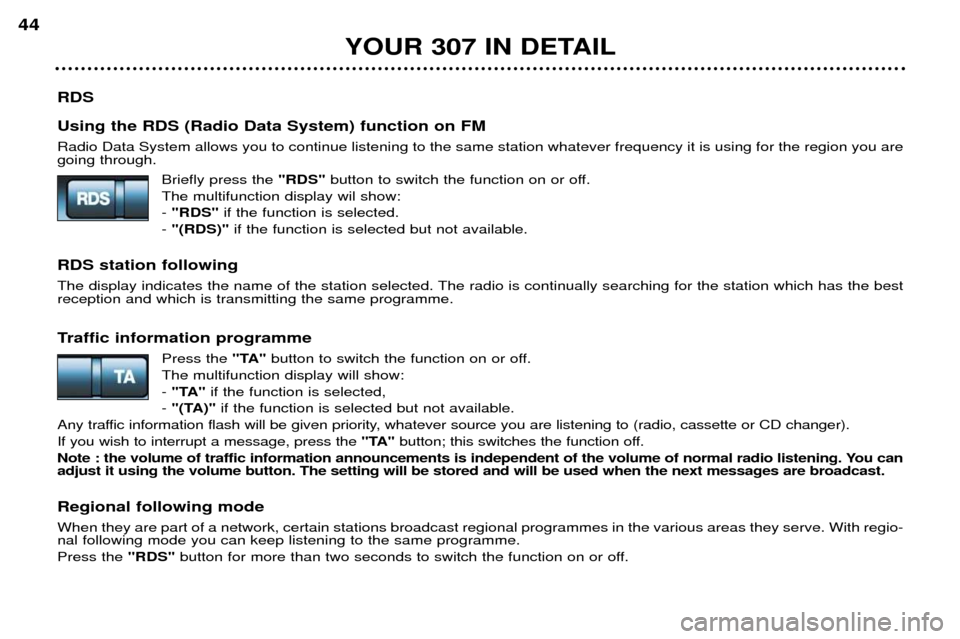

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station whatever frequency it is using for the region you are going through.Briefly press the "RDS"button to switch the function on or off.
The multifunction display wil show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the"TA"button to switch the function on or off.
The multifunction display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broadcast.
Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
YOUR 307 IN DETAIL
44

Manual station search Press the"MAN" button.
Briefly press button Ior Jto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)
Audio RB3 : press and hold button "BND/AST"for more than two seconds.
Audio RD3 : press and hold button "P" for more than two seconds.
Your radio automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1" to "6" to recall the corresponding station.
YOUR 307 IN DETAIL 43

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station whatever frequency it is using for the region you are going through.Briefly press the "RDS"button to switch the function on or off.
The multifunction display wil show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the"TA"button to switch the function on or off.
The multifunction display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broadcast.
Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
YOUR 307 IN DETAIL
44

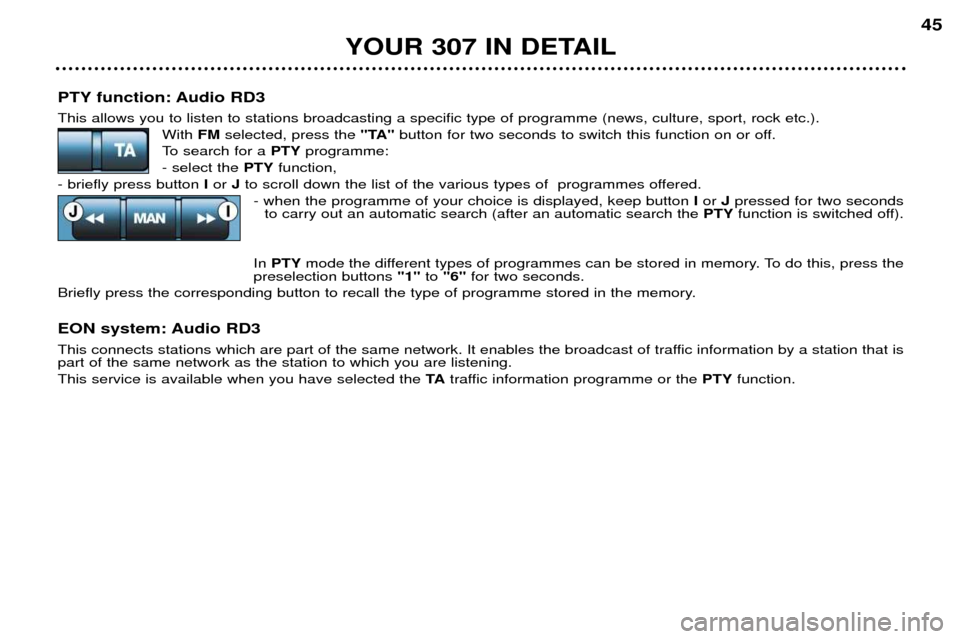

PTY function: Audio RD3 This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.).With FMselected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Ior Jto scroll down the list of the various types of programmes offered.
- when the programme of your choice is displayed, keep button Ior Jpressed for two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in memory. To do this, press the
preselection buttons "1"to "6" for two seconds.
Briefly press the corresponding button to recall the type of programme stored in the memory.
EON system: Audio RD3
This connects stations which are part of the same network. It enables the broadcast of traffic information by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
YOUR 307 IN DETAIL 45

YOUR 307 IN DETAIL
56

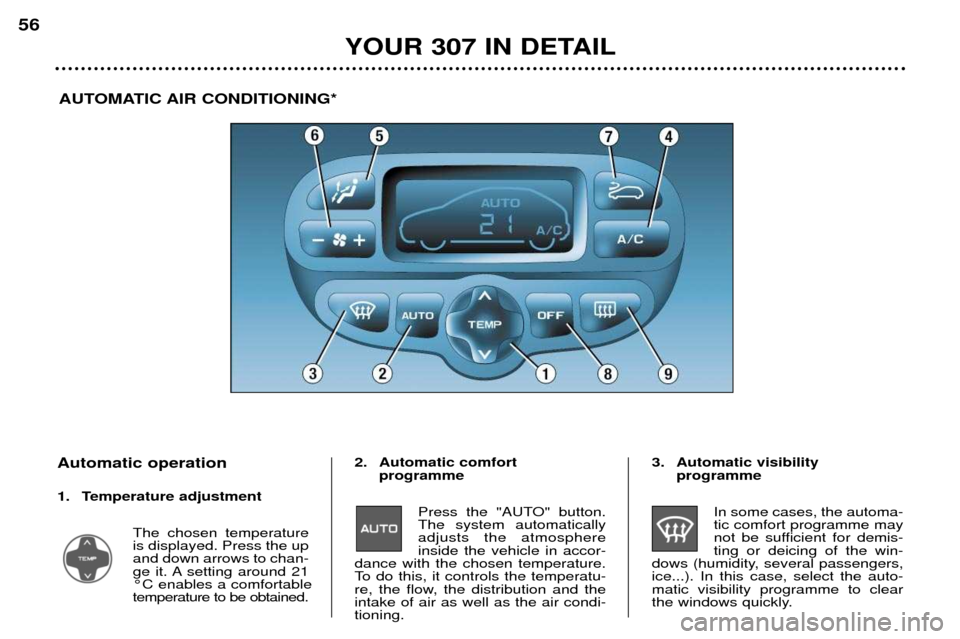

AUTOMATIC AIR CONDITIONING*
Automatic operation
1. Temperature adjustment The chosen temperature is displayed. Press the upand down arrows to chan-
ge it. A setting around 21¡C enables a comfortabletemperature to be obtained. 2. Automatic comfort
programme
Press the "AUTO" button.The system automaticallyadjusts the atmosphereinside the vehicle in accor-
dance with the chosen temperature.
To do this, it controls the temperatu-
re, the flow, the distribution and theintake of air as well as the air condi-tioning. 3. Automatic visibility
programme
In some cases, the automa-tic comfort programme may
not be sufficient for demis-ting or deicing of the win-
dows (humidity, several passengers,ice...). In this case, select the auto-matic visibility programme to clear
the windows quickly.

Manual operation
If you wish you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the "AUTO" but-ton returns the system to completelyautomatic operation.

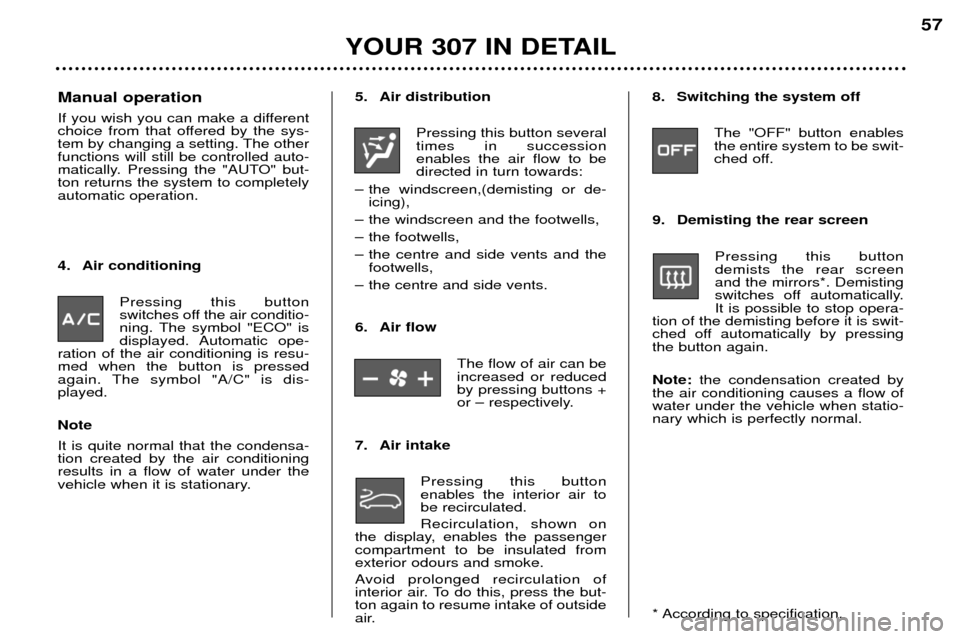

4. Air conditioningPressing this button
switches off the air conditio-
ning. The symbol "ECO" is
displayed. Automatic ope-
ration of the air conditioning is resu-med when the button is pressed
again. The symbol "A/C" is dis-played. Note It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary. 5. Air distribution
Pressing this button severaltimes in successionenables the air flow to bedirected in turn towards:
Ð the windscreen,(demisting or de- icing),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the centre and side vents and the footwells,
Ð the centre and side vents.
6. Air flow
The flow of air can be increased or reducedby pressing buttons +
or Ð respectively.
7. Air intake Pressing this buttonenables the interior air tobe recirculated. Recirculation, shown on
the display, enables the passenger compartment to be insulated fromexterior odours and smoke.
Avoid prolonged recirculation of
interior air. To do this, press the but-ton again to resume intake of outside
air. 8. Switching the system off
The "OFF" button enablesthe entire system to be swit-
ched off.
9. Demisting the rear screen Pressing this buttondemists the rear screenand the mirrors*. Demisting
switches off automatically.It is possible to stop opera-
tion of the demisting before it is swit-
ched off automatically by pressingthe button again. Note: the condensation created by
the air conditioning causes a flow of water under the vehicle when statio-nary which is perfectly normal.
* According to specification.
YOUR 307 IN DETAIL 57
