Automatic operation Automatic changing of the four
gears: select function Din the gate.
The gearbox always selects the most suitable gear according to the follo-wing parameters:
- the style of driving,
- the road profile,
- the vehicle load. The gearbox is then operating in auto-adaptive mode, without anyaction on your part.
WARNING Never select position Nwhen the
vehicle is moving. Never select functions Por Runless
the vehicle is stationary.Never change between functions to optimise braking on a slippery surface. Notes For immediate maximum accelera-
tion without touching the gear lever,press the accelerator pedal down as
far as it will go (kickdown). The gear-box will automatically change downor maintain the gear selected untilmaximum engine speed is reached. When the brake is applied, the gear- box will automatically change down
in order to provide efficient enginebraking. If you take your foot off the accelera-
tor suddenly, the gearbox will notchange to a higher gear for reasons
of safety. Sport and snow programmes In addition to the auto-adaptive pro- gramme, there are two special pro-grammes. The programme is displayed on the instrument panel screen. Sport programme
Press button Sonce the vehicle
has been started and function D
selected.
The gearbox automatically favours sporty driving and more dynamicacceleration. Snow programme This programme improves starting
and drive when traction is poor. Press button

once the vehicle
has been started and function D
selected.
The gearbox adapts to driving on slippery roads. Note: you can return to the auto-
adaptive programme at any time. Press button Sor

again to
switch off the programme you are in. Manual operation Manual changing of the
four gears:
select function Mon the gate,
push the lever to the +sign to
change to a higher gear,
pull the lever to the -sign to
change to a lower gear.
You can change from position D (dri-
ving in automatic mode) to position M (driving in manual mode) at any
time. Note It is only possible to change from one gear to another if the vehicle speedand engine speed permit. If they donot, the vehicle will operate tempora-rily in automatic mode. When the vehicle is stationary or
moving very slowly, the gearboxautomatically selects gear M1.
Programmes S(sport) and

(snow)
do not operate in manual mode.
YOUR 307 IN DETAIL 87

Unlocking Pull on the handle and press the but- ton to release the handbrake.Illumination of this light,accompanied by an audiblesignal and the message"handbrake on" on the
multifunction display, indi-
cates that the handbrake is still on orhas not been properly released.
Operating abnormality Any operating abnormality is indica- ted by an audible signal accompa-nied by the message "Automatic
gearbox faulty" on the multi-func-
tion display and flashing of the Sportand Snow warning lights on the ins-trument panel. In this situation thegearbox operates in downgrade
mode (locked in 3rd gear). You mayfeel a substantial knock when chan-ging from Pto Rand from Nto R
(this will not cause any damage tothe gearbox). Do not exceed 60 mph (100 km/h), speed restrictions permitting.
Contact a PEUGEOT dealer as soon as possible. When this warning lightcomes on, accompanied byan audible signal and themessage
"Braking fault" , it
indicates that there is a mal-
function of the electronic brake forcedistribution, which can cause a lossof control of the vehicle when bra-king.
Stop immediately.
Contact a Peugeot dealer.
HANDBRAKE Locking Pull the handbrake to immobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pave- ment and pull the handbrake.
ABS ANTI-LOCK BRAKING SYSTEM
The ABS system with Electronic Brake Force Distribution (EBFD)increases the stability and manoeu-vrability of your vehicle, particularlyon poor or slippery road surfaces. Note: when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
YOUR 307 IN DETAIL
88
If the battery is flat and the lever is in position P, it
will be impossible tochange to another posi-tion. Normal operation of the ABS maymake itself felt by slight vibrationsof the brake pedal. In emergency braking, press very firmly without releasingthe pressure.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pressure to be
reached more quickly, thus reducingthe stopping distance. It is triggered by the speed at which the
brake pedal is activated, the effect ofwhich is a reduction in the resistance ofthe pedal and an increase in braking
efficiency.

Unlocking Pull on the handle and press the but- ton to release the handbrake.Illumination of this light,accompanied by an audiblesignal and the message"handbrake on" on the
multifunction display, indi-
cates that the handbrake is still on orhas not been properly released.
Operating abnormality Any operating abnormality is indica- ted by an audible signal accompa-nied by the message "Automatic
gearbox faulty" on the multi-func-
tion display and flashing of the Sportand Snow warning lights on the ins-trument panel. In this situation thegearbox operates in downgrade
mode (locked in 3rd gear). You mayfeel a substantial knock when chan-ging from Pto Rand from Nto R
(this will not cause any damage tothe gearbox). Do not exceed 60 mph (100 km/h), speed restrictions permitting.
Contact a PEUGEOT dealer as soon as possible. When this warning lightcomes on, accompanied byan audible signal and themessage
"Braking fault" , it
indicates that there is a mal-
function of the electronic brake forcedistribution, which can cause a lossof control of the vehicle when bra-king.
Stop immediately.
Contact a Peugeot dealer.
HANDBRAKE Locking Pull the handbrake to immobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pave- ment and pull the handbrake.
ABS ANTI-LOCK BRAKING SYSTEM
The ABS system with Electronic Brake Force Distribution (EBFD)increases the stability and manoeu-vrability of your vehicle, particularlyon poor or slippery road surfaces. Note: when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
YOUR 307 IN DETAIL
88
If the battery is flat and the lever is in position P, it
will be impossible tochange to another posi-tion. Normal operation of the ABS maymake itself felt by slight vibrationsof the brake pedal. In emergency braking, press very firmly without releasingthe pressure.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pressure to be
reached more quickly, thus reducingthe stopping distance. It is triggered by the speed at which the
brake pedal is activated, the effect ofwhich is a reduction in the resistance ofthe pedal and an increase in braking
efficiency.

TRACTION CONTROL (ASR)*
AND DYNAMIC STABILITY
CONTROL (ESP)* These systems are linked and com-
plement the ABS system.
The ASR system optimises drive to prevent the wheels skidding, byacting on the brakes and the engine.It also allows the directional stabilityof the vehicle to be improved onacceleration. If there is a variation between the tra- jectory followed by the vehicle and
that required by the driver, the ESPsystem automatically acts on theengine and the brake of one or morewheels, in order to put the vehicleback on course.
Operation of the ASR and
ESP systemsWhen one of these two sys- tems is operating, this lightflashes.
* During the year Disarming the ESP / ASR systems In certain conditions (vehicle stuck in
mud or snow, or on loose ground...),it could prove useful to disarm theASR system to make the wheelsspin and regain grip.
Press the switch "ESP OFF",
situated on the central part of the fascia.
The switch lights up and theindicator light comes on; the
ESP and ASR systems nolonger act on the brake andengine operation.
They engage again: automatically when the ignition is
switched off,
manually by pressing the switchagain. Operating check
When a malfunction of thesystem occurs, the switchlight flashes and the indica-tor light comes on, accom-panied by an audible signal
and the message "ESP/ASR not
operational" on the multifunction
display.
Contact a PEUGEOT dealer to have the system checked.
YOUR 307 IN DETAIL 89

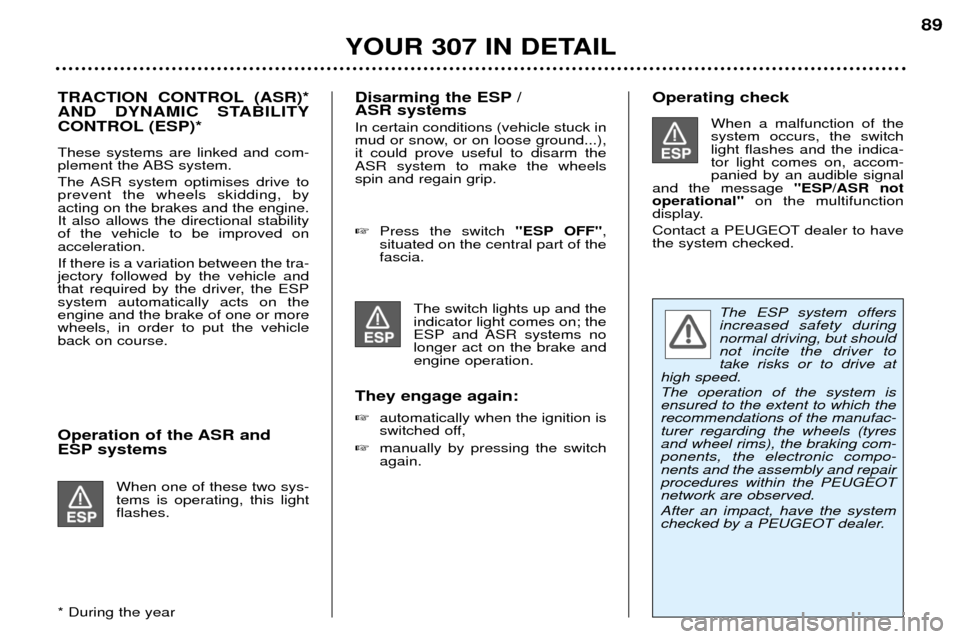

The ESP system offers increased safety duringnormal driving, but shouldnot incite the driver totake risks or to drive at
high speed. The operation of the system is ensured to the extent to which therecommendations of the manufac-turer regarding the wheels (tyresand wheel rims), the braking com-ponents, the electronic compo-nents and the assembly and repairprocedures within the PEUGEOTnetwork are observed. After an impact, have the system
checked by a PEUGEOT dealer.

Front air bag malfunctionIf this warning light comes on, accompanied by a buz-zer and the message "Air
bag fault" on the multifunc-
tion display, contact a
PEUGEOT dealer to have the sys-tem checked.
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions;they work in conjunction with theforce limiting seat belts. In the event of a serious collision, the electronic detectors record and ana-lyse any abrupt deceleration of thevehicle: if the triggering threshold isreached, the air bags inflate instantlyand protect the occupants of thevehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants nor their possible exit from thevehicle. The air bags will not be deployed in collisions which are not serious, for
which the seat belt is sufficient to
provide maximum protection. Theseriousness of the collision dependson the nature of the obstacle and thespeed of the vehicle at the momentof impact. Air bags operate only when the ignition is switched on. Note: the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in

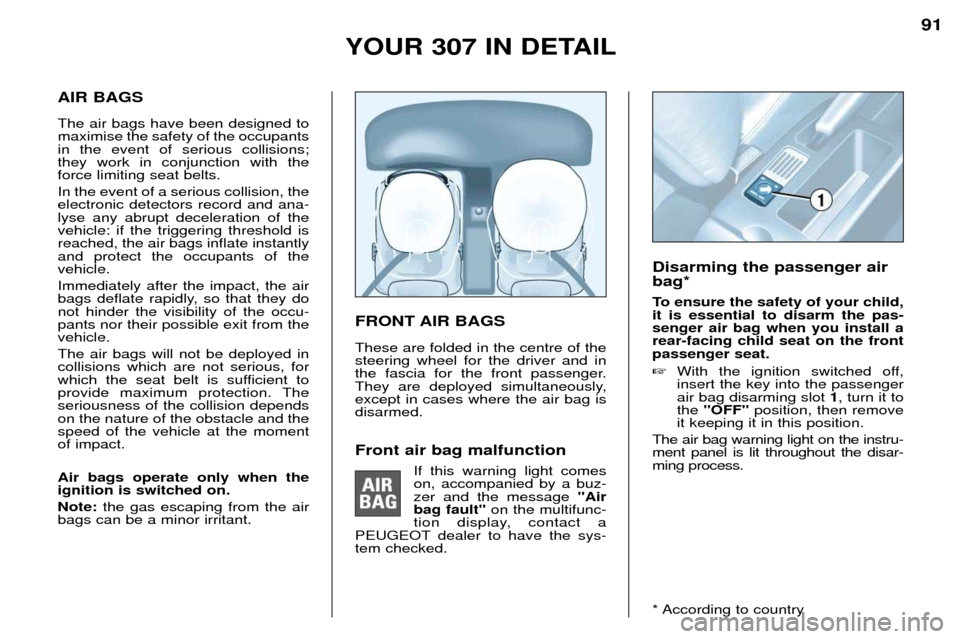

the fascia for the front passenger.
They are deployed simultaneously,except in cases where the air bag isdisarmed.
Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat.
With the ignition switched off, insert the key into the passengerair bag disarming slot 1, turn it to
the "OFF" position, then remove
it keeping it in this position.
The air bag warning light on the instru-ment panel is lit throughout the disar-ming process.
* According to country
YOUR 307 IN DETAIL
91

In the "OFF" position the passenger
air bag will not be deployed in an impact. As soon as the child seat is remo- ved, turn the air bag slot to the "ON"
position to re-activate the air bag andthus ensure the safety of your pas-senger in the event of an impact.
Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display. With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and themessage "Passenger air
bag disarmed" on the multifunction
display, indicates that the passengerair bag is disarmed (slot in the"OFF" position). SIDE AIR BAGS* AND
CURTAIN AIR BAGS* The side air bags are incorporated into the front seat backs on the doorside. The curtain air bags are incorporated into the door pillars and the upperpart of the passenger compartment. They are deployed independently of each other depending on which sidethe collision occurs. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag(s) faulty" on
the multifunction display,
contact a PEUGEOT dealer to havethe system checked.
* According to specification
YOUR 307 IN DETAIL
92

In the "OFF" position the passenger
air bag will not be deployed in an impact. As soon as the child seat is remo- ved, turn the air bag slot to the "ON"
position to re-activate the air bag andthus ensure the safety of your pas-senger in the event of an impact.
Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display. With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and themessage "Passenger air
bag disarmed" on the multifunction
display, indicates that the passengerair bag is disarmed (slot in the"OFF" position). SIDE AIR BAGS* AND
CURTAIN AIR BAGS* The side air bags are incorporated into the front seat backs on the doorside. The curtain air bags are incorporated into the door pillars and the upperpart of the passenger compartment. They are deployed independently of each other depending on which sidethe collision occurs. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag(s) faulty" on
the multifunction display,
contact a PEUGEOT dealer to havethe system checked.
* According to specification
YOUR 307 IN DETAIL
92

PRACTICAL INFORMATION107

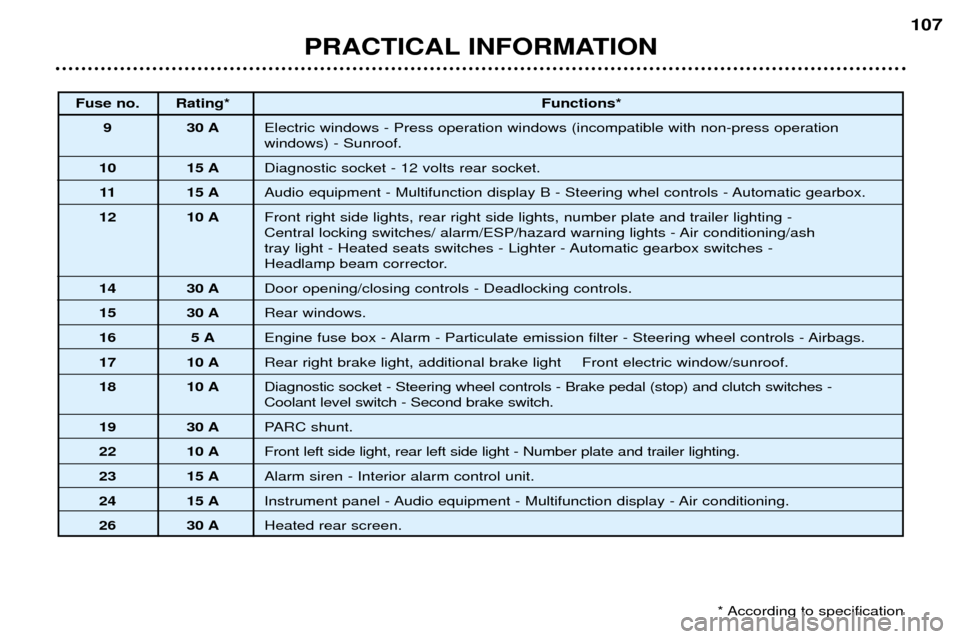

Fuse no. Rating*
Functions*
9 30 A Electric windows - Press operation windows (incompatible with non-press operation windows) - Sunroof.
10 15 A Diagnostic socket - 12 volts rear socket.
11 15 A Audio equipment - Multifunction display B - Steering whel controls - Automatic gearbox.
12 10 A Front right side lights, rear right side lights, number plate and trailer lighting -
Central locking switches/ alarm/ESP/hazard warning lights - Air conditioning/ash
tray light - Heated seats switches - Lighter - Automatic gearbox switches -
Headlamp beam corrector.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30 A Rear windows.
16 5 A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Airbags.
17 10 A Rear right brake light, additional brake light Front electric window/sunroof.
18 10 A Diagnostic socket - Steering wheel controls - Brake pedal (stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left side light, rear left side light - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multifunction display - Air conditioning.
26 30 A Heated rear screen.
* According to specification

CHANGING A WINDSCREEN WIPER BLADE Placing the wiper blades in the maintenance position Less than one minute after swit-
ching off the ignition, activate thewindscreen wiper stalk to posi-tion the blades in the centre ofthe windscreen (maintenanceposition).
Replacing a blade Lift the arm, then unclip the blade and remove it.
Fit the new blade and fold downthe arm.
Note: the shortest blade is fitted to
the wiper arm on the right side of thevehicle.
To park the blades, switch on the ignition and operate the wind-screen wiper stalk. ECONOMY MODE FUNCTION After the engine has stopped, certain
functions (windscreen wiper, electricwindows, sunroof*, courtesy lights,audio equipment etc.) can only beused for thirty minutes, to prevent
discharging the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multifunction displayand the active functions are put on
standby.
To resume use of these functions, start the engine and let it run for afew seconds.
WARNING: a flat battery will prevent
the engine from starting. LOAD REDUCTION When driving, certain functions (air conditioning*, heated rear screen,heating system for passenger com-partment of diesel vehicles, etc.)
may be switched off temporarily,depending on the level of batterycharge. Reactivation of these functions is automatic, once the battery charge is
sufficient. Note:
at the risk of discharging the
battery, the functions that have been switched off may be reactivated
manually.
* According to specification.
PRACTICAL INFORMATION
110
