display Peugeot 307 Break Dag 2002 Owner's Guide

Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.Changing the battery of the remote control The information
"battery flat"is given
by an audible signal accompanied by the message "Remote control batte-
ry low" on the multifunction display.
To replace the battery, remove the boltthen unclip the casing using a coin atthe ring (CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
YOUR 307 IN DETAIL
66
Electronic engine immobiliser This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone who
does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode is recognised and starting ispossible. If the system does not function correctly , the central locking button
indicator light, situated in the centreof the instrument panel, flashesrapidly when the ignition is switched
on (2nd notch on the ignition key,accompanied by an audible signaland the message "Anti-theft device
faulty" on the multifunction display.
WARNING: your vehicle is no longer
protected in this event. Contact a
PEUGEOT dealer as soon as pos-sible.

Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.Changing the battery of the remote control The information
"battery flat"is given
by an audible signal accompanied by the message "Remote control batte-
ry low" on the multifunction display.
To replace the battery, remove the boltthen unclip the casing using a coin atthe ring (CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
YOUR 307 IN DETAIL
66
Electronic engine immobiliser This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone who
does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode is recognised and starting ispossible. If the system does not function correctly , the central locking button
indicator light, situated in the centreof the instrument panel, flashesrapidly when the ignition is switched
on (2nd notch on the ignition key,accompanied by an audible signaland the message "Anti-theft device
faulty" on the multifunction display.
WARNING: your vehicle is no longer
protected in this event. Contact a
PEUGEOT dealer as soon as pos-sible.

Locking / Unlocking from the inside Press button A.
This allows locking or unlocking of the doors and the tailgate. Note: if the vehicle is deadlocked,
button Adoes not function. In this
case use the remote control for unlocking. "Door open" alert With the engine running or the vehicle moving, the flashing of thecentral "STOP" warning light,
accompanied by an audible signaland a diagram locating the problem
on the multifunction display, warnsyou that a door is not properly clo-sed.
THE DOORS Opening the doors from outside Opening the doors from inside The front door unlocking controls permit complete unlocking of thevehicle.
However, the rear door unlocking controls only unlock the door concerned. Note:
the door opening switches do
not function when the vehicle is deadlocked.
Child safety This prevents either of the rear doors being opened from inside. Turn the red plastic switch a quarter of a turn using the ignition
key.
YOUR 307 IN DETAIL 69

TAILGATE Simultaneous locking or unlocking of the tailgate andthe doors The tailgate is locked or unlocked by the remote control or the driver's door lock.
To open, pull handle Aand lift the
tailgate.Note: the tailgate locks automatical-
ly when the vehicle is being driven at 6 mph (10 km/h) and unlocks whenone of the doors is opened or at aspeed below 6 mph (10 km/h).
"Tailgate open" warning When the engine is running or if the vehicle is being driven, the flashingof the central "STOP"warning light
accompanied by an audible signaland a diagram on the multifunctiondisplay warns you that the tailgate isnot properly closed. Tailgate release This enables the tailgate to be unloc- ked in the event of a central lockingfault.
- Fold back the rear seats to gain
access to the lock from inside the boot,
- Insert a small screwdriver into hole A of the lock to unlock the tailgate. THE SUNROOF* -
to partially open the roof: Turn
the switch to the right (three pos- sible settings).
- to close: Turn the switch back to
position "O".
- to open the roof completely:
Turn the switch to the left (six pos-sible settings).
- to close it completely: Turn the
switch back to position "O".
- safety auto-reverse: When the
sunroof is closing and meets anobstacle, it stops then opensagain.
- After a safety auto-reverse manoeuvre, to synchronise theposition of the switch with the roofposition, press and hold the switch.
Note: the sunroof shutter is manual.
* According to specification.
YOUR 307 IN DETAIL
70

FILLING WITH FUEL Low fuel levelWhen the minimum fuel level in the tank is rea-ched, this warning lightcomes on.
You can still drive
approximately 30 miles (50 km). Flashing of the warning light indi- cates a malfunction of the fuelgauge.
Contact a PEUGEOT dealer.The engine must be switched off when filling with fuel.
OPENING THE BONNET From inside: push the handle on the
driver's side under the fascia. From outside: lift the catch and
raise the bonnet. Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. "Bonnet open" warning* With the engine running or the vehicle moving, flashing of the central
"STOP" warning light accompanied by an audible signal and a diagram
on the multifunction display, warnsyou that the bonnet is not properlyclosed.

Open the fuel filler flap.
Insert the key then turn it to theleft.
Remove the cap and hang it onthe hook located on the inside ofthe flap.
A label affixed inside the fuel fillerflap indicates which type of fuel touse. When you fill your tank, do not conti-
nue after the third cut-off of the
pump. This could cause your vehicleto malfunction. The capacity of the tank is approxi- mately 12 gallons (60 litres). After filling the tank, lock the cap and close the fuel filler flap.
* According to specification.
YOUR 307 IN DETAIL 71

AUTOMATIC SWITCHING ON OF LIGHTS* Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during operation of
the windscreen wipers. They switch
off as soon as the light becomesbright enough or the windscreenwipers stop. Note :In foggy weather the bright-
ness sensor can detect sufficient
light. As a consequence, the lights
wil not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function: Start with the key in the accesso- ries position (1st notch),
Press the end of the stalk formore than two seconds.
Note: after the ignition is switched
off and depending on the brightness,the lights remain on for 45 secondsor until the vehicle is locked. Do not cover the brightness sen- sor located in the centre of thefascia. It is used for automaticswitching on of the lights. Operating check
Triggering of the sensorAcivation of this function is accom- panied by an audible signal"Automatic lighting''
on the multi-
function display. The light also comes on as soon as the driver changes the stalk positionto 0. Disarming Disarming of the function is accom- panied by an audible signal Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights comeon). The driver is alerted by an audible signal, accompanied by the messa-ge "Automatic switching on of
lights faulty" .
Contact a PEUGEOT dealer to havethe system checked.
*According to specification
YOUR 307 IN DETAIL 73

Automatic timed windscreen wipers* In the AUTOposition, the wind-
screen wipers operate automatically and adapt their speed to the intensi-ty of the rainfall.
Operating check ActivationWhen the function is activated, the message "Automatic windscreen
wiping active" appears on the mul-
tifunction display. Switching off
Switching off the function is accom- panied by an audible signal. In the event of malfunction, the driver is informed by an audible signal andthe message "Auto windscreen
wiper faulty" on the multifunction
display. In the event of malfunction in the
AUTO position, the windscreen
wiper will operate in intermittentmode.
Contact a PEUGEOT dealer to have the system checked.
* According to specification

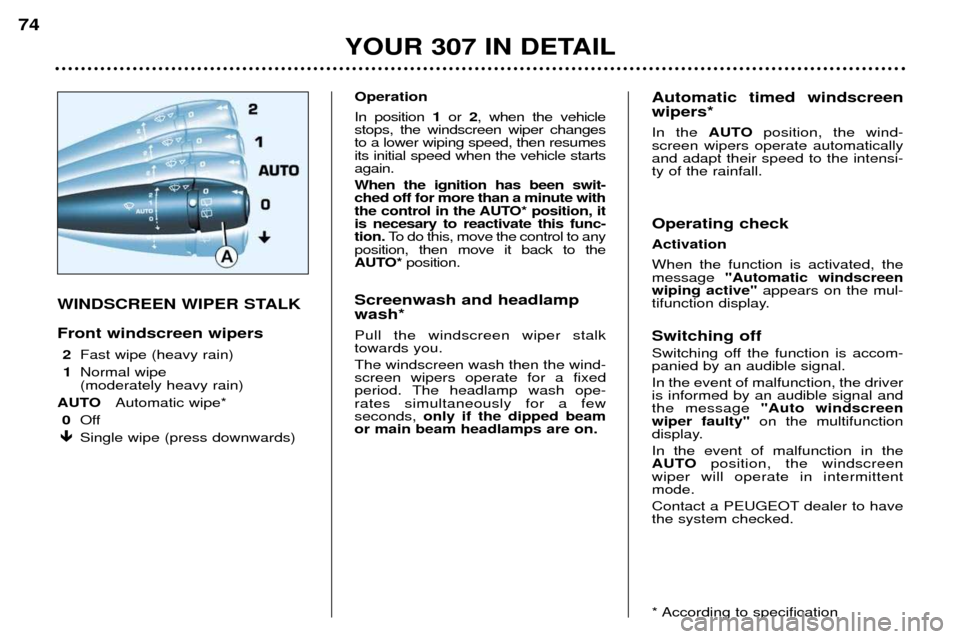

WINDSCREEN WIPER STALK Front windscreen wipers
2 Fast wipe (heavy rain)
1 Normal wipe (moderately heavy rain)
AUTO Automatic wipe*
0 Off
Single wipe (press downwards) Operation In position
1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, then resumesits initial speed when the vehicle startsagain. When the ignition has been swit- ched off for more than a minute with
the control in the AUTO* position, itis necesary to reactivate this func-tion. To do this, move the control to any
position, then move it back to the
AUTO* position.
Screenwash and headlamp wash* Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixed
period. The headlamp wash ope-rates simultaneously for a fewseconds, only if the dipped beam
or main beam headlamps are on.
YOUR 307 IN DETAIL
74

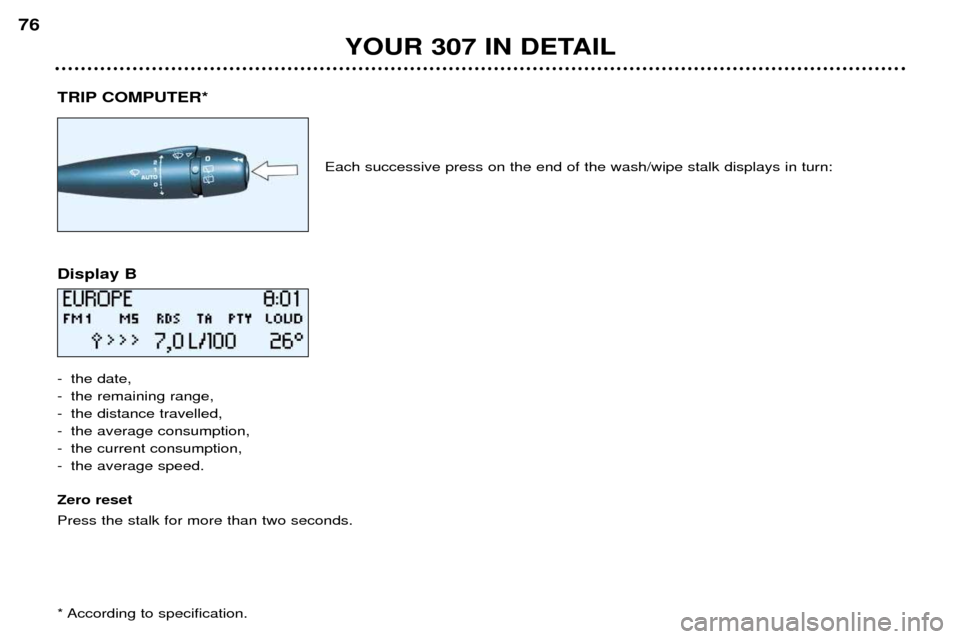

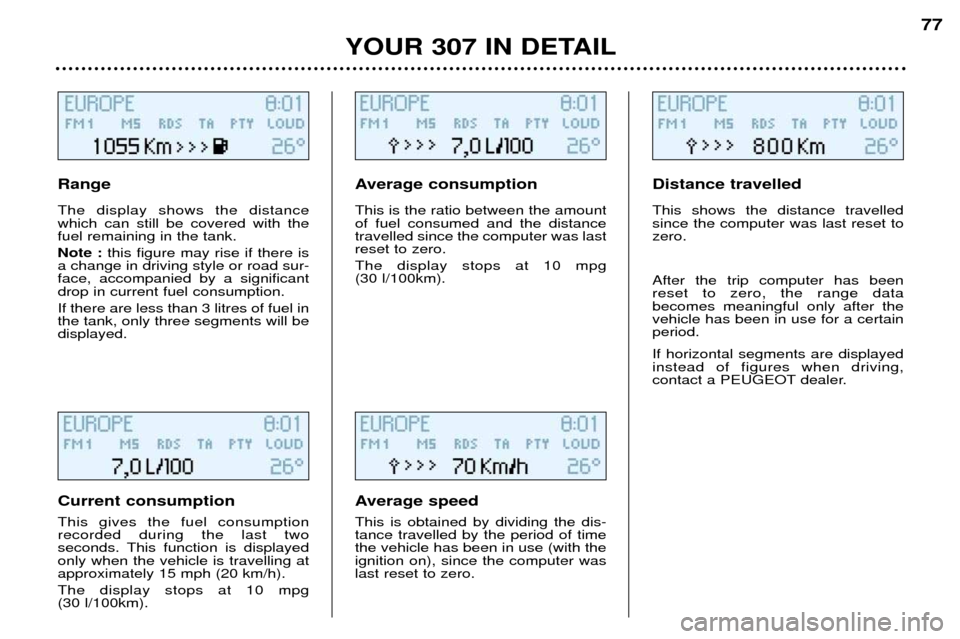

TRIP COMPUTER*Each successive press on the end of the wash/wipe stalk displays in turn:
Display B
- the date,
- the remaining range,
- the distance travelled,
- the average consumption,
- the current consumption,
- the average speed. Zero reset Press the stalk for more than two seconds.
* According to specification.
YOUR 307 IN DETAIL
76

Range The display shows the distance which can still be covered with thefuel remaining in the tank. Note :this figure may rise if there is
a change in driving style or road sur- face, accompanied by a significantdrop in current fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments will bedisplayed. Current consumption This gives the fuel consumption recorded during the last two
seconds. This function is displayedonly when the vehicle is travelling atapproximately 15 mph (20 km/h). The display stops at 10 mpg (30 l/100km). Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer was lastreset to zero. The display stops at 10 mpg (30 l/100km).
Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range databecomes meaningful only after thevehicle has been in use for a certainperiod. If horizontal segments are displayed instead of figures when driving,
contact a PEUGEOT dealer.
YOUR 307 IN DETAIL
77
Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero.

S: sport programme.


: snow programme.
P ark: to park the vehicle or start the engine , with the
handbrake on or off.
R everse: for reversing (select this function with the
vehicle stationary, engine at idle).
N eutral: to start the engine and to park, with the hand-
brake on. Note: if position Nis inadvertently engaged while dri-
ving, allow the engine to return to idle before engaging function Dto accelerate.
D rive : for driving in automatic mode.
M anual: for driving in manual mode.
YOUR 307 IN DETAIL
86
Moving Off
With the engine running, to move off from position P:
it is essential to press the
brake pedal to exit position P,
select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
You can also start from function N:
release the handbrake, with yourfoot on the brake,
select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
WARNING When the engine is at idle, brakes not applied, if function R, D or Mis
selected the vehicle moves evenwithout the accelerator being pres-sed.For this reason, do not leave
children unsupervised inside thevehicle, with the engine running. When maintenance operations need to be carried out with the engine run-ning, apply the handbrake and selectposition P.
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX The four speed
automatic gearbox offers a choice between the comfort of inte-
gral automatic operation , enhanced by a sport and a snow programme, or the
pleasure of manual gear changing.
Gear selection gate Move the lever in the gate to select a function. Once the function is selected, the corresponding indicator light appears on
the instrument panel display.
