PRACTICAL INFORMATION
Without lifting
(4 wheels on the ground)
Y o u m u s t a l w a y s u s e a t o w b a r .
T h e r e m o v a b l e t o w i n g e y e i s i n s i d e
t h e s p a r e w h e e l . From the rear:
U n c l i p t h e t o p o f t h e c o v e r u s i n g
a c o i n ,
S c r e w i n t h e t o w i n g e y e a s f a r a s
i t w i l l g o .
Special features of the
automatic gearbox
W h e n t o w i n g w i t h f o u r w h e e l s o n t h e
g r o u n d , t h e f o l l o w i n g r u l e s m u s t b e
o b e y e d :
- l e v e r i n p o s i t i o n N ,
- t o w t h e v e h i c l e a t l e s s t h a n 3 0 m p h (50 km/h) over a maximum dis-
tance of 30 miles (50 km).
- do not add oil to the gearbox.

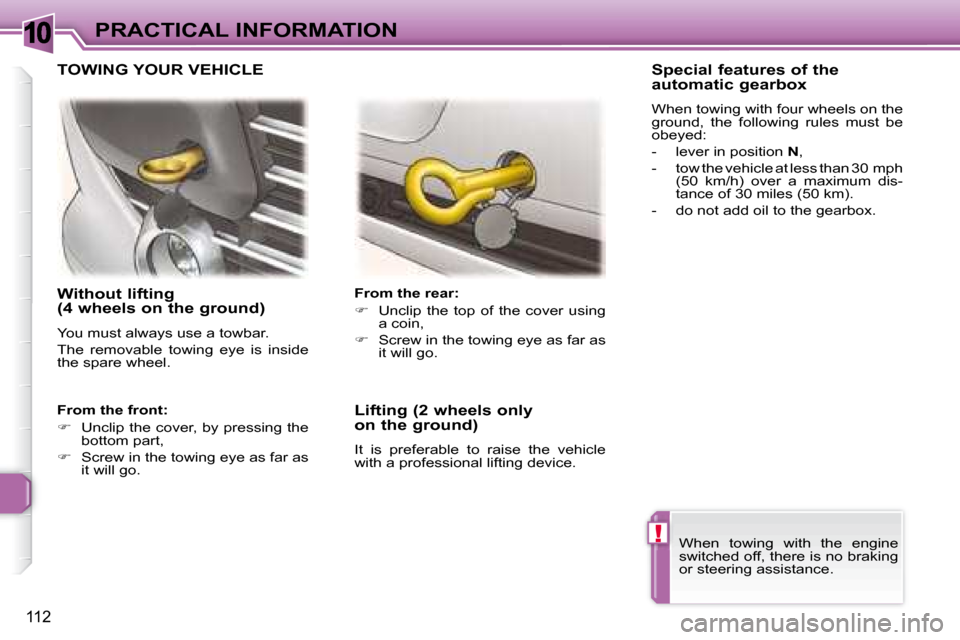

TOWING YOUR VEHICLE
Lifting (2 wheels only
on the ground)
I t i s p r e f e r a b l e t o r a i s e t h e v e h i c l e
w i t h a p r o f e s s i o n a l l i f t i n g d e v i c e .
From the front:
U n c l i p t h e c o v e r , b y p r e s s i n g t h e
b o t t o m p a r t ,
S c r e w i n t h e t o w i n g e y e a s f a r a s
i t w i l l g o .
W h e n t o w i n g w i t h t h e e n g i n e
s w i t c h e d o f f , t h e r e i s n o b r a k i n g
or steering assistance.
Page 132 of 184
10
113
PRACTICAL INFORMATION
Driving advice
Distribution of loads:
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Cooling:
t o w i n g a t r a i l e r o n a s l o p e i n c r e a s e s
t h e t e m p e r a t u r e o f t h e c o o l a n t .
A s t h e f a n i s e l e c t r i c a l l y c o n t r o l l e d ,
i t s c o o l i n g c a p a c i t y i s n o t d e p e n d e n t
o n t h e e n g i n e s p e e d .
T o l o w e r t h e e n g i n e s p e e d , r e d u c e
y o u r s p e e d .
T h e m a x i m u m t o w i n g l o a d o n a l o n g
s l o p e d e p e n d s o n t h e g r a d i e n t a n d
t h e o u t s i d e t e m p e r a t u r e .
I n a l l c a s e s , p a y a t t e n t i o n t o t h e c o o l -
a n t t e m p e r a t u r e .
I f t h e w a r n i n g l i g h t c o m e s o n , s t o p
t h e v e h i c l e a n d s w i t c h o f f t h e e n g i n e
a s s o o n a s p o s s i b l e . Tyres:
c h e c k t h e t y r e p r e s s u r e s o f t h e
t o w i n g v e h i c l e a n d o f t h e t r a i l e r ,
o b s e r v i n g t h e r e c o m m e n d e d p r e s -
sures.
Braking:
t o w i n g i n c r e a s e s t h e b r a k i n g d i s t a n c e.
Lights:
check the electrical signalling on the
trailer.
Sidewind:
take into acount the increased sensi-
t i v i t y t o s i d e w i n d .

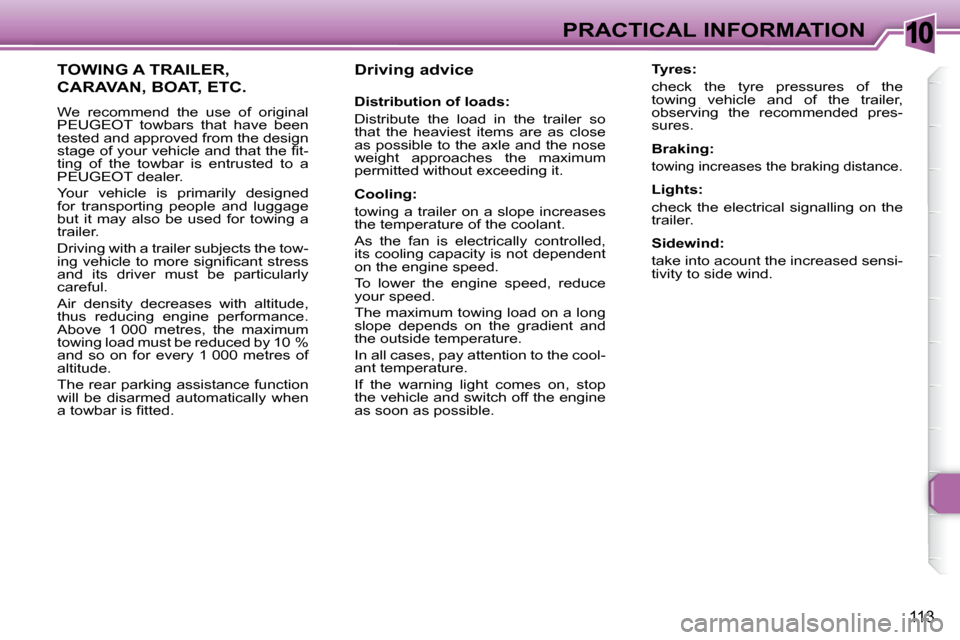

TOWING A TRAILER,
CARAVAN, BOAT, ETC.
We recommend the use of original
P E U G E O T t o w b a r s t h a t h a v e b e e n
t e s t e d a n d a p p r o v e d f r o m t h e d e s i g n
s t a g e o f y o u r v e h i c l e a n d t h a t t h e i t -
t i n g o f t h e t o w b a r i s e n t r u s t e d t o a
PEUGEOT dealer.
Y o u r v e h i c l e i s p r i m a r i l y d e s i g n e d
f o r t r a n s p o r t i n g p e o p l e a n d l u g g a g e
b u t i t m a y a l s o b e u s e d f o r t o w i n g a
trailer.
D r i v i n g w i t h a t r a i l e r s u b j e c t s t h e t o w -
i n g v e h i c l e t o m o r e s i g n i i c a n t s t r e s s
a n d i t s d r i v e r m u s t b e p a r t i c u l a r l y
careful.
A i r d e n s i t y d e c r e a s e s w i t h a l t i t u d e ,
t h u s r e d u c i n g e n g i n e p e r f o r m a n c e .
A b o v e 1 0 0 0 m e t r e s , t h e m a x i m u m
t o w i n g l o a d m u s t b e r e d u c e d b y 1 0 %
and so on for every 1 000 metres of
altitude.
T h e r e a r p a r k i n g a s s i s t a n c e f u n c t i o n
w i l l b e d i s a r m e d a u t o m a t i c a l l y w h e n
a t o w b a r i s i t t e d .
Page 133 of 184
10
114
PRACTICAL INFORMATION
BOOT LUGGAGE CARRIER *
A boot luggage carrier is available
from your PEUGEOT dealer.
W h e n i t i s u s e d , t a k e c a r e n o t t o
conceal the third brake light.
F o l l o w t h e m a n u f a c t u r e r ’ s r e c o m -
mendations.
* Available as an accessory.

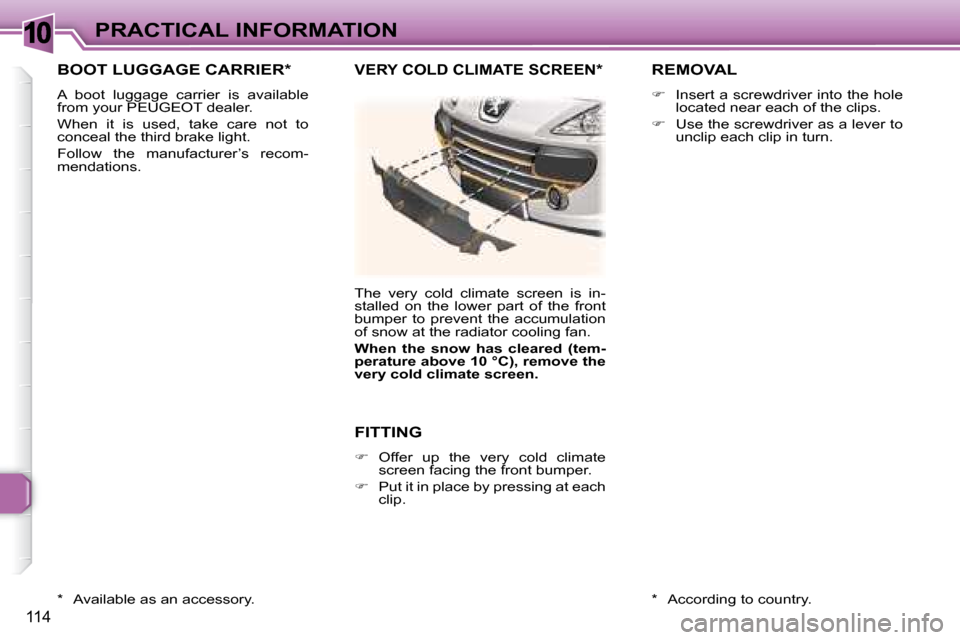

VERY COLD CLIMATE SCREEN *
* According to country.
The very cold climate screen is in-
s t a l l e d o n t h e l o w e r p a r t o f t h e f r o n t
b u m p e r t o p r e v e n t t h e a c c u m u l a t i o n
o f s n o w a t t h e r a d i a t o r c o o l i n g f a n .
When the snow has cleared (tem-
perature above 10 °C), remove the
very cold climate screen.
FITTING
O f f e r u p t h e v e r y c o l d c l i m a t e
s c r e e n f a c i n g t h e f r o n t b u m p e r .
P u t i t i n p l a c e b y p r e s s i n g a t e a c h
c l i p .
REMOVAL
I n s e r t a s c r e w d r i v e r i n t o t h e h o l e
l o c a t e d n e a r e a c h o f t h e c l i p s .
U s e t h e s c r e w d r i v e r a s a l e v e r t o
u n c l i p e a c h c l i p i n t u r n .
Page 134 of 184
10
!
i
115
PRACTICAL INFORMATION

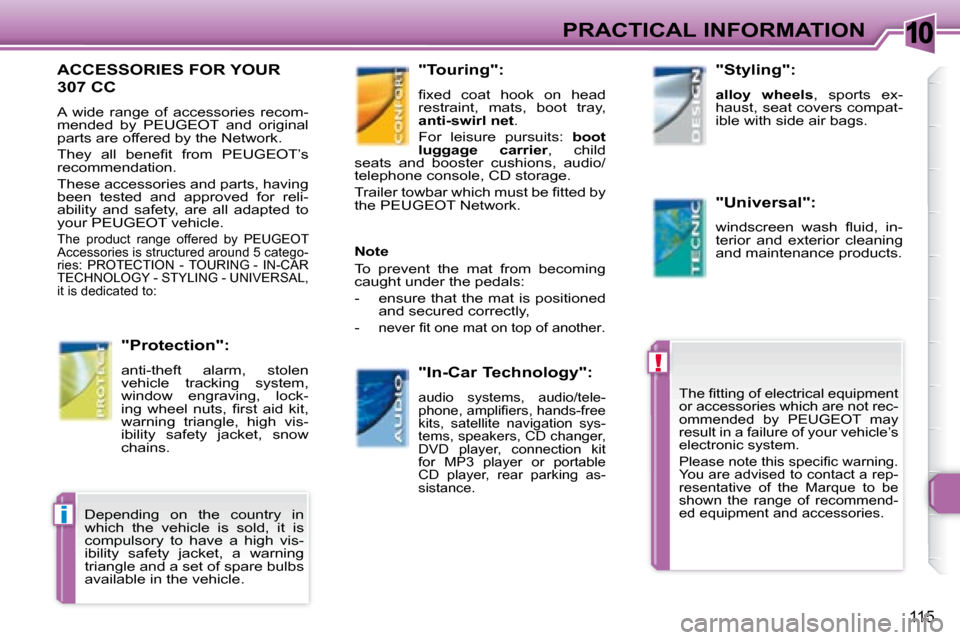

ACCESSORIES FOR YOUR
307 CC
A w i d e r a n g e o f a c c e s s o r i e s r e c o m -
mended by PEUGEOT and original
p a r t s a r e o f f e r e d b y t h e N e t w o r k .
T h e y a l l b e n e i t f r o m P E U G E O T ’ s
recommendation.
T h e s e a c c e s s o r i e s a n d p a r t s , h a v i n g
b e e n t e s t e d a n d a p p r o v e d f o r r e l i -
a b i l i t y a n d s a f e t y , a r e a l l a d a p t e d t o
your PEUGEOT vehicle.
T h e p r o d u c t r a n g e o f f e r e d b y P E U G E O T
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
T E C H N O L O G Y - S T Y L I N G - U N I V E R S A L ,
i t i s d e d i c a t e d t o :
"Touring":
i x e d c o a t h o o k o n h e a d
r e s t r a i n t , m a t s , b o o t t r a y ,
anti-swirl net .
F o r l e i s u r e p u r s u i t s : boot
luggage carrier , c h i l d
s e a t s a n d b o o s t e r c u s h i o n s , a u d i o /
t e l e p h o n e c o n s o l e , C D s t o r a g e .
T r a i l e r t o w b a r w h i c h m u s t b e i t t e d b y
t h e P E U G E O T N e t w o r k .
"Universal":
w i n d s c r e e n w a s h l u i d , i n -
terior and exterior cleaning
a n d m a i n t e n a n c e p r o d u c t s .
"Protection":
a n t i - t h e f t a l a r m , s t o l e n
v e h i c l e t r a c k i n g s y s t e m ,
w i n d o w e n g r a v i n g , l o c k -
i n g w h e e l n u t s , i r s t a i d k i t ,
w a r n i n g t r i a n g l e , h i g h v i s -
i b i l i t y s a f e t y j a c k e t , s n o w
chains. "In-Car Technology":
a u d i o s y s t e m s , a u d i o / t e l e -
p h o n e , a m p l i i e r s , h a n d s - f r e e
k i t s , s a t e l l i t e n a v i g a t i o n s y s -
t e m s , s p e a k e r s , C D c h a n g e r ,
D V D p l a y e r , c o n n e c t i o n k i t
f o r M P 3 p l a y e r o r p o r t a b l e
C D p l a y e r , r e a r p a r k i n g a s -
sistance
.
"Styling":
alloy wheels , s p o r t s e x -
h a u s t , s e a t c o v e r s c o m p a t -
i b l e w i t h s i d e a i r b a g s .
Note
T o p r e v e n t t h e m a t f r o m b e c o m i n g
c a u g h t u n d e r t h e p e d a l s :
- e n s u r e t h a t t h e m a t i s p o s i t i o n e d a n d s e c u r e d c o r r e c t l y ,
-
n e v e r i t o n e m a t o n t o p o f a n o t h e r.
T h e i t t i n g o f e l e c t r i c a l e q u i p m e n t
o r a c c e s s o r i e s w h i c h a r e n o t r e c -
ommended by PEUGEOT may
result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i i c w a r n i n g .
Y o u a r e a d v i s e d t o c o n t a c t a r e p -
r e s e n t a t i v e o f t h e M a r q u e t o b e
s h o w n t h e r a n g e o f r e c o m m e n d -
e d e q u i p m e n t a n d a c c e s s o r i e s .
D e p e n d i n g o n t h e c o u n t r y i n
w h i c h t h e v e h i c l e i s s o l d , i t i s
c o m p u l s o r y t o h a v e a h i g h v i s -
i b i l i t y s a f e t y j a c k e t , a w a r n i n g
t r i a n g l e a n d a s e t o f s p a r e b u l b s
available in the vehicle.
Page 135 of 184
11
116
TECHNICAL DATA
ENGINES AND GEARBOXES
MODELS:
Model codes: 3B...
NFUC RFJCRFJF
PETROL ENGINES 1.6 litre 16V
110 bhp
2 litre 16V
143 bhp
C u b i c c a p a c i t y ( c m3) 1 5871 997
Bore x stroke (mm) 78.5 x 82 85 x 88
E U s t a n d a r d m a x p o w e r ( k W / b h p ) 80/110 103/143
M a x t o r q u e e n g i n e s p e e d ( r p m ) 5 8006 000
E U s t a n d a r d m a x t o r q u e ( N m ) 147200
M a x t o r q u e e n g i n e s p e e d ( r p m ) 4 0004 000
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
GEARBOX Manual ( 5 s p e e d ) Manual ( 5 s p e e d ) Automatic ( 4 s p e e d )
OIL CAPACITIES (in litres)
E n g i n e ( w i t h c a r t r i d g e r e p l a c e m e n t )
3.255
Gearbox - Final drive 21.9-
Page 136 of 184
11
117
TECHNICAL DATA
ENGINES AND GEARBOXES
MODELS:
Model codes: 3B...
RHRH
DIESEL ENGINES
2 litre Turbo HDI 16V 136 bhp
C u b i c c a p a c i t y ( c m
3) 1 997
Bore x stroke (mm) 85 x 88
E U s t a n d a r d m a x p o w e r ( k W ) 100
M a x p o w e r e n g i n e s p e e d ( r p m ) 4 000
E U s t a n d a r d m a x t o r q u e ( N m ) 320
M a x t o r q u e e n g i n e s p e e d ( r p m ) 2 000
Fuel Diesel
Catalytic converter Yes
P a r t i c l e e m i s s i o n i l t e r Yes
GEARBOX Manual
( 6 s p e e d )
OIL CAPACITIES (in litres)
E n g i n e ( w i t h c a r t r i d g e r e p l a c e m e n t ) 5.25
Gearbox - Final drive 2.4
Page 137 of 184
11
118
TECHNICAL DATA
T h e c o n s u m p t i o n v a l u e s p r e s e n t e d h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g . T h e s e c o n s u m p t i o n
v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e
o f d r i v i n g , t r a f i c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e v e h i c l e l o a d , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f t h e
accessories.
CONSUMPTION In accordance with EC Directive 80/1268 (as amended)
Engine Gearbox
Model
codes 3B...
Urban driving
mpg
(litres/100 km)
Inter-urban
mpg
(litres/100 km)
Mixed mpg
(litres/100 km)
Emission
of CO
2 by
weight (g/km)
1.6 litre 16V Manual NFUC 10.2 6.2 7.6 178
2 litre 16V 143 bhp Manual RFJC 11.3 6.2 8.1 192
2 litre 16V 143 bhp Automatic RFJF 12.2 6.3 8.4 199
2 litre Turbo HDI 16V Manual RHRH 7.7 5.1 6 159
Page 138 of 184
11
119
TECHNICAL DATA
WEIGHTS AND TOWING LOADS (in kg)
* T h e w e i g h t o f t h e b r a k e d t r a i l e r c a n b e i n c r e a s e d , w i t h i n t h e G T W , i f t h e G V W o f t h e t o w i n g v e h i c l e i s r e d u c e d b y a n e q u a l a m o u n t ; w a r n i n g , t o w i n g u s i n g a l i g h t l y l o a d e d t o w i n g v e h i c l e m a y h a v e a n a d v e r s e e f f e c t o n i t s r o a d h o l d i n g .
Petrol engines 1,6 litre 16V2 litre 16V 143 ch
Gearbox ManualManual Automatic
Model codes: 3B... NFUC RFJC RFJF
• K e r b w e i g h t 1 528 1 543 1 573
Page 139 of 184
11
120
TECHNICAL DATA
WEIGHTS AND TOWING LOADS (in kg)
* T h e w e i g h t o f t h e b r a k e d t r a i l e r c a n b e i n c r e a s e d , w i t h i n t h e G T W , i f t h e G V W o f t h e t o w i n g v e h i c l e i s r e d u c e d b y a n e q u a l a m o u n t ; w a r n i n g , t o w i n g u s i n g a l i g h t l y l o a d e d t o w i n g v e h i c l e m a y h a v e a n a d v e r s e e f f e c t o n i t s r o a d h o l d i n g .
Diesel engines
2 litre Turbo HDI 16V
Gearbox
Manual
Model codes: 3B…
RHRH
• K e r b w e i g h t 1 653
Page 140 of 184
11
121
TECHNICAL DATA
DIMENSIONS (IN MM)
