Peugeot 307 CC 2007.5 Repair Manual

i
54
ACCESS
This provides two types of protection: - exterior protection: it sounds if
a door, the boot or the bonnet is
opened.
- interior protection: it sounds if
the volume inside the passenger
compartment changes (breaking
of a window or a movement inside
the vehicle).

Note: the interior protection alarm
does not function if the vehicle’s roof
is open (cabriolet position). When the alarm is triggered, the siren
sounds and the direction indicator
lights l ash for thirty seconds.
After triggering, the alarm remains
set.

 Switch off the ignition,

 In the next ten seconds, press
button A until the indicator light is
on continuously,

 Get out of the vehicle,

 Set the alarm by locking or
deadlocking using the remote
control (button A indicator light
l ashes once a second).
In order for the alarm to be set in
this mode, these operations must be
carried out each time the ignition is
switched off.
Setting the alarm

 Switch off the ignition and get
out of the vehicle.

 Set the alarm by locking or
deadlocking using the remote
control (button A indicator light
l ashes once per second).

Note: if you wish to lock your vehicle
without setting the alarm, use the
door lock.
Disarming
Unlock the vehicle with the remote
control key (button A indicator light
goes out).

Note: if the alarm has been triggered
while you were away from your vehicle,
the rapid l ashing of the indicator light will
stop when you switch on the ignition.
To set the alarm with exterior
protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
should choose exterior protection only.
Incorrect operation
When the ignition is switched on, if
button A lights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
Automatic activation *
The alarm is activated automatically
two minutes after the last closure of a
door or the boot.
In order to avoid accidental triggering
of the alarm when a door or the boot is
opened, it is essential to i rst press the
unlocking button on the remote control.
Failure of the remote control

 Unlock the door with the key and
open it. The alarm is triggered.

 Switch on the ignition. The alarm
is disarmed.
THE ALARM
If button A indicator light l ashes rapid-
ly, the alarm has been triggered while
you were away from your vehicle.
45 seconds following pressing of the
locking button on the remote control,
the alarm is set, regardless of the
status of the doors or boot.
When washing your vehicle, to avoid
triggering the alarm:
- lock the doors using the key,
or
-
set the exterior protection alarm only.
If the alarm has been triggered ten
times in succession, on the elev-
enth time it becomes inactive.
* According to country.

55
ACCESS

1. Driver’s electric window
switch.

2. Passenger’s electric window
switch.

3. Rear right electric window
switch.

4. Rear left electric window
switch.

5. Disarming of the rear electric
window switches (child lock). You have two options:
Manual operation:
Press or pull the switch gently. The
window stops as soon as the switch
is released.
Front windows safety
auto-reverse
When the window rises and meets
an obstacle, it stops and partially
lowers again.
Disarming the rear window
controls
For the safety of your children, press
switch
5 to prevent operation of the
rear windows irrespective of their
position.
When the button is lowered, the
controls are active.
When the button is raised, the
controls are disarmed.
Automatic operation:
Press or pull the switch fully: the
window opens or closes completely
when the switch is released.
Pressing the switch again stops the
movement of the window.
Note:
In the event of unwanted opening
of the window on closing (for exam-
ple in the presence of frost), press
the switch until it opens completely,
then pull it immediately until it clos-
es. Continue to hold the switch for
approximately one second after the
window has closed.

The safety auto-reverse function
is not active during these opera-
tions.
ELECTRIC WINDOWS
Notes:
Approximately 45 seconds follow-
ing removal of the ignition key or the
opening of a door, none of the win-
dows can be opened or closed. The
ignition must be switched on again to
permit opening or closing of the win-
dows.
The rear windows do not close

!
!

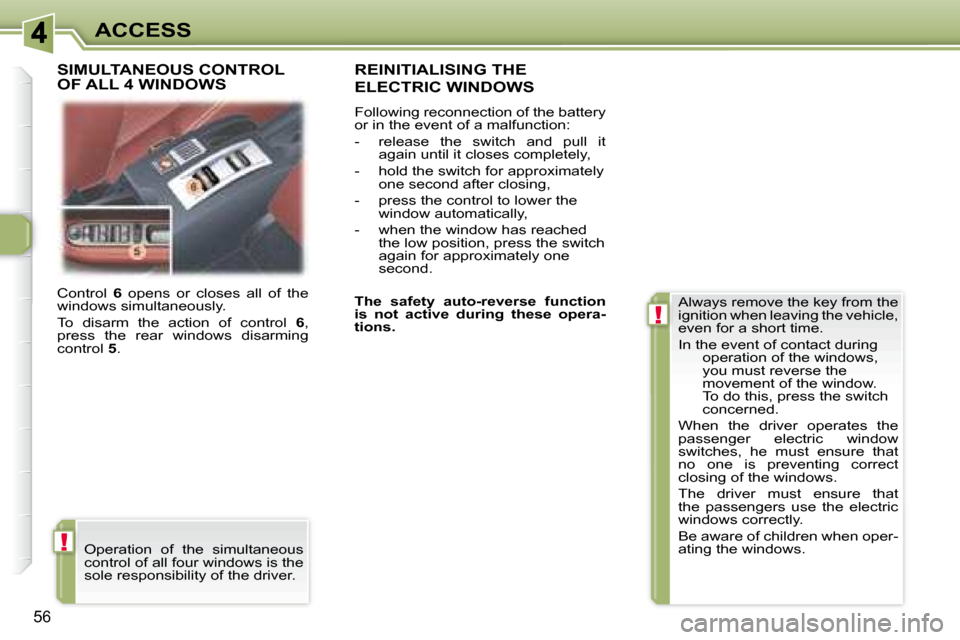

56
ACCESS
Control 6 opens or closes all of the
windows simultaneously.
To disarm the action of control 6 ,
press the rear windows disarming
control 5 .
SIMULTANEOUS CONTROL OF ALL 4 WINDOWS
Operation of the simultaneous
control of all four windows is the
sole responsibility of the driver.
REINITIALISING THE
ELECTRIC WINDOWS
Following reconnection of the battery
or in the event of a malfunction:
- release the switch and pull it again until it closes completely,
- hold the switch for approximately one second after closing,
- press the control to lower the window automatically,
- when the window has reached the low position, press the switch
again for approximately one
second.

The safety auto-reverse function
is not active during these opera-
tions. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows,
you must reverse the
movement of the window.
To do this, press the switch
concerned.
When the driver operates the
passenger electric window
switches, he must ensure that
no one is preventing correct
closing of the windows.
The driver must ensure that
the passengers use the electric
windows correctly.
Be aware of children when oper-
ating the windows.

!
!

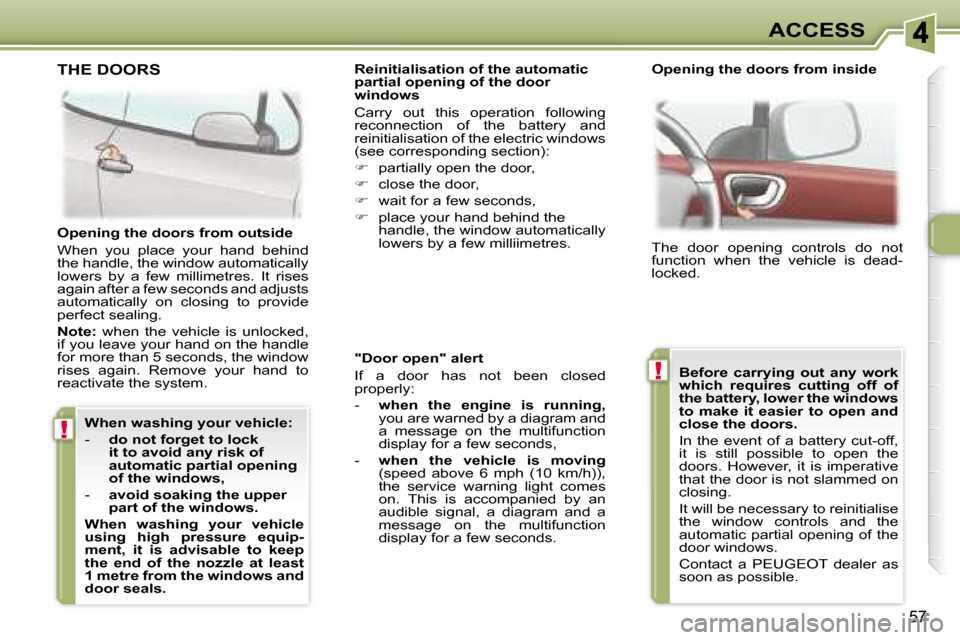

57
ACCESS
"Door open" alert
If a door has not been closed
properly:
- when the engine is running,
you are warned by a diagram and
a message on the multifunction
display for a few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
the service warning light comes
on. This is accompanied by an
audible signal, a diagram and a
message on the multifunction
display for a few seconds. The door opening controls do not
function when the vehicle is dead-
locked.
Opening the doors from outside
When you place your hand behind
the handle, the window automatically
lowers by a few millimetres. It rises
again after a few seconds and adjusts
automatically on closing to provide
perfect sealing.

Note: when the vehicle is unlocked,
if you leave your hand on the handle
for more than 5 seconds, the window
rises again. Remove your hand to
reactivate the system. Reinitialisation of the automatic
partial opening of the door
windows
Carry out this operation following
reconnection of the battery and
reinitialisation of the electric windows
(see corresponding section):

 partially open the door,

 close the door,

 wait for a few seconds,

 place your hand behind the
handle, the window automatically
lowers by a few milliimetres.
THE DOORS Opening the doors from inside

Before carrying out any work
which requires cutting off of
the battery, lower the windows
to make it easier to open and
close the doors.
In the event of a battery cut-off,
it is still possible to open the
doors. However, it is imperative
that the door is not slammed on
closing.
It will be necessary to reinitialise
the window controls and the
automatic partial opening of the
door windows.
Contact a PEUGEOT dealer as
soon as possible.

When washing your vehicle:
- do not forget to lock
it to avoid any risk of
automatic partial opening
of the windows,
- avoid soaking the upper
part of the windows.

When washing your vehicle
using high pressure equip-
ment, it is advisable to keep
the end of the nozzle at least
1 metre from the windows and
door seals.

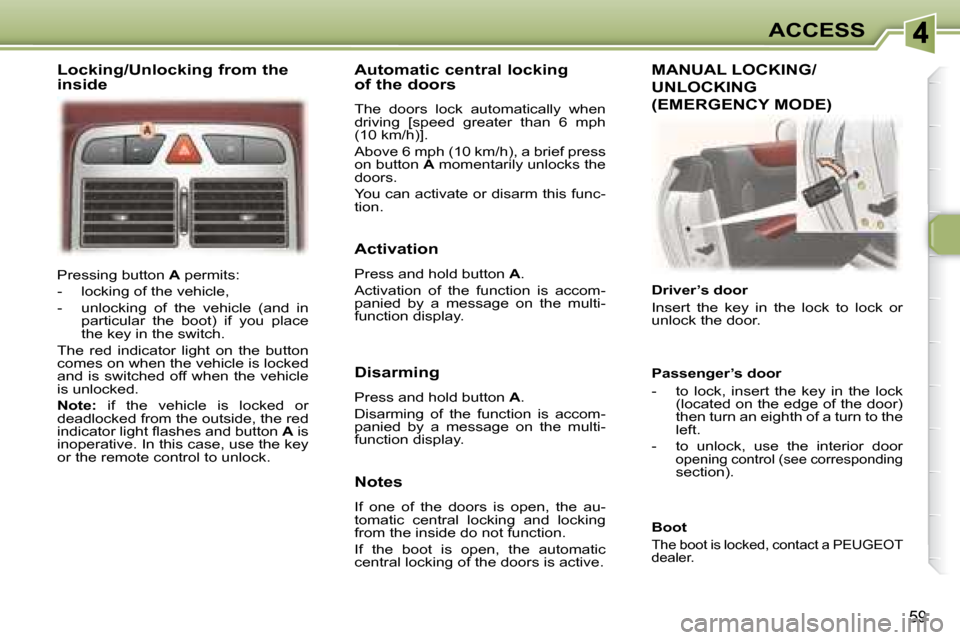

59
ACCESS
Pressing button A permits:
- locking of the vehicle,
- unlocking of the vehicle (and in particular the boot) if you place
the key in the switch.
The red indicator light on the button
comes on when the vehicle is locked
and is switched off when the vehicle
is unlocked.

Note: if the vehicle is locked or
deadlocked from the outside, the red
indicator light l ashes and button A is
inoperative. In this case, use the key
or the remote control to unlock.
Automatic central locking
of the doors
The doors lock automatically when
driving [speed greater than 6 mph
(10 km/h)].
Above 6 mph (10 km/h), a brief press
on button A momentarily unlocks the
doors.
You can activate or disarm this func-
tion.
Activation
Press and hold button A .
Activation of the function is accom-
panied by a message on the multi-
function display.
Disarming
Press and hold button A .
Disarming of the function is accom-
panied by a message on the multi-
function display.
Notes
If one of the doors is open, the au-
tomatic central locking and locking
from the inside do not function.
If the boot is open, the automatic
central locking of the doors is active. Driver’s door
Insert the key in the lock to lock or
unlock the door.
Passenger’s door
- to lock, insert the key in the lock
(located on the edge of the door)
then turn an eighth of a turn to the
left.
- to unlock, use the interior door
opening control (see corresponding
section).
Boot
The boot is locked, contact a PEUGEOT
dealer.
MANUAL LOCKING/
UNLOCKING
(EMERGENCY MODE)
Locking/Unlocking from the
inside

!
58
ACCESS
Vehicle locked/deadlocked

 Press button D on the remote
control to unlock and partially
open the boot.
This action will also unlock the
doors. To protect the boot against theft,
button
E can be disarmed. Turn the
lock F a quarter turn to the right using
the key.
The boot can only be opened using
the remote control.
Opening the boot "Boot open" warning
If the tailgate is not properly closed:
- with the engine running , you
are warned by a diagram and a
message on the multifunction
display for a few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
the service warning light comes
on. It is accompanied by an
audible signal, a diagram and a
message on the multifunction
display for a few seconds.
Closing the boot

 Use the interior grab handles to
close the boot.

 Press the centre of the boot with
both hands until it locks.
BOOT Permanent locking
Automatic locking
The boot locks automatically when
driving above 6 mph (10 km/h).
It unlocks either:
- manually by pressing the interior central locking/unlocking button,
- automatically when one of the doors is opened.
For this to take place, the key must
be in the ignition and button E
must not have been disarmed by
means of the lock F. Following automatic locking, if
the key is removed from the ig-
nition before a door is opened or
before the interior central lock-
ing/unlocking button is pressed,
the boot remains locked and
cannot be opened by pressing
button
E .

In all cases, the boot can still
be unlocked by pressing but-
ton D on the remote control.
Vehicle unlocked

 Press button D on the remote
control to partially open the boot,
or press button E on the boot.

Note
: if you have unlocked the vehicle
using the key, pressing the remote
control deactivates the alarm.

59
ACCESS
Pressing button A permits:
- locking of the vehicle,
- unlocking of the vehicle (and in particular the boot) if you place
the key in the switch.
The red indicator light on the button
comes on when the vehicle is locked
and is switched off when the vehicle
is unlocked.

Note: if the vehicle is locked or
deadlocked from the outside, the red
indicator light l ashes and button A is
inoperative. In this case, use the key
or the remote control to unlock.
Automatic central locking
of the doors
The doors lock automatically when
driving [speed greater than 6 mph
(10 km/h)].
Above 6 mph (10 km/h), a brief press
on button A momentarily unlocks the
doors.
You can activate or disarm this func-
tion.
Activation
Press and hold button A .
Activation of the function is accom-
panied by a message on the multi-
function display.
Disarming
Press and hold button A .
Disarming of the function is accom-
panied by a message on the multi-
function display.
Notes
If one of the doors is open, the au-
tomatic central locking and locking
from the inside do not function.
If the boot is open, the automatic
central locking of the doors is active. Driver’s door
Insert the key in the lock to lock or
unlock the door.
Passenger’s door
- to lock, insert the key in the lock
(located on the edge of the door)
then turn an eighth of a turn to the
left.
- to unlock, use the interior door
opening control (see corresponding
section).
Boot
The boot is locked, contact a PEUGEOT
dealer.
MANUAL LOCKING/
UNLOCKING
(EMERGENCY MODE)
Locking/Unlocking from the
inside

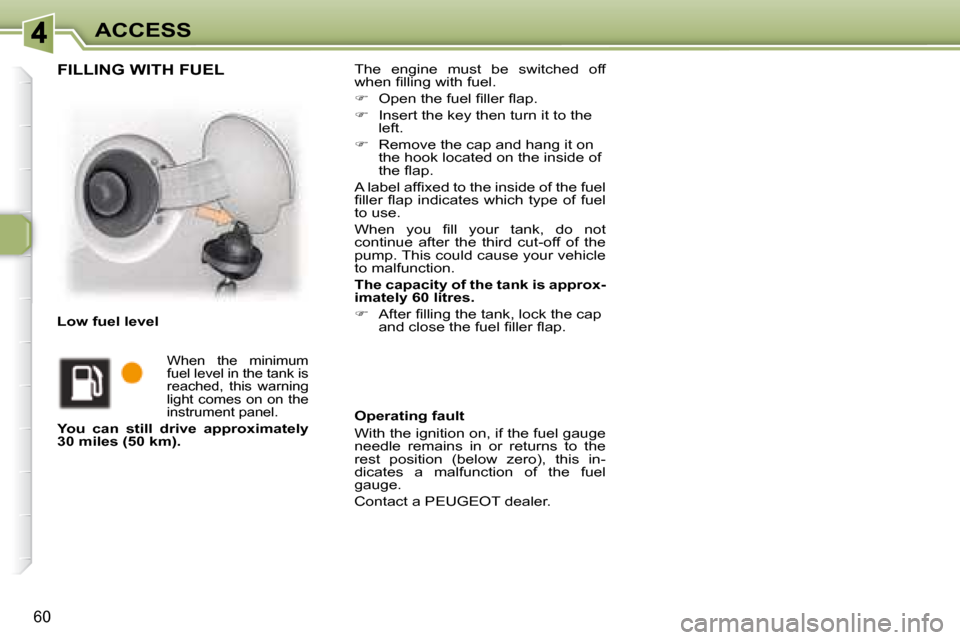

60
ACCESS
The engine must be switched off
when i lling with fuel.

 Open the fuel i ller l ap.

 Insert the key then turn it to the
left.

 Remove the cap and hang it on
the hook located on the inside of
the l ap.
A label afi xed to the inside of the fuel
i ller l ap indicates which type of fuel
to use.
When you i ll your tank, do not
continue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.

The capacity of the tank is approx-
imately 60 litres.

 After i lling the tank, lock the cap
and close the fuel i ller l ap.
Low fuel level
When the minimum
fuel level in the tank is
reached, this warning
light comes on on the
instrument panel.

You can still drive approximately
30 miles (50 km). Operating fault
With the ignition on, if the fuel gauge
needle remains in or returns to the
rest position (below zero), this in-
dicates a malfunction of the fuel
gauge.
Contact a PEUGEOT dealer.
FILLING WITH FUEL

i
!

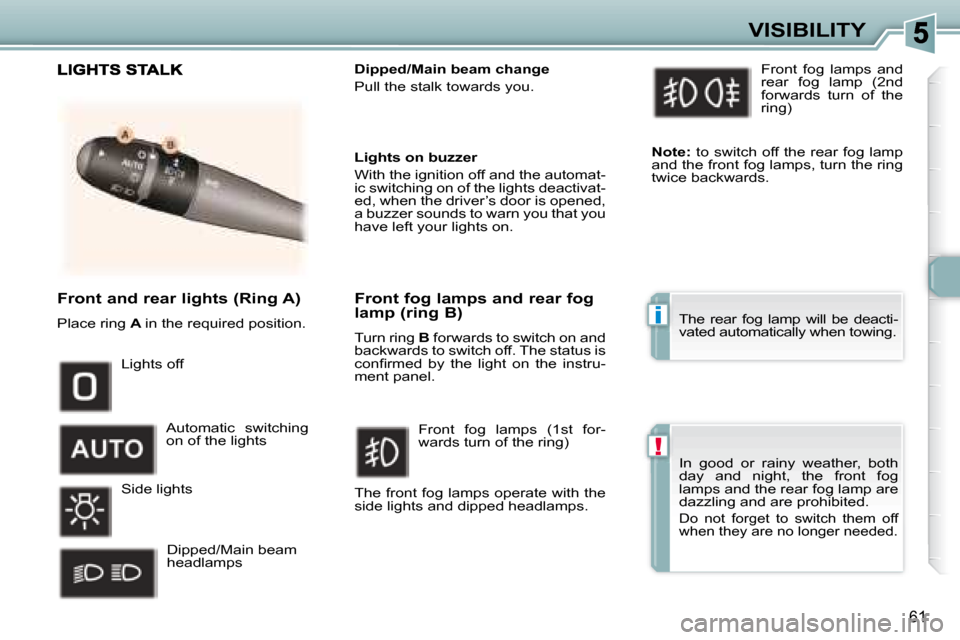

61
VISIBILITY
Front and rear lights (Ring A)
Place ring A in the required position. Dipped/Main beam change
Pull the stalk towards you.
Lights off
Side lights Dipped/Main beam
headlamps Front fog lamps (1st for-
wards turn of the ring)
The front fog lamps operate with the
side lights and dipped headlamps. Front fog lamps and
rear fog lamp (2nd
forwards turn of the
ring)

Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
twice backwards.
Front fog lamps and rear fog
lamp (ring B)
Turn ring B forwards to switch on and
backwards to switch off. The status is
coni rmed by the light on the instru-
ment panel.
Lights on buzzer
With the ignition off and the automat-
ic switching on of the lights deactivat-
ed, when the driver’s door is opened,
a buzzer sounds to warn you that you
have left your lights on.
The rear fog lamp will be deacti-
vated automatically when towing.
In good or rainy weather, both
day and night, the front fog
lamps and the rear fog lamp are
dazzling and are prohibited.
Do not forget to switch them off
when they are no longer needed.
Automatic switching
on of the lights

i
62
VISIBILITY
Automatic switching on of the
lights
Side lights and dipped beam head-
lamps switch on automatically if the
light is poor, or during operation of
the windscreen wipers. They switch
off as soon as the light becomes
bright enough or the windscreen wip-
ers stop.

Note: in foggy weather or in snow,
the brightness sensor can detect suf-
i cient light. As a consequence, the
lights will not come on automatically.
Manual "Follow-me-home"
lighting

When the automatic switching on of
the lights function is deactivated , the
side lights and dipped headlamps re-
main on for the duration selected for the
automatic "follow-me-home" lighting.

If the vehicle is not i tted with the
automatic switching on of the lights
function , when you leave your vehi-
cle, the side lights and dipped head-
lamps remain on for thirty seconds.
Direction indicators
(l ashers)

Left: downwards.

Right: upwards.

Note: if you forget to cancel the di-
rection indicator, the volume of the
audible signal will increase, if you
are driving at a speed greater than
50 mph (80 km/h).
Automatic "Follow-me-home"
lighting
With the ignition off, when you leave
your vehicle with the automatic
switching on of the lights function
activated , the side lights and dipped
headlamps remain on for the select-
ed duration. Activation:

 switch off the engine,

 "l ash" the headlamps,

 get out of the vehicle and lock it.
Deactivation:

 "l ash" the headlamps again,

 get out of the vehicle and lock it.
To deactivate or activate
this function, go to the mul-
tifunction display coni gura-
tion menu.
The duration of the timed
period must also be set (15, 30,
60 seconds), via the multifunction
display coni guration menu.
Cancelling:

 "l ash" the headlamps,

 get out of the vehicle and lock it. Activation

 Turn ring A to the "AUTO" posi-
tion. The automatic lighting is
accompanied by a message on
the multifunction display.
Deactivation

 Turn ring A to a position other
than "AUTO" . Switching off is
accompanied by a message on
the multifunction display.

If the brightness sensor does not
function correctly, the lights come
on accompanied by the service
warning light, an audible signal and
a message on the multifunction dis-
play.
Contact a PEUGEOT dealer.
Do not cover the brightness sen-
sor, coupled with the rain sensor,
located in the centre of the wind-
screen, behind the interior mir-
ror. It is used for the automatic
switching on of the lights.
