Peugeot 307 SW 2003 Manual Online

14-04-2003
The contextual menu associated with the "Navigation - Guidance"
application appears as a superimpo-
sed display, when this is the applica-tion currently in use in the main
screen window. This menu is limited to the following functions:
- changing of the initial route (ente- ring of a diversion),
- switching to "Selection - Movement on map" mode*,
- storing of the current location (pos- tal address if available or, if it is not, the GPS co-ordinates),
- changing of the route calculation criteria,
- stopping or resuming of guidance (dis- playing of the message which changesdepending on the previous status). General notes on the "Map"application* The map guidance can be displayed in two ways:
- full screen map**,
- reduced size map on the right-
hand side and zoom image of the junction on the left-hand side.
To switch from one to the other,press the dial for more than twoseconds. The "Map" application has two
operating modes: - "Selection - Movement on map" mode,
- "Vehicle following on map"mode.
A "Zoom" function enables you to
enlarge the map, in accordance withthe eleven preset levels relating tothe following scales: - 100 m/cm, 200 m/cm, 500 m/cm,- 1 km/cm, 2 km/cm, 5 km/cm,- 10 km/cm, 20 km/cm, 50 km/cm,- 100 km/cm, 200 km/cm.This is achieved by turning the dial. This mode permits:
- selection of any point on the map
to obtain guidance towards it or to obtain information about it (postal
address if available or, if it is not,GPS co-ordinates),
- lateral movement on the map by means of the four directionalarrows, representing the four cardi-nal points (North, East, South,
West),
- zooming in on the map in accor- dance with the eleven presetlevels,
- displaying of the "Map" contextual
menu.
YOUR 307 SW IN DETAIL
80

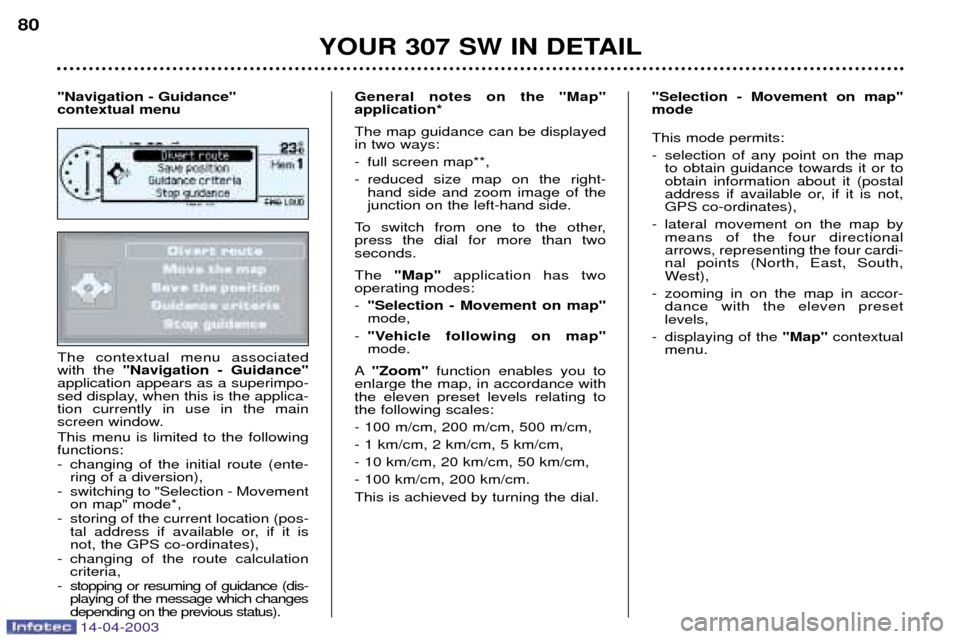

"Navigation - Guidance" contextual menu
"Selection - Movement on map"mode

14-04-2003
The contextual menu associated with the "Navigation - Guidance"
application appears as a superimpo-
sed display, when this is the applica-tion currently in use in the main
screen window. This menu is limited to the following functions:
- changing of the initial route (ente- ring of a diversion),
- switching to "Selection - Movement on map" mode*,
- storing of the current location (pos- tal address if available or, if it is not, the GPS co-ordinates),
- changing of the route calculation criteria,
- stopping or resuming of guidance (dis- playing of the message which changesdepending on the previous status). General notes on the "Map"application* The map guidance can be displayed in two ways:
- full screen map**,
- reduced size map on the right-
hand side and zoom image of the junction on the left-hand side.
To switch from one to the other,press the dial for more than twoseconds. The "Map" application has two
operating modes: - "Selection - Movement on map" mode,
- "Vehicle following on map"mode.
A "Zoom" function enables you to
enlarge the map, in accordance withthe eleven preset levels relating tothe following scales: - 100 m/cm, 200 m/cm, 500 m/cm,- 1 km/cm, 2 km/cm, 5 km/cm,- 10 km/cm, 20 km/cm, 50 km/cm,- 100 km/cm, 200 km/cm.This is achieved by turning the dial. This mode permits:
- selection of any point on the map
to obtain guidance towards it or to obtain information about it (postal
address if available or, if it is not,GPS co-ordinates),
- lateral movement on the map by means of the four directionalarrows, representing the four cardi-nal points (North, East, South,
West),
- zooming in on the map in accor- dance with the eleven presetlevels,
- displaying of the "Map" contextual
menu.
YOUR 307 SW IN DETAIL
80
"Navigation - Guidance" contextual menu
"Selection - Movement on map"mode

14-04-2003
YOUR 307 SW IN DETAIL81
This mode permits:
- displaying of the vehicle on the map with the route proposed by the navigation if the guidance isactive,
- zooming in on the map in accor- dance with the eleven presetlevels,
- displaying of the "Navigation -
Guidance" contextual menu.
"Vehicle following on map" mode
From the general menu, the main "Map"
menu offers various options
for guidance management:
- switching to "Selection - Movement on map" mode,
- direction of the map towards the North or in the direction of the vehicle,
- recentering of the map around the vehicle,
- opening of the services selection window visible on the map, suchas hotels, service stations, etc.
- displaying of the window for ente- ring the description for recordingthe current position of the vehiclein a directory file.
Map*The contextual menu associated with
the "Map" application and
with the "Selection - Movement onmap" mode appears as a superim-
posed display, when these are in use
in the main screen window. This menu is limited to the following functions:
- displaying of the information on the location selected on the map,
- selection of a location on the map as a destination,
- storing of the location selected (postal address if available or, if it is not, GPS co-ordinates, so thatthey can be recorded in a directoryfile),
- switching to "Vehicle following on map" mode.
* DT colour screen only.
** During the year.
"Map" contextual menu

14-04-2003
YOUR 307 SW IN DETAIL
82

14-04-2003
YOUR 307 SW IN DETAIL83
VENTILATION 1. Windscreen de-icing or demisting vents.
2. Front window de-icing or demisting vents.
3. Side vents.
4. Centre vents.
5. Air outlet to front footwells.
6. Air outlet to rear footwells.
Advice on operation  Place the air flow control at a level sufficient to ensure a good renewal of air in the passenger compartment. The ''OFF''
position cuts off all the air circulation in the passenger compartment. Note : only use the ' 'OFF''position occasionally (risk of condensation).
 For perfectly even air distribution, take care not to obstruct the exterior air intake grilles, the vents and the air ducts und er
the front seats, as well as the air extractor located in the boot. Check that the pollen filter is in good condition.

14-04-2003
YOUR 307 SW IN DETAIL
84
AIR CONDITIONING
1. Air conditioning control The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be lowe-
red and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting. Press the switch, the indi-cator light comes on. The air conditioning does not ope-rate while the air flow adjustmentcontrol is in the "OFF" position . Note:It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements.

14-04-2003
YOUR 307 SW IN DETAIL85
4. Air flow adjustment
Turn the control from posi- tion 1to position 4to obtain
an air flow sufficient toensure your comfort.
5. Air intake Pressing button 5permits
recirculation of the interior
air. Recirculation, indicatedby illumination of the indica-
tor light, prevents exterior odoursand smoke from entering the pas-senger compartment. Used simultaneously with the air conditioning, recirculation enablescooling performance to be improved. Used in a humid climate, recircula- tion may result in misting of the win-dows. As soon as possible, switch button 5
to the outside air position, to prevent
deterioration of the air quality. The
indicator light switches off.
3. Air distribution adjustment
Windscreen and side windows (de-icing/demisting).
To quickly de-ice or demist the wind-screen and side windows:
- Place the temperature and air flow controls to maximum,
- Close the centre vents,
- Switch air intake button 5to the
"Outside Air" position (button 5
released, indicator light off),
- Start the air conditioning by pres- sing the A/C button.
Windscreen, side windows and footwells.
Footwells.
Centre and side vents. 6. Demisting the rear screen and
the mirrors
With the engine running,pressing the button oncedemists the rear screenand the mirrors.
This switches off automatically afterapproximately twelve minutes. Pressing again activates demisting for a further twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact a PEU-
GEOT dealer.

14-04-2003
YOUR 307 SW IN DETAIL
86

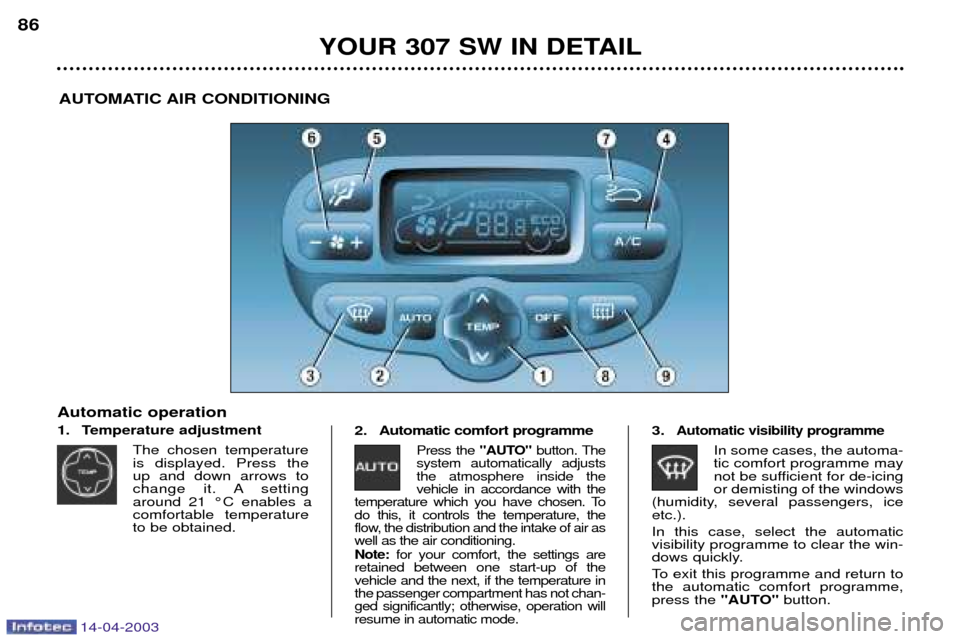

AUTOMATIC AIR CONDITIONING
Automatic operation
1. Temperature adjustment The chosen temperatureis displayed. Press the up and down arrows to
change it. A settingaround 21 ¡C enables acomfortable temperature
to be obtained. 2. Automatic comfort programme
Press the
"AUTO"button. The
system automatically adjuststhe atmosphere inside thevehicle in accordance with the
temperature which you have chosen. Todo this, it controls the temperature, the
flow, the distribution and the intake of air aswell as the air conditioning. Note: for your comfort, the settings are
retained between one start-up of the vehicle and the next, if the temperature inthe passenger compartment has not chan-ged significantly; otherwise, operation willresume in automatic mode.
3.Automatic visibility programme
In some cases, the automa-tic comfort programme may
not be sufficient for de-icingor demisting of the windows
(humidity, several passengers, iceetc.). In this case, select the automatic visibility programme to clear the win-
dows quickly.
To exit this programme and return to the automatic comfort programme,press the "AUTO"button.

14-04-2003
YOUR 307 SW IN DETAIL87
Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the "AUTO"but-
ton returns the system to completelyautomatic operation.
4. Air conditioning
Press this button to switch
off the air conditioning. Thesymbol "ECO" is displayed.Automatic operation of the
air conditioning is resumed when the
button is pressed again. The symbol"A/C" is displayed. Notes It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
To prevent misting inside the vehicle
in cold or wet weather, it is advisableto avoid the "ECO" mode.
5. Air distribution
Pressing this button several times in successionenables the air flow to bedirected in turn towards:
- the windscreen (de-icing or demis- ting), - the windscreen and the footwells,
- the footwells,
- the centre and side vents and the
footwells,
- the centre and side vents.
6. Air flow
The flow of air can be increased or reducedby pressing buttons +
or - respectively.
7. Air intake Press this button for recir-
culation of the interior air.Recirculation, shown on
the display, enables the
passenger compartment to be insu-lated from exterior odours andsmoke.
Avoid prolonged recirculation of
interior air. To do this, press the button again to resume intake of
exterior air. Note
To prevent misting inside the vehicle
in cold or wet weather, it is advisableto avoid the "air recirculation" mode. 8. Switching the system off
The "OFF" button enables
the entire system to be swit-
ched off. A comfortabletemperature will no longer
be guaranteed. Pressing the "OFF", "AUTO" or
"visibility" button again switches
the system on again with the values
selected before it was switched off.
9. Demisting the rear screen and the mirrors
Press this button to demist the rear screen and the mir-
rors. Demisting switches off
automatically. It is possibleto stop operation of the
demisting before it is switched offautomatically by pressing the buttonagain.
Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month,
to keep it in good working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.

14-04-2003
FRONT SEATS
1 - Forwards/backwards adjust-ment Lift the control and slide the seat forwards or backwards.
2 - Seat back angle adjustment Push the handle towards the
rear.
3 - Driver's or passenger's seat height adjustment Pull the handle upwards or push it downwards as many times asnecessary to obtain the requiredposition.
4 - Armrests These can be folded down andare removable.
To remove them, press the but- ton located between the armrestand the side of the seat and pullit.
