YOUR 307 SW AT A GLANCE1
Pages
Seats 88-102
Steering wheel controls 110-116
Instrument dials 28-29
Ventilation, air conditioning 82-87
Mirrors 118-119
Pages
Checks 136-140
Access 103-109
Changing a bulb 145-147
Changing a wheel 141-144
Fuel filler flap 109
Each model may only be fitted with some of the equipment shown, according to its specification and the technical requirements in the country of first registration of the vehicle.
14-04-2003
Page 2 of 183
2YOUR 307 SW AT A GLANCE
14-04-2003
Page 3 of 183
14-04-2003
3YOUR 307 SW AT A GLANCE

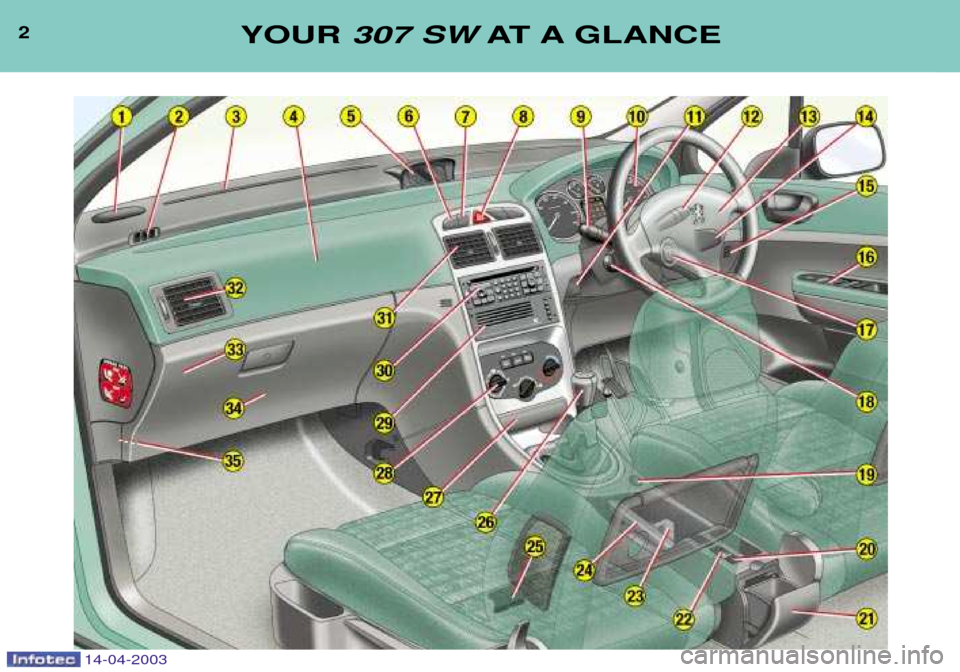

1 -Speaker (tweeter) location.
2 - Side window demisting vent.
3 - Windscreen demistingvents.
4 - Passenger air bag
5 - Multi-function display.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights switch.
9 - Lights and direction indicators stalk.
10 - Instrument dials.
11 - Steering wheel adjustmentcontrol.
12 - Windscreen wash-wipestalk.
Trip computer stalk.
13 - Driver's air bag.Horn.
14 - Audio remote control stalk. 15 -
Headlamp height adjustment.
16 - Electric mirror controls.Window controls.Rear window lockingcontrol.
17 - Steering lock and ignition.
18 - Cruise control switch.
19 - 12 V accessories socket.
20 - Passenger air bag disarming switch*.
21 - Rubbish container.
22 - Panoramic roof shutter switch.
23 - Can holder.
24 - Handbrake.
25 - Rear footwell heating vent.
26 - Gear lever.
27 - Front ashtray.
28 - Ventilation / air conditioningcontrols. 29 -
CD changer.
30 - RB3, RD3 or RT3 audio equipment.
31 - Central adjustable ventilation and air flowregulation vents.
32 - Side adjustable ventilationand air flow regulation vent.
33 - Fuse box.
34 - Glove box.
35 - Bonnet opening control.
* According to destination
Page 4 of 183
4YOUR 307 SW AT A GLANCE
14-04-2003
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the front doors, the fuelfiller cap, the glove box and thepassenger air bag disarmingswitch. Central locking
From the driver's door, the keys allow you to lock, deadlock orunlock the doors and the tailgateand to fold back the exterior mir-rors. If one of the doors or the boot is open, it is impossible to operatethe central locking; an audiblesignal indicates locking by remo-te control. The remote control performs the same functions at a distance. The remote control key Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Note: a long press on button A,
in addition to deadlocking, auto- matically closes the windows.
Vehicles fitted with deadlocking
Deadlocking renders theinternal and external doorlocking controls inoperative.
Press button Ato deadlock the
vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Note : a long press on button A
permits automatic closing of the windows, in addition to deadloc-king.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking tonormal locking. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds.
Unlocking Press button Bto unlock the
vehicle. This is confirmed by rapid flashing of the direction indicators. Note : If the vehicle is locked and
unlocking is activated inadver-
tently, the vehicle will lock automa-tically unless a door isopened within 30 seconds.
STARTING
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter.
103
Page 5 of 183
5YOUR 307 SW AT A GLANCE
14-04-2003
STEERING WHEEL

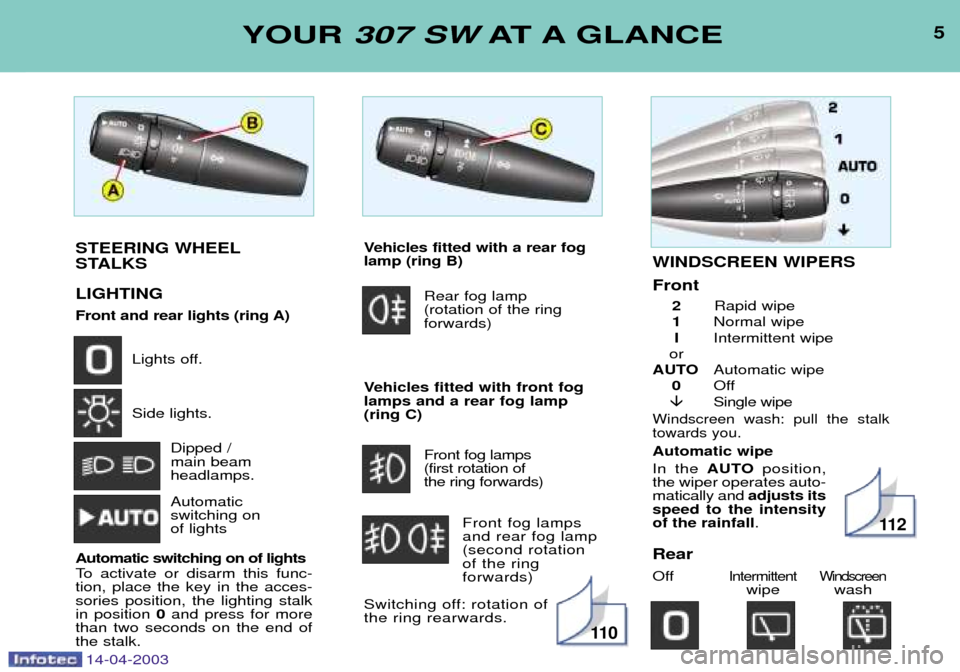

STALKS LIGHTING
Front and rear lights (ring A)
Lights off. Side lights.Dipped / main beam headlamps. Automatic switching on of lights
Automatic switching on of lights
To activate or disarm this func- tion, place the key in the acces-sories position, the lighting stalkin position 0and press for more
than two seconds on the end ofthe stalk.Vehicles fitted with a rear fog lamp (ring B)
Rear fog lamp (rotation of the ringforwards)
Vehicles fitted with front foglamps and a rear fog lamp(ring C) Front fog lamps (first rotation of the ring forwards)
Front fog lampsand rear fog lamp(second rotationof the ring
forwards)
Switching off: rotation ofthe ring rearwards.WINDSCREEN WIPERS Front 2 Rapid wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off
Single wipe
Windscreen wash: pull the stalk towards you.
Automatic wipe In the AUTO position,
the wiper operates auto- matically and adjusts its
speed to the intensityof the rainfall .
Rear
Off
IntermittentWindscreenwipe wash
11 0
11 2
Page 6 of 183
14-04-2003
6YOUR 307 SW AT A GLANCE
FRONT SEATS 1- Forwards/backwards adjust- ment.
2- Seat back angle adjustment.
3- Driver or passenger seatheight adjustment.
4- Front removable armrest.
5- Head restraint height andangle adjustment
To raise or lower the headrestraint, pull it forwards, sliding it at the same time.
Never drive with thehead restraints removed.
6- Storage drawer.
7- ÒAviationÓ style table.
88
Page 7 of 183
14-04-2003
Moving an additional seat:
- seat back angle adjustment (1),
- head restraint height adjust- ment (2),
- folding down (3),
- removal, refitting (4).
7YOUR 307 SW AT A GLANCE

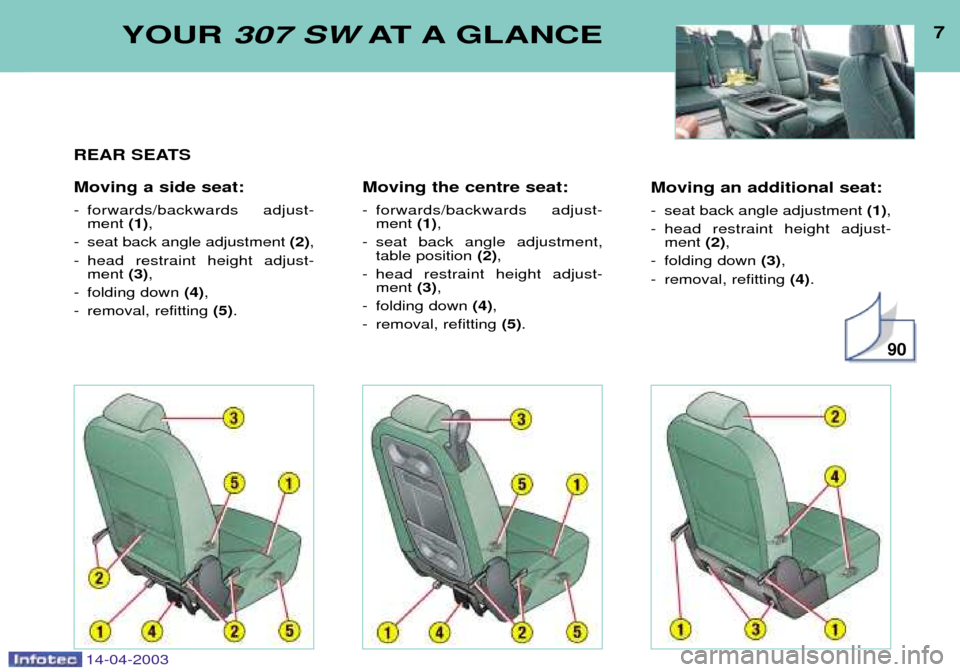

REAR SEATS Moving a side seat:
- forwards/backwards adjust-
ment (1),
- seat back angle adjustment (2),
- head restraint height adjust- ment (3),
- folding down (4),
- removal, refitting (5). Moving the centre seat:
- forwards/backwards adjust-
ment (1),
- seat back angle adjustment, table position (2),
- head restraint height adjust- ment (3),
- folding down (4),
- removal, refitting (5).
90
Page 8 of 183
8YOUR 307 SW AT A GLANCE
14-04-2003

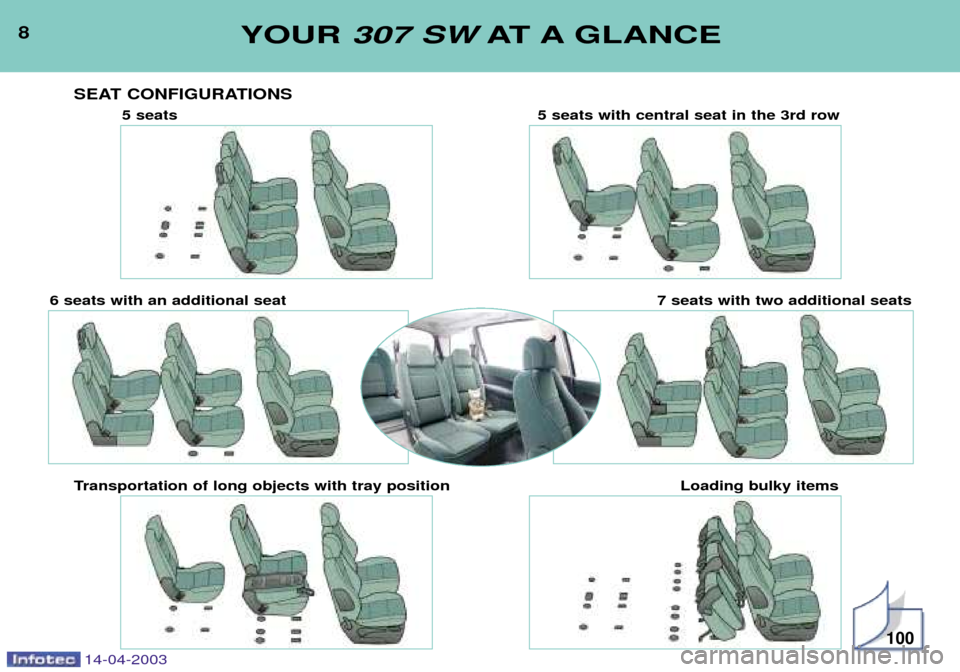

SEAT CONFIGURATIONS
100
5 seats 5 seats with central seat in the 3rd row
6 seats with an additional seat 7 seats with two additional seats
Transportation of long objects with tray position Loading bulky items
Page 9 of 183
14-04-2003
9YOUR 307 SW AT A GLANCE
AIR BAGS The air bag system has been desi- gned to maximise the safety of theoccupants in the event of seriouscollisions. It works in conjunctionwith the force limiting seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the pas- senger air bag disarm the air bag if you ins- tall a rear facing child seat,
activate the air bag for an
adult passenger. Disarming the passengerair bag*
with the ignition off, insert the ignition key into slot 1and
turn the passenger air bagswitch to the "OFF"position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again.
Operating check
With the ignition switched on (2nd notch of the igni-tion), illumination of thiswarning light, accompa-
nied by an audible signal and themessage 'Passenger air bag
disarmed' on the multi-function
display, indicates that thepassenger air bag is disarmed(switch in the "OFF"position).
The warning light remains onthroughout the disarming process. Side air bags* and curtain air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. Curtain air bags are incorporated into the door pillars and the top ofthe passenger compartment. They are deployed independently
of each other, on whichever sidethe collision occurs.
* According to country.
133134
Page 10 of 183
14-04-2003
Safety auto-reverse: When the window is closing and meets an obstacle, it stops and lowers again.
ELECTRIC MIRRORS
10YOUR 307 SW AT A GLANCE
ELECTRIC WINDOWS

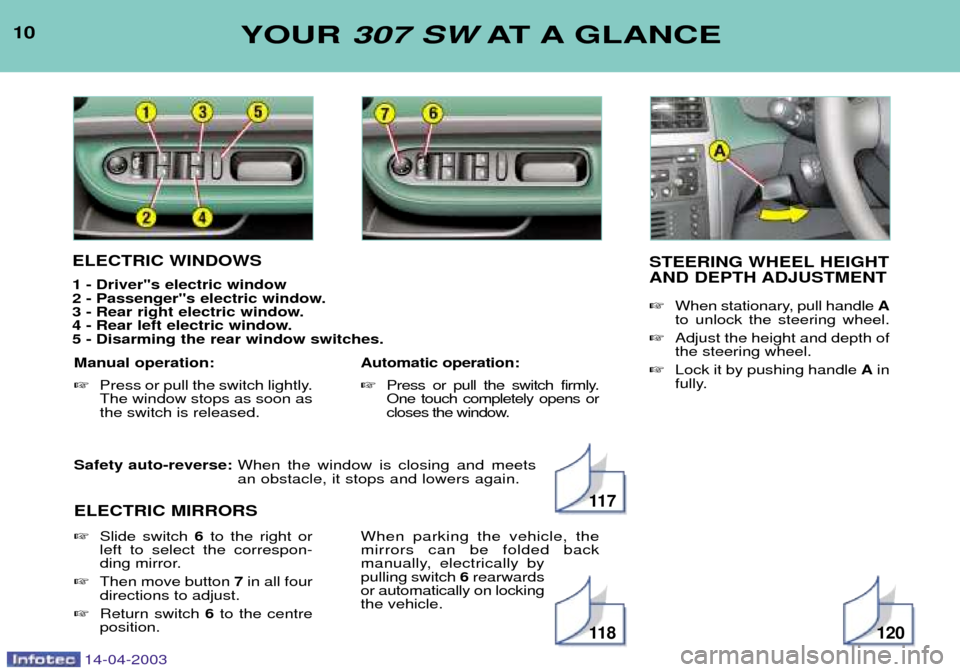

1 - Driver"s electric window
2 - Passenger"s electric window.
3 - Rear right electric window.
4 - Rear left electric window.
5 - Disarming the rear window switches. STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT When stationary, pull handle A
to unlock the steering wheel.
Adjust the height and depth of the steering wheel.
Lock it by pushing handle Ain
fully.
Manual operation: Press or pull the switch lightly.
The window stops as soon as the switch is released. Automatic operation:
Press or pull the switch firmly.
One touch completely opens or
closes the window.
11 7
Slide switch 6to the right or
left to select the correspon-
ding mirror.
Then move button 7in all four
directions to adjust.
Return switch 6to the centre
position. When parking the vehicle, themirrors can be folded back
manually, electrically bypulling switch
6rearwards
or automatically on lockingthe vehicle.
11 8120
