PRACTICAL INFORMATION151
Fuse no. Rating
Functions
1 10 A Automatic gearbox reversing lights switch - Automatic gearbox starting inhibitor relay
control - Manual gearbox reversing lights switch - Vehicle speed sensor - Water in diesel
sensor.
2 15 A Canister solenoid valve - Fuel pump.
3 10 A Power steering control unit - ABS or ESP control unit.
4 10 A Injection control unit - Fan unit relay control - Additional heating relay control -
Automatic gearbox control unit - Automatic gearbox sequential control - Automatic
gearbox shiftlock relay.
5 15 A Particulate emission filter control unit.
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Fan unit relay control - Engine control unit supply - Injection pump (Diesel).
9 15 A Left dipped beam.
10 15 A Right dipped beam.
11 10 A Right main beam.
12 10 A Left main beam.
13 15 A Horn.
14 10 A Front and rear headlamp wash pumps.
15 30A Oxygen sensors - Exhaust gas recirculation solenoid valve - Ignition coil - Diesel high pressure regulator - Injectors supply (petrol) - Pre-heating control unit - Air flow sensor (Diesel) - Engine control unit (Diesel) - Injection pump (Diesel) -
Diesel heater.
16 40A Petrol engine air pump with automatic gearbox.
17 30A Low/high speed front wiper.
18 40A Air conditioning blower.

CHANGING A FUSE The fuse boxes are located under the fascia (driver's side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the fascia fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box. Use the special pliers A.
Always change a faulty fuse for one of the same rating. Fascia fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
148
Fuse no. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 20 A Rear courtesy light, front courtesy light, map readers - Lighter - 12 V front socket - Glove box lighting -Concealing flap control.
Correct
PliersAIncorrect
22-07-2002

22-07-2002
PRACTICAL INFORMATION149
Fuse no. Rating
Functions
9 30 A Electric windows - Press operation windows (incompatible with non-press operation windows) - Panoramic roof concealing flap.
10 15A Diagnostic socket - 12 V rear socket.
11 15A Audio equipment - Multi-function display - Steering wheel controls - Automatic gearbox.
12 10A Front right and rear right side lights - Number plate and trailer lighting - Central locking
switches/ alarm/hazard warning lights lighting- Air conditioning/ashtray light - Heated seats
switches/automatic gearbox lighting- Lighter - - Headlamp beam corrector.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30A Rear windows.
16 5A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Air bags.
17 10A Rear right brake light, 3rd brake light.
18 10 A Diagnostic socket - Steering wheel controls - Brake pedal (stop) and clutch switches -Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left and rear left side lights - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multi-function displays - Air conditioning - Rear parking aid.
26 30 A Heated rear screen.

22-07-2002
CHANGING A WINDSCREEN WIPER BLADE Placing the wiper blades in the maintenance position Within one minute of switching
off the ignition, operate thewipers stalk to position the wiperblades in the centre of the wind-screen (maintenance position).
Changing a wiper blade Lift the wiper arm, then unclip the blade and remove it.
Fit the new blade and push backthe arm.
Note : the shortest blade is fitted on
the vehicle's right-hand windscreenwiper arm.
To return the windscreen wipers to their normal position, switch onthe ignition and operate the wiperstalk. ECONOMY MODE FUNCTION After the engine has stopped, certain functions (windscreen wipers, elec-tric windows, panoramic roofconcealing flap, courtesy lights,audio equipment etc.) can only beused for thirty minutes, to prevent
discharging the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multi-function displayand the active functions are put on
standby.
To resume use of these functions, start the engine and let it run for afew seconds. LOAD REDUCTIONFUNCTION When driving, certain functions (air conditioning, heated rear screen,heating system for passenger com-partment of diesel vehicles, etc.)
may be switched off temporarily,depending on the level of batterycharge. Reactivation of these functions is automatic, once the battery charge is
sufficient. Note:
at the risk of discharging the
battery, the functions that have been
switched off may be reactivated
manually.
PRACTICAL INFORMATION
152
A flat battery will prevent the engine from starting.

22-07-2002
BATTERY
To charge the battery using a battery charger:
- Disconnect the battery,
- Follow the instructions for use given by the battery charger manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are covered with sul-phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables.
PRACTICAL INFORMATION 153
- Never disconnect a ter-
minal when the engine is running.
- Never charge a battery without first disconnecting the terminals.
- After every reconnection of the battery, switch on the ignitionand wait 1 minute before star-ting to allow the electronic sys-tems to be initialised. If slight dif-ficulties are experienced afterthis, please contact a
PEUGEOT dealer.
It is advisable to disconnect the battery if the vehicle is not to be used for a period of more than one month.

22-07-2002
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)
You should always use a tow bar. The removable towing eye is inside the boot right-hand trim. From the front: Unclip the cover, by pressing the bottom part,
Screw in the removable towing eye as far as it will go.
From the rear: Unclip the top of the cover using a coin,
Screw in the removable towing eye as far as it will go.
Lifting (2 wheels only on the road ) It is preferable to raise the vehicle with a professional lifting device. Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
- lever in position
N,
- tow the vehicle at less than 50 km/h over a maximum distance of 50 km,
- do not add oil to the gearbox.
PRACTICAL INFORMATION
154
When towing with the engine switched off, thereis no braking or steeringassistance.

22-07-2002
TOWING A TRAILER,
CARAVAN, BOAT ETC.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage of
your vehicle. The tow bar must be fit-
ted by a PEUGEOT dealer.
Your vehicle is basically designed for transporting people and luggage butit may also be used for towing a trai-
ler. Driving with a trailer subjects the towing vehicle to more significantstress and its driver must be particu-larly careful. Air density decreases with altitude, thus reducing engine performance.Above 1000 metres, the maximumtowing load must be reduced by 10%and so on for every 1000 metres ofaltitude.Driving advice Distribution of loads Distribute the load in the trailer so that the heaviest items are as closeas possible to the axle and the noseweight approaches the maximumpermitted without exceeding it. Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient andthe outside temperature. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop
the vehicle and switch off the engineas soon as possible.Tyres Check the tyre pressures of the
towing vehicle and of the trailer,observing the recommended pres-sures. Braking
Towing increases the braking distance. Lights Adjust your headlamps so that they do not dazzle other road users.Check the electrical signalling on the
trailer. Side wind
Take into acount the increased sen- sitivity to side wind.
PRACTICAL INFORMATION
155

22-07-2002

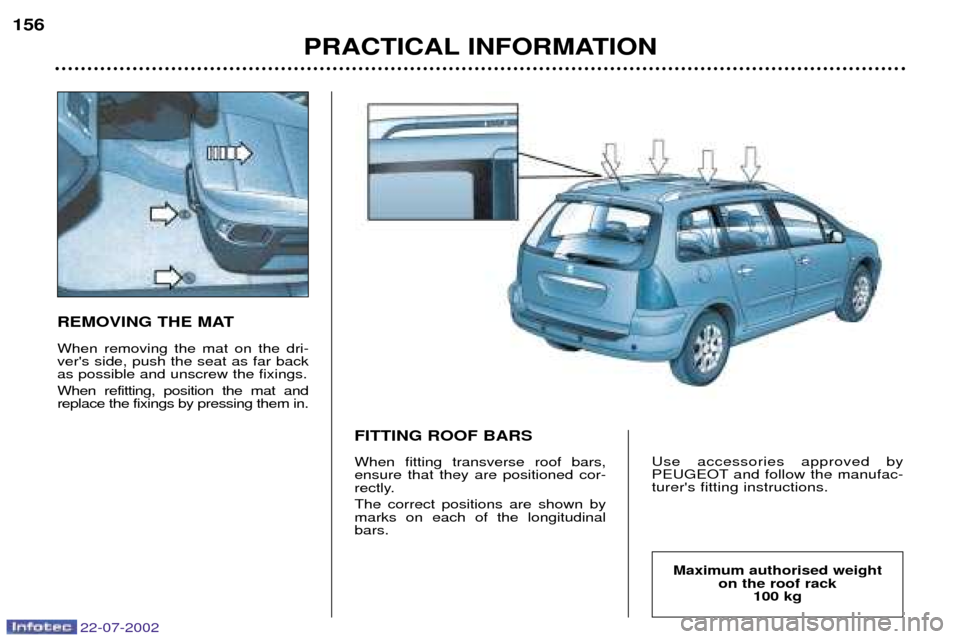

REMOVING THE MAT When removing the mat on the dri- ver's side, push the seat as far backas possible and unscrew the fixings. When refitting, position the mat and replace the fixings by pressing them in.FITTING ROOF BARS When fitting transverse roof bars, ensure that they are positioned cor-
rectly. The correct positions are shown by marks on each of the longitudinalbars.Use accessories approved by
PEUGEOT and follow the manufac-turer's fitting instructions.
PRACTICAL INFORMATION
156
Maximum authorised weight
on the roof rack 100 kg

22-07-2002
ENTERTAINMENT SCREEN KIT This video assembly will enable the rear passengers to pass the time pleasantly while watching their favourite film or playing their favourite game, by means, in
particular, of the connection of a DVD player or games console to the central support, fitted between the front seats. The entertainment screen kit consists of:
- a 16/9ths, 7 inch, LCD colour monitor with direction adjustment in the threeaxes,
- two high frequency, wireless, stereo headphones,
- a removable support,
- three audio/video sockets on the fixed base and in the glove compartment. The monitor and the support can be removed and stored, each in their own
protective cover.
The entertainment screen kit accepts all types of audio/video source, PAL/NTSC
compatible, such as: DVD player, camcorder, games console, ... These sources are connected to the three audio/video sockets, AV 1in the glove
compartment or AV 2on the fixed base.
PRACTICAL INFORMATION 157

22-07-2002
Various controls are incorporated in the headphones: A.Housing for the two LR03 batte- ries.
B. Headphones on/off button.
C. On/off indicator light.
D. Tuning frequency adjustmentcontrol.
E. Headphones volume adjustmentcontrol.
The get the best out of the head-phones, you must adjust their size tosuit you, find their tuning frequency byrotating control D, then adjust the
volume by rotating control E.
PRACTICAL INFORMATION
158
The upper face of the monitor incor- porates the following controls: 1.
"POWER" button to switch the
monitor on/off.
2. "FUNC" button for selection of
the input source, AV1 or AV2.
3. "WIDE" button to change the dis-play format (normal, full screen,wide, cinema).
4. "MENU" button for selection ofthe menus and settings.
5. " " and " " buttons to change
the settings.
By pressing buttons 4and 5, you can
adjust the brightness, the contrast,the colours, ... For further details, refer to the opera- ting manuals "307 SW video kit ope-ration" and "VMA8582 7 inch LCDcolour monitor".
