REAR PARKING ASSISTANCE This system consists of four proximi- ty sensors, located in the rear bum-
per, and a special speaker fitted inthe fascia. This detects any obstacle (person, vehicle, tree, gate, pavement etc.)behind the vehicle. Note:this function will be disarmed
automatically when the vehicle is towing a trailer or when a bicycle car-rier is fitted (vehicle fitted with towingattachment or bicycle carrier recom-mended by PEUGEOT). In wintry
weather, ensure that the sensors are
not covered with frost or snow.
Activation The system is activated as soon as reverse gear is engaged; an audiblebleep shows that it is active. The proximity information is given by an audible signal, which becomesmore rapid as the vehicleapproaches the obstacle. When distance between the rear of the vehicle and the obstacle is lessthan approximately twenty-five centi-metres, the audible signal becomescontinuous.Deactivation
Change to neutral, the system is again inactive.
YOUR 307 SW IN DETAIL
132
Detection zone
If there is an operating fault, the audible signalwill be a short bleep follo-wed by a long bleep when
changing to reverse gear.

22-07-2002
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions.They works in conjunction with theforce-limiting seat belts. The electronic detectors register and analyse any abrupt deceleration ofthe vehicle: if the triggering thresholdis reached the air bags inflate ins-tantly and protect the occupants ofthe vehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants and their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are notserious, for which the seat belt is suf-ficient to ensure maximum protec-
tion. The seriousness of a collisiondepends on the nature of the obs-tacle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note: the gas escaping from the
cushion can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the air bag isdisarmed. Front air bag fault
If this warning light comes on, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multi-function display,
contact a PEUGEOT dealer to havethe system checked. Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat.
With the ignition switched off, insert the key into the passengerair bag disarming slot 1, turn it to
the "OFF" position, then remove
it keeping the slot in this position.
The air bag warning light on the ins-trument panel is lit throughout thedisarming process.
* According to destination.
YOUR 307 SW IN DETAIL 133

22-07-2002
In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is remo- ved, turn the air bag slot to the "ON"
position to re-activate the air bag andthus ensure the safety of your pas-senger in the event of an impact. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and themessage "Passenger air
bag disarmed" on the multi-function
display, indicates that the passengerair bag is disarmed (slot in the"OFF" position). SIDE AIR BAGS* AND
CURTAIN AIR BAGS* The side air bags are incorporated into the front seat backs on the doorside. The curtain air bags are incorporated into the door pillars and the upperpart of the passenger compartment. They are deployed independently of
each other, on whichever side thecollision occurs. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multi-function display,
contact a PEUGEOT dealer to havethe system checked.
* According to destination.
YOUR 307 SW IN DETAIL
134

22-07-2002

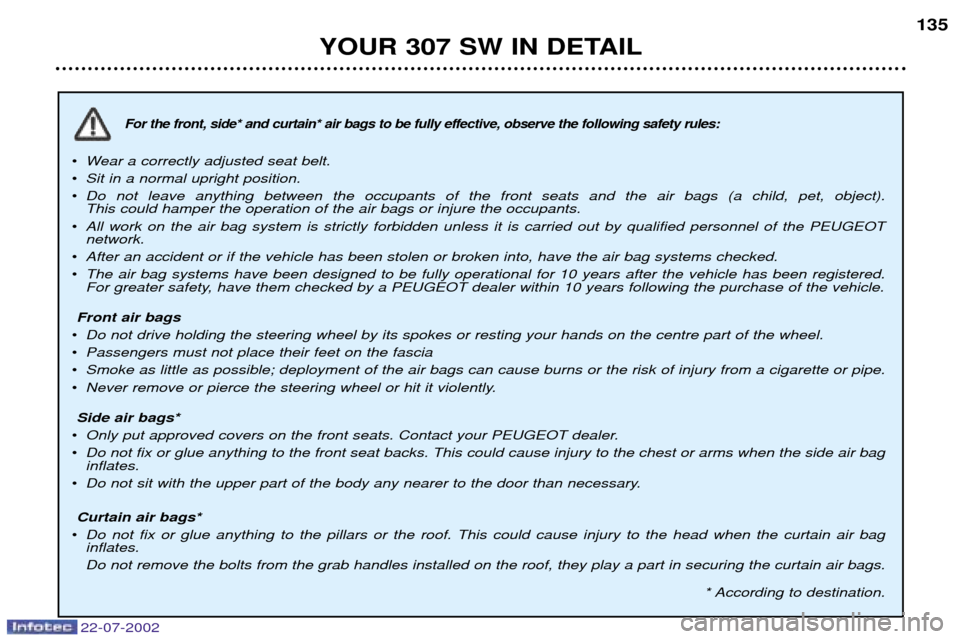

For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered.
For greater safety, have them checked by a PEUGEOT dealer within 10 years following the purchase of the vehicle.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air baginflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air baginflates. Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
YOUR 307 SW IN DETAIL135

22-07-2002
In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is remo- ved, turn the air bag slot to the "ON"
position to re-activate the air bag andthus ensure the safety of your pas-senger in the event of an impact. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and themessage "Passenger air
bag disarmed" on the multi-function
display, indicates that the passengerair bag is disarmed (slot in the"OFF" position). SIDE AIR BAGS* AND
CURTAIN AIR BAGS* The side air bags are incorporated into the front seat backs on the doorside. The curtain air bags are incorporated into the door pillars and the upperpart of the passenger compartment. They are deployed independently of
each other, on whichever side thecollision occurs. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multi-function display,
contact a PEUGEOT dealer to havethe system checked.
* According to destination.
YOUR 307 SW IN DETAIL
134

22-07-2002
For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered.
For greater safety, have them checked by a PEUGEOT dealer within 10 years following the purchase of the vehicle.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air baginflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air baginflates. Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
YOUR 307 SW IN DETAIL135

22-07-2002
PRACTICAL INFORMATION
136
1.6 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir.
2 - Windscreen/headlamp wash
reservoir. 3 -
Coolant reservoir.
4 - Brake fluid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air filter.
8 - Dipstick.
9 - Engine oil filler cap.

22-07-2002
PRACTICAL INFORMATION137
2 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir.
2 - Windscreen/headlamp wash
reservoir. 3 -
Coolant reservoir.
4 - Brake fluid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air filter.
8 - Dipstick.
9 - Engine oil filler cap.

22-07-2002
PRACTICAL INFORMATION
138
2 LITRE HDI TURBO DIESEL
ENGINE (90 bhp/110 bhp) 1 -
Power steering reservoir.
2 - Windscreen/headlamp wash
reservoir. 3 -
Coolant reservoir.
4 - Brake fluid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air filter.
8 - Dipstick.
9 - Engine oil filler cap.
10 -Priming pump.

22-07-2002
CHECKING THE LEVELS Oil level Check the level regularly and top
up between changes. The maxi-mum consumption is 0.5 l per 1000 km. Check the level with the vehicle level, engine cold, using the oillevel gauge on the instrumentpanel or the dipstick.
Dipstick
There are two marks onthe dipstick : A= maximum
Never fill past this mark.B = minimum
To maintain the reliability of engines and emissioncontrol systems, the useof additives in engine oilis prohibited.
Oil change According to the information given in
"PEUGEOT SERVICING" .
WARNING: avoid used oil from
coming into prolonged contact withthe skin.Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments. Brake fluid level:
- The level must always be between the DANGER and MAXIMUM
marks in the reservoir.
- If the level drops substantially, contact a PEUGEOT dealer imme-
diately.
Fluid change:
- must be carried out according to the manufacturer's servicing sche- dule,
- use fluids approved by the manu- facturer, which fulfil DOT4 stan-dards.
WARNING: brake and clutch fluid is
harmful to health and very corrosive.
Avoid all contact with the skin. Cooling system Use the fluid approved by the manu-
facturer. When the engine is warm, the tem- perature of the coolant is controlled
by the engine fan. As this fan canoperate with the ignition key remo-ved and because the cooling systemis pressurised, wait for at least onehour after the engine has stoppedbefore carrying out any work. Slacken the cap to the first notch torelease the pressure to prevent anyrisk of scalding. When the pressurehas dropped, remove the cap andtop up the level. Note :
the coolant does not need to
be changed. Used oil Do not dispose of used oil, brake fluid or coolant into drains or into theground. Power steering reservoir Open the reservoir, with the engine at ambient temperature.The level should always beabove the MIN. mark and closeto the MAX. mark.
Windscreen and headlampwash reservoirs For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(reservoir capacity 3.5 litres or 6.5 litres with headlamp wash).
