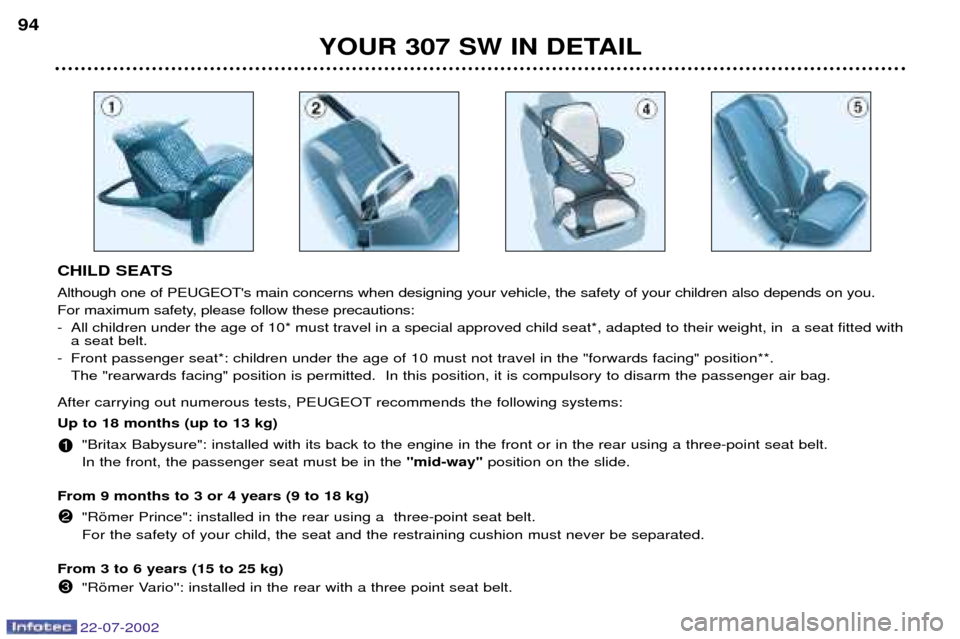

CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:
- All children under the age of 10* must travel in a special approved child seat*, adapted to their weight, in a seat fitted with
a seat belt.
- Front passenger seat*: children under the age of 10 must not travel in the "forwards facing" position**. The "rearwards facing" position is permitted. In this position, it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (up to 13 kg) "Britax Babysure": installed with its back to the engine in the front or in the rear using a three-point seat belt. In the front, the passenger seat must be in the "mid-way"position on the slide.
From 9 months to 3 or 4 years (9 to 18 kg) "Ršmer Prince": installed in the rear using a three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (15 to 25 kg) "Ršmer Vario'': installed in the rear with a three point seat belt.
YOUR 307 SW IN DETAIL
94
1
2
3

Electronic engine immobiliser This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function correctly, the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal and the message "Anti-theft
device faulty" on the multi-function
display. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message
''Remote
control battery low'' on the multi-
function display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
YOUR 307 SW IN DETAIL 103
22-07-2002

22-07-2002

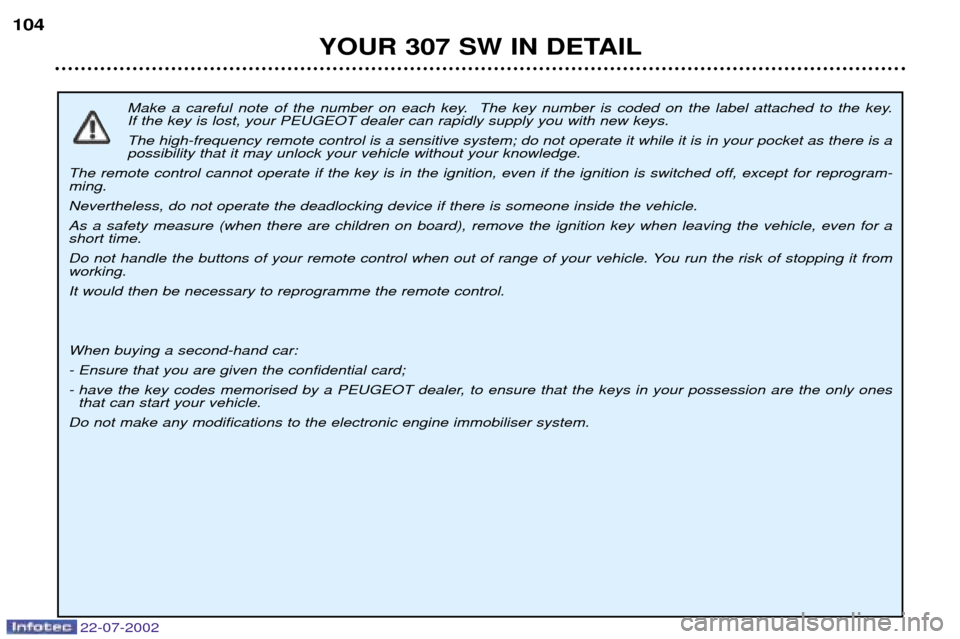

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram-ming. Nevertheless, do not operate the deadlocking device if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - Ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 307 SW IN DETAIL
104

Electronic engine immobiliser This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function correctly, the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal and the message "Anti-theft
device faulty" on the multi-function
display. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message
''Remote
control battery low'' on the multi-
function display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
YOUR 307 SW IN DETAIL 103
22-07-2002

22-07-2002
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram-ming. Nevertheless, do not operate the deadlocking device if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - Ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 307 SW IN DETAIL
104

22-07-2002
THE DOORS Opening the doors from outside Opening the doors from inside The front door opening controls per- mit complete unlocking of thevehicle.
However, the rear door opening controls only unlock the door concerned. Note:the door opening controls do
not function when the vehicle is deadlocked. Locking / Unlocking from the inside Press button
A.
This allows locking or unlocking of the doors and the tailgate. Note: if the vehicle is deadlocked,
button Adoes not function. In this
case use the remote control for unlocking. "Door open" alert With the engine running or the vehicle moving, the flashing of thecentral "STOP" warning light,
accompanied by an audible signaland a diagram locating the door brie-fly displayed on the multi-function
display, warns you that a door is notproperly closed. Child safety This prevents either of the rear doors being opened from inside.
Turn the red plastic switch a quarter of a turn using the ignition
key.
YOUR 307 SW IN DETAIL
106

TAILGATE Simultaneous locking or unlocking of the tailgate andthe doors The tailgate is locked or unlocked by the remote control or the driver's door lock.
To open, pull handle Aand lift the
tailgate.Note: the tailgate locks automatical-
ly when the vehicle is being driven at 10 km/h and unlocks when one ofthe doors is opened.
"Tailgate open" warning When the engine is running or if the vehicle is being driven, the flashingof the central "STOP"warning light
accompanied by an audible signaland a diagram displayed briefly onthe multi-function display warns youthat the tailgate is not properly closed. Tailgate release This enables the tailgate to be unloc- ked in the event of a central lockingfault.
- Fold back the rear seats to gain
access to the lock from inside the boot,
- Insert a small screwdriver into hole A of the lock to unlock the tailgate. PANORAMIC ROOF
Your vehicle is fitted with a tinted glass panoramic roof whichincreases the light and visibility in thepassenger compartment. Its electricconcealing shutter improves tempe-rature conditions.
To open:
press part Aof the switch.
To close: press part Bof the switch.
Manually: press the switch without
going past the point of resistance; the shutter stops as soon as the switch is released. Automatically: press the switch
beyond the point of resistance; one press fully opens or closes the shut-
ter. Press the switch again to stop
the shutter.
Safety auto-reverse At the end of its travel, if the shutter encounters an obstacle to closing, it
stops and moves back slightly.
YOUR 307 SW IN DETAIL 107
22-07-2002

OPENING THE BONNET From inside:push the handle on the
left-hand side under the fascia. From outside: lift the catch and
raise the bonnet. Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. "Bonnet open" warning With the engine running or the vehicle moving, flashing of the central
"STOP" warning light accompanied by an audible signal and a diagram
on the multi-function display, warnsyou that the bonnet is not properlyclosed. FILLING WITH FUEL Low fuel level
When the minimum fuel level in the tank is rea-ched, this warning lightcomes on.
You can still drive
approximately 50 km.Flashing of the warning light indi- cates a malfunction of the fuelgauge.
Contact a PEUGEOT dealer.The engine must be switched off when filling with fuel.
Open the fuel filler flap.
Insert the key then turn it to theleft.
Remove the cap and hang it onthe hook located on the inside ofthe flap.
A label affixed to the inside of the fuelfiller flap indicates which type of fuelto use. When you fill your tank, do not conti-
nue after the third cut-off of the
pump. This could cause your vehicleto malfunction. The capacity of the tank is approxi- mately 60 litres. After filling the tank, lock the cap and close the fuel filler flap.
YOUR 307 SW IN DETAIL
108
22-07-2002

22-07-2002
YOUR 307 SW IN DETAIL115
Trip computer function This function allows inputting of the distance to the destination (whenguidance is not activated; otherwisethe information is given by the navi-gation) and also changing of the
units (¡C or ¡F, km and litres or milesand gallons). Diagnostics This function tells you the warnings, the quantity of emergency fuel andthe GPS cover present at the timeconsulted. Note: these alerts have previously
been displayed in the form of mes- sages and/or warning lights on thecontrol unit. There are 6 categories of diagnostics:
- engine diagnostics (warnings lin- ked to the engine and gearbox etc....),
- brake diagnostics,
- suspension diagnostics (warnings linked to the suspension, ESP etc....),
- wheel diagnostics (warnings linked to tyres),
- doors and windows diagnostics,
- passenger compartment diagnos- tics. Distance to destination When guidance is not activated, this enables an approximate value to beentered to make all the trip computercalculations possible.
Specific features of the mono- chrome screen CT and thecolour screen DT General menu Press the
"MENU"button to access
the general menu.Select the icon "Trip computer"
using the knob, then validate to
access the "Trip computer" menu.
The ''trip computer'' menu offers various choices:
- Trip computer configuration,
- Diagnostics.
"Trip computer" context menu The context menu associated with the "Trip Computer" application
appears as a superimposed display
when the Trip Computer is the appli-cation currently being used in the
main screen window. Briefly press the continuous applica-
tion "Trip computer" button to selectone of the following functions:
- warnings log,
- Distance to destination.

22-07-2002
S: sport programme.


: snow programme.
P ark: to immobilise the vehicle or start the engine ,
with the handbrake on or off.
R everse: to reverse (select this function with the
vehicle stationary, engine at idle). N eutral: to start the engine and to park, with the hand-
brake on. Note: if function Nis engaged inadvertently while dri-
ving, allow the engine to return to idle before engaging function Dto accelerate.
D rive : for driving in automatic mode.
M anual: for driving in manual mode.
YOUR 307 SW IN DETAIL 127
Moving Off
With the engine running, to move off from position P:
it is essential to press the
brake pedal to exit position P,
select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
You can also move off from position N:
release the handbrake, with yourfoot on the brake,
select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
WARNING When the engine is at idle, brakes not applied, if function R, D or Mis
selected the vehicle moves evenwithout the accelerator being pres-sed.For this reason, do not leave
children unsupervised inside thevehicle, with the engine running. When maintenance operations need to be carried out with the engine run-ning, apply the handbrake and selectposition P.
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX The four speed automatic gearbox offers a choice between the comfort of inte-
gral automatic operation , enhanced by a sport and a snow programme, or the
pleasure of manual gear changing.
Gear selection gate Move the lever in the gate to select a function. Once the function is selected, the corresponding indicator light appears on
the instrument panel display.
