2YOUR 307 SW AT A GLANCE

3YOUR 307 SW AT A GLANCE
1 - Driver's air bag.
Horn.
2 - Lights and direction indicators stalk.
3 - Audio remote control stalk.
4 - Instrument dials.
5 - Windscreen wash-wipe stalk.
Trip computer stalk.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights swit- ch.
9 - Multifunction display.
10 - Brightness sensor.
11 - Dynamic Stability control (ESP/ASR) switch*.
12 - Central adjustable ventilation and air flow regulation vents.
13 - Windscreen demisting vents. 14 - Speaker (tweeter) loca-
tion.
15 - Side window demisting vent.
16 - Side adjustable ventila- tion and air flow regula- tion vent.
17 - Passenger air bag.
18 - Glove box.
19 - RB3 or RD3 audio equip- ment.
20 - Heated seat switches.
21 - CD changer.
22 - Ventilation / air conditio- ning controls.
23 - Front ashtray.
24 - Rear footwell heating vent.
25 - 12 V accessories socket.
26 - Gear lever.
27 - Can holder.
28 - Handbrake. 29 - Rubbish container.
30 - Passenger air bag
disarming switch*.
31 - Panoramic roof concealing flap control.
32 - Steering lock and ignition.
33 - Bonnet opening control.
34 - Steering wheel adjust- ment control.
35 - Fuse box.
36 - Electric mirror controls. Window controls. Rear window locking control.
37 - Headlamp height adjustment.
38 - Cruise control
* According to destination

4YOUR 307 SW AT A GLANCE
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the front doors, the fuelfiller cap, the glove box and thepassenger air bag disarmingswitch. Central locking
From the driver's door, the keys allow you to lock, deadlock orunlock the doors and the tailgateand to fold back the exteriormirrors. If one of the doors or the boot is open, it is impossible to operatethe central locking; an audiblesignal indicates locking by remotecontrol. The remote control performs the same functions at a distance. The remote control key Locking ➜
Press button Ato lock the
vehicle. This is confirmed by fixed lighting of the direction indi-cators for approximately twoseconds.
Note: a long press on button A, in
addition to deadlocking, automati-cally closes the windows.
Vehicles fitted with deadlocking
Deadlocking renders theinternal and external doorlocking controls inoperative.
➜ Press button Ato deadlock
the vehicle.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Note : a long press on button A
permits automatic closing of the windows, in addition to deadloc-king.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking to
normal locking. This is confirmedby fixed lighting of the directionindicators for approximately twoseconds. Unlocking Press button
Bto unlock the
vehicle. This is confirmed by rapid flashing of the direction indicators. Note : If the vehicle is locked and
unlocking is activated inadver- tently without the doors beingopened within 30 seconds, thevehicle will re-lock auto-
matically.
STARTING
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces- sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter.
70

5YOUR 307 SW AT A GLANCE
STEERING WHEEL
STALKS LIGHTING
Front and rear lights (ring A)
Lights off. Side lights.
Dipped / main beam headlamps. Automatic swit- ching on of lights
Automatic switching on of lights
To activate or disarm the func- tion, place the key in the acces-sories position, the lights stalk inposition 0and press the end of
the lights stalk for more than twoseconds. Vehicles fitted with a rear foglamp (ring B)
Rear fog lamp (rotationof the ring forwards)
Vehicles fitted with front foglamps and a rear fog lamp(ring C) Front fog lamps (first rota-tion of the ring forwards)
Front fog lampsand rear fog lamp(second rotation ofthe ring forwards)
Switching off: rotation ofthe ring rearwards. WINDSCREEN WIPERS Front
2 Rapid wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off
Single wipe
Wash-wipe: pull the stalk towards you. Rear
Off Intermittent Wash- wipe wipe
Automatic wipe In the AUTO position,
the wiper operates auto- matically and adjusts itsspeed to the intensity ofthe rainfall.
7779

6YOUR 307 SW AT A GLANCE

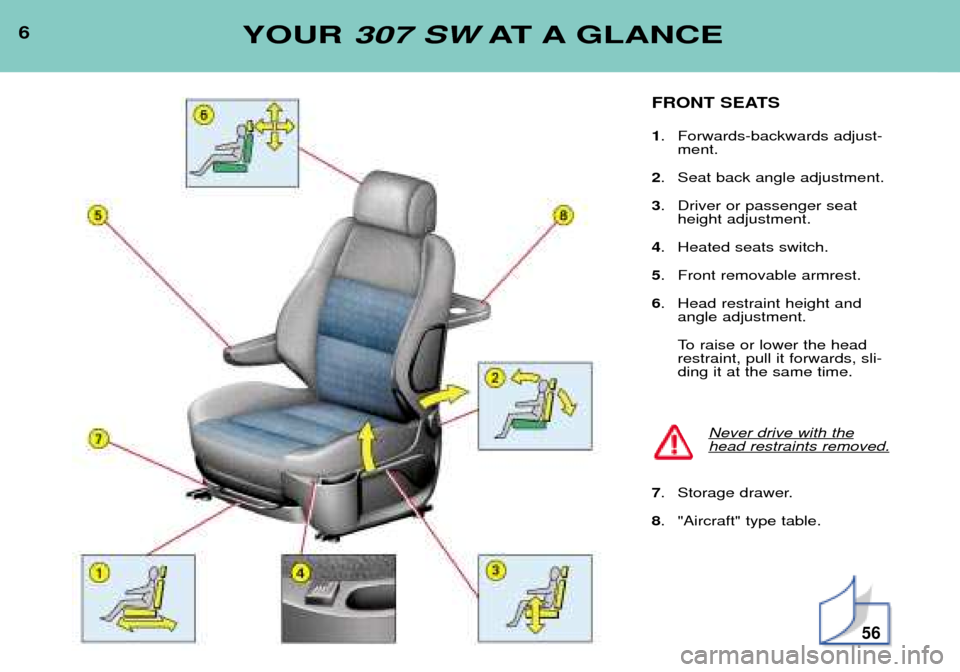

FRONT SEATS 1. Forwards-backwards adjust-
ment.
2 . Seat back angle adjustment.
3 . Driver or passenger seat
height adjustment.
4 . Heated seats switch.
5 . Front removable armrest.
6 . Head restraint height and
angle adjustment.
To raise or lower the head restraint, pull it forwards, sli-ding it at the same time.
Never drive with the
head restraints removed.
7. Storage drawer.
8 . "Aircraft" type table.
56

Manoeuvring an additional seat: ➜seat back angle adjustment (1),
➜ head restraint height adjust-ment (2),
➜ folding (3),
➜ removal/refitting (4). 7
YOUR
307 SW AT A GLANCE

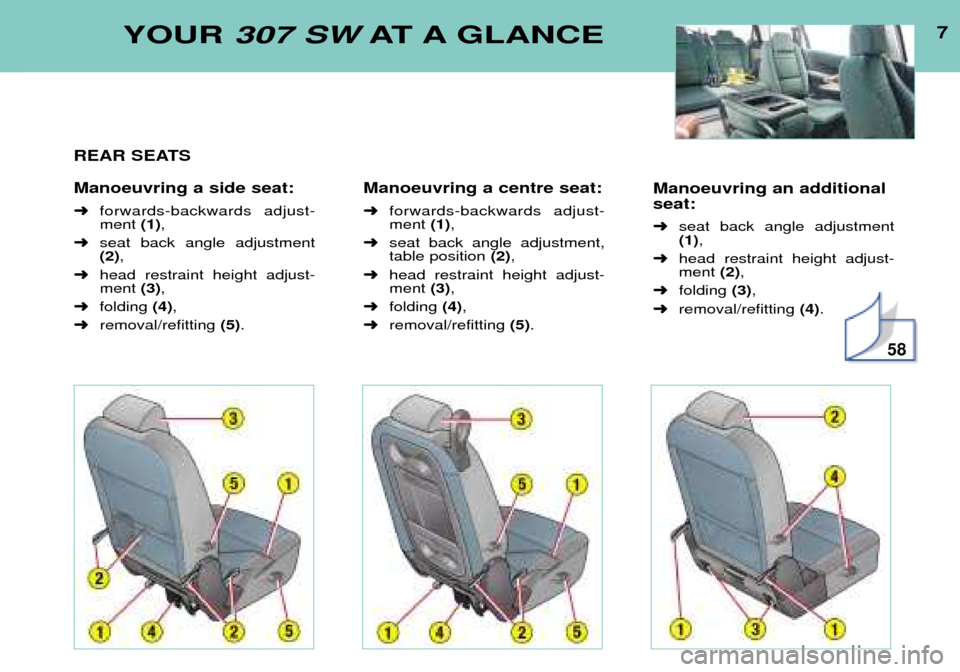

REAR SEATS Manoeuvring a side seat: ➜forwards-backwards adjust- ment (1),
➜ seat back angle adjustment(2),
➜ head restraint height adjust-ment (3),
➜ folding (4),
➜ removal/refitting (5). Manoeuvring a centre seat: ➜
forwards-backwards adjust- ment (1),
➜ seat back angle adjustment,table position (2),
➜ head restraint height adjust-ment (3),
➜ folding (4),
➜ removal/refitting (5).
58

8YOUR 307 SW AT A GLANCE

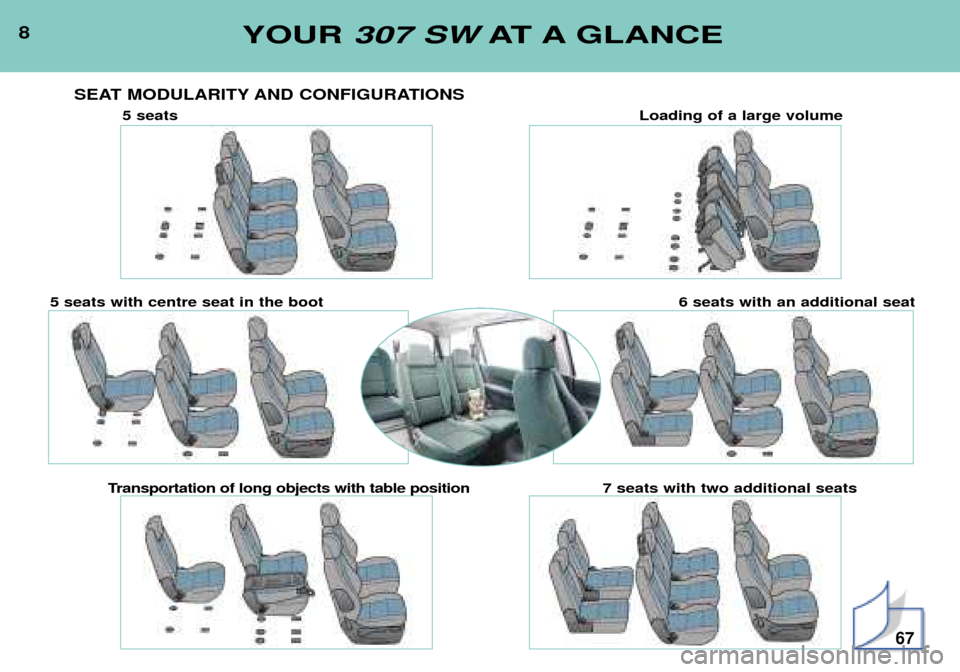

SEAT MODULARITY AND CONFIGURATIONS
5 seats Loading of a large volume
5 seats with centre seat in the boot 6 seats with an additional seat
Transportation of long objects with table position 7 seats with two additional seats
67

9YOUR 307 SW AT A GLANCE
AIR BAGS The air bag system has been desi- gned to maximise the safety of theoccupants in the event of seriouscollisions. It works in conjunctionwith the force limiting seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the pas- senger air bag ➜disarm the air bag if you ins-
tall a rear facing child seat,
➜ activate the air bag for an
adult passenger. Disarming the passenger air bag * ➜
with the ignition off, insert the key into slot 1and turn the
passenger air bag switch tothe "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again. Operating check
With the ignition switchedon (2nd notch), illumina-tion of the warning light,accompanied by an
audible signal and the message"Passenger air bag disarmed"
on the multi-function display, indi-cates that the passenger air bag isdisarmed (switch in the "OFF"
position). The warning light remains on throughout the disarming process. Side air bags* and curtain air bags* Side air bags are incorporated into the front seat back frame, onthe door side. Curtain air bags are incorporated into the door pillars and the top ofthe passenger compartment. They are deployed independently
of each other, depending onwhich side the collision occurs.
* According to country.
99100

Safety auto-reverse: When the window is closing and meets an obstacle, it stops and lowers again.
ELECTRIC MIRRORS
10
YOUR
307 SW AT A GLANCE
ELECTRIC WINDOWS 1. Driver's electric window
2. Passenger's electric window.
3. Rear right electric window.
4. Rear left electric window.5. Disarming the rear window switches. STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT ➜
When stationary, pull handle A to unlock the steering
wheel.
➜ Adjust the height and depth ofthe steering wheel.
➜ Lock it by pushing handle Ain
fully.
Manual mode: ➜ Press or pull the switch lightly.
The window stops as soon as the switch is released. Automatic mode: ➜
Press or pull the switch firmly.
One touch completely opens
or closes the window.
➜ Slide button 6to the right or
left to select the correspon-
ding mirror.
➜ Then move button 7in all four
directions to adjust.
➜ Move button 6back to the
centre position. When parking the vehicle, themirrors can be folded back
manually, electrically bypulling button
6rearwards
or automatically onlocking the vehicle.
83
8385

REAR PARKING
ASSISTANCE This system, installed in the rear
bumper, detects any obstacle
(person, vehicle, tree, barrier,kerb ...) situated behind thevehicle. Activation With the engine running, the sys- tem is activated when reverse
gear is engaged. A bleep indi-cates that it is active. The proximity information is pro- vided by an audible signal,consisting of bleeps which beco-me faster as the vehicleapproaches the obstacle. When the distance between the rear of the vehicle and the obs-tacle is less than approxi-mately twenty-five centi-metres, the audiblesignal becomes conti-nuous. ➜Change to neutral to disarm the system. 11
OPENING THE BONNET Inside the vehicle: Push the
handle on the left side, under the fascia. Outside the vehicle: Lift the catch, raise thebonnet and secure thestrut to keep the bonnetopen.
FILLING WITH FUEL This operation must be carried out with
the engine switched off.
The fuel to be used is indicated onthe inside of the flap. The capacity of the tank is approximately 60 litres. On filling, do not continue after the
third cut-off of the pump to avoidany malfunction. Low fuel level From the time this light comes on, the range remaining is approxi-mately 50 km.
YOUR 307 SW AT A GLANCE
