3YOUR 307 SW AT A GLANCE
1 -Driver's air bag. Horn.
2 - Lights and direction indicators stalk.
3 - Audio remote control stalk.
4 - Instrument dials.
5 - Windscreen wash-wipestalk.
Trip computer stalk.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights switch.
9 - Multi-function display.
10 - Central adjustable ventilation and air flowregulation vents.
11 - Windscreen demistingvents.
12 - Speaker (tweeter) location.
13 - Side window demistingvent. 14 -
Side adjustable ventilation and air flow regulation vent.
15 - Passenger air bag.
16 - Glove box.
17 - RB3, RD3 or RT3 audioequipment.
18 - Heated seat switches.
19 - CD changer.
20 - Ventilation / air conditioningcontrols.
21 - Front ashtray.
22 - Rear footwell heating vent.
23 - 12 V accessories socket.
24 - Gear lever.
25 - Can holder.
26 - Handbrake.
27 - Waste container. 28 -
Passenger air bag disarming switch*.
29 - Panoramic roof concealingflap control.
30 - Steering lock and ignition.
31 - Bonnet opening control.
32 - Steering wheel adjustmentcontrol.
33 - Fuse box.
34 - Electric mirror controls.Window controls.Rear window lockingcontrol.
35 - Headlamp height adjustment.
36 - Cruise control
* According to destination

14-04-2003
PRACTICAL INFORMATION
136

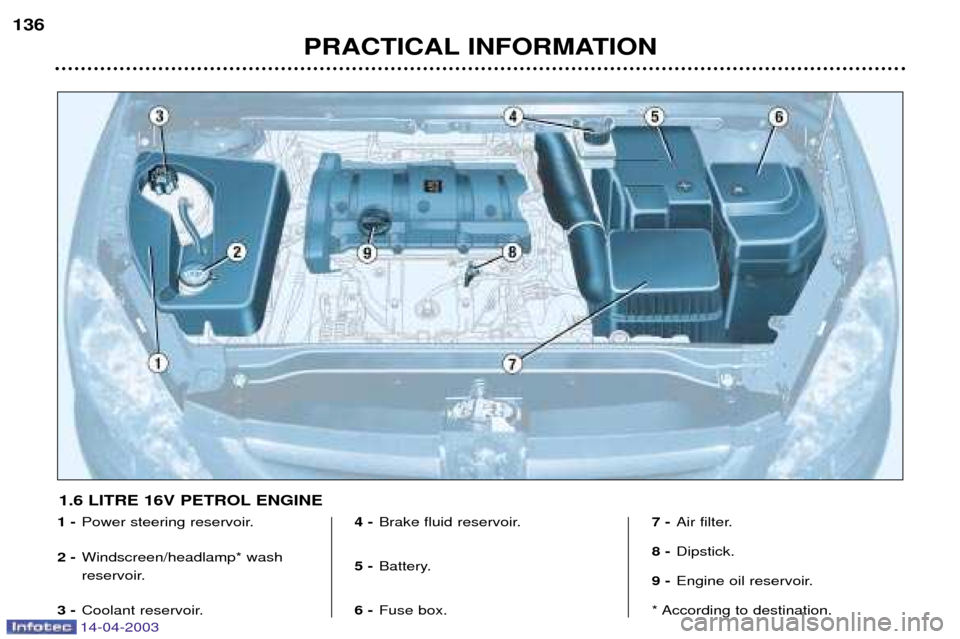

1 -
Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air filter.
8 - Dipstick.
9 - Engine oil reservoir.
* According to destination.
1.6 LITRE 16V PETROL ENGINE

14-04-2003
PRACTICAL INFORMATION137

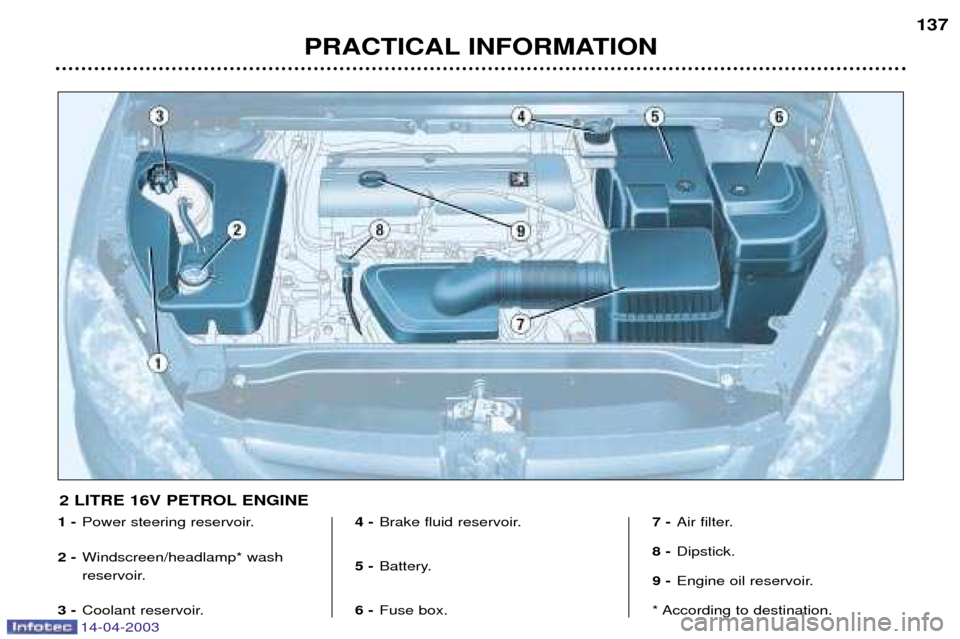

1 -
Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air filter.
8 - Dipstick.
9 - Engine oil reservoir.
* According to destination.
2 LITRE 16V PETROL ENGINE

14-04-2003
PRACTICAL INFORMATION
138

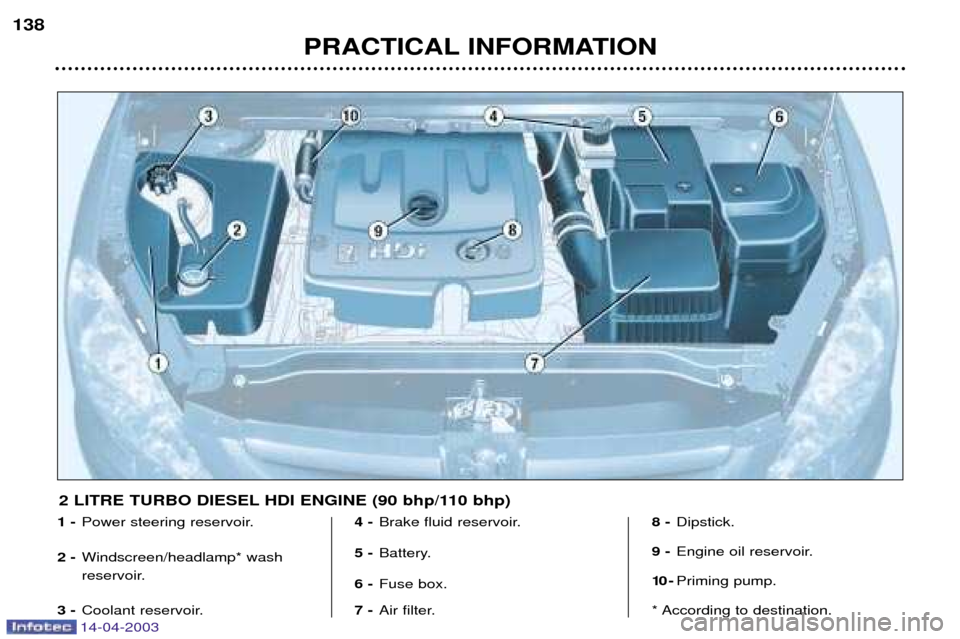

1 -
Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Battery.
6 - Fuse box.
7 - Air filter. 8 -
Dipstick.
9 - Engine oil reservoir.
10 - Priming pump.
* According to destination.
2 LITRE TURBO DIESEL HDI ENGINE (90 bhp/110 bhp)

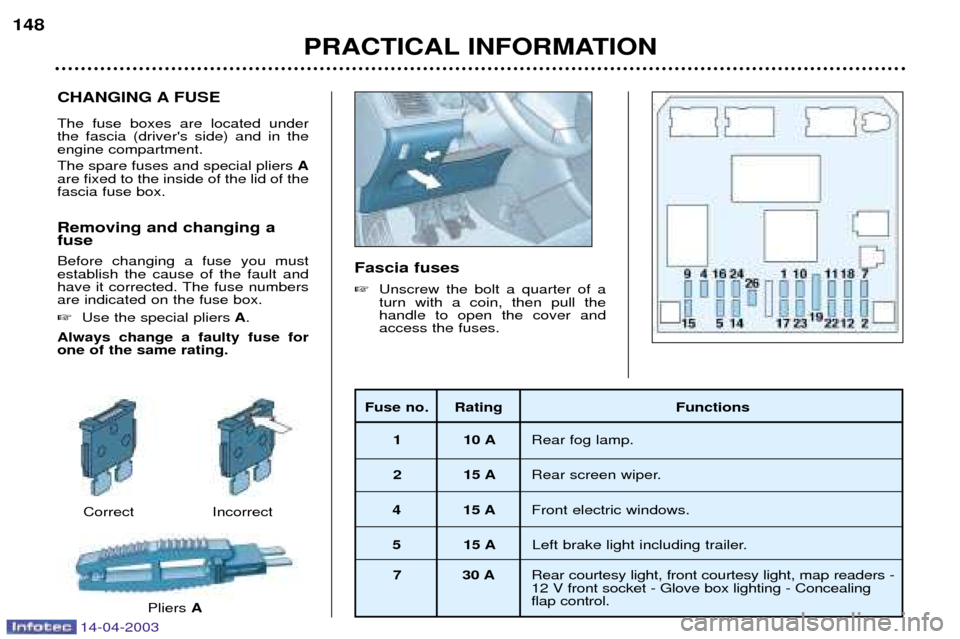

CHANGING A FUSE The fuse boxes are located under the fascia (driver's side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the fascia fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box.  Use the special pliers A.
Always change a faulty fuse for one of the same rating. Fascia fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
148
Fuse no. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 30 A Rear courtesy light, front courtesy light, map readers - 12 V front socket - Glove box lighting - Concealing flap control.
Correct
Pliers AIncorrect
14-04-2003

14-04-2003

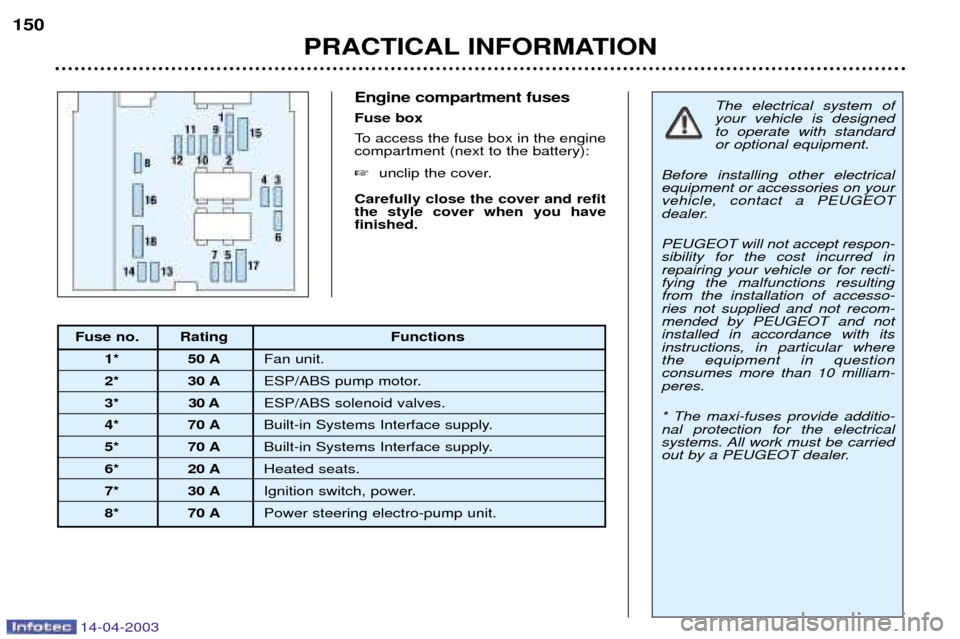

Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (next to the battery): unclip the cover.
Carefully close the cover and refit the style cover when you havefinished.
PRACTICAL INFORMATION
150
The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying the malfunctions resultingfrom the installation of accesso-ries not supplied and not recom-mended by PEUGEOT and notinstalled in accordance with itsinstructions, in particular wherethe equipment in questionconsumes more than 10 milliam-peres. * The maxi-fuses provide additio- nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
Fuse no. Rating Functions 1* 50 A Fan unit.
2* 30 A ESP/ABS pump motor.
3* 30 A ESP/ABS solenoid valves.
4* 70 A Built-in Systems Interface supply.
5* 70 A Built-in Systems Interface supply.
6* 20 A Heated seats.
7* 30 A Ignition switch, power.
8* 70 A Power steering electro-pump unit.

14-04-2003
PRACTICAL INFORMATION151
Fuse N¡ Rating
Functions
1 10 A Automatic gearbox reversing lights switch - Automatic gearbox starting inhibitor relay
control - Manual gearbox reversing lights switch - Vehicle speed sensor - Water in diesel
sensor.
2 15 A Canister solenoid valve - Fuel pump.
3 10 A Power steering control unit - ABS or ESP control unit.
4 10 A Injection control unit - Fan unit relay control - Additional heating relay control - Automatic
gearbox control unit - Automatic gearbox sequential control - Automatic gearbox shiftlock
relay.
5 15 A Particulate emission filter control unit.
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Fan unit relay control - Engine control unit supply - Injection pump (Diesel).
9 15 A Left dipped beam.
10 15 A Right dipped beam.
11 10 A Right main beam.
12 10 A Left main beam.
13 15 A Horn.
14 10 A Front and rear wash-wipe pumps.
15 30A Oxygen sensors - Exhaust gas recirculation solenoid valve - Ignition coil - Diesel high pres-
sure regulator - Injectors supply (petrol) - Pre-heating control unit - Air flow sensor (Diesel) -
Engine control unit (Diesel) - Injection pump (Diesel) - Diesel heater.
16 30A Petrol engine air pump with automatic gearbox.
17 30A Low/high speed front wiper.
18 40A Air conditioning blower.

CHANGING A FUSE The fuse boxes are located under the fascia (driver's side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the fascia fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box.  Use the special pliers A.
Always change a faulty fuse for one of the same rating. Fascia fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
148
Fuse no. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 30 A Rear courtesy light, front courtesy light, map readers - 12 V front socket - Glove box lighting - Concealing flap control.
Correct
Pliers AIncorrect
14-04-2003

14-04-2003
PRACTICAL INFORMATION149

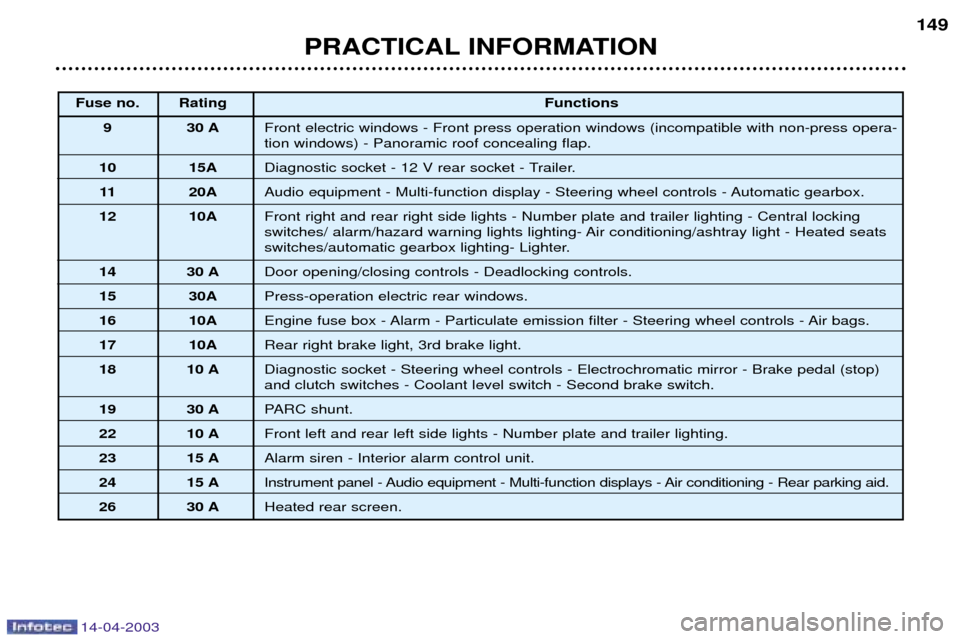

Fuse no. Rating
Functions
9 30 A Front electric windows - Front press operation windows (incompatible with non-press opera- tion windows) - Panoramic roof concealing flap.
10 15A Diagnostic socket - 12 V rear socket - Trailer.
11 20A Audio equipment - Multi-function display - Steering wheel controls - Automatic gearbox.
12 10A Front right and rear right side lights - Number plate and trailer lighting - Central locking
switches/ alarm/hazard warning lights lighting- Air conditioning/ashtray light - Heated seats
switches/automatic gearbox lighting- Lighter.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30A Press-operation electric rear windows.
16 10A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Air bags.
17 10A Rear right brake light, 3rd brake light.
18 10 A Diagnostic socket - Steering wheel controls - Electrochromatic mirror - Brake pedal (stop)and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left and rear left side lights - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multi-function displays - Air conditioning - Rear parking aid.
26 30 A Heated rear screen.
