CHILD SAFETY

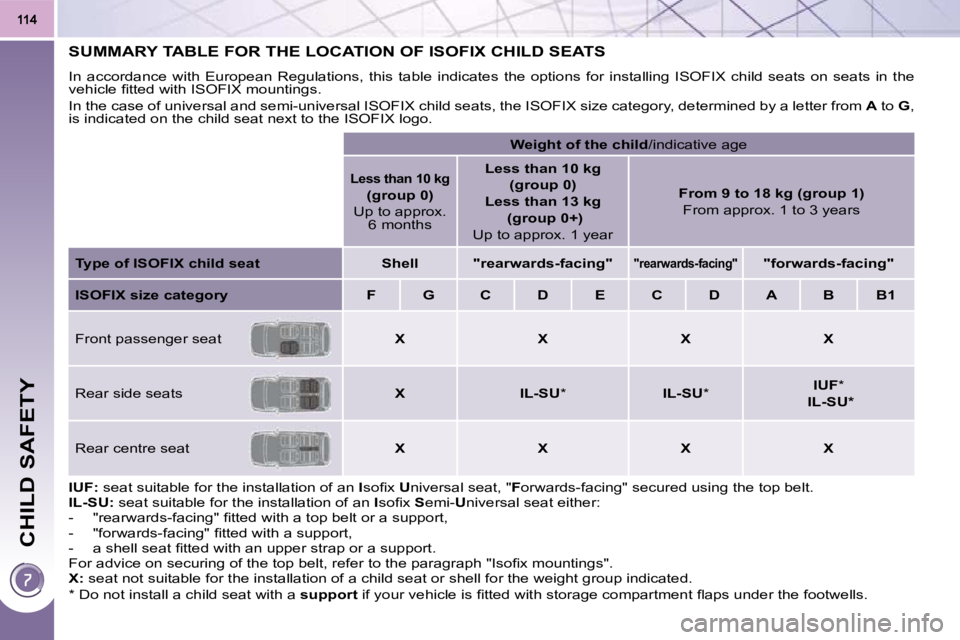

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n s e a t s i n t h e
v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orwards-facing" secured using the top belt.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r w a r d s - f a c i n g " fi t t e d w i t h a t o p b e l t o r a s u p p o r t ,
- " f o r w a r d s - f a c i n g " fi t t e d w i t h a s u p p o r t ,
- a s h e l l s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t .
F o r a d v i c e o n s e c u r i n g o f t h e t o p b e l t , r e f e r t o t h e p a r a g r a p h " I s o fi x m o u n t i n g s " .
X: seat not suitable for the installation of a child seat or shell for the weight group indicated.
Weight of the child / i n d i c a t i v e a g e
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Shell "rearwards-facing"
"rearwards-facing"
"forwards-facing"
ISOFIX size category F G C D E C D A B B1
Front passenger seat
X X X X
R e a r s i d e s e a t s
X IL-SU * IL-SU *
IUF *
IL-SU *
R e a r c e n t r e s e a t
X X X X
* D o n o t i n s t a l l a c h i l d s e a t w i t h a support i f y o u r v e h i c l e i s fi t t e d w i t h s t o r a g e c o m p a r t m e n t fl a p s u n d e r t h e f o o t w e l l s .

Page 112 of 290
CHILD SAFETY
115
This system is independent
and in no circumstances does
it take the place of the central
locking control.
C h e c k t h e s t a t u s o f t h e c h i l d l o c k
each time you switch on the ignition.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
MANUAL CHILD LOCK
M e c h a n i c a l s y s t e m t o p r e v e n t o p e n i n g
of the rear door using its interior control.
The control is located on the edge of
each rear door.
Turn the red control one eighth of
a turn to the left using the ignition
key.
ELECTRIC CHILD LOCK
R e m o t e c o n t r o l s y s t e m t o p r e v e n t o p e n -
ing of the rear doors using their interior
controls and use of the rear electric win-
dows.
With the ignition on, press button A .
The indicator light on button A comes
on, accompanied by a message on the
multifunction display.
This indicator light remains on until the
child lock is deactivated.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.
Locking
Unlocking
Turn the red control one eighth of
a turn to the right using the ignition
key. Activation
Deactivation
With the ignition on, press button A
again.
The indicator light on button A switches
off, accompanied by a message on the
multifunction display.
This indicator light remains off until the
child lock is activated.
Any other status of the indica-
tor light indicates a malfunction
of the electric child lock. Have
it checked by a PEUGEOT
dealer.
Page 113 of 290
116
DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle. If you forget to cancel the di-
rection indicators for more
than twenty seconds, the
volume of the audible signal will in-
crease if the speed is above 40 mph
(60 km/h).
Lower the lights stalk fully when
moving to the left.
Raise the lights stalk fully when
moving to the right.
HAZARD WARNING LIGHTS
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
As a safety precaution in a traf-
fi c j a m , s w i t c h o n t h e h a z a r d
warning lamps if you are the
last in the queue.
Tilt or press button A , the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
Automatic lighting of hazard warning lamps
When braking in an emergency, de-
p e n d i n g o n t h e d e c e l e r a t i o n , t h e h a z a r d
warning lamps come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off.
HORN
Press one of the spokes of the steering
wheel.
Use the horn moderately and
only in the following cases:
- immediate danger,
-
- when approaching an area where there is no visibility.
Audible warning to alert other road us-
ers to an imminent danger.
"Motorway" function
M o v e t h e s t a l k b r i e fl y u p w a r d s o r d o w n -
wards, without going beyond the point
of resistance; the corresponding direc-
t i o n i n d i c a t o r s w i l l fl a s h 3 t i m e s .
Page 114 of 290
117
TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install
a wheel which is not detected by
y o u r v e h i c l e ( e x a m p l e : fi t t i n g o f s n o w
tyres), you must have the system
reinitialised by a PEUGEOT dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to
t h e " I d e n t i fi c a t i o n f e a t u r e s " p a r a g r a p h )
to ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear of
the tyres, particularly in arduous driving
conditions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Re-
member to check the pressure of the
spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a s e n s o r .
This warning light is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction display, accompanied
by an audible signal, to locate
the wheel concerned.
Check the tyre pressures as soon as
possible.
This check must be carried out when
the tyres are
cold.
Flat tyre The
STOP warning light
comes on, accompanied by
an audible signal and a mes-
sage on the multifunction
display locating the wheel
concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c -
tion system is an aid to driv-
ing which does not replace the
need for the driver to be vigilant or to
drive responsibly. Sensor(s) not detected or faulty
A message appears on the multifunction
display, accompanied by an audible sig-
nal, to locate the wheel or wheels which
are not detected or to indicate a fault in
the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also dis-
played when one of the wheels
is away from the vehicle (being
repaired) or when one or more wheels
w i t h o u t a s e n s o r a r e fi t t e d .
Page 115 of 290
118
ELECTRONIC STABILITY PROGRAMME (ESP)
Electronic stability programme (ESP)
incorporating the following systems:
- the anti-lock braking system (ABS) and the braking system (EBFD),
- the emergency braking assistance,
- the traction control (ASR),
- the dynamic stability control (DSC).
Definitions Traction control (ASR)
The ASR system optimises traction in
order to avoid wheel slip by acting on
the brakes of the driving wheels and on
the engine. It also improves the direc-
tional stability of the vehicle on accel-
eration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that re-
quired by the driver, the DSC monitors
each wheel and automatically acts on
the brake of one or more wheels and
on the engine to return the vehicle to
the required path, within the limits of the
laws of physics.
Emergency braking assistance
In an emergency, this system enables
you to reach the optimum braking pres-
sure more quickly and therefore reduce
the stopping distance.
It is triggered in relation to the speed at
which the brake pedal is pressed. This
is felt by a reduction in the resistance of
the pedal and an increase in the effec-
tiveness of the braking.
Anti-lock braking system (ABS) and
braking system (EBFD)
This system improves the stability and ma-
noeuvrability of your vehicle when braking
and offers improved control, in particular
on poor or slippery road surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The braking system provides integral
management of the braking pressure
wheel by wheel.
Operation
When this warning light comes
o n , a c c o m p a n i e d b y a b u z z e r
and a message, it indicates
that there is a malfunction of
the ABS, which can cause a loss of con-
trol of the vehicle when braking.
When this warning light comes
on, connected to the STOP
warning light, accompanied by
a b u z z e r a n d a m e s s a g e , i t i n -
dicates that there is a malfunction of the
electronic brake force distribution (EBFD),
which can cause a loss of control of the
vehicle when braking.
Stop immediately.
In both cases, consult a PEUGEOT
dealer.
When changing wheels (tyres
and rims), make sure that
these are approved.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Anti-lock braking system (ABS) and
braking system (EBFD)
Page 116 of 290
118
ELECTRONIC STABILITY PROGRAMME (ESP)
Electronic stability programme (ESP)
incorporating the following systems:
- the anti-lock braking system (ABS) and the braking system (EBFD),
- the emergency braking assistance,
- the traction control (ASR),
- the dynamic stability control (DSC).
Definitions Traction control (ASR)
The ASR system optimises traction in
order to avoid wheel slip by acting on
the brakes of the driving wheels and on
the engine. It also improves the direc-
tional stability of the vehicle on accel-
eration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that re-
quired by the driver, the DSC monitors
each wheel and automatically acts on
the brake of one or more wheels and
on the engine to return the vehicle to
the required path, within the limits of the
laws of physics.
Emergency braking assistance
In an emergency, this system enables
you to reach the optimum braking pres-
sure more quickly and therefore reduce
the stopping distance.
It is triggered in relation to the speed at
which the brake pedal is pressed. This
is felt by a reduction in the resistance of
the pedal and an increase in the effec-
tiveness of the braking.
Anti-lock braking system (ABS) and
braking system (EBFD)
This system improves the stability and ma-
noeuvrability of your vehicle when braking
and offers improved control, in particular
on poor or slippery road surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The braking system provides integral
management of the braking pressure
wheel by wheel.
Operation
When this warning light comes
o n , a c c o m p a n i e d b y a b u z z e r
and a message, it indicates
that there is a malfunction of
the ABS, which can cause a loss of con-
trol of the vehicle when braking.
When this warning light comes
on, connected to the STOP
warning light, accompanied by
a b u z z e r a n d a m e s s a g e , i t i n -
dicates that there is a malfunction of the
electronic brake force distribution (EBFD),
which can cause a loss of control of the
vehicle when braking.
Stop immediately.
In both cases, consult a PEUGEOT
dealer.
When changing wheels (tyres
and rims), make sure that
these are approved.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Anti-lock braking system (ABS) and
braking system (EBFD)
Page 117 of 290
119
Dynamic stability control (DSC) The DSC system offers excep-
tional safety in normal driving,
but this should not encourage
the driver to take extra risks or drive
at high speed.
The correct functioning of the system
depends on observation of the man-
ufacturer's recommendations regard-
ing the wheels (tyres and rims), the
braking components, the electronic
components and the PEUGEOT as-
sembly and operation procedures.
After an impact, have the system
checked by a PEUGEOT dealer.
Disarming
In exceptional conditions (starting a vehi-
cle which is bogged down, stuck in snow,
on soft ground...), it may be advisable
to disarm the DSC system, so that the
wheels can move freely and regain grip.
Press the "ESP OFF" but-
ton (located to the left of the
steering wheel) or, accord-
ing to version, turn the dial
to this position.
This warning light and the in-
dicator light on the button or
on the dial come on: the DSC
system no longer acts on the
operation of the engine.
Reactivation
The system is reactivated automatically
each time the ignition is switched back
o n o r f r o m 3 0 m p h ( 5 0 k m / h ) . Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction display, this indicates
a malfunction of the system.
Contact a PEUGEOT dealer to have the
system checked.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning light on the instru-
ment panel.
Activation
This system is activated automatically
each time the vehicle is started.
It comes into operation in the event of a
g r i p o r t r a j e c t o r y p r o b l e m .
Press the "ESP OFF" but-
ton again or, according to
version, turn the dial to this
position, to reactivate it
manually.
Page 118 of 290
120
"GRIP CONTROL"
ESP mode
Place the dial in this position. Snow mode
Special patented traction control sys-
tem which improves traction on snow,
mud and sand.
This system is combined with all-sea-
s o n M + S ( M u d a n d S n o w : 2 1 5 / 6 0 R 1 6 )
tyres which offer an excellent compro-
mise between safety, grip and traction.
This equipment, the operation of which
has been optimised in each situation,
allows you to manoeuvre in most condi-
tions of poor grip (encountered during
touring use).
Pressing the accelerator pedal should
b e s u f fi c i e n t t o a l l o w t h e s y s t e m t o u s e
the power of the engine. The electron-
ics will ensure optimum management
of the various parameters. Phases of
operation with a high engine speed are
completely normal.
Each time the ignition is switched off,
the system returns to standard mode
(ESP).
Standard mode which is calibrated for a
low level of skidding, based on different
conditions of grip encountered on the
road.
Mode which adapts its strategy to the
conditions of grip encountered for each
of the two front wheels, on moving off.
When moving, the system optimises
the skidding to guarantee the best ac-
celeration possible in relation to the grip
available.
Place the dial in this position.
Page 119 of 290
121
All-terrain mode (mud, wet grass, ...)
Mode which, when moving off, permits
considerable skidding on the wheel with
the least grip to favour clearing of the
mud and regain "grip". At the same time,
the wheel with the most grip is control-
led in such a way as to pass as much
torque as possible.
When moving, the system optimises the
skidding to respond to the driver's re-
quirements as fully as possible. Sand mode
Mode which permits little skidding on
the two driving wheels at the same time
to allow the vehicle to move forward
and limit the risks of getting stuck in the
sand.
Driving advice
Your vehicle is designed prin-
cipally to drive on tarmacked
roads but it allows you to drive on other
less passable terrain occasionally.
However, it does not permit all-ter-
rain activities such as:
- crossing and driving on terrain which could damage the under-
frame or strip away components
(fuel pipe, fuel cooler, ...) due to
obstacles or stones in particular,
- driving on terrain with steep gra- dients and poor grip,
- crossing a stream.
Place the dial in this position.
Place the dial in this position. ESP OFF mode
Place the dial in this position.
Do not use the other modes on sand as
the vehicle may become stuck.
T h i s m o d e i s a c t i v e u p t o 3 0 m p h ( 5 0 k m / h ) .
Page 120 of 290
122
Height adjustment
Front seat belt not fastened/
unfastened warning light
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
T o fi n d t h e a t t a c h m e n t p o i n t ,
s q u e e z e t h e c o n t r o l A and slide it
u n t i l y o u fi n d a n o t c h .
When the ignition is switched on,
this warning light comes on on the
seat belt and passenger's front
air bag warning lights display, if
the driver and/or the front passenger has
not fastened his seat belt.
From approximately 12 mph (20 km/h)
t h i s w a r n i n g l i g h t fl a s h e s f o r t w o m i n -
utes accompanied by an audible signal.
Once these two minutes have elapsed,
this warning light remains on until the
driver and/or the front passenger fas-
tens his seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it rolls up. SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so increasing their protection.
