132
Particular situations
In certain situations (e.g. star-
ting the engine), the parking brake
can automatically alter its force. This
is normal operation.
Emergency braking
In the event of a failure of the braking by
means of the brake pedal or in an ex-
ceptional situation (e.g. driver taken ill,
under instruction, etc) a continuous pull
on control A will stop the vehicle.
The electronic stability programme
(ESP) provides stability during emer-
gency braking.
If the emergency braking malfunctions,
one of the following messages will be
displayed:
- "Parking brake faulty".
- "Parking brake control faulty".
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the parking
brake
by pulling then releasing con-
trol A . The full release of the parking
b r a k e i s c o n fi r m e d b y t h e e x t i n c t i o n
of warning lamp on control A and of
the warning lamp on the instrument
panel and the displaying of the mes-
sage "Parking brake released".
If the parking brake malfunctions
while applied or if the battery runs
fl a t , a n e m e r g e n c y r e l e a s e i a a l w a y s
possible. If a failure of the ESP system
is signalled by the lighting of
this warning lamp, then brak-
ing stability is not guaranteed.
In this event, stability must be
assured by the driver by repeating alter-
nate "pull release" actions on control A .
The emergency braking must
only be used in exceptional
circumstances.
Page 132 of 290
133
Emergency unlocking
For safety reasons, after this
manoeuvre it is essential to
contact a PEUGEOT dealer
urgently.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency unlocking has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on control A , or
stopping starting the engine while the
unlocking device is engaged.
Take care not to allow moisture or
dust in the proximity of the plug.
Immobilise the vehicle, with the en-
g i n e r u n n i n g , b y e n g a g i n g fi r s t g e a r
(manual gearbox), position P (auto-
matic gearbox) or M or R (6-speed
electronic gearbox).
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not action
the control and urgently contact a
PEUGEOT dealer.
Fetch the two vehicle blocks and
the unlocking device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).
Immobilise the vehicle by placing
blocks at the front and at the rear of
one of the rear wheels.
Slide the front left-hand seat back
as far as possible.
L i f t u p t h e fl o o r p l u g B in the carpet
under the seat.
Remove the cap C on the tube D
with the unlocking device.
Place the unlocking device in the
tube D .
Turn the unlocking device clockwise.
For safety reasons , it is essential to
continue turning the device as far as
it will go or until you hear a knocking
noise. The parking brake is released.
Remove the unlocking device and
store it with the blocks in the tool-
box.
- The operation of the parking brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact a
PEUGEOT dealer.
- The subsequent time required for application may be longer than dur-
ing normal operation.
Front left seat moved back fully.
In the event of the electronic parking
brake malfunctioning or the battery run-
n i n g fl a t , a n e m e r g e n c y m a n u a l d e v i c e
can unlock the parking brake.
Page 133 of 290
134
HILL START ASSIST
System which keeps your vehicle im-
mobilised temporarily (approximately
2 seconds) when starting on a gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This function is only active when:
- the vehicle is completely stationary, with your foot on the brake pedal,
- in particular conditions on a slope,
- with the driver’s door closed.
The hill start assist function cannot be
deactivated.
Operation
On an ascending slope, with the ve-
hicle stationary, the vehicle is held
for a brief moment when you release
the brake pedal:
- p r o v i d e d y o u a r e i n fi r s t g e a r o r n e u - tral on a manual gearbox,
- provided you are in A or M on an
electronic gearbox,
- provided you are in D or M on an
automatic gearbox.
On a descending slope, with the ve-
hicle stationary and reverse gear en-
gaged, the vehicle is held for a brief
moment when you release the brake
pedal.
Do not exit the vehicle while
it is being held in the hill start
assist phase.
If you need to exit the vehicle
with the engine running, manually
apply the parking brake then ensure
that the parking brake warning lamp
and the warning lamp P on the lever
(of the electric brake) are permanent-
ly on.
If a malfunction of the system occurs,
these warning lamps come on. Contact
a PEUGEOT dealer to have the system
checked.
Page 134 of 290
135
Operating faults
If the electronic parking brake fault warning light comes on together with one or more of the warning lights presented in these
tables, place the vehicle in a safe condition (on level grou nd, gear engaged) and contact a PEUGEOT dealer without dela y.
Situations
Consequences

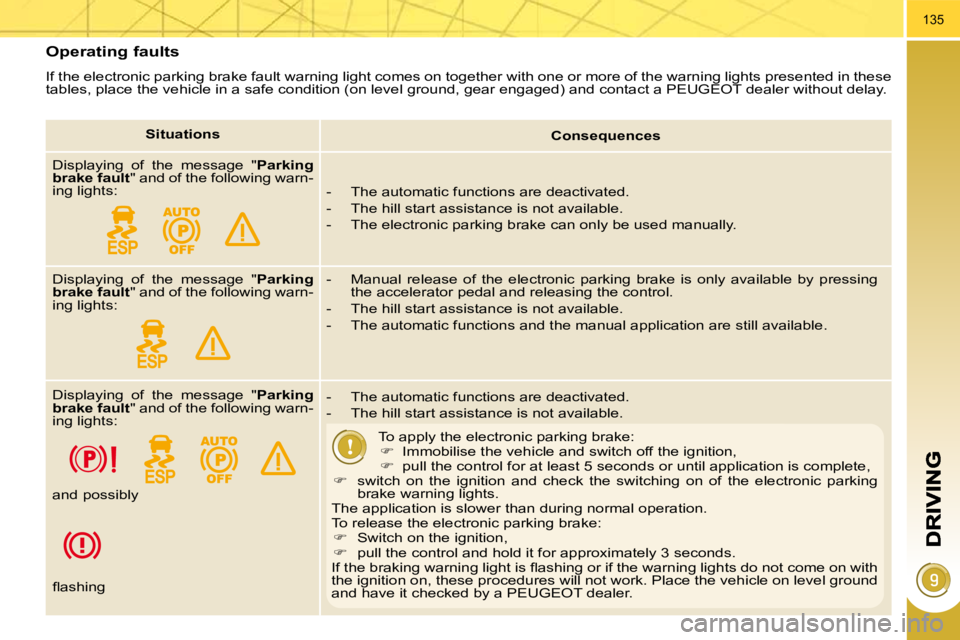

Displaying of the message " Parking
brake fault " and of the following warn-
ing lights: - The automatic functions are deactivated.
- The hill start assistance is not available.
- The electronic parking brake can only be used manually.
Displaying of the message " Parking
brake fault " and of the following warn-
ing lights: - Manual release of the electronic parking brake is only avai
lable by pressing
the accelerator pedal and releasing the control.
- The hill start assistance is not available.
- The automatic functions and the manual application are still available.
- The automatic functions are deactivated.
- The hill start assistance is not available. To apply the electronic parking brake:
Immobilise the vehicle and switch off the ignition,
pull the control for at least 5 seconds or until applicati on is complete,
switch on the ignition and check the switching on of the electronic parking
brake warning lights.
The application is slower than during normal operation.
To release the electronic parking brake:
Switch on the ignition,
pull the control and hold it for approximately 3 seconds.
I f t h e b r a k i n g w a r n i n g l i g h t i s fl a s h i n g o r i f t h e w a r n i n g l i g h t s d o n o t c o m e o n w i t h
the ignition on, these procedures will not work. Place the ve hicle on level ground
and have it checked by a PEUGEOT dealer.
Displaying of the message "
Parking
brake fault " and of the following warn-
ing lights:
and possibly
fl a s h i n g
Page 135 of 290
136
Situations
Consequences

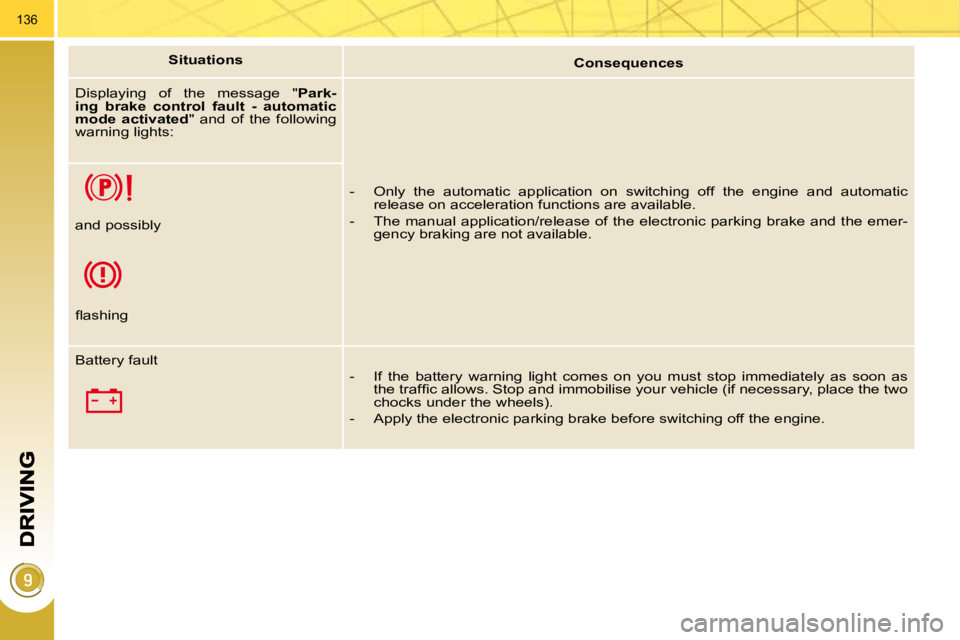

Displaying of the message " Park-
ing brake control fault - automatic
mode activated " and of the following
warning lights:
- Only the automatic application on switching off the engine and automatic
release on acceleration functions are available.
- The manual application/release of the electronic parking brake and the emer-
gency braking are not available.
and possibly
fl a s h i n g
Battery fault
- If the battery warning light comes on you must stop immedi ately as soon as
t h e t r a f fi c a l l o w s . S t o p a n d i m m o b i l i s e y o u r v e h i c l e ( i f n e c e s s a r y , p l a c e t h e t w o
chocks under the wheels).
- Apply the electronic parking brake before switching off the engine.
Page 136 of 290
132
Particular situations
In certain situations (e.g. star-
ting the engine), the parking brake
can automatically alter its force. This
is normal operation.
Emergency braking
In the event of a failure of the braking by
means of the brake pedal or in an ex-
ceptional situation (e.g. driver taken ill,
under instruction, etc) a continuous pull
on control A will stop the vehicle.
The electronic stability programme
(ESP) provides stability during emer-
gency braking.
If the emergency braking malfunctions,
one of the following messages will be
displayed:
- "Parking brake faulty".
- "Parking brake control faulty".
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the parking
brake
by pulling then releasing con-
trol A . The full release of the parking
b r a k e i s c o n fi r m e d b y t h e e x t i n c t i o n
of warning lamp on control A and of
the warning lamp on the instrument
panel and the displaying of the mes-
sage "Parking brake released".
If the parking brake malfunctions
while applied or if the battery runs
fl a t , a n e m e r g e n c y r e l e a s e i a a l w a y s
possible. If a failure of the ESP system
is signalled by the lighting of
this warning lamp, then brak-
ing stability is not guaranteed.
In this event, stability must be
assured by the driver by repeating alter-
nate "pull release" actions on control A .
The emergency braking must
only be used in exceptional
circumstances.
Page 137 of 290
133
Emergency unlocking
For safety reasons, after this
manoeuvre it is essential to
contact a PEUGEOT dealer
urgently.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency unlocking has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on control A , or
stopping starting the engine while the
unlocking device is engaged.
Take care not to allow moisture or
dust in the proximity of the plug.
Immobilise the vehicle, with the en-
g i n e r u n n i n g , b y e n g a g i n g fi r s t g e a r
(manual gearbox), position P (auto-
matic gearbox) or M or R (6-speed
electronic gearbox).
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not action
the control and urgently contact a
PEUGEOT dealer.
Fetch the two vehicle blocks and
the unlocking device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).
Immobilise the vehicle by placing
blocks at the front and at the rear of
one of the rear wheels.
Slide the front left-hand seat back
as far as possible.
L i f t u p t h e fl o o r p l u g B in the carpet
under the seat.
Remove the cap C on the tube D
with the unlocking device.
Place the unlocking device in the
tube D .
Turn the unlocking device clockwise.
For safety reasons , it is essential to
continue turning the device as far as
it will go or until you hear a knocking
noise. The parking brake is released.
Remove the unlocking device and
store it with the blocks in the tool-
box.
- The operation of the parking brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact a
PEUGEOT dealer.
- The subsequent time required for application may be longer than dur-
ing normal operation.
Front left seat moved back fully.
In the event of the electronic parking
brake malfunctioning or the battery run-
n i n g fl a t , a n e m e r g e n c y m a n u a l d e v i c e
can unlock the parking brake.
Page 138 of 290
134
HILL START ASSIST
System which keeps your vehicle im-
mobilised temporarily (approximately
2 seconds) when starting on a gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This function is only active when:
- the vehicle is completely stationary, with your foot on the brake pedal,
- in particular conditions on a slope,
- with the driver’s door closed.
The hill start assist function cannot be
deactivated.
Operation
On an ascending slope, with the ve-
hicle stationary, the vehicle is held
for a brief moment when you release
the brake pedal:
- p r o v i d e d y o u a r e i n fi r s t g e a r o r n e u - tral on a manual gearbox,
- provided you are in A or M on an
electronic gearbox,
- provided you are in D or M on an
automatic gearbox.
On a descending slope, with the ve-
hicle stationary and reverse gear en-
gaged, the vehicle is held for a brief
moment when you release the brake
pedal.
Do not exit the vehicle while
it is being held in the hill start
assist phase.
If you need to exit the vehicle
with the engine running, manually
apply the parking brake then ensure
that the parking brake warning lamp
and the warning lamp P on the lever
(of the electric brake) are permanent-
ly on.
If a malfunction of the system occurs,
these warning lamps come on. Contact
a PEUGEOT dealer to have the system
checked.
Page 139 of 290
137
System which projects various informa-
t i o n o n t o a t r a n s p a r e n t s t r i p i n t h e fi e l d
of vision of the driver so that he does
not have to take his eyes off the road.
This system operates when the engine
is running and the settings are stored
when the ignition is switched off.

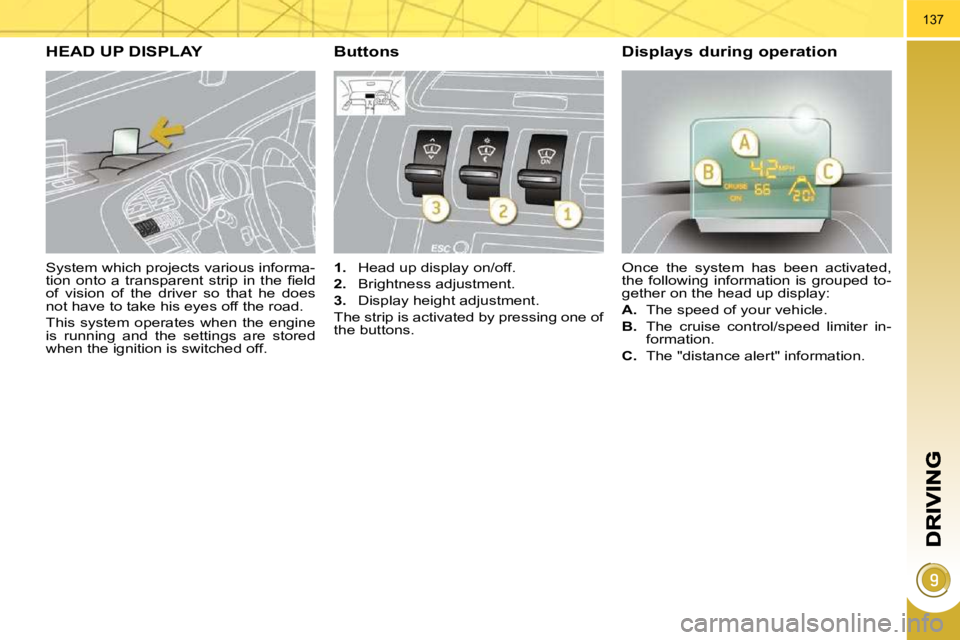

HEAD UP DISPLAY
1. Head up display on/off.
2. Brightness adjustment.
3. Display height adjustment.
The strip is activated by pressing one of
the buttons. Once the system has been activated,
the following information is grouped to-
gether on the head up display:
A. The speed of your vehicle.
B. The cruise control/speed limiter in-
formation.
C. The "distance alert" information.
Buttons Displays during operation
Page 140 of 290
138
In certain extreme weather
conditions (rain and/or snow,
bright sunshine, ...) the head
up display may not be legible or may
suffer temporary interference.
Certain glasses (sunglasses, specta-
cles or polarised lenses) may ham-
per reading of the information.
To clean the transparent strip, use a
clean, soft cloth such as a spectacles
cloth. Do not use a dry or abrasive

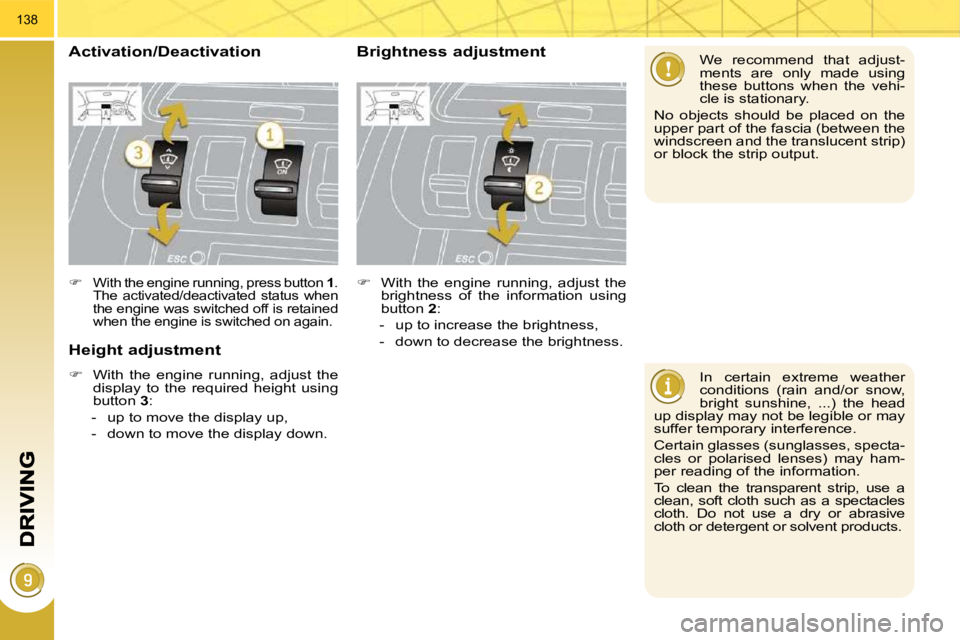

cloth or detergent or solvent products. We recommend that adjust-
ments are only made using
these buttons when the vehi-
cle is stationary.
No objects should be placed on the
upper part of the fascia (between the
windscreen and the translucent strip)
or block the strip output.
With the engine running, press button 1 .
The activated/deactivated status when
the engine was switched off is retained
when the engine is switched on again.
Height adjustment
With the engine running, adjust the
display to the required height using
button 3 :
- up to move the display up,
- down to move the display down.
Activation/Deactivation Brightness adjustment
With the engine running, adjust the
brightness of the information using
button 2 :
- up to increase the brightness,
- down to decrease the brightness.
