Peugeot 308 2016 Owner's Manual

349
308_en_Chap10c_SMegplus_ed02-2015

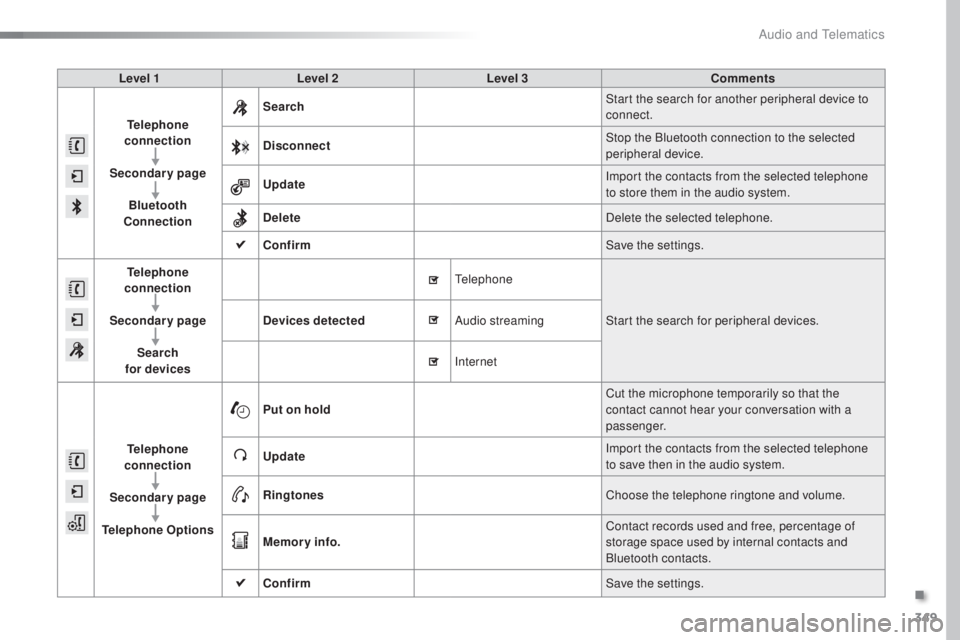

Level 1Level 2 Level 3 Comments
Telephone
connection
Secondary page Bluetooth
Connection Search
Start the search for another peripheral device to
connect.
Disconnect Stop the Bluetooth connection to the selected
peripheral device.
Update Import the contacts from the selected telephone
to store them in the audio system.
Delete Delete the selected telephone.
Confirm Save the settings.
Telephone
conn ection
Secondary page Search
for devices Devices detected
tele

phoneStart the search for peripheral devices.
Audio streaming
Internet
Telephone
connection
Secondary page
Telephone Options Put on hold
Cut the microphone temporarily so that the
contact cannot hear your conversation with a
passenger.
Update Import the contacts from the selected telephone
to save then in the audio system.
Ringtones Choose the telephone ringtone and volume.
Memory info. Contact records used and free, percentage of
storage space used by internal contacts and
Bluetooth contacts.
Confirm Save the settings.
.
Audio and telematics

350
308_en_Chap10c_SMegplus_ed02-2015

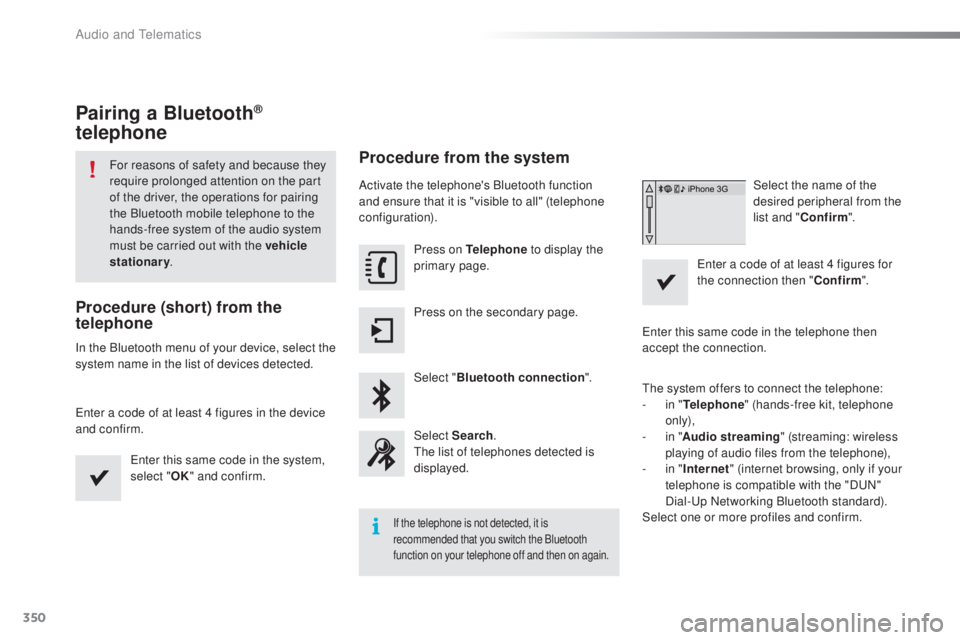

Pairing a Bluetooth®
telephone
For reasons of safety and because they
require prolonged attention on the part
of the driver, the operations for pairing
the Bluetooth mobile telephone to the
hands-free system of the audio system
must be carried out with the vehicle
stationary .
Procedure (short) from the
telephone
In the Bluetooth menu of your device, select the
system name in the list of devices detected.
ent

er a code of at least 4 figures in the device
and confirm.
ent

er this same code in the system,
select " OK" and confirm.
Procedure from the system
Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
configuration).
Press on Telephone to display the
primary page.
Press on the secondary page.
Select " Bluetooth connection ".
Select Search .
the l

ist of telephones detected is
displayed.
If the telephone is not detected, it is
recommended that you switch the Bluetooth
function on your telephone off and then on again.
Select the name of the
desired peripheral from the
list and " Confirm ".
ent

er a code of at least 4 figures for
the connection then " Confirm".
ent

er this same code in the telephone then
accept the connection.
the s

ystem offers to connect the telephone:
-
in " T

elephone " (hands-free kit, telephone
only),
-
in " A

udio streaming " (streaming: wireless
playing of audio files from the telephone),
-
in " In

ternet " (internet browsing, only if your
telephone is compatible with the "D
uN"
D

ial-
up N

etworking Bluetooth standard).
Select one or more profiles and confirm.
Audio and telematics

351
308_en_Chap10c_SMegplus_ed02-2015

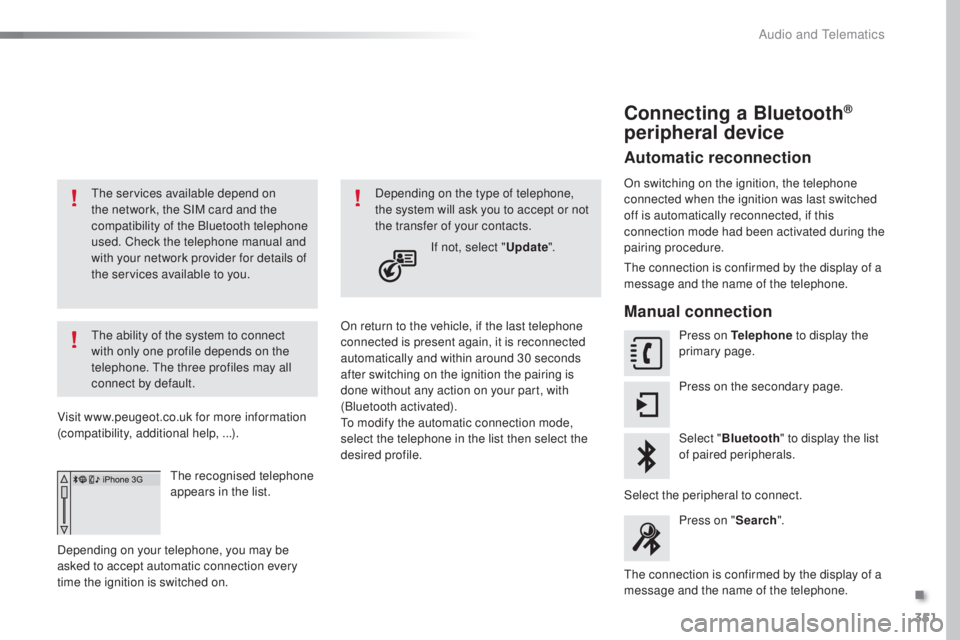

the services available depend on
t he network, the SIM card and the
compatibility of the Bluetooth telephone
used. Check the telephone manual and
with your network provider for details of
the services available to you.
the a

bility of the system to connect
with only one profile depends on the
telephone.
the

three profiles may all
connect by default.
Visit www.peugeot.co.uk for more information
(compatibility, additional help, ...).
the r

ecognised telephone
appears in the list.
Depending on your telephone, you may be
asked to accept automatic connection every
time the ignition is switched on. On return to the vehicle, if the last telephone
connected is present again, it is reconnected
automatically and within around 30 seconds
after switching on the ignition the pairing is
done without any action on your part, with
(Bluetooth activated).
to mo

dify the automatic connection mode,
select the telephone in the list then select the
desired profile. Depending on the type of telephone,
the system will ask you to accept or not
the transfer of your contacts.
If not, select " Update".
Connecting a Bluetooth®
peripheral device
Automatic reconnection
On switching on the ignition, the telephone
connected when the ignition was last switched
off is automatically reconnected, if this
connection mode had been activated during the
pairing procedure.
the c

onnection is confirmed by the display of a
message and the name of the telephone.
Manual connection
Press on Telephone to display the
primary page.
Press on the secondary page.
Select " Bluetooth " to display the list
of paired peripherals.
Select the peripheral to connect. Press on " Search".
the c

onnection is confirmed by the display of a
message and the name of the telephone.
.
Audio and telematics

352
308_en_Chap10c_SMegplus_ed02-2015

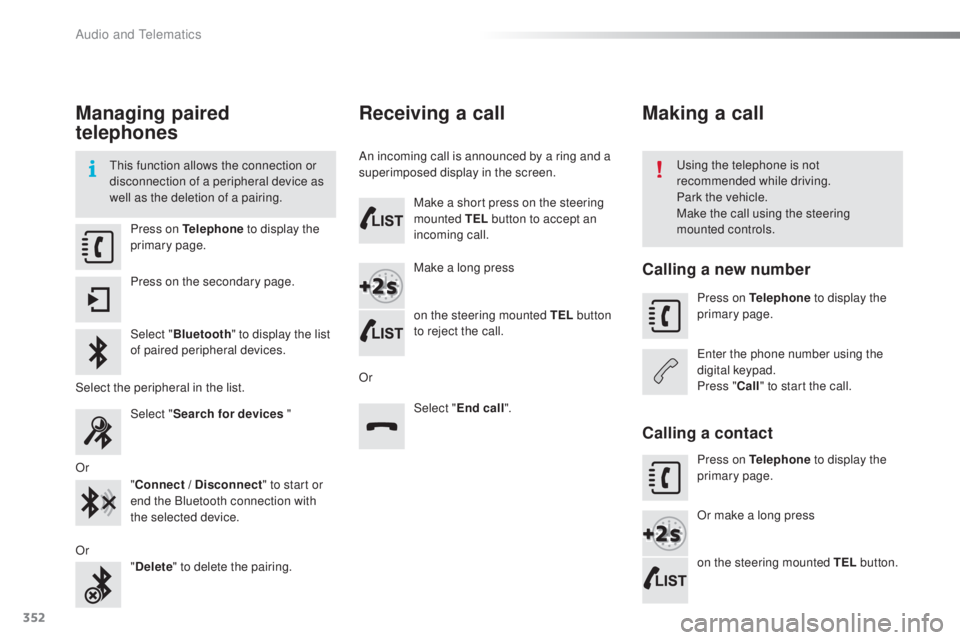

Managing paired
telephones
this function allows the connection or
d isconnection of a peripheral device as
well as the deletion of a pairing.usi ng the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.
Press on Telephone
to display the
primary page.
Press on the secondary page.
Select " Bluetooth " to display the list
of paired peripheral devices.
Select the peripheral in the list. Select "Search for devices "
Or "Connect / Disconnect " to start or
end the Bluetooth connection with
the selected device.
Or "Delete " to delete the pairing.
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Make a short press on the steering
mounted TEL button to accept an
incoming call.
Make a long press
on the steering mounted TEL button
to reject the call.
Or Select "End call".
Making a call
Calling a new number
Press on Telephone to display the
primary page.
ent

er the phone number using the
digital keypad.
Press " Call" to start the call.
Calling a contact
Press on Telephone to display the
primary page.
Or make a long press
on the steering mounted TEL button.
Audio and telematics

353
308_en_Chap10c_SMegplus_ed02-2015
Select "Contacts ".
Select the desired contact from the list offered. Select "Call".
Calling a recently used number
Press on Telephone to display the
primary page.
Select " Call log ".
Select the desired contact from the list offered. It is always possible to make a call
directly from the telephone; park the
vehicle first as a safety measure.

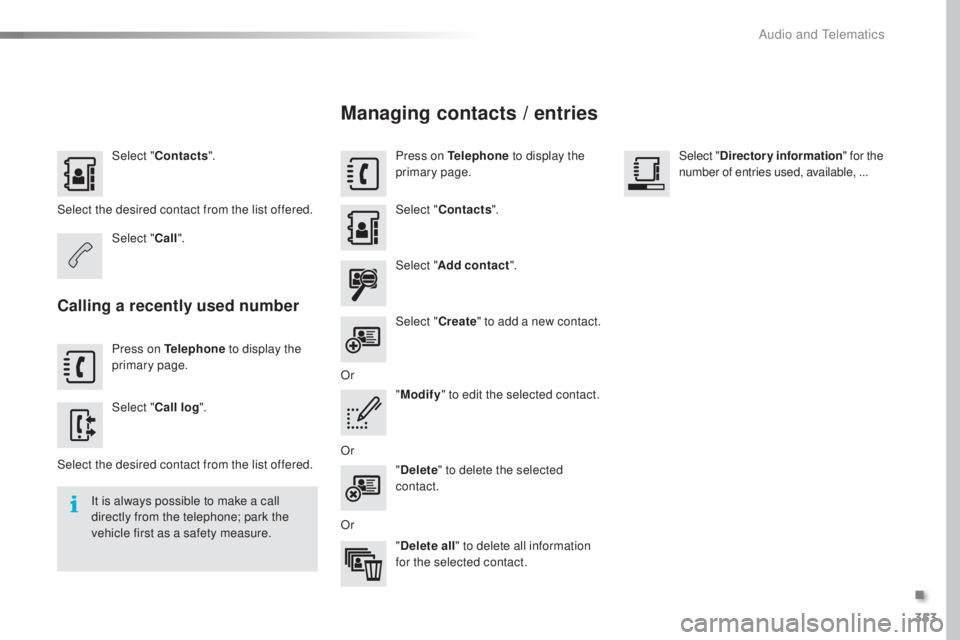

Managing contacts / entries
Press on Telephone to display the
primary page.
Select " Contacts ".
Select " Add contact ".
Select " Create" to add a new contact.
Or "Modify " to edit the selected contact.
Or "Delete " to delete the selected
contact.
Or "Delete all " to delete all information
for the selected contact. Select "
Directory information " for the
number of entries used, available, ...
.
Audio and telematics

354
308_en_Chap10c_SMegplus_ed02-2015

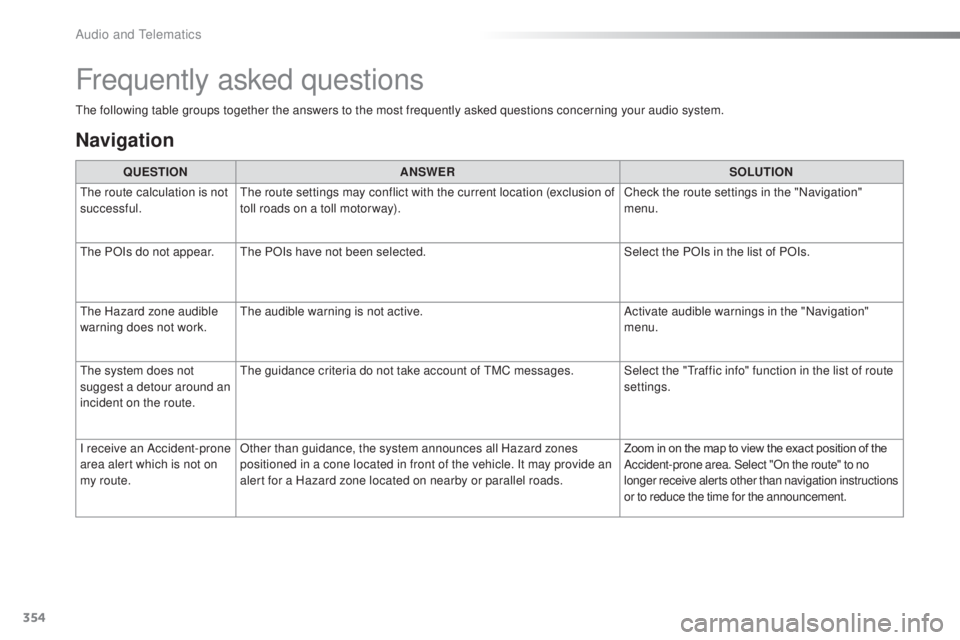

the following table groups together the answers to the most frequently asked questions concerning your audio system.
Frequently asked questions
Navigation
QUESTIONANSWER SOLUTION
the r

oute calculation is not
successful.
the r

oute settings may conflict with the current location (exclusion of
toll roads on a toll motor way). Check the route settings in the "Navigation"
menu.
the P

OIs do not appear.
the
POIs have not been selected. Select the POIs in the list of POIs.
the H

azard zone audible
warning does not work.
the a

udible warning is not active. Activate audible warnings in the "Navigation"
menu.
the s

ystem does not
suggest a detour around an
incident on the route.
the g

uidance criteria do not take account of
tMC m
essages. Select the "
tra
ffic info" function in the list of route
settings.
I receive an Accident-prone
area alert which is not on
my route. Other than guidance, the system announces all Hazard zones
positioned in a cone located in front of the vehicle. It may provide an
alert for a Hazard zone located on nearby or parallel roads.
Zoom in on the map to view the exact position of the
Accident-prone area. Select "On the route" to no
longer receive alerts other than navigation instructions
or to reduce the time for the announcement.
Audio and telematics

355
308_en_Chap10c_SMegplus_ed02-2015

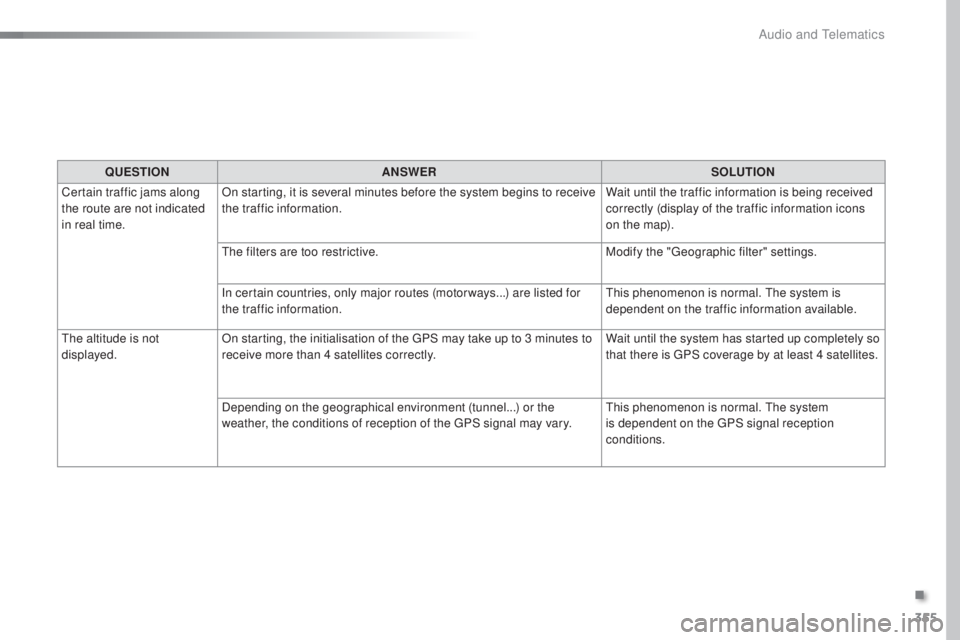

QUESTIONANSWER SOLUTION
Certain traffic jams along
the route are not indicated
in real time. On starting, it is several minutes before the system begins to receive
the traffic information.
Wait until the traffic information is being received
correctly (display of the traffic information icons
on the map).
the f

ilters are too restrictive. Modify the "
geo

graphic filter" settings.
In certain countries, only major routes (motor ways...) are listed for
the traffic information.
thi

s phenomenon is normal.
the s
ystem is
dependent on the traffic information available.
the a

ltitude is not
displayed. On starting, the initialisation of the
gPS m

ay take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely so
that there is
gPS c

overage by at least 4
s
atellites.
Depending on the geographical environment (tunnel...) or the
weather, the conditions of reception of the
gPS s

ignal may vary.
thi
s phenomenon is normal.
the s
ystem
is dependent on the
gPS s

ignal reception
conditions.
.
Audio and telematics

356
308_en_Chap10c_SMegplus_ed02-2015

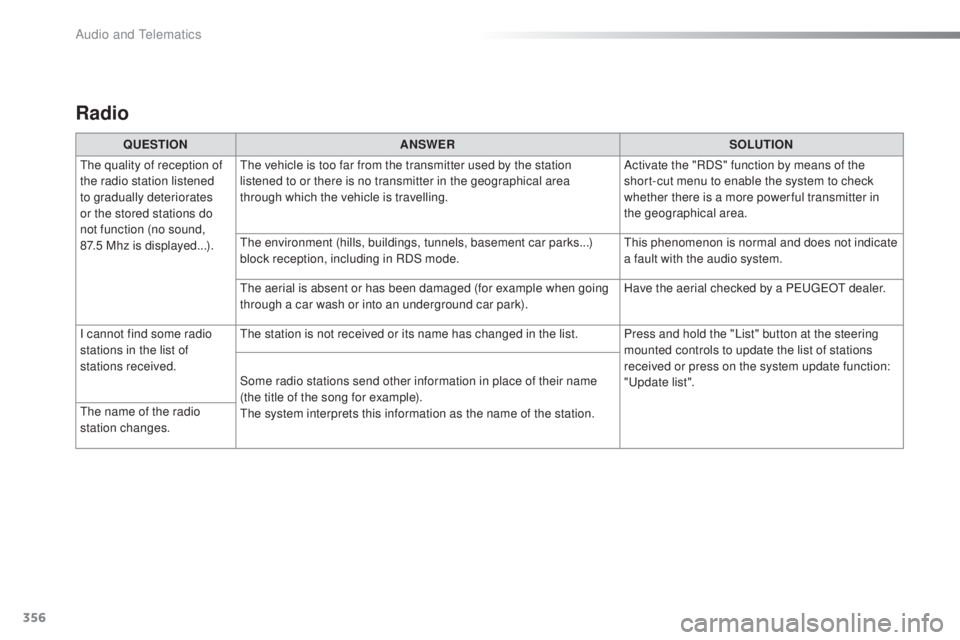

Radio
QUESTIONANSWER SOLUTION
the q

uality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5
M

hz is displayed...).
the v
ehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling. Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more power ful transmitter in
the geographical area.
the e

nvironment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode.
thi

s phenomenon is normal and does not indicate
a fault with the audio system.
the a

erial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a P
eu

ge
Ot d
ealer.
I cannot find some radio
stations in the list of
stations received.
the s

tation is not received or its name has changed in the list. Press and hold the "List" button at the steering mounted controls to update the list of stations
received or press on the system update function:
"
upd

ate list".
Some radio stations send other information in place of their name
(the title of the song for example).
the s

ystem interprets this information as the name of the station.
the n

ame of the radio
station changes.
Audio and telematics

357
308_en_Chap10c_SMegplus_ed02-2015

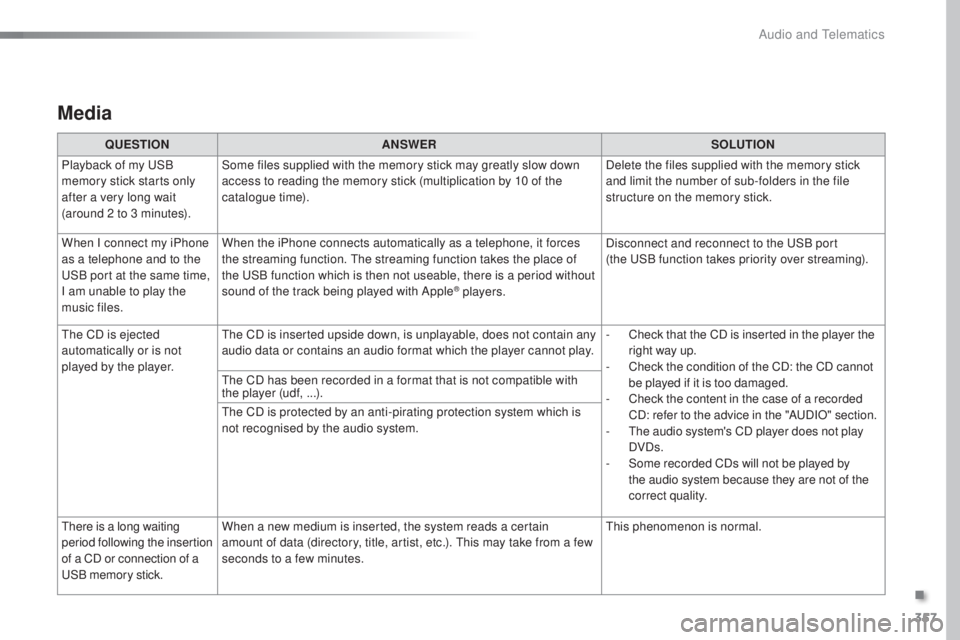

Media
QUESTIONANSWER SOLUTION
Playback of my
uSB
m

emory stick starts only
after a very long wait
(around 2 to 3 minutes). Some files supplied with the memory stick may greatly slow down
access to reading the memory stick (multiplication by 10 of the
catalogue time).
Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
When I connect my iPhone
as a telephone and to the
uSB p

ort at the same time,
I am unable to play the
music files. When the iPhone connects automatically as a telephone, it forces
the streaming function.
the s

treaming function takes the place of
the
uSB f

unction which is then not useable, there is a period without
sound of the track being played with Apple
® players. Disconnect and reconnect to the
uSB p
ort
(the
uSB f
unction takes priority over streaming).
the C

D is ejected
automatically or is not
played by the player.
the C

D is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play. -
Ch

eck that the CD is inserted in the player the
right way up.
-
Ch

eck the condition of the CD: the CD cannot
be played if it is too damaged.
-
Ch

eck the content in the case of a recorded
CD: refer to the advice in the "A
uDI

O" section.
-


t
he a
udio system's CD player does not play
DVDs.
-
So

me recorded CDs will not be played by
the audio system because they are not of the
correct quality.
the C

D has been recorded in a format that is not compatible with
the player (udf, ...).
the C

D is protected by an anti-pirating protection system which is
not recognised by the audio system.
there

is a long waiting
period following the insertion
of a CD or connection of a
uSB

memory stick. When a new medium is inserted, the system reads a certain
amount of data (directory, title, artist, etc.).
thi

s may take from a few
seconds to a few minutes.
thi

s phenomenon is normal.
.
Audio and telematics

358
308_en_Chap10c_SMegplus_ed02-2015

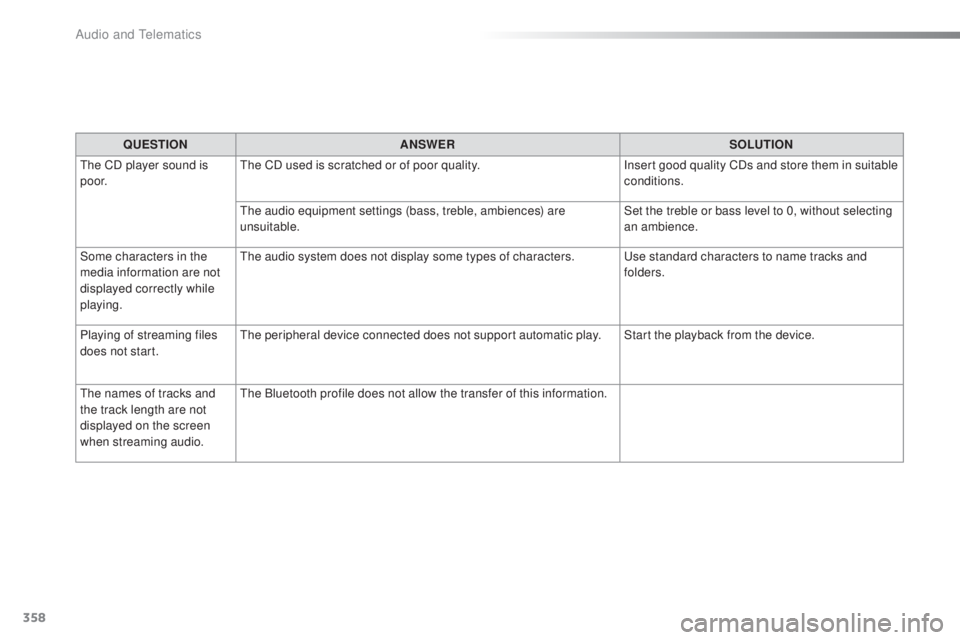

QUESTIONANSWER SOLUTION
the C

D player sound is
p o o r.
the C

D used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
the a

udio equipment settings (bass, treble, ambiences) are
unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
Some characters in the
media information are not
displayed correctly while
playing.
the a

udio system does not display some types of characters.
us
e standard characters to name tracks and
folders.
Playing of streaming files
does not start.
the p

eripheral device connected does not support automatic play. Start the playback from the device.
the n

ames of tracks and
the track length are not
displayed on the screen
when streaming audio.
the B

luetooth profile does not allow the transfer of this information.
Audio and telematics
