Very cold climate screen
F Offer up the screen, placing the lower clips in contact with lower section of the lower
grille, using the centre guide as an aid.
F

C
lip first the lower part, then the upper
part, from the middle out towards the
edges.
Fitting
F Unclip the upper part of the screen, starting at the edges.
F

T
ake the screen by the lower edges and
detach it by pulling it towards you.
Removal
Removable protective screen which prevents the accumulation of snow at the radiator cooling fan.
Before fitting or removing the screen, ensure that the engine is off and the cooling fan has stopped. It is recommended that the screen be fitted and
removed by a PEUGEOT dealer or a qualified workshop.
Do not forget to remove the very cold
climate screen:
-
w

hen the ambient temperature
exceeds 10° C,
-
w

hen towing,
-
a

t speeds above 75 mph (120 km/h).
10
Practical information

240
3008_en_Chap10_infos-pratiques_ed01-2015

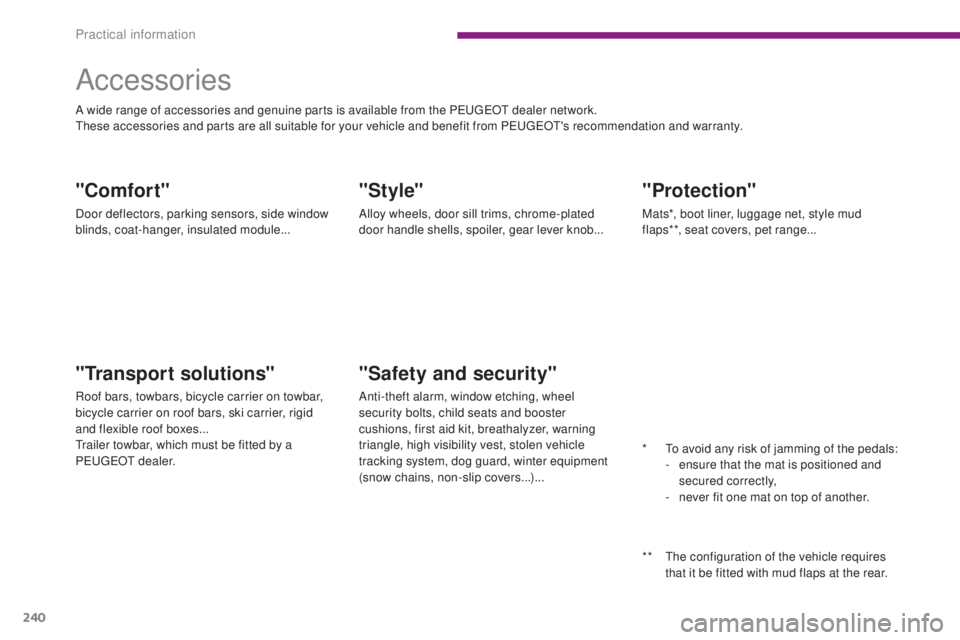

Accessories
"Comfort"
Door deflectors, parking sensors, side window
blinds, coat-hanger, insulated module...
"Transport solutions"
Roof bars, towbars, bicycle carrier on towbar,
bicycle carrier on roof bars, ski carrier, rigid
and flexible roof boxes...
Trailer towbar, which must be fitted by a
PEUGEOT dealer.
"Style"
Alloy wheels, door sill trims, chrome-plated
door handle shells, spoiler, gear lever knob...
"Safety and security"
Anti-theft alarm, window etching, wheel
security bolts, child seats and booster
cushions, first aid kit, breathalyzer, warning
triangle, high visibility vest, stolen vehicle
tracking system, dog guard, winter equipment
(snow chains, non-slip covers...)...
"Protection"
Mats*, boot liner, luggage net, style mud
flaps**, seat covers, pet range...
A wide range of accessories and genuine parts is available from the PEUGEOT dealer network.
These accessories and parts are all suitable for your vehicle and benefit from PEUGEOT's recommendation and warranty.
**
T
he configuration of the vehicle requires
that it be fitted with mud flaps at the rear.
*

T
o avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
Practical information

241
3008_en_Chap10_infos-pratiques_ed01-2015
Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Contact a PEUGEOT dealer
for information on the range of
recommended equipment and
accessories.You can also obtain cleaning and
maintenance products (exterior and
interior), products for topping up
(screenwash fluid...) and refills (sealant
cartridge for the temporary puncture
repair kit...) from PEUGEOT dealers.

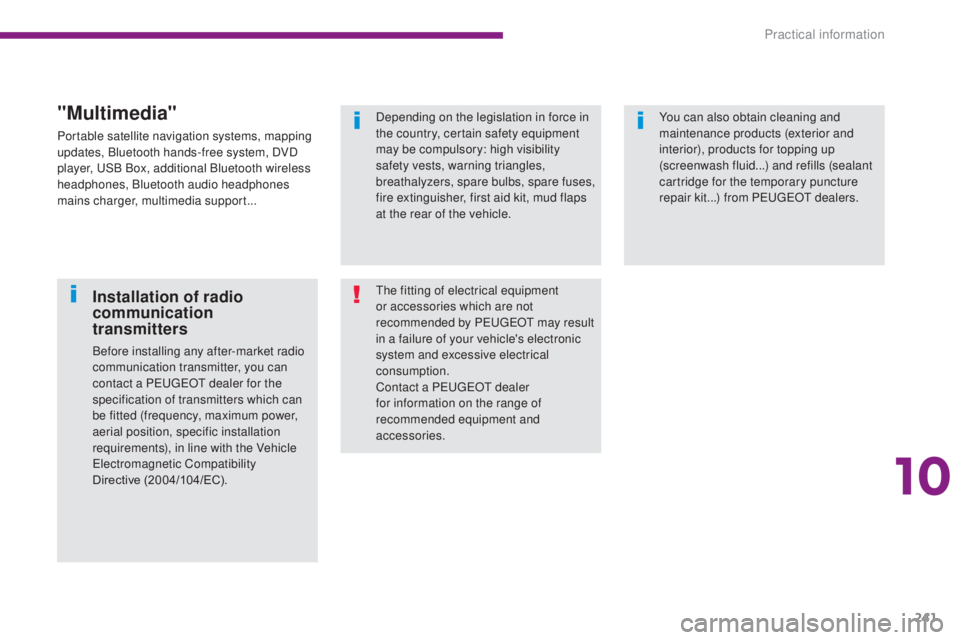

Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a PEUGEOT dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive
(2004/104/EC).
"Multimedia"
Portable satellite navigation systems, mapping
updates, Bluetooth hands-free system, DVD
player, USB Box, additional Bluetooth wireless
headphones, Bluetooth audio headphones
mains charger, multimedia support...
10
Practical information

242
3008_en_Chap11_caracteristiques_ed01-2015
Engine1.2 litre PureTech 130 S&S 1.6 litre THP 163 1.6 litre THP 165 S&S
Gearbox Manual

(6-speed) Automatic

(6-speed) Automatic

(6-speed)
Model code HNYM/S
HNYM/1S 5FMA /1
5FM A /1D 5G Z T/S
5G Z T/1S
Cubic capacity (cc) 1 1991 598 1 598
Bore x stroke (mm) 70 x 90.577 x 85.8 77 x 85.8
Max power: EU standard (kW)* 96120 121
Max power engine speed (rpm) 5 5006 000 6 000
Max torque: EU standard (Nm) 230240240
Max torque engine speed (rpm) 1 7501 400 1 400
Fuel Unleaded petrolUnleaded petrolUnleaded petrol
Catalytic converter yesyesyes
Engine oil capacity (in litres)
(with filter replacement) 3.5
4.25 4.25
Petrol engines and gearboxes
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation
(directive 1 999/99/CE).
Technical data

243
3008_en_Chap11_caracteristiques_ed01-2015
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

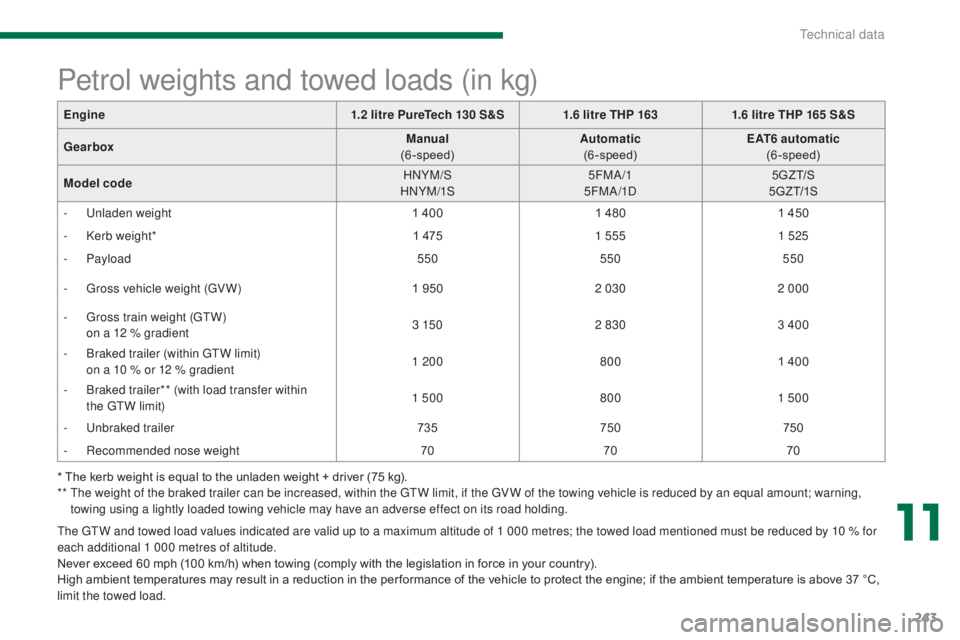

Petrol weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. Engine
1.2 litre PureTech 130 S&S 1.6 litre THP 163 1.6 litre THP 165 S&S
Gearbox Manual

(6-speed) Automatic

(6-speed) EAT6 automatic

(6-speed)
Model code HNYM/S
HNYM/1S 5FMA /1
5FM A /1D 5G Z T/S
5G Z T/1S
-
U
nladen weight
1 4001 4801 450
-
K
erb weight*
1 4751 555 1 525
-

Payload
550550550
-
G
ross vehicle weight (GV W)
1 9502 0302 000
-
G
ross train weight (GTW)
o

n a 12 % gradient
3 150
2 830 3 400
-
B
raked trailer (within GTW limit)
o

n a 10 % or 12 % gradient
1 200
8001 400
-
B
raked trailer** (with load transfer within
the GTW limit)
1 500
8001 500
-
U
nbraked trailer
735750750
-
R
ecommended nose weight
707070
11
Technical data

244
3008_en_Chap11_caracteristiques_ed01-2015

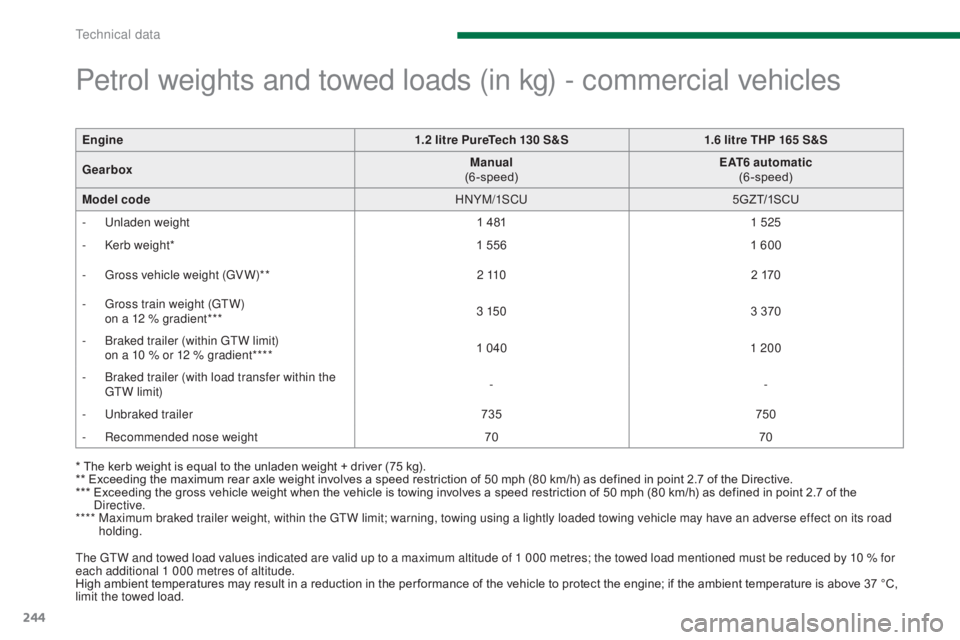

Petrol weights and towed loads (in kg) - commercial vehicles
* The kerb weight is equal to the unladen weight + driver (75 kg).
** Exceeding the maximum rear axle weight involves a speed restriction of 50 mph (80 km/h) as defined in point 2.7 of the Directive.
***
E
xceeding the gross vehicle weight when the vehicle is towing involves a speed restriction of 50 mph (80 km/h) as defined in point 2.7 of the
Directive.
****

M
aximum braked trailer weight, within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road
holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. Engine
1.2 litre PureTech 130 S&S1.6 litre THP 165 S&S
Gearbox Manual

(6-speed) EAT6 automatic

(6-speed)
Model code HNYM/1SCU5G Z T/1SCU
-
U
nladen weight
1 4811 525
-
K
erb weight*
1 5561 600
-
G
ross vehicle weight (GV W)**
2 11 02 170
-
G
ross train weight (GTW)
o

n a 12 % gradient***
3 150
3 370
-
B
raked trailer (within GTW limit)
o

n a 10 % or 12 % gradient****
1 040
1 200
-
B
raked trailer (with load transfer within the
GTW limit) -
-
-
U
nbraked trailer
735750
-
R
ecommended nose weight
7070
Technical data

245
3008_en_Chap11_caracteristiques_ed01-2015
Engine1.6 litre e- HDi 1151.6 litre BlueHDi 115 S & S 1.6 litre BlueHDi 120 S&S
Gearbox ETG6 electronic

(6-speed) Manual

(6-speed) EAT6 automatic

(6-speed) Manual

(6-speed) EAT6 automatic

(6-speed)
Model code 9HD8/PSBHXM/S
BHXM/1S BH X T/1S
BH X T/2S BHZM/S
BHZM /1S BHZ T/1S
BHZ T/2S
Cubic capacity (cc) 15 6 01 560 1 560
Bore x stroke (mm) 75 x 88.375 x 88.3 75 x 88.3
Max power: EU standard (kW)* 8484 88
Max power engine speed (rpm) 3 6003 500 3 500
Max torque: EU standard (Nm) 270300 300
Max torque engine speed (rpm) 1 7501 750 1 750
Fuel DieselDiesel Diesel
Catalytic converter yesyes yes
Particle filter yesyes yes
Engine oil capacity (in litres)
(with filter replacement) 3.75
- -

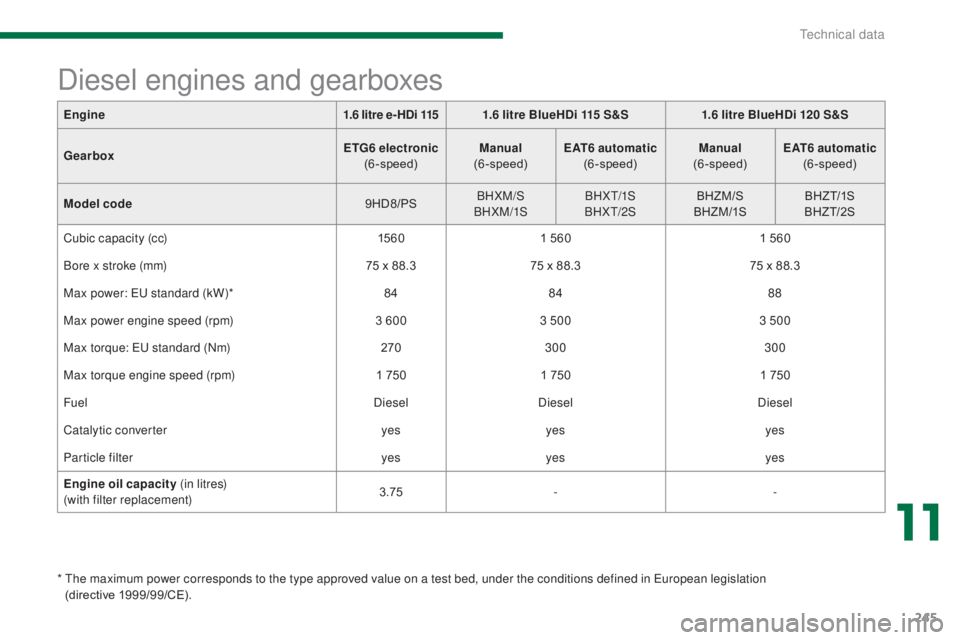

Diesel engines and gearboxes
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation
(directive 1 999/99/CE).
11
Technical data

246
3008_en_Chap11_caracteristiques_ed01-2015

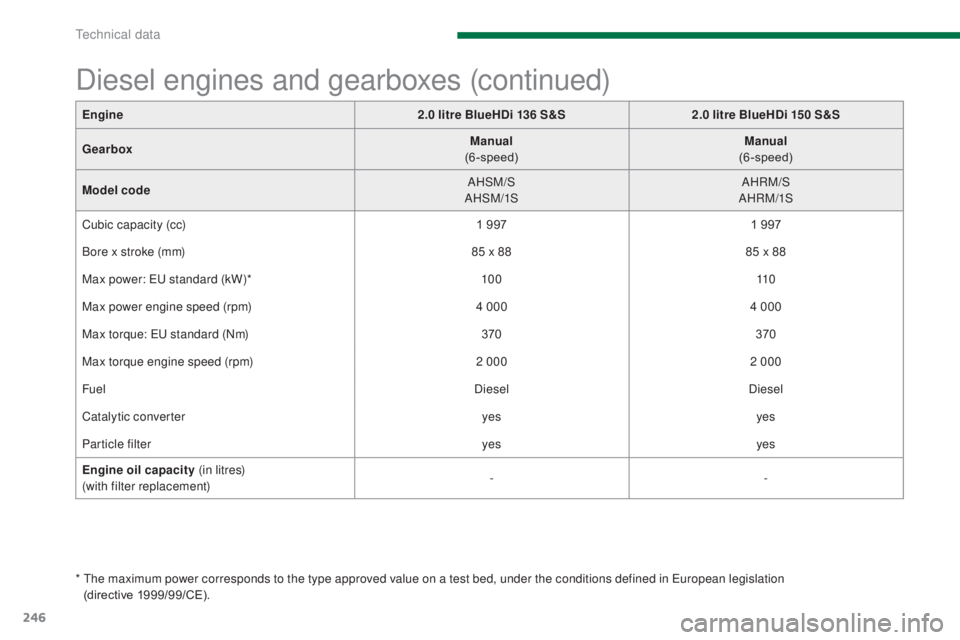

Diesel engines and gearboxes (continued)
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation (directive 1 999/99/CE).
Engine
2.0 litre BlueHDi 136 S&S2.0 litre BlueHDi 150 S&S
Gearbox Manual

(6-speed) Manual

(6-speed)
Model code AHSM/S
AHSM/1S AHRM/S
AHRM/1S
Cubic capacity (cc) 1 9971 997
Bore x stroke (mm) 85 x 8885 x 88
Max power: EU standard (kW)* 10 011 0
Max power engine speed (rpm) 4 0004 000
Max torque: EU standard (Nm) 370370
Max torque engine speed (rpm) 2 0002 000
Fuel DieselDiesel
Catalytic converter yesyes
Particle filter yesyes
Engine oil capacity (in litres)
(with filter replacement) -
-
Technical data

247
3008_en_Chap11_caracteristiques_ed01-2015
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

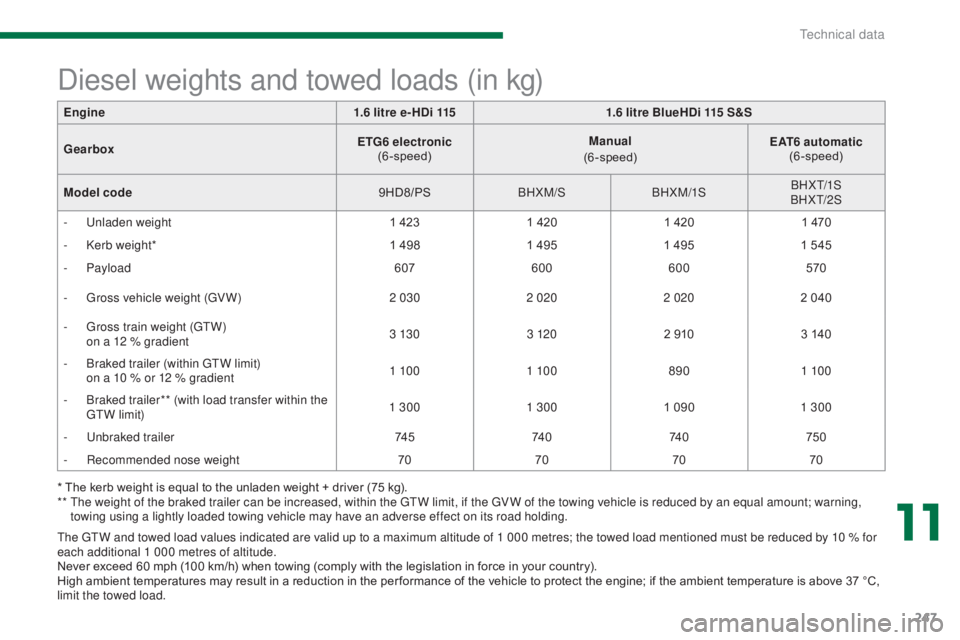

Diesel weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. Engine
1.6 litre e- HDi 1151.6 litre BlueHDi 115 S&S
Gearbox ETG6 electronic

(6-speed) Manual

(6-speed) EAT6 automatic

(6-speed)
Model code 9HD8/PSBHXM/SBHXM/1S BH X T/1S
BH X T/2S
-
U
nladen weight
1 4231 4201 420 1 470
-
K
erb weight*
1 4981 4951 4951 545
-

Payload
607600 600 570
-
G
ross vehicle weight (GV W)
2 0302 0202 0202 040
-
G
ross train weight (GTW)
o

n a 12 % gradient
3 13 0
3 1202 9103 140
-
B
raked trailer (within GTW limit)
o

n a 10 % or 12 % gradient
1 10 0
1 10 0 8901 10 0
-
B
raked trailer** (with load transfer within the
GTW limit) 1 300
1 3001 090 1 300
-
U
nbraked trailer
74 574 074 0750
-
R
ecommended nose weight
70707070
11
Technical data

248
3008_en_Chap11_caracteristiques_ed01-2015

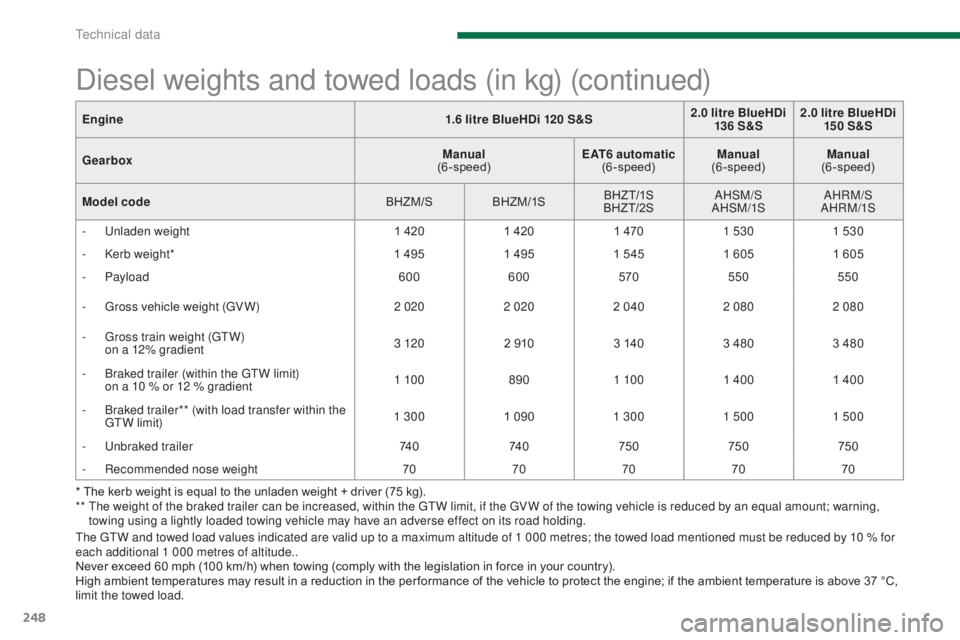

Diesel weights and towed loads (in kg) (continued)
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude..
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. Engine
1.6 litre BlueHDi 120 S&S2.0 litre BlueHDi
136 S&S 2.0 litre BlueHDi
15 0 S&S
Gearbox Manual

(6-speed) EAT6 automatic

(6-speed) Manual

(6-speed) Manual

(6-speed)
Model code BHZM/SBHZM /1S BHZ T/1S
BHZ T/2S AHSM/S
AHSM/1S AHRM/S
AHRM/1S
-
U
nladen weight
1 4201 420 1 4701 530 1 530
-
K
erb weight*
1 4951 4951 545 1 6051 605
-

Payload
600600 570550 550
-
G
ross vehicle weight (GV W)
2 0202 0202 040 2 080 2 080
-
G
ross train weight (GTW)
o

n a 12% gradient
3 120
2 9103 1403 480 3 480
-
B
raked trailer (within the GTW limit)
o

n a 10 % or 12 % gradient
1 10 0
8901 10 0 1 400 1 400
-
B
raked trailer** (with load transfer within the
GTW limit) 1 300
1 090 1 300 1 5001 500
-
U
nbraked trailer
74 074 0750 750750
-
R
ecommended nose weight
7070707070
Technical data
