PEUGEOT 308 2016 Owners Manual

05
319
3008_en_Chap12c_RD45_ed01_2015

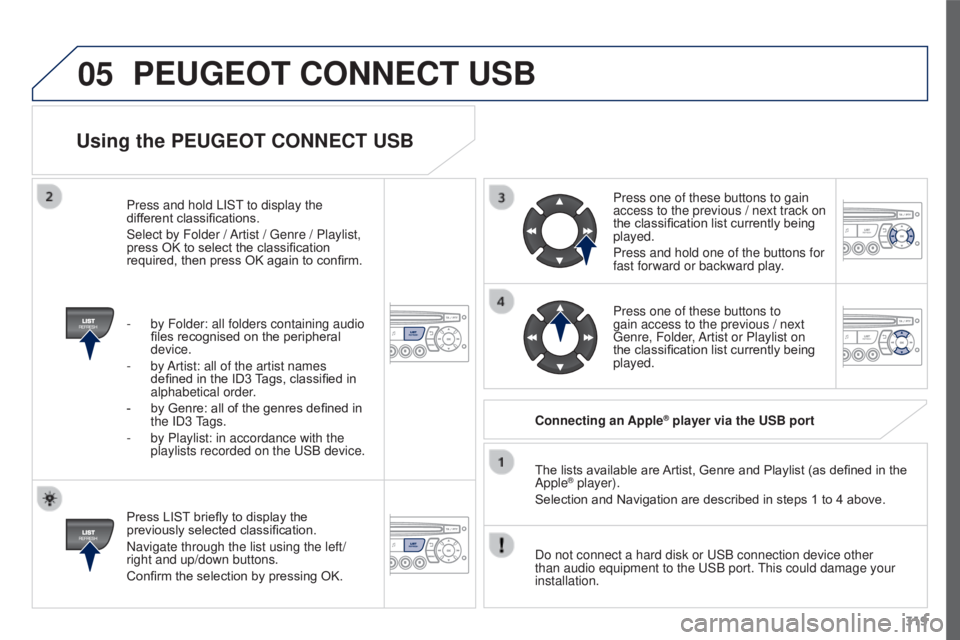

Using the PEUGEOT CONNECT USB
Press LIST briefly to display the
previously selected classification.
Navigate through the list using the left/
right and up/down buttons.
Confirm the selection by pressing OK.The lists available are Artist, Genre and Playlist (as defined in the
Apple
® player).
Selection and Navigation are described in steps 1 to 4 above.
Do not connect a hard disk or USB connection device other
than audio equipment to the USB port. This could damage your
installation. Connecting an Apple
® player via the USB port
Press one of these buttons to gain
access to the previous
/ next track on
the classification list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.
Press one of these buttons to
gain access to the previous / next
Genre, Folder, Artist or Playlist on
the classification list currently being
played.
Press and hold LIST to display the
different classifications.
Select by Folder

/ Artist

/ Genre

/ Playlist,
press OK to select the classification
required, then press OK again to confirm.
-

by Folder: all folders containing audio
files recognised on the peripheral
device.
-


by

Artist: all of the artist names
defined in the ID3 Tags, classified in
alphabetical order.
-
by Genre: all of the genres defined in
the
ID3 Tags.
-

by Playlist: in accordance with the
playlists recorded on the USB device.
PEUGEOT CONNECT USB

05
320
3008_en_Chap12c_RD45_ed01_2015

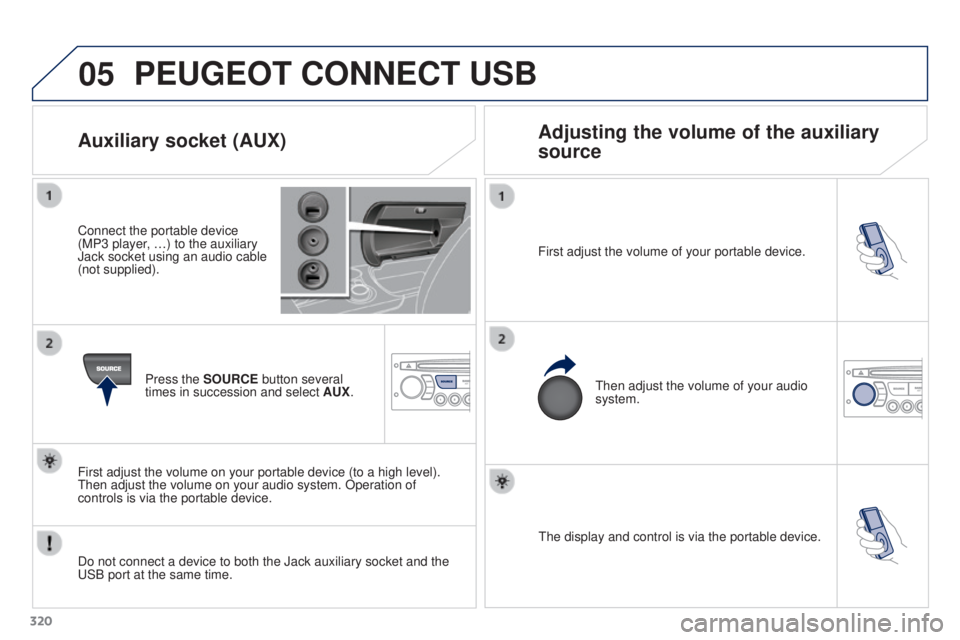

The display and control is via the portable device.
First adjust the volume of your portable device.
Then adjust the volume of your audio
system.
Auxiliary socket (AUX) Adjusting the volume of the auxiliary
source
PEUGEOT CONNECT USB
Do not connect a device to both the Jack auxiliary socket and the
USB port at the same time. First adjust the volume on your portable device (to a high level).
Then adjust the volume on your audio system. Operation of
controls is via the portable device.Press the SOURCE button several
times in succession and select AUX.
Connect the portable device
(MP3 player, …) to the auxiliary
Jack socket using an audio cable
(not supplied).

06
321
3008_en_Chap12c_RD45_ed01_2015

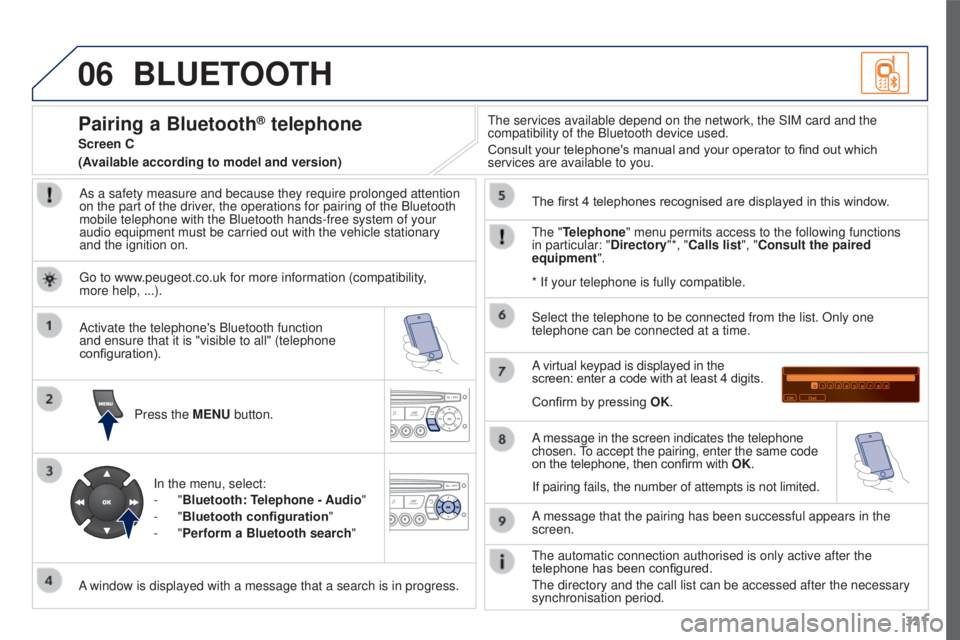

BLUETOOTH
As a safety measure and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.Press the MENU button.
A window is displayed with a message that a search is in progress. Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
configuration).
In the menu, select:
-
"Bluetooth: Telephone - Audio"
-
"Bluetooth configuration "
-
"Perform a Bluetooth search" The services available depend on the network, the SIM card and the
compatibility of the Bluetooth device used.
Consult your telephone's manual and your operator to find out which
services are available to you.
Pairing a Bluetooth® telephone
Screen C
The "Telephone" menu permits access to the following functions
in particular: "Directory"*, "Calls list", "Consult the paired
equipment". The first 4 telephones recognised are displayed in this window.
A virtual keypad is displayed in the
screen: enter a code with at least 4 digits.
Confirm by pressing OK.
A message that the pairing has been successful appears in the
screen. Select the telephone to be connected from the list. Only one
telephone can be connected at a time.
A message in the screen indicates the telephone
chosen. To accept the pairing, enter the same code
on the telephone, then confirm with OK.
The automatic connection authorised is only active after the
telephone has been configured.
The directory and the call list can be accessed after the necessary
synchronisation period.
(Available according to model and version)
* If your telephone is fully compatible.
If pairing fails, the number of attempts is not limited.
Go to www.peugeot.co.uk for more information (compatibility,
more
help, ...).

06
322
3008_en_Chap12c_RD45_ed01_2015

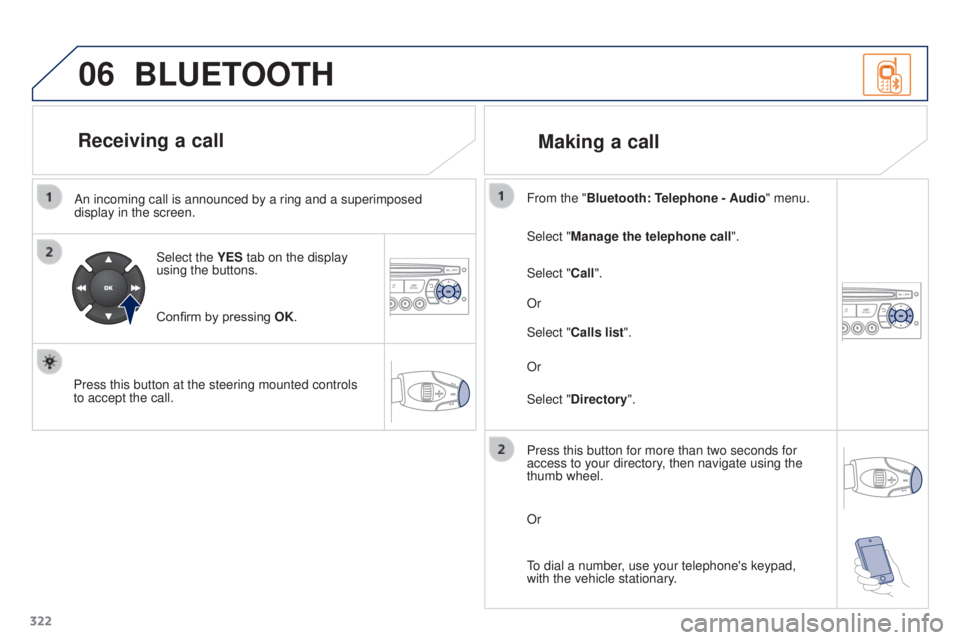

An incoming call is announced by a ring and a superimposed
display in the screen.Select the YES tab on the display
using the buttons.
Confirm by pressing OK.
Press this button at the steering mounted controls
to accept the call. Select "Manage the telephone call
".
Select "Call". From the "Bluetooth: Telephone - Audio " menu.
Or
Select "Calls list".
Or
Select "Directory ".
BLUETOOTH
Receiving a call
Making a call
Press this button for more than two seconds for
access to your directory, then navigate using the
thumb wheel.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.

06
323
3008_en_Chap12c_RD45_ed01_2015

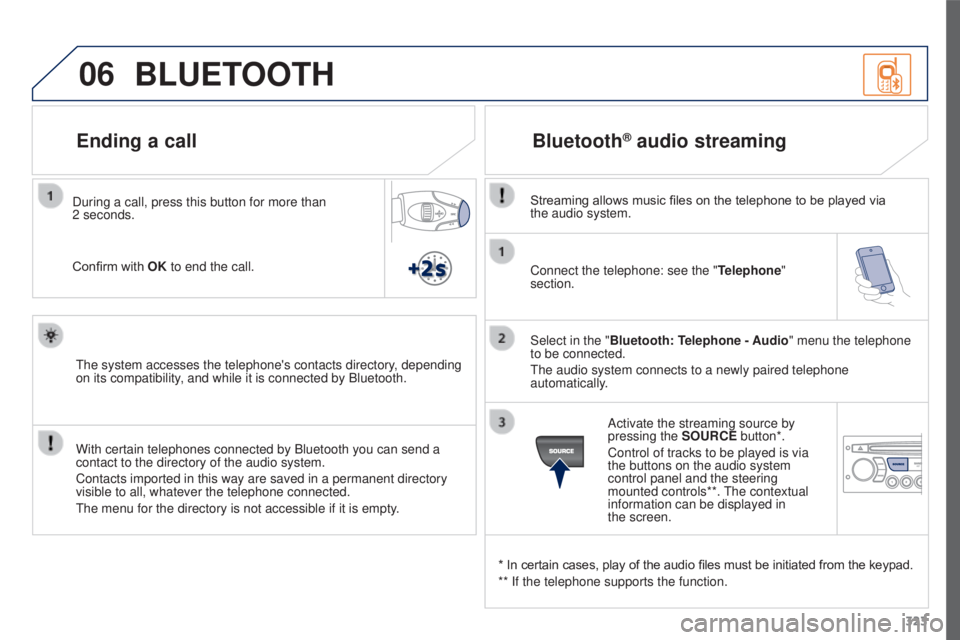

Connect the telephone: see the "Telephone"
section.
Select in the "Bluetooth: Telephone - Audio" menu the telephone
to be connected.
The audio system connects to a newly paired telephone
automatically.
Bluetooth® audio streaming
Streaming allows music files on the telephone to be played via
the audio system.
* In certain cases, play of the audio files must be initiated from the keypad.
** If the telephone supports the function. Activate the streaming source by
pressing the
SOURCE button*.
Control of tracks to be played is via
the buttons on the audio system
control panel and the steering
mounted controls**. The contextual
information can be displayed in
the
screen.
During a call, press this button for more than
2

seconds.
Confirm with OK to end the call.
BLUETOOTH
The system accesses the telephone's contacts directory, depending
on its compatibility, and while it is connected by Bluetooth.
With certain telephones connected by Bluetooth you can send a
contact to the directory of the audio system.
Contacts imported in this way are saved in a permanent directory
visible to all, whatever the telephone connected.
The menu for the directory is not accessible if it is empty.
Ending a call

07
324
3008_en_Chap12c_RD45_ed01_2015

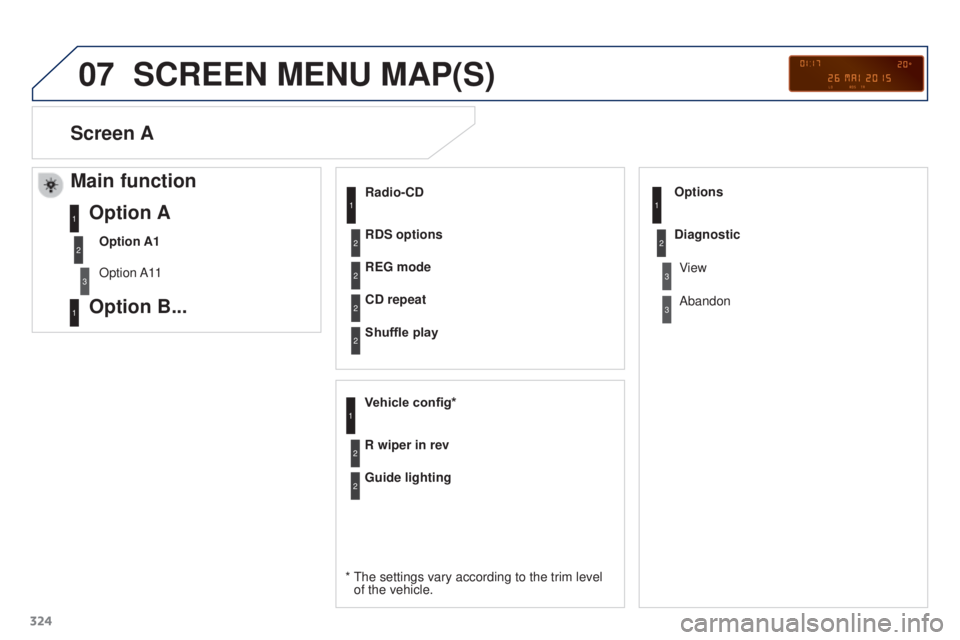

SCREEN MENU MAP(S)
Radio-CD
*
The settings vary according to the trim level
of

the vehicle.
REG mode
CD repeat
Shuffle play
Vehicle config*
R wiper in rev Options
Guide lighting Diagnostic
RDS options
View
Abandon1
2
3
3
1
2
2
2
2
1
2
2
Screen A
Main function
Option A1
Option A11
Option A
Option B...1
2
3
1

07
325
3008_en_Chap12c_RD45_ed01_2015
Units
Temperature: °Celsius / °Fahrenheit
Fuel consumption:
KM/L


- L/100 - MPG1
2
2

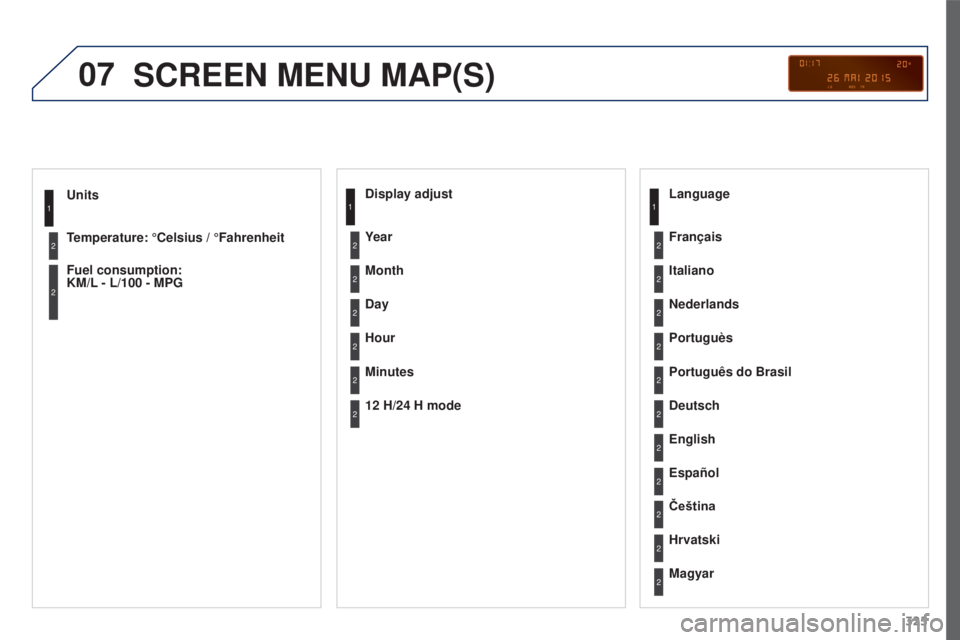

SCREEN MENU MAP(S)
Display adjust
Month
Day
Hour
Minutes Year
12 H/24 H mode Language
Italiano
Nederlands
Portuguès
Português do Brasil Français
Deutsch
Čeština English
Hrvatski Español
Magyar1
2
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
2
2

07
326
3008_en_Chap12c_RD45_ed01_2015

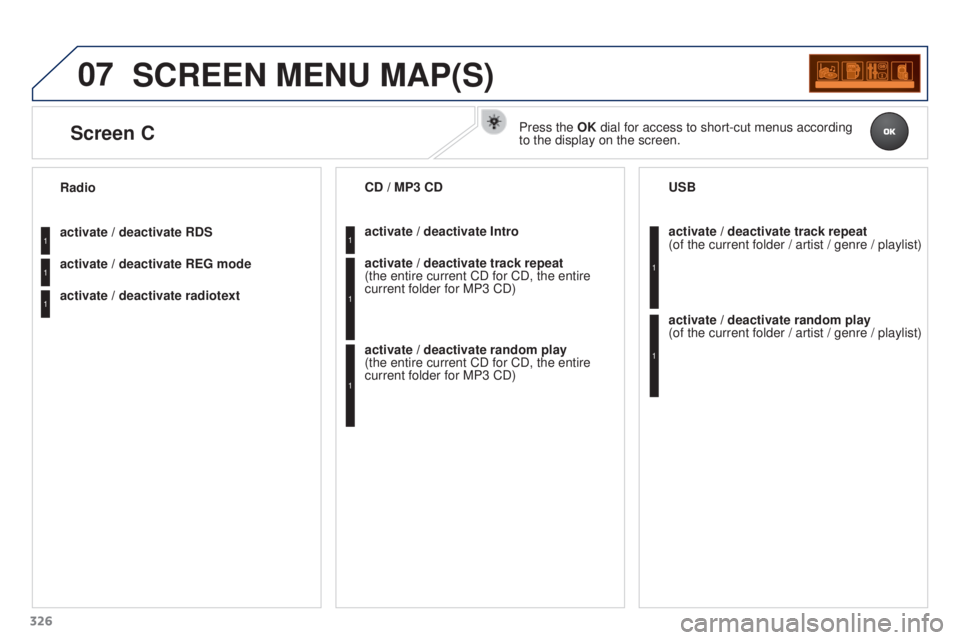

SCREEN MENU MAP(S)
activate / deactivate RDS
activate / deactivate REG mode
activate
/ deactivate radiotext
Radio
activate / deactivate Intro
CD / MP3 CD
activate / deactivate track repeat
(the
entire current CD for CD, the entire
current folder for MP3 CD)
activate
/ deactivate random play
(the
entire current CD for CD, the entire
current folder for MP3 CD) activate
/ deactivate track repeat
(of the current folder / artist / genre / playlist)
USB
activate
/ deactivate random play
(of
the current folder / artist / genre / playlist)1
1
1
1
1
1
1
1
Screen CPress the OK dial for access to short-cut menus according
to the display on the screen.

07
327
3008_en_Chap12c_RD45_ed01_2015

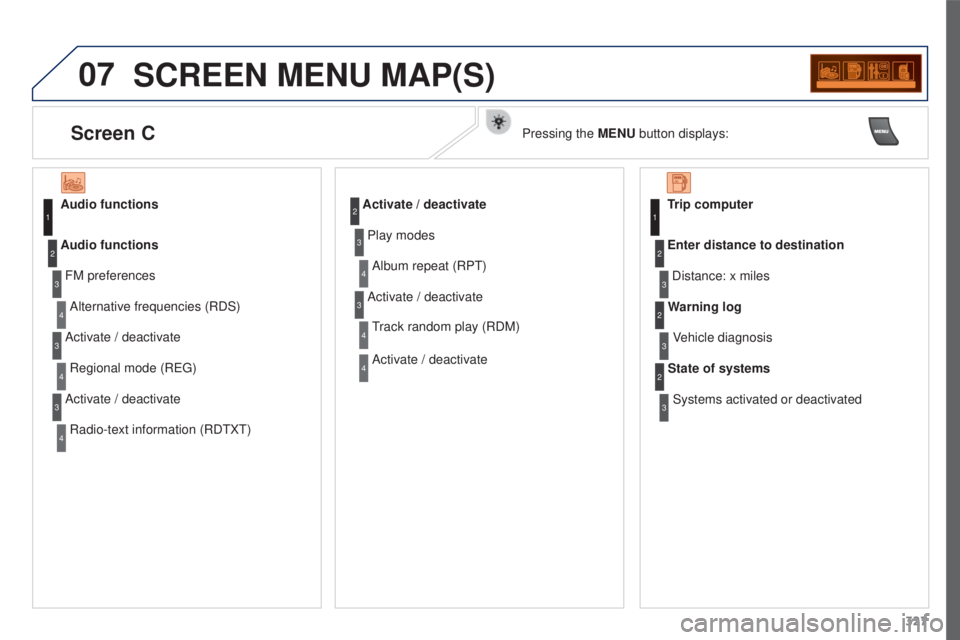

SCREEN MENU MAP(S)
Audio functionsFM preferencesAlternative frequencies (RDS)
Audio functions
Activate
/ deactivate
Regional mode (REG)
Activate
/ deactivate
Radio-text information (RDTXT)1
2
3
4
3
4
3
4
Activate / deactivate
Play modes Album repeat (RPT)
Activate
/ deactivate
Track random play (RDM)
Activate
/ deactivate2
3
4
3
4
4
Trip computerDistance: x miles
Enter distance to destination
Vehicle diagnosis
Warning log
Systems activated or deactivated
State of systems1
2
3
3
2
3
2
Screen CPressing the MENU button displays:

07
328
3008_en_Chap12c_RD45_ed01_2015

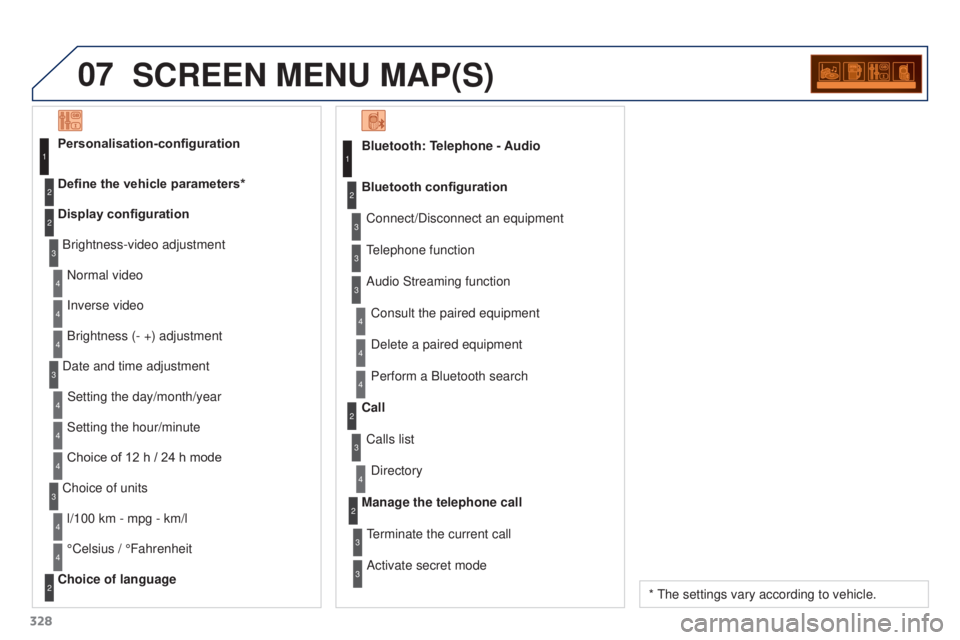

SCREEN MENU MAP(S)
Bluetooth: Telephone - AudioConnect/Disconnect an equipment
Consult the paired equipment
Bluetooth configuration
Telephone function
Audio Streaming functionDelete a paired equipment
Perform a Bluetooth search
Calls list
Call
Directory
Terminate the current call
Manage the telephone call
Activate secret mode1
2
3
3
3
4
4
4
2
3
4
2
3
3
Brightness-video adjustment
Display configuration Define the vehicle parameters* Personalisation-configuration
Normal video
Inverse video
Brightness (- +) adjustment
Date and time adjustment Setting the day/month/year
Setting the hour/minute
Choice of 12 h
/ 24 h mode
Choice of units l/100 km - mpg - km/l
°Celsius
/ °Fahrenheit
Choice of language
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
* The settings vary according to vehicle.
